Faton FA950V User manual

Model:BKJ-70
Model: FA950V

Sleep mode
Child-lock
Timer-mode
Anion mode
2

Sleep mode
Child-lock
Timer-mode
Anion mode
3
4
6
7
8
8
8
9
9
10
12
14
14
15
15
16
16
16
16
16
17
17
18
20
20
21
22
22
22
23
23

4

5

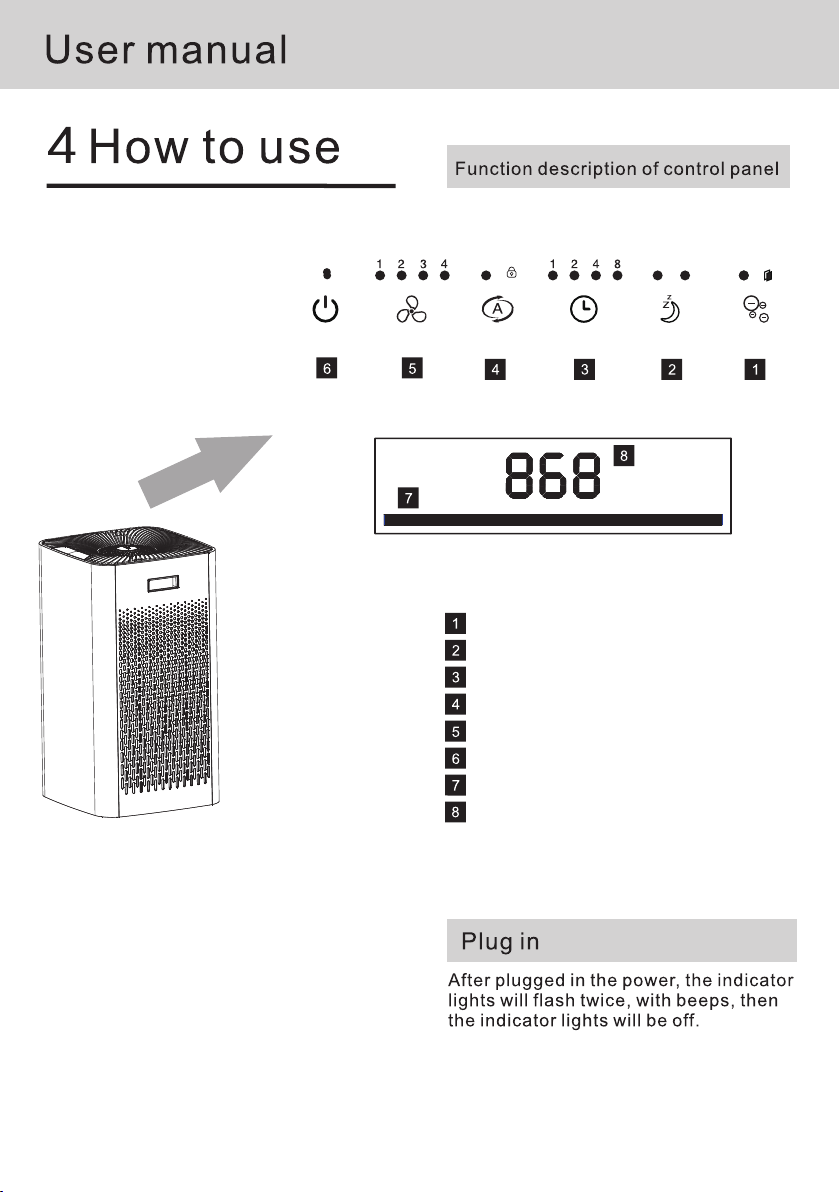

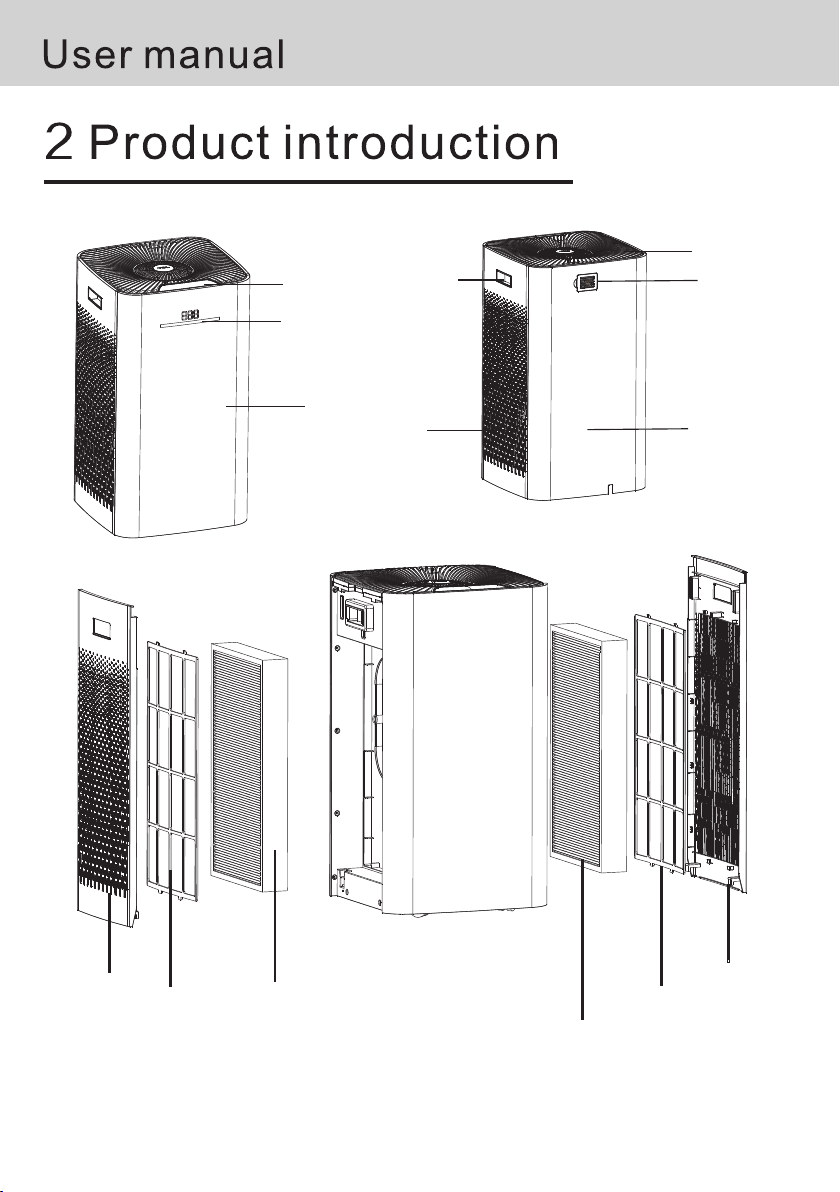

Control panel Handle
Indicator light of air quality
Air outlet coverAir outlet cover
Sensor cover
Back cover
Front panel
air inlet
Left cover
Pre-filter Pre-filter
Right cover
HEPA filter+ Activated carbon filter net
HEPA filter+ Activated carbon filter net
ON/OFF SPEED AUTO
(Child-lock press 3s)
TIMER SLEEP ANION
Reset(press 3s)
Indicator light of wind speed
Indicator light of Auto mode
Indicator light of timer
Indicator light of Sleep mode
Indicator light of Anion
Indicator light
of child-lock
Indicator light of ON/OFF
ON/OFF button
Wind speed button
TIMER button
SLEEP button
Anion button
(filter replacement reset button)
Auto speed button
(child-lock botton)
Indicator light of filter
replacement
6

Control panel Handle
Indicator light of air quality
Air outlet coverAir outlet cover
Sensor cover
Back cover
Front panel
air inlet
Left cover
Pre-filter Pre-filter
Right cover
HEPA filter+ Activated carbon filter net
HEPA filter+ Activated carbon filter net
ON/OFF SPEED AUTO
(Child-lock press 3s)
TIMER SLEEP ANION
Reset(press 3s)
Indicator light of wind speed
Indicator light of Auto mode
Indicator light of timer
Indicator light of Sleep mode
Indicator light of Anion
Indicator light
of child-lock
Indicator light of ON/OFF
ON/OFF button
Wind speed button
TIMER button
SLEEP button
Anion button
(filter replacement reset button)
Auto speed button
(child-lock botton)
Indicator light of filter
replacement
7

Indicator light of air quality
side cover
side covers and press
side covers
side covers,please align at
play button in the left and right cover and pull
the cover, then you can lift the left and right
cover and pull out slightly.
then side covers will be
absorbed automatically.

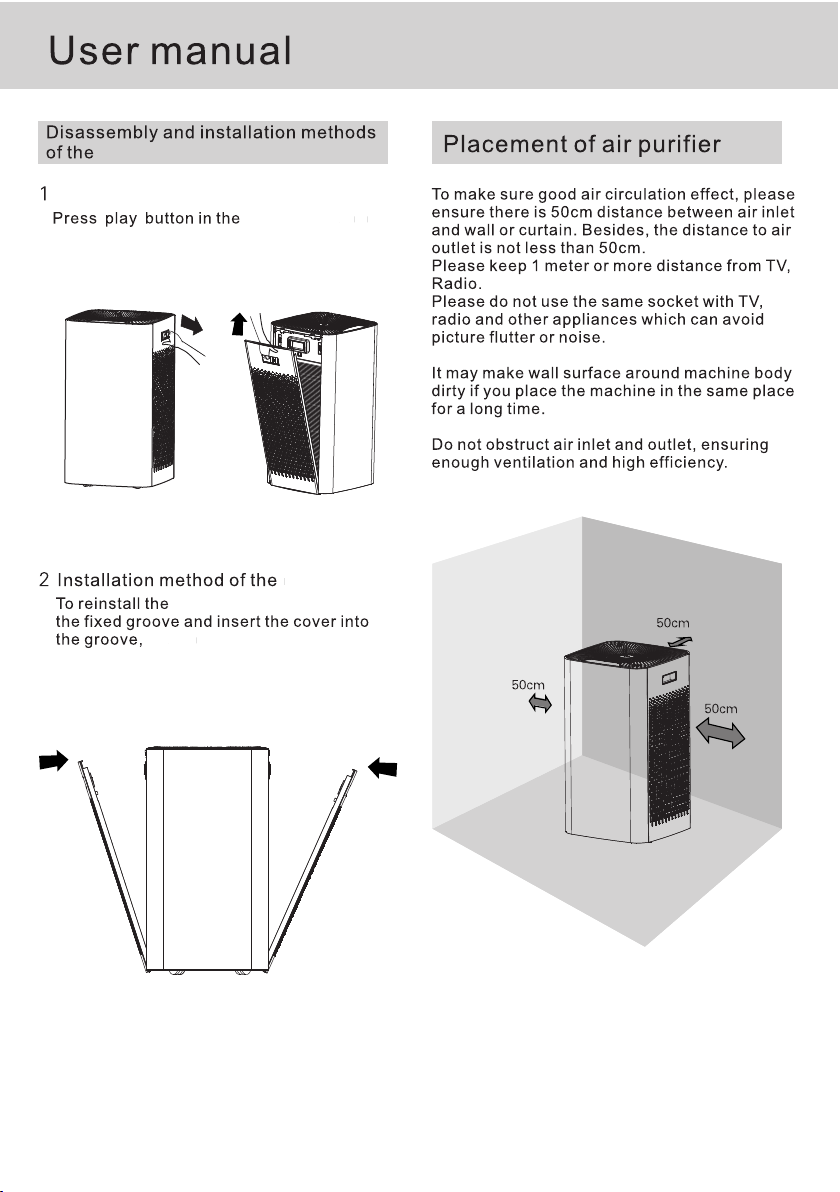

Disassembly method of the side covers.
8

Indicator light of air quality
side cover
side covers and press
side covers
side covers,please align at
play button in the left and right cover and pull
the cover, then you can lift the left and right
cover and pull out slightly.
then side covers will be
absorbed automatically.
Disassembly method of the side covers.
9

Press play button in the left and right
cover and pull the cover, then you can
lift the left and right cover and pull out
slightly.
side covers,please
then side covers
will be absorbed automatically.
10

Press play button in the left and right
cover and pull the cover, then you can
lift the left and right cover and pull out
slightly.
side covers,please
then side covers
will be absorbed automatically.
11

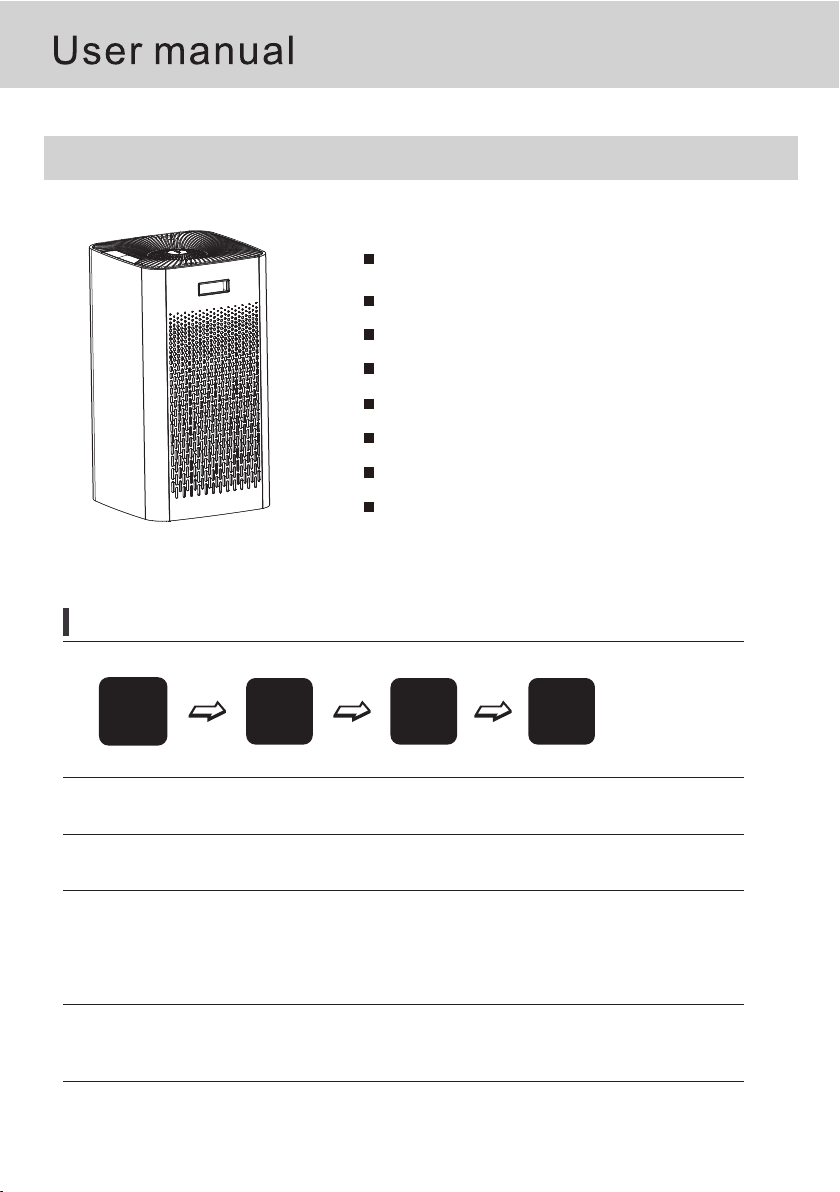

Polluted air inlet
Polluted air inlet
Clean air outlet
High
efficient
HEPA
filter
Hight
efficient
activated
carbon
filter
Anioin
function
Gathering multiple functions in one
Unique 4 steps purification technology
Efficient purification of PM2.5, smoke, pollen and other
particulate pollutants
Formaldehyde elimination
4 wind speeds design
Timer mode
Filter replacement indicator
Configured with manual, automatic and sleep modes
Digital display of PM2.5
Air quality indicator by colors
Pre-filter
Pre-filter Intercepting hair, fiber, large particles, dander, etc.
HEPA filter can effectively remove PM2.5, smoke, pollen, mites and other particles
High quality modified activated carbon filter is made of high quality activated carbon
and modified by special proprietary technology to purify formaldehyde and other gas
pollutants efficiently.
Negative ions "vitamin in the air", the machine releases a lot of negative oxygen
ions, making the air fresh and natural.
12

Polluted air inlet
Polluted air inlet
Clean air outlet
High
efficient
HEPA
filter
Hight
efficient
activated
carbon
filter
Anioin
function
Gathering multiple functions in one
Unique 4 steps purification technology
Efficient purification of PM2.5, smoke, pollen and other
particulate pollutants
Formaldehyde elimination
4 wind speeds design
Timer mode
Filter replacement indicator
Configured with manual, automatic and sleep modes
Digital display of PM2.5
Air quality indicator by colors
Pre-filter
Pre-filter Intercepting hair, fiber, large particles, dander, etc.
HEPA filter can effectively remove PM2.5, smoke, pollen, mites and other particles
High quality modified activated carbon filter is made of high quality activated carbon
and modified by special proprietary technology to purify formaldehyde and other gas
pollutants efficiently.
Negative ions "vitamin in the air", the machine releases a lot of negative oxygen
ions, making the air fresh and natural.
13

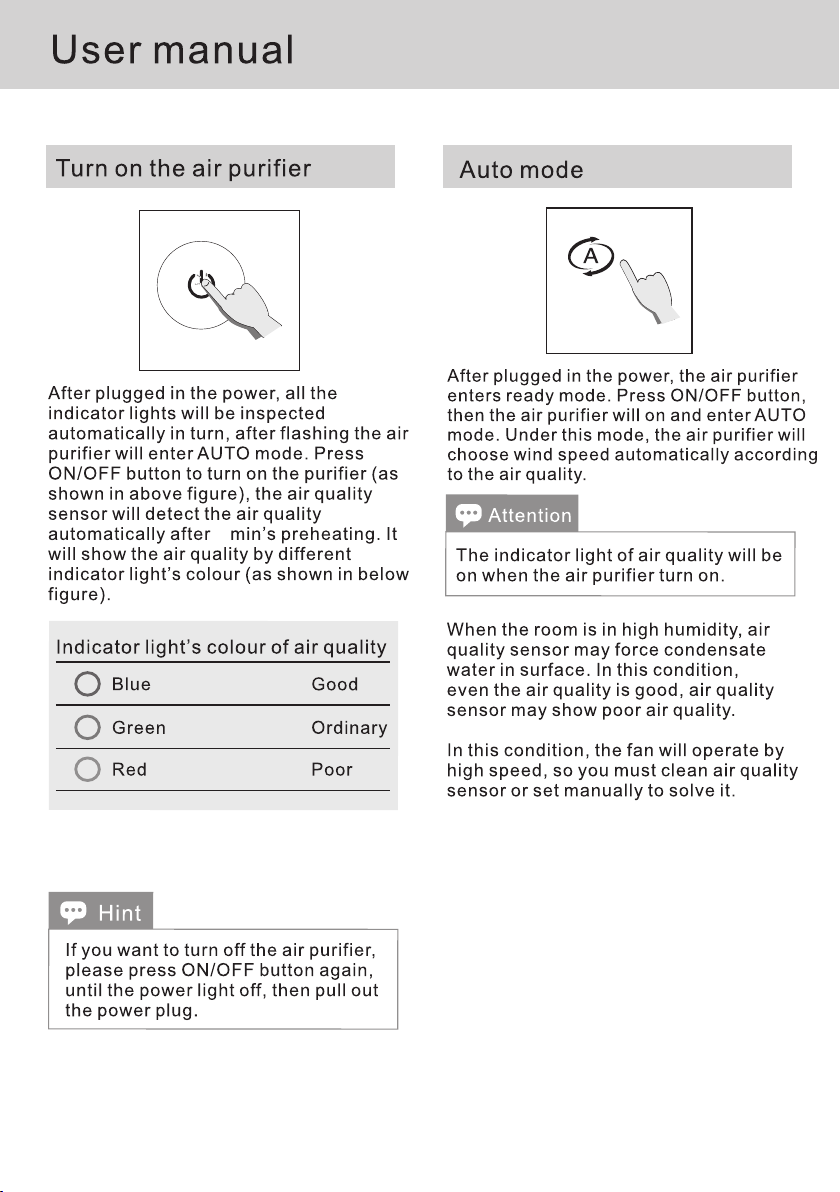

ON/OFF SPEED AUTO
(Child-lock press 3s)
AUTO
(Child-lock press 3s)
TIMER SLEEP ANION
Reset(press 3s)
Anion(filter replacement reset )button
SLEEP button
TIMER button
Auto speed (child-lock) button
Wind speed button
ON/OFF button
Indicator light of air quality
Digital display of PM2.5
10
14

ON/OFF SPEED AUTO
(Child-lock press 3s)
AUTO
(Child-lock press 3s)
TIMER SLEEP ANION
Reset(press 3s)
Anion(filter replacement reset )button
SLEEP button
TIMER button
Auto speed (child-lock) button
Wind speed button
ON/OFF button
Indicator light of air quality
Digital display of PM2.5
10
15

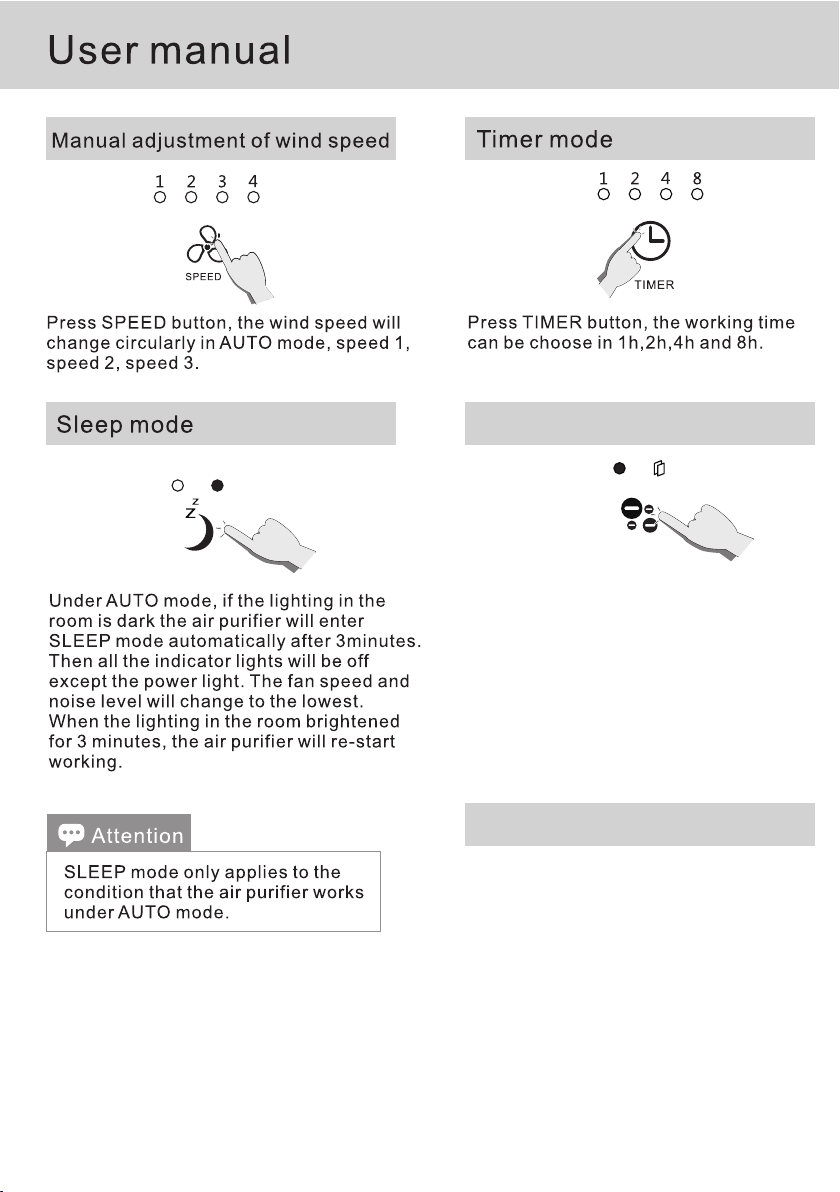

SLEEP
ANION
Reset(press 3s)
When the outlet cover is installed, the
position of the buckle must be correct.
If the installation is not in place, the
machine will not be turned on.
Attention
ANION function
Child-lock function
Press ANION button,with beeps, anion
function will work, and the indicator light
of ANION will be on. Press ANION button
again, the purifier will out of anion
function , the indicator light of ANION will
be off. When filter replacement indicator
light be on, user needs to replace the filter
and press ANION button 3s to reset, then
wind speed indicator light will stop flash.
When running the machine (except sleep
mode),press the Child-lock button for 3s,
with beeps the indicator light of Child-lock
will be on. In this condition, the purifier
won’t be action when you press any key
(except Child-lock button).
16

SLEEP
ANION
Reset(press 3s)
When the outlet cover is installed, the
position of the buckle must be correct.
If the installation is not in place, the
machine will not be turned on.
Attention
ANION function
Child-lock function
Press ANION button,with beeps, anion
function will work, and the indicator light
of ANION will be on. Press ANION button
again, the purifier will out of anion
function , the indicator light of ANION will
be off. When filter replacement indicator
light be on, user needs to replace the filter
and press ANION button 3s to reset, then
wind speed indicator light will stop flash.
When running the machine (except sleep
mode),press the Child-lock button for 3s,
with beeps the indicator light of Child-lock
will be on. In this condition, the purifier
won’t be action when you press any key
(except Child-lock button).
17

ANION
Reset(press 3s)
ANION
Reset(press 3s)
ANION
Reset(press 3s)
Press play button in the left and right cover
and pull the cover, then you can lift the left
and right cover and pull out slightly.
side covers,
then side
covers will be absorbed automatically.
18

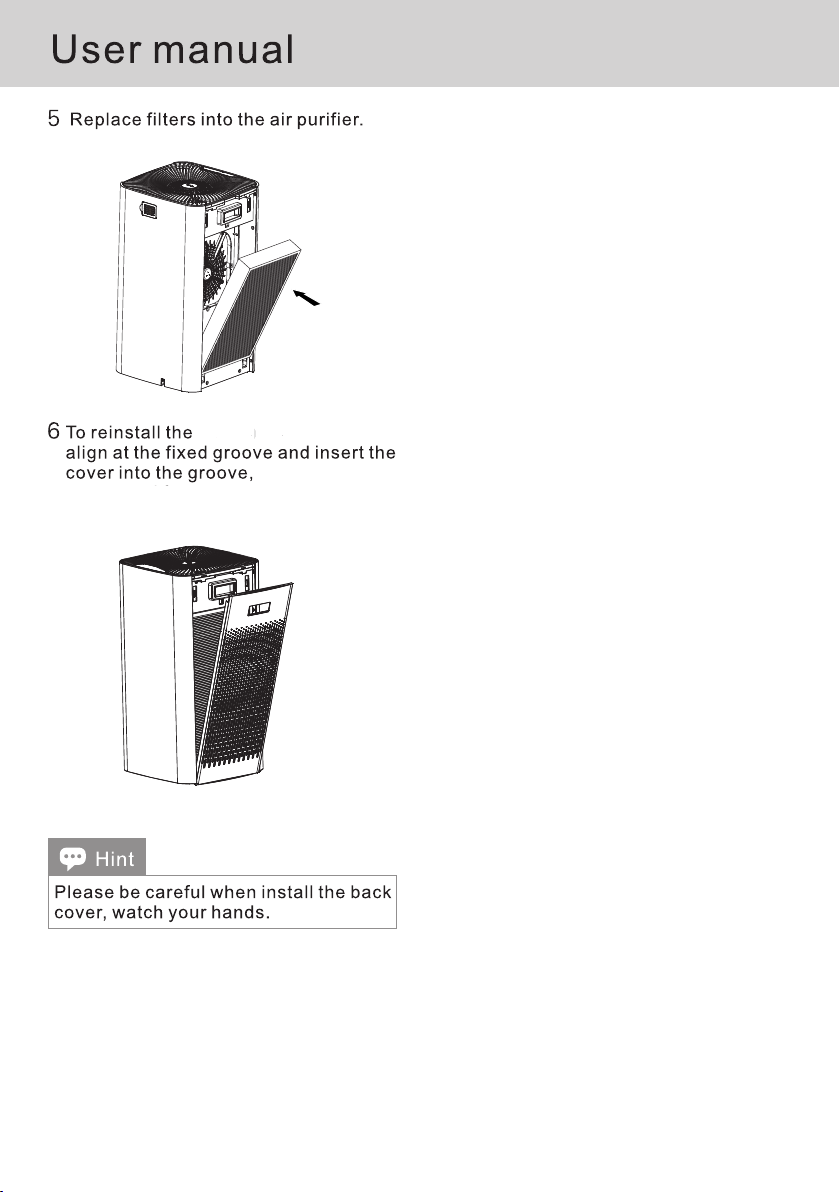

ANION
Reset(press 3s)
ANION
Reset(press 3s)
ANION
Reset(press 3s)
Press play button in the left and right cover
and pull the cover, then you can lift the left
and right cover and pull out slightly.
side covers,
then side
covers will be absorbed automatically.
19

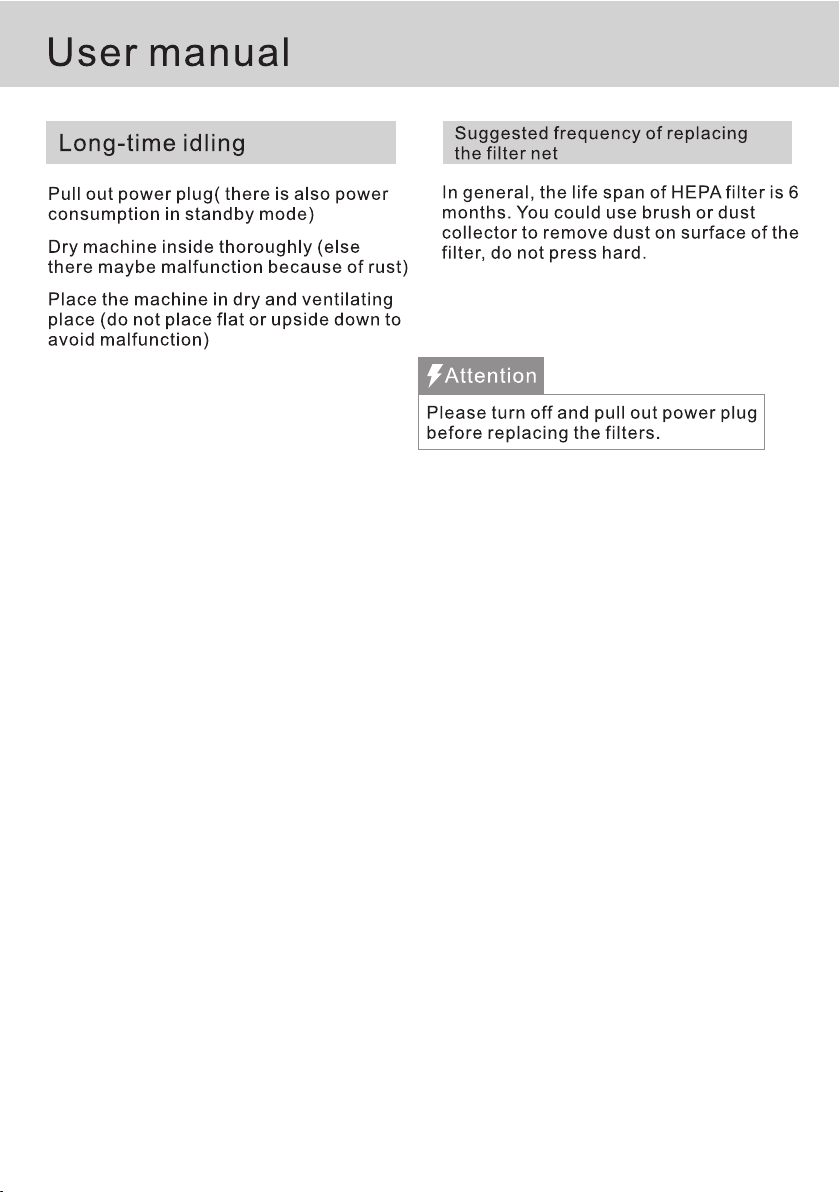

Never use water
to wash the HEPA and activated filter,
only the pre-filter can be washable.
20
