FCI HT-0525 User manual

ELECTRONICS
FCI Electronics Manual Part No. 415839-001
Issued: Date (01/22/99) Page 1of 5
Rev. 12/10/01 ECR V10367 Revision C

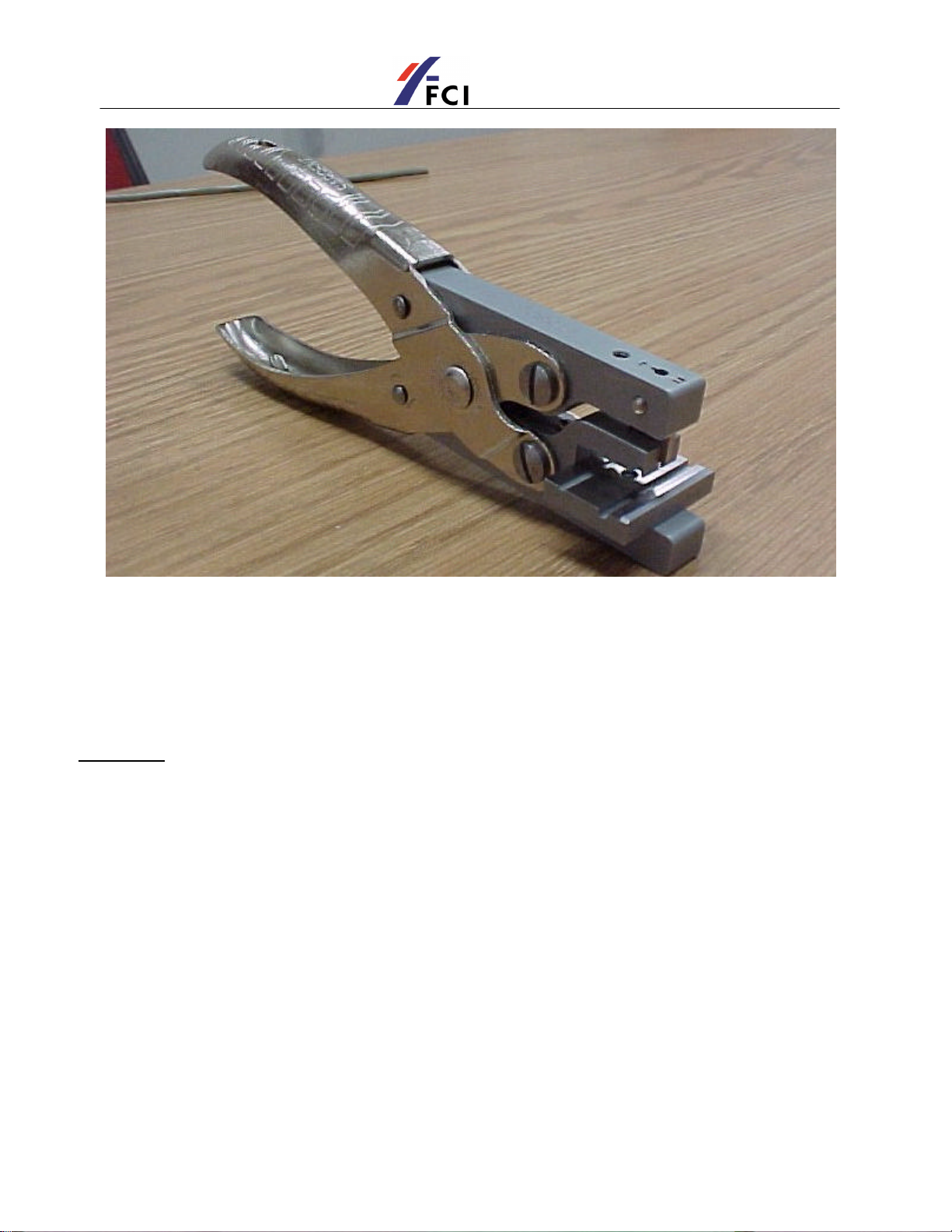

HT-0525
5-ROW WIRE INSERTION
REPAIR TOOL
Part Number 415816-001
FCI MANUAL P/N 415839-001
PDM: Rev:C ReleasedSTATUS: Printed: Oct 03, 2003

ELECTRONICS
FCI Electronics Manual Part No. 415839-001
Issued: Date (01/22/99) Page 2of 5
Rev. 12/10/01 ECR V10367 Revision C
5-ROW WIRE INSERTION REPAIR TOOL
Table of Contents
OPERATION .............................................................................................................................................3
Operating Instructions...............................................................................................................................3
REFERENCE DRAWINGS:
415816-001 5 Row Wire Insertion Repair Tool
REFERENCE DOCUMENTS:
FORM # E-3246--Hand Tool Warranty
FORM # E-3247--FCI Electronics Address List
PDM: Rev:C ReleasedSTATUS: Printed: Oct 03, 2003

ELECTRONICS
FCI Electronics Manual Part No. 415839-001
Issued: Date (01/22/99) Page 3of 5
Rev. 12/10/01 ECR V10367 Revision C
OPERATION
Operating Instructions
Place the connector sub-assembly in the nest of the tool and position it under the
wire insertion punch.
Position the wire to be inserted before the hole in the slot that the wire insertion
punch slides in.
PDM: Rev:C ReleasedSTATUS: Printed: Oct 03, 2003

ELECTRONICS
FCI Electronics Manual Part No. 415839-001
Issued: Date (01/22/99) Page 4of 5
Rev. 12/10/01 ECR V10367 Revision C
If the wire is to be inserted and not solder push the wire gently to the bottom of the
hole. If the wire is to be soldered, advance the wire into the hole just until the wire
insulation barely enters the hole.
Squeeze the pliers’ handles until the top detail hits the top of the bottom detail. This
inserts the wire.
PDM: Rev:C ReleasedSTATUS: Printed: Oct 03, 2003

ELECTRONICS
FCI Electronics Manual Part No. 415839-001
Issued: Date (01/22/99) Page 5of 5
Rev. 12/10/01 ECR V10367 Revision C
Remove the connector sub-assembly from the tool and inspect results.
PDM: Rev:C ReleasedSTATUS: Printed: Oct 03, 2003
