FeelTech FY30 Series User manual

Series FY30xxS function / arbitrary waveform generator user manual
FeelTech
FY30xxS Series
Function / Arbitrary
Waveform Generator
User manual
Rev1.2
2013-4-15

Series FY30xxS function / arbitrary waveform generator user manual
FeelTech
Thank you for purchasing our products. To ensure the normal usage of the device, please
read the user manual carefully before using it.,
●FY30xxS Series Function / Arbitrary Waveform Generator at a Glance
This manual applies to FY30xxS series function / arbitrary waveform generator for various models. The
value of XX (e.g. Model name FY3060S) represents the upper limit of the Model instrument frequency (MHz).
Series FY30xxS DDS Function / Arbitrary Waveform Signal Generator uses direct digital synthesis
(DDS), FPGA designed, 14 kinds of commonly used interior prefabricated waveform; This product also allows
user edit the output 8-bit, 1024-point user-defined arbitrary waveform. The product is designed and
implemented for its simplicity, convenience, high stability and low distortion; In addition, dual TTL drive
output, wideband frequency measurement, counter functions, swept linear and logarithmic sweep function
which enables frequency range scanning at any time are all supported. The output signal can be adjusted to
amplitude and dc bias. FY30xxS is implemented to achieve the perfect combination of ease of usage and high
technical standard both of which help user complete tasks in faster and more efficient manner. Lastly, such
device can also be used as industrial equipment supporting module for electronic engineering, laboratory,
production lines and educational purpose.
●The instrument has the following excellent technical indicators and features:
◆built-in arbitrary waveform capability of 100 MSa / s sampling rate
◆Downloadable 1024 three-point arbitrary waveform memory storage
◆14 kinds of commonly used prefabricated waveform
◆Dual differential TTL-level output
◆
Small, multi-function, easy to carry
◆High Frequency Accuracy: Frequency accuracy up to 10-6 levels of magnitude
◆High frequency resolution: the full range of frequency resolution 10mHz
◆no range limit: the full range of frequency, regardless of file, direct digital settings
◆waveform with high precision: the output waveform is synthesized by the value of the function to calculate high precision
waveform distortion
◆a variety of waveforms: sine, square, triangle wave, sawtooth wave,，User-defined waveform (arbitrary wave),
commonly used pulse, noise, ECG, AM, FM and other waveforms.
◆scan features: a frequency scanning function, scan start and end points arbitrarily set
◆Storage Features: can store 10 sets of instrument status parameters set by the user, can be called up to reproduce
◆Operation: All key operation, LCD1602 LCD English display, direct digital set or continuous adjustment knob
◆High reliability: LSI, surface mount technology, high reliability, long life
◆Frequency measurement: self-60MHz frequency counter functions, internal / external signal frequency measurement

Series FY30xxS function / arbitrary waveform generator user manual
FeelTech
●Technical Specifications
◆signal output
Output waveform Sine, square wave (variable duty cycle), triangle wave, sawtooth,
Arbitrary waveforms, commonly used pulse, noise, ECG,AM, FM and other waveforms.
Output amplitude ≥10Vp-p (no load)
Output impedance 50 ohms ± 10%
DC bias ± 3V
Frequency Range 0.01Hz to 2MHz (FY3002S)
0.01Hz ~ 3MHz (FY3003S)
0.01Hz ~ 5MHz (FY3005S)
0.01Hz ~ 8MHz (FY3008S)
0.01Hz ~ 10MHz (FY3010S)
0.01Hz ~ 12MHz (FY3012S)
Frequency resolution 0.01Hz(10mHz)
FrequencyAccuracy ±5×10-6
Frequency Stability ±2×10-6/3hours
Sine wave distortion ≤0.8% (Reference frequency 1kHz)
Triangle wave linearity ≥98% (0.01Hz~10kHz)
Square wave an increase of Fall Time ≤100ns
Square wave duty cycle range 1%~99%
uTTLExport
Frequency range 0.01Hz ~ 2MHz/3MHz /5MHz/8MHz/10MHz/12MHz
Margin >3Vp-p
Fanout coefficient >20 TTL load
uCOUNTER Counter function
Counting range 0-4294967295
Measurement frequency range 1Hz~60MHz
Input amplitude 0.5Vp-p~20Vp-p
uScan function (the only FY3000S series)
Scan mode Linear sweep, logarithmic sweep
Frequency setting range 0.01Hz ~ 2MHz/3MHz /5MHz/8MHz/10MHz/12MHz
Frequency sweep range M1 default the frequency ~~ M2 preset frequency
Scan rate 1s ~ 99s / stepper
uOther
Display LCD1602 LCD display in English
Storage and Recall function M0-M9 (M0: default transferred)
Size 95mm (length) × 65 mm (width) x 30mm (height)
Buzzer function Can be programmed to turn on or off
Production Process Surface mount technology, LSI

Series FY30xxS function / arbitrary waveform generator user manual
FeelTech
High reliability and long service life
Operating Characteristics All key operations, continuous adjustment knob
Environmental conditions Temperature：0~40℃ Humidity：﹤80%

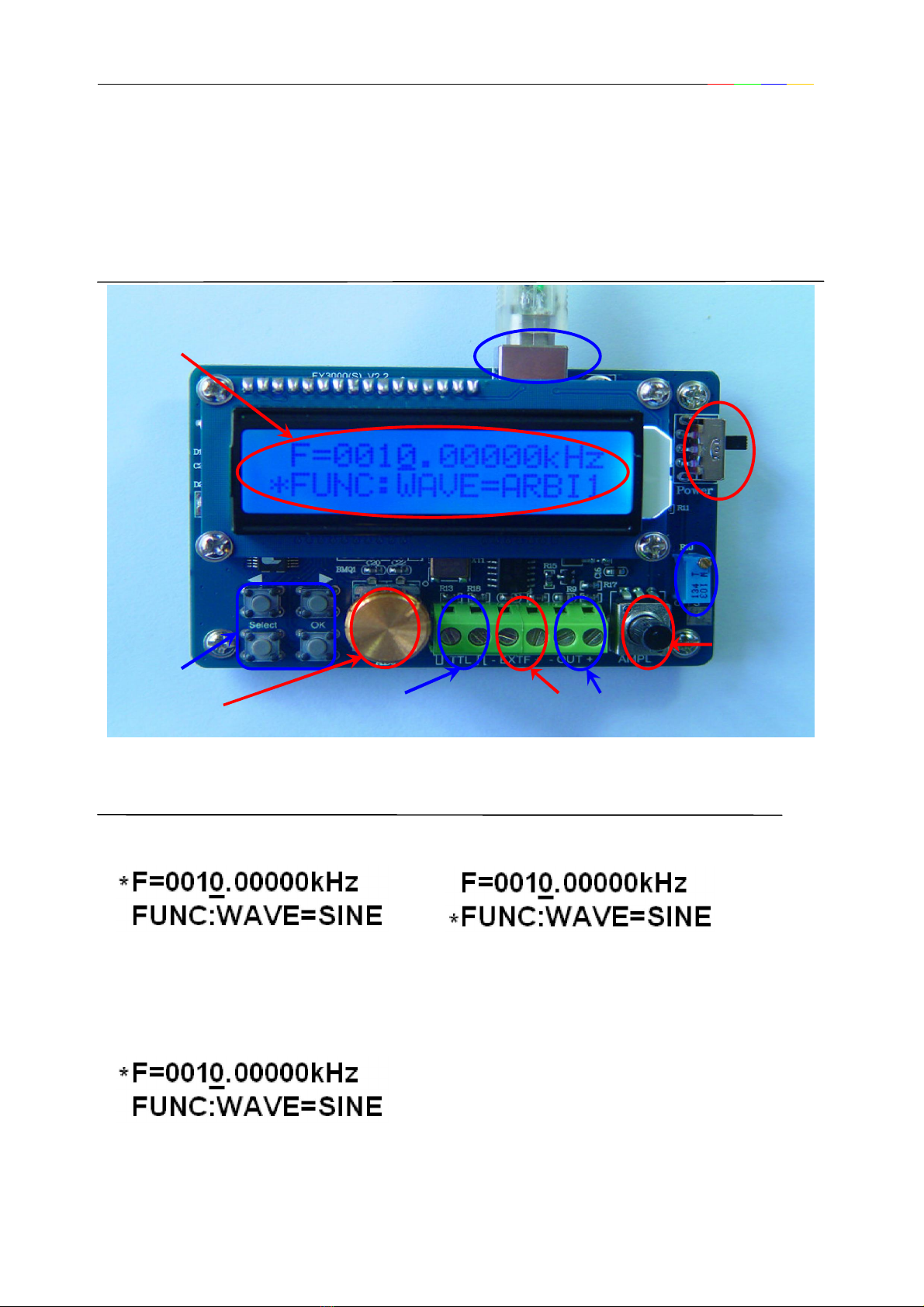

●Description of the structure and function
●Operating Instructions
1. The “Select” key is used to toggle between frequency setting and function setting. The
"*" indicates the current setting mode.
2. To adjust the frequency, Using the [t] key and the [u] key to move the cursor to left or
right indication position Using the [OK] button to switch the frequency display units
(Hz, kHz and MHz). To change the output frequency, please turn the coding switch to
increase or decrease value.(Note: arbitrary waveform frequency is the reference frequency, namely: the actual
output frequency = frequency value × the 1024-point arbitrary waveform cycle entered by the user)：
Step frequency：0.01kHz
LCD
Function keys
USB communication and power supply interface
Power switch
Bias adjustment
Amplitude
Frequency measurement
Waveform output
Coding switch Dual differential
Counter input
TTL-level output
modulation

Series FY30xxS function / arbitrary waveform generator user manual
FeelTech

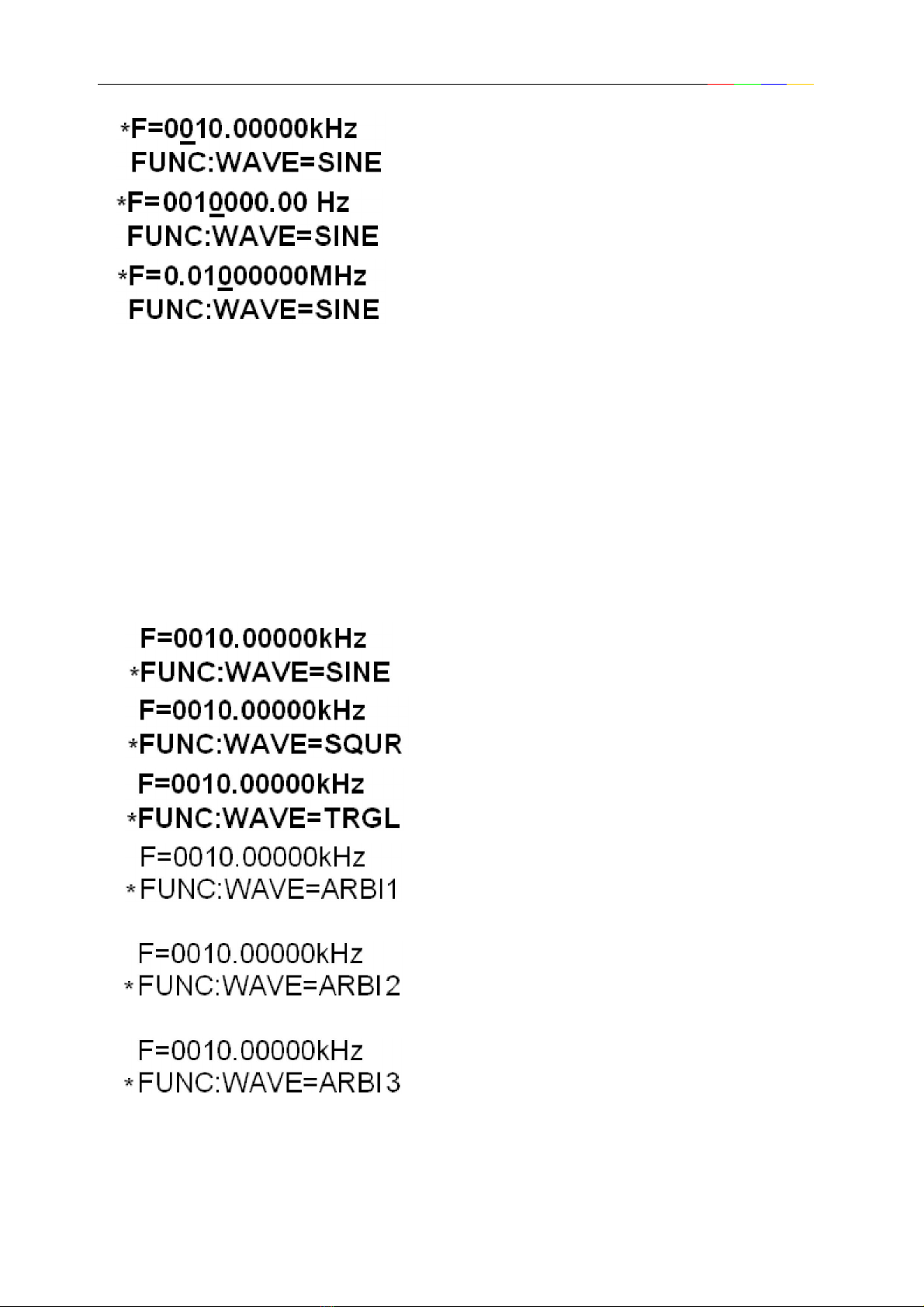

Stepped Frequency: 100kHz, etc.
Unit of frequency becomes Hz
Unit of frequency becomes MHz
3. When changing the function, use the [t] or the [u] button to choose the item to be
adjusted, such as WAVE, DUTY, COUNTER, EXT.FREQ, SAVE and LOAD
4. WAVE represents the current adjusted waveforms; such value can be modified by
turning the coding switch the current waveform and set by pressing the OK button.
Abbreviation is listed below:
a) SINE corresponds to sine wave
b) SQUR corresponds to square wave,
c) TRGLcorresponds to triangular wave,
d) ARBI1ARBI2ARBI3 user-defined arbitrary waveform
e) prec1 PREC2, PREC3, PREC4, PREC5, PREC6, PREC7 prefabricated waveform.
（Note: arbitrary waveform shows the frequency of the reference frequency, the actual output frequency = frequency
× user-defined waveform cycle)
The main output waveform is a "sine wave"
The main output waveform is a "square wave"
The main output waveform is a "triangle wave"
The main output waveform is arbitrary
waveform (initial: Lorentz pulse)
The main output waveform is arbitrary
waveform (initial: multiple audio)
The main output waveform is arbitrary
waveform (initial: random noise)

Series FY30xxS function / arbitrary waveform generator user manual
FeelTech
The main output waveform is "ECG"
The main output waveform is trapezoidal pulse
The main output waveform is a "Cink pulse"
The main output waveform is "narrow pulse"
The main output waveform is a Gaussian white
noise "
The main output waveform amplitude
modulation waveform "
The main output waveform is "FM waveform"
5. DUTY presents for the duty cycle, the coding switch is used to adjust the duty cycle.
Range of value fordifferent wave form can be referred as below:
a) SQUR can be adjusted between 1% to 99%,
b) Three types of value in TRGL
i. standard triangular wave by 50%,
ii. greater than 50% and less than 50%correspond to two different sawtooth
wave,
c) the duty cycle is not applicable to SINE.
: (WAVE=SQUR)
: (WAVE=SQUR)

Series FY30xxS function / arbitrary waveform generator user manual
FeelTech
: (WAVE=TRGL)
: (WAVE=TRGL)
: (WAVE=TRGL)
6. COUNTER: the value of counter is displayed on screen. Import pulse from EXTF input,
Reset the count value by pressing the OK button.
7. EXT.FREQ refers to outside the frequency measurement function which is capable of
measuring the EXTF input signal frequency.
8. SAVE: current frequency value, current waveform and duty cycle data can be kept in
the instrument's internal memory for up to 10 different combinations. To save the
setting to a specific memory slot, user can turn the coding switch to change to number
of memory slot in which setting will be saved, and press the OK button to save the data.
Upon successfully completion of saving the data, “OK” is displayed on the lower-right
corner of the screen. Setting saved into memory slot 0 will incur such setting being
loaded from restart of the device. M1 andM2 has a special significance for those
FY3000S series device which has SWEEP function, M1 refers to the starting frequency;
M2 refers to the stop frequency. If SWEEP function is required, user has to ensure
validity of the value set for M1 and M2 where FM2> FM1.
（Set the storage location）
(Storage parameters to position '0 'is completed, OK
displays)
9. LOAD is used to read parameters from current storage location, the operations is
similar to SAVE. Please refer to SAVE.

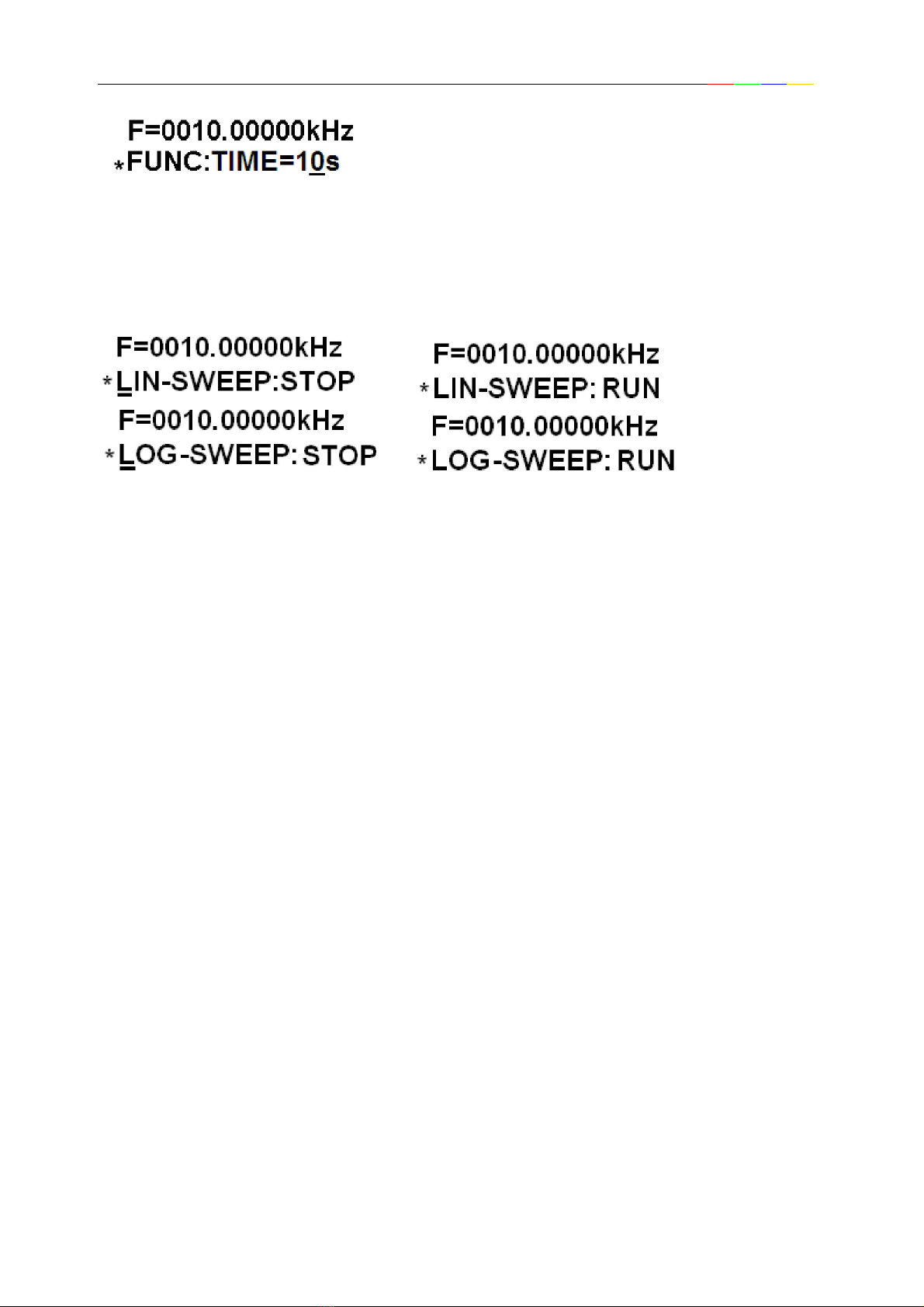

10. TIME is set to scan time setting range: 1 second to 99 seconds.

Series FY30xxS function / arbitrary waveform generator user manual
FeelTech
11. SWEEP represents frequency sweep function, divided into LIN-SWEEP (linear sweep)
and LOG-sweep (sweep). The default sweep mode is the LIN-SWEEP mode, the mode
can be set by turning the coding switch. For starting the sweep, press the OK button;
the frequency of the output signal changes from the FM1 FM2, pressing the OK button
again to stop the sweep. Value of M1 and M2 frequency and scan time need to be saved
before starting sweep function.
12. TTL output can be synchronized to the same frequency output two differential TTL
level.
13.The amplitude adjustment potentiometerto adjust the amplitude of the output signal.
14.Bias adjustment potentiometerto adjust the output signal DC bias.
15.Buzzer function, each time you press the button, or turning coding switch generates a
pulse beep tone. Long-last beep tone will be issued when the operation is invalid. If user
finds the sound is disturbing and needs to be turned off, press and hold the [Select] key
when the device is switched off, and then turn on the power switch. Repeat same step for
turning on voice prompts.

Series FY30xxS function / arbitrary waveform generator user manual
FeelTech
●Safety Precautions
1、Before using the instrument, check the power supply is normal, in order to ensure the normal use of the
instrument and personal safety.
2、Must be used in the instrument's range of technical indicators.
3、Please do not change the instrument line, in order to avoid damage to the instrument and endanger the
safety.
●Warnings and personal injury
Do not place the product is used in the safety or emergency stop devices, as well as failure of the product
could result in personal injury in any other application, unless there is a special purpose and authorized use.
Before installation, use should refer to the instructions for use of the technical indicators. Failure to comply
could result in death and serious injury. The Company will not undertake all claims resulting in personal injury
or death, and relieve the impact on company managers and employees, as well as ancillary agents, distributors
and other claims that may arise, including: a variety of costs, compensation costs, attorneys' fees, and so on.
●Series FY30xxS function / arbitrary waveform generator, and accessories
(on behalf of the packing list)
1、FY30xxS function / arbitrary waveform generator
2、USB interface DC5V power supply a
3、A square head USB cable
4、User manual copy (PDF format)
After-sales service hotline 0371 -68,997,005
