SMA ennexOS SUNNY PORTAL User manual

SUNNY BOY
- +
10 - 30V
DC
X1
Digital
Input
RS485
ennexOS
DATA MANAGER
EDMM-10-BE-en-20 | Version 2.0ENGLISH
Operating manual
SMADATAMANAGERM with
SUNNYPORTAL powered by ennexOS

Legal Provisions SMA Solar Technology AG
Operating manualEDMM-10-BE-en-202
Legal Provisions
The information contained in these documents is the property of SMA Solar Technology AG. No
part of this document may be reproduced, stored in a retrieval system, or transmitted, in any form or
by any means, be it electronic, mechanical, photographic, magnetic or otherwise, without the prior
written permission of SMA Solar Technology AG. Internal reproduction used solely for the purpose
of product evaluation or other proper use is allowed and does not require prior approval.
SMA Solar Technology AG makes no representations or warranties, express or implied, with
respect to this documentation or any of the equipment and/or software it may describe, including
(with no limitation) any implied warranties of utility, merchantability, or fitness for any particular
purpose. All such representations or warranties are expressly disclaimed. Neither SMA Solar
Technology AG nor its distributors or dealers shall be liable for any indirect, incidental, or
consequential damages under any circumstances.
The exclusion of implied warranties may not apply in all cases under some statutes, and thus the
above exclusion may not apply.
Specifications are subject to change without notice. Every attempt has been made to make this
document complete, accurate and up-to-date. Readers are cautioned, however, that product
improvements and field usage experience may cause SMA Solar Technology AG to make changes
to these specifications without advance notice, or per contract provisions in those cases where a
supply agreement requires advance notice. SMA Solar Technology AG shall not be responsible for
any damages, including indirect, incidental or consequential damages, caused by reliance on the
material presented, including, but not limited to, omissions, typographical errors, arithmetical errors
or listing errors in the content material.
SMA Warranty
You can download the current warranty conditions from the Internet at www.SMA-Solar.com.
Software Licenses
The licenses for the installed software modules (open source) can be found in the user interface of
the product.
Trademarks
All trademarks are recognized, even if not explicitly identified as such. Missing designations do not
mean that a product or brand is not a registered trademark.
SMA Solar Technology AG
Sonnenallee 1
34266 Niestetal
Germany
Tel. [phone]
Fax [phone]
www.SMA.de
Email: [email protected]
Status: 11/18/2019
Copyright © 2019 SMA Solar Technology AG. All rights reserved.

Table of Contents
SMA Solar Technology AG
Operating manual EDMM-10-BE-en-20 3
Table of Contents
1 Information on this Document................................................. 5
1.1 Validity........................................................................................................................ 5
1.2 Target Group.............................................................................................................. 5
1.3 Content and Structure of this Document ................................................................... 5
1.4 Levels of Warning Messages.................................................................................... 5
1.5 Symbols in the Document .......................................................................................... 6
1.6 Typographies in the Document.................................................................................. 6
1.7 Designation in the document..................................................................................... 6
1.8 Additional Information............................................................................................... 7
2 Safety ........................................................................................ 8
2.1 Intended Use .............................................................................................................. 8
2.2 IMPORTANT SAFETY INSTRUCTIONS.................................................................... 8
2.3 Supported Products.................................................................................................... 11

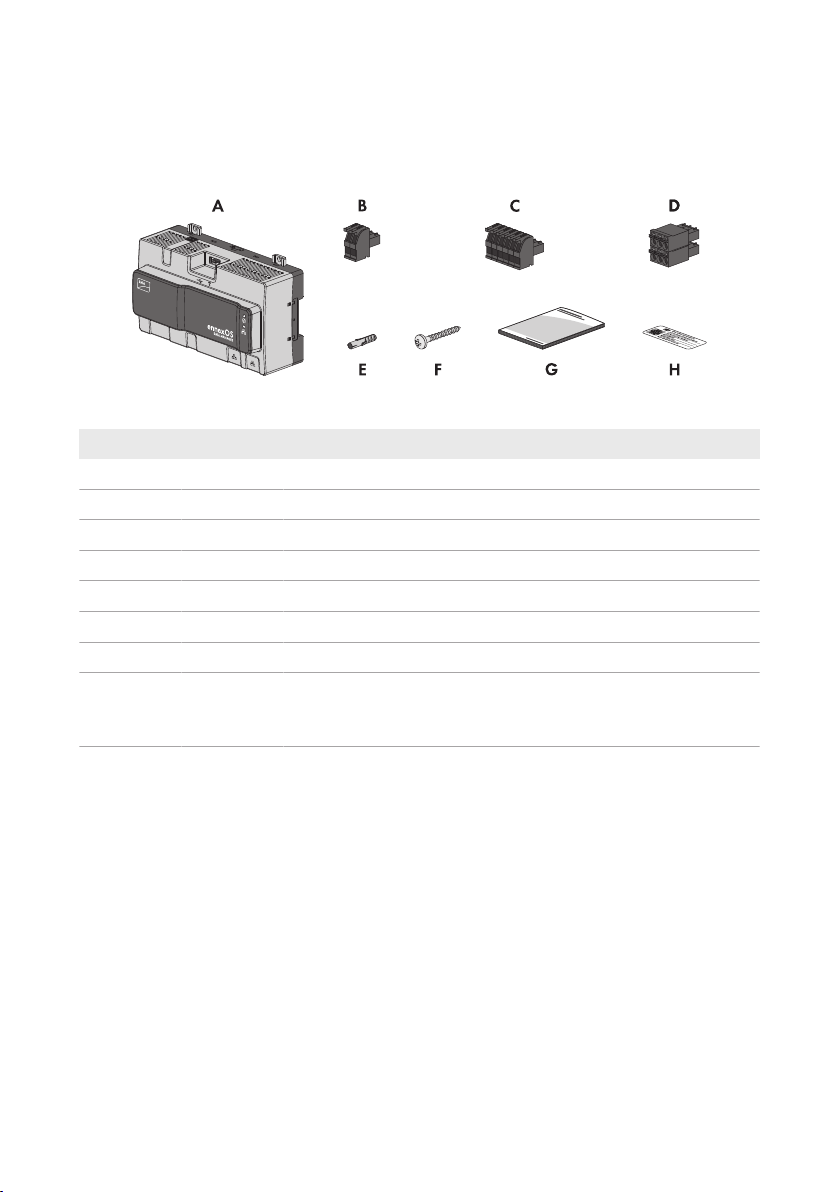

3 Scope of Delivery ..................................................................... 13
4 Product Overview .................................................................... 14
4.1 Product Description.................................................................................................... 14
4.2 Symbols on the Product ............................................................................................. 15
4.3 Function Button........................................................................................................... 16
4.4 LED Signals................................................................................................................. 16
4.5 Sunny Portal................................................................................................................ 18
4.6 Interfaces and Functions ............................................................................................ 18
5 Mounting................................................................................... 22
5.1 Requirements for Mounting ....................................................................................... 22
5.2 Mounting the product ................................................................................................ 23
6 Connection ................................................................................ 25
6.1 Overview of the Connection Area ............................................................................ 25
6.2 Preparing the Connection Cable............................................................................... 25
6.3 Connecting Signal Source to Digital Input ............................................................... 25
6.4 Connecting RS485 Devices....................................................................................... 27
6.5 Connecting the Voltage Supply ................................................................................ 29
7 Commissioning ......................................................................... 32
7.1 Establishing a direct connection via WLAN............................................................. 32
7.2 Establishing a Connection via Ethernet in the local network................................... 33

Table of Contents SMA Solar Technology AG
Operating manualEDMM-10-BE-en-204
7.3 Commissioning the Product ....................................................................................... 34
7.4 Registering in Sunny Portal........................................................................................ 35
8 Operation ................................................................................. 37
8.1 Design of the User Interface...................................................................................... 37
8.2 User Groups and User Rights.................................................................................... 38
8.3 Configuring Limitation of Active Power Feed-In........................................................ 39
8.4 Configuring Reactive Power as a Function of Grid Voltage.................................... 41
8.5 Configuring Modbus Devices.................................................................................... 42
8.6 Configuring a System with several Data Managers................................................ 43
8.7 Speedwire Encryption of the System Communication ............................................. 43
9 Firmware Update ..................................................................... 45
9.1 Updating the Product Firmware ................................................................................ 45
9.2 Updating the Firmware of Connected SMA Products ............................................. 46
10 Troubleshooting........................................................................ 47
11 Technical Data .......................................................................... 49
12 Accessories ............................................................................... 51
13 Contact ...................................................................................... 52
14 EU Declaration of Conformity ................................................. 55
15 Compliance Information .......................................................... 56

1 Information on this Document
SMA Solar Technology AG
Operating manual EDMM-10-BE-en-20 5
1 Information on this Document
1.1 Validity
This document is valid for:
• EDMM-10 (Sunny Data Manager M) from firmware version 1.06.01.R.
• EDMM-US-10 (Sunny Data Manager M) from firmware version 1.06.01.R.
• SunnyPortal powered by ennexOS
1.2 Target Group
The tasks described in this document must only be performed by qualified persons. Qualified
persons must have the following skills:
• Training in the installation and configuration of IT systems
• Training in how to deal with the dangers and risks associated with installing, repairing and
using electrical devices and installations
• Training in the installation and commissioning of electrical devices and installations
• Knowledge of all applicable laws, standards and directives
• Knowledge of and compliance with this document and all safety information
1.3 Content and Structure of this Document
This document describes the mounting, installation, commissioning, configuration, operation,
troubleshooting and decommissioning of the product as well as the operation of the product user
interface.
You will find the latest version of this document and further information on the product in PDF format
and as eManual at www.SMA-Solar.com. You can also call up the eManual via the user interface
of the product.
Illustrations in this document are reduced to the essential information and may deviate from the real
product.
1.4 Levels of Warning Messages
The following levels of warning messages may occur when handling the product.
DANGER
Indicates a hazardous situation which, if not avoided, will result in death or serious injury.
WARNING
Indicates a hazardous situation which, if not avoided, could result in death or serious injury.
CAUTION
Indicates a hazardous situation which, if not avoided, could result in minor or moderate injury.

1 Information on this Document SMA Solar Technology AG
Operating manualEDMM-10-BE-en-206
NOTICE
Indicates a situation which, if not avoided, can result in property damage.
1.5 Symbols in the Document
Symbol Explanation
Information that is important for a specific topic or goal, but is not safety-rele-
vant
☐
Indicates a requirement for meeting a specific goal
☑
Desired result
✖
A problem that might occur
Example
1.6 Typographies in the Document
Typography Use Example
bold • Messages
• Terminals
• Elements on a user interface
• Elements to be selected
• Elements to be entered
• Connect the insulated
conductors to the terminals
X703:1 to X703:6.
• Enter 10 in the field
Minutes.
>• Connects several elements to be
selected
• Select Settings > Date.
[Button]
[Key]
• Button or key to be selected or
pressed
• Select [Enter].
# • Placeholder for variable
components (e.g., parameter
names)
• Parameter WCtlHz.Hz#
1.7 Designation in the document
Complete designation Designation in this document
SMADataManagerM Data Manager, product
SMA Speedwire fieldbus SMA Speedwire network, Speedwire
SMA Speedwire Encrypted Communication Speedwire encryption
SunnyPortal powered by ennexOS SunnyPortal

1 Information on this Document
SMA Solar Technology AG
Operating manual EDMM-10-BE-en-20 7
1.8 Additional Information
Title and information content Type of information
"Direct Marketing Interface" Technical information
"SMA Modbus® Interface – SMA DATA MANAGER M" Technical Information
"PUBLIC CYBER SECURITY - Guidelines for a Secure PV System
Communication"
Technical information
"RS485 Cabling Plan" Installation Manual
"SMASPEEDWIRE FIELDBUS" Technical information
Answers to frequently asked questions FAQ on product page
User information on the operation and features of the product User information on the user
interface

2 Safety SMA Solar Technology AG
Operating manualEDMM-10-BE-en-208
2 Safety
2.1 Intended Use
The SMA Data Manager M is a data logger that acts as a system gateway and energy manager.
PV system components and PV systems are integrated together with energy generators and loads
into the SMA infrastructure and I/O systems and meters via the Ethernet interface. In the process,
the SMA Data Manager M is supporting communication with up to 50 devices such as PV
inverters, battery inverters, energy meters and I/O systems.
The product is designed for indoor use only.
All components must remain within their permitted operating ranges and their installation
requirements at all times.
Use SMA products only in accordance with the information provided in the enclosed
documentation and with the locally applicable laws, regulations, standards and directives. Any
other application may cause personal injury or property damage.
Alterations to the SMA products, e.g., changes or modifications, are only permitted with the express
written permission of SMA Solar Technology AG. Unauthorized alterations will void guarantee and
warranty claims and in most cases terminate the operating license. SMA Solar Technology AG
shall not be held liable for any damage caused by such changes.
Any use of the product other than that described in the Intended Use section does not qualify as the
intended use.
The enclosed documentation is an integral part of this product. Keep the documentation in a
convenient, dry place for future reference and observe all instructions contained therein.
This document does not replace and is not intended to replace any local, state, provincial, federal
or national laws, regulations or codes applicable to the installation, electrical safety and use of the
product. SMA Solar Technology AG assumes no responsibility for the compliance or non-
compliance with such laws or codes in connection with the installation of the product.
The type label must remain permanently attached to the product.
2.2 IMPORTANT SAFETY INSTRUCTIONS
SAVE THESE INSTRUCTIONS
This section contains safety information that must be observed at all times when working.
The product has been designed and tested in accordance with international safety requirements. As
with all electrical or electronical devices, there are residual risks despite careful construction. To
prevent personal injury and property damage and to ensure long-term operation of the product,
read this section carefully and observe all safety information at all times.

2 Safety
SMA Solar Technology AG
Operating manual EDMM-10-BE-en-20 9
WARNING
Danger to life due to electric shock
Under fault conditions, when working on the power supply circuit there may be dangerous
voltages present on the product. This can result in death or serious injury.
• For power supply units with a fixed connection, make sure that a disconnection unit (e.g.
miniature circuit breaker) is present outside the power supply unit.
• For power supply units with a plug connection, make sure that the electrical outlet for the
power supply unit is close to the power supply unit.
• The disconnection unit and the electrical outlet for the power supply unit must be freely
accessible at all times.
CAUTION
Damage due to electromagnetic radiation
This product
• Persons must not remain closer than 20 cm (8 in) to the product for long periods of time.
NOTICE
Damage to the product due to condensation
If the product is moved from a cold environment to a warm environment, condensation may form
in the product. This can damage the product or impair its functionality.
• When there are large temperature differences, wait until the product has reached room
temperature to connect the voltage supply.
• Make sure the product is dry.
NOTICE
Manipulation of PV system data in Ethernet networks
You can connect the supported SMA products to the Internet. When connected to the Internet,
there is a risk that unauthorized users can access and manipulate the data of your PV system.
• Set up a firewall.
• Close unnecessary network ports.
• If absolutely necessary, only enable remote access via a virtual private network (VPN).
• Do not use the port forwarding feature. This also applies to the used Modbus ports.
• Disconnect system components from other network components (network segmentation).

2 Safety SMA Solar Technology AG
Operating manualEDMM-10-BE-en-2010
NOTICE
High costs due to inappropriate Internet tariff
Depending on use, the data volume of the product transferred via the Internet may vary in size.
The data volume depends, for example, on the number of inverters in the system, the frequency
of device updates, the frequency of data transfer to SunnyPortal or the use of FTP push. High
costs for the Internet connection can be the result.
• SMA Solar Technology AG recommends using an Internet flat rate with a monthly data
volume of at least 1 GB for systems with up to five SMA products.
• SMA Solar Technology AG recommends using an Internet flat rate with a monthly data
volume of at least 3 GB for systems with up to 50 SMA products.
• SMA Solar Technology AG recommends a data transfer rate of at least 10 Mbit/s for flat-
rate surfing.
Electrical installations (for North America)
All installations must conform with the laws, regulations, codes and standards applicable in the
jurisdiction of installation (e.g. National Electrical Code® ANSI/NFPA 70 or Canadian
Electrical Code® CSA-C22.1.).
• Before connecting the product to the utility grid, contact your local grid operator. The
electrical connection of the product must be carried out by qualified persons only.
• Ensure that the cables or conductors used for electrical connection are not damaged.
DHCP Server is recommended.
The DCHP server automatically assigns the appropriate network settings to your nodes in the
local network. A manual network configuration is therefore not necessary. In a local network,
the Internet router is usually the DHCP server. If the IP addresses in the local network are to be
assigned dynamically, DHCP must be activated in the Internet router (see the Internet router
manual).
In networks where no DHCP server is active, proper IP addresses must be assigned from the
free address pool of the network segment to all network participants to be integrated during
commissioning.
IP addresses of Modbus devices
In systems with Modbus devices, static IP addresses must be assigned to all Modbus devices.
Suitable IP addresses can be assigned to the Modbus devices from the free address supply of
the network segment either manually or dynamically via DHCP.
If the IP addresses are to be assigned dynamically, DHCP must be activated in the router (see
the router manual). Make sure that the Modbus devices do not contain variable IP addresses
but always the same IP addresses.

2 Safety
SMA Solar Technology AG
Operating manual EDMM-10-BE-en-20 11
2.3 Supported Products
Supported SMA Products
Availability of SMA products in your country
Not all SMA products are available in all countries. For information on whether an SMA
product is available in your country, visit the website of your country's SMA subsidiary
company at www.SMA-Solar.com or contact your distributor.
Inverters:
• All SMA inverters with integrated or retrofitted Speedwire/Webconnect interfaces are
supported. Information on whether an SMA inverter has an integrated Speedwire/
Webconnect interface or can be retrofitted with a Speedwire/Webconnect interface can be
found on the SMA inverter product page at www.SMA-Solar.com.
Other products:
• SMA Com Gateway from firmware version 1.0.28.R
• SMA Energy Meter from firmware version 1.1 (not available in all countries)
• Sunny Portal powered by ennexOS
• 1 SMA Inverter Manager with 1 Sunny Tripower Storage 60
• 1 SMA Inverter Manager with up to 42 Sunny Tripower 60 / Sunny Highpower Peak1
Supported Products from Other Manufacturers
Energy meters:
• Power Analyser of the UMG 604 series from Janitza electronics GmbH
• WattsOn-Mark II Precision Energy Meter from Elkor Technologies Inc.
External I/O Systems:
• ioLogik E1241 of Moxa Europe GmbH (see Section12 "Accessories", page51)
• ioLogik E1242 of Moxa Europe GmbH (see Section12 "Accessories", page51)
• ioLogik E1260 of Moxa Europe GmbH (see Section12 "Accessories", page51)
• WAGO-I/O-SYSTEM 750 of WAGO Kontakttechnik GmbH & Co. KG (see Section12
"Accessories", page51)
Sensors (in conjunction with external I/O systems):
• Irradiation sensors that can output a current signal in the range from 4mAto20mA
• Anemometers that can output a current signal in the range from 4mAto20mA
• Temperature sensors with a Pt100 measuring shunt
The linearization of the temperature sensors' data takes place in the I/O system. In the case of solar
irradiation sensors and anemometers, however, the sensor itself must be designed for a
linearization of the data.

2 Safety SMA Solar Technology AG
Operating manualEDMM-10-BE-en-2012
Sensors (via connected SMA inverters):
The following sensors that are connected to an SMA inverter are supported (for connection options
see the inverter manual):
• Irradiation sensors
• Anemometers
• Temperature sensors
Signal receivers and digital and analog signal sources:
• Signal sources with relay contacts
Routers and network switches:
• Routers and network switches for Fast Ethernet with a data transfer rate of at least 100Mbit/s.
All network components used must support version 2 or version3 (IGMPv2 or IGMPv3) of the
IGMP protocol. Do not use an IGMP Snooping Switch as per RFC 4541.

3 Scope of Delivery
SMA Solar Technology AG
Operating manual EDMM-10-BE-en-20 13
3 Scope of Delivery
Check the scope of delivery for completeness and any externally visible damage. Contact your
distributor if the scope of delivery is incomplete or damaged.
Figure 1: Components included in the scope of delivery
Position Quantity Designation
A 1 SMADataManagerM
B 1 Two-pole plug
C 1 Six-pole plug
D 1 Six-pole plug
E 4 Screw anchors
F 4 Screws
G 1 Quick Reference Guide
H 2 Label with Internet address, registration ID (RID) and identification
key (PIC) for product registration in SunnyPortal powered by en-
nexOS

4 Product Overview SMA Solar Technology AG
Operating manualEDMM-10-BE-en-2014
4 Product Overview
4.1 Product Description
− +
10-30V
DC
X1
RS485
ennexOS
DATA MANAGER
X3
X2 X4 X5
RS485 Digital
Input
ennexOS
DATA MANAGER
A
E
D
A
D
C
B
F
A
A
K
I
H
G

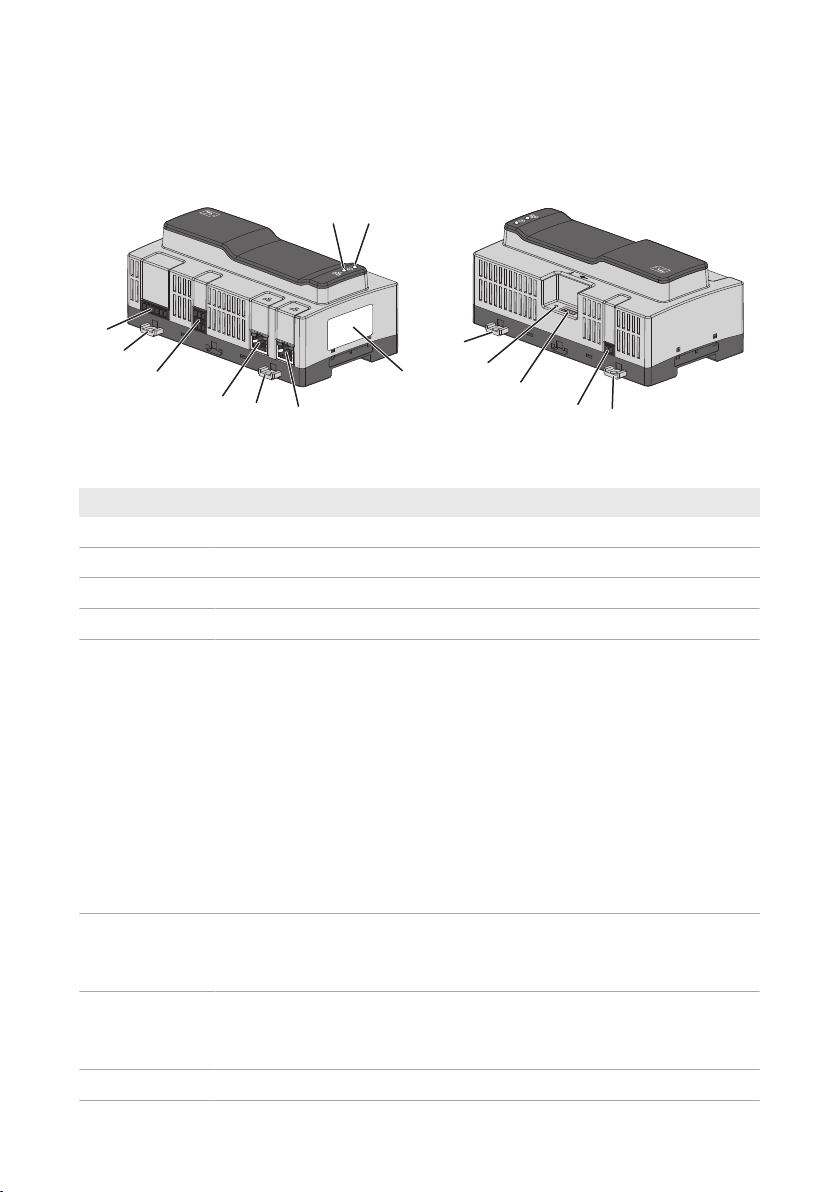

Figure 2: Design of the product
Position Designation
A Press-out brackets for wall mounting
B Jack for connecting the RS485 devices
C Jack for the connection of digital signals
D Network ports with status LEDs for connecting to the network
E Type label
The type label clearly identifies the product. You will require the information
on the type label to use the product safely and when seeking customer sup-
port from the SMAServiceLine. You will find the following information on the
type label:
• Device type (Type)
• Serial number
• Date of manufacture
• Device-specific characteristics
• Registration ID (RID)
• Identification key (PIC)
F COM LED
The COM LED, together with the system LED, indicates the operating state of
the product (see Section4.4 "LED Signals", page16).
G System LED
The system LED, together with the COM LED, indicates the operating state of
the product (see Section4.4 "LED Signals", page16).
H Function button

4 Product Overview
SMA Solar Technology AG
Operating manual EDMM-10-BE-en-20 15
Position Designation
I USB port for manual updates
K Jack for connecting the voltage supply
4.2 Symbols on the Product
Symbol Explanation
USB
Function button
System LED
Ethernet
WEEE designation
Do not dispose of the product together with the household waste but in accor-
dance with the disposal regulations for electronic waste applicable at the in-
stallation site.
The product is suitable for indoor installation.
CE marking
The product complies with the requirements of the applicable EU directives.
RoHS
RoHS labeling
The product complies with the requirements of the applicable EU directives.
FCC designation
The product complies with the requirements of the applicable FCC standards.
RCM (Regulatory Compliance Mark)
The product complies with the requirements of the applicable Australian stan-
dards.
This equipment contains specified radio equipment that has been certified to
the Technical Regulation Conformity Certification under the Radio Law.
ICASA
The product complies with the requirements of the South African standards for
telecommunication.

4 Product Overview SMA Solar Technology AG
Operating manualEDMM-10-BE-en-2016
Symbol Explanation
ANATEL
The product complies with the requirements of the Brazilian standards for
telecommunication.
Este equipamento opera em caráter secundário, isto é, não tem direito a pro-
teção contra interferência prejudicial, mesmo de estações do mesmo tipo, e
não pode causar interferência a sistemas operando em caráter primário.
The product complies with the Moroccan safety and EMC requirements for
electronic products.
4.3 Function Button
Depending on how long it is activated for, the function button performs the following functions:
• 1 to 5 seconds: no effect
• 5 to 10 seconds: restarts the Data Manager
• 10 to 15 seconds: resets password and administrator account of the Data Manager
• 15 to 20 seconds: resets the Data Manager to the default settings
• Longer than 20 seconds: no effect
The length of time the function button has been activated for is indicated via LED signals (see
Section4.4 "LED Signals", page16).
4.4 LED Signals
System- and COM LED
The LEDs indicate the operating state and communication status of the product. Not relevant
operating states are shown as "-".
System LED COM LED Explanation
Startup process
Off Off No power supply or no boot up procedure.
Glowing orange Glowing orange Boot up procedure started.
Flashing green - User interface is being loaded.
Glowing green Glowing orange Communication is being started.
Glowing red Off Boot up procedure running.
Glowing red (for
longer than 2 min-
utes)
Off Errors during the Booting Procedure
Glowing green - Normal operation
Flashing red - System error

4 Product Overview
SMA Solar Technology AG
Operating manual EDMM-10-BE-en-20 17
System LED COM LED Explanation
Flashing orange - Update procedure running.
Communication status
- Flashing orange
and green in alter-
nation
WLAN access point is activated.
- Flashing green Connection to all devices is established.
- Flashing orange Connection to Sunny Portal is disrupted.
- Glowing orange Connection to at least one device is disrupted.
- Glowing red Connection to all devices is disrupted.
Function button
Flashing orange
and green in alter-
nation
Off Function button has been pressed for less than 5 seconds.
Flashing orange
and green in alter-
nation
Glowing green Function button has been pressed for between 5 and 10
seconds.
Flashing orange
and green in alter-
nation
Glowing orange Function button has been pressed for between 10 and 15
seconds.
Flashing orange
and green in alter-
nation
Glowing red Function button has been pressed for between 15 and 20
seconds.
Glowing green Off Function button has been pressed for longer than 20 sec-
onds.
Network port LEDs
The colors of the network port LEDs and what each color indicates are not
standardized
The colors used by SMA Solar Technology AG for the Link LED and the Activity LED and what
each color indicates may be different to those used in third-party products.

4 Product Overview SMA Solar Technology AG
Operating manualEDMM-10-BE-en-2018
Figure 3: Network port LEDs
Position Designation Color Explanation
A Link LED Green Shows the network connection status.
B Activity LED Yellow Shows network connection activity.
4.5 SunnyPortal
SunnyPortal is an Internet portal which enables you to monitor systems and to visualize system
data.
The SunnyPortal serves as the user interface for the extended configuration of the product, of
system sections, systems, system groups and the entire system portfolio. The SunnyPortal monitors
and analyzes the system and its components on all levels.
There are two SunnyPortal versions: the classical SunnyPortal (https://www.sunnyportal.com) and
the newly developed SunnyPortal powered by ennexOS (https://ennexOS.sunnyportal.com). Both
systems differ in their supported functions. With an existing user account, you can log into both
portals as well as into SunnyDesign (system planning software from SMA).
4.6 Interfaces and Functions
The product can be equipped or retrofitted with the following interfaces and functions: The
availability of the functions depends on the product version and additional options purchased.
For further information on current and future functions, refer to the product page at www.SMA-
Solar.com.
User interface for monitoring and configuration
The product is equipped as standard with an integrated webserver, which provides a user interface
for configuring and monitoring the product. The product user interface can be called up via the web
browser if there is an existing connection to an end device (e.g. computer, tablet PC or
smartphone).
Connected SMA products can be configured and commissioned via the user interface of the
product.
WLAN access point
The product is equipped with a WLAN interface as standard. By tapping on the product, a WLAN
access point is activated. This point is used to connect the product to an end device (e.g. computer,
tablet PC or smartphone). This allows to carry out commissioning and configuration via direct
WLAN connection on site regardless of the wired network.

4 Product Overview
SMA Solar Technology AG
Operating manual EDMM-10-BE-en-20 19
SMASpeedwire
The product is equipped with SMASpeedwire as standard. SMASpeedwire is a type of
communication based on the Ethernet standard. SMASpeedwire is designed for a data transfer
rate of 100Mbps and enables optimum communication between Speedwire devices within
systems.
The products supports the encrypted system communication with SMA Speedwire Encrypted
Communication. In order to be able to use the Speedwire encryption in the system, all Speedwire
devices, except for the SMAEnergyMeter, must support the function SMA Speedwire Encrypted
Communication.
Dashboard
On the dashboard of the user interface, system and component information are displayed clearly
and at a glance by using widgets. The dashboard display can vary depending on the system's
functional scope and user rights.
Information, such as yield forecast, system section visualization and inverter comparison, are
available via the extended functions in SunnyPortal.
Modbus
The product is equipped with two Modbus interfaces. One interface can be controlled via Ethernet
(Modbus TCP) and the other interface via RS485 (Modbus RTU).
The Modbus interface via Ethernet (TCP) can be used for industrial use (e.g. SCADA systems) and
for system communication with connected systems (e.g. energy meters). Via this Modbus interface,
data of the product can be queried and connected Modbus devices can be controlled and
regulated.
The Modbus interface has the following tasks:
• Remote query of measured values
• Setpoint specifications for system control
The Modbus interface via RS485 is used for data exchanges with energy meters and inverters via
Modbus RTU. Connected Modbus devices can be controlled and regulated via this Modbus
interface.
For the communication with connected Modbus devices, predefined Modbus profiles, user-created
Modbus profiles or the SunSpec Modbus profile can be used.
SunSpec Modbus
The product is equipped with a SunSpec Modbus interface. The SunSpec Modbus profile from the
SunSpec Alliance contains a comprehensive set of measured values and parameters for energy-
generating devices in PV systems. The product has data points of the SunSpec Alliance and
therefore conforms with the SunSpec Modbus profile of the underlying specification version (see
www.sunspec.org).
Plant-wide parameterization
You can use the system parameter assistant to change the parameters of connected devices at the
same time and to compare them. Simply select the desired devices from a list and change the
parameters. The status of the parameter changes is accessable at all times.

4 Product Overview SMA Solar Technology AG
Operating manualEDMM-10-BE-en-2020
Satellite-based data (not available in all countries)
SunnyPortal provides the possibility to display solar irradiation values, outside and cell
temperatures, and wind speeds at the system's location without local sensors. These values can be
used to determine the performance ratio of PV systems for example. The system location can be
integrated with the aid of Google Maps.
Energy monitoring
Several SMA Energy Meters and Modbus energy meters from other manufacturers can be
connected for comprehensive energy monitoring. The product can also read out, save and display
the generation and consumption data of the meters.
In addition, energy meters (e.g. a gas meter) can be registered via the extended functions in
SunnyPortal. The meter readings can be entered manually and displayed.
FTP Push
The FTP Push function can be used to upload collected system data to a freely selectable external
FTP server. The collected system data is uploaded to the specified directory up to once an hour.
Here, the system data is exported in an unchangeable XML format. The system data and user data
is transmitted via standard FTP protocol to the FTP server without encryption.
Sunny Design projects
Systems planned in Sunny Design can be imported into the Sunny Portal and, if necessary,
configured there.
SMA Smart Connected
SMA Smart Connected is the free monitoring of the inverter via the SMA SunnyPortal. Thanks to
SMA Smart Connected, the PV system operator and qualified person will be informed automatically
and proactively about inverter events that occur.
SMA Smart Connected is activated during registration in SunnyPortal. In order to use SMA Smart
Connected, it is necessary that the inverter is permanently connected to SunnyPortal and the data
of the PV system operator and qualified person is stored in SunnyPortal and up-to-date.
SMASmartConnected can only be used in SunnyPortal when this feature is supported by the
inverters.
Grid management services
The product is equipped with service functions for grid management.
Depending on the requirements of the grid operator, you can activate and configure the functions
(e.g. active power limitation) via operating parameters.
The setpoints from the grid operator can either be implemented via open-loop control or closed-
loop control. For this, the setpoints are specified via Modbus, via analog or digital signals or
manually in the installation assistant. The implementation of the setpoints is reported back to the
grid operator.
Active power limitation
The setpoint for active power limitation is specified in percent. The total system power is taken as
the reference value. For this, the setpoints are specified via Modbus, via analog or digital signals or
manually in the installation assistant.
