Fender MX-5200 User manual

MX-5200 SERIES
PROFESSIONAL MIXING CONSOLES
SERVICE MANUAL
CONTENTS
Specifications
Meter calibration
Bus configuration
Panel removal & interconnects
Parts Lists:
Input I/O PCB Assembly
Input Channels PCB Assembly
Input Panel Assembly
Output I/O PCB Assembly
Output PCB Assembly
Output Panel Assembly
Chassis Assembly
Power Supply PCB Assembly Rev A
Power Supply PCB Assembly Rev B
Power Supply Chassis Assembly
Miscellaneous
Block Diagram
Schematics & Service Diagrams
MX-5216 p/n 071-5216-000
MX-5224 p/n 071-5224-000
MX-5232 p/n 071-5232-000
Fender Musical Instruments Corp.
7975 North Hayden Road Scottsdale, AZ 85258
MX-5200 SERIES
(This is the model name for warranty claims)
OCTOBER 1995
IMPORTANT NOTICE:
The information contained herein is CONFIDENTIAL and PROPRIETARY to Fender Musical Instruments Co. It is
disclosed solely for use by qualified technicians for purposes of equipment maintenance and service. It is not to be
disclosed to others without the expressed permission of Fender Musical Instruments Co. All specifications subject to
change without notice.
Part numbers ending with the three digit suffix "001" indicate a component prepped with long leads.
For warranty repair service, only Fender specified part numbers are to be used. It is recommended they also be
used for post-warranty maintenance and repair.
Parts marked with an asterick (*) indicate the required use of that specific part. This is necessary for RELIABILITY
and SAFETY requirements. DO NOT USE A SUBSTITUTE!
A coded naming convention is used in the description of certain parts. The codes and what they mean are as
follows:
CAPACITOR CODES HARDWARE CODES
CAP AE = Aluminum Electrolytic BLX = Black Oxide
CAP CA = Ceramic Axial CR = Chrome Plated
CAP CD = Ceramic Disk HWH = Hex Washer Head
CAP MPF = Metalized Polyester Film M = Machine Screw
CAP MY = Mylar NI = Nickel Plated
CAP PFF = Polyester Film/Foil OHP = Oval Head Phillips
PB = Particle Board
RESISTOR CODES PHP = Pan Head Phillips
PHPS = Pan Head Phillips Sems
RES CC = Carbon Comp SMA = Sheet Metal "A" Point
RES CF = Carbon Film SMB = Sheet Metal "B" Point
RES FP = Flame Proof SS = Stainless Steel
RES MF = Metal Film TF = Thread Forming
RES WW = Wire Wound ZI = Zinc Plated
1

SPECIFICATIONS
Specifications are subject to change without notice.
Frequency Response: 20Hz. to 40kHz. ± 1dB
Distortion: < .025%, 20Hz to 20kHz (Mic input to any line level mixer output)
Signal to Noise Ratio: > 90 dBu (ref. +4 dBu), all channels assigned and at unity gain
Microphone Equivalent
Input Noise: -133.8 dBv input shorted, -131.5 dBv 150 ohms source impedance
Max. Output Level: +28 dBu on all balanced outputs
+22 dBu on all unbalanced outputs
Max. Gain: 90 dB (Mic input to balanced main output)
84 dB (Mic input to unbalanced sub output)
Dynamic Range: 116 dB (20 Hz to 20 kHz)
Adjacent Channel Crosstalk: -85 dB
Mic Input Gain: 50 dB
Line Input Gain: 40 dB
Channel Fader Gain: 10 dB
Channel Fader Attenuation: 106 dB
Dimensions:
Height: 6.53" (16.6cm)
Width: MX5216 33" (84cm)
MX5224 42" (107cm)
MX5232 51" (130cm)
Depth: 24.5" (62.2cm)
Weight: MX5216 39 lbs (17.7 kg)
MX5224 52 lbs (23.6 kg)
MX5232 65 lbs (29.5 kg)
CPSM-4 Power Supply: Height: 4.75" (12cm)
Width: 8.5" (21.6cm)
Depth: 13.125" (33.3cm)
Weight: 17 lbs (7.7 kg)
METER CALIBRATION
METER CALIBRATION PROCEDURE
Metering of any input or output is provided by two twelve segment LED bargraphs, with VU
ballistics. The meter circuit features a peak-hold function, which makes it easier to see the
actual peak. The peak-hold function can be disabled by grounding pin 11 of U53 and U63

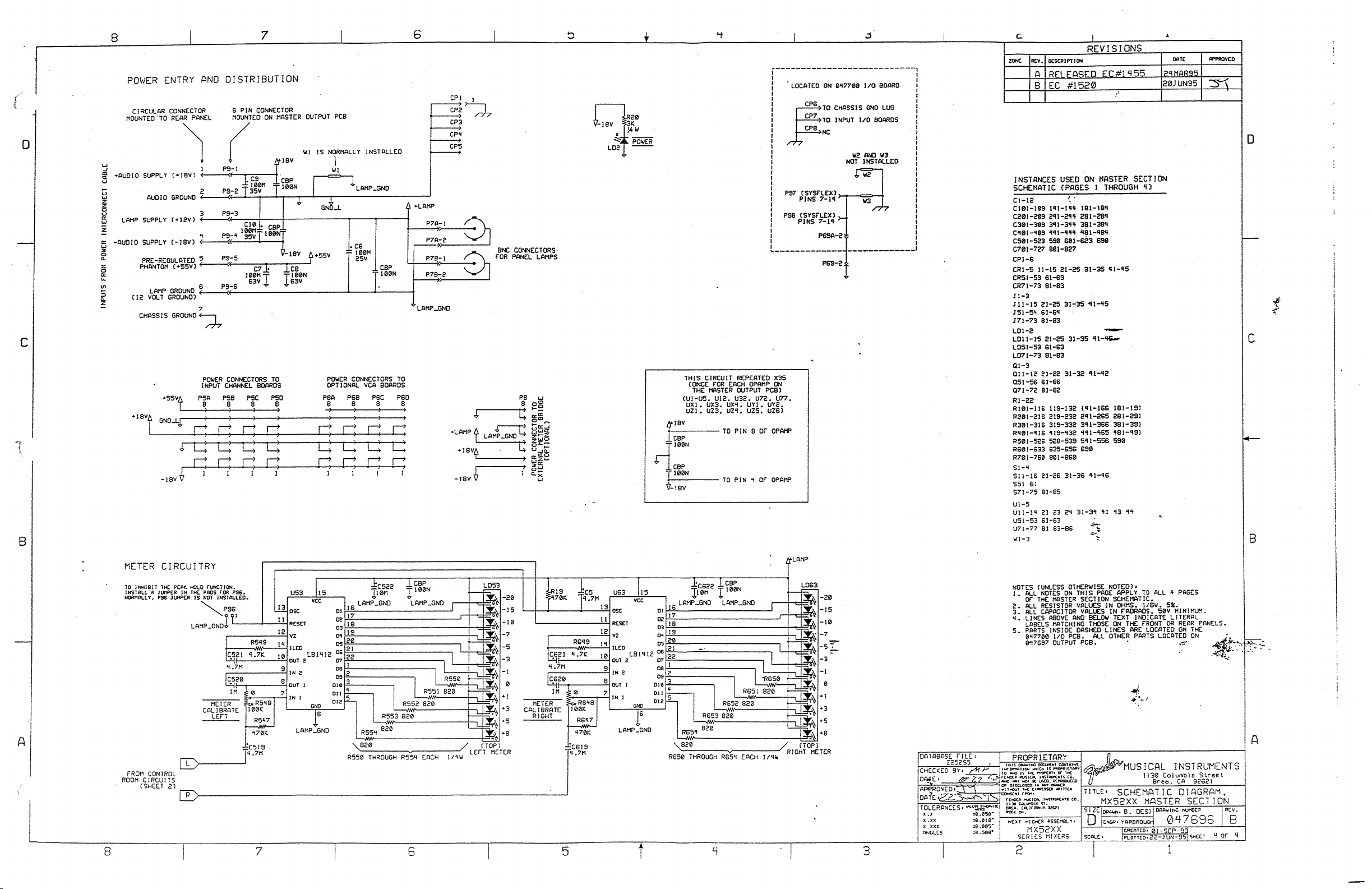

(LB1412) at P96. Refer to schematic MX52XX MASTER SECTION P/N 047696 sheet 4 of 4.
There is one calibration trim pot for each bargraph meter. The trim pots are accessible through
two holes located at the top of the meters. The factory setting is for 0 dBU = 0.775 VRMS.
Typical "0" meter levels:
0.775 Vrms (0 dBu) Factory setting (For most applications this is the desired calibration).
1.228 Vrms (+4 dBu) If mostly "Pro" equipment is connected to the mixer.
0.316 Vrms (-10 dBu) If mostly "consumer" or semi-pro equipment is connected to the mixer.
Inject a 1kHz sine wave at the desired RMS voltage level into the TAPE L, RCA (phono) jack.
Make sure none of the mixer's Solo switches are engaged.
Press the 2 TRACK PLAYBACK switch, located in the CONTROL ROOM section of the Master
module.
Adjust the trim pot so the first yellow segment of the meter just begins to turn on.
Repeat the above procedure for the right meter, using the TAPE R input.
IMPORTANT NOTE:
When using the meters in conjunction with the various Solo switches, the SOLO LEVEL
control must be turned up to maximum. This is the calibrated position to accurately
meter the solo bus level. If the SOLO LEVEL control is not at maximum, the meter
reading will be below the real output level of the soloed output.
2

BUS CONFIGURATION
AUXILIARY BUS PRE/POST CONFIGURATION
The standard factory MX-5200 Auxiliary Bus configuration is:
•Aux 1/3 routes the post-EQ/post-fader signal to Auxiliary Buses 1 or 3.
•Aux 2/4 routes the pre-EQ/pre-fader signal to Auxiliary Buses 2 or 4.
Internal jumpers allow this configuration to be changed to the following:
•Post-EQ/post-fader or post-EQ/pre-fader on all Aux sends (1 through 4).
•Pre-or post-fader on all Aux Sends (1 through 4).
In addition, when the channel MUTE switch is engaged, the post-EQ/post-fader signal is muted,
but the pre-EQ/pre-fader signal is not. This allows the channel to be "cued" in the PFL solo
system, even if the channel is muted.
MONITOR BUS PRE/POST CONFIGURATION
•Pre-EQ/pre-fader or post-EQ/post-fader to Monitor 1 and Monitor 2, switch-selectable.
Internal jumpers allow this configuration to be changed to the following:
•Post-EQ/pre-fader or post-EQ/post-fader signal to Monitor 1 and Monitor 2.
CHANGING THE PRE/POST CONFIGURATION
The pre/post jumpers are actually three adjacent solder pads. They are located directly next to
the MONITOR PRE/POST switches. The circuit board does not need to be removed from the
panel, as the pads are accessible from the solder side of the PC board. A small connecting
trace between two of the pads sets the factory jumper configuration. When changing the factory
configuration, the trace must be cut to break the existing connection. To connect the desired
pads, simply create a solder bridge across them. The jumpers are labeled (PX3,4,5), and the
square pad indicates the number one (1) pad. PX3 selects pre/post EQ and is always pre-fader.
PX4 selects between pre/post fader for AUX 2/4. PX5 selects pre/post fader for AUX 1/3. Refer
to the Input Channel schematic P/N 047688 sheet 1 of 2 for pin outs.
PANEL REMOVAL
Remove the top trim piece. The screws are located above the rear patch bay.
Remove the two (2) flathead screws at the top of the panel.
Slide the panel towards the patch bay until the lower edge of the panel exits the retaining slot.
Lift the panel straight up about 1 inch above the chassis.
Raise the bottom (Fader end) of the panel up to a near vertical position.
Gently rest the top edge of the panel onto the top of the chassis.
Use a support stick to hold up the panel similar to the hood of a automobile.
*****CAUTION*****
DO NOT RAISE OR LOWER THE BOTTOM OF THE PANEL WITHOUT HOLDING THE TOP
OF THE PANEL UP OFF OF THE CHASSIS. PIVOTING THE TOP OF THE PANEL AGAINST
THE CHASSIS WILL SEVERELY DAMAGE THE PC BOARD, TRIM POTS AND OTHER
COMPONENTS.
INTERCONNECTS
There are many ribbon cables (Cable Assemblies) used as interconnects between circuit
boards. The connection points are all labeled, i.e. P58 on the master board connects to P58A
on the master I/O board. Use caution when reconnecting the cables as it is easy to connect
them incorrectly (one pin off). On power supply interconnects, this can cause major damage to
various components.
Use caution!
3

PARTS LIST
8 CHANNEL INPUT I/O
PRINTED CIRCUIT BOARD ASSEMBLY
NOTES:
AN "X" IN A REFERENCE DESIGNATOR EQUALS 1-8.
8 INPUT CHANNELS PER CIRCUIT BOARD.
QUANTITIES LISTED ARE FOR 8 CHANNELS.
QTY PART # DESCRIPTION REFERENCE DESIGNATION
047694001 PCB ASSY MX52XX INPUT I/O (STUFFED)
2 031069 CAP AE RDL 10µF 100V 20% C5,6
24 028463 CAP AE RDL 10µF 50V 20% CX03,X04,X07
16 047195 CAP AE RDL 47µF 63V CX01,X02
8 039256001 CAP CA 68PF 100V LL CX05
8 033580 CAP PFF RDL .0022µF 100V 10% CX26
32 027327001 DIODE ZEN 1N5234B 6.2V 5% LL CRX01,X02,X03,X04
2 025802 FSTN TAB MALE .25OX.032 PCB MT CP4,6
9 027411 HDR .1 CTR 4 CKT SQ PIN PIA,PXIA
16 047175 JACK PHONE STEREO CLOSED CKT JX2,X3 (Line Input & Insert)
8 030762 JACK XLR FM PC VERT MT (A/D) JX1
1 047692 PCB FAB INPUT I/O MX5232 (RAW PCB)
16 016966001 RES MF 1/4W 1% 14.7K RX07,X08
16 024997001 RES CF 1/4W 5% 100K RX05,X06
16 047173001 RES MF 1/2W 1% 6.81K RX01,X02
PARTS LIST
8 CHANNEL INPUT
PRINTED CIRCUIT BOARD ASSEMBLY
NOTE:
AN "X" IN A REFERENCE DESIGNATOR EQUALS 1-8.
8 INPUT CHANNELS PER CIRCUIT BOARD.
QUANTITIES LISTED ARE FOR 8 CHANNELS.
QTY PART # DESCRIPTION REFERENCE DESIGNATION
1 047691001 PCB ASSY MX5200 INPUT LL (STUFFED)
14 028463 CAP AE RDL 10µF 50V 20% C1,2,902,905,912,915,CX19
8 028458 CAP AE RDL 1µF 50V 20% CX22
10 028467 CAP AE RDL 22µF 50V 20% C901,911,CX13
16 028471 CAP AE RDL 47µF 50V 20% CX08,X18
8 028475 CAP AE RDL 100µF 35V CX21
8 028490 CAP AE RDL 1000µF 6.3V CX06
12 038699001 CAP CA 100PF 100V LL C903,904,913,914,CX20
8 039255001 CAP CA 10PF 100V LL CX23
16 039259001 CAP CA 220PF 100V LL CX24,X25
16 038698001 CAP CA 47PF 100V LL CX12,X17
49 047198 CAP CD .1µF 50V C3, CBP(48 bypass caps use the CBP
designator)
8 027259 CAP MPF .0033µF 100V CX10
8 027262 CAP MPF .0068µF 100V CX15
8 027269 CAP MPF .033µF 63V 10% CX14
8 027278 CAP MPF .1µF 63V 10% CX09
8 047199 CONTROL VERT 2KB W/DETENT RX57 (Pan)
8 047218 CONTROL VERT 15K 694Z RX09 (Trim)
8 047200 CONTROL VERT 20KB W/DETENT RX24 (Mid)
16 041082 CONTROL VERT 50K B W/DETENT RX16,X20 (Low, High)
8 047192 CONTROL VERT DUAL 100K 15C RX27 (Mid Frequency)
32 047177 CONTROL VERT 100KB RX47,X49,X51,X53 (Aux, Monitor)
40 006260001 DIODE 1N4448 SIGNAL LL CRX05-X09
2 031017001 DIODE ZEN 1N5223B 2.7V 5% LL CR903,913
6 027327001 DIODE ZEN 1N5234B 6.2V 5% LL CR1,2,901,902,911,912
25 027411 HDR .1 CTR 4 CKT SQ PIN P1,2A,2B,4A,4B,6,16,56,7,PX1,PX2
3 027416 HDR .1 CTR 8 CKT SQ PIN P3A,3B,5
8 028120 IC 4053B TPL 2 CHAN ANLG SW UX5
8 047212 IC AUDIO PREAMP SSM-2017P UX1
8 016795 IC DUAL OP AMP TL072 UX3
2 028047 IC OP AMP MC1436/SG1436Y U901,911
8 033281 IC OP-AMP DUAL 5532 U12,14,32,34,52,54,72,74
4

PARTS LIST
8 CHANNEL INPUT
PRINTED CIRCUIT BOARD ASSEMBLY
CONTINUED
QTY PART # DESCRIPTION REFERENCE DESIGNATION
8 047179 LED AMBER T1 LDX1
16 030754 LED RED T-1 3MM DIFFUSED LDX2,X3
1 047689 PCB INPUT MX5232 (RAW PCB)
1 041852001 RES CF 1/6W 5% 1K LL R7
8 047236001 RES CF 1/6W 5% 20K LL RX70
2 027747001 RES MF FUSE 1/4W 5% 2.2ΩLL R3,4
16 024947001 RES CF 1/4W 5% 47ΩLL RX14,X33
18 024952001 RES CF 1/4W 5% 100ΩLL R907,917,RX11,X38
8 029606001 RES CF 1/4W 5% 510ΩLL RX36
24 024965001 RES CF 1/4W 5% 1K LL RX43,X44,X46
2 024967001 RES CF 1/4W 5% 1.2K LL R901,911
8 028862001 RES CF 1/4W 5% 1.3K LL RX29
16 024969001 RES CF 1/4W 5% 1.5K LL RX26,X28
8 029005001 RES CF 1/4W 5% 2K RX42
40 024971001 RES CF 1/4W 5% 2.2K LL RX19,X21,X23,X25,X45
8 024972001 RES CF 1/4W 5% 2.7K LL RX69
2 016957001 RES MF 1/4W 1% 2.74K LL R903,913
8 029610001 RES CF 1/4W 5% 3K LL RX68
16 016958001 RES MF 1/4W 1% 3.32K LL RX03,X04
24 024977001 RES CF 1/4W 5% 4.7K LL RX15,X17,X37
41 024981001 RES CF 1/4W 5% 10K LL R5,RX13,X18,X31,X32,X66
2 031818001 RES MF 1/4W 1% 18.2K LL R906,916
80 029006001 RES CF 1/4W 5% 20K LL RX48,X50,X52,X54,X58-X63
8 028865001 RES CF 1/4W 5% 30K LL RX67
16 024994001 RES CF 1/4W 5% 56K LL RX64,X65
8 024995001 RES CF 1/4W 5% 68K LL RX41
40 024997001 RES CF 1/4W 5% 100K LL RX12,X30,X35,X39,X40
2 025061001 RES CF 1/4W 5% 330K LL R902,912
8 025069001 RES CF 1/4W 5% 1M LL RX22
2 025937001 RES CF 1/2W 5% 22ΩLL R908,918
4 027869001 RES CF 1/2W 5% 470ΩLL R1,2,904,914
16 027872001 RES CF 1/2W 5% 1.2K LL RX55,X56
2 025113001 RES CF 1/2W 5% 10K LL R905,915
14 031188 SCRW M 4-40X1/4 PHPS ZI W/WSHR @Standoffs
24 047176 SPACER LED .5X.18 @LDX1-X3
12 033275 STANDOFF 4X5/8" RND AL (Mounting for input PCB to panel)
58 041079 SWITCH DPDT ALT-ACT S1,2,SX1-X7
16 016739 XSTR NPN 2N4401 TO-92 QX1,X2
2 028760 XSTR NPN 2SC3298A TOP-220 Q901,911
PARTS LIST
PANEL ASSEMBLY 8 CHANNEL INPUT
QTY PART # DESCRIPTION REFERENCE DESIGNATION
047703 PANEL ASSY INPUT MX5200 PCB mounted in panel
8 041832 BUTTON SWITCH 5.5X10MM GRAY @Solo switches(SX6)
42 041831 BUTTON SWITCH 5.5X5.5MM GRAY @All switches other than Mute and
Solo(S1,2,SX1-5)
8 047169 BUTTON 12MM SQ. GREY @Mute Switches(SX7)
8 047171 CONTROL SLIDE 100MM 10KA RX34 (Fader)
32 041835 KNOB CTL CUSTOM DBL GRY/BLUE @Aux and Mon
Controls(RX47,49,51,53)
8 041837 KNOB CTL CUSTOM DBL GRY/DK GRY @Pan Control(RX57)
32 041834 KNOB CTL CUSTOM DBL GRY/GREEN @EQ Controls(RX16,20,24,27)
8 041833 KNOB CTL CUSTOM DBL GRY/WHT @Trim Control(RX09)
8 041069 KNOB SLIDER 15MM LT GRAY/BLACK @Faders
1 047736 PANEL TOP INPUT MX Panel only
16 9904101070 SCREW M 3X5MM PHIL PANM/S B/O Mounting Faders to Panel
12 014172 SCREW M 4-40X1/4 PHP BLX Mounting PC Assembly to Panel
5

PARTS LIST
OUTPUT I/O
PRINTED CIRCUIT BOARD ASSEMBLY
NOTES:
"X" IN A REFERENCE DESIGNATOR = 1-4
"Y" IN A REFERENCE DESIGNATOR = 5-6
"Z" IN A REFERENCE DESIGNATOR = 7-8
QTY PART # DESCRIPTION REFERENCE DESIGNATION
1 047702 PCB ASSY MX5200 OUTPUT I/O (STUFFED)
3 025802 FSTN TAB MALE .250X.032 PCB MT CP6,7
1 027408 HDR .1 CTR 2 CKT SQ PIN P79A
17 027411 HDR .1 CTR 4 CKT SQ PIN PX8A,X9A,PY8A,Y9A,P76A-78A,
P89A,P93A
1 027416 HDR .1 CTR 8 CKT SQ PIN P88A
14 047175 JACK PHONE STEREO CLOSED CKT JX1,X3,X4,JY1
17 047174 JACK PHONE STEREO OPEN CKT J1,JX2,X5,JY3,Y4,JZ1,Z3
1 040181 JACK PHONO DUAL VERT PC MOUNT J2
4 040412 JACK XLR MALE (A/D XLM-3PV) JY2,JZ2
1 047700 PCB OUTPUT I/O MX5232 PCBI
4 047241 RES CF 1/6W 5% 47ΩRX19
10 047750 RES CF 1/2W 5% 330ΩR9,10,RY20,Y21,RZ11,Z12
3 048831 SOCKET IC 14 PIN DIP P97-99
PARTS LIST
OUTPUT/MASTER
PRINTED CIRCUIT BOARD ASSEMBLY
NOTES:
"X" IN A REFERENCE DESIGNATOR = 1-4
"Y" IN A REFERENCE DESIGNATOR = 5-6
"Z" IN A REFERENCE DESIGNATOR = 7-8
QTY PART # DESCRIPTION REFERENCE DESIGNATION
1 047699001 PCB ASSY MX5200 OUTPUT LL (STUFFED)
1 047217 CABLE JUMPER 2-CKT .1X8.5 @P10,P10A
18 028458 CAP AE RDL 1µF 50V 20% CX06,X41,X43,CY06,Y20,CZ06
5 028460 CAP AE RDL 4.7µF 50V 20% C5,CY19,Y21
43 028463 CAP AE RDL 10µF 50V 20% C1,2,11,CX04,X07,X42,X44,X83,
CY04,Y08,Y10,Y11,Y13,Y14,Y16,
Y17,Y22,CZ03
27 028471 CAP AE RDL 47µF 50V 20% C12,CX03,X09,X82,CY03,Y90,CZ02,
Z07,Z19,Z26,Z27
1 028474 CAP AE RDL 100µF 25V 20% C6
2 028475 CAP AE RDL 100µF 35V C9,10
1 047194 CAP AE RDL 100µF 63V C7
2 039255001 CAP CA 10PF 100V LL CY18
16 038873001 CAP CA 22PF 100V LL CX01,X81,CY01,Y09,Y12,CZ01
22 038698001 CAP CA 47PF 100V LL C3,4,CX02,X84,CY02,Y07,Y15,
CZ04,Z05,Z18
10 038699001 CAP CA 100PF 100V LL CX05,CY05,CZ20,CZ25
4 039259001 CAP CA 220PF 100V LL CZ12,Z17
75 034788 CAP CD .1µF 50V20% .15" CUT CBP(All 75 bypass caps use the CBP
reference designator.)
1 027278 CAP MPF .1µF 63V 10% C8
4 030926 CAP PFF RDL 470PF 50V 5% CZ23,Z24
4 030939 CAP PFF RDL .0039µF 50V 5% CZ08,Z10
8 030953 CAP PFF RDL .039µF 50V 5% CZ09,Z11,Z13,Z15
4 048488 CAP PFF RDL .22µF 50V 5% CZ21,Z22
4 047197 CAP PFF RDL .39µF 50V 5% CZ14,Z16
2 047181 CONTROL TRIM MULTITURN 100K R548,648 (Meter Adjust)
8 041080 CONTROL VERT 10K B W/DETENT RX23,X49 (Pan)
11 041083 CONTROL VERT 50K 15A R1(Mono Level),RX84(Auxillary Level),
RZ04(Monitor Level),
RZ23,RZ33(Parametric "Bandwidth")
4 041082 CONTROL VERT 50K B W/DETENT RZ20,Z30 (Parametric "Cut/Boost")
4 047193 CONTROL VERT DUAL 50K 15C RZ26,Z36 (Parametric "Frequency")
4 047192 CONTROL VERT DUAL 100K 15C RZ48,Z50 (Low Cut, High Cut)
6

PARTS LIST
OUTPUT/MASTER
PRINTED CIRCUIT BOARD ASSEMBLY
CONTINUED
QTY PART # DESCRIPTION REFERENCE DESIGNATION
7 047178 CONTROL VERT DUAL 100KB R534(Control Room), R627(Solo Level),
R640(Headphone),RX50(Return Level)
8 047177 CONTROL VERT 100KB RX60,X64 (Return to Monitor 1,2)
39 006260001 DIODE 1N4448 SIGNAL LL CR1-7,CRX1-X5,CRY1-Y3,CRZ1-Z3
5 025802 FSTN TAB MALE .250X.032 PCB MT CP1-5
4 027408 HDR .1 CTR 2 CKT SQ PIN P7A,7B,79,95
30 027411 HDR .1 CTR 4 CKT SQ PIN P2,4,76-78,89,91-94,91A,92A,
PX7-9,PY7-9
11 027416 HDR .1 CTR 8 CKT SQ PIN P3,P5A-D,P6A-D,P8,P88
1 047221 HEADER 6 CKT BLOK LOC P9
11 016795 IC DUAL OP AMP TL072 U3,4,77,UZ3-6
2 041091 IC LED DRIVER 12 SEG LB1412 U53,63
24 033281 IC OP-AMP DUAL 5532 U1,2,5,12,32,72,UX1,X3,X4,UY1,Y2,UZ1
1 047174 JACK PHONE STEREO OPEN CKT J3
1 020888001 JUMPER WIRE 22GA W1
15 047179 LED AMBER T1 LD1,LDX3-5,LDZ2
2 041090 LED ARRAY,12 SEG LDY3
1 030755 LED GREEN T-1 3MM DIFFUSED LD2
16 030754 LED RED T-1 3MM DIFFUSED LDX1,X2,LDY1,Y2,LDZ1,Z3
1 047697 PCB OUTPUT MX5232 PCB1
2 047240001 RES CF 1/6W 5% 33ΩLL RY43
37 047241001 RES CF 1/6W 5% 47ΩLL R3,7,8,RX05,X16,X86,X87,X88,
RY05,Y18,Y19,Y31,Y39,RZ06,Z10
2 047242001 RES CF 1/6W 5% 430ΩLL RZ55
8 047731001 RES CF 1/6W 5% 620ΩRX29,X56
23 041852001 RES CF 1/6W 5% 1K R12,14,22,166,366,RX14,X33,X91,
RY14,RZ18,Z60
14 047234001 RES CF 1/6W 5% 1.8K LL RY33,RZ25,Z27,Z28,Z35,Z37,Z38
6 049083001 RES CF 1/6W 5% 2.2K LL RX09,RY09
14 047237001 RES CF 1/6W 5% 3K LL RX83,RZ03,Z22,Z32,Z41,Z42
4 041855001 RES CF 1/6W 5% 3.3K RZ46,Z47
4 047239001 RES CF 1/6W 5% 3.6K LL RZ29,Z39
2 047205001 RES CF 1/6W 5% 4.3K RZ45
8 047243001 RES CF 1/6W 5% 4.7K LL RX10,RY10,Y49
20 047246001 RES CF 1/6W 5% 5.6K LL RX21,X22,X47,X48,RY36,RZ53
11 041857001 RES CF 1/6W 5% 6.8K R21,RZ24,Z34,Z44,Z49,Z51
48 041848001 RES CF 1/6W 5% 10K R5,6,RX03,X43,X46,X58,X59,X62,X63,
RY03,Y16,Y17,Y29,Y37,Y41,RZ08,Z09
Z52
PARTS LIST
OUTPUT/MASTER
PRINTED CIRCUIT BOARD ASSEMBLY
CONTINUED
QTY PART # DESCRIPTION REFERENCE DESIGNATION
6 047233001 RES CF 1/6W 5% 11K LL RX04,RY04
4 047235001 RES CF 1/6W 5% 15K LL RZ40,Z43
16 041858001 RES CF 1/6W 5% 18K RX24,X27,X51,X53
28 047236001 RES CF 1/6W 5% 20K LL RX26,X55,X61,X65,X81,RY24,Y35,
Y55,RZ01
2 047238 RES CF 1/6W 5% 30K RY25
18 049085001 RES CF 1/6W 5% 36K LL RX01,X25,X54,RY01,Y23,Y30
8 049084001 RES CF 1/6W 5% 56K LL RX28,X52
8 047247001 RES CF 1/6W 5% 68K LL RX12,RY12,RZ16
77 041820 RES CF 1/6W 5% 100K R2,4,13,15,16,17,18,RX06,X08,X11,
X20,X32,X41,X42,X44,X45,X85,X89
RY06,Y08,Y11,Y22,Y28,Y38,Y90,
RZ05,Z15,Z19,Z21,Z31,Z54
2 041821001 RES CF 1/6W 5% 330K RY42
3 047244001 RES CF 1/6W 5% 470K LL R19,RY47
8 049505001 RES CF 1/6W 5% 1M RZ56,Z57,Z58,Z59
14 024963001 RES CF 1/4W 5% 680ΩLL RX02,X82,RY02,Y26,RZ02
10 024964001 RES CF 1/4W 5% 820ΩLL R550-554,650-654
8 029453001 RES CF 1/4W 5% 1.6K LL RX13,RY13,RZ17
8 024970001 RES CF 1/4W 5% 1.8K LL RX30,X57
16 029610001 RES CF 1/4W 5% 3K LL R11,20,RX15,X90,RY15,RZ07,Z14
2 024997001 RES CF 1/4W 5% 100K LL RZ13
4 025937001 RES CF 1/2W 5% 22ΩLL RY44,Y45
2 027628 RES FILM 2W 5% 47ΩRY46
14 031188 SCRW M 4-40X1/4 PHPS ZI W/WSHR @Standoffs
32 047176 SPACER LED .5X.18 @LD1,2,LDX1-5,LDY1,Y2,LDZ1-3
6 041824 SPACER RND NYL .12OX.187X .350 @LDY3
2 040533 STANDOFF 4-40X.937 (Mounting for small breakaway PCB,
Phantom power)
12 033275 STANDOFF 4X5/8" RND AL (Mounting for main PCB)
2 047180 SWITCH 4P3T SLIDE S71,81
38 041079 SWITCH DPDT ALT-ACT S1-4,SX1-X6,SY1,SZ2-Z5
5 014689 XSTR N-CH JFET J111 TO -92 Q3,QY3,Y4
17 016739 XSTR NPN 2N4401 TO-92 Q2,QX1,X2,QY1,Y2,QZ1,Z2
2 014867 XSTR NPN MPSW10 TO-226AE QY5
2 014866 XSTR PNP MPSW92 TO-226AE QY6
1 016742 XSTR PNP 2N4403 TO-92 Q1
7

PARTS LIST
PANEL ASSEMBLY OUTPUT/MASTER
QTY PART # DESCRIPTION REFERENCE DESIGNATION
1 047704 PANEL ASSY OUTPUT MX5200 PCB mounted in panel
15 041832 BUTTON SWITCH 5.5X10MM GRAY @Solo switches(S1,SX3,5,6,SZ2)
15 041831 BUTTON SWITCH 5.5X5.5MM GRAY @All switches other than Mute and
Solo(S2-3,SX2,4,SZ4,5)
8 047169 BUTTON 12MM SQ. GREY @Mute switches(SX1,SY1,SZ2)
6 047171 CONTROL SLIDE 100MM 10KA RX07,Y07
4 041836 KNOB CTL CUSTOM DBL GRY/BLACK @Return Level Pots(RX50)
14 041835 KNOB CTL CUSTOM DBL GRY/BLUE @pots for Aux Level(RX84), Mon
Level(RZ04), and Return to Mon
Level(RX60,64)
8 041837 KNOB CTL CUSTOM DBL GRY/DK GRY @Pan Pots(RX23,49)
16 041834 KNOB CTL CUSTOM DBL GRY/GREEN @EQ
Pots(RZ20,23,26,30,33,36,48,50)
4 041833 KNOB CTL CUSTOM DBL GRY/WHT @pots for Solo(R627), Control
Room(R534), Headphones(R640), and
Mono Level(R1)
2 041072 KNOB SLIDER 15MM RED/BLACK Main Faders
4 041071 KNOB SLIDER 15MM WHITE/BLACK @Sub 1-4 Faders
1 047737 PANEL TOP OUTPUT MX
12 9904101070 SCREW M 3X5MM PHIL PANM/S B/O Mounting Faders to Panel.
14 014172 SCREW M 4-40X1/4 PHP BLX @Mounting of PC Assy to Panel.
PARTS LIST
CHASSIS ASSEMBLY
QTY PART # DESCRIPTION REFERENCE DESIGNATION
1 047747 ARMREST ASSY MX5216
1 047748 ARMREST ASSY MX5224
1 047749 ARMREST ASSY MX5232
1 047183 CABLE ASSY RIBBON 2CKT 3 IN PCB INTERCONNECTS
1 047184 CABLE ASSY RIBBON 2CKT 60 IN " "
25 049017 CABLE ASSY RIBBON 4CKT 8" " "
8 049019 CABLE ASSY RIBBON 4CKT 16" " "
10 049021 CABLE ASSY RIBBON 4CKT 24" " "
1 049022 CABLE ASSY RIBBON 8CKT 30" " "
1 049023 CABLE ASSY RIBBON 8CKT 40" " "
049024 CABLE ASSY RIBBON 8CKT 50" " " (MX5224/32 ONLY)
049025 CABLE ASSY RIBBON 8CKT 60" " " (MX5232 ONLY)
1 047188 CABLE MX REC/M-PNL MT 1FT 6CKT From PCB to power supply connector
1 047738 CHS BOTTOM MX5216
2 031882 CLIP RIBBON CABLE W/ADHESIVE
2 049043 CONNECTOR BNC PNL MNT SLDR LUG
1 047248 CORD PWR W/IEC CONN DOM
2 049000 JUMPER FSTN-FSTN 6" BLK
1 047741 PANEL LEFT BNC MX
1 047742 PANEL SIDE L MX52XX W/INSERTS Wood end panel
1 047743 PANEL SIDE R MX52XX W/INSERTS Wood end panel
1 047746 PLATE BTTM TRIM MX5216
1 048891 PLATE COVER 15 PIN DOUBLE
1 048892 PLATE COVER 25 PIN DOUBLE
1 047733 PLATE TOP TRIM MX5216
9 014999 SCRW M 6-32X1/4 PHP BLX
12 031183 SCRW M 6-32X3/8 UFHP BLX
1 026419 SCRW M 8-32X1 PHP STL NI
14 029656 SCRW M 8-32X3/8 PHP BLX SEM/LM
41 031868 SCRW PLASTITE 4X1/4 40@ XLR jacks, 1@ Tape In jacks
4 048890 SCRW TF 4-40X1/4 PHP BLX 2@Line Cord Connector,2@Voltage
Selector Switch, 4@Circular connector
4 032806 SCRW TF 6-32X1/4 PHP BLX
8

CPSM-4 POWER SUPPLY MODULE
PARTS LIST
THE FOLLOWING SECTION CONTAINS TWO DIFFERENT PARTS LISTS FOR THE PRINTED CIRCUIT
BOARD ASSEMBLY. THE "REV A" PARTS LIST REFERS TO THE REV A CIRCUIT BOARD. THE "REV B"
PARTS LIST REFERS TO THE REV B CIRCUIT BOARD. THE REVISION LEVEL IS LOCATED ON THE SOLDER
SIDE OF THE PCB, ADJACENT TO THE RAW BOARD PART NUMBER (047722 A) NEAR THE CORNER, BY
THE HEATSINK.
ANOTHER WAY TO IDENTIFY THE REVISION IS TO LOOK FOR THE THERMAL SWITCH LOCATED AT THE
CENTER OF THE HEATSINK. THERMAL SWITCH MISSING, REV A. THERMAL SWITCH PRESENT, REV B.
ENCLOSED ARE SCHEMATICS AND SERVICE DIAGRAMS FOR BOTH VERSIONS.
"A" REVISION BOARD USE: SCHEMATIC 047721 REV C.
SERVICE DIAGRAM 047723 REV A.
"B" REVISION BOARD USE: SCHEMATIC 047721 REV D.
SERVICE DIAGRAM 047723 REV B.
REV "A"
MX-5200 POWER SUPPLY
PRINTED CIRCUIT BOARD ASSEMBLY
QTY PART # DESCRIPTION REFERENCE DESIGNATION
047724001 PCB ASSY MX5200 PWR SUPPLY (STUFFED)
5 038692001 CAP AE AX 10µF 35V C8,9,13,14,20
1 031069 CAP AE RDL 10µF 100V 20% C17
2 025960001 CAP AE AX 22µF 16V C7,12
4 031040 CAP AE RDL 100µF 100V 20% C5,6,10,11
1 028494 CAP AE RDL 1000µF 35V 20% C19
1 047208 CAP AE RDL 2200µF 100V C15
1 047202 CAP AE RDL 6800µF 35V C18
2 047201 CAP AE RDL 15000µF 35V C1,2
2 027278 CAP MPF .1µF 63V 10% C3,4
1 027279 CAP MPF .1µF 100V 10% C16
9 064089001 DIODE 1N4003 LL CR5,6,10,11,15-18,25
10 006260001 DIODE 1N4448 SIGNAL LL CR8,13,19,20,22-24,30-32
9 020534 DIODE 1N5402 RECTIFER 200V C&F CR1-4,26-29,33
(CR27,28 KLUGED ON SOLDER
SIDE OF "A" REVISION BOARD)
2 027327001 DIODE ZEN 1N5234B 6.2V 5% LL CR7,12
1 047206 DIODE ZEN 1N5370B 56V 5W 5% CR21
16 025802 FSTN TAB MALE .250X.032 PCB MT CP1-16
CPSM-4 POWER SUPPLY MODULE
PARTS LIST
REV "A"
MX-5200 POWER SUPPLY
PRINTED CIRCUIT BOARD ASSEMBLY
CONTINUED
QTY PART # DESCRIPTION REFERENCE DESIGNATION
4 020775 FUSE HOLDER CLIP PCB 5MM 2ea @F1,2
2 047231 FUSE TD 20MMX5MM 250V 1.6A F1,2
1 047221 HEADER 6 CKT BLOK LOC P1
1 047215 HEATSINK TO-218 MX52XX (FOR Q1-3,5-7,10,11)
2 028047 IC OP AMP MC1436/SG1436Y U1,2
8 040903 INSULATOR MICA TO-218 (1ea @ Q1-3,507,10,11)
2 9904701001 JUMPER WIRE 20GA STUFFED IN PLACE OF CR9,14
9 020888001 JUMPER WIRE 22GA W1-9
4 047216 LED GREEN T-1 LENS LD1-4
1 047722 PCB POWER SUPPLY MX5232 RAW PCB (REVISION "A")
1 029570001 RES CF 1/4W 5% 3.3ΩR29
1 024948001 RES CF 1/4W 5% 56ΩLL R28
2 024965001 RES CF 1/4W 5% 1K LL R8,21
2 024971001 RES CF 1/4W 5% 2.2K LL R3,16
2 024975001 RES CF 1/4W 5% 3.9K LL R12,25
2 024977001 RES CF 1/4W 5% 4.7K LL R4,17
2 037169001 RES CF 1/2W 5% 1.8K LL R2,15
2 016961001 RES MF 1/4W 1% 6.81K LL R11,24
2 024980001 RES CF 1/4W 5% 8.2K LL R1,14
2 024981001 RES CF 1/4W 5% 10K LL R9,22
1 026549001 RES CF 1/2W 5% 1.5K LL R32
2 027346001 RES CF 1W 5% 1.2K R30,31
1 027358 RES FILM 2W 5% 3.9K R33
1 041810 RES FILM 2W 5% 6.8K R27
1 032958 RES WW BT 5w 10% .33ΩR34
6 028028 RES WW BT 5W 10% .47ΩR5-7,R18-20
2 047203 RES WW BT 10W 10% .68ΩR10,23
1 049346 RES WW BT 10W 10% 750ΩR39
10 027638 SCRW TF 4-40X3/8 HWHS ZI .1"HD 1ea@Q1-3,5-7,10,11+2@Heatsink
2 033255 SPACER RND NYL .047X.125X.200 @ R39
1 028503 THERMISTOR 10 OHM 5A C60-11 TH1
8 028169 WSHR SHLDR NYL 5/32X1/4 1ea@Q1-3,5-7,10,11
1 016739 XSTR NPN 2N4401 TO-92 Q4
1 9902248880 XSTR NPN 2N5401 TO-92 Q9
5 028114 XSTR NPN TIP 142 TO-218AC Q1-3,10,11
1 016742 XSTR PNP 2N4403 TO-92 Q8
3 028115 XSTR PNP TIP147 TO-218AC Q5-7
9

CPSM-4 POWER SUPPLY MODULE
PARTS LIST
REV "B"
MX-5200 POWER SUPPLY
PRINTED CIRCUIT BOARD ASSEMBLY
QTY PART # DESCRIPTION REFERENCE DESIGNATION
1 047724001 PCB ASSY MX5200 PWR SUPPLY (STUFFED)
5 038692001 CAP AE AX 10µF 35V C8,9,13,14,20
1 031069 CAP AE RDL 10µF 100V 20% C17
2 025960001 CAP AE AX 22µF 16V C7,12
4 031040 CAP AE RDL 100µF 100V 20% C5,6,10,11
1 028494 CAP AE RDL 1000µF 35V 20% C19
1 047208 CAP AE RDL 2200µF 100V C15
1 047202 CAP AE RDL 6800µF 35V C18
2 047201 CAP AE RDL 15000µF 35V C1,2
2 027278 CAP MPF .1µF 63V 10% C3,4
1 027279 CAP MPF .1µF 100V 10% C16
9 064089001 DIODE 1N4003 LL CR5,6,10,11,15-18,25
10 006260001 DIODE 1N4448 SIGNAL LL CR8,13,19,20,22-24,30-32
9 020534 DIODE 1N5402 RECTIFER 200V C&F CR1-4,26-29,33
1 047206 DIODE ZEN 1N5370B 56V 5W 5% CR21
20 025802 FSTN TAB MALE .250X.032 PCB MT CP1-20
4 020775 FUSE HOLDER CLIP PCB 5MM 2ea @ F1,2
2 047231 FUSE TD 20MMX5MM 250V 1.6A F1,2
1 047221 HEADER 6 CKT BLOK LOC P1
1 047215 HEATSINK TO-218 MX52XX (FOR Q1-3,5-7,10,11)
2 028047 IC OP AMP MC1436/SG1436Y U1,2
8 040903 INSULATOR MICA TO-218 (1ea @ Q1-3,507,10,11)
2 9904701001 JUMPER WIRE 20GA CR9,14
9 020888001 JUMPER WIRE 22GA W1-9
4 047216 LED GREEN T-1 LENS LD1-4
1 047722 PCB POWER SUPPLY MX5232 PCB1
1 029570001 RES CF 1/4W 5% 3.3ΩR29
1 031694001 RES MF FUSE 1/4W 5% 68ΩLL R28
3 024965001 RES CF 1/4W 5% 1K LL R8,21,35
4 024971001 RES CF 1/4W 5% 2.2K LL R3,13,16,26
4 024977001 RES CF 1/4W 5% 4.7K LL R2,4,15,17
2 016961001 RES MF 1/4W 1% 6.81K LL R12,25
2 024980001 RES CF 1/4W 5% 8.2K LL R1,14
2 024981001 RES CF 1/4W 5% 10K LL R9,22
1 026549001 RES CF 1/2W 5% 1.5K LL R32
1 036621001 RES CF 1W 5% 6.8K R31
1 027358 RES FILM 2W 5% 3.9K R33
CPSM-4 POWER SUPPLY MODULE
PARTS LIST
REV "B"
MX-5200 POWER SUPPLY
PRINTED CIRCUIT BOARD ASSEMBLY
CONTINUED
QTY PART # DESCRIPTION REFERENCE DESIGNATION
1 041810 RES FILM 2W 5% 6.8K R27
1 032958 RES WW BT 5w 10% .33ΩR34
6 028028 RES WW BT 5W 10% .47ΩR5-7,R18-20
2 047203 RES WW BT 10W 10% .68ΩR10,23
1 037034 RES WW BT 10W 10% 1K R39
12 027638 SCRW TF 4-40X3/8 HWHS ZI .1"HD 1ea@Q1-3,5-7,10,11+2@Heatsink
+2@ TS1
2 033255 SPACER RND NYL .047X.125X.200
1 037037 SWITCH THERMAL N.O. 194 DEG F TS1(FAN LOW TO HIGH SPEED)
1 028503 THERMISTOR 10 OHM 5A C60-11 TH1
2 041261 VOLT REF LM4040DC2-10V TO-92 U3,4
8 028169 WSHR SHLDR NYL 5/32X1/4 1ea@Q1-3,5-7,10,11
1 016739 XSTR NPN 2N4401 TO-92 Q4
1 9902248880 XSTR NPN 2N5401 TO-92 Q9
5 028114 XSTR NPN TIP 142 TO-218AC Q1-3,10,11
1 016742 XSTR PNP 2N4403 TO-92 Q8
3 028115 XSTR PNP TIP147 TO-218AC Q5-7
10

CPSM-4 POWER SUPPLY MODULE
PARTS LIST
MX-5200 POWER SUPPLY
CHASSIS ASSEMBLY
QTY PART # DESCRIPTION REFERENCE DESIGNATION
049033 CHS ASSY POWER SUPPLY MX52XX
1 047190 CABLE MX5200 PWR INTERCONNECT From power supply to mixer
1 047189 CABLE MX REC/F-PNL MT 1FT 6CKT From P1 of PCB Assy to rear of
Chassis.
1 047706 CHS BOTTOM MX POWER SUPPLY
1 047705 CHS TOP MX POWER SUPPLY
1 047213 CONNECTOR AC LINE MALE IEC
1 036229 FAN 3-1/8" 120V
5 069393 NUT 6-32 HEX EXT LOCK 4 @ Fan
4 022004 NUT KEPS #8-32 ZINC @Transformer
2 033051 SCRW M 6-32X1/2 PHP ZI LW @Mounting PCB Assy to chassis.
Used on the PCB side, for the 2 holes
through the heatsink.
5 017433 SCRW M 6-32X3/8 PHP BLX 4@ Fan,1@ Chassis Ground Lug
4 026553 SCRW M 8-32X3/8 PHP BLX @Transformer
12 031184 SCRW M6-32X1/4 PHPS BLX ITLW PCB Assy to Chassis Bottom
28 032806 SCRW TF 6-32X1/4 PHP BLX @Chassis, Top mounting to Chassis,
Bottom
7 031073 STANDOFF 6-32X3/8 RND AL PCB Assy to Chassis Bottom
1 040582 SWITCH DPST .250 TAB GLOBAL S1
1 047214 SWITCH VOLT SELECT
1 047168 XFMR POWER MX5224/32 T1
MISCELLANEOUS
QTY PART # DESCRIPTION REFERENCE DESIGNATION
047688 SCHEMATIC MX52XX INPUT CHANNEL 2 pages

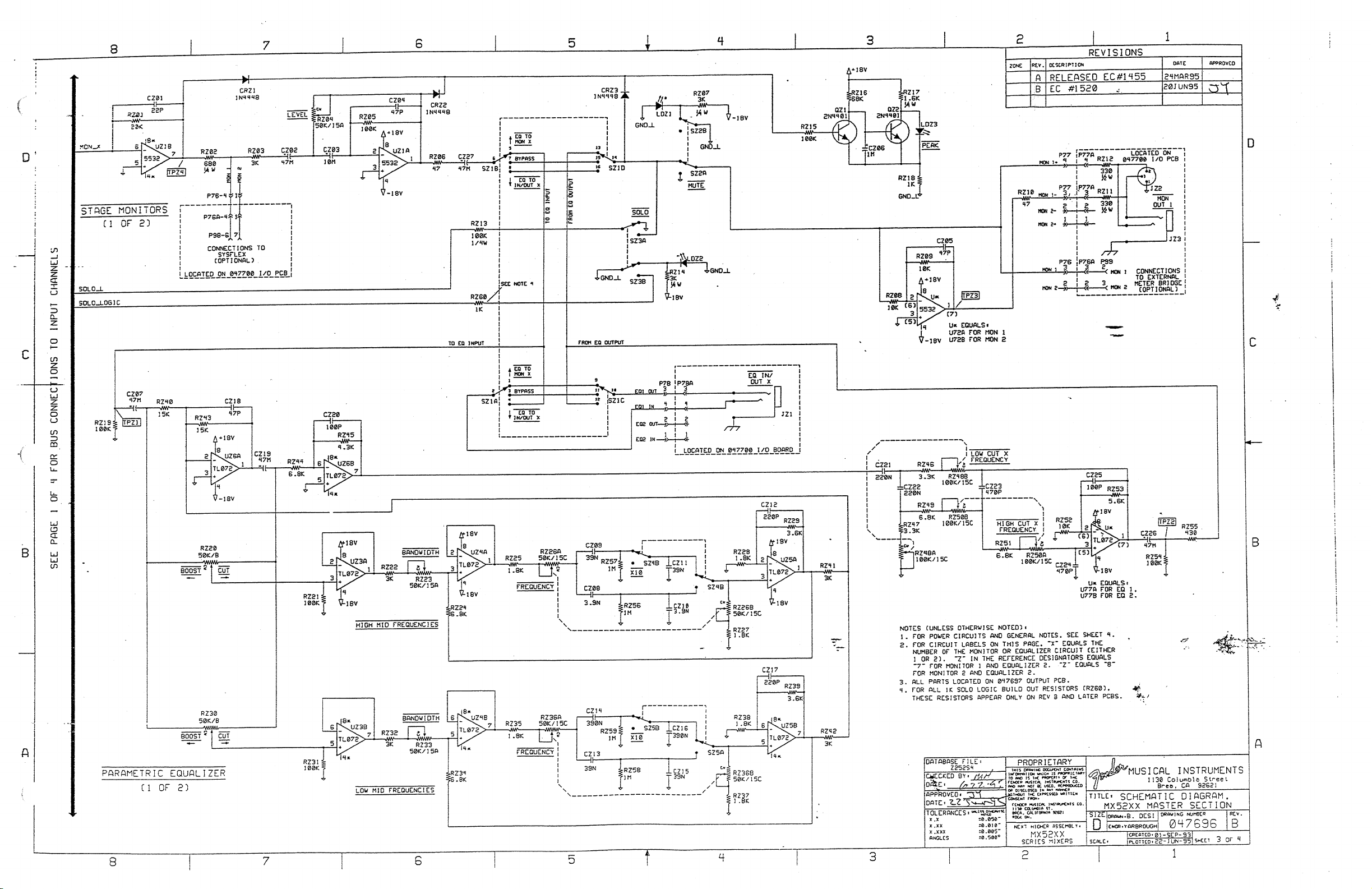

047696 SCHEMATIC MX52XX MASTER 4 pages
047721 SCHEM MX PWR SUPPLY W/SERV DIA See page 17 for correct revision
047690 / 93 SERVICE DIA MX52XX INPUT & I/O 2 pages (back page 047693 Input I/O)

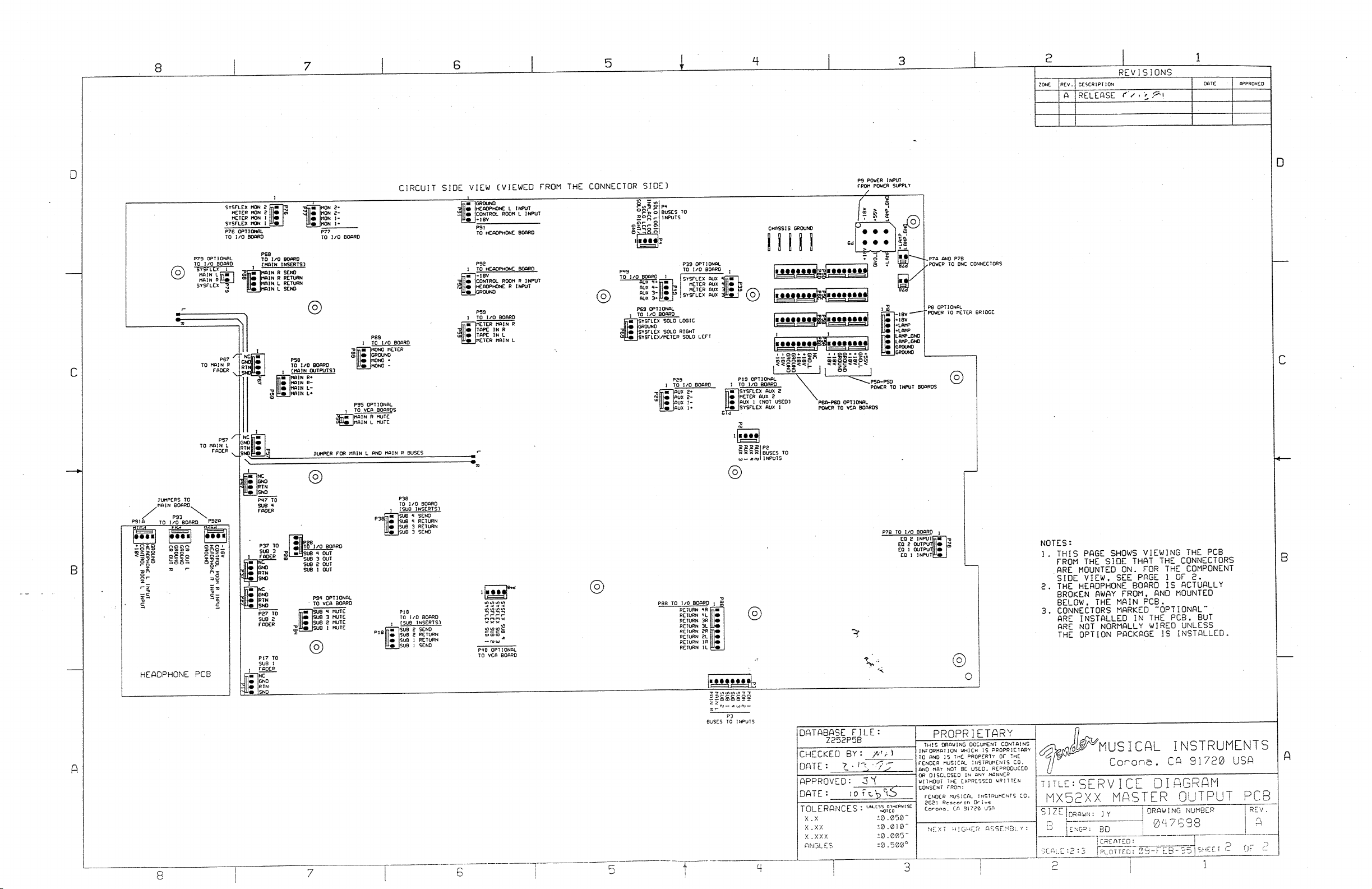

047698 SERVICE DIA MX52XX MASTER 2 pages
047701 SERVICE DIA MX52XX MASTER I/O 2 pages
11









Other manuals for MX-5200
1
This manual suits for next models
6
Other Fender Music Mixer manuals

Fender
Fender SR-6520PD User manual

Fender
Fender 3106 User manual

Fender
Fender PASSPORT SR8500 User manual

Fender
Fender SR-6520 User manual

Fender
Fender LX-1504 User manual

Fender
Fender PX-2208 User manual

Fender
Fender MX 5224 User manual

Fender
Fender Music Mixer User manual

Fender
Fender PASSPORT SR6300 User manual

Fender
Fender SR6325 User manual
