Ferno Pedi-Pac 78 User manual

Model 78
Pedi-Pac™
Pediatric Immobilizer
Users'
Manual
Pub. No. 234-1684-01

Model 78 Pedi-Pac Pediatric Immobilizer Users' Manual
2© Ferno-Washington, Inc. 234-1684-01 November 1997
Disclaimer
This manual contains general instructions for the use,
operation and care of this product. The instructions are not
all-inclusive. Safe and proper use of this product is solely at
the discretion of the user. Safety information is included as
a service to the user. All other safety measures taken by the
user should be within and under consideration of applicable
regulations. It is recommended that training on the proper
use of this product be provided before using this product in
an actual situation.
Retain this manual for future reference. Include it with the
product in the event of transfer to new users. Additional free
copies are available upon request from Customer Service.
Proprietary Notice
The information disclosed in this manual is the property of
Ferno-Washington, Inc., Wilmington, Ohio, USA. Ferno-
Washington, Inc., reserves all patent rights, proprietary
design rights, manufacturing rights, reproduction use rights,
and sales use rights thereto, and to any article disclosed
therein except to the extent those rights are expressly
granted to others or where not applicable to vendor
proprietary parts.

Users' Manual Model 78 Pedi-Pac Pediatric Immobilizer
© Ferno-Washington, Inc. 234-1684-01 November 1997 3
Page
TABLE OF CONTENTS
Section 1 - Safety Information ......................................................... 4
Section 2 - Learning about the Product........................................... 4
Section 3 - Operator Skills and Training ......................................... 7
Section 4 - Using the Product.......................................................... 8
Section 5 - Repair Parts and Service ............................................ 13
Section 6 - Limited Warranty ......................................................... 14
Section 7 - Customer Service ........................................................ 14
Training Record ............................................................................ 15
Maintenance Record..................................................................... 15

Model 78 Pedi-Pac Pediatric Immobilizer Users' Manual
4© Ferno-Washington, Inc. 234-1684-01 November 1997
SECTION 2 - LEARNING ABOUT THE PEDI-PAC
2.1 Pedi-Pac Description
The Model 78 Pedi-Pac Pediatric Immobilizer
(Pedi-Pac) is a device designed to aid in
stablizing and immobilizing a pediatric trauma
patient.
The Pedi-Pac is for professional use by a
minimum of two trained operators.
The Pedi-Pac features include a plywood
backboard with a removable nylon cover, an
adjustable, color-coded restraint system, a head
support, lifting handle, and cot attachment loops.
SECTION 1 - SAFETY INFORMATION
1.1 Safety Alerts
Safety alerts identify hazards to avoid. The
following safety alerts appear in this manual.
1.2 Important Boxes
Important boxes are used in this manual to
highlight and emphasize information relating to
the text immediately preceding the box.
1.3 Labels
Labels place important information from the users'
manual on the Pedi-Pac where it is readily
available to person(s) who may not have seen
the manual.
Read and follow label instructions. Replace worn
or damaged labels immediately. New labels are
available from EMSAR®(page 13).
1.4 Before You Begin
Your service technician and bio-med technician
should read and follow the instructions in
Inspecting the Pedi-Pac before placing the
Pedi-Pac in service (page 12).
Important
Improper use can cause injury. Use the
Pedi-Pac only as described in this manual.
Improper operation can cause injury.
Use the Pedi-Pac only as described in this
manual.
Improper maintenance can cause injury.
Maintain the Pedi-Pac only as described in
this manual.
Improper parts and service can cause
injury. Use only Ferno parts and Fern-
approved service on the Pedi-Pac.
Included with the Pedi-Pac is a carrying case, a
Pedi-Pad™, and two head/chin restraints.
Improper use can cause injury. Use the
Pedi-Pac only as described in this manual.

Users' Manual Model 78 Pedi-Pac Pediatric Immobilizer
© Ferno-Washington, Inc. 234-1684-01 November 1997 5
2.2 General Specifications
Specifications are rounded to whole numbers.
For detailed specifications, contact Ferno
Customer Service (page 14). Ferno reserves the
right to change specifications without notice.
Length................................ 48 in .... 122 cm
Height ................................ 75 in .... 191 cm
Width.................................... 9 in ...... 23 cm
Weight .................................. 7 lb ......... 3 kg
Load Limit .......................... 90 lb ....... 41 kg
Size Limit ............................ 54 in .... 137 cm
Note: The color names shown on the restraints are not actually on the product.
2.3 Components
Cover Flap
Lower-hip
Restraint
Thigh
Restraint
Chest
Restraint
Shoulder Restraint (2)
Wrist Restraint (2)
Head Support
Upper-hip
Restraint
Head-support
Flap (2)
Ankle Restraint (2)
Pedi-Pad
Cot-attachment
Loop (2)
D-ring (6)
Head End
Foot End
Leg
Restraint
Carrying Case
Lifting
Handle (4)
Forehead/Chin Restraints

Model 78 Pedi-Pac Pediatric Immobilizer Users' Manual
6© Ferno-Washington, Inc. 234-1684-01 November 1997

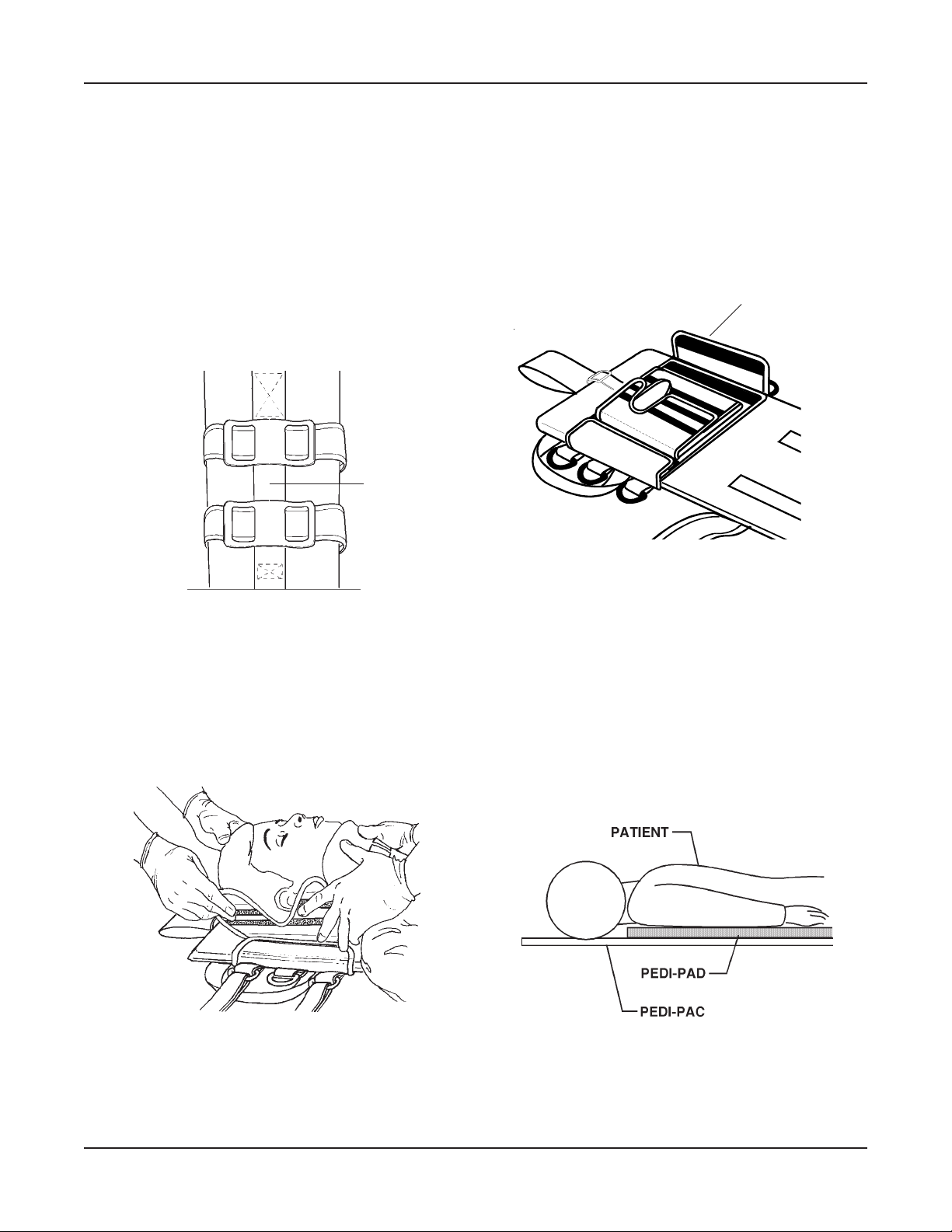

2.4 Adjustable Color-coded Restraints
The color-coded restraints adjust for proper
alignment with each patient.
The color-coded restraints slide along a strap on
the back of the Pedi-Pac (Figure 1). To adjust a
color-coded restraint, slide the restraint up or
down the slide strap.
Figure 1
2.5 Adjustable Head Support
The head support adjusts to align with the patient's
ears (Figure 2).
Back View
Figure 3
Figure 2
Slide Strap
Head-support Flap
Slots in the head support allow EMTs to talk with
the patient and to check the patient's ears for
bleeding.
To adjust the head support, open the head-support
flaps (Figure 3).
Move the head support up or down, then close the
flaps.
Tighten the head-support strap, if needed.
2.6 Pedi-Pad
The Pedi-Pad can help maintain the cervical spine
in a neutral position. (Figure 4).
Figure 4

Users' Manual Model 78 Pedi-Pac Pediatric Immobilizer
© Ferno-Washington, Inc. 234-1684-01 November 1997 7
The Pedi-Pad attaches to the Pedi-Pac with hook
and loop fasteners (Figure 5).
Figure 5
Consult your EMS medical advisor about the use
of padding with a pediatric patient whom you
suspect has a cervical-spine injury.
3.1 Skills
Operators should have a working knowledge
of emergency patient-handling procedures.
Operators should have the ability to assist
the patient.
Operators should have a complete
understanding of the procedures described
in this manual.
SECTION 3 - OPERATOR SKILLS AND TRAINING
3.2 Training
Trainees should follow a training program
designed by your training officer.
Trainees should read this manual and view
the video tape.
Practice with the Pedi-Pac before using it in
regular service.
Test each trainee's understanding of the Pedi-Pac.
Keep training records. A convenient form is provided on page 15.

Model 78 Pedi-Pac Pediatric Immobilizer Users' Manual
8© Ferno-Washington, Inc. 234-1684-01 November 1997
4.1 General Information
Pedi-Pac operation requires a minimum of two
trained operators.
Read Learning About the Pedi-Pac (page 4)
before using the Pedi-Pac.
Follow standard emergency pediatric
patient-handling procedures when operating
the Pedi-Pac.
Stay with the patient at all times and always use
patient restraints.
Use good lifting techniques when operating the
Pedi-Pac. See Operator Skills and Training
(page 7).
SECTION 4 - USING THE PEDI-PAC
Improper operation can cause injury. Use
the Pedi-Pac only as described in this
manual.
4.2 Prepare the Patient
Use the Pedi-Pac with a patient who is between
28 - 54 inches in height and weighs between
20 - 90 pounds. (A child approximately 2- to 10-
years of age.)

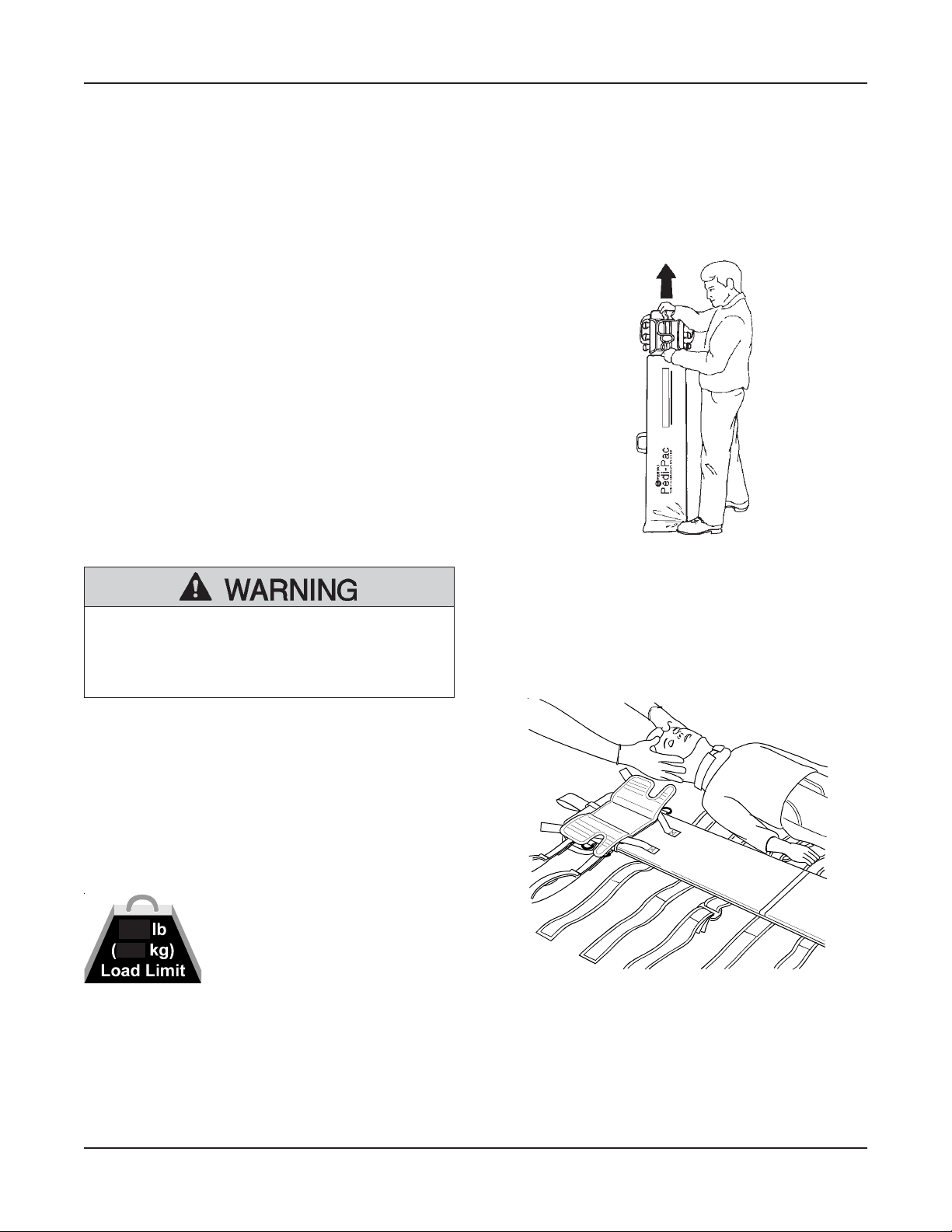

4.3 Set Up the Pedi-Pac
Remove the Pedi-Pac from its carrying case
(Figure 6).
Lay the Pedi-Pac beside the patient.
Position the top of the shoulder restraints in line
with the top of the patient's shoulders (Figure 7).
Unfasten and lay the restraints aside.
Align the slots in the head support with the
patient's ears.
Figure 7
Figure 6
Keep the load limit of the
Pedi-Pac in mind when working
with a heavy patient.
If you suspect the load limit has
been exceeded, inspect the
Pedi-Pac.
Immobilize the patient's head and neck (cervical
spine) with a cervical collar or similar device.
90
41

Users' Manual Model 78 Pedi-Pac Pediatric Immobilizer
© Ferno-Washington, Inc. 234-1684-01 November 1997 9
Open the head support.
Align the color-coded restraints with the patient as
follows:
Chest restraint (red) - even with patient's
armpits.
Upper-hip restraint (yellow) - just above the
patient's hips (on the iliac crest).
Lower-hip restraint (yellow) - just below the
patient's hips.
Thigh restraint (green) - just above patient's
knees.
Leg restraint (blue) - even with patient's ankles.
When padding is needed, place the Pedi-Pad on
the Pedi-Pac.
When individual leg immobilization is needed,
fasten the leg restraint.
4.4 Apply the Pedi-Pac
Transfer the patient onto the Pedi-Pac using a
method approved by your EMS medical advisor.
Maintain stabilization of the patient's head and neck
during the transfer and while applying the Pedi-
Pac.

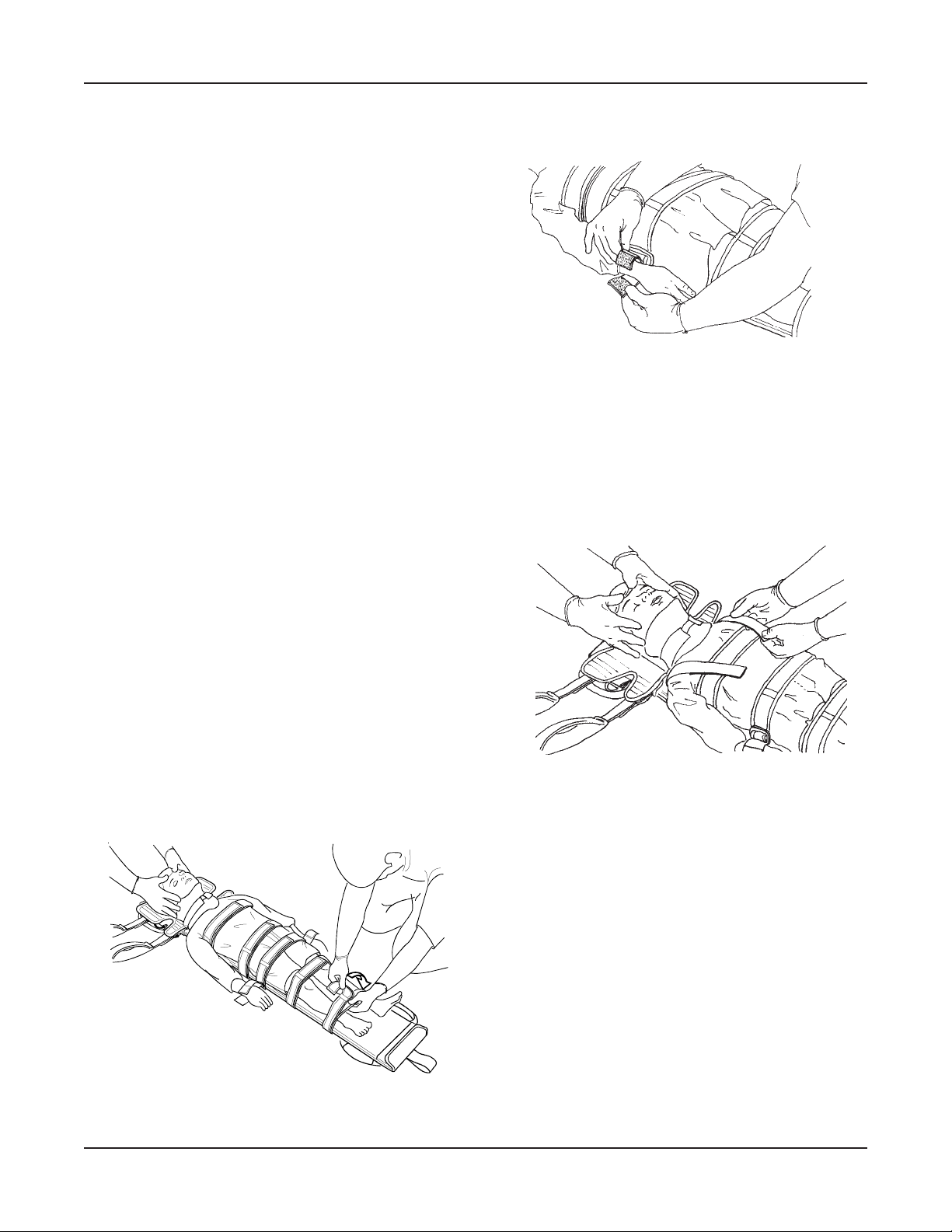

Fasten the color-coded restraints over the patient
in a progressive sequence (Example: red-yellow-
yellow-green-blue, Figure 8).
Fasten the wrist restraints (Figure 9).
Tighten the restraints to limit movement but not to
impair circulation.
Bring the shoulder restraints over the patient's
shoulders, and fasten the shoulder restraints to the
chest restraint (Figure 10).
Figure 10
Figure 8
Figure 9

Model 78 Pedi-Pac Pediatric Immobilizer Users' Manual
10 © Ferno-Washington, Inc. 234-1684-01 November 1997

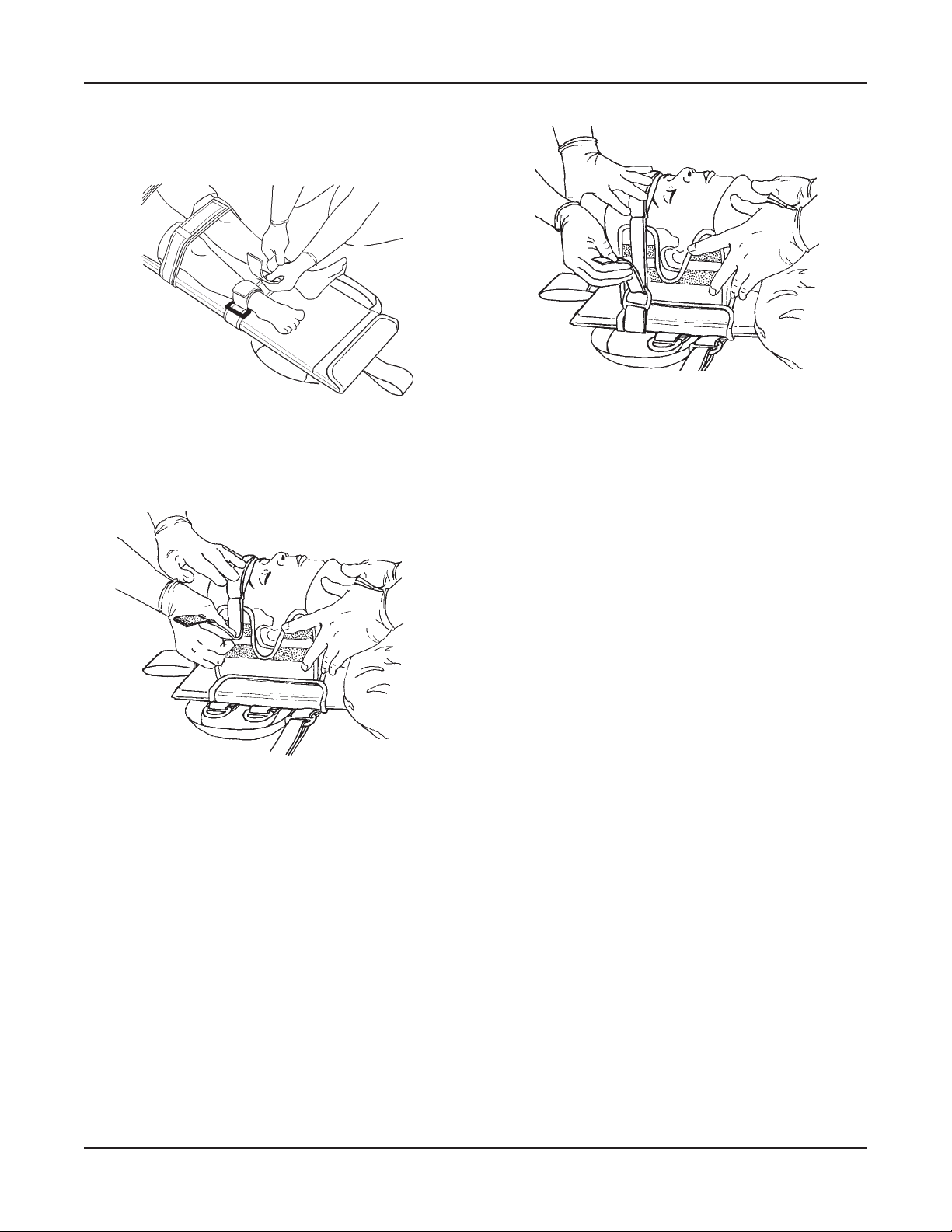

Fasten the ankle restraints for individual leg
immobilization, if needed (Figure 11).
Place a forehead/chin restraint on the patient's
forehead (Figure 12).
Press the forehead/chin restraint against the
fastening strips on the sides of the head-support
flaps.
Thread each end of the forehead/chin restraint
through a D-ring (Figure 13).
Fasten the end of the forehead/chin restraint to the
fastening strip on the top of the forehead/chin
restraint. Tighten the forehead/chin restraint
snugly.
Use the second forehead/chin strap is to secure
the patient's chin, if needed.
Wrap the head-support around the patient's head.
The slots in the head support should be in line with
the patient's ears.
4.5 Transport the Patient
USING AN AMBULANCE COT
Use an ambulance cot (cot) equipped with three
restraints.
Unfasten the restraints on the cot.
Use the lifting handles to lift the patient immobilized
in a Pedi-Pac onto the cot.
Figure 11
Figure 12
Figure 13

Users' Manual Model 78 Pedi-Pac Pediatric Immobilizer
© Ferno-Washington, Inc. 234-1684-01 November 1997 11

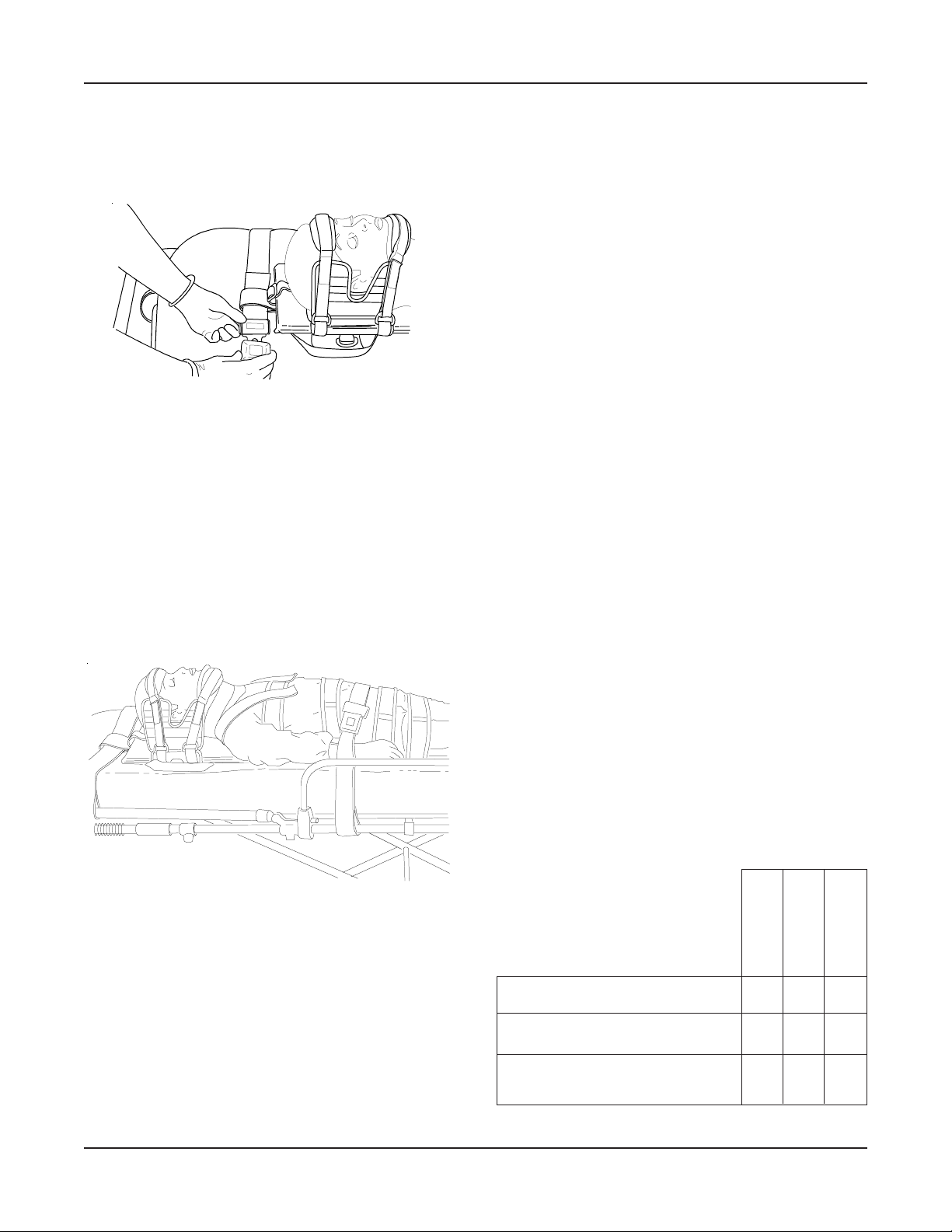

To secure the Pedi-Pac to the cot, thread the
head-end cot restraint through the cot-attachment
loop at the head end of the Pedi-Pac (Figure 14).
Fasten the head-end cot restraint.
Thread the foot-end cot restraint through the cot-
attachment loop at the foot end of the Pedi-Pac.
Fasten the foot-end cot restraint.
Fasten the center cot restraint over the patient's
hip area (Figure 15).
USING OTHER EMERGENCY EQUIPMENT
When transporting the Pedi-Pac on other
emergency equipment (such as a basket
stretcher), use restraint and transportation
techniques approved by an EMS medical advisor.
Figure 14
Figure 15
4.6 Remove the Patient from the Pedi-Pac
Unfasten the restraints.
Transfer the patient off of the Pedi-Pac.
Note: Inform the emergency room personnel
that cutting the restraints is not
necessary.
Shoulder restraints and cot-attachment
loops are not replaceable.
If the color-coded restraints are cut or
damaged, replacement restraints are
available (Repair and Service, page 15).
4.7 Pack the Pedi-Pac
The Pedi-Pac should be completely dry before
being packed.
Insert the backboard into the cover, and close the
cover flap.
Attach the head support and the Pedi-Pad, and
fasten the restraints.
Slide the Pedi-Pac into its carrying case.
4.8 Maintenance Schedule
The Pedi-Pac requires regular maintenance. Set
up and follow a maintenance schedule.
Use the following maintenance schedule as a
minimum.
•
•
•
Each Month
As Needed
Each Use
Disinfecting (page 12)
Cleaning (page 12)
Inspecting (page 12)

Model 78 Pedi-Pac Pediatric Immobilizer Users' Manual
12 © Ferno-Washington, Inc. 234-1684-01 November 1997
DISINFECTING THE PEDI-PAC
Disinfect the Pedi-Pac after each use.
Remove the head support and the Pedi-Pad.
Open the cover flap, and remove the backboard
(Figure 16).
Improper maintenance can cause injury.
Maintain the Pedi-Pac only as described in
this manual.
When using a maintenance product, follow the
manufacturers’ directions and read the
manufacturers’ material safety data sheet.
Contact Customer Service to order Ferno
cleaners and disinfectants (page 14).
Figure 16
Cover Flap
Backboard
Wipe all surfaces with disinfectant. Follow the
disinfectant manufacturer’s directions. As you
wipe the Pedi-Pac down, inspect the Pedi-Pac for
obvious damage, excessive wear, or missing
components.
CLEANING THE PEDI-PAC
Disinfect the Pedi-Pac.
Remove the head support and the Pedi-Pad.
Open the cover flap, and remove the backboard
Remove the backboard from the cover.
Clean the cover, backboard, Pedi-Pad, and
carrying case with cold soapy water and a stiff
brush.
Wash the forehead/chin restraints in cold soapy
water.
Rinse all parts in cold water.
Towel off excess moisture.
Allow the Pedi-Pac to air dry completely before
reassembling and packing it.
Alternative Cleaning Method
The cover and carrying case can be
professionally dry cleaned.
Disinfect the Pedi-Pac.
Dry clean using an 8-minute cycle.
INSPECTING THE PEDI-PAC
Have your service technician or an EMSAR®
service technician follow the instructions in Using
the Pedi-Pac and check the following:

Users' Manual Model 78 Pedi-Pac Pediatric Immobilizer
© Ferno-Washington, Inc. 234-1684-01 November 1997 13
090-4107 ........Pedi-Pad .................................. 1
090-4104 ........Forehead/Chin Restraints ....... 1
090-5056 ........Backboard ............................... 1
Part # Description Qty. Part # Description Qty.
090-4106 ........Carrying Case ......................... 1
090-5019 ........Plastic Slide Replacements ..... 1
090-4103 ........Color-coded Restraints with
wrist and ankle restraints ........ 1
SECTION 5 - REPAIR PARTS AND SERVICE
EMSAR®is the only agent authorized by Ferno
to manage, service, and repair Ferno products.
EMSAR factory-trained technicians use Ferno-
approved parts and repair procedures.
EMSAR has a franchise location serving you.
Phone or fax for details.
To order parts or for professional product repair,
contact EMSAR.
800.73.EMSAR (Phone)
937.383.1051 (Fax)
®
Improper parts and service can cause
injury. Use only Ferno parts and Fern-
approved service on the Pedi-Pac.
qAre any parts missing?
qAre the cover, Pedi-Pad, forehead/chin
restraints, and backboard in good
condition?
qAre the restraints, lifting handles, and cot-
attachment loops in good condition (free of
frays and cuts)?
qDo the restraints and all other fastening
strips fasten and unfasten properly?
qAre the D-rings and plastic slides
(attaching the color-coded restraints to the
slide strap) free of cracks?
If the inspection indicates a need to service the
product, see Repair Parts and Service.

Model 78 Pedi-Pac Pediatric Immobilizer Users' Manual
14 © Ferno-Washington, Inc. 234-1684-01 November 1997
Customer service and product support are
important aspects of each Ferno product.
For assistance with the Pedi-Pac contact Ferno
Customer Service.
Ferno-Washington
Attn: Ferno Customer Service
70 Weil Way
Wilmington, Ohio 45177-9371
Telephone .......... 800.73.FERNO
937.382.1451
Fax........................ 937.382.1191
SECTION 7 - CUSTOMER SERVICE
Limited Warranty Summary
Ferno-Washington, Inc. (Ferno) warrants the products we manufacture to be free from defects in material and work-
manship for one year except as follows:
A) External finishes (gelcoat, decals, paint, etc.) are warranted for 90 days.
B) Soft goods (webbing, vinyl, fabric, foam, etc.) are warranted for 90 days.
C) Repairs and services are warranted for 90 days or until the end of the time period(s) above, whichever
comes last.
This limited warranty applies when you use and care for the product properly. If the product is not used and cared
for properly, the warranty is void. The warranty period begins the day the product is shipped from Ferno or the day
you receive it if you have proof of the delivery date. Shipping charges are not covered by the limited warranty. We
are not liable for shipping damages or damages sustained through using the product.
Limited Warranty Obligation
If a product or part is proven to be defective, Ferno will repair or replace it. At our option, we will refund the product’s
purchase price. The purchaser accepts these terms in lieu of all damages.
This is a summary of the limited warranty. The actual terms and conditions of the limited warranty
and the limitations of liability and disclaimers are available upon request by calling 800.733.3766
or 937.382.1451.
SECTION 6 - LIMITED WARRANTY
Record product information below. Please have
the following information available when
contacting Ferno Customer Service,
Model Number 78
Date Received
Purchased From
Used in Vehicle Number

Users' Manual Model 78 Pedi-Pac Pediatric Immobilizer
© Ferno-Washington, Inc. 234-1684-01 November 1997 15
TRAINING RECORD
MAINTENANCE RECORD
Date Name Description
DescriptionDate By
