Ferris FB2000 Series User manual

Not for
Reproduction
FB2000 Series
Commercial Debris Blower
Model Description
5901811 FB2000 Series Commerical Debris Blower
5107442
Rev A
Copyright © Briggs & Stratton Corporation,
Milwaukee, WI, USA. All rights reserved.

Not for
Reproduction
ferrismowers.com

Not for
Reproduction
Table of Contents
TABLE OF CONTENTS
IDENTIFICATION...............................................................................1
Product Identification Tag.........................................................1
INTRODUCTION................................................................................2
Using Your Operator’s Manual..................................................2
SafetyAlert Symbol and Signal Words ....................................2
California Proposition 65 Statement ........................................2
SPECIFICATIONS .............................................................................3
SAFETY.............................................................................................4
Operator Training Required ......................................................4
Preparation.................................................................................4
Operating Safely ........................................................................4
Using a SparkArrestor..............................................................5
Checking WorkingArea.............................................................5
Parking Safely............................................................................5
Rotating Impeller is Dangerous................................................6
Protect Children.........................................................................6
Avoid Tipping.............................................................................6
Keep Riders Off..........................................................................7
Avoid High Pressure Fluids ......................................................7
Checking Wheel Hardware........................................................7
WearAppropriate Clothing .......................................................7
Maintenance and Storage .........................................................7
Prevent Fires..............................................................................8
Tire Safety...................................................................................8
Handling Fuel Safely..................................................................8
Handling Waste Product and Chemicals..................................9

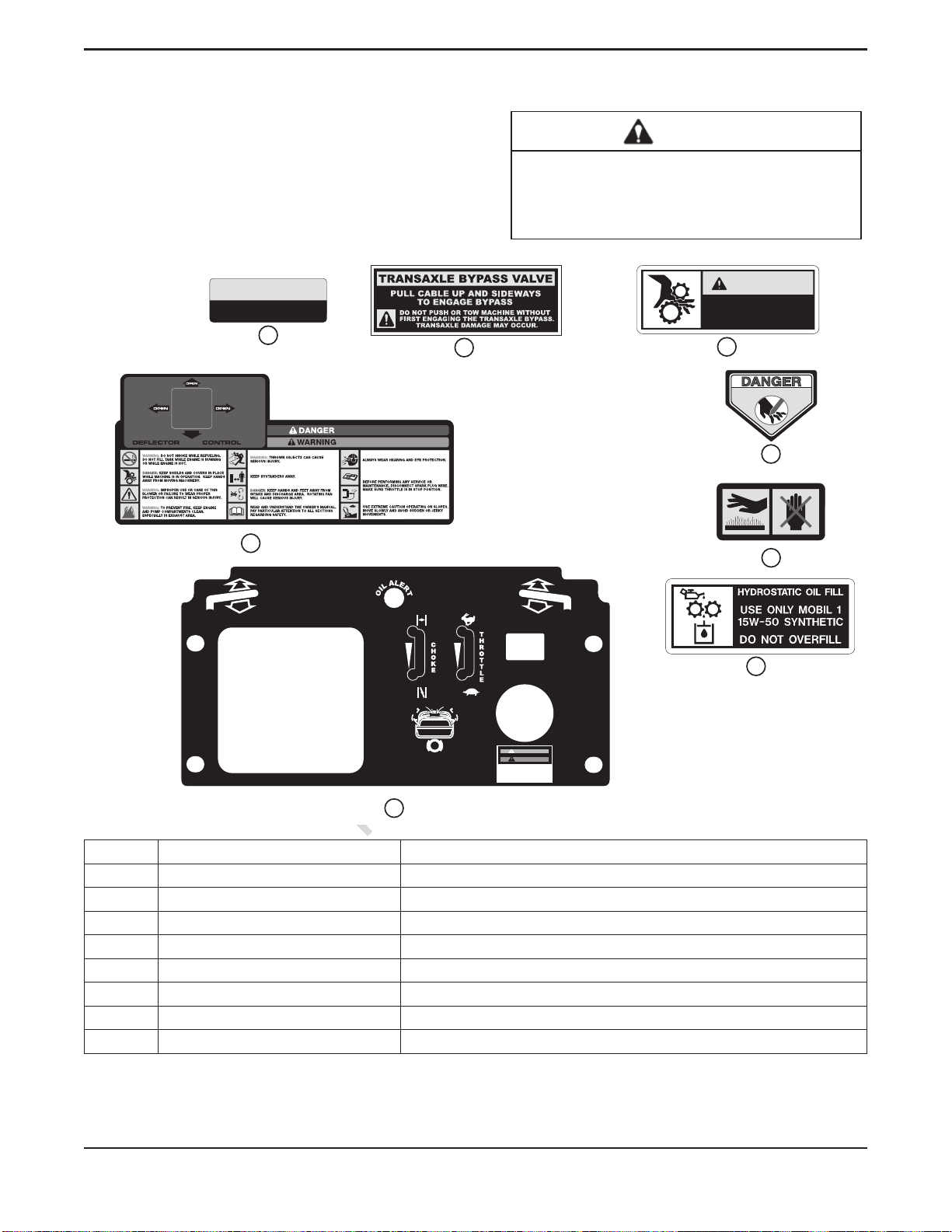

SAFETYAND OPERATIONAL DECALS ........................................10
OPERATING.................................................................................... 11
Operator Station Controls....................................................... 11
Parking Brake...................................................................... 11
Operator Station Controls.......................................................12
Misc. Controls and Checks .....................................................13
Testing the Safety Systems ....................................................15
Testing the Parking Brake.......................................................15
Using the Throttle and Choke .................................................16
Starting Using the Throttle and Choke.................................16
Filling Fuel Tank.......................................................................16
Transaxle Bypass Valve ..........................................................17
Using the Hydrostatic Motion Controls..................................18
Using the Blower and the Deflector Controls ........................19
Dual Deflector System (Left Deflector)...................................19

Not for
Reproduction
ferrismowers.com
Table of Contents
MAINTENANCE PROCEDURES ....................................................21
Service Intervals ......................................................................21
Service Engine.........................................................................21
Checking Engine Oil Level......................................................22
Changing Engine Oil and Filter...............................................23
Cleaning Engine Oil Cooler and CheckingAir Filter .............23
Cleaning the Engine Oil Cooler............................................23
CheckingAir Filter Elements ..................................................24
Replacing Fuel Filter................................................................24
Checking Engine Cooling Intake and Fan..............................25
Checking Spark Plugs.............................................................25
Checking CarburetorAdjustment...........................................25
Service Hydraulics...................................................................25
Checking Hydraulic Oil Level..................................................25
Changing Hydraulic Oil and Filters, ZT-3100 .........................26
Purging Procedure ..............................................................27
Impeller Removal and Inspection...........................................28
Changing Drive Belt.................................................................28
Service Parking Brake.............................................................29
Service Motion Controls..........................................................30
Adjusting the Motion Controls..............................................30
Adjusting Motion Controls - Checking Neutral Center..........30
Adjusting Motion Controls Neutral Center............................30
Service Tires.............................................................................32
Removing and Installing Rear Drive Wheels........................32
Removing and Installing Front Caster Wheels.....................32
Checking Tire Pressure.......................................................32
Service Electrical.....................................................................33
Replacing Fuse ...................................................................33
Removing and Installing Battery..........................................33
Cleaning Battery and Terminals...........................................34
Using Booster Battery or Jump Starting...............................34
TROUBLESHOOTING.....................................................................35
Using the Troubleshooting Chart ...........................................35
STORAGE .......................................................................................38
Storing Machine Safety ...........................................................38
Preparing Machine for Storage...............................................38
Preparing Fuel and Engine For Storage.................................38
Removing Machine From Storage..........................................39
WARRANTY STATEMENT ..............................................................40

Not for
Reproduction
1
Identification
IDENTIFICATION
Product Identification Tag
The product identification tag can be found on the left
side of the engine deck.
CLOSE
ALL
Product
º»ÄÊ¿Ű¹·Ê¿ÅÄ
· ½
Product Identification Tag Location
Record your model number, serial number, and angine
model and serial number in the space provided for
easy access.
BRIGGS & STRATTON
CORPORATION
MILWAUKEE, WI 53201, USA
ASSEMBLED IN THE USA
PART NO.
XXXXXXX
SERIAL NO.
XXXXXXXXX
PA
XX
SSE
RT NO
UKEE, W
MBLED I
O
TIO
WI 5320
N T
N
1, US
USA
A
PRODUCT REFERENCE DATA
Unit Model Number:
Unit Serial Number:
Dealer Name:
Date Purchased:
ENGINE REFERENCE DATA
Engine Make:
Engine Model:
Engine Type / Specifications:
Engine Code / Serial Number:
When contacting your authorized serivce dealer for
replacement parts, service, or information you MUST
have these numbers.
Note: For the location of the engine identification
numbers, refer to the engine owner’s manual.

Not for
Reproduction
2 ferrismowers.com
Introduction
INTRODUCTION
Using Your Operator’s Manual
This manual is an important part of your machine and
should remain with the machine when you sell it.
Use the safety and operating information in the
machine Operator’s Manual to operate and service
the machine safely and correctly.
This operator’s manual explains the features and
promotes the safe use of this machine. Please read
it in its entirety and follow the instructions carefully so
that you may have many years of safe and productive
operation.
An engine manufacturer’s owner’s manual has been
provided with your machine. This will provide
maintenance and troubleshooting information for the
engine installed in your machine.
Ferris is a registered trademark of Briggs & Stratton
Corporation.
SafetyAlert Symbol and Signal Words
The safety alert symbol ( ) is used to identify
safety information about hazards that can
result in personal injury. A signal word
(DANGER,WARNING,orCAUTION)isused
withthealertsymboltoindicatethelikelihood
andthepotentialseverityofinjury.Inaddition,
a hazard symbol may be used to represent
the type of hazard.
DANGER indicates a hazard which, if not
avoided, will result in death or serious injury.
WARNING indicates a hazard which, if not
avoided, could result in death or serious injury.
CAUTION indicates a hazard which, if not
avoided, could result in minor or moderate injury.
NOTICE indicates a situation that could result in
damage to the product.
California Proposition 65 Statement
WARNING
This product can expose you to
chemicals including gasoline engine
exhaust, which is known to the State of
California to cause cancer, and carbon
monoxide, which is known to the State of
California to cause birth defects or other
reproductive harm. For more information
go to www.P65Warnings.ca.gov.

Not for
Reproduction
3
Specifications
SPECIFICATIONS
Specifications are correct at time of printing and are subject to change without notice.
ENGINE
For complete engine specifications see the engine manufacturer’s operator’s manual included with your unit.
Fits models: 5901811 Briggs & Stratton
Make Briggs & Stratton
Model 386447-0403-G1
Electrical System 12 volt, 16 amp alternator; Battery: 340 CCA
CHASSIS
Fuel Tank Capacity 10 gallons (38 L) total
Rear Wheels
Tire Size 20 X 8.00 - 8
Inflation Pressure 22 psi (1,5 bar)
Front Wheels
Tire Size 11 x 4 - 5
Inflation Pressure 40-46 psi (2,8 - 3,2 bar)
TRANSMISSIONS
Make Hydro-Gear®
Model ZT3100 Transaxles
Hydraulic Fluid Mobil 1™ 15W-50 synthetic or equivalent
Speed Infinitely Variable
DIMENSIONS:
Width 41-1/2” (105 cm)
Height 54-3/4” (139 cm)
Length 61” (155 cm)
Weight 749 lbs (340 kg)

Not for
Reproduction
4 ferrismowers.com
Operator Safety
SAFETY
Operator Training Required
•Read the Operator’s Manual and other training
material. If the operator or mechanic cannot read
English, it is the owner’s responsibility to explain
this material to them. This publication is available
in other languages.
•Become familiar with the safe operation of the
equipment, operator controls, and safety signs.
•All operators and mechanics should be trained.
The owner of the machine is responsible for train-
ing the users.
•Never let children or untrained people operate or
service the equipment. Local regulations may re-
strict the age of the operator.
•The owner/user can prevent and is responsible
for accidents or injuries occurring to themselves,
other people, or property.
•Train operators on the machine in an open, unob-
structed area under the direction of an experi-
enced operator.
Preparation
•Evaluate the terrain to determine what accesso-
ries and attachments are needed to properly and
safely perform the job. Only use accessories and
attachments approved by the manufacturer.
•Wear appropriate clothing including hard hat,
safety glasses and hearing protection. Tie back
long hair, remove loose clothing or jewelry that
may get tangled in moving parts.
•Inspect the area where the equipment is to be
used and remove all objects such as rocks, toys,
etc. which can be thrown by the machine.
•Use extra care when handling gasoline and other
fuels. They are flammable and vapors are explo-
sive.
•Allow engine to cool down before fueling.
a. Use only an approved container.
b. Never remove gas cap or add fuel when en-
gine is running. Do not smoke.
c. Never refuel or drain the machine indoors.
•Check that the operator’s presence controls,
safety switches and shields are attached and
functioning properly. DO NOT operate unless
they are functioning properly.
Operating Safely
•NEVER run an engine in an enclosed area where
dangerous carbon monoxide fumes can collect.
•Only operate in good light, keeping away from
holes and hidden hazards.
•Be sure all drives are in NEUTRAL and parking
brake is ENGAGED before starting engine. Only
start engine from the operator’s position.
•Slow down and use extra care on hillsides. Be
sure to travel in the recommended direction on
hillsides. For this machine, drive across hillsides,
not up and down. Turf conditions can affect the
machine’s stability. Use caution while operating
near drop-offs. DO NOT operate machine within
5 feet of an embankment or drop-off.
•Slow down and use caution when making turns
and when changing directions on slopes.
•NEVER operate with the shields, or other guards,
not securely in place. Be sure all interlocks are
attached, adjusted properly, and functioning
properly.
•Do not change the engine governor setting or
overspeed the engine. Operating the engine at
excessive speed can increase the hazard of per-
sonal injury and machine damage.
•Stop on level ground, engage parking brake,
close deflectors, and shut off engine before leav-
ing the operator’s position for any reason.
•Stop equipment and inspect impeller if an abnor-
mal vibration occurs. Make necessary repairs be-
fore resuming operations.
•Keep hands and feet away from the intake and
discharge.
•Look behind and down before backing up to be
sure of a clear path.
•Never carry passengers. Keep pets and bystand-
ers away.

Not for
Reproduction
5
Operator Safety
•Slow down and use caution when making turns
and crossing roads and sidewalks. Close deflec-
tors if not blowing. Watch for traffic when operat-
ing near or crossing roadways.
•Be aware of the blower discharge direction and
DO NOT point it at anyone.
•DO NOT operate the machine while under the
influence of alcohol or drugs.
•Use care when loading or unloading the machine
into or off of a trailer or truck.
•Use care when approaching blind corners,
shrubs, trees, or other objects that may obscure
vision.
•Inspect machine before you operate. Be sure
hardware is tightened securely. Repair or replace
damaged, badly worn, or missing parts. Be sure
guards and shields are in good condition and fas-
tened in place. Make any necessary adjustments
before you operate.
•Before using, always visually inspect to see
that the impeller, its bolt, and blower assembly
are not worn or damaged. Replace worn or dam-
aged impeller and bolt.
•Keep safety decals visible when installing acces-
sories and attachments.
•Do not wear radio or music headphones. Safe
service and operation require your full attention.
•When machine is left unattended, stored, or
parked, remove the key.
Using a SparkArrestor
The engine in this machine is equipped with a spark
arrestor muffler. It is a violation of California Public
Resource Code Section 4442 to use or operate this
engine on or near any forest-covered, brush-covered
or grass-covered land unless the exhaust system is
equippedwithasparkarrestormeetingany applicable
local or state laws. Other states or federal areas may
have similar laws.
An installed spark arrestor must be maintained in
good working order by the operator.
Checking WorkingArea
•Evaluate the terrain to determine what accesso-
ries and attachments are needed to properly and
safely perform the job.
•Clear work area of objects that might be thrown.
Keep people and pets out of working area.
•Study working area. Set up a safe blowing pat-
tern. Do not blow where traction or stability is
doubtful.
•Test drive through area with blower not running.
Slow down when you travel over rough ground.
Parking Safely
1. Stop machine on a level surface, not on a slope.
2. Close deflectors.
3. Engage the parking brake.
4. Stop the engine.
5. Remove the key.
6. Wait for engine and all moving parts to stop be-
fore you leave the operator’s station.
7. Close fuel shut-off valve, if your machine is
equipped.
8. Disconnect the negative battery cable or remove
the spark plug wires (for gasoline engines) before
servicing the machine.

Not for
Reproduction
6 ferrismowers.com
Operator Safety
Rotating Impeller is Dangerous
WARNING
Rotating impeller can cut off arms and
legs, and throw objects. Failure to observe
safety instructions could result in serious
injury or death.
•Keep hands, feet and clothing away from blow-
er housing when engine is running.
•Be alert at all times, drive forward carefully. Peo-
ple, especially children can move quickly into the
working area before you know it.
Protect Children
•Death or serious injury can occur when young
children associate having fun with a lawn equip-
ment simply because someone has given them a
ride on a machine.
•Children are attracted to lawn equipment and ac-
tivities. They don’t understand the dangers or the
fact that the operator is unaware of their pres-
ence.
•Children who have been given rides in the past
may suddenly appear in the work area for anoth-
er ride and be run over or backed over by the
machine.
•Tragic accidents with children can occur if the op-
erator is not alert to the presence of children, es-
pecially when a child approaches a machine from
behind. Before and while backing up, look
down and behind the machine carefully, espe-
cially for children.
•NEVER carry children on a machine or attach-
ment. Do not tow children in a cart or trailer. They
can fall off and be seriously injured or interfere
with safe machine operation.
•Never use the machine as a recreational vehicle
or to entertain children.
•Never allow children or an untrained person to
operate the machine. Instruct all operators not to
give children a ride on the machine or in an at-
tachment.
•Keep children indoors, out of the work area, and
in the watchful eye of a responsible adult, other
than the operator, when a machine is being oper-
ated.
•Stay alert to the presence of children. Never as-
sume that children will remain where you last saw
them. Turn the machine OFF if a child enters the
work area.
Avoid Tipping
•Slopes are a major factor related to loss-of-con-
trol and tip-over accidents, which can result in
severe injury or death. Operation on all slopes
requires extra caution.
•Blow across slopes, not up and down.
•Watch for holes, ruts, bumps, rocks, or other hid-
den objects. Uneven terrain could overturn the
machine. Tall grass can hide obstacles.
•Choose a low ground speed so you will not have
to stop while on a slope.
•Do not blow or operate machine on wet grass.
Tires may lose traction.
•Tiresmay lose traction onslopes even though the
brakes are functioning properly.
•Avoid starting, stopping or turning on a slope. If
the tires lose traction, turn and proceed slowly,
straight down the slope.
•Keep all movement on slopes slow and gradual.
Do not make sudden changes in speed or direc-
tion, which could cause the machine to roll over.
•Use extra care while operating machine with at-
tachments, they can affect stability of the ma-
chine. Do not use on steep slopes.
•Do not blow near drop-offs, ditches, embank-
ments, or bodies of water. The machine could
suddenly roll over if a wheel goes over the edge
or the edge caves in.
•Follow the manufacturer’s recommendations for
wheelweights or counterweightsfor added stabil-
ity when operating on slopes or using front or rear
mounted attachments. Remove weights when
not required.
•Drive machine very slowly and avoid quick stops.

Not for
Reproduction
7
Operator Safety
Keep Riders Off
•Only allow the operator on the machine. Keep
riders off.
•Riders on the machine or attachment may be
struck by foreign objects or thrown off the ma-
chine causing serious injury.
•Riders obstruct the operator’s view resulting in
themachinebeingoperatedin anunsafe manner.
Avoid High Pressure Fluids
•Hydraulic hoses and lines can fail due to physical
damage, kinks, age, and exposure. Check hoses
and lines regularly. Replace damaged hoses and
lines.
•Hydraulic fluid connections can loosen due to
physical damage and vibration. Check connec-
tions regularly. Tighten loose connections.
•Escaping fluid under pressure can penetrate the
skin causing serious injury. Avoid the hazard by
relieving pressure before disconnecting hydraulic
or other lines. Tighten all connections before ap-
plying pressure.
•Search for leaks with a piece of cardboard. Pro-
tect hands and body from high pressure fluids.
•If an accident occurs, see a doctor immediately.
Any fluid injected into the skin must be surgically
removed within a few hours or gangrene may re-
sult. Doctors unfamiliar with this type of injury
should reference a knowledgeable medical
source.
Checking Wheel Hardware
•An accident could occur causing serious injury if
wheel hardware is not fastened.
•Check wheel hardware tightness often during the
first 100 hours of operation. Torque to 75 ft-lbs.
•Wheel hardware must be tightened to specified
torque using the proper procedure anytime it is
loosened.
WearAppropriate Clothing
•Always wear safety goggles, or safety glasses
with side shields, and a hard hat when operating
the machine.
•Wear close fitting clothing and safety equipment
appropriate for the job.
•While blowing, always wear substantial footwear
and long trousers. DO NOT operate the equip-
ment when barefoot or wearing open sandals.
•Wear a suitable hearing protection device such
as earplugs. Loud noise can cause impairment
or loss of hearing.
Maintenance and Storage
•NEVER operate machine in a closed area where
dangerous carbon monoxide fumes can collect.
•Disengage drives, engage parking brake, stop
engine and remove key or disconnect spark plug
(for gas engines). Wait for all movement to stop
before adjusting, cleaning or repairing.
•Clean all debris from machine, drives, mufflers,
and engine to help prevent fires. Clean up oil or
fuel spillage.
•Let engine cool before storing and do not store
near flame.
•Shut off fuel while storing or transporting. Do not
store fuel near flames or drain indoors.
•Park machine on level ground. Never allow un-
trained personnel to service machine. Under-
stand service procedure before doing work.
•Use jack stands or lock service latches to support
components when required. Securely support
any machine elements that must be raised for
service work.
•Before servicing machine or attachment, care-
fully release pressure from any components with
stored energy, such as hydraulic components or
springs.
•Release hydraulic pressure by moving hydraulic
controllevers back and forth with the engineOFF.

Not for
Reproduction
8 ferrismowers.com
Operator Safety
•Disconnect battery or remove spark plugs (for
gas engines) before making any repairs. Discon-
nect the negative terminal first and the positive
last. Reconnect positive first and negative last.
•Use care when checking impeller. Wear gloves,
and use caution when servicing them. Only RE-
PLACEimpeller. Never attempt to straighten or
weld them.
•Keep hands, feet, clothing, jewelry and long hair
away from moving parts. If possible, do not make
adjustments with the engine running.
•Charge battery in an open well ventilated area,
away from spark and flames. Unplug charger be-
fore connecting or disconnecting from battery.
Wear protective clothing and use insulated tools.
•Keep all parts in good working condition and all
hardware tightened. Replace all worn or dam-
aged decals.
•Keep all nuts and bolts tightened securely, espe-
cially impeller attachment bolts, to be sure the
equipment is in safe working condition.
•Check brake operation frequently.
Prevent Fires
•Remove debris from engine compartment and
muffler area, before and after operating machine,
especially after blowing in dry conditions.
•ALWAYS shut off fuel when transporting or stor-
ing machine, the machine has a fuel shutoff.
•DO NOT store machine near an open flame or
source of ignition, such as a water heater or fur-
nace.
•Check fuel lines, tank, cap, and fittings frequently
for cracks or leaks. Replace if necessary.
Tire Safety
Explosive separation of a tire and rim parts can cause
serious injury or death:
•Do not attempt to mount a tire without the proper
equipment and experience to perform the job.
•Always maintain the correct tire pressure. DO
NOT inflate the tires above the recommended
pressure. Never weld or heat a wheel and tire
assembly. The heat can cause an increase in air
pressure resulting in a tire explosion. Welding
can structurally weaken or deform the wheel.
•When inflating tires, use a clip-on chuck and ex-
tension hose long enough to allow you to stand to
one side and NOT in front of or over the tire as-
sembly.
•Check tires for low pressure, cuts, bubbles, dam-
aged rims or missing studs and nuts.
Handling Fuel Safely
To avoid personal injury or property damage, use ex-
treme care in handling fuel. Fuel is extremely flam-
mable and fuel vapors are explosive:
•Extinguish all cigarettes, cigars, pipes, and other
sources of ignition.
•Use only an approved fuel container. Use only
non-metal, portable fuel containers approved by
the Underwriter’s Laboratory (U.L.) or theAmeri-
can Society for Testing & Materials (ASTM). If us-
ing a funnel, make sure it is plastic and has no
screen or filter.
•Never remove the fuel tank cap or add fuel with
the engine running. Allow engine to cool before
refueling.
•Never add fuel to or drain fuel from the machine
indoors. Move machine outdoors and provide ad-
equate ventilation.
•Clean up spilled fuel immediately. If fuel is spilled
onclothing, change clothing immediately. Iffuelis
spilled near machine, do not attempt to start the
engine but move the machine away from the area
of spillage. Avoid creating any source of ignition
until fuel vapors have dissipated.
•Never store the machine or fuel container where
there is an open flame, spark, or pilot light such
as on a water heater or other appliance.
•Prevent fire and explosion caused by static elec-
tric discharge. Static electric discharge can ignite
fuel vapors in an ungrounded fuel container.

Not for
Reproduction
9
Operator Safety
•Never fill containers inside a vehicle or on a truck
or trailer bed with a plastic liner. Always place
containers on the ground away from your vehicle
before fueling.
•Remove fuel-powered equipment from the truck
or trailer and refuel it on the ground. If this is not
possible, then refuel such equipment with a por-
table container, rather than from a fuel dispenser
nozzle.
•Keep the nozzle in contact with the rim of the fuel
tank or container opening at all times until the
fueling is complete. Do not use a nozzle lock
open device.
•Never overfill fuel tank. Replace fuel tank cap
and tighten securely.
•Replace all fuel container caps securely after
use.
•For gasoline engines, do not use gas with metha-
nol. Methanol is harmful to your health and to the
environment.
Handling Waste Product and Chemicals
•Waste products, such as, used oil, fuel, coolant,
brake fluid, and batteries, can harm the environ-
ment and people:
•DO NOT use beverage containers for waste fluids
- someone may drink from them.
•Contact your local Recycling Center or autho-
rized dealer to learn how to recycle or get rid of
waste products.
•A Material Safety Data Sheet (MSDS) provides
specific details on chemical products: physical
and health hazards, safety procedures, and
emergency response techniques. The seller of
the chemical products used with your machine is
responsible for providing the MSDS for that prod-
uct.

Not for
Reproduction
10 ferrismowers.com
Safety and Operational Decals
DECALS
Before operating your unit, read the safety decals.
The cautions and warnings are for your safety. To
avoid a personal injury or damage to the unit,
understand and follow all safety decals.
WARNING
If any safety decals become worn or
damaged, and cannot be read, order
replacement decals from your local dealer.
EMERGENCY BRAKE
RELEASE
LIFT LEVER X3-4211
KEEP HANDS AND FEET AWAY
FUEL FILL (GASOLINE ONLY)
FORWARD
REVERSE
FORWARD
REVERSE
DANGER
WARNING
DO NOT OPERATETHIS EQUIPMENT
WITHOUT PROPER AUTHORIZATION
AND TRAINING. IT IS THE OPERATOR’S
RESPONSIBILITY TO READ AND
COMPLETELYUNDERSTAND ALL
DANGERS, WARNINGS, CAUTIONS AND
INSTRUCTIONS ON THE EQUIPMENT
AND IN THE OPERATOR’SMANUAL.
PARKING BRAKE
P
RED DOTTED LINE = BRAKE AUTOMATICALLY ENGAGED
GRAY FILL = BRAKE AUTOMATICALLY DISENGAGED
CAUTION
PINCH
POINT
CLOSE
ALL
A
B
E
C
H
F
D
G
Callout Part Number Description
A84001535 Decal, Emergency Brake Release
B84001443 Decal, Transaxle Bypass Valve
C84001491 Decal, Pinch Point
D84001867 Decal, Dash, Joystick
E84001490 Decal, Danger
F84001489 Decal, Hot
G84001493 Decal, Dash Controls
H84001492 Decal, Hydro

Not for
Reproduction
11
Operation
OPERATING
Operator Station Controls
•Lets take a moment to familiarize you with the
controls on the dash.Aclear understanding of the
operationand function of eachcontrol is essential
to the safe and productive use of this machine.
Parking Brake
Parking Brake Engaged
•This photo shows the parking brake in the EN-
GAGED position with all other controls in the
OFF/NEUTRAL position. The parking brake
shouldbe in this position starting, parking, orany-
time other than when the machine is in motion
with an operator present at the controls.
Parking Brake Disengaged
•This photo shows the parking brake in the DIS-
ENGAGED position.

Not for
Reproduction
12 ferrismowers.com
Operation
Operator Station Controls
OilAlert
Handle Bar
Left Wheel
Hydrostat Control Right Wheel Hydrostat Control
Fuel Fill & Fuel
Cap w/Gauge Ignition Key
Switch
Reverse
Handle Bar
Tach/Hour
Meter
Choke
Control Throttle Control
Deflector
Control

Not for
Reproduction
13
Operation
Misc. Controls and Checks
Emergency Brake
Release Lever
Oil Filter
Hydraulic Reservoirs & Filler
(Fill to Bottom Line when Cold.)
Hydro Pump Bypass Valve
(one on each pump)
Fuel Filter
Air
Cleaner
Oil Dipstick
Oil Fill
Belt Guard

Not for
Reproduction
14 ferrismowers.com
Operation
Hydraulic Pumps
Change hydraulic oil
every 400 hours.
Hydro-Gear Hydraulic
Filter P/N 5101026X1
Hydraulic Oil Filters
One on each pump.
Break-In Period:
First service at 75 hours
After that every 400 hours
Remove Filter Guard
bolts to access filter for
service.
Hydraulic Pump Bypass Valves
To bypass, pull cable up 1” and move
sideways to lock.

Not for
Reproduction
15
Operation
Testing the Safety Systems
The safety systems installed on your machine should
be tested before each machine use. Be sure you
have read this manual and are completely familiar
with the operation of the machine before performing
these safety system checks.
If there is a malfunction during one of these proce-
dures, do not operate machine. Contact your autho-
rized dealer for service.
Perform these tests in a clear, open area outdoors.
Keep bystanders away.
Use the following checkout procedures to check for
normal operation of the machines safety systems.
Testing Park Brake Switch (Start)
1. Turn key to the ON position.
2. Push both handles down to disengage parking
brake.
3. Turn key switch to the START position.
Result: The engine must not crank over.
Testing Neutral Switch (Start)
1. Push one motion control lever forward.
2. Turn key switch to the START position. Repeat
steps 1, 2 for other control.
Result: The engine must not crank.
Testing Emergency Parking Brake Release
Emergency Brake
Release Lever
1. Turn key to the ON position.
2. Lift emergency brake release lever you will hear
the brake disengage and reset.
3. Turn key to the START position.
Result: The engine will turn over, this means all brake
safety switches are working properly.
Testing the Parking Brake
17°
1. Stop machine on a 17° slope (30% grade) facing
downhill. Stop the engine and engage parking
brake.
2. Repeat procedure with machine facing uphill.
Result: Parking brake must hold the machine station-
ary.(Machineshouldmove nomorethan24in.(61cm)
in one hour.) If machine moves more than that, con-
tact your authorized dealer.
Testing Automatic Parking Brake Set
1. Stand on operator’s platform with motion control
levers in the NEUTRAL parking brake position.
2. Start engine. Idle engine.
3. Disengage parking brake.
4. Move motion control levers slightly forward, slow-
er than walking speed.
5. Release the motion control levers, allowing them
to return to the NEUTRAL position and tip up.
Result: The engine is running and the parking brake
is now set, unit will not roll.

Not for
Reproduction
16 ferrismowers.com
Operation
Using the Throttle and Choke
Choke
Lever Throttle Lever
Starting Using the Throttle and Choke
•Pushchokeleverforward totheCLOSEDposition.
•Move throttle lever to the HALF FAST position
when starting and warming the engine.
•Turn key switch to the START position and re-
lease when engine starts, pulling choke control
back to the OPEN position after engine start.
•Blower speed and power can be controlled with
the throttle control.
Key switch shown
in OFF position
•The Tach/hour meter shows the engine revolu-
tions per minute when the engine is running and
the engine hours when engine is off. The meter
will also show reminders when to change the en-
gine oil. The meter only runs when the engine is
running and is independent of the key switch.
Filling Fuel Tank
CAUTION
Avoid injury! Fuel vapors are explosive and
flammable.
•Shut engine OFF before filling fuel tank.
•Do not smoke while handling fuel.
•Keep fuel away from flames or sparks.
•Fill fuel tank outdoors or in well ventilated area.
•Clean up spilled fuel immediately.
•Use clean approved non-metal container to pre-
vent static electric discharge.
•Use clean approved plastic funnel without screen
or filter to prevent static electric discharge.
IMPORTANT: Avoid damage! Dirt and water in fuel
can cause engine damage:
•Clean dirt and debris from the fuel tank opening.
•Use clean, fresh, stabilized fuel.
•Fill the fuel tank at the end of each day’s opera-
tion to keep condensation out of the fuel tank.
•Use a non-metallic funnel with a plastic mesh
strainer when filling the fuel tank or container.
