RENDIMAX CE
CAST IRON GAS-FIRED BOILERCAST IRON GAS-FIRED BOILER
CAST IRON GAS-FIRED BOILERCAST IRON GAS-FIRED BOILER
CAST IRON GAS-FIRED BOILER
for central heatingfor central heating
for central heatingfor central heating
for central heating
Installation and operating instructionsInstallation and operating instructions
Installation and operating instructionsInstallation and operating instructions
Installation and operating instructions
S.p.A.

2
S.p.A.
Contents
1. Description
2. Dimensions and technical specifications
3. Installation
4. Adjustment
5. Gas conversion
6. Maintenance and cleaning
7. Troubleshooting

3
S.p.A.
Fig. 1
Version "P.V."Version "BASE"
A
850
BL
G
H
284
1
C
E
D
590
660
E
2
3
C
510
E
F
590
660
3
2
1
4
5
1. DESCRIPTION
1.01 Introduction
RENDIMAX CE boilers are heat generators for central heating and domestic hot water production.
The standard version is designed to work with natural gas.
To use the boiler with L.P.G., on-site conversion must be carried out following the instructions given
below. This conversion must be done by our local Customer Technical Service Center.
2. Dimensions and technical specifications
2.01 Dimensions
KEY
1C.H. flow inlet
2C.H. flow outlet
31/2" gas inlet
4Safety valve (only PV vers)
5Expansion vessel (only PV vers)

4
S.p.A.
112
3
11
10
8
6
13
7
9
2
4
5
Fig. 2
2.02 Components description
View with open door
KEY
1Boiler thermostat
2Boiler temperature / pressure gauge
3Safety valve
4Gas valve
5Circulation pump (only PV version)
6Boiler drain cock
7Pilot burner
8Piezo-Igniter
9Gas-Manifold
10 Boiler main switch
11 Filling cock
12 Cock
13 Flue thermostat

5
S.p.A.
Heat output Heat rate
Boiler Rated Adjiustable up to: Min.Rated
Rendimax 16 CE
Rendimax 23 CE
Rendimax 30 CE
Rendimax 36 CE
kW
16,2
23,0
29,5
36,0
kcal/hr
14.000
19.800
25.400
31.000
kW
11,0
16,0
20,0
24,0
kcal/hr
9.500
13.800
17.200
20.600
Section
nr.
3
4
5
6
kW
12,7
18,4
23,0
27,6
kcal/hr
11.000
15.800
19.800
23.800
kcal/hr
15.500
22.000
28.200
34.400
kW
18,0
25,5
32,8
40,0
Natural gas
Boiler
Rendimax 16 CE
Rendimax 23 CE
Rendimax 30 CE
Rendimax 36 CE
Nozzle
nr.
2
3
4
5
L.P.G.
Ø Main
burner
mm
2,45
2,35
2,35
2,35
Ø Pilot
burner
mm
0,35
0,35
0,35
0,35
Rated
gas
pressure
mbar
13,0
15,2
14,2
13,5
Ø Main
burner
mm
1,55
1,50
1,50
1,50
Ø Pilot
burner
mm
0,225
0,225
0,225
0,225
Rated
gas
pressure
mbar
35
35
35
35
Boiler weight
kg
PV
vers.
80
94
112
/
BASE
vers.
70
84
102
126
Connections
Boiler
Rendimax 16 CE
Rendimax 23 CE
Rendimax 30 CE
Rendimax 36 CE
A
mm
400
400
500
600
B
mm
57
62
72
82
C
mm
33
33
33
58
D
mm
100
110
130
150
E
mm
63
25
36
50
F*
mm
73
35
46
-
G
mm
515
515
515
525
H*
mm
635
635
635
-
L
mm
615
615
615
625
Return
1
1"
1"
1"
1"
Flow
2
1"
1"
1"
1"
Gas
inlet
3
1/2"
1/2"
1/2"
3/4"
Max
working
pressure
bar
4
4
4
4
Boiler water
content
lt.
7,3
9,0
10,7
12,4
Expans.
vessel
vol.
6
6
8
-
lt.
Boiler
Rendimax 16 CE
Rendimax 23 CE
Rendimax 30 CE
Rendimax 36 CE
Rated
1,94
2,70
3,47
4,23
Min.
1,16
1,69
2,46
2,95
Gas flow rate at the
burner for L.P.G. kg/hr
Rated
1,50
2,08
2,68
3,27
Min.
0,90
1,31
1,63
1,96
Gas flow rate at the
burner for N.G. m /hr
3
Connection dimentions
*Only P.V. version*Only P.V. version
*Only P.V. version*Only P.V. version
*Only P.V. version
3. INSTALLATION
Installation must be carried out by specialist companies only in accordance with all instructions and
current regulations.
You are advised to include gate valves between the boiler and the C.H. system so that the boiler can
be isolated from the system if necessary.
Notes: If the path followed by the C.H. flow outlet and return inlet pipes is such as to allow for the
formation of air pockets at certain points, you are recommended to fit an air valve at these points.
The diameter of the flue connection pipe must not be less than that of the coupling on the draft
diverter. From the draft diverter, it must have a vertical section of not less than one and a half meters.
When sizing and installing flues and the flue connecting pipe, current regulations must be respected.
If the fuel duct pass through flammable wall it has been well insulated.
2.03 Technical data (Max. working temperature 100°C)

6
S.p.A.
230V
50Hz
23
49 49
23
L
8
9
10
98
N
1
4
1
2
3
2
3
44
1
C
92
11
114
160
32
63
12
13
6
5
4
2
7
92
1
63
2
C
1
98
1
4
2
324
3
57968 1513
10 11 12 1614
160114 32 44
230V
50Hz
LN
Fig. 3
Connection between boiler and chimney has to be sealed.
The rated flow rate of gas counter has to be sufficient for the whole connected appliance.
Be careful that the boilers connections are free of mechanical tensions.
Connect the gas using a rigid pipe and including a gas cock.
The boiler must be connected to a 230 Volt - 50 Hz single phase line (phase/neutral) by means of
terminal board of approved socket. A 5 A max. fuse should be included between the boiler and line.
It is important to ensure that the boiler is connected to an efficient earth system. The terminal board
for connecting the boiler to the room thermostat (if used) is inside the control panel (follow the
electrical wiring diagram fig. 3).
3.01 Electrical connection
The electrical connections has be carried out according the following electrical schema. If the boiler
is installed below the level of the C.H. system, you are recommended to install a sensor against the
water absence.
NB: The manufacturer declines all responsibility for damage to persons or things deriving from
poor earthling of the appliance.

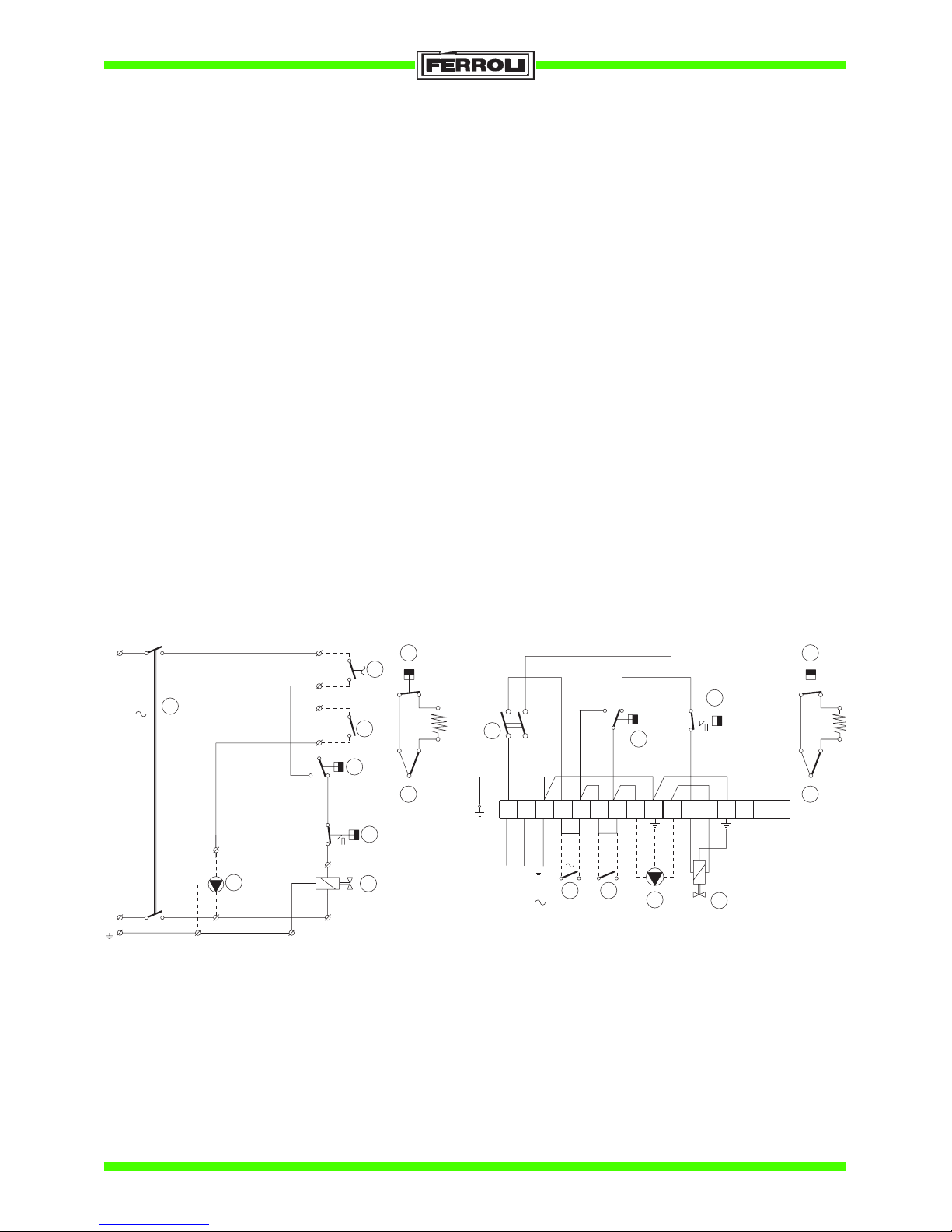

DIAGRAM OF ELECTRICAL CONNECTION
Key
23 Thermocouple
32 C.H. pump (if fitted)
44 Gas valve coil
49 Safety thermostat
63 Boiler thermostat
BASIC ELECTRICAL WIRING DIAGRAM
92 Flue gas thermostat
98 Main switch
114 Water pressure switch (not fitted)
160 Auxiliary contact

7
S.p.A.
Fig. 4
3.02 Checking and controlling the evacuation of combustion products (total security)
The boiler is fitted with a FLUE GAS THERMOSTAT . This thermostat prevents gas from reaching the
burner if the flue is not drawing properly, providing greater security and control over the discharge of
combustion products.
If the FLUE GAS THERMOSTAT is activated, unscrew the protective cover on the control panel (Fig.
2 part. 13) and “reset” the thermostat manually. The boiler will then operate normally again.
If you replace the FLUE GAS THERMOSTAT, use original components only and make sure the electrical
connections are carried out correctly. NEVER EXCLUDE THE FLUE GAS THERMOSTAT FROM THE
ELECTRICAL CIRCUIT. If it keeps activating, contact qualified personnel only.
3.03 Pressure drop in relation to C.H. water flow rate (fig. 4)
Fig. 5a
3.04 Pump characteristics (only P.V. version)
1,2,3,=position of the built-in pump speed selector knob (fig. 5a)

8
S.p.A.
Fig. 5b

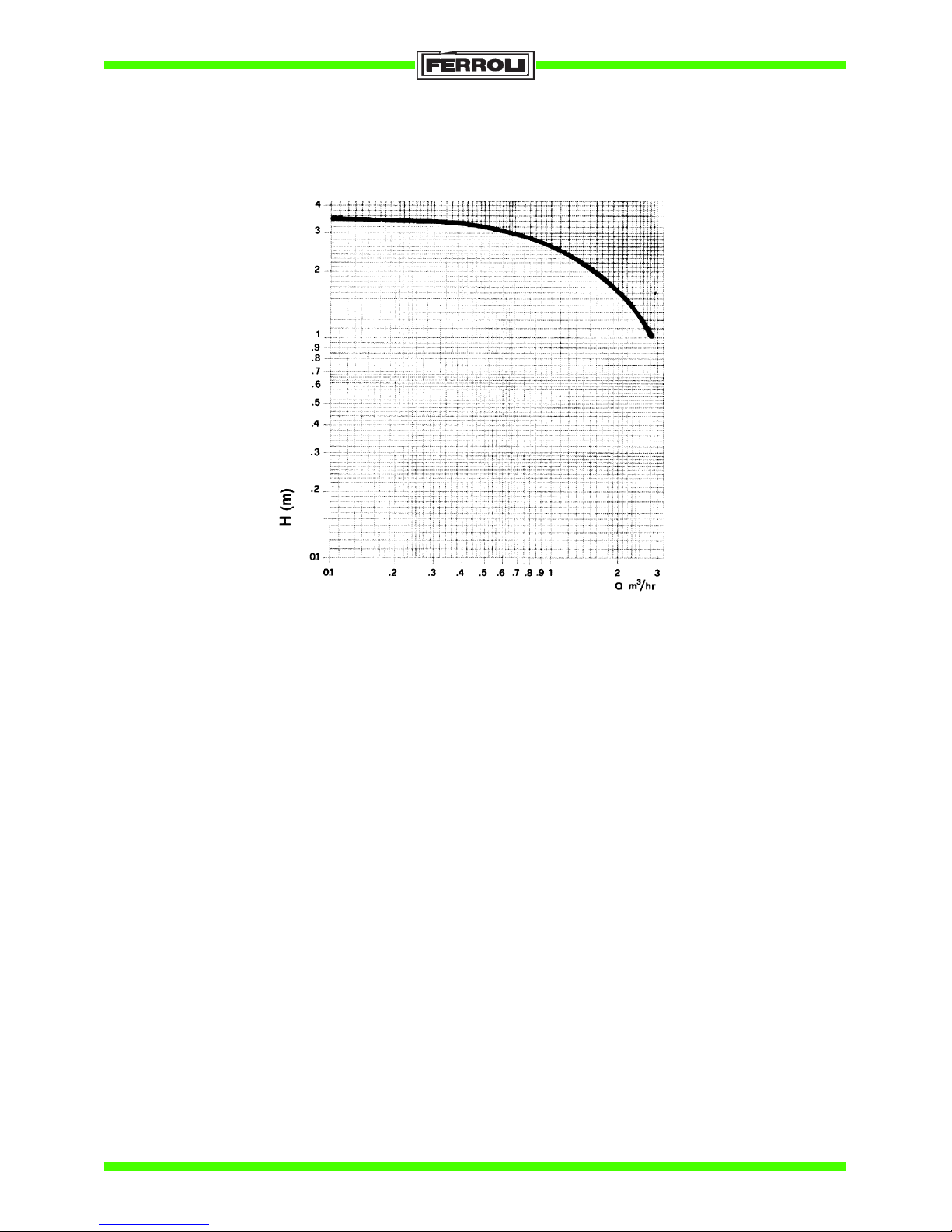

3.05 C.H. pump head characteristics (only P.V. version)(Fig. 5b)
NB - The diagram refers to maximum pump (Pos. 3) head/flow rate.
4. IGNITION AND SHUT-DOWN
4.01 Checks to carry out before igniting for the first time
When igniting the boiler for the first time, it is good practice to check:
- that the gate valves between the boiler and system are open;
- that the system is correctly filled and vented;
- that there are no gas or water leaks from the system or boiler;
- that the electrical connections are correct and the earth wire has been connected to an
efficient earth installation;
- that there are no inflammable liquids or materials near the boiler;
- that the flue is free from obstructions.
4.02 Igniting the boiler with ELETTROSIT gas valve(fig. 6)
Position the boiler thermostat on minimum.
Open the gas cock and vent the air present in the tube upstream from the gas valve by opening the
pressure point screw pos1.
Push down gas valve button 2 and hold it down.
Ignite the pilot burner by pressing the piezoelectric igniter 8 (fig.2) on the left side of the boiler.

9
S.p.A.
HONEYWELL V4600C GAS VALVEHONEYWELL V4600C GAS VALVE
HONEYWELL V4600C GAS VALVEHONEYWELL V4600C GAS VALVE
HONEYWELL V4600C GAS VALVE
Keep gas valve button 2 pushed down for 20 seconds then let it up slowly checking that the pilot
burner remains lit. If it goes out, wait 30 seconds then repeat the ignition operation.
Set the button 3 as shown in the fig. 3
Turn on the electricity to the boiler.
Position the boiler thermostat 1 (fig. 2) on the required temperature (not lower than 45°C). The main
burner switch-on and the boiler start working controlled by regulation thermostat of room thermostat
(if connected).

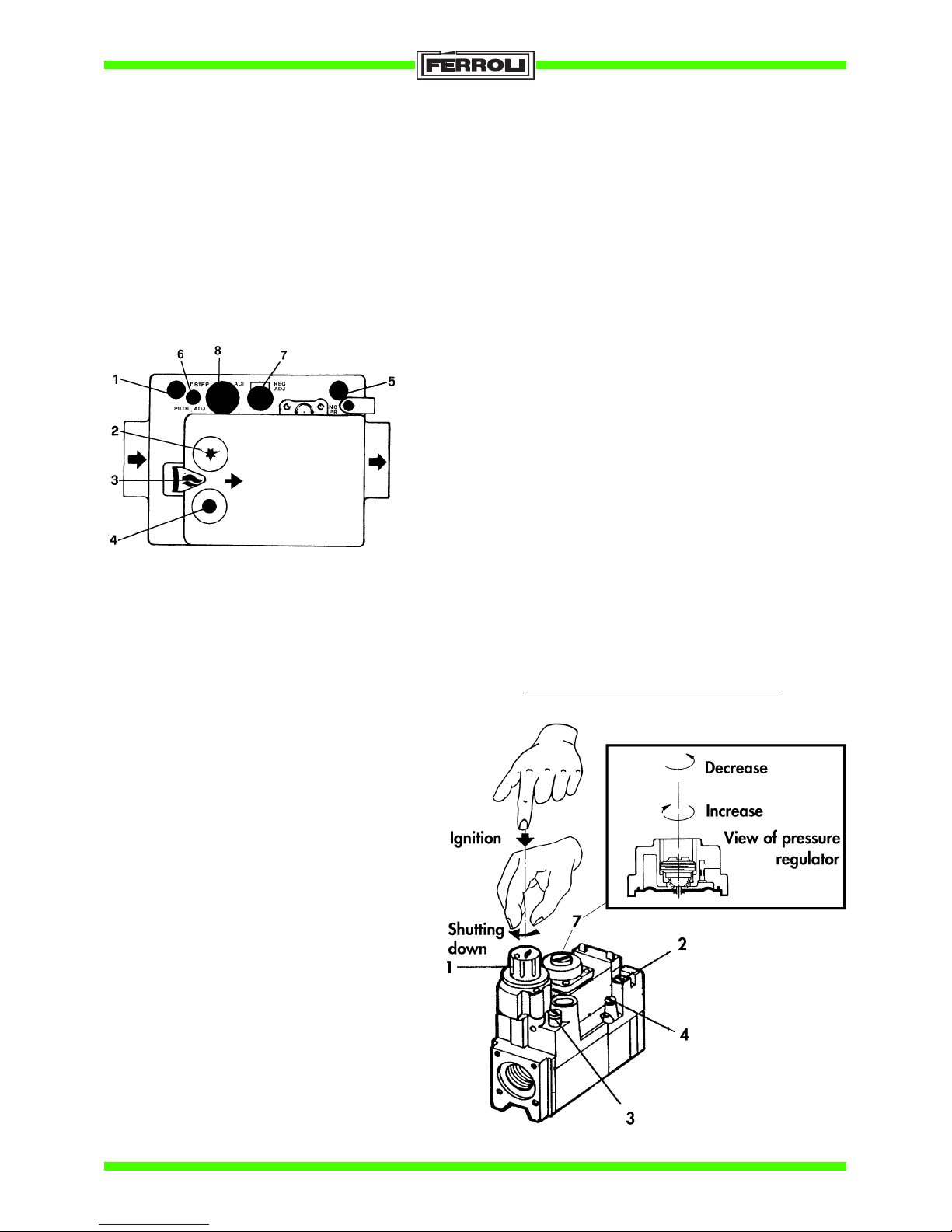

ELETTROSIT GAS VALVE
fig. 6
Key
1Downstream pressure test point
2Ignition/shut down button
3Key for ignition
4Shut down button
5Upstream pressure test point
6Pilot adjustment screw
7Main burner adjustment screw
8Slow opening adjustment screw
4.03 Igniting the boiler with HONEYWELL V4600C gas valve(fig 7a)
Position the boiler thermostat 1 (fig. 2) on minimum. Open the gas cock and vent the air present in
the tube upstream from the gas valve by opening the pressure point screw pos 3. Turn on the electricity
to the boiler. Ignite the pilot burner by
pressing the piezoelectric igniter 8 (fig.2) on
the left side of the boiler. Keep gas valve
button 1 pushed down for 20 seconds then
let it up slowly checking that the pilot burner
remains lit. If it goes out, wait 30 seconds
then repeat the ignition operation. Position
the boiler thermostat 1 (fig. 2) on the required
temperature (not lower than 45°C). The main
burner switch-on and the boiler start working
controlled by regulation thermostat of room
thermostat (if connected).
fig. 7a
Key
1Ignition/shut down button
2Pilot adjustment screw
3Downstream pressure test point
4Upstream pressure test point
7Main burner adjustment screw

10
S.p.A.
IgniteIgnite
IgniteIgnite
Ignite
pilotpilot
pilotpilot
pilot
burnerburner
burnerburner
burner
IgniteIgnite
IgniteIgnite
Ignite
mainmain
mainmain
main
burnerburner
burnerburner
burner
Shuth-downShuth-down
Shuth-downShuth-down
Shuth-down
completelycompletely
completelycompletely
completely
the boilerthe boiler
the boilerthe boiler
the boiler
SIT NOVA 820 GAS VALVE
4.04 Igniting the boiler with SIT NOVA gas valve(fig 7b)
Position the boiler thermostat 1 (fig. 2) on minimum.
Open the gas cock and vent the air present in the tube upstream from the gas valve by opening the
pressure point screw pos4. (fig 7b)
Push and keep pushed the knob in the position “a”.
Ignite the pilot burner by pressing the piezoelectric igniter 8 (fig.2) on the left side of the boiler.
Keep gas valve button 1 pushed down for 20 seconds then let it up slowly checking that the pilot
burner remains lit. If it goes out, wait 30 seconds then repeat the ignition operation.
Turn the knob in the position “b”.
Turn on the electricity to the boiler.
Position the boiler thermostat 1 (fig. 2) on the required temperature (not lower than 45°C). The main
burner switch-on and the boiler start working controlled by regulation thermostat of room thermostat
(if connected).
fig. 7b
Key
1Command knob
2Main burner adjustment screw
3Pilot adjustment screw
4Inlet gas adjustment screw
5Upstream pressure test point

11
S.p.A.
4.05 Temporary shut-down
To temporarily shut down the boiler, just position the main switch 6 on the “0” position.All the
electrical part remain not energized and only the pilot burner remain alight.
4.06 Prolonged shut-down
Push the button 4 (fig 6), turn clockwise the knob 1 (fig 7a) or turn the knob 1 in the position “C” (Fig.
7b). By measn this operations the gas connection to main burner and pilot is cut out. Close the gas
cock upstream from the boiler and turn off the electricity supply to the boiler.
Note: If the boiler is not used for long periods in the winter, to avoid frost damage, either add antifreeze
to the system or drain completely.
4.07 Post ignition checks and controls
On igniting the boiler for the first time:
Check there are no gas or water leaks.
Check that pilot flame is well regulated eventually it can be adjusted by means of adjustment screw
on the gas valve (fig 6 ,7a, 7b).
Check the boiler ignites properly by using the regulating thermostat to ignite and shut down the
boiler.
Check flue efficiency during boiler operation.
Check that the fuel consumption indicated on the meter corresponds to the value indicated in the
table.
Check that water circulates correctly between the boiler and system.
Check that flue connection between boiler and chimney is properly sealed.
IMPORTANT: The pilot burner inspection hatch must remain closed during normal boiler operation.
4.08 Gas consumption
The rated gas flow is shown on the technical-table at pag. 6. To get the rated gas-flow the gas pressure
has to be adjusted according the technical data sheet. Gas pressure calibration can be carried out by-
means of proper screw (fig 6,7a,7b) After the gas adjustment the consumption can be verified by
means of gas-meter after at least 5 min. operation at full output. Further small adjustment can be
carried on the gas adjustment screw (fig 6,7a,7b).
5. Gas conversion
The following adjustment and conversion operations must be carried out by qualified personnel
only. s sAs standard the boilers are calibrated for N.G.
5.01 From N.G. to L.P.G.
To convert from N.G. to L.P.G., replace the main and pilot burner nozzles then adjust main burner
pressure to ensure that nozzle pressure is as indicated for L.P.G.
Note: Nozzle diameters and main burner pressures are given in technical data tables.

12
S.p.A.
5.02 Check and gas pressure regulation
Gas Valve ELETTROSIT
The regulation of gas pressure at the pilot burner has to be done at sight, without instrument but
checking the that flame envelope completely the thermocouple (fig. 10) without burning excessive
gas.
To adjust the pilot flame operate as follow:
To decrease the gas flow rate rotate clockwise the screw PILOT ADJ .
To increase the gas flow rate rotate anticlockwise the screw PILOT ADJ.
To adjust the pressure at main burner, remove the protection cap and rotate the screw REG. ADJ (fig.
6) clockwise to increase the pressure and anticlockwise to decrease.
ATTENTION:The pressure measured at point 1 and 5 (fig. 5) has be read after 30 second and after the
pressure adjustment.
5.03 Adjusting min. flow on slow-opening for N.G.
Gas Valve ELETTROSIT
5.03.1 System nr.1
loosen completely the screw “REG ADJ” (fig. 6)
Operate the screw “1 STEP ADJ” (fig 6) until the main burner light-on gradually and noiseless.
Adjust the screw “1 STEP ADJ” until the gas pressure is the right one.
Seal the screws “1 STEP ADJ” and “REG ADJ”.
5.03.2 System nr.2
(In the even the screw “REG ADJ” is already adjusted and sealed.
Tighten the screw “1 STEP ADJ” (fig. 6)
Operate the screw “1 STEP ADJ” (fig 6) each time for 1/4 anticlockwise.
After rotation switch over the “Pilot” position by means of button 2 (fig. 6). After 30-60 sec switch
over again on “Operation” position by means the button nr. 3 (fig. 6).
Repeat the previous operations until the main burner light on gradually and noiseless and than seal
the screw “1 STEP ADJ”.
5.04 Adjusting min. gas flow on slow-opening for L.P.G.
Gas Valve ELETTROSIT
Take out the protection cap and check that the screw “NO PR” (fig. 6) is rotate clockwise completely.
Adjust the screw “REG ADJ” until the main burner gas pressure is 12 mbar.
Loosen the screw “NO PR” (fig. 6)
Adjust the min. gas flow on slow-opening as described on par. 5.03.02 (System nr. 2).
Loosen the screw “PILOT ADJ” (fig. 6).
Seal the screws “1STEP ADJ” , “REG ADJ”.and “PILOT ADJ”.
ATTENTION:The screw “NO PR” has not to remain on intermediate position.It has to be completely
tighten with N.G.and loosen with L.P.G.

13
S.p.A.
Fig. 8
5.05 Check and gas pressure regulation
Gas Valve “HONEYWELL V4600C”
The regulation of gas pressure at the pilot burner has to be done at sight , without instrument but
checking the flame envelope completely the thermocouple (fig. 10) without burning excessive gas.
To adjust the pilot flame operate on the screw 2 (fig. 7a).
To adjust the pressure at main burner, operate on the screw 7 (fig. 7a). Rotate clockwise to increase
gas flow and pressure, anticlockwise to decrease gas flow and pressure.
To convert from N.G. to L.P.G. replace the pilot and main nozzles, tighten completely the screw 7
(fig. 7a) and adjust the gas flow-pressure.
N.B.Complete conversion kits for various gas are supplied separately (on request).
5.06 Check and gas pressure regulation
Gas Valve “SIT 820 NOVA”
The regulation of gas pressure at the pilot burner has to be done at sight , without instrument but
checking the flame envelope completely the thermocouple (fig. 10) without burning excessive gas.
To adjust the pilot flame operate on the screw 3 (fig. 7b).
To adjust the pressure at main burner,operate on the screw 2 (fig. 7b). Rotate clockwise to increase
gas flow and pressure, anticlockwise to decrease gas flow and pressure.
To convert from N.G. to L.P.G.replace the pilot and main nozzles, tighten completely the screw 2
(fig. 7a) and adjust the gas flow-pressure.
N.B. Complete conversion kits for various gas are supplied separately (on request).
5.07 Replacing the main and pilot nozzles
To replace the main and pilot burner nozzles, proceed as follows:
Turn off the gas and electricity supply upstream of the boiler.
Remove the whole gas assembly from the combustion chamber (see paragraph 6.03).
Remove the pilot burner (fig. 8)
Remove the main burners from the manifold.
Replace the main and pilot nozzles. Check that the main nozzles gaskets are not damaged. If so
replace them.
Reassemble carefully.
If necessary, calibrate gas pressure at the nozzles as described above.
Check correct operation and that there are no gas leaks.

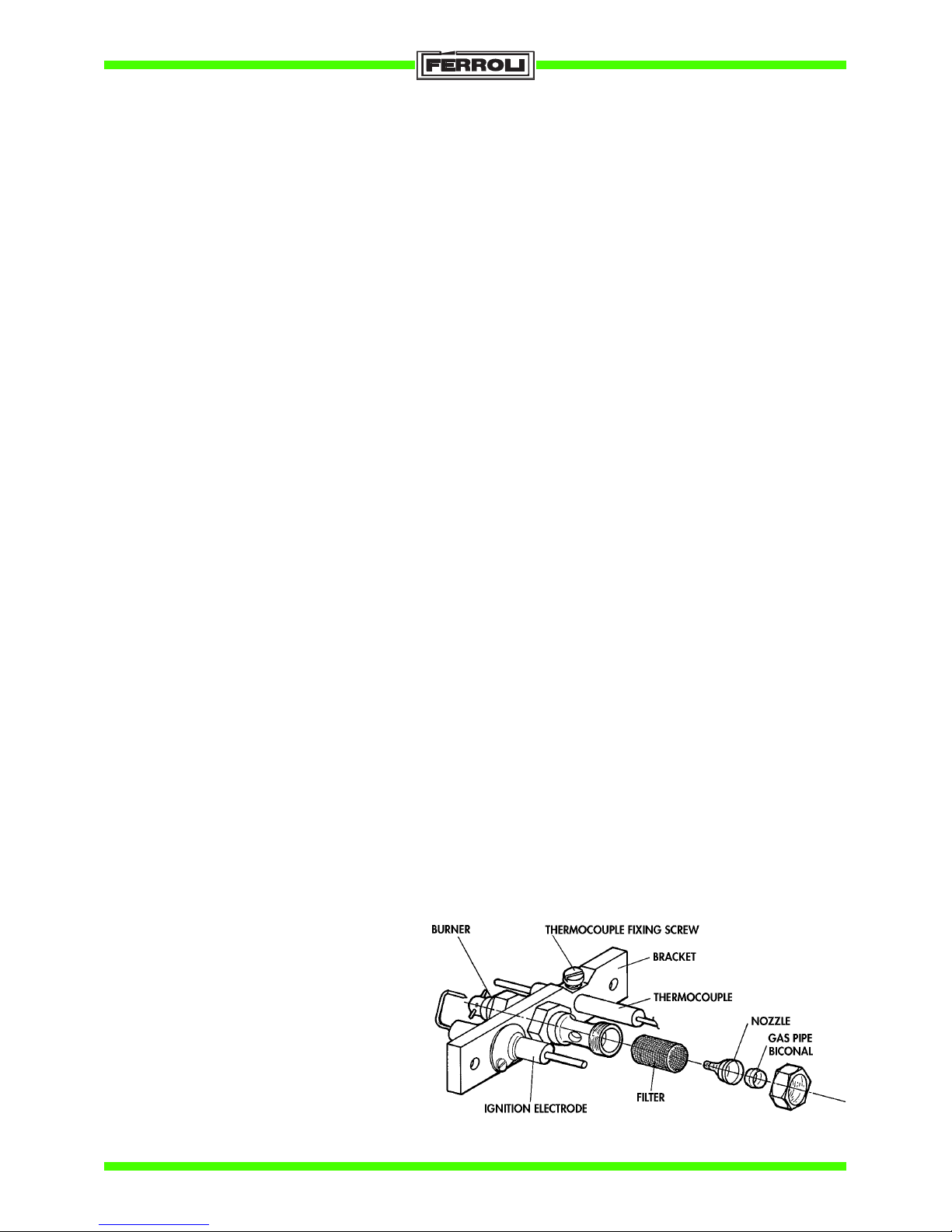

Pilot burner

14
S.p.A.
14
17 18 19 20
21 22 23 24 25 26
27 28 29 30
16
31
15
14
13
12
11
15
kW
10 12 14
kcal/hr
x 1000
911 13
29 37
36
35
34
33
32
31
30
28
27
26
25
20
19
18
17
16
mbar
6
2
3
4
5
7
8
9
10
11
12
13
21 22 23 24
16
15
1
2
34
Fig. 9a
35
25
30
1
mbar
10
29
13
11
9
15
20
27 28
30
kcal/hr
x 1000
kW
26
14
12
10
31 32 33 34
25
35 36 37
15
11 12 13 14 15
31
16
30
29
28
27
26
25
24
23
22
21
20
19
18
17
20
19
21 22
18
23 24
17
16
2 3 4
Output variability with L.P.G.
5.08 Heat output variability characteristics
To adjust furnace heat input, simply regulate the main burner via the gas valve (fig. 8). This in turn
varies the heat output to the C.H. water. The diagrams in Fig. 9a and 9b show the variations in heat
output to the water in relation to variations in burner working pressure. The ability to adjust boiler
output to actual C.H. requirements means above all reducing heat dispersion and so saving fuel. In
addition, variations in output have very little effect on efficiency and combustion characteristics.
Fig. 9b
Output variability with N.G.
1= model 16
2= model 23
3= model 30
4 = model 36

15
S.p.A.
IGNITIONIGNITION
IGNITIONIGNITION
IGNITION
ELECTRODEELECTRODE
ELECTRODEELECTRODE
ELECTRODE
THERMOCOUPLETHERMOCOUPLE
THERMOCOUPLETHERMOCOUPLE
THERMOCOUPLE
6. MAINTENANCE AND CLEANING
The following operations must be carried out by qualified personnel only.
The boiler requires no particular maintenance other than general control of boiler and chimney once
a year.Each three years the at the end of heating season boiler burner and chimney has to be cleaned.
6.01 Seasonal control of boiler and flue
Once a year before the heating season, the following controls should be carried out:
- the burner and boiler body and chimney should be clean. To clean them, you are advised to use a
soft brush or compressed air. Avoid chemical products;
- water pressure in the system (cold) should be between 0.5 and 1 bar. If not, bring it back to this
value. If the system is open vessel, check the water level in the tank.
- control and safety devices (gas valve and thermostats) should be working correctly;
- the thermocouple is free from scale and the pilot flame wraps it correctly (fig. 10)
- the pumps must not be blocked;
- the system should be free of gas or water leaks;
- gas flow rate and pressure should be in line with the values given in the table;
- the complete length of the flue gas evacuation pipe (flue and flue to boiler connection pipe)
should be clean and free from leaks.
6.02 Flame at pilot burner

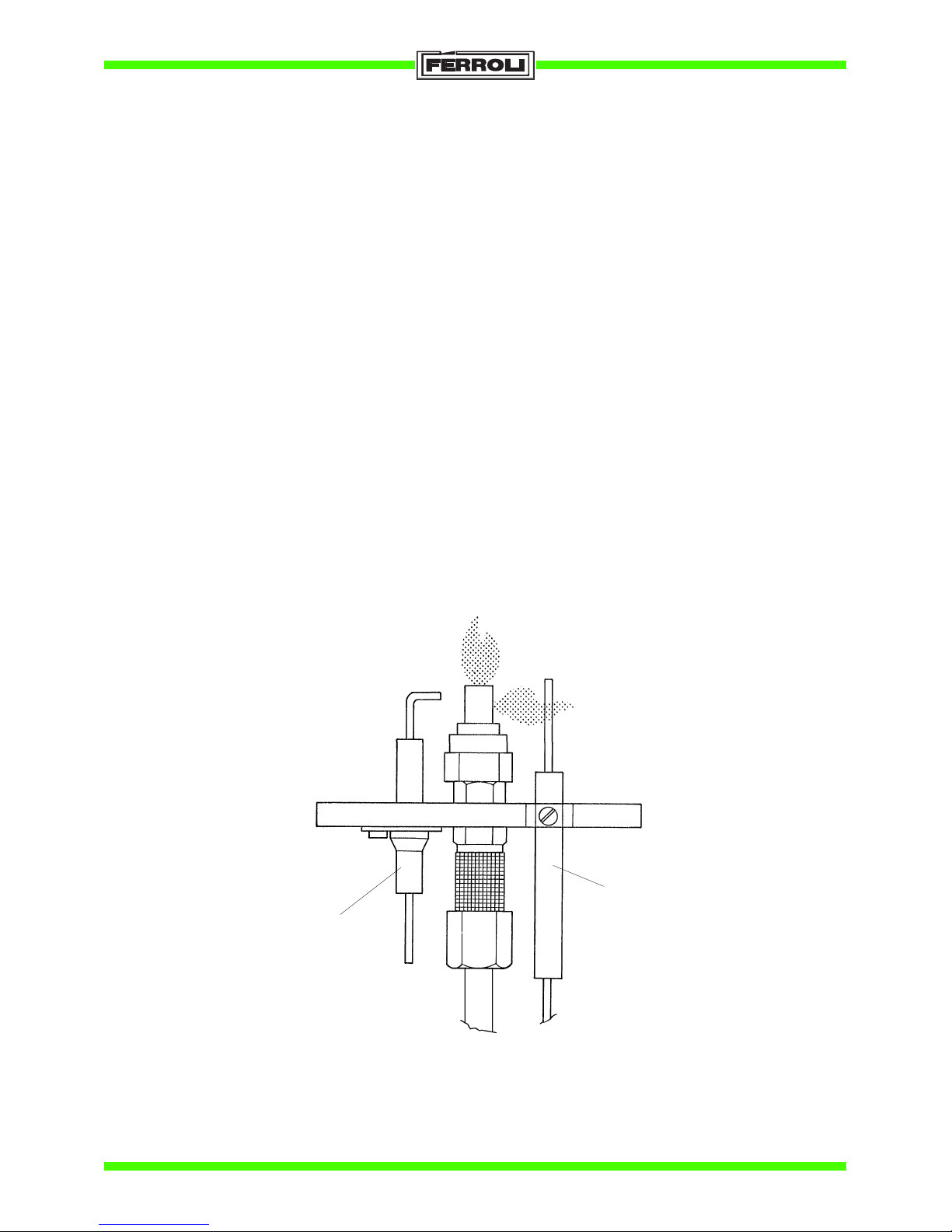

Fig. 10

16
S.p.A.
Fig. 12
Fig. 11
6.03 Cleaning the boiler and burner
To clean the boiler and burner , proceed as follows:
a) turn off the gas and the electricity supply upstream of the boiler.
b) take out the boiler cover and the draft diverter cover (fig.11).
c) disconnect the electric power supply cable to the valve.
d) turn off the gas and the electricity supply upstream of the boiler.
e) remove the four screws A (fig.12) fixing the gas input pipe to the valve.
f) remove the two nuts B (fig. 12) fixing the gas assembly and combustion chamber door to the boiler.
g) remove the whole gas assembly.
Now you may clean all the smoke passages in the boiler using a pipe brush 3. Remember you should
check and if necessary clean the flue and its connection to the boiler. Be careful not to damage the
Flue gas safety thermostat phial or capillary.
Important - Do not clean the burners with chemical or a steel brush, as these might change the air-
gas mixture outlet holes. When cleaning is complete, re-assemble carefully and in the correct position.
The check the seal along the gas and smoke circuits, functioning of the control and safety devices
and gas pressure and rate of flow.
Key
1Fixing screw
2Draft diverter cover
3Cleaning brush

17
S.p.A.
7.TROUBLE SHOOTING
Pilot burner fails to ignite No gas
Open the gas cock
Air in the pipes
vent as described in the section on ignition
Pilot nozzle blocked
Clean the nozzle with compressed air
Insufficient gas flow
Adjust flow using the screw on the valve
Pilot goes out Faulty thermocouple
Control or replace the thermocouple
Incorrect flame adjustment
Adjust the flame using the screw on the gas
valve
Insufficient flame
Adjust the flame until it envelopes the
thermocouple as indicated in figure 12
Poor contact with the gas valve coil
Tighten the connector on the gas valve
Main burner fails to ignite No current
Restore current
Blocked nozzles
Clean the nozzles thoroughly
Faulty gas valve
Repair or replace the gas valve
Flue gas thermostat activated
Manually reset
Blowout at main burner Insufficient gas
Control gas pressure at the main burner
Boiler dirty
Check and clean the boiler
Burner dirty
Check and clean the burner
Smell of unburnt gas Boiler dirty
Check and clean the boiler body
Insufficient flue draught
Control flue draught efficiency
Insufficient air change
Improve room ventilation

18
S.p.A.
Remember: To avoid unnecessary expense, before contacting Service Departement, make sure that
any boiler failure is not due to the absence of electric power or gas supply.
Incorrect flame regulation
Check flow rate at the gas meter and pressure at
the main burner
Boiler functions, but temperature fails to rise Incorrect flame adjustment
Check gas consumption is normal
Boiler dirty
Check and clean the boiler body
Boiler inadequate
Check that the boiler is the right size for the C.H.
system
Thermostat trips too high Thermostat bulb out of its sheath
Check the bulb is well inserted
Faulty adjustment on the panel
See section on adjustment
Condensation in boiler Faulty thermostat adjustment
Adjust the thermostat to a higher temperature
Faulty flame adjustment
Check that the main burner flame is properly
adjusted
Insufficient gas consumption
Check gas consumption is correct
The boiler becomes dirty easily Faulty flame adjustment
Check the main burner flame is adjusted
properly and that gas consumption is in line with
boiler output
The boiler including the pilot shut down Insufficient flame
Adjust the flame until it envelopes the
thermocouple as indicated in figure 12
Check the flue gas thermostat has not been
activated.If so reset it manually

19
S.p.A.

37047 SAN BONIFACIO - VR - ITALY37047 SAN BONIFACIO - VR - ITALY
37047 SAN BONIFACIO - VR - ITALY37047 SAN BONIFACIO - VR - ITALY
37047 SAN BONIFACIO - VR - ITALY
tel. [phone] - tlx. 480172tel. [phone] - tlx. 480172
tel. [phone] - tlx. 480172tel. [phone] - tlx. 480172
tel. [phone] - tlx. 480172
fax [phone]fax [phone]
fax [phone]fax [phone]
fax [phone]
S.p.A.
Cod. 3541098/1 12/96
