OPERATION AND
MAINTENANCE MANUAL
Halogen lamp for machine tools without
transformer
Art. 0538
ORIGINAL INSTRUCTIONS
fervi.com

MACHINES AND
ACCESSORIES
Page 2 of 15
FOREWORD
Read this manual before operating any machinery
ORIGINAL INSTRUCTIONS
Before starting any operation it is compulsory to read this instruction manual. The guarantee
that the machine will function and perform properly is strictly dependent upon the application
of all the instructions contained in this manual.
Operator Qualification
The operators assigned to using this machine must be supplied with all of the necessary
information and instruction and should be provided with adequate training regarding
safety in pertaining to:
a) The conditions of use of the equipment;
b) Foreseeable abnormal situations, pursuant to Article 73 of Legislative Decree
81/08.
We guarantee the Machine's conformity to the specifications and technical instructions
described in the Manual on the date of issuance and listed herein; On the other hand,
the machine may also be subject to important technical changes in the future, without
the manual being updated.
Therefore, see FERVI for information about modifications that could be implemented.
REV. 2 October 2013
fervi.com

MACHINES AND
ACCESSORIES
Page 3 of 15
CONTENTS
1 GENERAL INFORMATION........................................................................... 4
1.1 Technical support.......................................................................................................4
2 GENERAL SAFETY WARNINGS ................................................................... 5
2.1 Precautions with regard to electric shocks ................................................................5
2.2 Precautions regarding installation .............................................................................5
2.3 Precautions regarding cleaning..................................................................................6
2.4 Technical support.......................................................................................................6
3 DESCRIPTION OF THE LAMP AND INTENDED USE ..................................... 7
3.1 Identification plate ....................................................................................................8
3.2 Arm ............................................................................................................................ 8
4 TECHNICAL SPECIFICATIONS ................................................................... 9
5 IMPROPER USE AND CONTRAINDICATIONS.............................................. 9
6 TRANSPORTING AND MOVING ................................................................ 10
7 UNPACKING INSTRUCTIONS................................................................... 10
8 COMMISSIONING.................................................................................... 11
8.1 Power supply / connecting the device ..................................................................... 11
8.2 Installation ..............................................................................................................12
9 TURNING THE LAMP ON .......................................................................... 13
10 MAINTENANCE AND CLEANING............................................................... 13
11 TROUBLESHOOTING................................................................................ 15
12 DECOMMISSIONING ............................................................................... 15
fervi.com

MACHINES AND
ACCESSORIES
Page 4 of 15
1 GENERAL INFORMATION
This manual is considered an integral part of the lighting device to which it was attached at
the time of purchase.
The manufacturer holds all ownership to material and intellectual property of this manual;
any disclosure or copying, even partial, of this publication without prior written consent is
forbidden.
The manufacturer waives any and all responsibility for damage to people and/or
things caused by non-observance of the instructions in this manual.
Users will be held fully responsible for any changes they have made to the device,
and the manufacturer will not be held responsible for any damage caused to
persons and/or property resulting from maintenance and/or modifications carried
by unqualified personnel and in a manner that differs from the operating
procedures shown below.
1.1 Technical support
For any problems or concerns, please do not hesitate to contact the dealer who sold the item.
fervi.com

MACHINES AND
ACCESSORIES
Page 5 of 15
2 GENERAL SAFETY WARNINGS
Risks associated with using the instrument
Each person in charge of the installation, use and maintenance of this halogen lamp, must
carefully read this manual, and in particular this chapter with information about safety, in
order to acquire full knowledge of the device.
2.1 Precautions with regard to electric shocks
Risks associated with electric shocks
Check that the switch is in the "0" position and that the power supply plug is
disconnected before touching live parts of the appliance.
Touching these parts without disconnecting the power supply plug may cause an
electric shock.
Make sure that the power supply used meets the requirements for voltage and
frequency required by the device (shown on the plate).
The use of different types of power supplies may cause an electric shock, as well as fire
or damage to the device.
DO NOT spray or pour water on the unit, this may cause an electric shock.
If water comes into contact with the unit, unplug the power plug immediately and
contact Technical Support as soon as possible.
Using the device disassembled may cause an electric shock.
Regrading the repair of the equipment contact Technical Support.
2.2 Precautions regarding installation
Risks associated with installation
Attach the unit to a solid and strong support surface: stably and securely attach the
device to the support structure or frame of the machine tool.
Install the unit as described in the instructions for use regarding the position and the
type of fixation.
DO NOT install the unit in locations subject to high and/or low temperatures (this may
damage the halogen lamp).
fervi.com

MACHINES AND
ACCESSORIES
Page 6 of 15
2.3 Precautions regarding cleaning
Risks associated with cleaning
Plastic materials are used in some parts of the lamp. Applying organic solvents (such as
benzene), or other chemicals for cleaning may cause deformation or discolouration.
Clean the device gently, using a soft dry cloth.
2.4 Technical support
For any problems or concerns, please contact, without hesitation, the Customer Service
Department of the dealer from whom you purchased the product, who has competent and
specialised staff, specific equipment and spare parts.
fervi.com

MACHINES AND
ACCESSORIES
Page 7 of 15
3 DESCRIPTION OF THE LAMP AND INTENDED USE
The Halogen lamp for machine tools (Art. 0538) is a heavy-duty, securable and
adjustable lighting fixture. The lamp is designed to illuminate the areas inside and near the
machine tools, to allow safe use of the machines themselves, in industrial plants or similar
environments.
The unit is powered by the machine tool with 24V AC voltage.

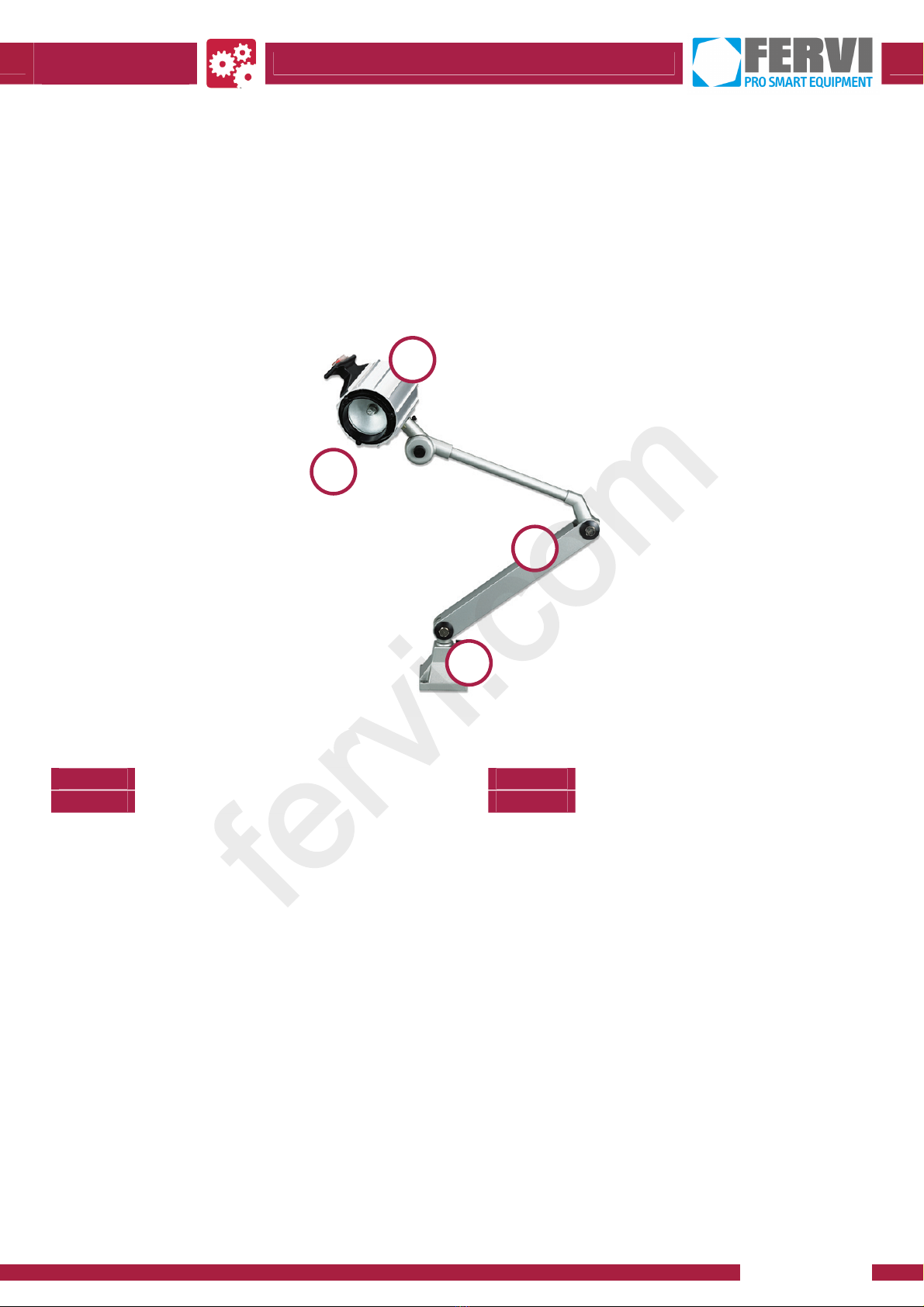

Figure 1 - Main parts of the lamp
1Aluminium casing 3Glass screen
2Pedestal 4Arm with three articulated joints
The lighting apparatus is composed of:
the aluminium casing, which contains the lighting device (halogen lamp and light
socket);
the protective glass screen at the front of the tubular casing;
support system for the device (articulated arm and pedestal) and the flexible power
cable with plug.
2
1
3
4
fervi.com

MACHINES AND
ACCESSORIES
Page 8 of 15
3.1 Identification plate
The identification plate is affixed to the rear of the casing.
Figure 2 – Identification plate.
3.2 Arm
The lamp has five articulated joints:
1. the joint which connects the lighting body to the support arm and therefore allows the
rotation of the lamp body relative to the arm, provided with locking screw;
2. the hinge joint that connects the support of the lighting body to the upper part of the
arm, which allows the body to be tilted relative to the arm, with locking nut;
3. the intermediate hinge joint that connects the upper part of the arm to the lower part
of the arm, with locking nut;
4. the hinge joint that connects the lower part of the articulated arm with the support
element, with a locking nut which allows the arm to be tilted with respect to the
support element;
5. the joint that connects the lower part of the articulated arm with the support element,
with a locking knob, which allows the arm to be rotated with respect to the support
element.
The screw and nuts must be unlocked using tools in order to carry out the positioning of the
respective element, while for rotating the lamp (with respect to the base support it is
necessary to unscrew the knob, rotate and position the lamp and then screw the knob to
secure the lamp in position.
Figure 3 – Lamp joints.
fervi.com

MACHINES AND
ACCESSORIES
Page 9 of 15
4 TECHNICAL SPECIFICATIONS
Description (Measurement unit) 0538
Voltage (V) 24
Frequency (Hz) 50
Level of IP protection 20
Maximum power (W) 50
Height (mm) 650
Number of nodes 3
Lamp Diameter (mm ) 90
5 IMPROPER USE AND CONTRAINDICATIONS
The following actions described, which obviously can not cover the entire range of potential
possibilities of "misuse" of the equipment, are to be considered strictly prohibited.
IT IS STRICTLY FORBIDDEN TO:
Install the unit on surfaces with insufficient strength to support its weight;
Incorrectly install the device on the machine tool and without following the detailed
instructions provided, which could result in tipping or falling during use;
Allow personnel to use the device who are insufficiently trained and who have not read
the instruction manual;
Use the device in locations subject to high and/or low temperatures;
Use the device in potentially explosive atmospheres;
Replace the bulb, as well as perform inspections and maintenance on the internal parts
of the device without checking that the switch is in "0" position and that the power cord
is disconnected;
Modify and/or tamper with the equipment's parts, wiring and circuits.
Power the device with parameters different from those required and recommended;
Throw water onto the device and/or touch it with wet hands.
fervi.com

MACHINES AND
ACCESSORIES
Page 10 of 15
6 TRANSPORTING AND MOVING
Lifting the equipment for transportation, can be done manually, by the operator. The
relatively low weight of the lamp allows it to be moved manually and safely without the
danger of injury to the operator. The operator must hold the lamp with both hands when
lifting and moving it.
7 UNPACKING INSTRUCTIONS
The lamp is supplied in a cardboard box. Before disposing of the shipping carton, check you
do not to throw away parts of the machine, the instruction "sheets" or other documentation.
Standard packaging
Packaging materials (plastic bags, polystyrene foam, etc.) must not be left within reach of
children as these are potentially dangerous.
Figure 4 – Keep away from children.
fervi.com

MACHINES AND
ACCESSORIES
Page 11 of 15
8 COMMISSIONING
8.1 Power supply / connecting the device
To power the device, you must have an appropriate power cable
that takes voltage (24 V AC) from the machine tool itself.
Characteristics of the power supply cable 2 X 0.75 mm2.
For proper connection of the power cord, use isolated terminals:
Figure 5 – Power supply
Connection
Check that the cables are properly connected. In the event of connection difficulties contact
an electrician.
fervi.com

MACHINES AND
ACCESSORIES
Page 12 of 15
8.2 Installation
Install the lamp on the structure and/or on the frame of the machine tool, near the area that
is to be illuminated, using bolts and nuts to clamp it into place. To do this, drill four holes on
the machine (if not already present) arranged on the vertices of a square with 60 mm sides.
Insert the bolts into the holes on the pedestal and in the ones on the machine, respectively,
and tighten the nuts to ensure that they are strong and securely fastened.
IDEAL AND INCORRECT POSITIONS FOR PROPERLY ILLUMINATING THE WORK AREA OF THE MACHINE
TOOLS.
Figure 6 – Mounting positions of the lamps for machine tools.
The lights must be mounted in order to:
Provide the illumination required in the work area for moving parts;
Do not allow the lamp to interfere with the duties of the operator or blind the operator;
Minimize the accumulation of dirt on the lamps and spotlights;
Facilitate maintenance.
fervi.com

MACHINES AND
ACCESSORIES
Page 13 of 15

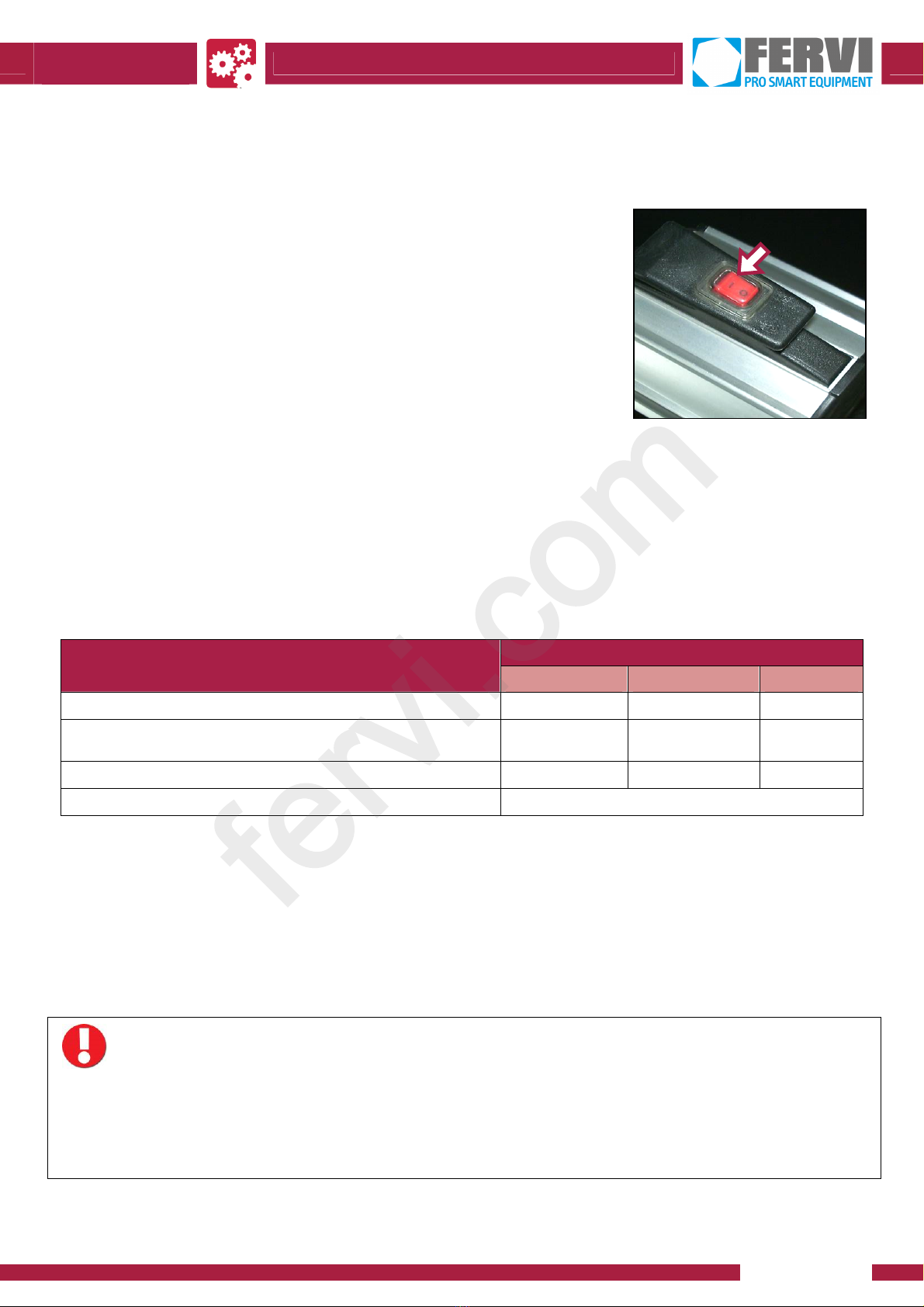

9 TURNING THE LAMP ON
After you have successfully installed the device, turn on the
lamp by moving the switch, located on the handle on top of the
cover, in position "I". At the end of the work, turn off the lamp
by putting the switch into the “0” position.
Figure 7 – Close-up of the
switch.
10 MAINTENANCE AND CLEANING
The purpose of this chapter is to provide all the information on maintenance procedures and
their frequency as required by the Halogen lamp for machine tools.
INTERVENTION Frequency
Daily Weekly Monthly
1. General visual inspection X
2.
Check that plates are clearly visible and
legible X
3. General cleaning X
4. Replacing fluorescent tube If necessary
1. General visual inspection: Check the overall status of the device, particularly the
flexible power supply cable and signs of any damage or missing parts.
2. Check that plates are clearly visible and legible: the plate on the device must be
perfectly visible and legible. It is therefore necessary to keep it clean and ask for a
replacement if it is illegible.
3. General cleaning: cleaning is necessary to free the structure, the cap and the
magnifying lens of dust or dirt.
Risks associated with cleaning
Plastic materials are used in some parts of the lamp. Applying organic solvents (such as
benzene), or other chemicals for cleaning may cause deformation or discolouration.
Clean the device gently, using a soft dry cloth.
fervi.com

MACHINES AND
ACCESSORIES
Page 14 of 15
4. Replacing the bulb: the bulb must be replaced if it is burnt and/or damaged. In this
regard:
Put the switch into the "0" position and remove the plug from the power socket;
Loosen the locking screws on the front protection
screen using a screwdriver and remove the screen
itself;
Figure 8 – Screws on the
screen
Remove the halogen bulb from its housing, by
pulling it outwards from the casing using gloves or a
rag to avoid directly touching the bulb with bare
hands.
Figure 9 - Replacement of
the Bulb.
Replace the bulb with an equivalent one and reassemble the device by
performing the above steps in reverse.
Halogen lamp
Do not touch the halogen bulb with bare hands to avoid negatively affecting operation. When
replacing the bulb use gloves or a cloth like in the picture above.
fervi.com

MACHINES AND
ACCESSORIES
Page 15 of 15
11 TROUBLESHOOTING
The following table shows the type of defect/problem, possible causes, and possible remedies
for the malfunction. The table is a useful aid for the maintenance technician when looking for
problems with the equipment.
Fault Cause Solution
The lamp does not turn on.
Incorrect input voltage level.
Check that the power output is
correct.
The correct power is not
supplied.
Check the electrical
connections.
Switch malfunction. Check the electrical
connections of the switch.
12 DECOMMISSIONING
If the device is to be scrapped, its parts must be disposed of separately.
Respect the environment!!
Contact a specialist centre for the collection of the materials.
In this regard, divide the materials according to their nature, with the assistance of
specialist companies authorized for waste disposal, in compliance with the requirements
of the law.
fervi.com
