Fervi R609 User manual

OPERATION AND
MAINTENANCE MANUAL
Electric radiant infrared heater
Art. R609, R610
ORIGINAL INSTRUCTIONS
fervi.com

HARDWARE
Page 2 of 13
FOREWORD
Read this manual before operating any machinery
ORIGINAL INSTRUCTIONS
Before starting any operation it is compulsory to read this instruction manual. The guarantee
of smooth operation and full performance of the machine is highly dependent on the
application of all the instructions contained in this manual.
Operator Qualification
The workers responsible for using this object must have all the necessary information,
education and receive adequate training regarding safety, including:
a) The conditions of use of the equipment;
b) Foreseeable abnormal situations, pursuant to Article 73 of Legislative Decree
81/08.
We guarantee the product's conformity to specifications and technical instructions
described in the Manual on the date of issue, listed on this page; however, the
machine may be subject to potentially major technical changes in the future, without
the Manual being updated.
Therefore, see FERVI for information about modifications that could be implemented.
REV. 1 November 2013
fervi.com

HARDWARE
Page 3 of 13
CONTENTS
1 GENERAL SAFETY INSTRUCTIONS............................................................. 4
1.1 Safety Requirements.....................................................................................................4
1.2 Personal protective equipment .....................................................................................4
1.3 Technical support..........................................................................................................4
2 HEATER DESCRIPTION.............................................................................. 5
2.1 General description .......................................................................................................5
2.2 Identification plate .......................................................................................................6
2.3 Intended use.................................................................................................................6
2.4 Technical specifications ................................................................................................6
2.5 Electrical safety devices ................................................................................................6
3 IMPROPER USE AND CONTRAINDICATIONS.............................................. 7
4 COMMISSIONING AND OPERATION .......................................................... 8
4.1 Irradiated area..............................................................................................................8
5 MAINTENANCE AND CLEANING................................................................. 9
6 PARTS LIST............................................................................................. 12
7 DECOMMISSIONING ............................................................................... 13
fervi.com

HARDWARE
Page 4 of 13
1 GENERAL SAFETY INSTRUCTIONS
1.1 Safety Requirements
1. Prolonged use, as well as electrical overloading, lead to overheating with the resulting
risk of fire.
2. Periodically check the condition of the cable.
3. Always check the efficiency and integrity of the infrared bulb.
4. Never disassemble or modify any part of the heater.
5. Always perform maintenance operations after disconnecting the power supply.
6. After replacing the bulb always reassemble all the parts of the appliance, especially the
front grille.
7. Do not use the heater in places at risk of fire or explosion.
8. Do not use the heater in damp or wet environments.
9. If water comes into contact with the heater, unplug the power plug
immediately and contact Technical Support.
10.Do not use the heater outdoors, exposed to the weather and sunlight.
11.Keep unqualified people, children and animals away from the work environment where
the heater is installed.
Residual Risks
Do not use this heater in the immediate surroundings of a bath, shower or swimming pool.
1.2 Personal protective equipment
When using the heater always wear:
Shoes with rubber soles;
Work gloves (bulb replacement).
1.3 Technical support
For any problems and/or concerns please contact the dealer from whom you purchased the
heater, who can order spare parts if required.
fervi.com

HARDWARE
Page 5 of 13
2 HEATER DESCRIPTION
2.1 General description
The Electric radiant infrared heaters are equipped with an incandescent bulb with a power
of 1300 W for Art. R609 and 2000 W for Art. R610. The bulbs are to be mounted inside the
lamp holder, with care taken not to touch the bulb with your hands. The heater is
equipped with an adjustable bracket for wall mounting. At the back there is the electrical
circuit on which the plate is attached and where the power cord exits.
Figure 1 - Overview of the device
1Housing
2Front grille
3Mounting plate
4Power cable
5Incandescent bulb
1
2
3
4
5
fervi.com

HARDWARE
Page 6 of 13
2.2 Identification plate
The heaters are equipped with an identification plate affixed at the rear on the electrical
circuit box.
Figure 2 - Identification Plates
2.3 Intended use
The heater is designed to be positioned at least 1500 mm from the ground, the support for
articles R609 and R610 has two threaded holes, 20 mm for wall mounting.
The protection system (grille) does not guarantee full protection for children or the
infirm.
The device can not be mounted on flammable surfaces or near them .
No object must be located any closer than 1 m from the 1300 W model (art. R609) and any
closer than 1.5 m from the 2000 W model (art. R610).
The heaters R609 and R610 for wall mounting shall be positioned at a minimum distance of
1.5m from the ground at a minimum distance of 0.5 metres from the ceiling as well as at a
minimum distance of 1 m from each side wall.
2.4 Technical specifications
Heater Art. R609 Art. R610
Power supply 230 V / 50 Hz 230 V / 50 Hz
Type of cable H07RN – F G 3x 1.5 mm2H07RN – F G 3x 1.5 mm2
Degree of protection IP20 IP20
Infrared bulb 230 V 1300 W 230 V 2000 W
Size 380x217x174 mm 474x217x174 mm
Mass 3.6 kg 4.6 kg
2.5 Electrical safety devices
The heater has an IP 20 degree of protection, meaning that only minimum protection against
direct contact is guaranteed.
In addition, the device is equipped with a plug with a grounding
conductor, according to insulation class I. It must therefore be
connected to an electrical system with an automatic power
disconnection system, which is coordinated with the device, in the
event of failure.
Inside the appliance there is an automatic power disconnection
device that intervenes when the appliance undergoes excessive
tilting or falls over.
Figure 3 –Tilting sensor.
fervi.com

HARDWARE
Page 7 of 13
3 IMPROPER USE AND CONTRAINDICATIONS
THE FOLLOW ARE STRICTLY PROHIBITED!:
Allow the heater to be used by untrained personnel and those who have not read the
instruction manual.
Use the heater for different purposes and uses other than those for which it was
designed.
Supply the heater with electrical power that is different from that envisaged, leading to
the electrical overloading of the appliance.
Leave the heater unattended in the presence of children and disabled persons.
Use the heater in a continuous and prolonged way, resulting in the overheating of the
device.
Install and use the heater in humid or damp conditions, explosive or corrosive
atmospheres or near flammable surfaces or gases.
Install and use the heater outdoors, exposed to the weather and sunlight.
Attach the heater to electrical or supporting wires of insufficient strength to support its
weight.
Attach the heater to flammable surfaces.
Perform maintenance on the heater without disconnecting the power supply.
Modify and/or tamper with the bulb.
Modify and/or tamper with the safety devices.
Throw water on the bulb and/or touch it with bare hands.
fervi.com

HARDWARE
Page 8 of 13
4 COMMISSIONING AND OPERATION
The heater does not require any special commissioning actions, it is supplied assembled and
ready to use. Articles R609 and R610 can be fixed to the wall at the discretion of the user.
All the heaters must be installed according to the dimensions given in Figure 4: at least 50
mm from the ceiling and the wall, with a minimum inclination of 60°, a lower angle with
respect to the vertical will cause the internal safety device to intervene by automatically
shutting off the unit.
Connect the plug to a grounded 16A / 230V mains socket. Before using the heater it will be
necessary to mount the bulb. See the maintenance section for detailed information.
Figure 4 – Positioning the heater.
Use of timers
Do not use the heater with a programmer, timer or any other device that automatically turns
the heater on, as there is a risk of fire if the appliance is covered or positioned incorrectly.
4.1 Irradiated area
By installing the heater to the wall at a height of 2.5 metres, an irradiated area of 16m2(4m
x 4m) will developed.
Figure 5 – Irradiated area.
fervi.com

HARDWARE
Page 9 of 13
5 MAINTENANCE AND CLEANING
Disconnect the electrical power
Always unplug the heater from the power supply before performing maintenance on the
device.
Do not disassemble any part of the heater while it is powered and until it has cooled
down!
The purpose of this chapter is to provide all the information on maintenance procedures and
the frequency required for the Electric radiant infrared heater.
INTERVENTION Frequency
Daily Weekly Monthly
1. General visual inspection X
2. Check that plates are clearly visible and legible X
3. Check the flexible electrical cable X
4. General cleaning X
5. Replacement of the bulb If necessary
1. General visual inspection: check the overall condition of the device, particularly the
bulb housing, the protection grille, support, etc., to establish if there are any damaged
or missing parts.
2. Check that plates are clearly visible and legible: the plate on the device must be
perfectly visible and legible. It is therefore necessary to keep it clean and ask for a
replacement if it is illegible.
3. Check the flexible electrical cable: regularly check the efficiency and the state of
conservation of the power cord. Check that there are no points which are not isolated
and that everything works properly. Check if there are signs of damage or ageing.
If it is not in good condition do not use the heater but have it repaired by Technical
Support personnel.
4. General cleaning: cleaning is necessary to free the handle or screen from the
accumulation of dust or dirt.
Cleaning
The heater is made of plastic materials. Applying organic solvents (such as benzene), or
other chemicals for cleaning may cause deformation or discolouration.
Clean the device gently, using a soft dry cloth.
fervi.com

HARDWARE
Page 10 of 13

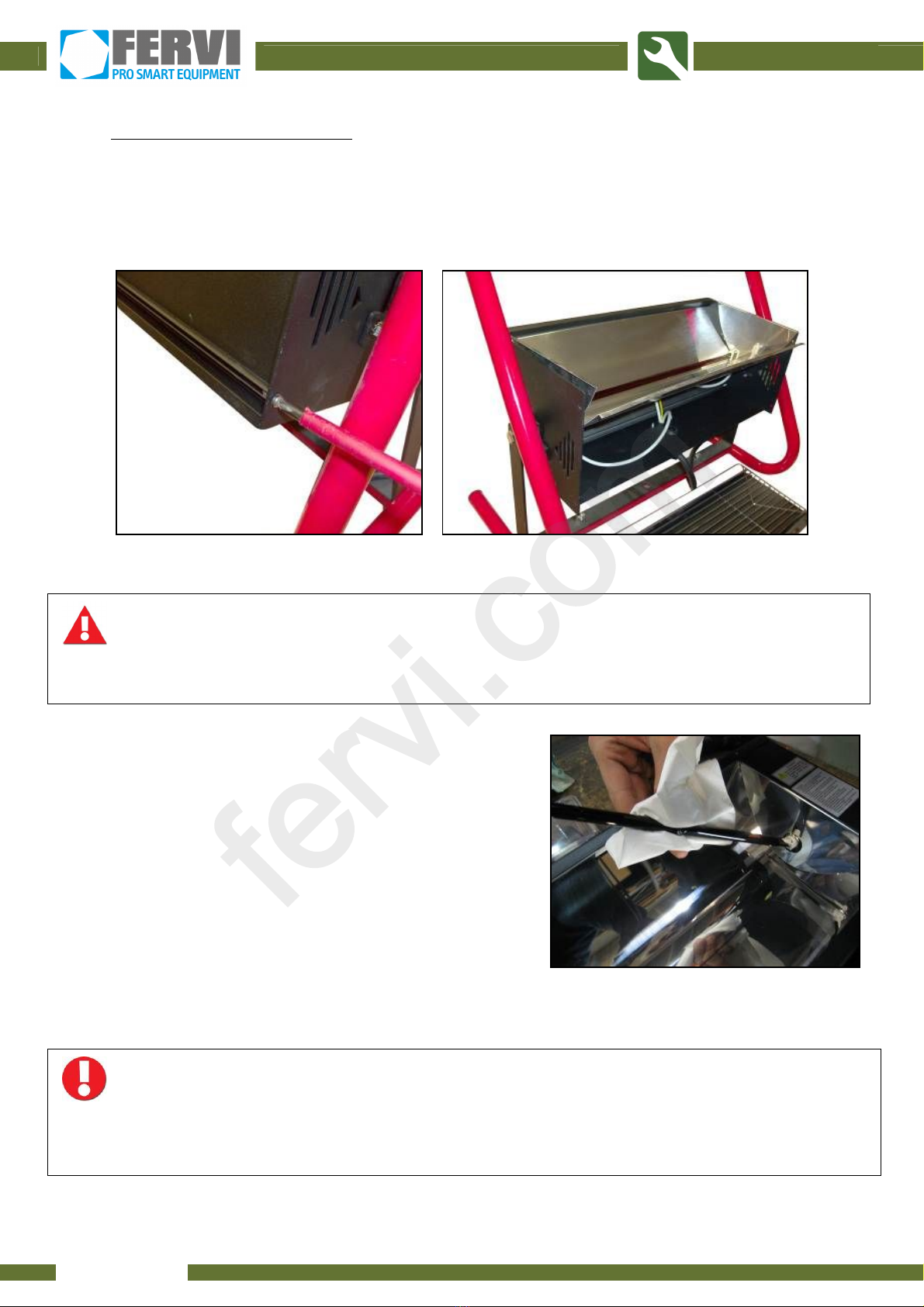

5. Restoring the infrared bulb: if the bulb no longer becomes incandescent, and less heat
is produced than that required, it must be replaced.
To do this it is necessary to:
disconnect the heater from the power supply;
remove the 4 screws in the grille housing (Figure 6);
Figure 6 – Removing the lower dividing plate.
Replacement of the bulb
ALWAYS wait for the protection grille and the bulb to become cool before replacing.
ALWAYS use work gloves, the sheet metal parts may cause injury to your hands.
Hold the bulb on one side and then the
other, and extract it from its support
(Figure 7);
Use an equivalent bulb;
Figure 7 – Removing the bulb.
Precautions with the bulb
Always wear fabric gloves to handle the new bulb, do not touch it with bare hands, grease
from hands can prevent the uniform distribution of heat causing premature failure of the bulb
itself.
fervi.com

HARDWARE
Page 11 of 13
Proceed in reverse order to reassemble
the heater: first insert the bulb in its
support then remount the front grille.
Figure 8 – Bulb attachment.
Protective grille
ALWAYS replace the front grille firmly, inserting it into the slots located in the housing and the
dividing plate.
fervi.com

HARDWARE
Page 12 of 13

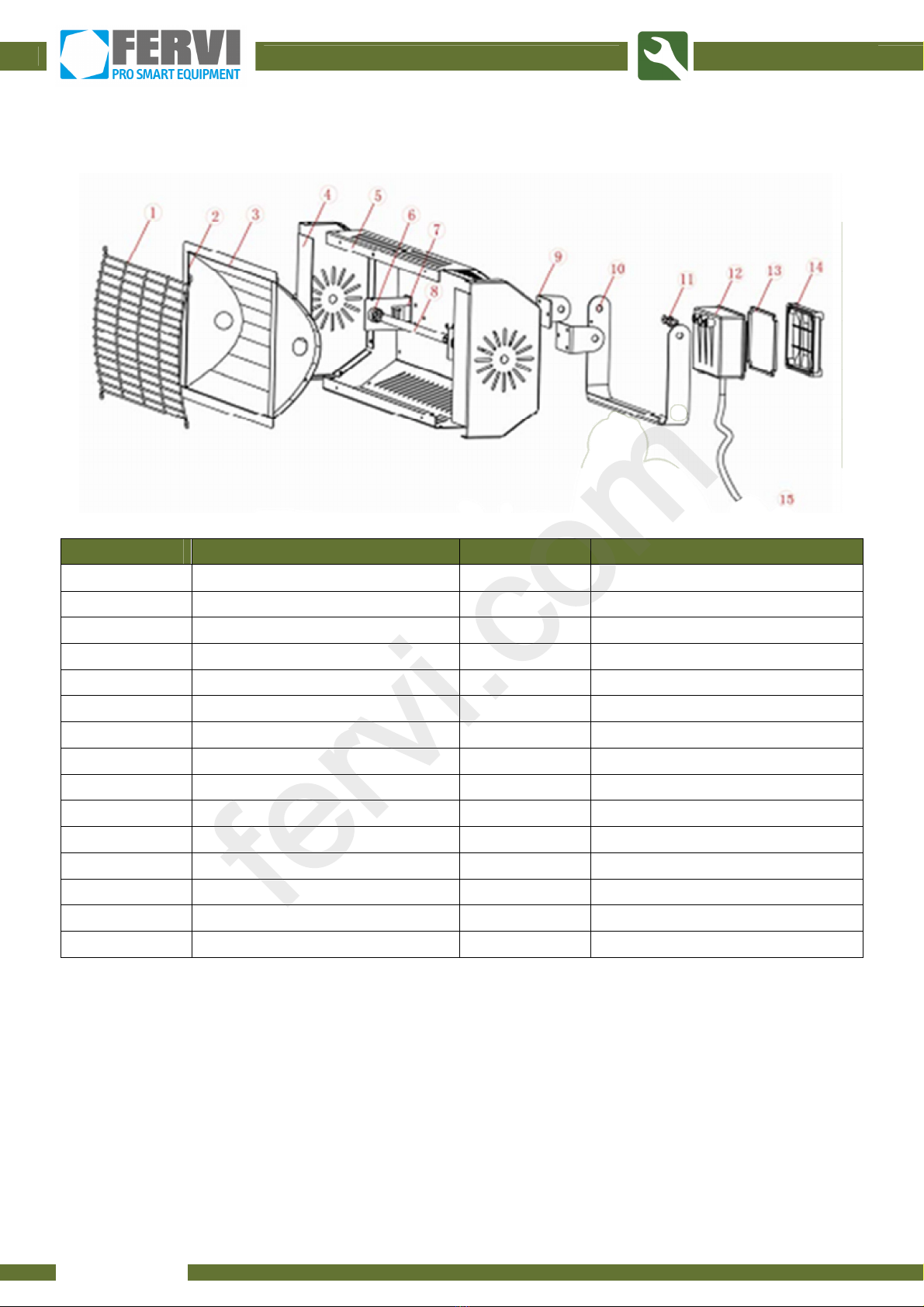

6 PARTS LIST
Ref. Description Ref. Description
R609/01 Protective grille 2.2 R610/01 Protective grille 2.2
R609/02 Side reflective dividing plate R610/02 Side reflective dividing plate
R609/03 Reflective housing R610/03 Reflective housing
R609/04 Dividing plate R610/04 Dividing plate
R609/05 Cover R610/05 Cover
R609/06 Bulb support R610/06 Bulb support
R609/07 Bulb attachment R610/07 Bulb attachment
R609/08 Infrared bulb R610/08 Infrared bulb
R609/09 Brackets R610/09 Brackets
R609/10 Support R610/10 Support
R609/11 Clips R610/11 Clips
R609/12 Electrical circuit box R610/12 Electrical circuit box
R609/13 Box gasket R610/13 Box gasket
R609/14 Box cover R610/14 Box cover
R609/15 Electric cable R610/15 Electric cable
fervi.com

HARDWARE
Page 13 of 13
7 DECOMMISSIONING
If the appliance is to be scrapped, it must be disposed in accordance with
the provisions of the law on waste electrical and electronic equipment
(WEEE).
Contact a specialist centre for the collection of electrical appliances.
Divide the materials according to their nature, employing specialist
companies which are authorised for their disposal, in accordance with the
requirements of law.
fervi.com
