Fiat Ducato User guide

Dear Customer,
Thank you for selecting Fiat and congratulations on your choice of a Fiat Ducato.
We have written this handbook to help you get to know all your new Fiat Ducato features and use it in the best possible way.
You should read it right through before taking the road for the first time.
You will find information, tips and important warnings regarding the driving of your vehicle to help you derive the maximum from
your Fiat Ducato technological features.
We would like to point out Fiat’s commitment in protecting the environment through “total material recycling”: at the end of your
Fiat Ducato useful lifespan, any Fiat dealer would be pleased to make arrangements for your vehicle to be recycled properly and
ecologically (in compliance with current law regulations). Nature benefits in two ways: there’s no pollution from waste disposal and
the demand for raw materials is reduced.
You are recommended to read carefully the warnings and indications, marked with the respective symbols, at the end of the page:
personal safety;
the vehicle wellbeing;
environmental protection.
The enclosed Warranty Booklet lists the services that Fiat offers to its Customers:
❒ the Warranty Certificate with terms and conditions for maintaining its validity
❒ the range of additional services available to Fiat Customers.
Best regards and good motoring!
This Owner Handbook describes all Fiat Ducato versions. As a consequence, you should consider
only the information which is related to the engine and bodywork version of the vehicle you purchased.

MUST BE READ!

K
REFUELLING
Diesel engines: only refuel with diesel fuel conforming to the European specification EN590.
ENGINE STARTING
Diesel engines: make sure that the handbrake is engaged; set the gearshift lever to neutral; fully depress the clutch
pedal, without pressing the accelerator, then turn the ignition key to MAR and wait for the
Y
and
m
warning
lights to go off; turn the ignition key to AVV and release it as soon as the engine has started.
PARKING ON FLAMMABLE MATERIAL
While working, the catalyst develops a very high temperature. Do not park the vehicle over grass, dry leaves, pine
needles or any other inflammable materials: risk of fire.
RESPECTING THE ENVIRONMENT
The vehicle is fitted with a system that allows continuous diagnosis of the components correlated with emissions to
ensure better respect for the environment.

ELECTRICAL ACCESSORIES
If, after buying the vehicle, you decide to add electrical accessories (that will gradually drain the battery), visit a Fiat
Dealership. They can calculate the overall electrical requirement and check that the vehicle’s electric system can
support the required load.
CODE card
Keep the code card in a safe place, not in the vehicle. You should always keep the electronic code written on the
CODE card with you.
SCHEDULED SERVICING
Correct maintenance of the vehicle is essential for ensuring it stays in tip-top condition and safeguards its safety fea-
tures, its environmental friendliness and low running costs for a long time to come.
THE OWNER’S MANUAL CONTAINS…
… information, tips and important warnings regarding the safe, correct driving of your vehicle, and its maintenance.
Pay particular attention to the symbols
"
(personal safety)
#
(environmental protection) !(vehicle wellbeing).
쇵

4
SAFETY
DEVICES
CORRECT USE
OF THE
VEHICLE
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
VEHICLE
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
DASHBOARD ........................................................................ 5
SYMBOLS ................................................................................. 6
THE FIAT CODE SYSTEM................................................... 6
THE KEYS ................................................................................ 8
IGNITION DEVICE................................................................ 13
INSTRUMENT PANEL ......................................................... 14
INSTRUMENTS....................................................................... 15
DIGITAL DISPLAY ................................................................ 18
MULTIFUNCTION DISPLAY ............................................. 24
TRIP COMPUTER ................................................................. 33
FRONT SEATS ....................................................................... 35
HEAD RESTRAINTS .............................................................. 38
STEERING WHEEL ............................................................... 39
REARVIEW MIRRORS........................................................... 40
HEATING AND VENTILATION ....................................... 42
MANUAL CLIMATE CONTROL SYSTEM .................... 46
SUPPLEMENTARY HEATER .............................................. 51
SELF-STANDING SUPPLEMENTARY HEATER............. 52
EXTERNAL LIGHTS .............................................................. 58
WINDOW WASHING......................................................... 61
CRUISE CONTROL ............................................................. 63
CEILING LIGHTS .................................................................. 65
CONTROLS ........................................................................... 66
POWER SUPPLY AND FUEL CUT-OFF SWITCH....... 68
INTERIOR FITTINGS ............................................................ 69
MULTIMETER .......................................................................... 73
DOORS .................................................................................... 74
POWER WINDOWS/WINDOW WINDERS .............. 79
BONNET .................................................................................. 80
ROOF RACK/SKI RACK ..................................................... 82
HEADLIGHTS.......................................................................... 83
ABS SYSTEM ........................................................................... 84
ESP SYSTEM ............................................................................ 85
EOBD SYSTEM ....................................................................... 88
PARKING SENSORS ............................................................ 89
SOUND SYSTEM.................................................................... 92
ACCESSORIES PURCHASED BY THE OWNER .......... 93
AT THE FILLING STATION .............................................. 94
PROTECTING THE ENVIRONMENT ............................. 95
D
DA AS SH HB BO OA AR RD DA AN ND DC CO ON NT TR RO OL LS S

5
SAFETY
DEVICES
CORRECT USE
OF THE
VEHICLE
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
VEHICLE
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX DASHBOARD
AND CONTROLS
DASHBOARD
The presence and the position of the instruments and warning lights may vary according to the vehicle version.

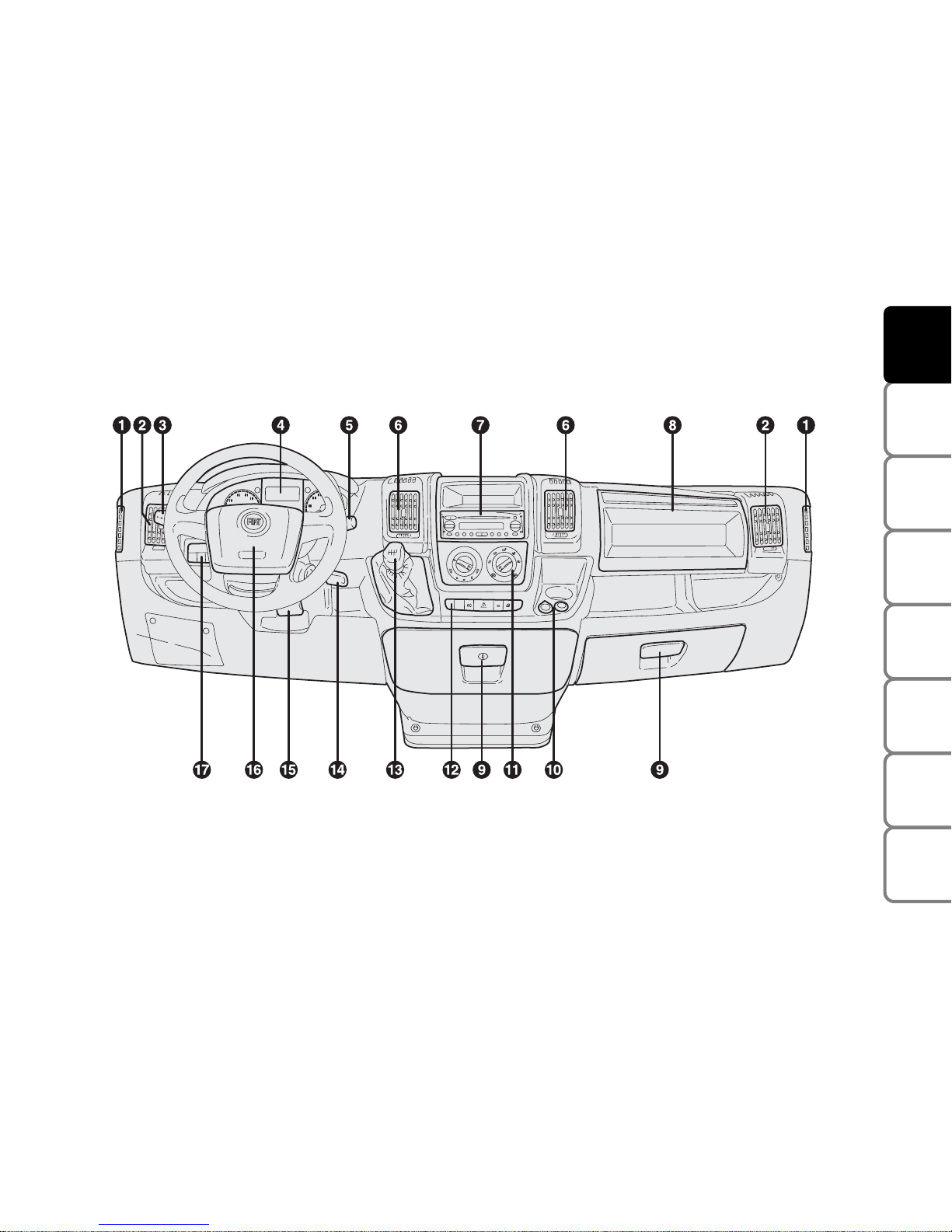

1. Fixed side air vents - 2. Swivel side air vents - 3. Left steering column stalk: external lights - 4. Instrument panel and warning
lights - 5. Right steering column stalk: windscreen, rear window and trip computer controls - 6. Swivel center air vents - 7. Sound
system (where provided) - 8. Oddment compartment/Front passenger air bag (where provided) - 9. Glovebox - 10. Cigar lighter/12V
outlet - 11. Heating/ventilation/climate controls - 12. Dashboard controls - 13. Gear shift lever - 14. Ignition switch - 15. Steering
wheel adjustment lever - 16. Driver’s air bag - 17. Control panel: headlights adjustment/digital display/multifunction display.
F0N0001m
fig. 1

6
SAFETY
DEVICES
CORRECT USE
OF THE
VEHICLE
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
VEHICLE
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SYMBOLS
Special coloured labels have been attached
near or actually on some of the compo-
nents of your Ducato. These labels bear
symbols that remind you of the precau-
tions to be taken as regards that particu-
lar component.

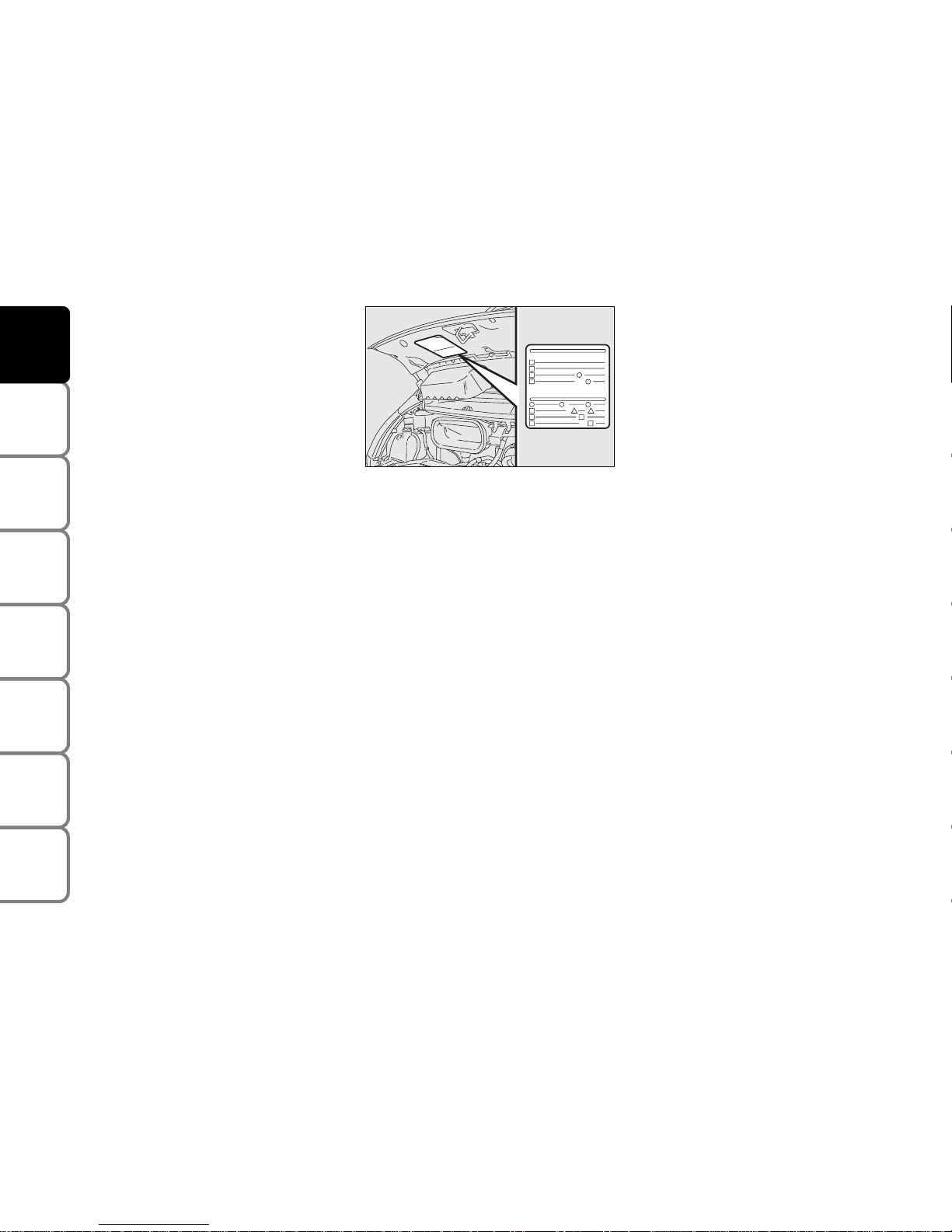

The plate summarising the symbols used
can be found under the bonnet fig. 2.
THE FIAT CODE SYSTEM
To further protect your vehicle from theft,
it has been fitted with an engine immobil-
ising system. This system is automatically
activated when the ignition key is re-
moved.
An electronic device, in fact, is fitted in
each ignition key grip. The device trans-
mits a radio-frequency signal when the en-
gine is started through a special aerial built
into the ignition switch. The modulate sig-
nal, which changes each time the engine is
started, is the “password”, by means of
which the control unit recognises the key
and enables to start the engine.
fig. 2 F0N0002m

7
SAFETY
DEVICES
CORRECT USE
OF THE
VEHICLE
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
VEHICLE
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX DASHBOARD
AND CONTROLS
In this case, the key should be moved to
the STOP position and then back to
MAR; if the lock continues, possibly try
again with the other key provided with the
vehicle. If it is still not possible to start the
vehicle, contact Fiat Dealership.
IMPORTANT Every key has its own code,
which must be memorised by the system
control unit. To memorise new keys, up
to a maximum of eight, apply to Fiat Deal-
ership.
Warning light
Y
coming on when driving
❒ If the warning light
Y
turns on, this
means that the system is running a self-
test (for example for a voltage drop).
❒ If the warning light
Y
stays on, con-
tact a Fiat Dealership.
The electronic components
inside the key may be dam-
aged if the key is submitted to
sharp knocks.
OPERATION
Each time the vehicle is started turning the
ignition key to MAR, the Fiat CODE sys-
tem control unit sends a recognition code
to the engine control unit to deactivate
the inhibitor.
The code is sent only if the Fiat CODE
system control unit has recognised the
code transmitted from the key.
Each time the ignition key is turned to
STOP, the Fiat CODE system deactivates
the functions of the engine electronic con-
trol unit.
If the code has not been recognised cor-
rectly, the warning light
Y
turns on ac-
companied by the related message on the
display (see section “Warning lights and
messages”).

8
SAFETY
DEVICES
CORRECT USE
OF THE
VEHICLE
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
VEHICLE
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
KEY WITH REMOTE CONTROL
fig. 4

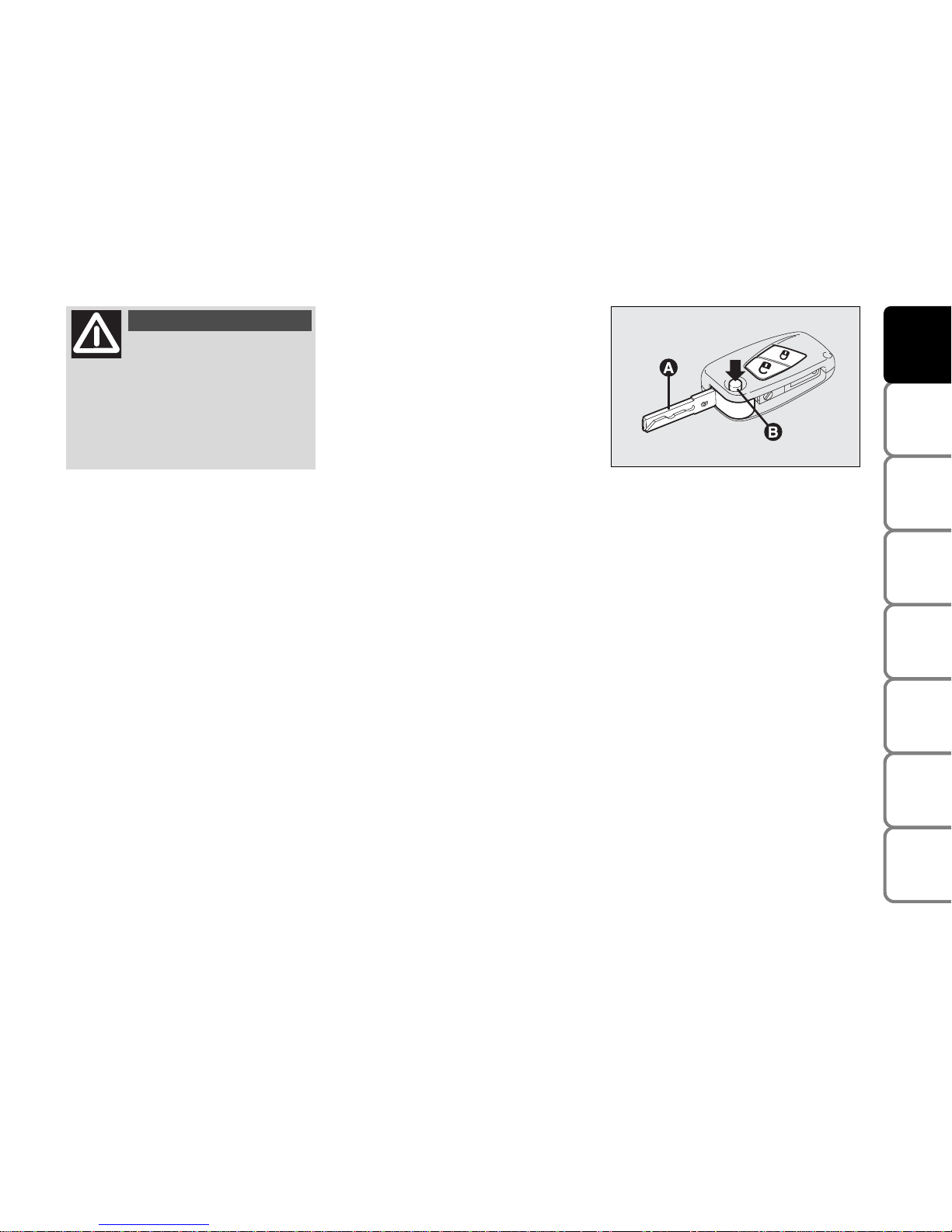

The metal insert Ais retractable and it op-
erates:
❒ ignition switch;
❒ door locks;
❒ fuel filler cap locking/unlocking (where
provided).
To extract the metal insert, press button
B.
To refit it proceed as follows:
❒ keep button Bpressed and move the
metal insert A;
❒ release button Band turn the metal
insert Auntil hearing the proper lock-
ing click.
THE KEYS

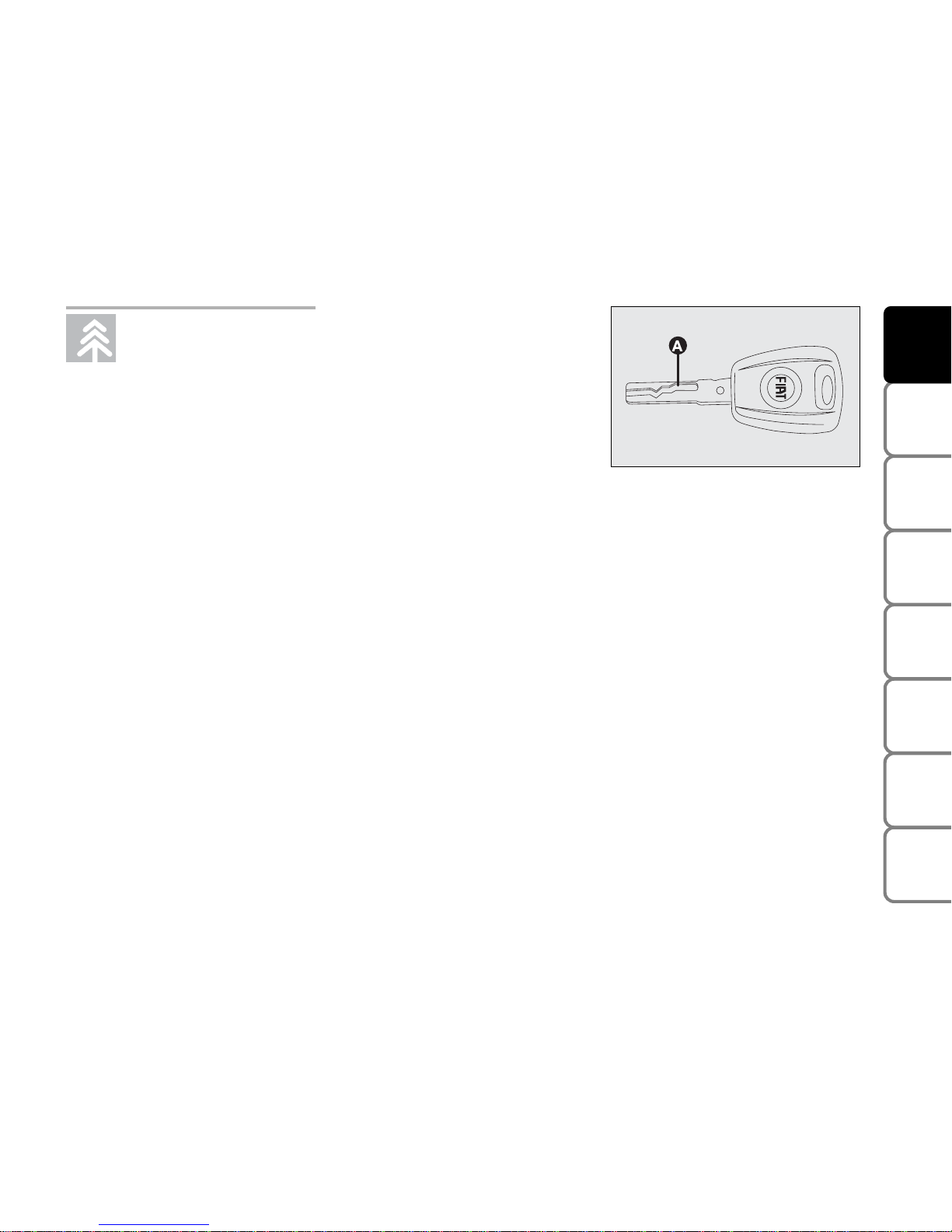

CODE CARD fig. 3
The vehicle is delivered with two copies
of the ignition key and with the CODE
card which bears the following:
Athe electronic code;
Bthe mechanical key code to be given
to the Fiat Dealership when ordering
duplicate keys.
IMPORTANT In order to ensure perfect
efficiency of the electronic devices con-
tained inside the keys, they should never
be exposed to direct sunlight.
All the keys and the CODE
card must be handed over to
the new owner when selling
the vehicle.
fig. 3 F0N0003m fig. 4 F0N0004m

9
SAFETY
DEVICES
CORRECT USE
OF THE
VEHICLE
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
VEHICLE
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX DASHBOARD
AND CONTROLS
Button Æshall be used for opening the
front doors.
Button Øshall be used for locking all
doors.
Button ∞ shall be used for opening the
load compartment doors.
When unlocking the doors, the passen-
ger’s compartment lights will come on for
a preset time.
Button B should only be
pressed when the key is
away from the body, in particular
from the eyes and from objects that
can be spoilt (e.g. clothes). Make sure
the key can never be touched by oth-
ers, especially children, who may in-
advertently press the button.
WARNING
fig. 5 F0N0145m

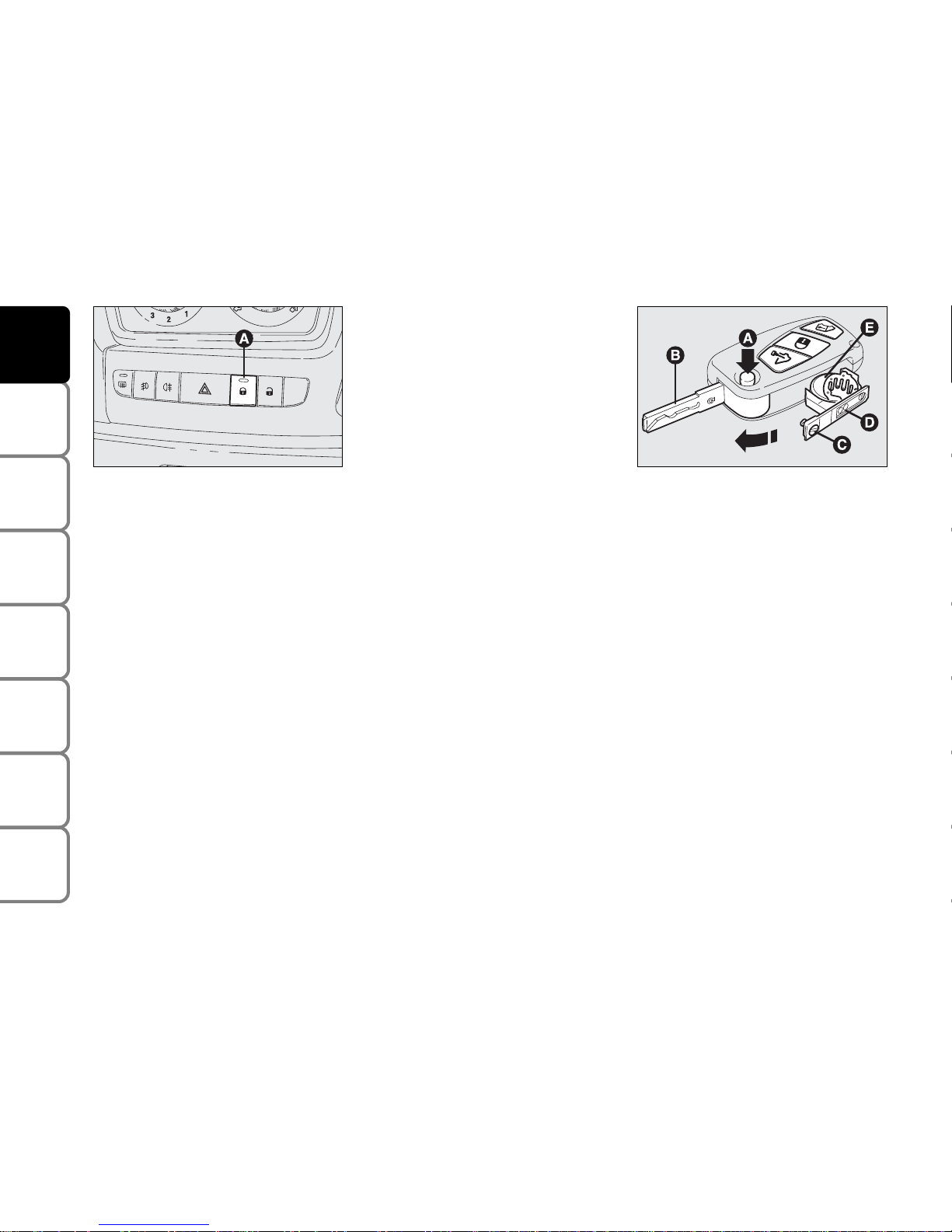

Certain versions are provided with a key
with remote control with two buttons Á
and Ëfig. 5.
Button Áshall be used for locking all
doors.
Button Ëshall be used for unlocking
all doors.
