fiberon ARMORGUARD SEC19 CW 6KD User manual

THANK YOU
We appreciate the trust and condence you have placed in Fiberon through the purchase of this railing. We strive to continually create quality
products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs. Thank you
for choosing Fiberon!
INSTALLATION MANUAL
ARMORGUARD®DELUXE RAILING
Questions, problems, missing parts? Before returning to the store,
call Fiberon Customer Service
8 a.m. - 5 p.m., EST, Monday - Friday
1-800-230-7547
FIBERONDECKING.COM
Part #SEC19 CW 6KD
SEC19 CW 8KD
SEC19 CWS 6KD HW

2
Table of Contents
Table of Contents ...................................2
Safety Information ..................................2
Warranty ..........................................3
Pre-Installation.....................................4
Line Rail Installation.................................7
Stair Railing Installation.............................10
Angle Bracket Installation ...........................13
Safety Information
Read and understand this entire manual before you begin the
installation of your railing.
WARNING: Use extreme caution when using power tools.
IMPORTANT: Please consult local zoning laws in regards
to load requirements and bottom space requirements for
rails. All supporting structures must be in accordance with
applicable building codes. Neighborhood associations and/
or historic districts may regulate size, type, placement
and ability of railing. Apply for permits if required by
local authorities and codes. Ensure compliance prior
to installation. Local building code requirements will
always supersede any and all suggested procedures and
measurements in the following installation.

3 FIBERONDECKING.COM
Please contact 1-800-230-7547 for further assistance.
Warranty
20 YEAR PERFORMANCE LIMITED WARRANTY
WHAT IS COVERED
This railing product is covered under a Limited Residential Warranty to protect against checking, splitting, decay, rot and splintering.
WHAT IS NOT COVERED
In no event will the manufacturer be liable for any direct, indirect, incidental, special, consequential, punitive, exemplary, statutory, special,
or other, damages based upon the manufacturer products or manufacturer fasteners or resulting, directly or indirectly, from any defect in
the manufacturer products or fasteners, including but not limited to damage to, diminution in value of and/or loss of use or enjoyment of,
any property or part thereof, whether based on contract, tort, strict liability, statute, regulation or otherwise, even if the manufacturer is
expressly advised about the possibility of such damages. Some states do not allow the exclusion or limitation of incidental or consequential
damages in certain circumstances, so the above limitation may not apply to you.
In addition, this Limited Warranty does not cover and the manufacturer shall not be liable for any installation, removal or reinstallation
costs. The manufacturer does not warrant against and is not responsible for, and no express or implied warranty shall be deemed to cover,
any condition attributable to: (1) improper installation of products and/or failure to abide by the manufacturer’s written instructions and
any applicable laws or building codes, including but not limited to improper structural support, fastening, ventilation or gapping; (2) use
of the manufacturer‘s products beyond normal use or in an application not recommended or permitted by the manufacturer’s written
instructions and applicable laws and building codes; (3) movement, distortion, collapse or settling of the ground or the supporting structure
on which the manufacturer’s products are installed; (4) Defects in or failure arising from decking structure resulting from water caused
by improper installation, workmanship, maintenance or repair; (5) any Act of God (including but not limited to ooding, hurricane, tornado,
wind, earthquake, lightning, hail, etc.); (6) discoloration, fading, spotting or staining from or caused, in whole or in part, by mold, mildew,
other fungal growth, organic materials, metallic oxides or particles (including but not limited to rust or corrosion of any fasteners), dirt,
other atmospheric or environmental pollutants, foreign substances such as grease or oil, chemicals (including but not limited to those found
in cleaners), or normal weathering (dened as natural eforescence, exposure to sunlight, weather and atmospheric conditions which
causes any colored surface to gradually fade, ake, chalk, or accumulate dirt or stains); (7) damage resulting from casualty, re or exposure
to heat sources such as cooking devices or retro-reective surfaces; (8) the application of paints, stains, surface treatments or other
chemical substances including but not limited to cleaners or pesticides; (9) fading, aking or other deterioration of any paints, stains or
other coatings placed on the manufacturer’s products; (10) climate change, environmental conditions, static electricity or any cause beyond
the control of the manufacturer; (11) variations or changes in color of the manufacturer’s products; (12) improper handling, maintenance,
storage, abuse or neglect of the manufacturer’s products by Purchaser or others; (13) ordinary wear and tear; (14) impact from objects; or
(15) any fasteners not supplied or approved by the manufacturer.
No warranty is given with respect to any fasteners other than the fasteners produced by the manufacturer. Other fasteners, whether
approved fasteners or otherwise, are subject to only the warranties provided by the manufacturer of the fastener and Purchaser’s sole
warranty and remedy is with that manufacturer.
Contact the Customer Service Team at 1-800-230-7547 or visit FIBERONDECKING.COM.

4
Pre-Installation
TOOLS REQUIRED
Rubber
mallet
Safety
goggles Pencil Level PVC adhesive
Tape
measure
Speed
square
Power
drill
Phillips
drill bit
5/32 in.
drill bit
Miter
saw
Adjustable
square
RAILING HARDWARE KIT
AA BB CC GG
EEDD
FF
Part Description Quantity (per kit)
AA Top railing bracket 2
BB Bottom railing bracket 2
CC Flange 4
DD #10 x 1 in. self-tapping screw 4
EE Screw caps 4
FF #10 x 1.5 in. screw 8
GG #10 x 2 in. screw 4
ANGLE BRACKET HARDWARE KIT (OPTIONAL)
NN OOMM PP
Part Description Quantity (per kit)
MM #10 x 1 in. screw 12
NN #10 x 2 in. screw 8
OO Angle bracket 4
PP Driver bit 1
STAIR RAILING HARDWARE KIT
JJ KK
HH II
LL
Part Description Quantity (per kit)
HH Top, upper stair bracket 1
II Bottom, upper stair bracket 1
JJ Top, lower stair bracket 1
KK Bottom, lower stair bracket 1
LL #10 x 1.5 in. screw 12
NOTE: Hardware not shown to actual size.

5 FIBERONDECKING.COM
Please contact 1-800-230-7547 for further assistance.
Pre-Installation (continued)
PRIOR TO INSTALLING THE RAILING
IMPORTANT: Please read and follow the instructions in this section before you begin installation of your railing products.
NOTE: Rail and baluster lengths will vary slightly due to manufacturing processes. Make sure rails and balusters are cut properly to
correct length, and with hole pattern centered between posts before securing.
NOTE: For best results, cut post sleeves with a carbide-tipped blade, minimum 32-tooth.
NOTE: Special installation requirements are needed if using metal surface mount posts. Please contact Fiberon at 1-800-573-8841 for
direction.

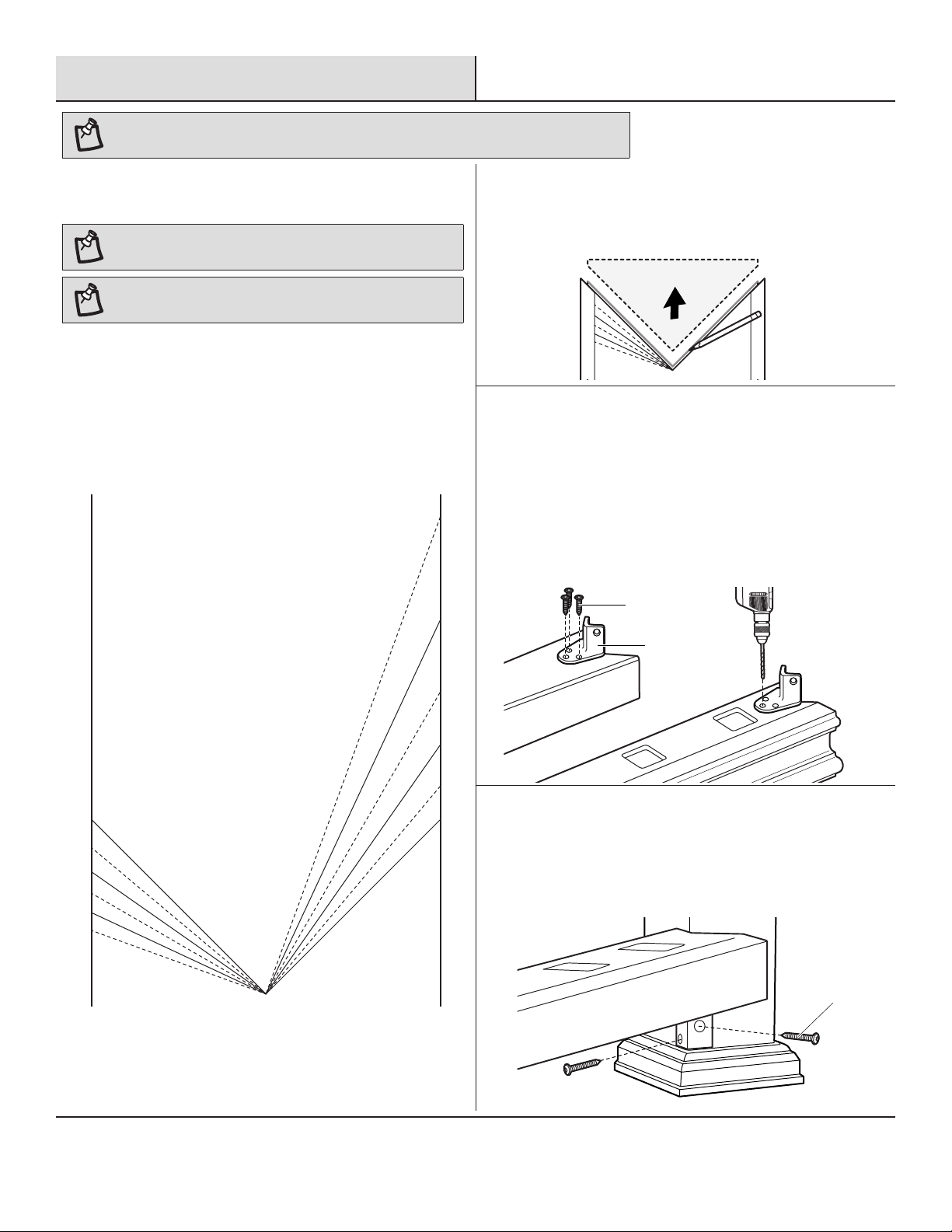

□If using cove moulding, slide the post down into the cove moulding prior to securing any railings (Fig. 1).
Fig. 1
□Measure the inside distance between properly installed, plumb posts. See Fig. 2 for Line and Stair Railings.
Fig. 2 For Line For Stairs
Maximum rail span
will vary based on the
angle of the stair.
Maximum 70 in. between posts
for 6 ft. line kits.
Maximum 94 in. between posts
for 8 ft. line kits.
