Field Tuff FTF-48C3PT User manual

48” 3PT CULTIVATOR
OWNER’S MANUAL
WARNING:
Carefully read and understand all ASSEMBLY AND OPERATION
INSTRUCTIONS before operating. Failure to follow the safety rules and other
basic safety precautions may result in serious personal injury.
03242016
Item# FTF-48C3PT

Page of 7
2
Thank you very much for choosing this product! For future reference, please complete the owner’s
record below:
Model: FTF-48C3PT Purchase Date: _______________
Save the receipt, the warranty, and these instructions. It is important that you read the entire manual
to become familiar with this product before you begin using it.
This product is designed for certain applications only. The manufacturer cannot be responsible for
issues arising from modification. We strongly recommend that this product not be modified and/or
used for any application other than that for which it was designed. If you have any questions relative
to a particular application, DO NOT use the product until you have first contacted us to determine if
it can, or should, be performed on the product.
For technical questions, please call 1-218-943-6296.
INTENDED USE
The 48” 3 pt. Cultivator is the perfect tool for cultivating your soil. This cultivator has a working with
of 48” to allow for fast and efficient work. It is designed with seven heavy-duty shovels measuring
7.6” x 1.36” each and effectively cut through your soil for ideal cultivation. You can easily attach and
use this hassle-free cultivator with your Category 1 tractor.
TECHNICAL SPECIFICATIONS
Item
Description
Coverage
48” working width
Shovel Qty.
7
Shovel Size
7.6” x 1.36”
Hitch Style
Fits Category 1 tractors
Extension Kit Available
Extends working width to 72”
GENERAL SAFETY RULES
WARNING: Read and understand all instructions. Failure to follow all instructions listed
below may result in serious injury.
CAUTION: Do not allow persons to operate or assemble this Cultivator until they
have read this manual and have developed a thorough understanding of how the Cultivator
works.
WARNING: The warnings, cautions, and instructions discussed in this instruction
manual cannot cover all possible conditions or situations that could occur. It must be
understood by the operator that common sense and caution are factors that cannot be built into this
product, but must be supplied by the operator.
SAVE THESE INSTRUCTIONS

Page of 7
3
WORK AREA
•Keep work area clean, free of clutter, and well lit. Cluttered and dark work areas can cause
accidents.
•Keep children and bystanders away while operating a Cultivator. Distractions can cause you
to lose control, so visitors should remain at a safe distance from the work area.
•Be alert of your surroundings. Using a Cultivator in confined work areas may put you
dangerously close to sharp tools and rotating parts.
PERSONAL SAFETY
•Stay alert, watch what you are doing, and use common sense when using a Cultivator. Do not
use a Cultivator while you are tired or under the influence of drugs, alcohol, or medication. A
moment of inattention while operating a Cultivator may result in serious personal injury.
•Dress properly. Do not wear loose clothing, dangling objects, or jewelry. Keep your hair,
clothing, and gloves away from moving parts. Loose clothes, jewelry, or long hair can be caught
in moving parts.
•Use safety apparel and equipment. Use safety goggles or safety glasses with side shields that
comply with current national standards or, when needed, a face shield. Use a dust mask if
working in dusty work conditions. This applies to all persons in the work area. Also use non-skid,
safety shoes, hard hats, gloves, dust collection systems, and hearing protection when
appropriate.
CULTIVATOR USE AND CARE
•Do not modify the Cultivator in any way. Unauthorized modification may impair the function
and/or safety and could affect the life of the equipment. There are specific applications for which
the Cultivator was designed.
•Always check for damaged or worn-out parts before using the Cultivator. Broken parts will
affect the Cultivator operation. Replace or repair damaged or worn parts immediately.
•Do not exceed the Cultivator load capacity.
•Distribute the load evenly. Uneven loads may cause the Cultivator to tip, resulting in personal
injury to the operator or others.
•Use the Cultivator on flat and level surfaces capable of supporting the Cultivator and its
maximum load. Pulling or pushing a load on a slanted or uneven surface can result in loss of
control.
•Store idle Cultivator. When Cultivator is not in use, store it in a secure place out of the reach of
children. Inspect it for good working condition prior to storage and before re-use.

Page of 7
4
ASSEMBLY

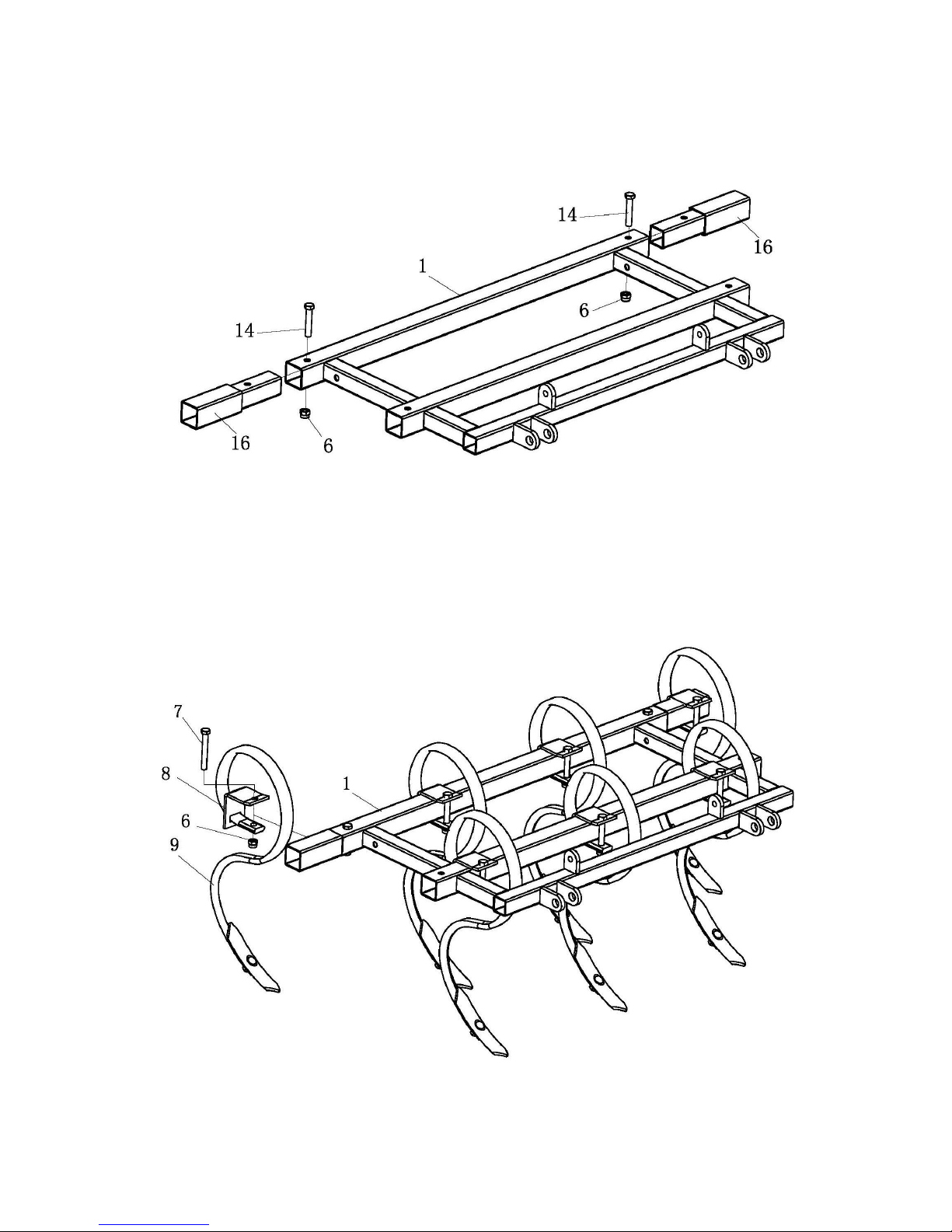

Step #1:
Assemble the two Extension Tubes (#16) to the Frame (#1), using two Hex Bolts (#14) and two Hex
Lock Nuts (#6).
Step #2:
Assemble seven S-tines (#9) to the Frame (#1), using seven Hex Bolts (#7), seven S-tine Brackets
(#8), and seven Hex Lock Nuts (#6).

Page of 7
5

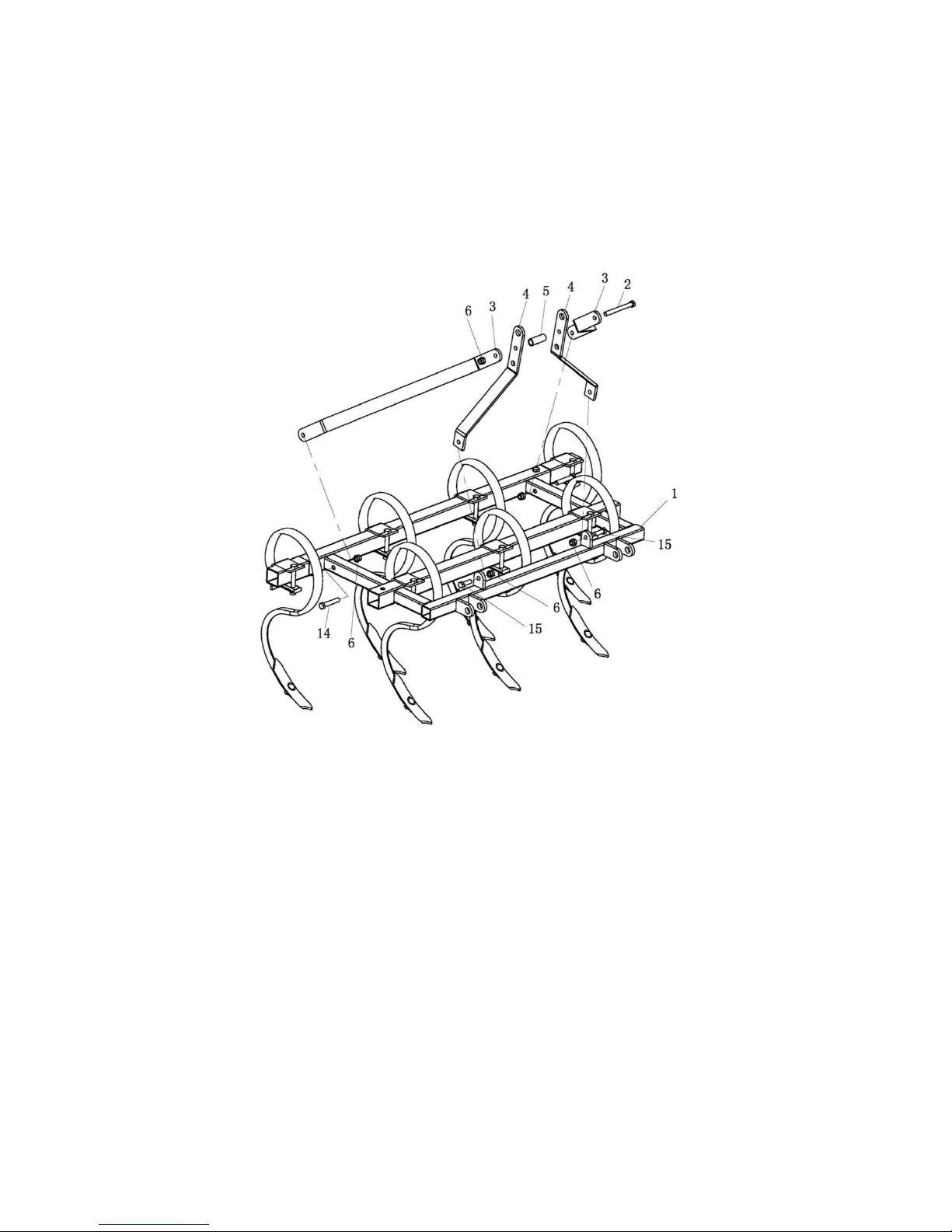

Step #3:
Attached two Long Support Brackets (#3) to the Frame (#1), using two Hex Bolts (#14) and two Hex
Lock Nuts (#6).
Step #4:
Attach two Short Support Brackets (#4) to the Frame (#1), using two Hex Bolts (#15) and two Hex
Lock Nuts (#6).
Step #5:
Connect the Long Support Brackets (#3) and the Short Support Brackets (#4), using one Hex Bolt
(#2), one Spacer (#5), and one Hex Lock (#6).
MAINTENANCE
•Maintain your Cultivator. It is recommended that the general condition of any Cultivator be
examined before it is used. Keep your Cultivator in good repair by adopting a program of
conscientious repair and maintenance. If any abnormal vibrations or noise occurs, have the
problem corrected before further use. Have necessary repairs made by qualified service
personnel.

Page of 7
6
DIAGRAM & PARTS LIST
Part #
Description
Qty.
Part #
Description
Qty.
1
Frame
1
9
S-tine
7
2
Hex Bolt M12*110
1
10
Shovel
7
3
Long Support Bracket
2
11
Bolt M10*35
7
4
Short Support Bracket
2
12
Spring Washer
7
5
Spacer
1
13
Hex Nut M10
7
6
Hex Lock Nut M12
14
14
Hex Bolt M12*65
4
7
Hex Bolt M12*90
7
15
Hex Bolt M12*35
2
8
S-tine Bracket
7
16
Extension Tube
2
For technical questions, please call 1-218-943-6296.

Page of 7
7
WARRANTY
One-year limited parts warranty.
TG
PO BOX 203
Miltona, MN 56354
Made in China
