EN 6
FZS 70705-0
Cordless Brush Cutter
USER'S MANUAL
Thank you for purchasing this cordless brush cutter. Before you start using it, please
carefully read this user's manual and save it for possible future use.
CONTENTS
1. GENERAL SAFETY INSTRUCTIONS ........................................................................................................................7
2. SYMBOLS........................................................................................................................................................................... 8
3. OPERATING INSTRUCTIONS....................................................................................................................................9
4. DESCRIPTION OF THE MACHINE ........................................................................................................................14
5. ASSEMBLY.......................................................................................................................................................................14
6. OPERATION ...................................................................................................................................................................17
7. CUTTING..........................................................................................................................................................................20
8. MAINTENANCE............................................................................................................................................................22
9. TECHNICAL DATA.......................................................................................................................................................23
10. DISPOSAL........................................................................................................................................................................24
11. DECLARATION OF CONFORMITY ....................................................................................................................25

EN
CORDLESS BRUSH CUTTER USER'S MANUAL
7
General safety instructions
1. GENERAL SAFETY INSTRUCTIONS
Important safety notice
Carefully unpack the product and take care not to throw away any part of the packaging before you find all
the parts of the product.
Store the product in a dry place out of reach of children.
Read all warnings and instructions. Not following warnings or instructions may lead to injury by electrical
shock, a fire and/or serious injuries.
Packaging
The product is packed in a package that prevents damage during transport. This package is a resource and so
can be handed over for recycling.
User’s Manual
Before you start working with the machine, read the following safety and usage instructions. Acquaint yourself
with the operating elements and the correct use of the machine. Keep the user’s manual in a safe place where
it can be easily retrieved for future use. Save the original packaging, including the internal packing material,
warranty card and proof of purchase receipt at least for the duration of the warranty. If you need to ship this
machine, pack it in the original cardboard box to ensure maximum protection during shipping or transport
(e.g. when moving or when you need to send this product for repair).
Note: If you hand over the machine to somebody else, do so together with the user’s manual.
Following the instructions in the included user’s manual is a prerequisite for the proper use of the machine.
The user’s manual also contains operating, maintenance and repair instructions.
The manufacturer takes no responsibility for accidents or damages resulting from not
following the instructions in this manual.

EN 8
FZS 70705-0
Symbols
2. SYMBOLS
Read the Instruction Manual attentively prior
to use.
Use respiratory system protectiove equipment.
Use protective gloves.
Use protective shoes.
Use eyes protective equipment.
Use ears protectiove equipment
Use protective clothes.
Use head protectiove equipment
Danger of injury!
Beware of hurled-away objects.
Keep bystanders away.
Be careful of the sharp string( metal blade) edges.
They continue to rotate even after the motor is
turned off.
15m (50ft)
Keep other persons in distance!
WARNING! When operating the device, take care
that no other persons are nearby (safe distance: 15m).
This is particularly valid for children and animals.

EN
CORDLESS BRUSH CUTTER USER'S MANUAL
9
Operating instructions
3. OPERATING INSTRUCTIONS
GENERAL POWER TOOL SAFETY WARNINGS
WARNING! Read all safety warnings, instructions, illustrations and specifications
provided with this power tool. Failure to follow the warnings and instructions may result in electric
shock, fire and/or serious injury.
Save all warnings and instructions for future reference.
The term “power tool” in the warnings refers to your mains-operated (corded) power tool or battery-operated
(cordless) power tool.
Work area safety
Keep work area clean and well lit. Cluttered or dark areas invite accidents.
Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases
or dust. Power tools create sparks which may ignite the dust or fumes.
Keep children and bystanders away whileoperating a power tool. Distractions can cause you to lose control.
Electrical safety
Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with
earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators.
There is an increased risk of electric shock if your body is earthed or grounded.
Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of
electric shock.
Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away
from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord
suitable for outdoor use reduces the risk of electric shock.
If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected
supply. Use of an RCD reduces the risk of electric shock.
Personal safety
Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a
power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention
while operating power tools may result in serious personal injury.
Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask,
non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal
injuries.
Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source
and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or
energising power tools that have the switch on invites accidents.
Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a
rotating part of the power tool may result in personal injury.
Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool
in unexpected situations.

EN 10
FZS 70705-0
Operating instructionsOperating instructions
Dress properly. Do not wear loose clothing or jewellery. Keep your hair and clothing away from moving parts.
Loose clothes, jewellery or long hair can be caught in moving parts.
If devices are provided for the connection of dust extraction and collection facilities, ensure these are
connected and properly used. Use of dust collection can reduce dust-related hazards.
Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool
safety principles. A careless action can cause severe injury within a fraction of a second.
Power tool use and care
Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the
job better and safer at the rate for which it was designed.
Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled
with the switch is dangerous and must be repaired.
Disconnect the plug from the power source and/or remove the battery pack, if detachable, from the power
tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety
measures reduce the risk of starting the power tool accidentally.
Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or
these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
Maintain power tools and accessories. Check for misalignment or binding of moving parts, breakage of
parts and any other condition that may affect the power tool’s operation. If damaged, have the power tool
repaired before use. Many accidents are caused by poorly maintained power tools.
Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely
to bind and are easier to control.
Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account
the working conditions and the work to be performed. Use of the power tool for operations different from
those intended could result in a hazardous situation.
Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping
surfaces do not allow for safe handling and control of the tool in unexpected situations.
Battery tool use and care
Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of
battery pack may create a risk of fire when used with another battery pack.
Use power tools only with specifically designated battery packs. Use of any other battery packs may create a
risk of injury and fire.
When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails,
screws or other small metal objects, that can make a connection from one terminal to another. Shorting the
battery terminals together may cause burns or a fire.
Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally
occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the
battery may cause irritation or burns.
Do not use a battery pack or tool that is damaged or modified. Damaged or modified batteries may exhibit
unpredictable behaviour resulting in fire, explosion or risk of injury.
Do not expose a battery pack or tool to fire or excessive temperature. Exposure to fire or temperature above
130 °C may cause explosion.
Follow all charging instructions and do not charge the battery pack or tool outside the temperature range
specified in the instructions. Charging improperly or at temperatures outside the specified range may
damage the battery and increase the risk of fire.

EN
CORDLESS BRUSH CUTTER USER'S MANUAL
11
Operating instructions
Service
Have your power tool serviced by a qualified repair person using only identical replacement parts. This will
ensure that the safety of the power tool is maintained.
Never service damaged battery packs. Service of battery packs should only be performed by the
manufacturer
BRUSH CUTTER SAFETY WARNINGS
Do not use the machine when the operator is tired, ill or under the influence of alcohol or other drugs.
Keep a firm footing and balance during operating. Use the harness provided.
Replace cutting blade if cracked, chipped, or damaged in any way. Be sure the blade is properly installed and
securely fastened. Failure to do so can cause serious injury.
Keep away from cutting blade. Even after the motor has stopped, the cutting blade will continue to rotate
for several seconds. Please wait until cutting blade has fully stopped before putting the machine down or
accessing the cutting area.
Switch off the machine when not cutting. Never leave the machine running when unattended.
SAFE OPERATING PRACTICES
Training
Read the instructions carefully. Be familiar with the controls and the correct use of the machine.
Never allow children, persons with reduced physical, sensory or mental capabilities or lack of experience
and knowledge or people unfamiliar with these instructions to use the machine, local regulations may
restrict the age of the operator.
Keep in mind that the operator or user is responsible for accidents or hazards occurring to other people or
their property.
Preparation
Before use, always visually inspect the machine for damaged, missing or misplaced guards or shields.
Never operate the machine while people, especially children, or pets are nearby.
Operation
Wear eye protection, long trousers and stout shoes at all times while operating the machine.
Avoid using the machine in bad weather conditions especially when there is a risk of lightning.
Use the machine only in daylight or good artificial light.
Never operate the machine with damaged guards or shields or without guards or shields in place.
Switch on the motor only when the hands and feet are away from the cutting means.
Always disconnect the machine from the power supply (e.g. remove the battery pack from the machine)
1) whenever the machine is left unattended;
2) before clearing a blockage;
3) before checking, cleaning or working on the machine;
4) after striking a foreign object;
5) whenever the machine starts vibrating abnormally.
Take care against injury to feet and hands from the cutting means. h) Always ensure that the ventilation
openings are kept clear of debris.
Never fit metal cutting elements.
Always be sure of your footing on slopes.

EN 12
FZS 70705-0
Operating instructions
Walk, never run.
Not overreach and keep the balance at all times.
Not to touch moving hazardous parts before removing the battery pack from the machine and the moving
hazardous parts have come to a complete stop.
Maintenance and storage
Disconnect the machine from the power supply (e.g. remove the battery pack from the machine) before
carrying out maintenance or cleaning work.
Use only the manufacturer’s recommended replacement parts and accessories.
Inspect and maintain the machine regularly. Have the machine repaired only by an authorized repairer.
When not in use, store the machine out of the reach of children.
SAFETY WARNINGS FOR BATTERY PACK
Do not dismantle, open or shred cells or battery pack.
Do not short-circuit a battery pack. Do not store battery packs haphazardly in a box or drawer where they
may short-circuit each other or be short-circuited by conductive materials. When battery pack is not in use,
keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects,
that can make a connection from one terminal to another. Shorting the battery terminals together may cause
burns or a fire.
Do not expose battery pack to heat or fire. Avoid storage in direct sunlight.
Do not subject battery pack to mechanical shock.
In the event of battery leaking, do not allow the liquid to come into contact with the skin or eyes. If contact has
been made, wash the affected area with copious amounts of water and seek medical advice.
Seek medical advice immediately if a cell or battery pack has been swallowed.
Keep battery pack clean and dry.
Wipe the battery pack terminals with a clean dry cloth if they become dirty.
Battery pack needs to be charged before use. Always refer to this instruction and use the correct charging
procedure.
Do not maintain battery pack on charge when not in use.
After extended periods of storage, it may be necessary to charge and discharge the battery pack several
times to obtain maximum performance.
Battery pack gives its best performance when it is operated at normal room temperature (20 °C ± 5 °C).
When disposing of battery packs, keep battery packs of different electrochemical systems separate from
each other.
Recharge only with the charger specified by POSITEC. Do not use any charger other than that specifically
provided for use with the equipment. A charger that is suitable for one type of battery pack may create a risk
of fire when used with another battery pack.
Do not use any battery pack which is not designed for use with the equipment.
Keep battery pack out of the reach of children.
Retain the original product literature for future reference.
Remove the battery from the equipment when not in use.
Dispose of properly.

EN
CORDLESS BRUSH CUTTER USER'S MANUAL
13
Operating instructions
GENERAL SAFETY WARNINGS
WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and
instructions may result in electric shock, fire and/or serious injury.
Save all warnings and instructions for future reference.
This appliance can be used by children aged from 8 years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall
not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified
persons in order to avoid a hazard.
Additional safety instructions for your Battery Charger
Before charging, read the instructions.
Do not charge a leaking battery.
Do not use chargers for works other than those for which they are designed.
Before charging, ensure your charger is matching the local AC supply.
For indoor use, or do not expose to rain.
The charging device must be protected from moisture.
Do not use the charging device in the open.
Do not short out the contacts of battery or charger.
Respect the polarity “+/-“ when charging.
Do not open the unit and keep out of the reach of children.
Do not charge the batteries of other manufactures or ill-suited models.
Ensure that the connection between the battery charger and battery is correctly positioned and is not
obstructed by foreign bodies.
Keep battery charger’s slots are free of foreign objects and protect against dirt and humidity. Store in a dry
and frost-free place.
When charging batteries, ensure that the battery charger is in a well-ventilated area and away from
inflammable materials. Batteries can get hot during charging. Do not overcharge any batteries. Ensure that
batteries and chargers are not left unsupervised during charging.
Do not recharge non-rechargeable batteries, as they can overheat and break.
Longer life and better performance can be obtained if the battery pack is charged when the air temperature
is between 18oC and 24oC. Do not charge the battery pack in air temperatures below 4.5oC, or above 40.5oC.
This is important as it can prevent serious damage to the battery pack.
Charge only battery pack of the same model provided by Argos and of models recommended by Argos.

EN 14
FZS 70705-0

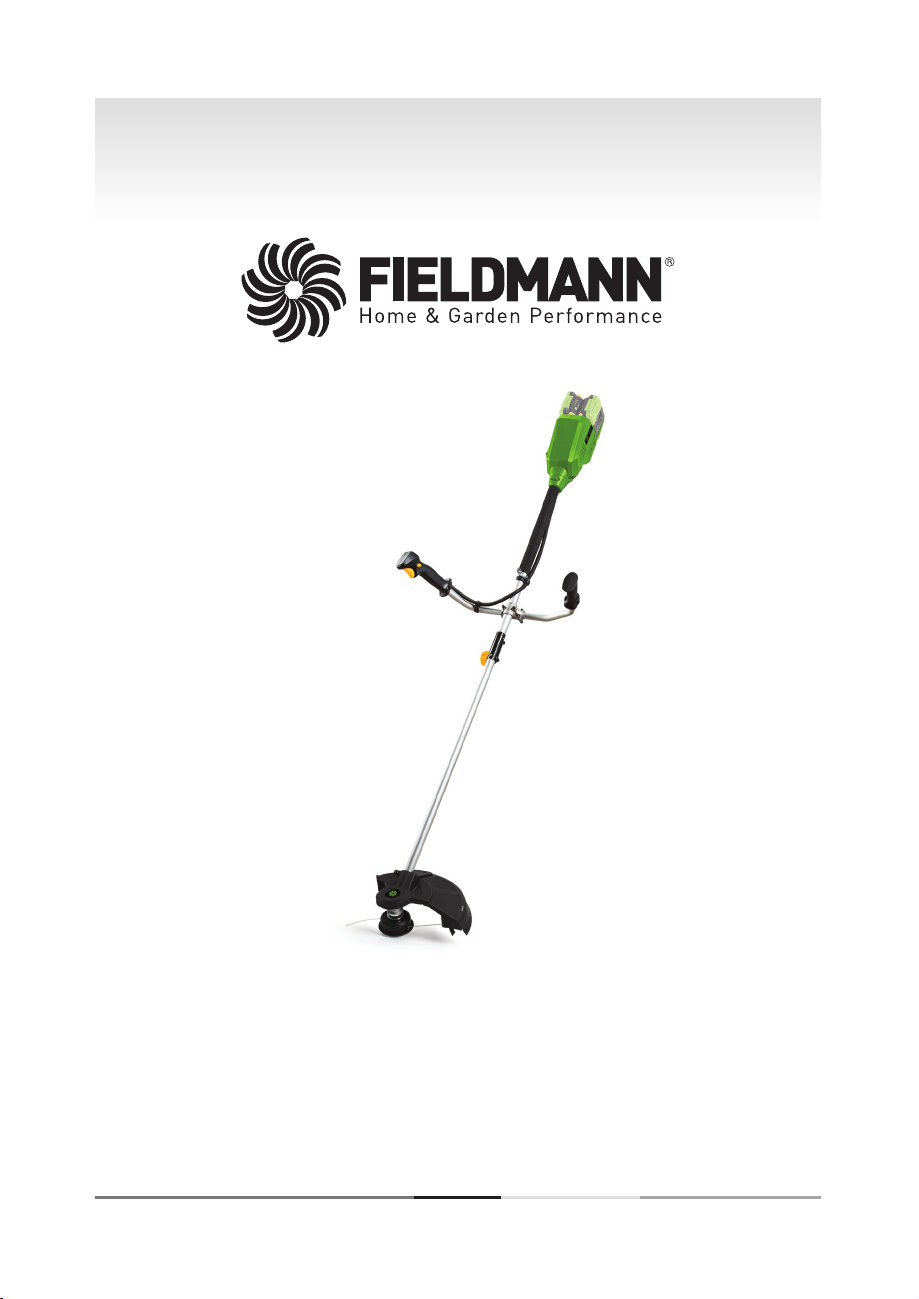

Description of the machine
4. DESCRIPTION OF THE MACHINE
(see picture on page 3)
1. Right handle
2. Lock-off button
3. Trigger
4. Right shaft
5. Safety guard
6. Trimmer head
7. Line
8. Line cutter
9. Battery pack (not included)
10. Battery pack pins
11. Upper shaft
12. Shoulder strap ring
13. Shoulder strap
14. Left shaft
15. Clamp Knob
16. Clamp
17. Left handle
18. Lower shaft
19. 3-teeth blade
20. Blade nut cover
21. Locking Nut
22. Hex wrench
23. Shaft lock rod
24. Screw
25. Charger (not included)
26. Allen wrench
5. ASSEMBLY
WARNING: Never operate the tool without the safety guard firmly in place. The guard must always be on
the tool to protect the user.
WARNING: When the tool is equipped with a trimmer head, the line cutter should be mounted onto the
safety guard. Failure to comply will result in overly long cutting line and overload the motor. Never use the
trimmer head without guard accessory.
WARNING: If any parts are damaged or missing, do not operate the brush cutter until the parts are
replaced. Use of the brush cutter with damaged or missing parts could result in serious personal injury.
WARNING: Do not attempt to modify the brush cutter or create accessories not recommended for use
with this product. Any such alteration or modification is misuse and could result in a hazardous condition
leading to possibly serious personal injury.
WARNING: Always wear heavy gloves when installing or removing the guard and doing any
maintenance on the 3-teeth blade/line-cutting blade. Be careful of the line-cutting blade on the guard accessory
/3-teeth blade for protecting your hands from being injured by both the blades.
WARNING: To prevent accidental starting that could cause serious personal injury, always remove the
battery pack from the tool when assembling parts or transporting the machine.
WARNING: Never operate the tool without the guard and handles firmly in place. Failure to comply could
result in possible serious personal injury.

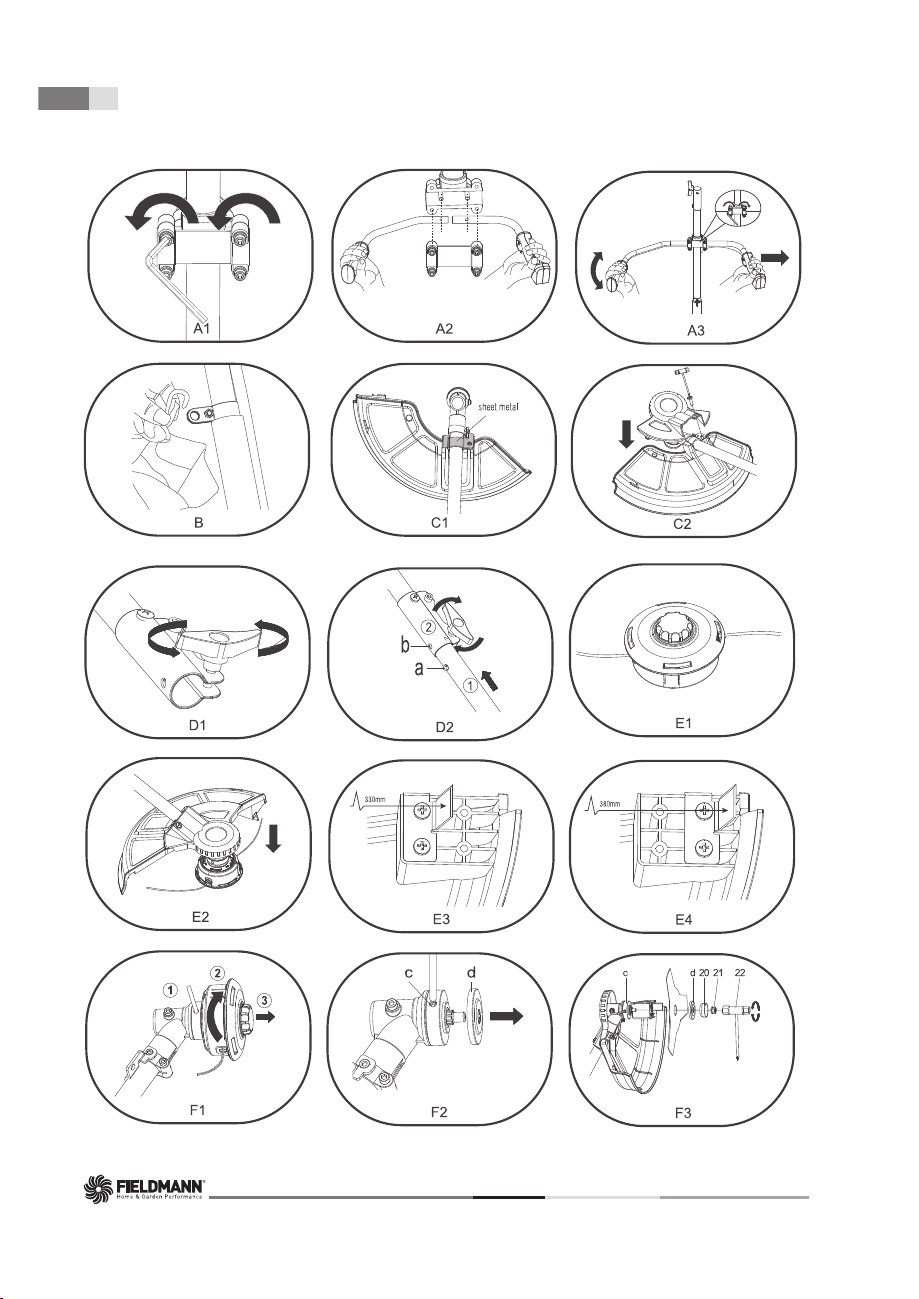

1. MOUNTING THE LEFT AND RIGHT SHAFT
Loosen the four wing bolts first by allen wrench(26 ), insert the right shaft with button and left shaft into the
connecting joint. (See Fig. A1)

EN
CORDLESS BRUSH CUTTER USER'S MANUAL
15
Assembly
Notice: Install the right shaft following the switch handle label on the upper shaft. There are two long bolts
in the handle. Customers can matching it with the handle bolt hole.(See Fig. A2)
Fasten the dour wing bolts.Have a try to drag the handle, ensure the shaft is fixed.( See Fig A3)
Notice: Operating the machine with the handles perpendicular to the shaft is only permitted.
2. ATTACHING THE SHOULDER STRAP
Put on the shoulder strap. (See Fig. B)
3. MOUNTING THE SAFETY GUARD
The sheet metal is preassemble.
Insert the sheet metal into the safety guard groove. (See Fig. C1)
Align the three bigger mounting holes in safety guard and shaft base. Lock the safety guard onto the shaft base
with screw bolt. Then align the side holes on safety guard and screw them firmly together with Hex wrench(21).
(See Fig.C2)
NOTE: When the tool is equipped with a trimmer head, make sure that the line cutter is on the safety guard.
4. FIX THE UPPER SHAFT AND LOWER SHAFT
- Loosen the clamp by turning the clamp knob counterclockwise.
(See Fig. D1)
- Align the shafts and insert the lower shaft into the upper shaft.
- Position the tube locking/release button (a) into the guide recess (b) of the clamp. (See Fig. D2)
- Ensure the locking button is engaged with the location hole in the clamp.
- Tighten the knob securely by turning clockwise. (See Fig. D2)
5. ADJUSTING CUTTING LINE LENGTH
The trimmer head allows the operator to release more cutting line without stopping the motor. As line becomes
frayed or worn, additional line can be released by lightly tapping (See. Fig. E1) on the ground while operating the
trimmer (See. Fig. E2)
Notice: Line release will become more difficult if the line cutter becomes too dull.
Notice: The original line length is 330mm. There are two kinds of cutting width When the line cutter is
mounted on the location as Fig. E3, the cutting width is 330mm. When the line cutter is mounted on the
location as Fig. E4, the cutting width is 380mm.
WARNING: Do not remove or alter the line cutter blade assembly. Excessive line length will be cutted to
suitable length.
6. REPLACE THE TRIMMER HEAD WITH THE 3-TEETH BLADE (THE TRIMMER HEAD IS FIXED IN
THE TOOL IN THE ORIGINAL PACKING )
Insert and keep the shaft lock rod into the hole of trimmer head and loosen the trimmer head by screwing it
clockwise. Take away the trimmer head. (See Fig. F1)
1) Stick the stop rod (22) into the hole on the side of trimmer head.
2) Loosen the trimmer head by clockwise.
3) Take away the trimmer head.

EN 16
FZS 70705-0
Assembly
First Keep the lower plate(c) stay on the tool, take away the upper plate(d). (See Fig. F2)
Then, put the 3-teeth blade, upper plate, Blade nut cover, locking nut on the tool in proper order. Tighten the
locking nut. (See Fig. F3)
1) Install the checking ring following the sketch map.(see Fig F4 )
Notice:If you don’t match the tooth profile, wheel gear may damage, you will hurt somebody.
2) Put the step surface away from the blade. (see Fig F4 F5 )
Notice: If you don’t put the bigger side on the surface of blade, blade can’t be press completely, you will
hurt somebody.
3)I nsert the bolt cover. (see Fig F5)
Notice: Keep the front opening to the earth.The cover’s function is protecting the bolt from damage.
WARNING: The bolt cover can protect the bolt from damage. If you damage the bolt, you can not change
your blade.
4) Use the shaft lock rod insert into the hole on the side of work head.
Then use the Hex wrench tighten the screw after we fix the work head. (see Fig F6)
Notice: To protect against injury, you have to wear gloves prior to any operation with the 3-teeth blade. The
blade have two side cutting function customers can turn-over the blade to use again.
Notice: Assembling the upper plate in the direction as Fig.F3. Use hex wrench to fasten the locking nut by
anticlockwise.

EN
CORDLESS BRUSH CUTTER USER'S MANUAL
17
Operation
6. OPERATION
WARNING: Do not allow familiarity with this product to make you careless. Remember that a careless
action of a second is sufficient to inflict serious injury.
WARNING: Always wear eye protection, along with hearing protection. Failure to do so could result in
objects being thrown into your eyes and other possible serious injuries.
WARNING: Do not use any attachments or accessories not recommended by the manufacturer of
this product. The use of attachments or accessories not recommended can result in serious personal injury.
Applications
You may use the brush cutter for the purpose listed below:
With 3-teeth blade: Cutting grass, weeds, wild growth and scrub, thinning young stands with a maximum
stem diameter of 2cm.
With Trimmer Head: Trimming grass and weeds from around porches, fences and decks.
1. BEFORE OPERATION
NOTE:
a) Do not use any charger other than that specifically provided for use with the equipment.
b) If the battery pack is very hot you must remove your battery pack from the charger and allow time for the
battery to cool down before recharging.
c) The battery in your new tool is not charging when it leaves the plant. Therefore it must be full charged before
using the first time.
d) Please charge the battery to reach full or no less than half charge before storage. If the tool will not be used for
long periods of time, charge the battery every 3-6 months.

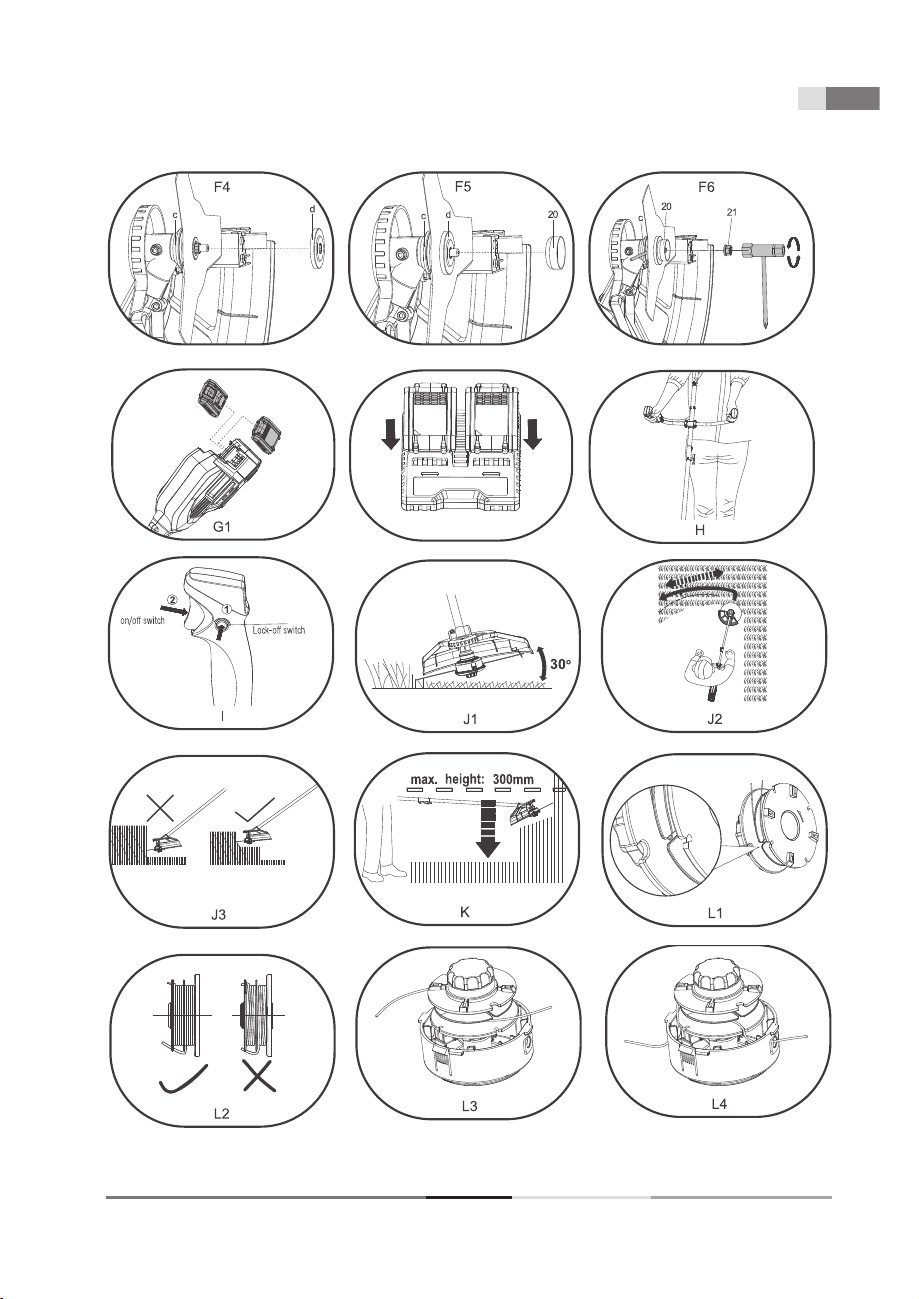

Assemble the machine (See Fig G1)
Insert two batteries on the machine. You can use it following the “3 START/STOPING” step in next page.
Charging procedure (See Fig. G2)
1) Plug the charger into an appropriate outlet. The light will be green.
2) Slide the battery pack into the charger, the light will turn to red to indicate the charging process has started.
3) When charging is completed, the light will turn to green. The pack is now fully charged, unplug the charger and
remove the battery pack.
WARNING: When battery charge runs out after continuous use or exposure to direct sunlight or heat, allow
time for the battery to cool down before re-charging to achieve the full charge.
Notice: The tool is to be used only for its prescribed purpose. Any other use is deemed to be a case of misuse.
CHARGING INDICATOR
Light Status
Red on Charging
Green on Fully Charged
This charger can fully charge 1 battery for 1 hr, 2 batteries for 2 hrs.
2. HOLDING THE MACHINE
Hold the tool with both hands on the right side of your body. The trimmer head or blade should be parallel to the
ground at a proper cutting distance without the operator bending over. (See. Fig. H)

EN 18
FZS 70705-0
Operation
Releasing the tool can be achieved in two ways;.
Release the strap buckle or press the hook of the strap and take it apart from the tubing clip fixed on the shaft
WARNING: When emergency occurs, take it off from your shoulder immediately, no matter what way the
strap is in. Releasing the strap buckle and taking off your shoulders is a quick release method.
3. STARTING/STOPPING
To Start
Press down the lock-off button and hold it in that position.
Depress the on/off switch to start. (See. Fig. I)
To Stop
Release the trigger.
Notice: The motor runs only when the lock-off button and trigger are both pressed.
WARNING: Always remove the battery pack from the tool during work breaks and after finishing work.
4. USING THE MACHINE
WARNING: Dress properly to reduce the risk of injury when operating the brush cutter. Do not wear loose
clothing or jewelry. Wear eye and ear/hearing protection. Wear heavy duty, long trousers, boots and gloves.
Do not wear short trousers, sandals or go barefoot.
Before operating, look around you to ensure a safety working area without other people, animals or any loose
objects. Make sure they are at least 15m away. And then check for
eye protection, proper clothing and balanced footing.
Before each use check for damaged/worn parts. Check the trimmer head, 3-teeth blade, guard, guard accessory,
handles and shoulder strap and replace any parts that are cracked, warped, bent, or damaged in any away. The
line-cutting blade on the edge of the guard accessory can dull over time. It is recommended that you periodically
sharpen it with a file or replace it with a new blade.
After each use, clean the brush cutter.
4.1 Using the grass trimmer
1) Hold the product with sufficient distance to your body.
2) Pay attention to your posture. Stand upright, do not lean forward.
3) Hold the trimmer head just above the ground at an angle of about 30°. (See. Fig. J1)
4) Move the product with slow and regular horizontal movements from the right to the left and then lead it back to
starting point before trimming the next row. (See. Fig. J2)
5) Trim in steps when the grass is very high. Do not cut the total height in once. (See. Fig. J3)
Note: For best results, do not cut wet grass because it tends to stick to the cutting means and guard, prevents
proper discharge of grass clippings, and could cause you to slip and fall.
4.2 Using with 3-teeth metal.
WARNING: To cut wild growth and scrub, lower the rotating 3-teeth blade down onto the growth to achieve
a chopping effect. Use the brush cutter like a scythe (sweep it to the right and left) at ground level. Do not use
the cutting unit above waist height.
WARNING: The higher the cutting unit is off the ground, the greater the risk of injury from cuttings being
thrown sideways.
WARNING: Do not attempt to cut woody material with a larger diameter, since the blade may catch or jerk
the brush cutter forward. This may cause damage to the blade or the brush cutter or loss of control of the
brush cutter, resulting personal injury.

EN
CORDLESS BRUSH CUTTER USER'S MANUAL
19
Operation
WARNING: Improper use of a blade may cause it to crack, chip, or shatter. Thrown parts may seriously
injure the operator or bystander. To reduce the risk of personal injury, it is essential to take the following
precautions.
• Avoid contact with hard or solid foreign objects such as stones, rocks or pieces of metal.
• Never cut wood or shrubs with a stem diameter of more than 2cm.
• Inspect the blade at a regular short interval for signs of damage. Do not continue working with a damaged
blade.
• Re-sharpen the blade regularly (when it has dulled noticeably) and have it balanced if necessary (performed
by a qualified service technician).
4.3 Using the brush cutter
1) Never hold the work head higher than your hip.
Work cautiously. The higher you hold the unit the bigger is the risk of thrown objects or clippings. (See. Fig. K)
2) Plunge the blade from above when cutting rank growth a undergrowth.
3) Move the blade close over the ground to cut young trees or grass.
5. TO REPLACE THE LIN
5.1 To replace the spool and line complete
For your convenience it is recommended you buy spool and line complete.
Remove old spool.(See. Fig. F1)
Place new spool into cutting head. Release one line from cleat and feed line through eyelet.
Repeat for second line.
Refit the cap.
5.2 To replace the line only
WARNING: Your Trimmer is designed to use only line with a maximum diameter of 2.0mm
IMPORTANT - Always wind the line onto the upper section of the spool first.
Take approximately 2.5m of line.
Insert 1.25m of line into one of the holes in the upper section of the spool and wind line in the direction of the
arrows on the top of the spool.Leave approximately 1.25m of line unwound and place into cleat. Repeat on lower
section of spool. (See. Fig. L1, L2, L3, L4)
Care should be taken to ensure that the line is neatly coiled on the spool. Failure to do so will impair the efficiency.
Then fit spool as described in “5.1 To fit spool and line complete”.

EN 20
FZS 70705-0
Cutting
7. CUTTING
WARNING!
When working with any string trimmer or brush cutter model, there is a danger of deflecting stones, metal or
small objects and the cut material. Carefully read all the safety directives.
Follow all the instructions provided in this user’s manual.
WARNING!
Use head, eye, face and hearing protection. Use appropriate footwear that will protect your feet and which will
ensure a firm stance on slippery surfaces. Do not wear ties, jewellery or loose clothing that could become caught
in the moving parts of the tool. Do not wear footwear with an open tip. Do not work barefoot or with bare legs. In
certain situations you must use full face and head protection.
Take care to avoid recoil and jamming of the blade.
WARNING
Always use the shoulder strap.
Set the shoulder strap and its hitch on the tool so that the brush cutter is suspended several centimetres above
the terrain. The head of the brush cutter and the metal guard must be level in all directions. Hang the brush cutter
on the right side of the body.
DANGER ZONE
NOBODY APART FROM THE OPERATOR MAY ENTER THE DANGER ZONE OF A 15 METRE RADIUS. THE OPERATOR
MUST USE APPROPRIATE EYE, HEARING, FACE, FOOT, LEG AND BODY PROTECTION. PERSONS LOCATED IN
THE DANGER ZONE OR IN THE RISK ZONE AFTER THE DANGER ZONE MUST USE EYE PROTECTION AGAINST
DEFLECTED OBJECTS. THE RISK IS REDUCED WITH INCREASING DISTANCE FROM THE DANGER ZONE.
CUTTING WITH THE NYLON STRING TRIMMER HEAD
The string trimmer head rotates CLOCKWISE.
The trimmer line is extended out semi-automatically. While trimming, simply gently tap the head on the
ground, which will push down the button on the underside of the head and the string trimmer line will slide
out. The string trimmer line is then shortened to the maximum permitted length on the blade integrated in the
plastic guard.
Trimming grass
During this activity, carefully move the trimmer into the material that you wish to trim. Slowly tilt the head so
that the trimmed material is ejected away from you. If you are trimming all the way up to obstacles such as
fences, walls and trees, then approach at such an angle that all material is ejected away from you. Slowly
move the head with the nylon string trimmer line from right to left until the grass is trimmed all the way to the
obstacle but avoid the string trimmer line coming into contact with the obstacle.
When trimming in the vicinity of a wire fence or enclosure, proceed carefully so as not to come into contact with the
wires. If you exceed the minimum distance from the fence, the string trimmer line will be shortened after impact.
When cutting weeds, it is possible to cut one stem at a time. Place the trimmer head with string trimmer line
at the bottom part of the weed - never the top because the stem may start quivering and the string trimmer
line may become caught in it. Rather than attempting to cut the weed directly, it is better to use only the end
of the string trimmer line and to cut the stem slowly.
