FIFOTRACK S30 User manual

FIFOTRACK VEHICLE GPS TRACKER
Model: S30
Version: V1.1
www.fifotrack.com

S30 USER GUIDE
Copyright © fifotrack 2015 All rights reserved 2
Copyright and Disclaimer
All copyrights belong to Shenzhen fifotrack Solution Co., Ltd. You are not allowed
to revise, copy or spread this file in any form without consent of fifotrack.
is trademark of fifotrack, protected by law.
Please read this user guide carefully before installation to avoid any possible
personal injury or property loss.

S30 USER GUIDE
Copyright © fifotrack 2015 All rights reserved 3
Revision History
Version
Author
Revision Date
Details
V1.1
Cici Wu
Dec 10, 2017
Initial revision

S30 USER GUIDE
Copyright © fifotrack 2015 All rights reserved 4
Related Files
Version
File
Remarks
V1.1 <fifotrack S30 Command List> Command details of GPRS/SMS/COM
V1.1 <fifotrack A01 GPRS Protocol> GPRS communication protocol
between tracker and server
V1.1 <fifotrack Parameter Tool User Guide>
PC software tool for parameters
configuration
V1.1
<USB Cable Driver Installation Guide>
How to install USB cable driver
V1.1 <Firmware Upgrade Guide> How to upgrade firmware
V1.1 <fifotrack Fuel Sensor AS10 User Manual > How to use AS10 fuel sensor
V1.1 <
fifotrack Vehicle Original Fuel Sensor
Solution User Guide>
how to use original fuel sensor
V1.1 <fifotrack
Digital Temperature Sensor User
Guide>
How to use digital temperature sensor
V1.1
<fifotrack iButton User Guide>
How to use iButton
Download link: http://www.fifotrack.com/Support/Userguide/
Related Software
Version Software Remarks
V1.0 < Parameter Tool > Parameter configuration tool on PC
V1.11.0 < PL2303_Prolific_DriverInstaller > Driver for USB cable
V1.0
< Firmware Upgrade Suite>
Tool for firmware upgrade
V1.0
< GPRS Command Generator>
Generating GPRS commands for FIMS
tracking software
Download link: http://www.fifotrack.com/Support/Userguide/
Video Guide Link
http://www.fifotrack.com/Support/video.html
Marketing Materials Download Link
http://www.fifotrack.com/Support/marketing.html

S30 USER GUIDE
Copyright © fifotrack 2015 All rights reserved 5
Contents
1 Product Overview .............................................................................................. 6
2 Product Functions .............................................................................................. 6
2.1 Tracking Functions ........................................................................................................... 6
2.2 Alarms.............................................................................................................................. 6
2.3 Other Functions ............................................................................................................... 7
3 Product and Accessories..................................................................................... 7
3.1 Standard Packing Box....................................................................................................... 7
3.2 Optional Accessories........................................................................................................ 8
4 Product Appearance........................................................................................... 8
5 PCB Overview..................................................................................................... 9
6 LED Light ............................................................................................................ 9
7 Specification .....................................................................................................10
8 First Use............................................................................................................10
8.1 Installing the SIM Card................................................................................................... 10
8.2 GPS Antenna .................................................................................................................. 11
8.3 Tracking by Calling ......................................................................................................... 12
8.4 SMS Reply Content Example.......................................................................................... 13
8.5 Tracking by SMS Command - C01 .................................................................................. 14
8.6 Configuration on PC....................................................................................................... 15
8.7 Platform Tracking........................................................................................................... 16
9 Device Installation.............................................................................................16
9.1 I/O Installation ............................................................................................................... 16
9.2 Power/Ground Cable ..................................................................................................... 17
9.3 Positive/Negative Digital Input (IN1/IN2) ...................................................................... 17

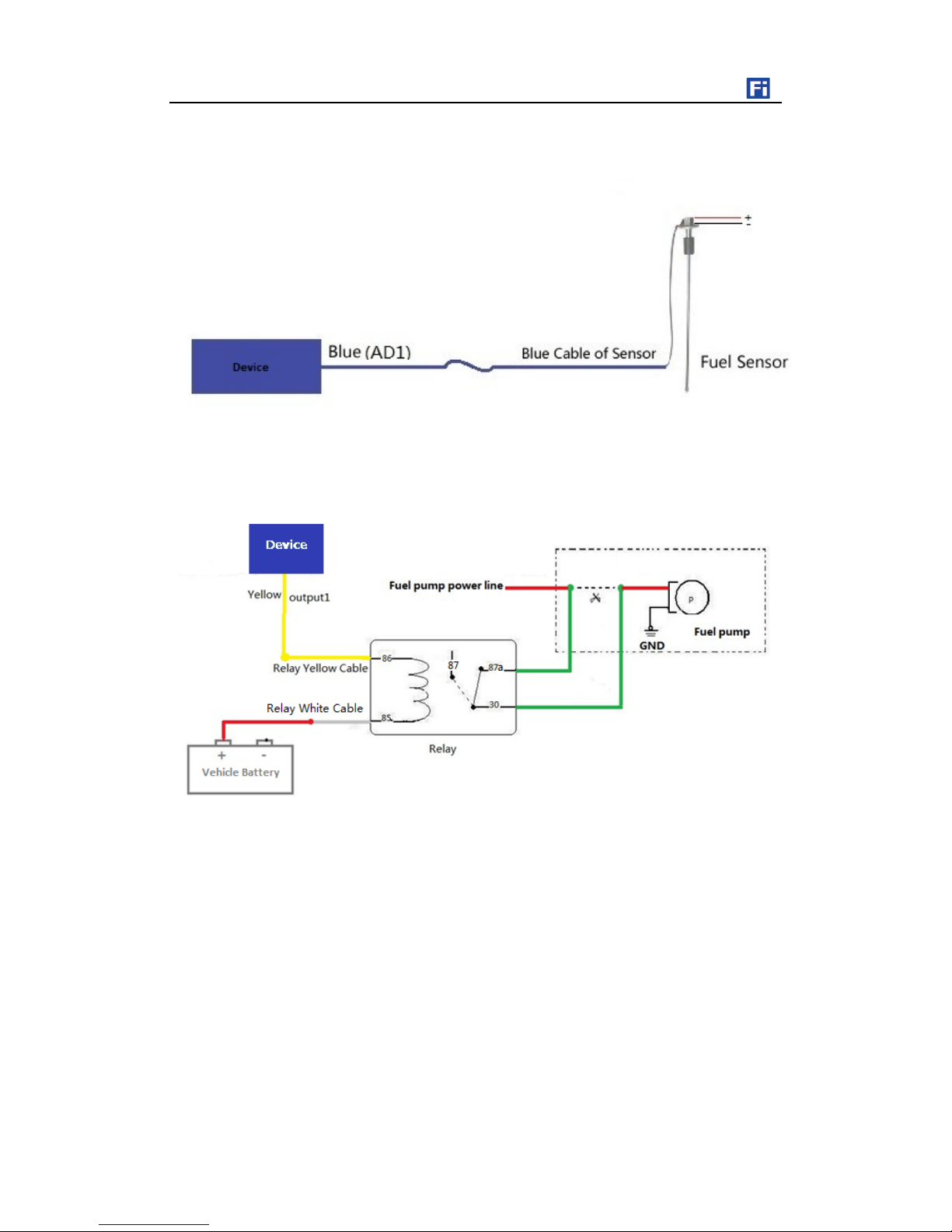

9.4 Analog Input( AD1) ........................................................................................................ 18
9.5 Output control (OUT1)................................................................................................... 18

S30 USER GUIDE
Copyright © fifotrack 2015 All rights reserved 6
1 Product Overview
S30 is a model which is suitable for vehicle, motorcycle, boat, asset tracking, etc.
Support original fuel sensor solutions, temperature sensor and iButton.
Power input range is 8-92V with industrial design.
Internal GPS/GSM antennas, IP66 waterproof, 2 digital input, 1 analog input and 1 output.
S30 uses Own FIFOTRACK A01 GPRS PROTOCOL which is simple and practical, this enables the
customers to integrate protocol into their own platform efficiently.
S30 is being offered 2 years warranty to customers.
2 Product Functions
2.1 Tracking Functions
GPS+GSM Base Station Dual Tracking
Real Time Tracking
Time Interval Tracking
Distance Tracking
Direction Change Tracking
Mobile Phone Tracking
2.2 Alarms
SOS Alarm
External Power Cut Alarm
Engine/Door Status Alarm
Maintenance remind
GEO-Fence Alarm
Speeding Alarm
Vibration Alarm
Idling Alarm
Fatigue Driving Alarm
Harsh Acceleration Alarm
Harsh Braking Alarm
Parking Overtime Alarm
Internal Battery Low Alarm

S30 USER GUIDE
Copyright © fifotrack 2015 All rights reserved 7
External Battery Low Alarm
Fuel Theft Alarm
Fuel Filling Alarm
Low Fuel Level Alarm
High Fuel Level Alarm
High Temperature Alarm
Low Temperature Alarm
Login Alarm
Log out Alarm
Illegal Login Alarm
2.3 Other Functions
Waterproof IP66
8 MB Flash Memory
Custom Digital Input (input1)
Uploading Mode Settings for ACC ON/ACC OFF
Roaming Time Interval Setting
Mileage
Low Auto Battery Protection
OTA (protocol file available, not available on FIMS tracking software yet)
Stop Car Remotely (optional, with relay)
Fuel monitoring and Fuel Consumption Statistics (optional, with AS10 fuel sensor)
Vehicle original fuel sensor solution (some customers name built-in fuel sensor)
Temperature monitoring (Optional, with temperature sensor)
Driver management (Optional, with iButton)
3 Product and Accessories
3.1 Standard Packing Box

S30 USER GUIDE
Copyright © fifotrack 2015 All rights reserved 8
3.2 Optional Accessories
USB Cable Relay AS10 Fuel sensor Door Sensor
Temperature Sensor iButton
4 Product Appearance
Overview
Front view
Side view
Rear view

S30 USER GUIDE
Copyright © fifotrack 2015 All rights reserved 9
5 PCB Overview
6 LED Light
GPS Light (Green)
Off Power off or sleep
Flash 0.1s on and 3S off GPS valid
Flash every 0.1s GPS antenna cut
Flash 2s on and 2s off No GPS signal
Solid On GPS module power problem
GSM Light (Orange)
Off
Power off or sleep
Flash 0.1s on and 3s off
GSM available
Flash every 0.1s
Device is initialing
Flash 2s on and 2s off No GSM
External Power Light (Red)
Off External power cut
Flash every 0.1s External power low
Solid On External power normal

S30 USER GUIDE
Copyright © fifotrack 2015 All rights reserved 10
7 Specification
Item Specification
Dimension 80*53*21mm
Weight 157g
GSM Module SIMCOM800C
GPS Module
U-blox7Q
Input Voltage
DC 8~92V/1.5A
Internal Battery
300mAh/3.7V
Power
Consumption
30-35mA standby current
Internal Battery Life
6 hours in sleep mode, and 2.5 hours in normal working mode.
Operating
Temperature
-20℃~70℃
Humidity 5%~95%
LED Light
3 LED lights indicating GPS/GSM/External power status
Button/ Switch
1 power switch (inside case)
Flash Memory
8MB (GPRS data 20400 units, SMS data 320 units)
Sensor
3D Acceleration Sensor
GSM Frequency
Band
GSM 850/900/1800/1900MHz
GPS Sensitivity -161dBm
GPS Start Speed
Cold start 35s
Hot start 1s
Position Accuracy 10m
I/O Port 2 Digital inputs – input1 is smart input, can be configured to negative
or positive input, default is negative. Input2 is positive input for ACC.
1 Analog input, voltage range is 0-12V
1 Output
1 iButton
1 DC5V_OUT
1 USB port (inside case)
8 First Use
8.1 Installing the SIM Card
S30 is 2G tracker. Make sure the SIM card is compatible with 2G.

S30 USER GUIDE
Copyright © fifotrack 2015 All rights reserved 11
SIM card is Micro type, 15*12mm.
Ensure the SIM card has enough balance.
SIM card should have GPRS data plan for platform tracking.
Ensure PIN code has been closed.
Authorization SOS numbers can’t work well if SIM card doesn’t have caller ID service. E.g.:
device can’t reply SMS to authorization SOS number because SIM card can’t identify incoming
call.
Turn off device before SIM card installation.
8.2 GPS Antenna
Top side of S30 should face Sky for better GPS signal.
Don’t install the Device where shielded by metal. For example, inside a metal can.
Unscrew and open the rear cover case

S30 USER GUIDE
Copyright © fifotrack 2015 All rights reserved 12
Top side of S30
8.3 Tracking by Calling
Call the SIM card number inside S30, you will get a SMS reply with Google map link. Click it for
specific map location.

S30 USER GUIDE
Copyright © fifotrack 2015 All rights reserved 13
8.4 SMS Reply Content Example
2015-09-04 07:44:28, 0km/h, Disconnect, A, EXPW:ON,http://maps.google.com/maps
?f=q&hl=en&q=loc:22.546510,114.079403

S30 USER GUIDE
Copyright © fifotrack 2015 All rights reserved 14
SMS Reply Format:
Field Detail Remarks
2015-09-04
07:44:28
Date and time, format YYMMDD
hh:mm:ss
Date and time
0Km/h Speed is 0km/h Speed
Disconnect GPRS disconnect GPRS connection status, ”disconnect” or
“connect”.
A
GPS fixed
GPS Status，”A” means GPS valid, “V”
means GPS invalid.
EXPW:ON
External power on
External power status. “ON” means
external power normal, ”OFF” means
external power cut.
http://maps.google.
com/maps
?f=q&hl=en&q=loc:
22.546510,114.079
403
Google map link, latitude in the
front of longitude after ”Loc”.
Unit degree
Latitude=22.546510°
Longitude=114.079403°
Google map link with latitude and
longitude, which can be opened directly
on smart phone.
8.5 Tracking by SMS Command - C01
SMS Command：000000,C01
SMS Reply: Current location
Note：Default SMS password is “000000”, set new SMS password with B10 command.
Please refer to < fifotrack S30 Command List > for more details.

S30 USER GUIDE
Copyright © fifotrack 2015 All rights reserved 15
8.6 Configuration on PC
fifotrack company provide <FIFOTRACK PARAMETER TOOL> for configuration. Please download
USB cable driver and install it before using parameter tool. Refer to <USB CABLE DRIVER
INSTALLATION GUIDE> if need.
Connect S30 to PC with USB cable. Run “fifotrack Parameter Tool” software which will identify port
automatically and read all of the current parameters.
Please read <FIFOTRACK PARAMETER TOOL USER GUIDE> for more details.

S30 USER GUIDE
Copyright © fifotrack 2015 All rights reserved 16
8.7 Platform Tracking
You can use SMS commands B00, B01, B02, B03 to set server IP, port, APN and GPRS uploading
interval. Sales will send specific guide file to you for sample trial.
You can also configure those parameters via parameter tool software on PC.
9 Device Installation
9.1 I/O Installation
I/O wire is composed by 8 Pins cables as follows.
I/O Color Function
VCC Red Positive power, connect to positive of vehicle battery, input voltage
range 8-92V
GND Black Ground, connect to negative of vehicle battery or the vehicle’s iron
part.
IN1 White Digital input1, c
ustom input, can be configured to negative or
positive. Default is negative input.
IN2 White Digital input2, positive input, default connect to ACC for status

S30 USER GUIDE
Copyright © fifotrack 2015 All rights reserved 17
detection.
AD1 Blue 12 bits analog input, voltage range 0-12V. Connect to external
sensor. For example, fuel sensor.
OUT1 Yellow Output1
Open drain type
Output on: Maximum current 500mA
Output off: open drain
iBtn Brown For iButton or temperature sensor
DC5V_OUT Orange Provide power to temperature sensor
9.2 Power/Ground Cable
9.3 Positive/Negative Digital Input (IN1/IN2)

S30 USER GUIDE
Copyright © fifotrack 2015 All rights reserved 18
9.4 Analog Input( AD1)
9.5 Output control (OUT1)
Please e-mail us at [e-mail] if any question or feedback.
