Fire-Lite CHS-6 Chassis User manual

Document 50896:B 12/14/00
CHS-6 Chassis
50896
Revision B
12/14/00
ECN 00-450
XP5CHSINBa.CDR
XP5CABD3a.CDR
The CHS-6 Chassis is shipped with two self-
threading screws, which are used to fasten the
chassis to the back wall of the cabinet.
The CHS-6 Chassis fits into the BB-25 cabinet
and the CAB-3 Series cabinets, A-size through
D-size. The chassis can fit into any of the
CAB-3 Series cabinet rows except for the
bottom row, which was designed for battery
housing and does not have PEM studs for
mounting.

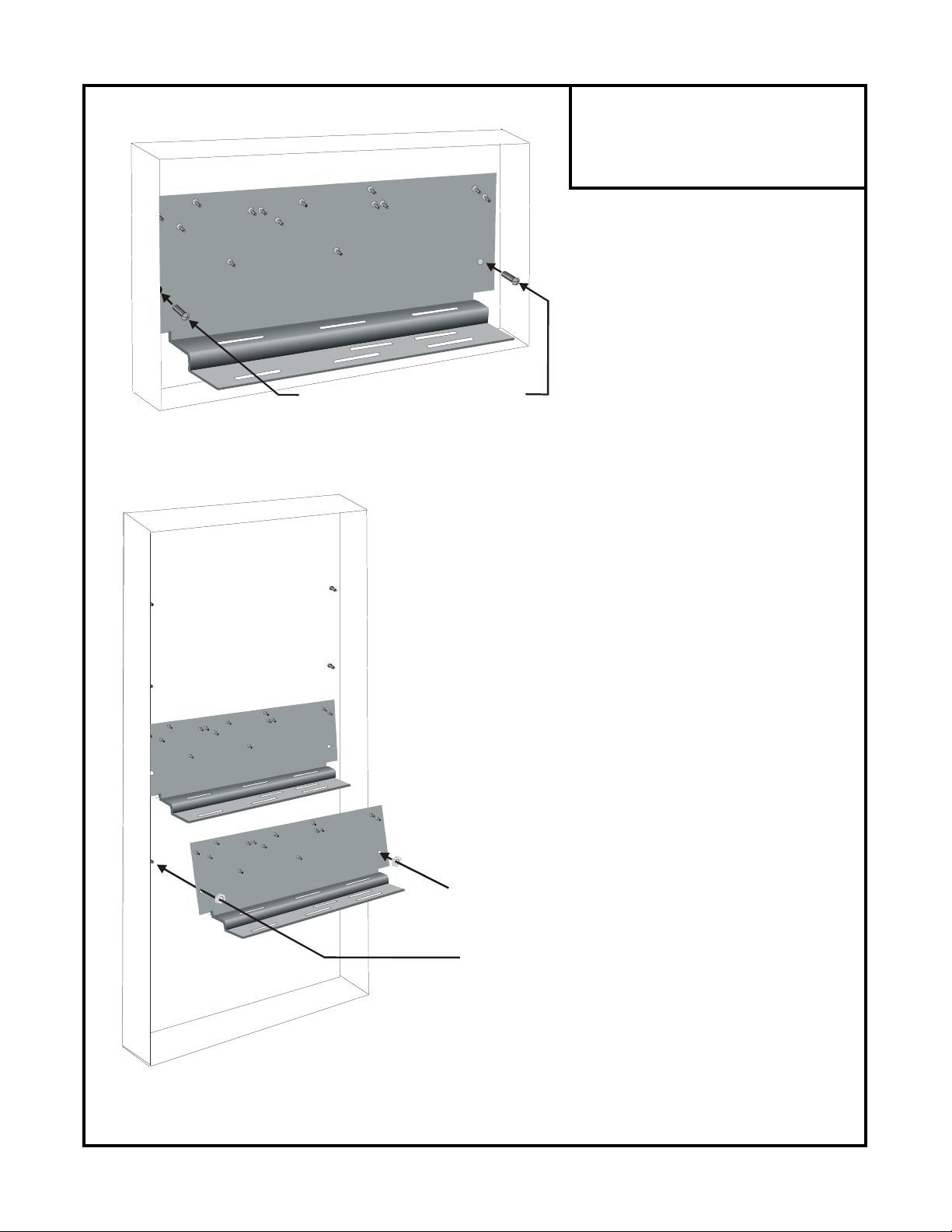

Installation in a BB-25 Cabinet
Mount with self-threading screws to
back of cabinet.
Mount with hex nuts
to PEM studs on back
of cabinet.
Installation in a CAB-3 Series Cabinet
(in this case a CAB-D3 Cabinet)
