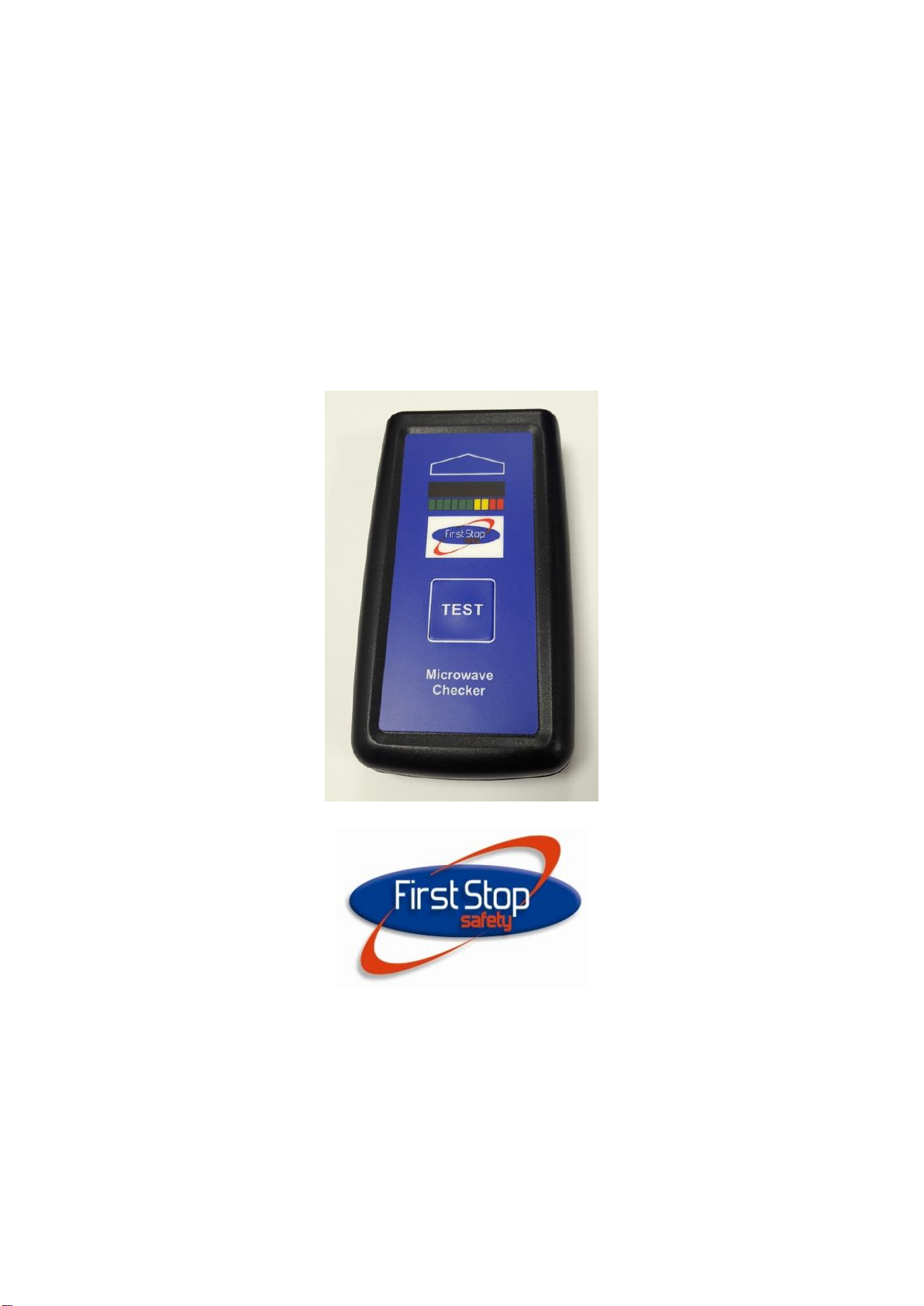

Microwave Checker Issue 2.0
Safety
Please read this manual carefully to make yourself familiar
with the capabilities and functions of the Microwave
Checker before attempting to use it.
1. Never place the unit inside the microwave oven.
2. There are no user serviceable parts in this unit. Under no
circumstances should the user attempt to open the unit. If opened,
the warranty will be invalidated.
3. The Microwave Checker is guaranteed for one year from the
date of purchase. Please keep your invoice as proof of purchase.
4. Should the unit require a service, repair orcalibration, please return
it to: First Stop Safety
11 Glaisdale Road
Northminster Business Park
York YO26 6QT
Tel: [phone]
When returning the unit, please contact the Sales Department to
advise us of its return. The customer will be advised of any costs
prior to work commencing.

Microwave Checker Issue 2.0
Introduction
The Microwave Checker is an easy to use, accurate meter for
checking leakage from Microwave Ovens. It can also be used for
checking Radio Frequency emission levels from a variety of
sources.
Package includes:
•Microwave Checker with 9v PP3 battery fitted.
•User Manual
•Set of test labels.
Features
•RF measurement range from 0.07 mW/cm2to 7.1 mW/cm2.
•10 LEDs to show level in this range.
•Easy to read red / amber / green indication.
•Simple push button operation.
•Display Test on power up.
•Battery Low indication.

Microwave Checker Issue 2.0
Operation
Leakage Test
1. Place a large microwave-safe mug of cold water inside the
microwave oven.
2. Switch on for 2 minutes at full power. (If the microwave oven
has a radiant heater for roasting or baking, then make sure
that this is not turned on. Only use the microwave oven on
microwave power).
3. Hold the Test button while placing the Microwave Checker as
shown below, checking the edges of the door seals and the
front glass area. Check readings with the Microwave
Checker turned through 90 degrees. Note maximum reading.
Hold the microwave checker so that the front edge is
approximately 5cm (2in.) from the surface.

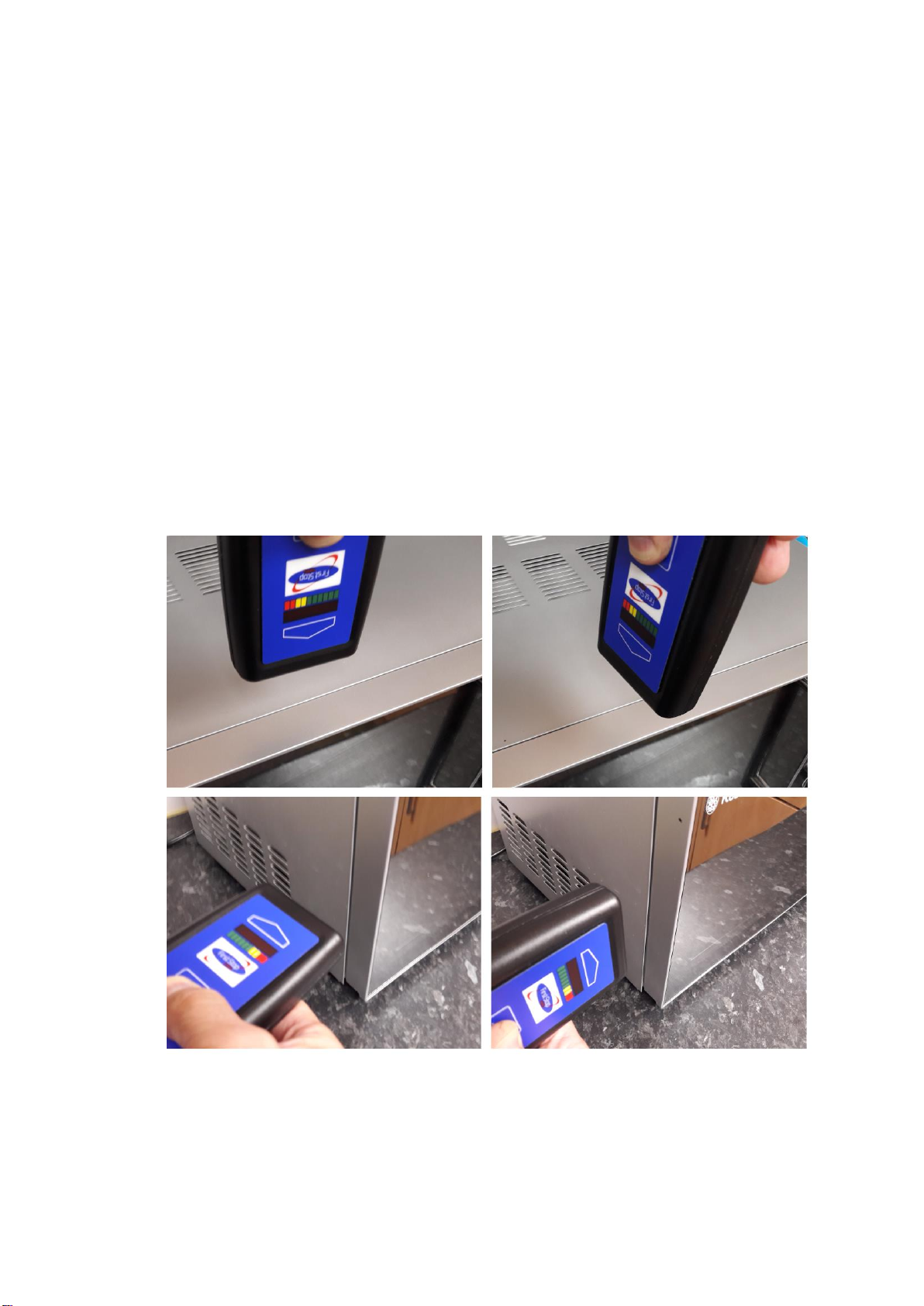

Check All Door Seals

Microwave Checker Issue 2.0
Check Front Glass Area
4. If measurements are not complete, then replace the mug of
water with a fresh mug of cold water and switch on for
another 2 minutes.
5. If the test result is in the green area then this is an
acceptable level of leakage.
6. If the test result is in the amber area, then this indicates that
the leakage is acceptable, but is above what would be
expected from a new microwave oven. We would advise you
to consider replacing the microwave oven within a year.
7. If the test result is in the red area, DO NOT use the
microwave oven. Remove from service immediately.
Interlock Test
When the microwave oven is working, open the door and
check that the oven switches off. If the interlock is working
correctly, there should be no microwave energy being
produced when the door is open. You can use the
Microwave Checker to check for this.
If the microwave oven passes both the Leakage Test and the
Interlock Test, complete a green Pass label and attach it to the
oven.

Microwave Checker Issue 2.0
Display Test
The Microwave Checker will perform a short display test at the
start of every measurement when the display button is pressed.
The display will show a pair of bars, moving inwards from each end
of the display. Check that all of the bars illuminate in turn. The
display will then go blank ready for measurements.
Low Battery Warning
One bar at each end of the display will illuminate when the test
button is pressed. Please replace the battery with a PP3 9v
battery. The battery compartment is located on the rear of the unit.
Slide the battery cover downwards to expose the battery. Ensure
that the new battery is fitted with the correct polarity, as indicated
by the label inside the compartment. Replace the battery cover.

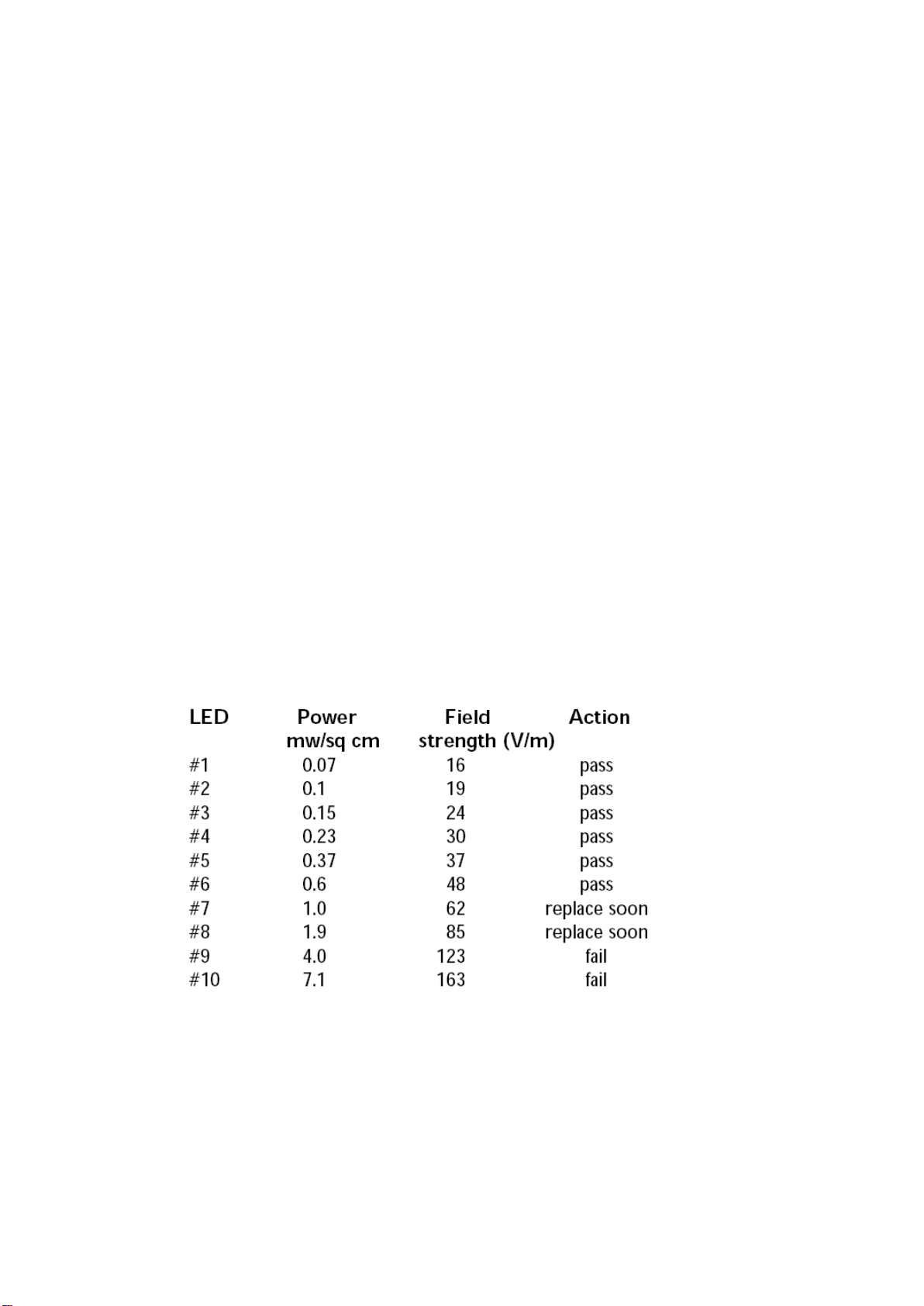

Specification
Range: 0.07 mw/sq cm to 7.1 mw/sq cm
Accuracy: ± 3dB
Frequency Range: 2.45GHz ± 50MHz
Probe Direction: At front of checker as indicated
Power Supply: 1 x 9V PP3 Battery

Microwave Checker Issue 2.0
Annual Calibration
Your Microwave Checker is an accurate instrument and it is
important to make sure that it is continuing to measure correctly. A
faulty tester could fail to pick up a problem with a faulty microwave
oven. To prevent this and ensure the accuracy of your Microwave
Checker, we recommend that calibration is carried out annually.
We can send you an annual reminder by e-mail or letter. You may
opt out of this service at any time.
When you return your Microwave Checker to us we will carry out
the following:
•Calibration with traceability back to National Standards
•Refurbishment or upgrade as necessary
•Issue of a new Calibration Certificate
Collection & Delivery Service
We can arrange for the Microwave Checker to be collected for
calibration and delivered back toyou.Our turn-around time is5
working days from receipt of the tester, although the actual time is
usuallymuchless. All you have to do istoorderonlineorsend us a
completedorderform.
Booking a Calibration
This couldn’t be easier. You can request your calibration in a
number of ways:
Email [e-mail]
Phone [phone]
Download a calibration booking form from our website
www.firststopsafety.co.uk
All you have to do is to send us the order. We will do
everything else!

Microwave Checker Issue 2.0
Lifetime Warranty
When you purchase a new Microwave Checker or PAT Tester from
First Stop Safety you can do so with total peace of mind. If you
return the product to us for Annual Calibration, we will provide a
Lifetime Warranty for any failures of the product. (see Terms &
Conditions for full details).
If your product develops a fault you simply return the unit to First
Stop Safety and we will repair the unit free of charge and send it
back to you. By calibrating your tester annually your Lifetime
Warranty will cover your Microwave Checker for many years.
Lifetime Warranty Conditions
First Stop Safety have complete confidence in our Microwave
testers enabling us to provide a Lifetime Warranty free of charge.
To retain the validity of the Lifetime Warranty the unit must be
returned to First Stop Safety annually for recalibration.
Note: If the calibration is allowed to expire, the Lifetime Warranty is
invalidated.
We have a one month grace period with regards to your calibration
date. This means that you have one calendar month after the
calibration expiry date in which to book your tester in for
calibration.
The Lifetime Warranty covers the Microwave Checker unit only,
not accessories.
If your unit develops a fault we repair it free of charge as long as
your units Lifetime Warranty has been maintained and your
account is up to date.
What is not covered by the Lifetime Warranty
•If the unit has been water damaged.
•If the unit has been physically damaged beyond fair wear
and tear.
•Repairs if the unit has not been returned for annual
calibration.
•The cost of the annual calibration.
