GENERAL SPECIFICATIONS
Klein Tools CL310 is an automatically ranging true root mean square
(TRMS) digital clamp meter that measures AC current via the clamp,
AC/DC voltage, resistance, continuity, frequency, capacitance, and
tests diodes via test-leads, and temperature via a thermocouple probe.
• Operating Altitude: 6562 ft. (2000m)
• Relative Humidity: <95% non-condensing
• Operating Temp: 32°to 122°F (0°to 50°C)
• Storage Temp: 14°to 122°F (-10°to 50°C)
• Accuracy: Values stated at 65° to 83°F (18° to 28°C)
• Temp Coefcient: 0.1 x (Quoted Accuracy) per °C above
28°C or below 18°C, corrections are required when ambient
working temp is outside of Accuracy Temp range
• Dimensions: 8.66" x 3.03" x 1.61" (220 x 77 x 41 mm)
• Weight: 9.88 oz. (280 g) including batteries
• Calibration: Accurate for one year
• Standards: Conforms to: UL 61010-1, UL 61010-2-032,
UL 61010-2-033.
Certified to: CAN/CSA C22.2 NO. 61010-1,
61010-2-032, 61010-2-033, IEC EN 61010-1,
61010-2-032, 61010-2-033, IEC EN 61326-1.
• Pollution degree: 2
• Accuracy: ± (% of reading + # of least significant digits)
• Drop Protection: 3.3 ft. (1m)
• Safety Rating: CATIII 600V, Class 2, Double insulation
• Electromagnetic Environment: IEC EN 61326-1. This
equipment meets requirements for use in basic and controlled
electromagnetic environments like residential properties,
business premises, and light-industrial locations.
Specifications subject to change.
ENGLISH
CL310-1390115ART.indd 2 10/1/2015 3:43:25 PM

Dwg Name: CL310-1390115ART
Dwg No: 1390115
ECO No: 20550 Rev: D
Pkg Dwg Ref: 1290186
Color Reference: N/A
3
ELECTRICAL SPECIFICATIONS
Function Range Resolution Accuracy
AC Voltage
(V AC)
4.000V 1mV ±(1.5% + 5 digits)
40.00V 10mV ±(1.2% + 5 digits)
400.0V 100mV
600V 1V ±(1.5% + 5 digits)
DC Voltage
(V DC)
400.0mV 0.1mV ±(1.0% + 8 digits)
4.000V 1mV
±(0.8% + 3 digits)40.00V 10mV
400.0V 100mV
600V 1V ±(1.0% + 3 digits)
Input Impedance: 10MΩ
Frequency Range: 45 to 400Hz
Maximum Input: 600V AC RMS or 600V DC
AC Current
(A AC)
4.000A 1mA ±(2.5% + 30 digits)
40.00A 10mA ±(2.5% + 10 digits)
400.0A 100mA ±(2.0% + 10 digits)
Frequency Range: 50 to 60Hz
Resistance
400.0Ω 0.1Ω ±(1.2% + 5 digits)
4.000KΩ 1Ω
±(1.2% + 3 digits)
40.00kΩ 10Ω
400.0kΩ 100Ω
4.000MΩ 1kΩ
40.00MΩ 10kΩ ±(2.0% + 5 digits)
Maximum Input: 600V AC RMS or 600V DC
CL310-1390115ART.indd 3 10/1/2015 3:43:25 PM

Dwg Name: CL310-1390115ART
Dwg No: 1390115
ECO No: 20550 Rev: D
Pkg Dwg Ref: 1290186
Color Reference: N/A
4
OTHER MEASUREMENT APPLICATIONS
Maximum Input: 600V DC or 600V AC RMS
• Diode Test: Approx. 1mA, open circuit voltage ~3.0V DC
• Continuity Check: Audible signal <10Ω, max current 1.5mA
• Sampling Frequency: 3 samples per second
• Auto Power off: After ~15 minutes of inactivity.
• Overload: "OL" indicated on display
• Polarity: "-" on display indicates negative polarity
• Display: 3-3/4 digit, 4000 Count LCD
ELECTRICAL SPECIFICATIONS
Function Range Resolution Accuracy
Capacitance
40.00nF 0.010nF ±(4% + 25 digits)
400.0nF 0.100nF
±(4% + 8 digits)
4.000μF 0.001μF
40.00μF 0.010μF
400.0μF 0.100μF
4.000mF 0.001mF ±(10% + 9 digits)
Maximum Input: 600V AC RMS or 600V DC
Temperature
-40° to 1832°F 1 °F
≤0°F ±(2.8% + 12 digits)
>0°F ±(2.8% + 6 digits)
-40° to 1000°C 1 °C ±(2.8% + 6 digits)
Frequency 10Hz to
1MHz
0.001Hz
to 1kHz ±(0.1% + 5 digits)
Duty Cycle
0.1% to 99.9%
(≤100kHz)
0.01% ±1.5%
(Range: 10% – 90%)
Sensitivity: 250mV and < 20V RMS
Maximum Input: 600V AC or 600V DC RMS
ENGLISH
CL310-1390115ART.indd 4 10/1/2015 3:43:25 PM

Dwg Name: CL310-1390115ART
Dwg No: 1390115
ECO No: 20550 Rev: D
Pkg Dwg Ref: 1290186
Color Reference: N/A
5
≤0°F ±(2.8% + 12 digits)
>0°F ±(2.8% + 6 digits)
(Range: 10% – 90%)
WARNINGS
To ensure safe operation and service of the meter, follow these
instructions. Failure to observe these warnings can result in
severe injury or death.
• Before each use verify meter operation by measuring a known
voltage or current.
• Never use the meter on a circuit with voltages that exceed the
category based rating of this meter.
• Do not use the meter during electrical storms or in wet weather.
• Do not use the meter or test leads if they appear to be damaged.
• Use only with CAT III or CAT IV rated test leads.
• Ensure meter leads are fully seated, and keep fingers away
from the metal probe contacts when making measurements.
• Do not open the meter to replace batteries while the probes
are connected.
• Use caution when working with voltages above 25V AC RMS
or 60V DC. Such voltages pose a shock hazard.
• To avoid false readings that can lead to electrical shock,
replace batteries when a low battery indicator appears.
• Do not attempt to measure resistance or continuity on a live
circuit.
• Always adhere to local and national safety codes. Use personal
protective equipment to prevent shock and arc blast injury
where hazardous live conductors are exposed.
SYMBOLS ON METER
AC (Alternating Current) AC/DC Voltage
Resistance (in Ohms) Audible Continuity
Double Insulated Class II Ground
Warning or Caution Risk of Electrical Shock
Diode Capacitance
Hz
Frequency
%
Duty-cycle
V Voltage (Volts) A Amperage (Amps)
° F/ ° C
Temperature (Fahrenheit / Celsius)
SYMBOLS ON LCD
AC AC (Alternating Current) DC DC (Direct Current)
Negative Reading Data Hold
Auto Ranging MAX Maximum Value Hold
MIN Minimum Value Hold Auto Power Off
Low Battery Audible Continuity
° F
Degrees (Fahrenheit)
° C
Degrees (Celsius)
M Mega (value x 10
6
) k kilo (value x 10
3
)
m milli (value x 10
-3
) μ micro (value x 10
-6
)
n nano (value x 10
-9
) V Volts
A Amps Ohms
Hz% Frequency/Duty Cycle
CL310-1390115ART.indd 5 10/1/2015 3:43:25 PM

Dwg Name: CL310-1390115ART
Dwg No: 1390115
ECO No: 20550 Rev: D
Pkg Dwg Ref: 1290186
Color Reference: N/A
6
FEATURE DETAILS
1
6
2
3
10
12
5
8
7
4
ENGLISH
1. 4000 count LCD display 7. "RANGE" button
2. Function selector switch 8. "MAX/MIN" button
3. Clamp 9. Data Hold button
4. "COM" jack 10.
Clamp trigger (press to open clamp)
5. "VΩ" jack 11. Arrow markings
6. Backlight button 12. "SELECT" button
11
9
NOTE: There are no user-serviceable parts inside meter.
CL310-1390115ART.indd 6 10/1/2015 3:43:26 PM

Dwg Name: CL310-1390115ART
Dwg No: 1390115
ECO No: 20550 Rev: D
Pkg Dwg Ref: 1290186
Color Reference: N/A
7
FUNCTION BUTTONS
ON/OFF
To power ON the meter, rotate the Function Selector switch
2
from
the OFF setting to any measurement setting. To power OFF the meter,
rotate the Function Selector switch
2
to the OFF setting. By default,
the meter will automatically power OFF after 15 minutes of inactivity.
If the meter automatically powers-OFF while in a measurement
setting, rotate Function Selector
2
switch to any other setting
(excluding the OFF setting) to power ON the meter. To deactivate
the power OFF functionality press and hold the "SELECT" button
12
before powering ON from the OFF setting. When auto power OFF
is deactivated, the Auto Power Off icon will not be visible in the
display.
"SELECT" BUTTON (FOR SECONDARY FUNCTIONS)
The "SELECT" button
12
activates the secondary function for each
application accessible by the function selector switch
2
. For voltage,
it toggles between AC and DC. For the other functions, it switches
between °F and °C, between Hz and % Duty-cycle, and between
Continuity, Resistance, Capacitance and Diode-Test. The default
function for each application is printed on the meter in white; the
secondary function or functions for each setting is printed on the
meter in orange.
BACKLIGHT
Press Backlight button symbol
6
to turn ON or OFF the backlight.
The backlight does not automatically power OFF.
RANGE
The meter defaults to auto-ranging mode . This mode
automatically determines the most appropriate measurement range
for the testing that is being conducted. To manually force the meter
to measure in a different range, use the "RANGE" button
7
.
1. Press the "RANGE" button
7
to manually select measurement
range ( is deactivated on the LCD). Repeatedly press the
"RANGE" button
7
to cycle through the available ranges, stopping
once the desired range is reached.
2. To return to auto-ranging mode, press and hold the "RANGE"
button
7
for more than one second ( is reactivated).
CL310-1390115ART.indd 7 10/1/2015 3:43:26 PM

Dwg Name: CL310-1390115ART
Dwg No: 1390115
ECO No: 20550 Rev: D
Pkg Dwg Ref: 1290186
Color Reference: N/A
8
MAX/MIN
When the "MAX/MIN" button
8
is pressed, the meter keeps track
of the Maximum and Minimum values and the difference between
the Maximum and Minimum values as the meter continues to take
samples.
1. When measuring, press "MAX/MIN" button
8
to toggle between
the Maximum value (MAX), the Minimum value (MIN), and the
difference between Maximum and Minimum (MAX-MIN) values.
If a new maximum or minimum occurs the display updates with
that new value.
2. Press "MAX/MIN" button
8
for more than one second to return to
normal measuring mode.
DATA HOLD
Press HOLD
9
to hold the measurement on the display. Press
HOLD
9
again to release the display to return to live measuring.
FUNCTION BUTTONS
ENGLISH
CONNECTIN
Do not test if leads are improperly seated. Results could cause
intermittent display readings. To ensure proper connection, firmly
press leads into the input jack completely. Lead guard should be
flush with the meter’s faceplate.
TE
Ensure the test lead shield is pressed firmly in place. Failure to use
the CATIII / CATIV shield increases arc-flash risk.
TE
CAT III / CAT IV shields may be removed for CAT II locations. This
will allow testing on recessed conductors such as standard wall
outlets. Take care not to lose the shields.
CL310-1390115ART.indd 8 10/1/2015 3:43:27 PM

Dwg Name: CL310-1390115ART
Dwg No: 1390115
ECO No: 20550 Rev: D
Pkg Dwg Ref: 1290186
Color Reference: N/A
9
to toggle between
difference between Maximum and Minimum (MAX-MIN) values.
If a new maximum or minimum occurs the display updates with
for more than one second to return to
OPERATING INSTRUCTIONS

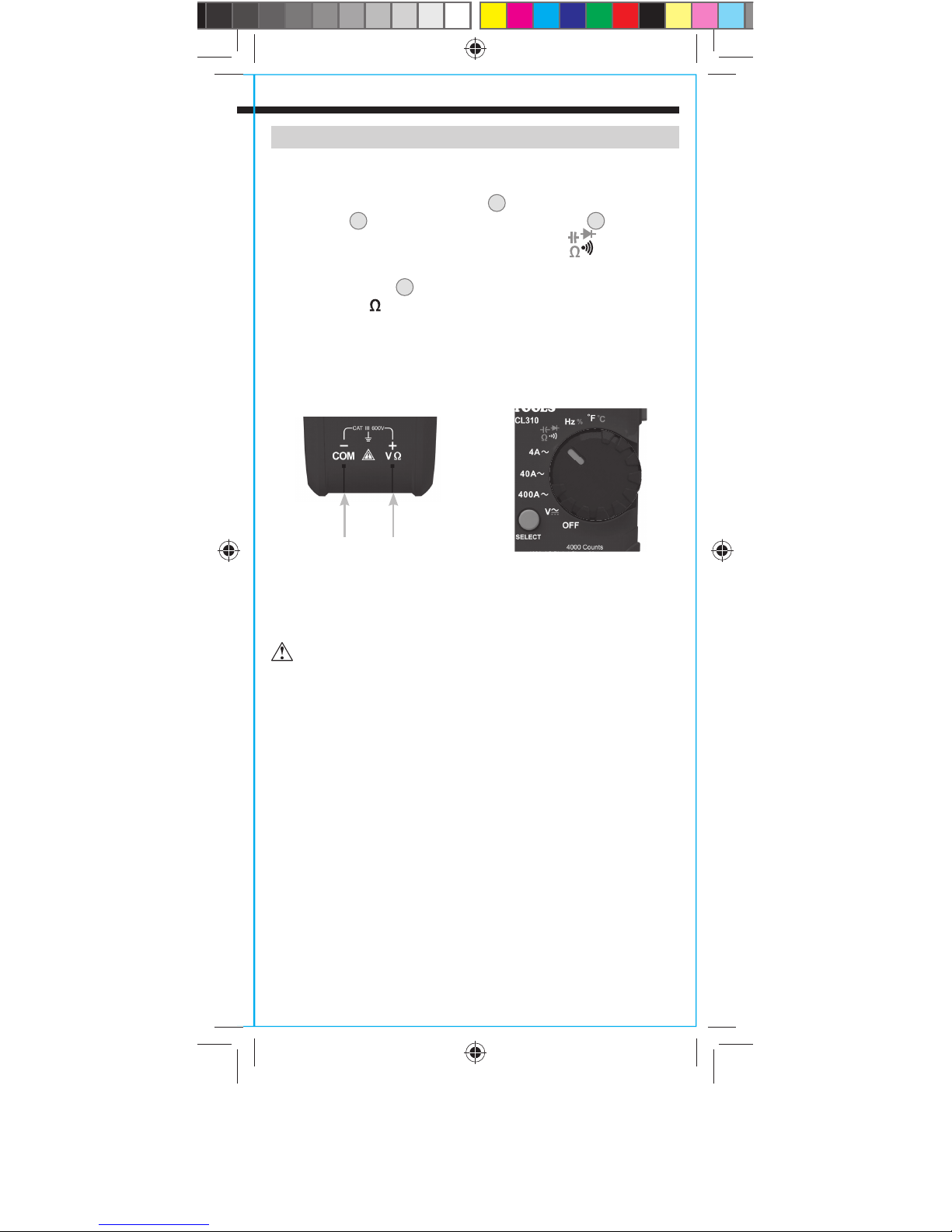

CONNECTING TEST LEADS
Do not test if leads are improperly seated. Results could cause
intermittent display readings. To ensure proper connection, firmly
press leads into the input jack completely. Lead guard should be
flush with the meter’s faceplate.
TESTING IN CAT III / CAT IV MEASUREMENT LOCATIONS
Ensure the test lead shield is pressed firmly in place. Failure to use
the CATIII / CATIV shield increases arc-flash risk.
TESTING IN CAT II MEASUREMENT LOCATIONS
CAT III / CAT IV shields may be removed for CAT II locations. This
will allow testing on recessed conductors such as standard wall
outlets. Take care not to lose the shields.
PRESS
NO GAP
5/32"
(4 mm)
.7" (18 mm)
CL310-1390115ART.indd 9 10/1/2015 3:43:27 PM

Dwg Name: CL310-1390115ART
Dwg No: 1390115
ECO No: 20550 Rev: D
Pkg Dwg Ref: 1290186
Color Reference: N/A
10
ENGLISH
OPERATING INSTRUCTIONS
AC CURRENT (LESS THAN 400A)
AC Current is measured by pressing the clamp trigger
10
to open
the clamp and placing it around a current-carrying wire. When
measuring, care should be taken to ensure that the clamp is
completely closed with trigger
10
fully released, and that the wire
passes perpendicularly through the center of the clamp in line with
the arrow markings
11
.
To measure current:
1. Rotate the Function Selector switch
2
to the 400 A setting.
2. Place clamp around wire. The current measurement will be shown
in the display.
NOTE: If the measurement is less than 40A, rotate the Function
Selector switch
2
to the 40 A setting for improved resolution. If the
measurement is less than 4A, rotate the Function Selector switch
2
to the 4 A setting for improved resolution.
Disconnect test leads when measuring with the clamp.
OR
WIRE
CL310-1390115ART.indd 10 10/1/2015 3:43:28 PM

Dwg Name: CL310-1390115ART
Dwg No: 1390115
ECO No: 20550 Rev: D
Pkg Dwg Ref: 1290186
Color Reference: N/A
11
OPERATING INSTRUCTIONS
AC/DC VOLTAGE (LESS THAN 600V)
1. Insert RED test lead into VΩ jack
5
, and BLACK test lead into
COM jack
4
, and rotate function selector switch
2
to the
Vsetting for AC or DC measurements. The meter defaults to
AC measurement. To measure DC, press the "SELECT" button
12
to toggle between AC and DC modes. The AC or DC icon on
the LCD indicates which mode is selected. Note "AC" or "DC" on
the display.
Apply test leads to the circuit to be tested to measure voltage.
The meter will auto-range to display the measurement in the most
appropriate range.
NOTE: If "–" appears on the LCD, the test leads are being applied to
the circuit in reverse. Swap the position of the leads to correct this.
NOTE: When in a voltage setting and the test leads are open,
readings of order mV may appear on the display. This is noise and
is normal. By touching the test leads together to close the circuit
the meter will measure zero volts.
Red leadBlack lead
CL310-1390115ART.indd 11 10/1/2015 3:43:29 PM

Dwg Name: CL310-1390115ART
Dwg No: 1390115
ECO No: 20550 Rev: D
Pkg Dwg Ref: 1290186
Color Reference: N/A
12
ENGLISH
Red leadBlack lead
CONTINUITY
1. Insert RED test lead into VΩ jack
5
, and BLACK test lead into
COM jack
4
, and rotate function selector switch
2
to the
Continuity/Resistance/Capacitance/Diode-Test setting.
NOTE: The meter defaults to Continuity testing in this mode. Ensure
that the Continuity Testing icon is visible on the display. If not,
press the "SELECT" button
12
repeatedly until the icon is shown.
2. Remove power from circuit.
3. Test for continuity by connecting conductor or circuit with test
leads. If resistance is measured less than 10Ω, an audible signal
will sound and display will show a resistance value indicating
continuity. If circuit is open display will show "OL".
DO NOT attempt to measure continuity on a live circuit.
OPERATING INSTRUCTIONS
CL310-1390115ART.indd 12 10/1/2015 3:43:29 PM

Dwg Name: CL310-1390115ART
Dwg No: 1390115
ECO No: 20550 Rev: D
Pkg Dwg Ref: 1290186
Color Reference: N/A
13
OPERATING INSTRUCTIONS
RESISTANCE MEASUREMENTS
1. Insert RED test lead into VΩ jack
5
, and BLACK test lead into
COM jack
4
, and rotate function selector switch
2
to the
Continuity/Resistance/Capacitance/Diode-Test setting.
NOTE: The meter defaults to Continuity testing in this mode. Press
the "SELECT" button
12
once to enter Resistance testing mode. The
Resistance icon will appear on the display.
2. Remove power from circuit.
3. Measure resistance by connecting test leads to circuit. The
meter will auto-range to display the measurement in the most
appropriate range.
NOTE: When in a Resistance setting and the test leads are open
(not connected across a resistor), or when a failed resistor is under
test, the display will indicate O.L. This is normal.
DO NOT attempt to measure resistance on a live circuit.
Red leadBlack lead
CL310-1390115ART.indd 13 10/1/2015 3:43:30 PM

Dwg Name: CL310-1390115ART
Dwg No: 1390115
ECO No: 20550 Rev: D
Pkg Dwg Ref: 1290186
Color Reference: N/A
14
DIODE TEST
1.
NOTE:
the "SELECT" button
The Diode icon
2.
ENGLISH
FREQUENCY / DUTY
1.
NOTE:
Duty-Cycle testing mode, press the "SELECT" button
that the appropriate icon (either
2.
Red leadBlack lead
CAPACITANCE
1. Insert RED test lead into VΩ jack
5
, and BLACK test lead into
COM jack
4
, and rotate function selector switch
2
to the
Continuity/Resistance/Capacitance/Diode-Test setting.
NOTE: The meter defaults to Continuity testing in this mode. Press
the "SELECT" button
12
twce to enter Capacitance testing mode.
The Capacitance icon will appear on the display. The meter
should read 0 nF with test leads open.
2. Remove power from circuit.
3. Measure capacitance by connecting test leads across the
capacitor. The meter will auto-range to display the measurement
in the most appropriate range.
OPERATING INSTRUCTIONS
CL310-1390115ART.indd 14 10/1/2015 3:43:30 PM

Dwg Name: CL310-1390115ART
Dwg No: 1390115
ECO No: 20550 Rev: D
Pkg Dwg Ref: 1290186
Color Reference: N/A
15
OPERATING INSTRUCTIONS
DIODE TEST
1. Insert RED test lead into VΩ jack
5
, and BLACK test lead into
COM jack
4
, and rotate function selector switch
2
to the
Continuity/Resistance/Capacitance/Diode-Test setting.
NOTE: The meter defaults to Continuity testing in this mode. Press
the "SELECT" button
12
three times to enter Diode testing mode.
The Diode icon will appear on the display.
2. Touch test leads to diode. A reading of 200-800mV on display
indicates forward bias, "OL" indicates reverse bias. An open
device will show "OL" in both polarities. A shorted device will
show approximately 0mV.
Red leadBlack lead
Red leadBlack lead
FREQUENCY / DUTY-CYCLE
1. Insert RED test lead into VΩ jack
5
and BLACK test lead into
COM jack
4
, and rotate function selector switch
2
to the
Frequency/Duty-Cycle setting.
NOTE: The meter defaults to Frequency testing in this mode. To enter
Duty-Cycle testing mode, press the "SELECT" button
12
once. Ensure
that the appropriate icon (either
Hz or % ) appears on the display.
2. Measure by connecting test leads across the circuit.
CL310-1390115ART.indd 15 10/1/2015 3:43:31 PM

Dwg Name: CL310-1390115ART
Dwg No: 1390115
ECO No: 20550 Rev: D
Pkg Dwg Ref: 1290186
Color Reference: N/A
16
ENGLISH
OPERATING INSTRUCTIONS
TEMPERATURE
1. Insert K-type thermocouple into the VΩ
5
and COM
4
jacks
(observe polarity markings on thermocouple and meter), and rotate
function selector switch
2
to the Temperature setting.
NOTE: The meter defaults to Fahrenheit scale in this mode. To enter
Celsius scale, press the "SELECT" button
12
once. Ensure that the
appropriate icon (either
°F or °C ) appears on the display.
2. To measure temperature, make contact between the
thermocouple tip and the object being measured. When
thermocouple tip and object are in thermal equilibrium, the
measurement on the display will stabilize. The meter will auto-
range to display the measurement in the most appropriate range.
Remove thermocouple before switching meter to other
measurement functions.
The thermocouple included with the original purchase
is suitable for temperatures below 446°F / 230°C only. To
measure higher temperatures, a K-type thermocouple
with the appropriate measurement range should be used.
K-Type
Thermocouple
CL310-1390115ART.indd 16 10/1/2015 3:43:32 PM

Dwg Name: CL310-1390115ART
Dwg No: 1390115
ECO No: 20550 Rev: D
Pkg Dwg Ref: 1290186
Color Reference: N/A
17
MAINTENANCE
BATTERY REPLACEMENT
When indicator is displayed on LCD, batteries must be replaced.
1. Remove screw from battery door.
2. Replace 3 x AAA batteries (note proper polarity).
3. Replace battery door and fasten securely with screw.
T o avoid risk of electric shock, disconnect leads from any voltage
source before removing battery door.
To avoid risk of electric shock, do not operate meter while
battery door is removed.
CL310-1390115ART.indd 17 10/1/2015 3:43:32 PM

Dwg Name: CL310-1390115ART
Dwg No: 1390115
ECO No: 20550 Rev: D
Pkg Dwg Ref: 1290186
Color Reference: N/A
ENGLISH
CLEANING
Be sure meter is turned off and wipe with a clean, dry lint-free
cloth.
Do not use abrasive cleaners or solvents.
STORAGE
Remove the batteries when meter is not in use for a prolonged
period of time. Do not expose to high temperatures or
humidity. After a period of storage in extreme conditions
exceeding the limits mentioned in the General Specifications
section, allow the meter to return to normal operating
conditions before using.
WARRANTY
www.kleintools.com/warranty
DISPOSAL /RECYCLE
Do not place equipment and its accessories in the trash.
Items must be properly disposed of in accordance with local
regulations. Please see www.epa.gov or www.erecycle.org
for additional information.
CUSTOMER SERVICE
KLEIN TOOLS, INC.
450 Bond Street
Lincolnshire, IL 60069
1-877-775-5346
[email protected]
www.kleintools.com
CL310-1390115ART.indd 18 10/1/2015 3:43:33 PM
