Fisher DCS-TS750 User manual

OPERATING INSTRUCTIONS
^ FISHER
DCS-TS750
DVD Home Theater System
VIDEO
nn I DOLBY I
DIGITAL
mR3
DIGITAL AUDIO
TVG
TECHNOLOGY
FISHER'S HELP-LINE
Call the toll-free number below if you have any difficulties operating this product.
1-800-421-5013 (weekdays 8:00 AM - 5:00 PM, Pacific time)
1AD6P1P1689- - DCS-TS750, Issue Number 1
English

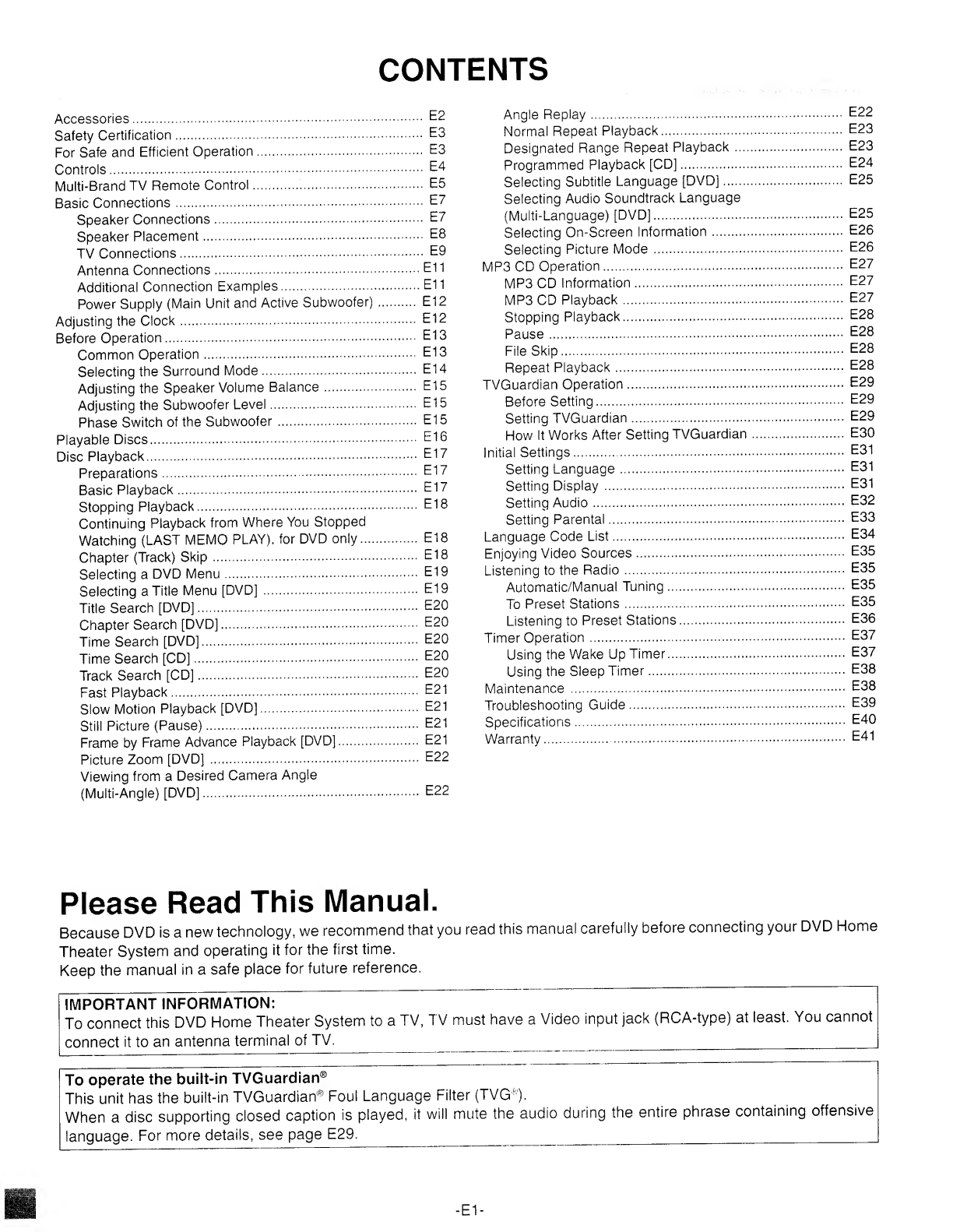

CONTENTS
Accessories.
Safety Certification.
For Safe and Efficient Operation.
Controls.
Multi-Brand TV Remote Control..
Basic Connections...
Speaker Connections.

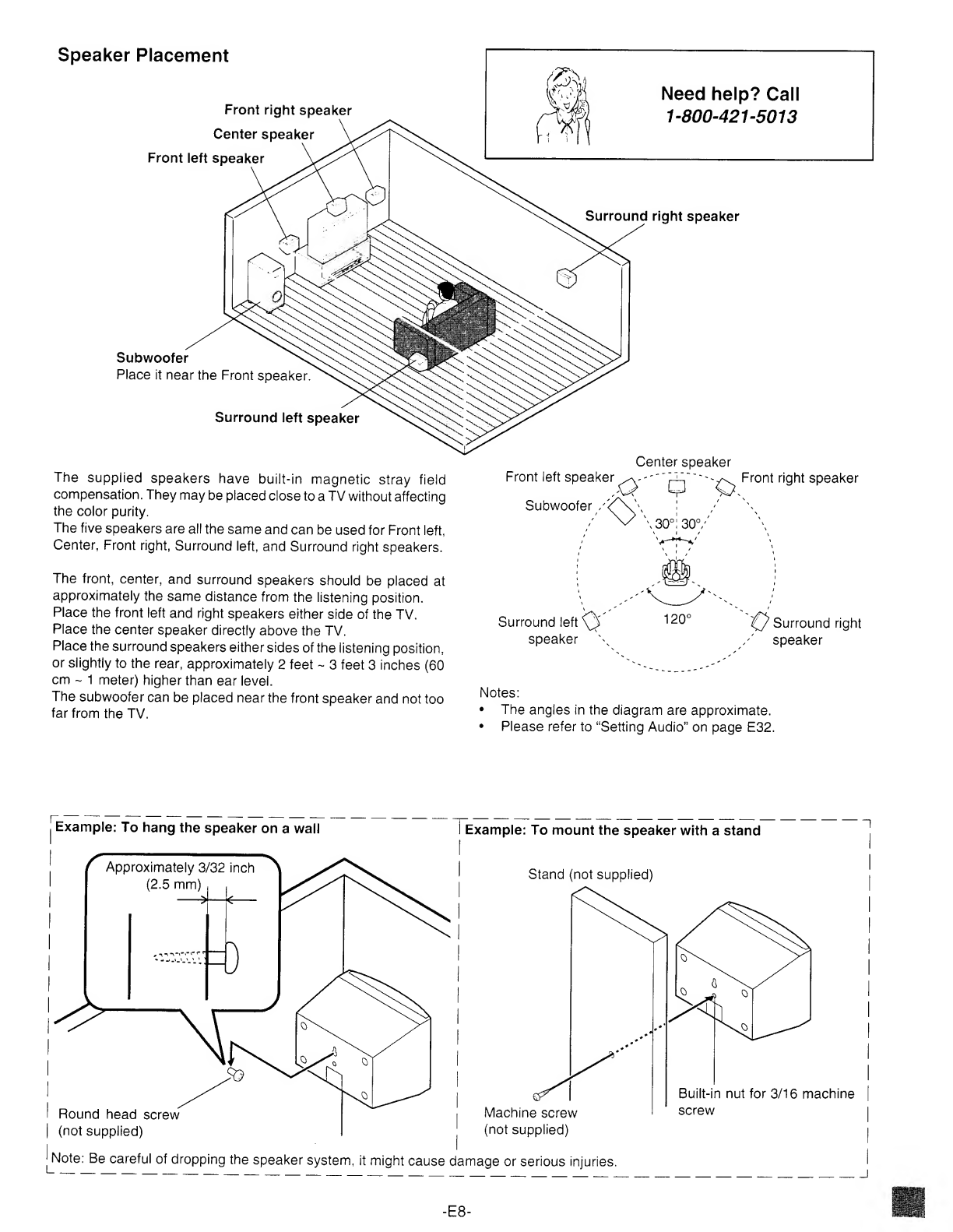

Speaker Placement.
TV Connections.

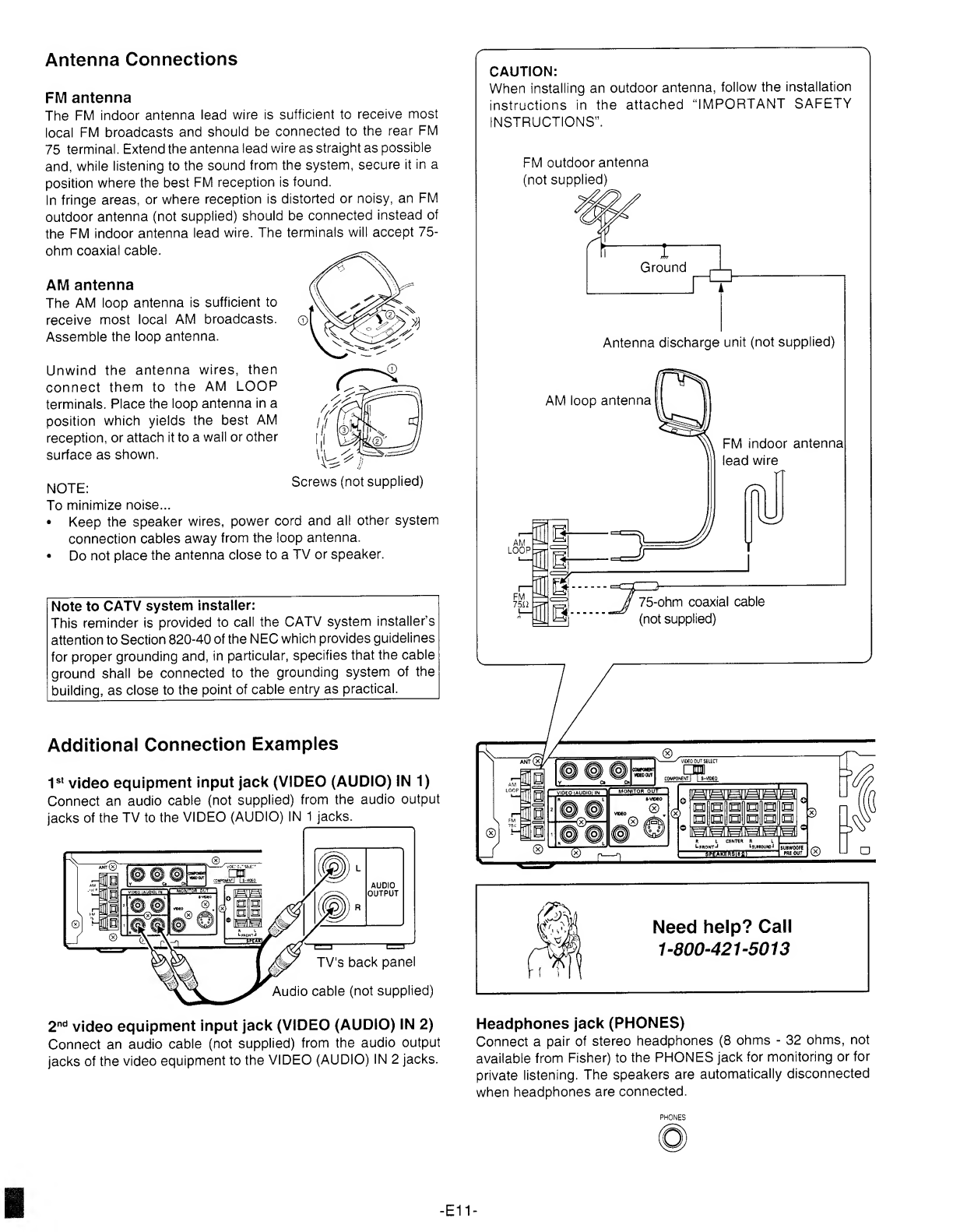

Antenna Connections.
Additional Connection Examples.

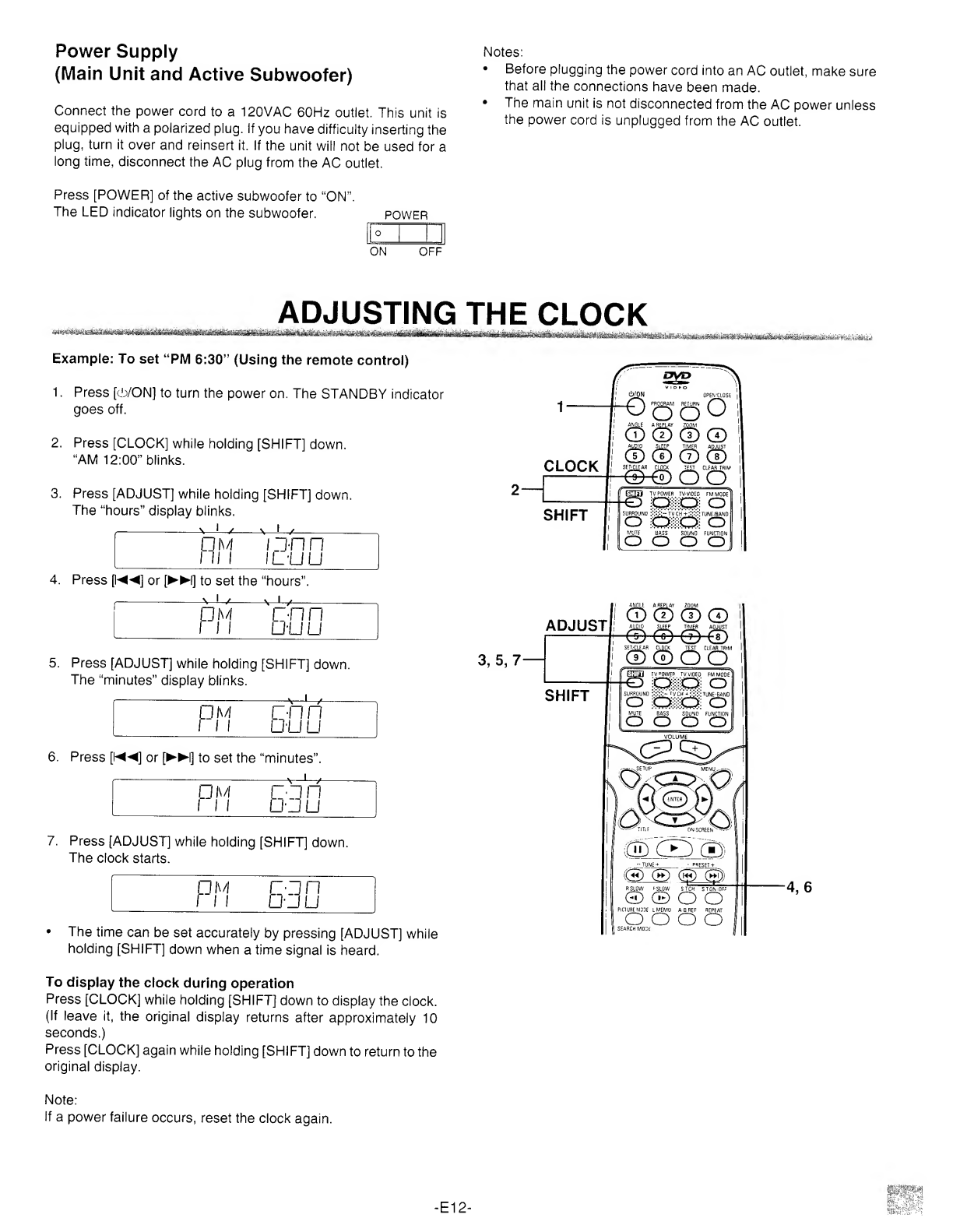

Power Supply (Main Unit and Active Subwoofer)
Adjusting the Clock..
Before Operation.
Common Operation.
Selecting the Surround Mode.

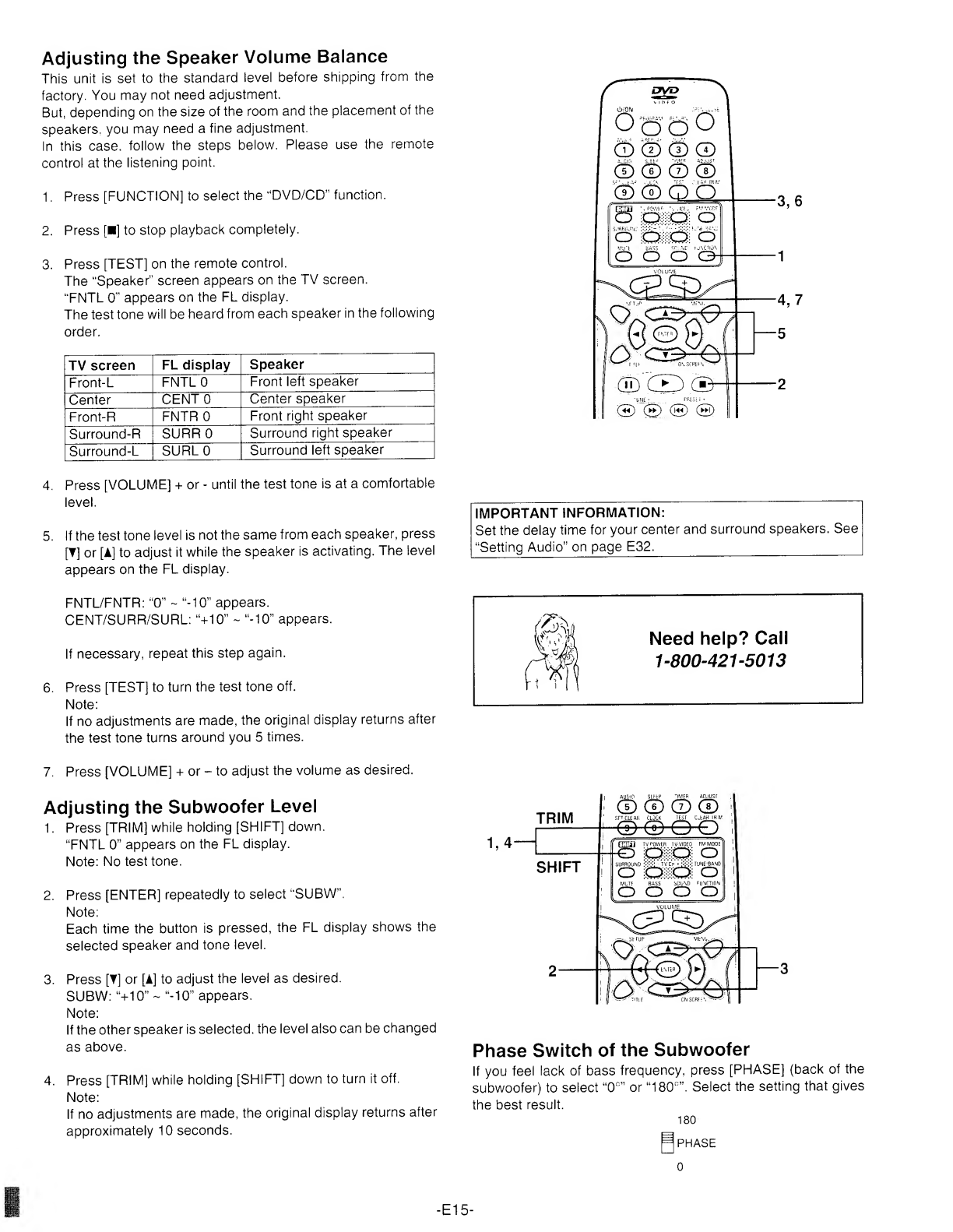

Adjusting the Speaker Volume Balance.
Adjusting the Subwoofer Level.
Phase Switch of the Subwoofer.
Playable Discs.

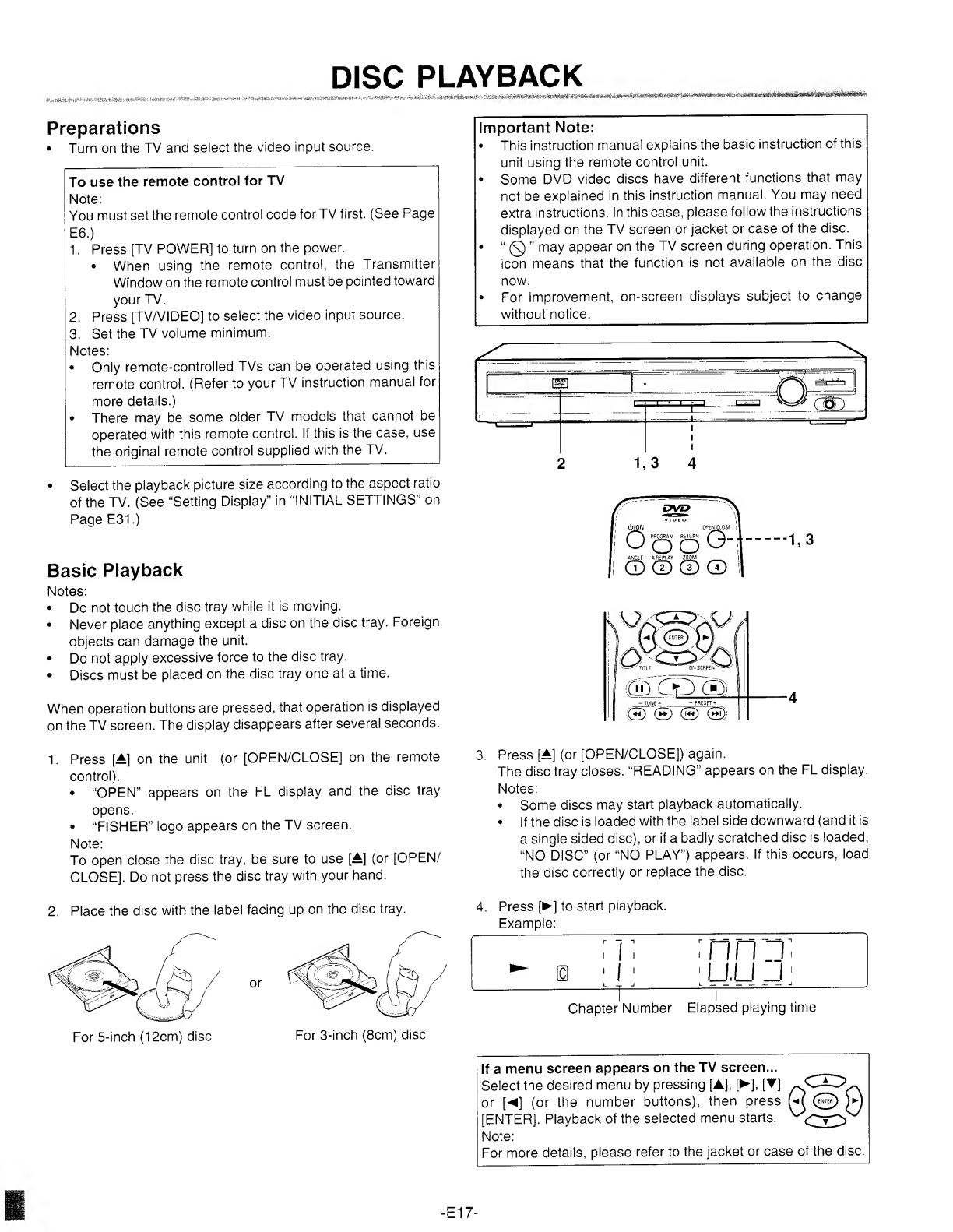

Disc Playback.
Preparations.
Basic Playback...
Stopping Playback.
Continuing Playback from Where You Stopped
Watching (LAST MEMO PLAY), for DVD only....
Chapter (Track) Skip...

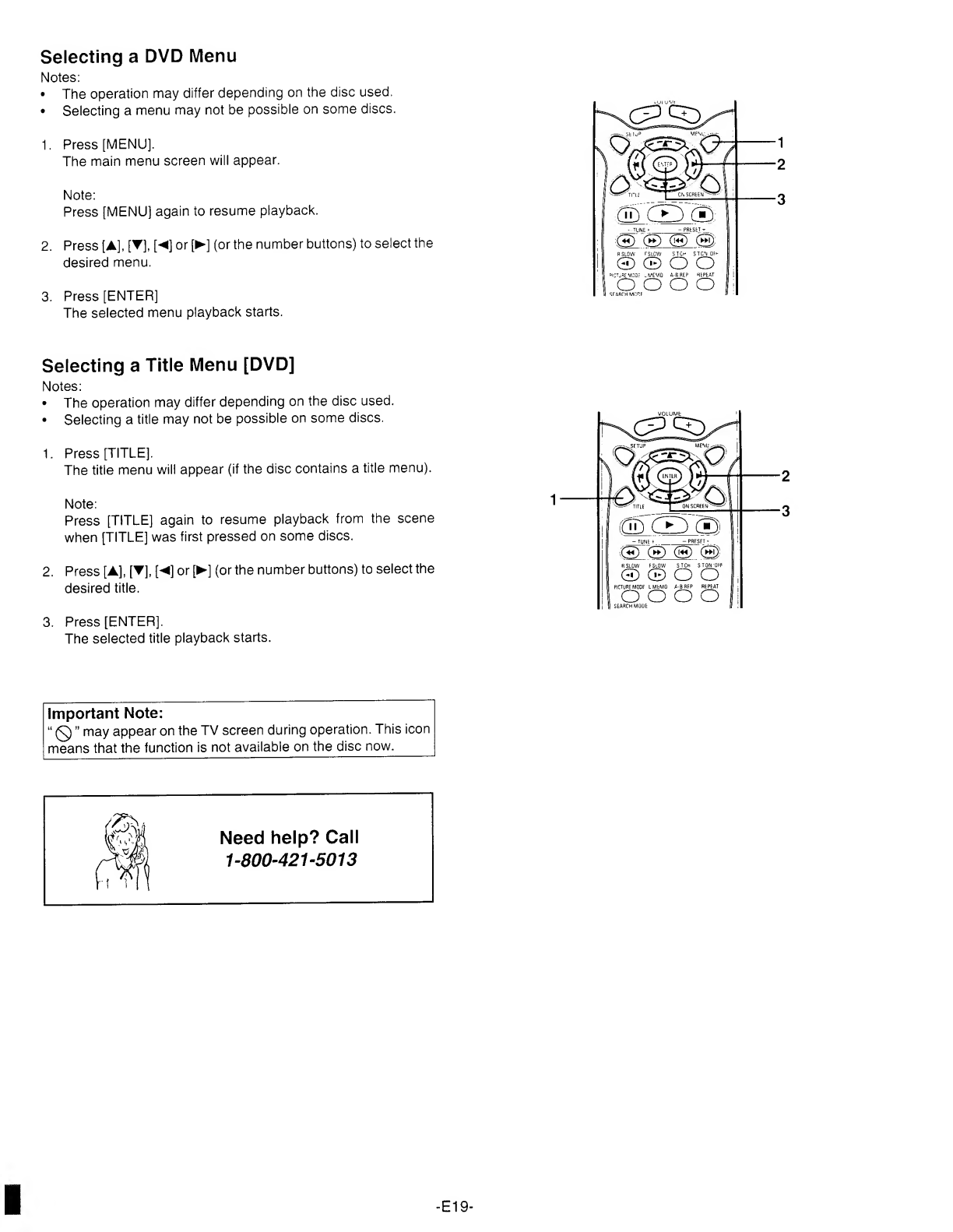

Selecting a DVD Menu.
Selecting a Title Menu [DVD] .
Title Search [DVD].
Chapter Search [DVD].
Time Search [DVD].
Time Search [CD].
Track Search [CD].
Fast Playback.
Slow Motion Playback [DVD].
Still Picture (Pause).
Frame by Frame Advance Playback [DVD].
Picture Zoom [DVD] .
Viewing from a Desired Camera Angle
(Multi-Angle) [DVD].
. E2
. E3
E3
E4
E5
E7
E7
E8
. E9
E11
E11
E12
E12
E13
E13
E14
E15
E15
E15
E16
E17
E17
E17
E18
E18
E18
E19
E19
E20
E20
E20
E20
E20
E21
E21
E21
E21
E22
E22
Angle Replay. E22
Normal Repeat Playback. E23
Designated Range Repeat Playback. E23
Programmed Playback [CD]. E24
Selecting Subtitle Language [DVD]. E25
Selecting Audio Soundtrack Language
(Multi-Language) [DVD]. E25
Selecting On-Screen Information. E26
Selecting Picture Mode. E26
MP3 CD Operation. E27
MP3 CD Information. E27
MP3 CD Playback. E27
Stopping Playback. E28
Pause. E28
File Skip. E28
Repeat Playback. E28
TVGuardian Operation. E29
Before Setting. E29
Setting TVGuardian. E29
How It Works After Setting TVGuardian. E30
Initial Settings. E31
Setting Language. E31
Setting Display. E31
Setting Audio. E32
Setting Parental. E33
Language Code List. E34
Enjoying Video Sources. E35
Listening to the Radio. E35
Automatic/Manual Tuning. E35
To Preset Stations. E35
Listening to Preset Stations. E36
Timer Operation. E37
Using the Wake Up Timer. E37
Using the Sleep Timer. E38
Maintenance . E38
Troubleshooting Guide. E39
Specifications. E40
Warranty. E41
Please Read This Manual.
Because DVD is a new technology, we recommend that you read this manual carefully before connecting your DVD Home
Theater System and operating it for the first time.
Keep the manual in a safe place for future reference.
IMPORTANT INFORWIATION;
To connect this DVD Home Theater System to a TV, TV must have a Video input jaok (RCA-type) at least. You cannot
connect it to an antenna terminal of TV. _^
To operate the built-in TVGuardian®
This unit has the built-in TVGuardian* Foul Language Filter (TVG-).
When a disc supporting closed caption is played, it will mute the audio during the entire phrase containing offensive
language. For more details, see page E29. __
-El-

RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: to prevent the risk of electric
SHOCK, DO NOT REMOVE COVER (OR BACK).
NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
WARNING: TO PREVENT FIRE OR SHOCK HAZARD,
DO NOT EXPOSE THIS APPLIANCE TO RAIN OR
MOISTURE.
This symbol indicates that dangerous voltage
constituting a risk of electric shock is present
within this unit.
This symbol indicates that there are impor¬
tant operating and maintenance instructions
in the literature accompanying this unit.
WARNING: UNAUTHORIZED RECORDING OF COPY¬
RIGHTED MATERIAL MAY VIOLATE APPLICABLE
COPYRIGHT LAWS. THE MANUFACTURER ASSUMES
NO RESPONSIBILITY FOR UNAUTHORIZED DUPLICA¬
TION, USE OR OTHER ACTS WHICH INFRINGE UPON
THE RIGHTS OF COPYRIGHT OWNERS.
ACCESSORIES
Front right speaker cable
Length: Approx. 23 feet (7 meters)
(Black and Red)
Front left speaker cable
Length: Approx. 23 feet (7 meters)
(Black and Blue)
Front center speaker cable
Length: Approx. 23 feet (7 meters)
(Black and Green)
Surround right speaker cable
Length: Approx. 23 feet (7 meters)
(Black and Orange)
FM indoor antenna lead wire
Surround left speaker cable
Length: Approx. 23 feet (7 meters)
(Black and Gray)
Video cable
Subwoofer cable with RCA-type plug
Length: Approx. 23 feet (7 meters)
(Black and Brown)
-E2-

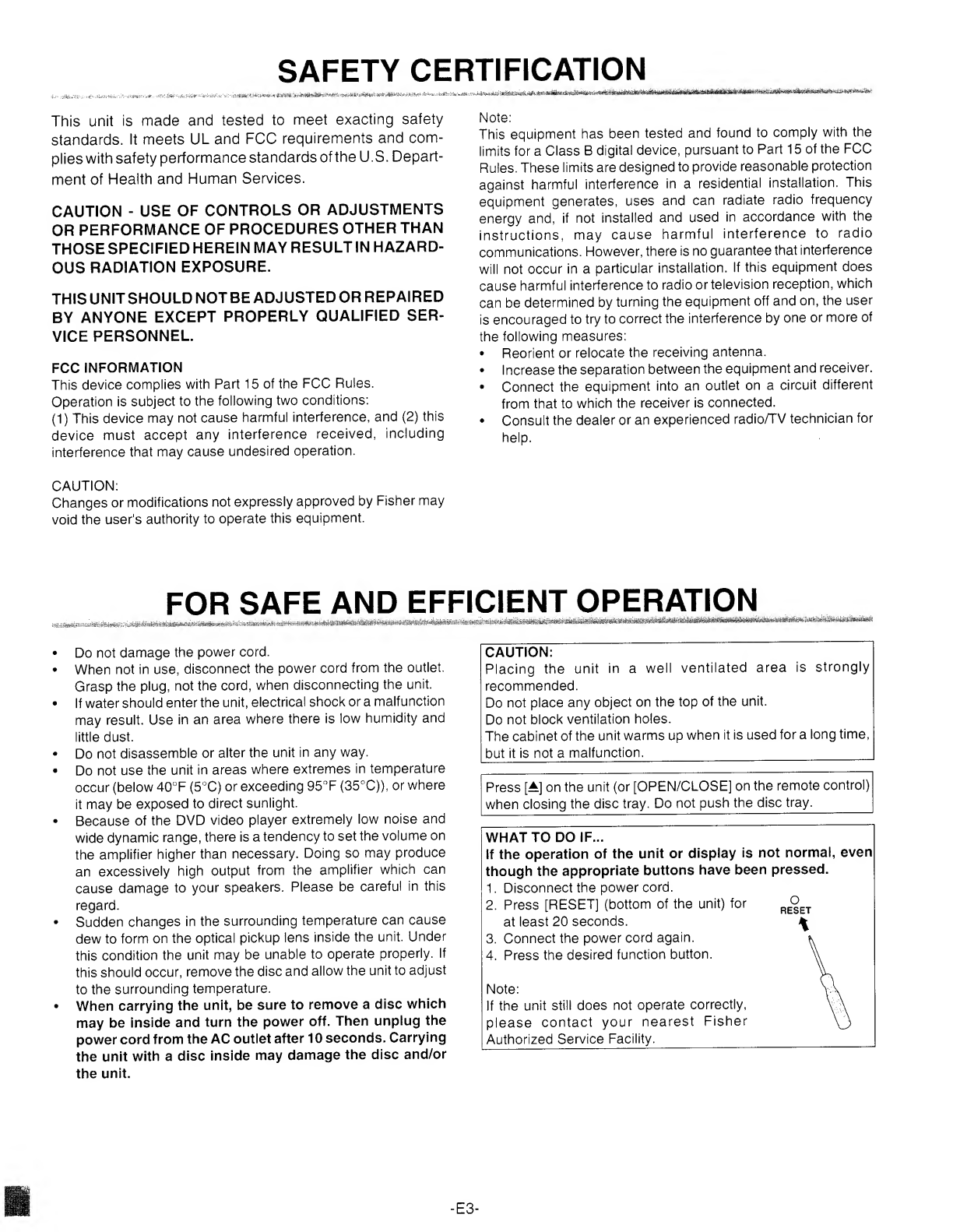

SAFETY CERTIFICATION
This unit is made and tested to meet exacting safety
standards. It meets UL and FCC requirements and com¬
plies with safety performance standards of the U.S. Depart¬
ment of Health and Human Services.
CAUTION - USE OF CONTROLS OR ADJUSTMENTS
OR PERFORMANCE OF PROCEDURES OTHER THAN
THOSE SPECIFIED HEREIN MAY RESULT IN HAZARD¬
OUS RADIATION EXPOSURE.
THIS UNIT SHOULD NOT BE ADJUSTED OR REPAIRED
BY ANYONE EXCEPT PROPERLY QUALIFIED SER¬
VICE PERSONNEL.
FCC INFORMATION
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this
device must accept any interference received, including
interference that may cause undesired operation.
CAUTION;
Changes or modifications not expressly approved by Fisher may
void the user's authority to operate this equipment.
Note:
This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user
is encouraged to try to correct the interference by one or more of
the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for
help.
FOR SAFE AND EFFICIENT OPERATION
Do not damage the power cord.
When not in use, disconnect the power cord from the outlet.
Grasp the plug, not the cord, when disconnecting the unit.
If water should enter the unit, electrical shock or a malfunction
may result. Use in an area where there is low humidity and
little dust.
Do not disassemble or alter the unit in any way.
Do not use the unit in areas where extremes in temperature
occur (below 40''F (5°C) or exceeding 95”F (35^C)), or where
it may be exposed to direct sunlight.
Because of the DVD video player extremely low noise and
wide dynamic range, there is a tendency to set the volume on
the amplifier higher than necessary. Doing so may produce
an excessively high output from the amplifier which can
cause damage to your speakers. Please be careful in this
regard.
Sudden changes in the surrounding temperature can cause
dew to form on the optical pickup lens inside the unit. Under
this condition the unit may be unable to operate properly. If
this should occur, remove the disc and allow the unit to adjust
to the surrounding temperature.
When carrying the unit, be sure to remove a disc which
may be inside and turn the power off. Then unplug the
power cord from the AC outlet after 10 seconds. Carrying
the unit with a disc inside may damage the disc and/or
the unit.
CAUTION:
Placing the unit in a well ventilated area is strongly
recommended.
Do not place any object on the top of the unit.
Do not block ventilation holes.
The cabinet of the unit warms up when it is used for a long time,
but it is not a malfunction. _
Press [A] on the unit (or [OPEN/CLOSE] on the remote control)
when closing the disc tray. Do not push the disc tray._
WHAT TO DO IF...
If the operation of the unit or dispiay is not normai, even
though the appropriate buttons have been pressed.
1. Disconnect the power cord.
2. Press [RESET] (bottom of the unit) for
O
RESET
at least 20 seconds.
3. Connect the power cord again.
4. Press the desired function button.
Note:
If the unit still does not operate correctly,
please contact your nearest Fisher
Authorized Service Facility.
\
-E3-

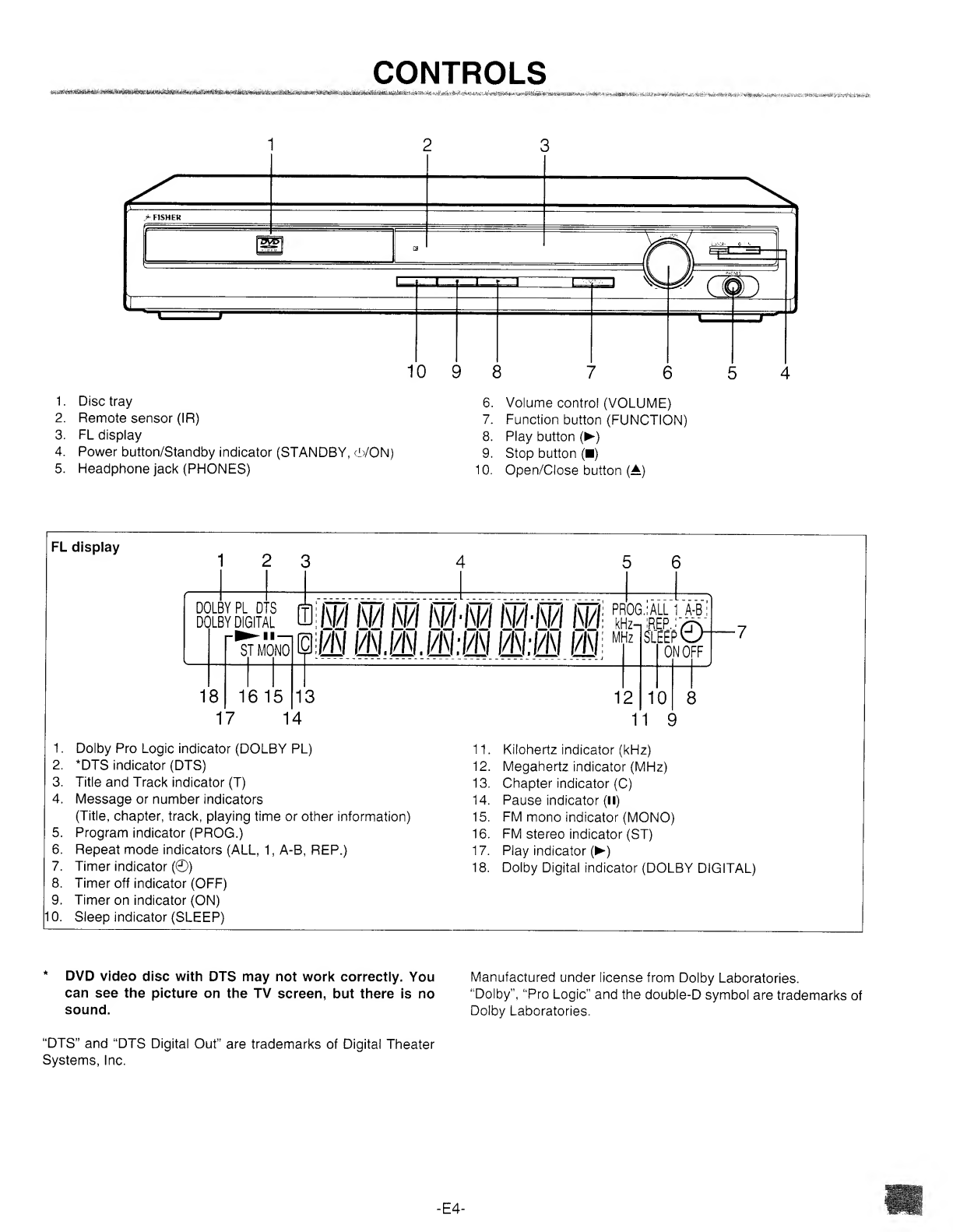

CONTROLS
1.
Disc tray 6.
Volume control (VOLUME)
2.
Remote sensor (IR)
7.
Function button (FUNCTION)
3.
FL display 8.
Play button ( ► )
4.
Power button/standby indicator (STANDBY, cL/ON)
9. Stop button ( ■ )
5.
Headphone jack (PHONES)
10 .
Open/Close button (A)
FL display
1. Dolby Pro Logic indicator (DOLBY PL)
2. *DTS indicator (DTS)
3. Title and Track indicator (T)
4. Message or number indicators
(Title, chapter, track, playing time or other information)
5. Program indicator (PROG.)
6. Repeat mode indicators (ALL, 1, A-B, REP.)
7. Timer indicator (©)
8. Timer off indicator (OFF)
9. Timer on indicator (ON)
0. Sleep indicator (SLEEP)
11. Kilohertz indicator (kHz)
12. Megahertz indicator (MHz)
13. Chapter indicator (C)
14. Pause indicator (ii)
15. FM mono indicator (MONO)
16. FM stereo indicator (ST)
17. Play indicator ( ► )
18. Dolby Digital indicator (DOLBY DIGITAL)
* DVD video disc with DTS may not work correctly. You
can see the picture on the TV screen, but there Is no
sound.
“DTS” and “DTS Digital Out” are trademarks of Digital Theater
Systems, Inc.
Manufactured under license from Dolby Laboratories.
“Dolby”, “Pro Logic” and the double-D symbol are trademarks of
Dolby Laboratories.
-E4'

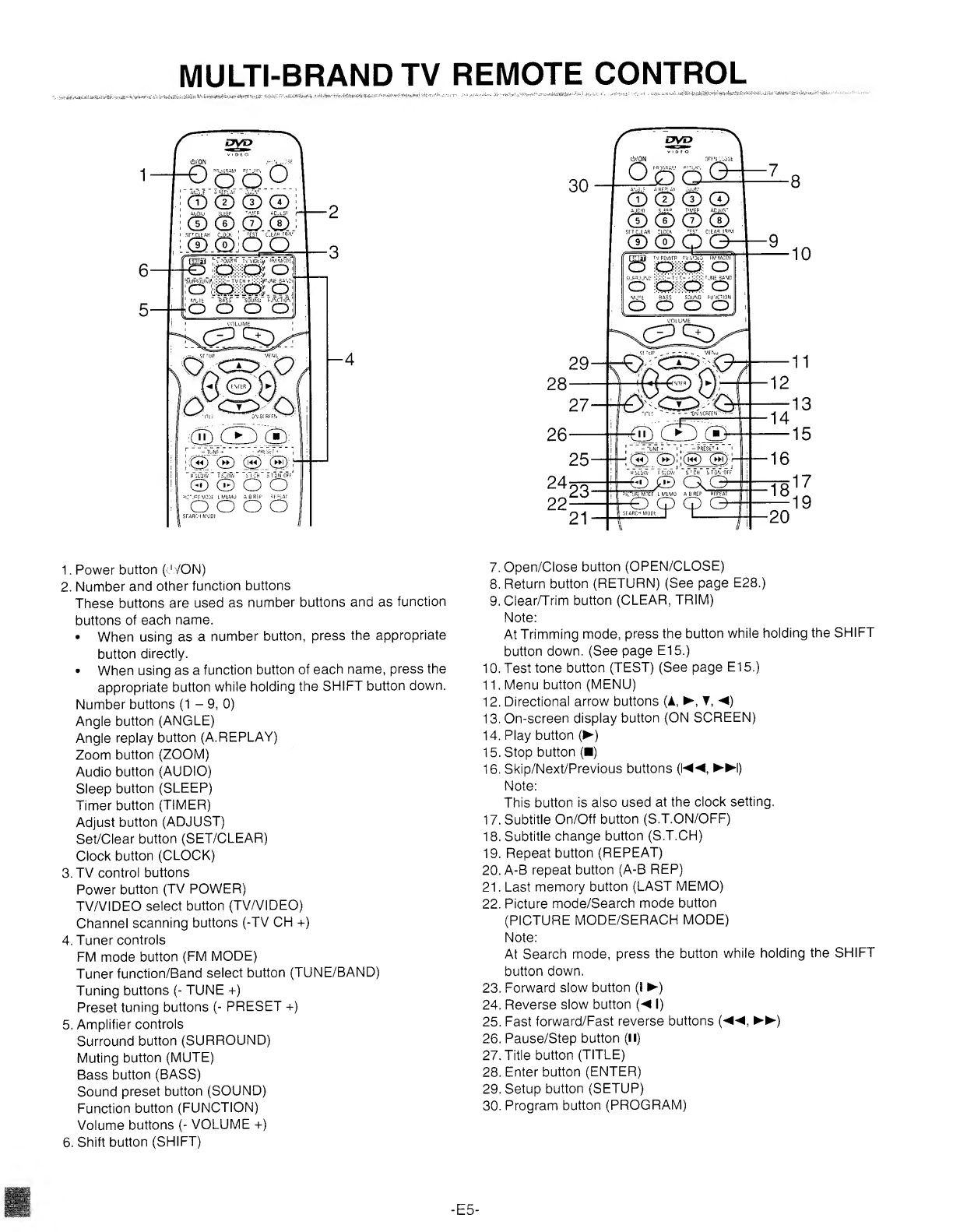

MULTI-BRAND TV REMOTE CONTROL
6 -
5 -
© cl) ® CD
©(DcB®
S iolS o'
sijRaouM]'i:::%-TV ch j'je BiSD
O :OiO :.0
f/vit * bass" ■ "sound TJ\CTiO*>
o o o o
CiL) CED ® ;
; 'S) ® ® .
' fT 5[aw “ f sTow" s IDH s T“a n of r'
® ® O O
-2
-3
h 4
30
28
27 -
26 -
25 -
24
22
23 -
'21
£7VP
iDo
o
© CD ® CD
cf) (f) (S S)
SFTC.FAR SLCCK Cl. EAS IR I^.
CD CD (D (3
o o o o
o’^OiO'o‘
MJ't BASS SOUND FUVC'ICIN
o o o o
a S' 'iir= ^ MFNu^,^
^ r)-^
■ ClD C^" C^
"I (D CD* IOD ^
j JE) C X Q~
•lOCF Lf/fcMO ABREP PPPEAI
-®) Q Cp O
SfARC-MULU I I
•10
■ 1 1
■ 1 2
■ 1 4
•13
•15
■ 1 6
■ 1 8
-20
17
19
1. Power button (c'VON)
2. Number and other function buttons
These buttons are used as number buttons and as function
buttons of each name.
• When using as a number button, press the appropriate
button directly.
• When using as a function button of each name, press the
appropriate button while holding the SHIFT button down.
Number buttons (1 - 9, 0)
Angle button (ANGLE)
Angle replay button (A.REPLAY)
Zoom button (ZOOM)
Audio button (AUDIO)
Sleep button (SLEEP)
Timer button (TIMER)
Adjust button (ADJUST)
Set/Clear button (SET/CLEAR)
Clock button (CLOCK)
3. TV control buttons
Power button (TV POWER)
TV/VIDEO select button (TV/VIDEO)
Channel scanning buttons (-TV CH +)
4. Tuner controls
FM mode button (FM MODE)
Tuner function/Band select button (TUNE/BAND)
Tuning buttons (- TUNE -h)
Preset tuning buttons (- PRESET -h)
5. Amplifier controls
Surround button (SURROUND)
Muting button (MUTE)
Bass button (BASS)
Sound preset button (SOUND)
Function button (FUNCTION)
Volume buttons (- VOLUME -i-)
6. Shift button (SHIFT)
7. Open/Close button (OPEN/CLOSE)
8. Return button (RETURN) (See page E28.)
9. Clear/Trim button (CLEAR, TRIM)
Note:
At Trimming mode, press the button while holding the SHIFT
button down. (See page E15.)
10. Test tone button (TEST) (See page El5.)
11. Menu button (MENU)
12. Directional arrow buttons (A, ► , ▼ , ◄ )
13. On-screen display button (ON SCREEN)
14. Play button ( ► )
15. Stop button ( ■ )
16. Skip/Next/Previous buttons (! ◄◄ , ►► !)
Note:
This button is also used at the clock setting,
17. Subtitle On/Off button (S.T.ON/OFF)
18. Subtitle change button (S.T.CH)
19. Repeat button (REPEAT)
20. A-B repeat button (A-B REP)
21. Last memory button (LAST MEMO)
22. Picture mode/Search mode button
(PICTURE MODE/SERACH MODE)
Note:
At Search mode, press the button while holding the SHIFT
button down.
23. Forward slow button (! ► )
24. Reverse slow button ( ◄ I)
25. Fast forward/Fast reverse buttons ( ◄ ◄ , ►► )
26. Pause/Step button (ii)
27. Title button (TITLE)
28. Enter button (ENTER)
29. Setup button (SETUP)
30. Program button (PROGRAM)
■ E 5 -

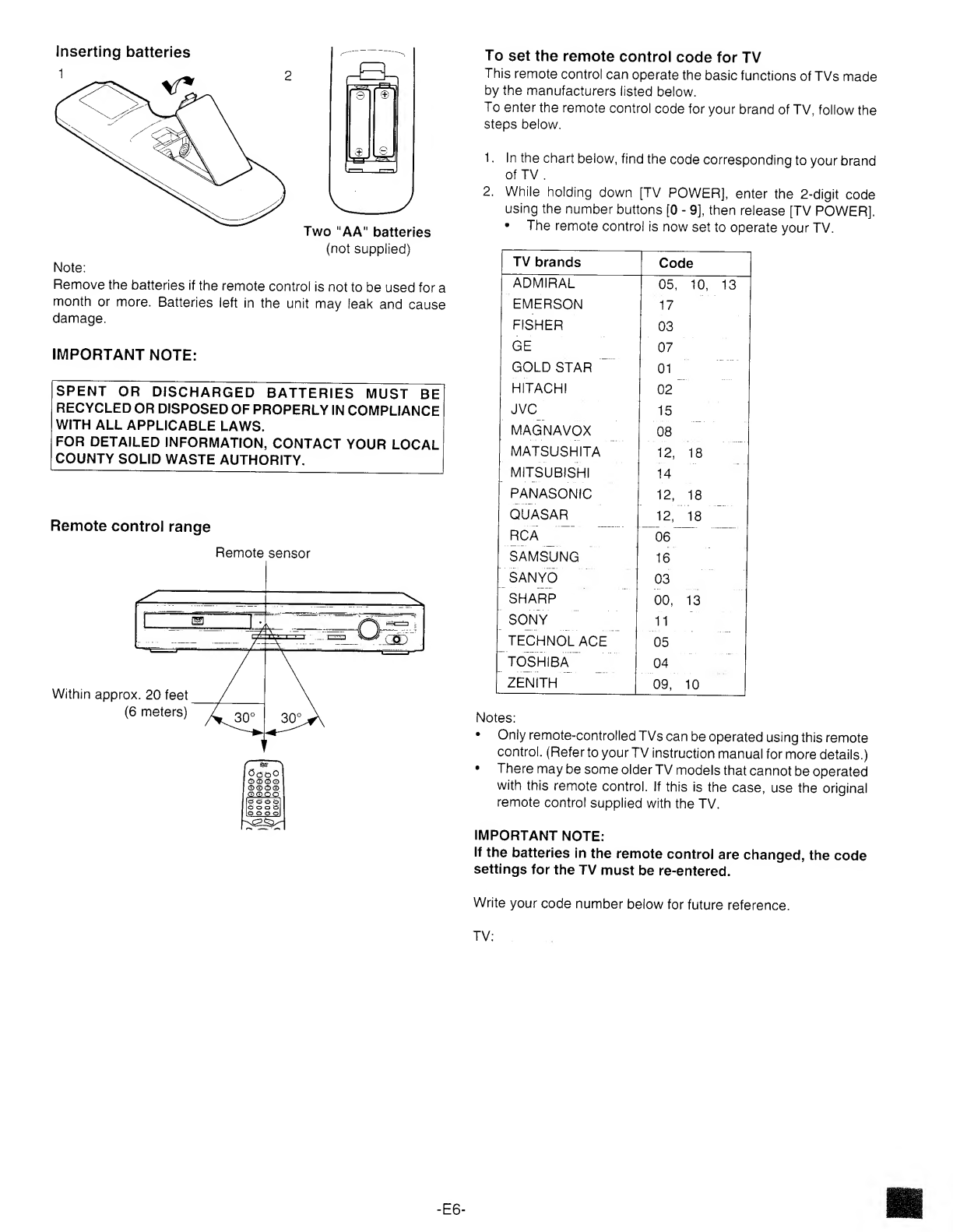

Inserting batteries
[3
s
r—I.
Two "AA" batteries
(not supplied)
Note:
Remove the batteries if the remote control is not to be used for a
month or more. Batteries left in the unit may leak and cause
damage.
IMPORTANT NOTE:
SPENT OR DISCHARGED BATTERIES MUST BE
RECYCLED OR DISPOSED OF PROPERLY IN COMPLIANCE
WITH ALL APPLICABLE LAWS.
FOR DETAILED INFORMATION, CONTACT YOUR LOCAL
COUNTY SOLID WASTE AUTHORITY,
Remote control range
Remote sensor
X,
I ^ I
-- ^
Within approx. 20 feet
r
(6 meters)
r. ^ ^
To set the remote control code for TV
This remote control can operate the basic functions of TVs made
by the manufacturers listed below.
To enter the remote control code for your brand of TV, follow the
steps below.
1. In the chart below, find the code corresponding to your brand
of TV .
2. While holding down [TV POWER], enter the 2-digit code
using the number buttons [0 - 9 ], then release [TV POWER].
• The remote control is now set to operate your TV.
TV brands
Code
ADMIRAL
05, 10, 13
EMERSON
17
FISHER
03
GE
07
GOLD STAR “
01
HITACHI
02 "
JVC
15
MAGNAVOX
08
MATSUSHITA
12, 18
MITSUBISHI
14
PANASONIC
12, 18
QUASAR
12, 18 "
RCA
“06
SAMSUNG
16
SANYO
03
SHARP
00, 13
SONY
11
TECHNOLACE
05
TOSHIBA
04
ZENITH
09, 10
Notes:
• Only remote-controlled TVs can be operated using this remote
control. (Refer to your TV instruction manual for more details.)
• There may be some older TV models that cannot be operated
with this remote control. If this is the case, use the original
remote control supplied with the TV.
IMPORTANT NOTE:
If the batteries In the remote control are changed, the code
settings for the TV must be re-entered.
Write your code number below for future reference.
TV:
-E6-

BASIC CONNECTIONS
Note:
Do not connect the power cord to a 120V AC 60 Hz
outlet until all connections have been made.
Speaker Connections
To achieve proper stereo reproduction, connect the speaker
\wires without shorting to adjacent wires as shown below.
Speaker Wire Color
Use
Black and Red
Front right speaker
Black and Blue
Front left speaker
Black and Green
Center speaker
Black and Orange
Surround right speaker
Black and Gray
Surround left speaker
Black and Brown
(with RCA-type plug)
Subwoofer
-E7-

Speaker Placement
Front right speaker
Center speaker
Front left speaker
Need help? Call
1 - 8 00 - 421-5013
Surround right speaker
Subwoofer
Place it near the Front speaker.
Surround left speaker
The supplied speakers have built-in magnetic stray field
compensation. They may be placed close to a TV without affecting
the color purity.
The five speakers are all the same and can be used for Front left,
Center, Front right, Surround left, and Surround right speakers.
Front left speaker
Subwoofer
Center speaker
a
Front right speaker
\ 30 ^
30 °.
The front, center, and surround speakers should be placed at
approximately the same distance from the listening position.
Place the front left and right speakers either side of the TV.
Place the center speaker directly above the TV.
Place the surround speakers either sides of the listening position,
or slightly to the rear, approximately 2 feet - 3 feet 3 inches (60
cm ~ 1 meter) higher than ear level.
The subwoofer can be placed near the front speaker and not too
far from the TV.
Surround left 120° Surround right
speaker speaker
Notes:
• The angles in the diagram are approximate.
• Please refer to “Setting Audio” on page E32.
-E8-

TV Connections
Important Information:
To connect the unit to a TV, TV must have a Video input jack
Using MONITOR OUT VIDEO jack (RCA-type) at least. You cannot connect it to an antenna
Connect the Video cable with yellow connectors (supplied) [terminal of TV. __—--
between the MONITOR OUT VIDEO jack of the unit and the
VIDEO INPUT jack on the TV.
Video cable (supplied) To VIDEO INPUT
Notes:
• Please refer to the instruction manual of your TV.
• When you connect the unit to your TV, be sure to turn off the
power and disconnect both units from the wall outlet until all
the connections have been made.
• Do not connect the MONITOR OUT (S-VIDEO/VIDEO) and
COMPONENT VIDEO OUT jacks of the unit to a VCR directly.
The playback picture will be distorted because DVD video
discs are copy protected.
[using COMPONENT VIDEO OUT jacks
I Note:
I Please follow the steps before turn on the power.
[using MONITOR OUT S-VIDEO jack ,
I Note;
1 Please follow the steps before turn on the power. i
I I
1 1 , If your TV has the S-VIDEO INPUT jack, connect the *S- j
video cable (not supplied) between the MONITOR OUT S-
' VIDEO jack of the unit and the S-VIDEO INPUT jack of the
I TV. (The MONITOR OUT VIDEO jack connection is not!
I necessary.) I
I You can enjoy clearer picture playback. |
^ 2. Set the VIDEO OUT SELECT switch to the S-VIDEO position. |
*S-video cable (not supplied)
*Please consult your local audio/video dealer.
1. If your TV has the COMPONENT VIDEO INPUT jacks,
connect the *Component Video cable (not supplied) between
the COMPONENT VIDEO OUT jacks of the unit and the
COMPONENT VIDEO INPUT jacks of the TV.
(The MONITOR OUT VIDEO or S-VIDEO OUT jack
connection is not necessary.)
You can enjoy high quality picture playback.
2. Set the VIDEO OUT SELECT switch to the COMPONENT
position.
^Component Video cable (not supplied)
Partial back panel Green Blue Red
TV with COMPONENT
VIDEO INPUT jacks
*Please consult your local audio/video dealer.
-E9-

Using RF Modulator
If your TV does not have a Video input jack and has an antenna
terminal only, please purchase the *RF Modulator (not supplied).
(*Please consult your audio/video dealer.)
Example: Unit, TV and RF Modulator connections
To MONITOR OUT VIDEO (Yellow)
TV's back panel
1. Connect the antenna cable (not supplied) to the ANT. IN
terminal of the RF Modulator.
2. Connect the 75-ohm coaxial cable (not supplied) between
the TO TV terminal of the RF Modulator and the VHF/UHF
ANTENNA IN terminal of the TV.
3. C o n n e c t the Video cable with yellow connectors (supplied)
between the MONITOR OUT VIDEO jack of the unit and the
VIDEO input jack of the RF Modulator.
Note:
For more details, please refer to the instruction manual of the RF
Modulator. ■
Example: Unit, VCR, TV and RF Modulator connections TV's back panel
1. Connect the antenna cable (not supplied) to the VHF/UHF 4. Connect the audio cables (not supplied) between the VIDEO
FROM ANT IN terminal of the VCR. (AUDIO) IN 1 or 2 jacks of the unit and the AUDIO OUT jacks
2. Connect the 75-ohm coaxial cable (not supplied) between of the VCR. Use the red connectors for the right-R jacks and
the TO TV OUT terminal of the VCR and the ANT. IN the white connectors for the left-L jacks.
terminal of the RF Modulator. 5. Connect the Video cable with yellow connectors (supplied)
3. Connect the 75-ohm coaxial cable (not supplied) between between the MONITOR OUT VIDEO jack of the unit and the
the TO TV terminal of the RF Modulator and the VHF/UHF VIDEO input jack of the RF Modulator.
ANTENNA IN terminal of the TV. Note:
For more details, please refer to the instruction manual of the RF
Modulator.
j

Antenna Connections
FM antenna
The FM indoor antenna lead wire is sufficient to receive most
local FM broadcasts and should be connected to the rear FM
75 terminal. Extend the antenna lead wire as straight as possible
and, while listening to the sound from the system, secure it in a
position where the best FM reception is found.
In fringe areas, or where reception is distorted or noisy, an FM
outdoor antenna (not supplied) should be connected instead of
the FM indoor antenna lead wire. The terminals will accept 75-
ohm coaxial cable.
AM antenna
The AM loop antenna is sufficient to
receive most local AM broadcasts.
Assemble the loop antenna.
Unwind the antenna wires, then
connect them to the AM LOOP
terminals. Place the loop antenna in a
position which yields the best AM
reception, or attach it to a wail or other
surface as shown.
NOTE:
To minimize noise...
• Keep the speaker wires, power cord and all other system
connection cables away from the loop antenna.
• Do not place the antenna close to a TV or speaker.
Screws (not supplied)
Note to CATV system Installer:
This reminder is provided to call the CATV system installer’s
attention to Section 820-40 of the NEC which provides guidelines
for proper grounding and, in particular, specifies that the cable
ground shall be connected to the grounding system of the
building, as close to the point of cable entry as practical._
Additional Connection Examples
1®* video equipment input jack (VIDEO (AUDIO) IN 1)
Connect an audio cable (not supplied) from the audio output
jacks of the TV to the VIDEO (AUDIO) IN 1 jacks.
2""^ video equipment input jack (VIDEO (AUDIO) IN 2)
Connect an audio cable (not supplied) from the audio output
jacks of the video equipment to the VIDEO (AUDIO) IN 2 jacks.
Headphones jack (PHONES)
Connect a pair of stereo headphones (8 ohms - 32 ohms, not
available from Fisher) to the PHONES jack for monitoring or for
private listening. The speakers are automatically disconnected
when headphones are connected.
PHONES
-E11-

Power Supply
(Main Unit and Active Subwoofer)
Connect the power cord to a 120VAC 6 O H 2 outlet. This unit is
equipped with a polarized plug. If you have difficulty inserting the
plug, turn it over and reinsert it. If the unit will not be used for a
long time, disconnect the AC plug from the AC outlet.
Press [POWER] of the active subwoofer to “ON”.
The LED indicator lights on the subwoofer. POWER
Notes:
• Before plugging the power cord into an AC outlet, make sure
that all the connections have been made.
• The main unit is not disconnected from the AC power unless
the power cord is unplugged from the AC outlet.
ADJUSTING THE CLOCK
Example: To set “PM 6:30” (Using the remote control)
1. Press [cb/ON] to turn the power on. The STANDBY indicator
goes off.
2 . Press [CLOCK] while holding [SHIFT] down.
“AM 12:00” blinks.
3. Press [ADJUST] while holding [SHIFT] down.
The “hours” display blinks.
.-\_i_^_ V t y _
1 PM
1 Dll 11
1 MM
IL'ULI
4. Press [! ◄◄ ] or [ ►► !] to set the “hours”
5. Press [ADJUST] while holding [SHIFT] down.
The “minutes” display blinks.
6. Press [! ◄◄ ] or [ ►► !] to set the “minutes”.
r ™ can
I_ I 11 uau
7 . Press [ADJUST] while holding [SHIFT] down.
The clock starts.
00 n
1 1 1
LI _(IJ
CLOCK
SHIFT
3, 5, 7-
SHIFT
6 /ON OPEN'CLOSE
/Cl PROGRAM REIORN
^ O O
angle a repla y zoom
Cl) d) d) CD
AUDIO Sleep timer adjus t
CD CD (D (D
S ELtLEA fl CLOCK TEST CLEAR TRIM
-@-®oo
TV POWER TV.'VIOEO FMMOOE]
-S5 IQIOi O
SURROUNO DitX-TVCH+WTUWE.'BAN'D
O OiiiO; O
MUTE HASS SOUNO FUNCTION
0000
ADJUST
• The time can be set accurately by pressing [ADJUST] while
holding [SHIFT] down when a time signal is heard.
To display the clock during operation
Press [CLOCK] while holding [SHIFT] down to display the clock.
(If leave it, the original display returns after approximately 10
seconds.)
Press [CLOCK] again while holding [SHIFT] down to return to the
original display.
ANGLE A REPLA Y ZOOM
(D © CD CD
S ET.'CLIA R CLOCK TEST CLEAR TRiM
0 0 Q Q
" TI![fjl rv POWER TWTDEO FM MODeI
-O O CD O
S URROU ND TUNE ■ BAND
O OiiiiOi O
MUTE BASS SOUND FUNCTION
0000
VO L UME
CiSC Z)(j 3
-TU NE-I- _ ■ PRESETS
© )
RSLOW FSLOW St'cr ST ON'OFF
® ® O O
Picture MODE lmemo a-bref repeat
o 0 o o
If a power failure occurs, reset the clock again.
-E12-

BEFORE OPERATIO N
Turning the power on and off
Press [d)/ON] to turn the power on.
• “HELLO” briefly appears on the FL display.
• The STANDBY indicator goes out.
(After connecting the power cord, when you press [dVON] for the
first time, the volume-reset feature automatically sets the initial
volume level.)
When the power cord is connected to the AC outlet, the unit will
respond to commands from the remote control.
Note:
Make sure that the POWER button of the subwoofer is set to
“ON”.
To turn the power off, press [cL/ON] again.
• “GOOD-BYE” briefly appears on the FL display.
• The STANDBY indicator lights.
Smart start function
If the following buttons are pressed when the power is turned
off, the unit turns on automatically and the selected source is
activated.
[i^], [ ► ] (Front panel of the unit)
[OPEN/CLOSE], [ ► ] . [TUNE/BAND] (Remote control)
Selecting the source
Press [FUNCTION] to select the desired source. Each time the
button is pressed, the display changes as follows:
DVD/CD
VIDEO 1
VIDEO 2
FM TUNER
AM TUNER
• When the source selection is changed, disc playback
automatically stops.
Selecting the sound mode
1. Press [SOUND] repeatedly to select the desired sound mode
(“BASS”, “TREBLE” or “FLAT”).
2. Press “A” or “T” to adjust the sound level (“-rS” ~ “-5”).
Note:
If “FLAT” is selected, press [ENTER]. “- - FLAT - -” briefly
appears. In this case, “BASS” and “TREBLE” are set to “0”.
3. Repeat steps 1 to 2 for another sound mode.
4. Press [SOUND] repeatedly to close the display.
Adjusting the volume
Rotate [VOLUME] (or press [VOLUME] or - on the remote
control). The volume level appears on the display (VOL 0 ~ VOL
MAX).
To reduce the volume temporarily (muting)
Press [MUTE] on the remote control. “MUTE” blinks on the FL
display.
To restore the previous volume setting, press [MUTE] again.
Bass boost system
Press [BASS] to select the desired bass boost effect.
BOOST — BASS OFF — NORMAL —- BOOST . .
-E13-

Selecting Surround Mode
Press [SURROUND] to select the surround mode.
Each time the button is preset, the surround mode changes as
follows:
AUTO —- SURR ON — 2CH MODE — AUTO...
SURROUND
f fgijJ 'VPO'.VER Iwotu -MMLijO
O OiOi o
"tLJ OD w OD
Function
FL display
Description
DVD/CD
AUTO
The unit selects the surround mode automatically depending on the disc.
Dolby Digital (not encoded with Dolby Surround Sound)
“DOLBY DIGITAL” appears on the FL display.
Dolby Digital is a discrete 5.1 channel surround system, developed for cinema use. But, not all
Dolby Digital sources are recorded with 6 channel.
Some sources marked Dolby Digital may be recorded in Dolby Surround, a 2 channel system.
Dolby Digital (encoded with Dolby Surround Sound)
“DOLBY DIGITAL” and “DOLBY PL” appear on the FL display.
The surround mode is set to Dolby Pro Logic mode.
Dolby Pro Logic is a decoding system that was developed to enhance the soundtracks of theatrical
motion pictures with Dolby Surround. All speakers sound, but the surround left and right speakers
are monophonic sound.
other (PCM, CD, MP3, etc.)
The surround mode is set to 2.1 channel (Front left and right speakers, and Subwoofer).
SURR ON
When using a disc with Dolby Digital 3 channel ~ 5.1 channel, it is set to Dolby Digital sound mode.
When using an MP3 CD, it is set to matrix-surround mode (not Dolby Pro Logic).
Other discs are set to Dolby Pro Logic mode.
2CH MODE
The surround mode is set to 2.1 channel (Front left and right speakers, and Subwoofer).
VIDEO 1
VIDEO 2
FM TUNER
AM TUNER
AUTO
It is set to 2.1 channel (Front left and right speakers, and Subwoofer).
SURR ON
All speakers work, but it is set to the matrix-surround mode (not Dolby Pro Logic).
If a monaural source is used, it is set to 3.1 channel (Front left and right. Center speaker, and
Subwoofer).
2CH MODE
It is set to 2.1 channel (Front left and right speakers, and Subwoofer).
Notes:
• DVD video disc with DTS may not work correctly. You can
see the picture on the TV screen, but there is no sound.
• There is no Dolby Surround effect when monaural program
material is used.
• When receiving weak FM broadcasts, set it to “2CH MODE”.
The sound quality may improve.
• When headphones are connected while any of the surround
modes are selected, the surround mode is switched off
automatically. The SURROUND button does not function
while headphones are connected.
Need help? Call
1 - 800 - 421-5013
-E14-

Adjusting the Speaker Volume Balance
This unit is set to the standard level before shipping from the
factory. You may not need adjustment.
But, depending on the size of the room and the placement of the
speakers, you may need a fine adjustment.
In this case, follow the steps below. Please use the remote
control at the listening point.
1. Press [FUNCTION] to select the “DVD/CD” function.
2. Press [ ■ ] to stop playback completely.
3. Press [TEST] on the remote control.
The “Speaker” screen appears on the TV screen.
“FNTL 0” appears on the FL display.
The test tone will be heard from each speaker in the following
order.
TV screen
FL display
Speaker
Front-L
FNTLO
Front left speaker
Center
CENTO
Center speaker
Front-R
FNTR 0
Front right speaker
Surround-R
; SURRO
Surround right speaker
Surround-L I SURLO
Surround left speaker
o n Q
CD CD Cp (Z)
(S ® (S
W CD CD o'
I 00)0
, t l.r n SC R! h >,
; _ rF:[Sii-
® @
4. Press [VOLUME] + or - until the test tone is at a comfortable
level.
5. If the test tone level is not the same from each speaker, press
[T] or [A] to adjust it while the speaker is activating. The level
appears on the FL display.
IMPORTANT INFORMATION:
Set the delay time for your center and surround speakers. See
“Setting Audio” on page E32._
FNTL/FNTR: “0” ~ “-10” appears.
CENT/SURR/SURL: “+10” - “-10” appears.
If necessary, repeat this step again.
6. Press [TEST] to turn the test tone off.
Note:
if no adjustments are made, the original display returns after
the test tone turns around you 5 times.
7. Press [VOLUME] + or ~ to adjust the volume as desired.
Adjusting the Subwoofer Level
1. Press [TRIM] while holding [SHIFT] down.
“FNTL 0” appears on the FL display.
Note: No test tone.
2. Press [ENTER] repeatedly to select “SUBW”.
Note:
Each time the button is pressed, the FL display shows the
selected speaker and tone level.
3. Press [T] or [A] to adjust the level as desired.
SUBW: “+10” ~ “-10” appears.
Note:
If the other speaker is selected, the level also can be changed
as above.
4. Press [TRIM] while holding [SHIFT] down to turn it off.
Note:
If no adjustments are made, the original display returns after
approximately 10 seconds.
Need heip? Cali
m
1 - 800 - 421-5013
Phase Switch of the Subwoofer
If you feel lack of bass frequency, press [PHASE] (back of the
subwoofer) to select “0"” or “180"”. Select the setting that gives
the best result.
180
PHASE
0
-E15-

PLAYABLE DISCS
The following types of discs can be played on this unit.
Disc type and logo mark
Recorded
content
Disc size
Maximum playing time
DVD Video
oyo
Audio
Video
5 inches
(12 cm)
Approx. 4 hours (Single sided disc)
Approx. 8 hours (Double sided disc)
VIDEO
3 inches
(8 cm)
Approx. 80 minutes (Single sided disc)
Approx. 160 minutes (Double sided disc)
Music CD
rn COMPACT
(i D§(S
DIGITAL AUDIO
Audio
5 inches
(12 cm)
74 minutes
3 inches
(8 cm)
20 minutes
Region Number
Region number (Regional restriction code) is built-in to the DVD
video player and DVD video discs.
Region number “1” or “ALL” of DVD video discs can be used on
this unit.
—
1
DVD Video Disc
There are the marks on some DVD video disc package.
Examples:
(DD
Multiple languages
Multi-language subtitles
a
Multi-angle
16:9 LB
Multi-aspect
m
Region number
Closed caption
CAUTION:
• Only the above types of discs can be played on this unit.
DVD-ROM, CD-ROM, SVCD, CVD, VCD. etc. cannot be
played.
• This unit can play back the DVD-R that has recorded movie
data as well. However, some DVD-Rs can not be played back
depending on the recording conditions.
• The DVD-R that has no movie data can not be played back.
• This unit is to be used exclusively with the NTSC color
system. PAL and SECAM system discs cannot be used with
this unit.
• For MP3 CD, please see page E27.
DVD Video Disc
-Title 1- ►
--Title 2 - — 1 -
Chapter 1
Chapter 2 Chapter 1
Chapter 2
Chapter 3
DVD video discs are divided into titles, and the titles are sub¬
divided into chapters.
Music CD Disc
T rack 1
Track 2
—
Track 3
Track 4
Track 5
Music CD discs are divided into tracks.
Handling, Storing and Cleaning Discs
• Fingerprints and dust should be carefully wiped from the
signal surface of the disc (glossy side) with a soft cloth.
Wipe in a straight motion from the center to the outside of
the disc.
• Never use chemicals such as record cleaning sprays,
antistatic sprays or fluids, benzene or thinner to clean the
discs. These chemicals will permanently damage the plastic
surface of the disc.
• To remove a disc from its storage case, press down on the
center of the case and lift the disc out, holding it carefully by
the edges.
• Discs should be returned to their cases after use to protect
them from dust and scratches.
• To prevent warping the disc, do not expose it to direct
sunlight, high humidity or high temperatures for extended
periods of time.
• Do not apply paper or write anything on either side of the
disc. Sharp writing instruments, or the inks used in some felt-
tip pens, may damage the surfaces of the disc.
-E16-

DISC PLAYBACK
Preparations
• Turn on the TV and select the video input source.
To use the remote control for TV
Note:
You must set the remote control code for TV first. (See Page
E6.)
1. Press [TV POWER] to turn on the power.
• When using the remote control, the Transmitter
Window on the remote control must be pointed toward
your TV.
2. Press [TV/VIDEO] to select the video input source.
3. Set the TV volume minimum.
Notes:
• Only remote-controlled TVs can be operated using this
remote control. (Refer to your TV instruction manual for
more details.)
• There may be some older TV models that cannot be
operated with this remote control. If this is the case, use
the original remote control supplied with the TV.
• Select the playback picture size according to the aspect ratio
of the TV. (See “Setting Display” in “INITIAL SETTINGS” on
Page E31.)
Basic Playback
Notes:
• Do not touch the disc tray while it is moving.
• Never place anything except a disc on the disc tray. Foreign
objects can damage the unit.
• Do not apply excessive force to the disc tray.
• Discs must be placed on the disc tray one at a time.
When operation buttons are pressed, that operation is displayed
on the TV screen. The display disappears after several seconds.
Important Note:
• This instruction manual explains the basic instruction of this
unit using the remote control unit.
• Some DVD video discs have different functions that may
not be explained in this instruction manual. You may need
extra instructions. In this case, please follow the instructions
displayed on the TV screen or jacket or case of the disc.
• “ 0 ” may appear on the TV screen during operation. This
icon means that the function is not available on the disc
now.
• For improvement, on-screen displays subject to change
without notice.
pyp
O/ON Of'fcr. CIOSF
PR OGRA M RfclURN
o o
ANGLE A R E PI A Y ZOOM
0 © 0 ( 7 )
- 1 , 3
ON SCREEN
Ci i)
C5) ® ® &
1. Press [A] on the unit (or [OPEN/CLOSE] on the remote
control).
• “OPEN” appears on the FL display and the disc tray
opens.
• “FISHER” logo appears on the TV screen.
Note:
To open close the disc tray, be sure to use [A] (or [OPEN/
CLOSE]. Do not press the disc tray with your hand.
2. Place the disc with the label facing up on the disc tray.
3. Press [A] (or [OPEN/CLOSE]) again.
The disc tray closes. “READING” appears on the FL display.
Notes:
• Some discs may start playback automatically.
• If the disc is loaded with the label side downward (and it is
a single sided disc), or if a badly scratched disc is loaded,
“NO DISC” (or “NO PLAY”) appears. If this occurs, load
the disc correctly or replace the disc.
4. Press [ ► ] to start playback.
Example:
^nnri'
Chapter Number Elapsed playing time
If a menu screen appears on the TV screen...
Select the desired menu by pressing [A], [ ► ] , [ ▼ ]
or [ ◄ ] (or the number buttons), then press
[ENTER]. Playback of the selected menu starts.
Note:
For more details, please refer to the jacket or case of the disc.
-E17-

stopping Playback
• Press [ ■ ] once during playback. "Resume ■ " briefly appears
on the TV screen,
When you press [ ► ] , playback starts automatically from the
point where you stopped. briefly appears on the TV
screen.
Note;
Some discs may not resume playback.
■ ►
(Stop) (Play)
• Press [ ■ ] twice during playback. briefly appears on the TV
screen and playback stops completely.
When you press [ ► ], playback starts from the beginning of
the disc.
Continuing Playback from Where You
Stopped Watching (LAST MEMORY PLAY),
for DVD only
1. Press [L.MEMO] to stop playback.
“Last Memo ■ ” briefly appears on the TV screen.
“LM-STOP” appears on the FL display.
2. Remove the disc or turn off the power.
3. Load the disc (and press [ ► ] ) , or turn on the power.
“Last Memory Play?” appears on the TV screen.
Yes
No
Clear... (The memory is released.)
4. Use [A] to select "Yes”.
5. Press [ENTER].
Playback resumes from the point where you stopped.
If desired, press [L.MEMO] again.
Notes;
• Point on up to 3 discs can be memorized.
• The Last Memory Play mode may not work correctly with
some discs.
This product incorporates copyright protection technology that
is protected by method claims of certain U.S. patents and other
intellectual property rights owned by Macrovision Corporation
and other rights owners. Use of this copyright protection
technology must be authorized by Macrovision Corporation,
and is intended for home and other limited viewing uses only
unless otherwise authorized by Macrovision Corporation.
Reverse engineering or disassembly is prohibited.
A-
ENTER-
(Play)
L.MEMO-
(S. , ,® ® .®
LV'Mi': AiJREP R.IPfAl
O O
(Stop)
Chapter (Track) Skip
Skipping forward
Press [ ►► !] during playback to skip to the next chapter (or track),
“ ►► r briefly appears on the TV screen.
A chapter (or track) is skipped each time the button is pressed.
►► I
Skipping backward
Press [! ◄◄ ] during playback to skip back to the beginning of the
chapter (or track) currently play.
briefly appears on the TV screen.
Press the button again immediately to skip back to the beginning
of the previous chapter (or track).
Note;
You can skip only through the chapters, not over the title on the
DVD disc.
Need help? Call
j 1 - 800 - 4 21-5013
-E18-

Selecting a DVD Menu
Notes:
• The operation may differ depending on the disc used.
• Selecting a menu may not be possible on some discs.
1. Press [MENU].
The main menu screen will appear.
Note:
Press [MENU] again to resume playback.
2. Press [A], [ ▼ ], [ ◄ ] or [ ► ] (or the number buttons) to select the
desired menu.
3. Press [ENTER]
The selected menu playback starts.
& ® Q) &
^SLOW ^SLCW S ^CN
lN*EM0 A-B REP REPEAT
o o o o
1
2
3
Selecting a Title Menu [DVD]
Notes:
• The operation may differ depending on the disc used.
• Selecting a title may not be possible on some discs.
1. Press [TITLE].
The title menu will appear (if the disc contains a title menu).
Note:
Press [TITLE] again to resume playback from the scene
when [TITLE] was first pressed on some discs.
2. Press [A], [T], [ ◄ ] or [ ► ] (or the number buttons) to select the
desired title.
3. Press [ENTER].
The selected title playback starts.
Important Note:
“ 0 ” may appear on the TV screen during operation. This icon
means that the function is not available on the disc now.
Need help? Call
1 - 800 - 421-5013
-E19-
