FISNAR VPP500 User manual

VPP500
Vacuum Pickup System
Operating Manual
[email protected]
www.fisnar.com

VPP500 Vacuum Pickup System Operating Manual
© 2020 Fisnar - 2 - VPP500 Rev 01
Table of Contents
Machine Overview 3
Product Safety Statements 4
Specifications 6
Accessories 6
External Controls 7
Machine Setup 10
Vacuum Pickup Pen Setup 11
Operation Mode 12
External Machine Actuation 13
Spare Parts List 14

VPP500 Vacuum Pickup System Operating Manual
© 2020 Fisnar - 3 - VPP500 Rev 01
OVERVIEW
Model VPP500 Vacuum Pick System
The VPP500 Vacuum Pickup System is designed for safely and efficiently picking up and
placing delicate lightweight components with ease. Unlike conventional tweezers, the use of
a rubber suction cup prevents possible accidental damage or contamination to the
component during the lifting and positioning process.
Its foot pedal operated electro-pneumatic design, minimizes air usage and eliminates
emitted noise when not in use.
Operation Mode
1.) The component is lifted by lightly placing the suction cup on the component.
2.) The foot pedal switch is then pressed and kept held down to apply the vacuum through the
suction cup.
3.) This then allows the component to be picked up and safely positioned.
4.) The foot pedal switch can then be released, which stops the vacuum allowing safe release
of the component.
Compliant for use in ESD safe environments
Simple set-up and operation
Foot pedal controlled
Adjustable vacuum control
Vacuum gauge allows the vacuum pressure to be precisely set and monitored.
Lightweight ergonomic pickup pen included
Compact & durable aluminum housing designed for industrial work environments.
Stand included for safe storage of vacuum pick-up pen when not in use.
A selection of ESD safe tips and vacuum cups included to ensure compatibility with differing
applications
Worldwide compatible power supply included.

VPP500 Vacuum Pickup System Operating Manual
© 2020 Fisnar - 4 - VPP500 Rev 01
General Precautions
Do not operate the machine in excess of its maximum ratings / settings.
Make sure that the input air supply is clean and dry. A 5 micron air filter/regulator
(item number 560567) is recommended to ensure the input air supply is clean
and dry.
Do not smoke or use near an open flame.
Do not expose the machine directly to sunlight.
Avoid cleaning the machine with aggressive solvents – neutral detergents are
preferred.
Place the vacuum pickup pen in the supplied holder when not using the machine.
This will prevent the suction cup from being damaged – refer to figure A below.
Fig. A
VPP500 Malfunction
If the machine malfunctions, shut down the machine immediately. This can be
done by either pushing the power switch at the back of the unit into the off
position or disconnecting the power cord.
SAFETY

VPP500 Vacuum Pickup System Operating Manual
© 2020 Fisnar - 5 - VPP500 Rev 01
Inappropriate Use
If the machine is used in a way other than described in this manual, it may cause damage
to self or property.
Do not use any components with the machine other than Fisnar authorized
components.
Do not use incompatible materials.
Do not make any modifications to the machine.
All repairs are to be done using Fisnar specified spare parts.
Do not operate the machine in excess of its maximum ratings / settings.
Fire Prevention
Refer to the following instructions to avoid any fire or explosion.
Assess your surroundings and the location of the nearest fire extinguisher and
Emergency Exit.
Do not smoke or use near an open flame.
Immediately disconnect power if any sparking or smoke appears.
Do not expose the machine directly to sunlight.
Maintenance
The VPP500 is generally a maintenance free machine. However, to ensure smooth
operation please follow the below instructions.
Only use non-woven cleaners on the machine.
Avoid cleaning the machine with aggressive solvents – neutral detergents are
preferred.
Ensure that compressed air supply to the machine is clean and moisture free.
Place the vacuum pickup pen in the supplied holder when not using the
machine. This will prevent the suction cup from being damaged.
SAFETY

VPP500 Vacuum Pickup System Operating Manual
© 2020 Fisnar - 6 - VPP500 Rev 01

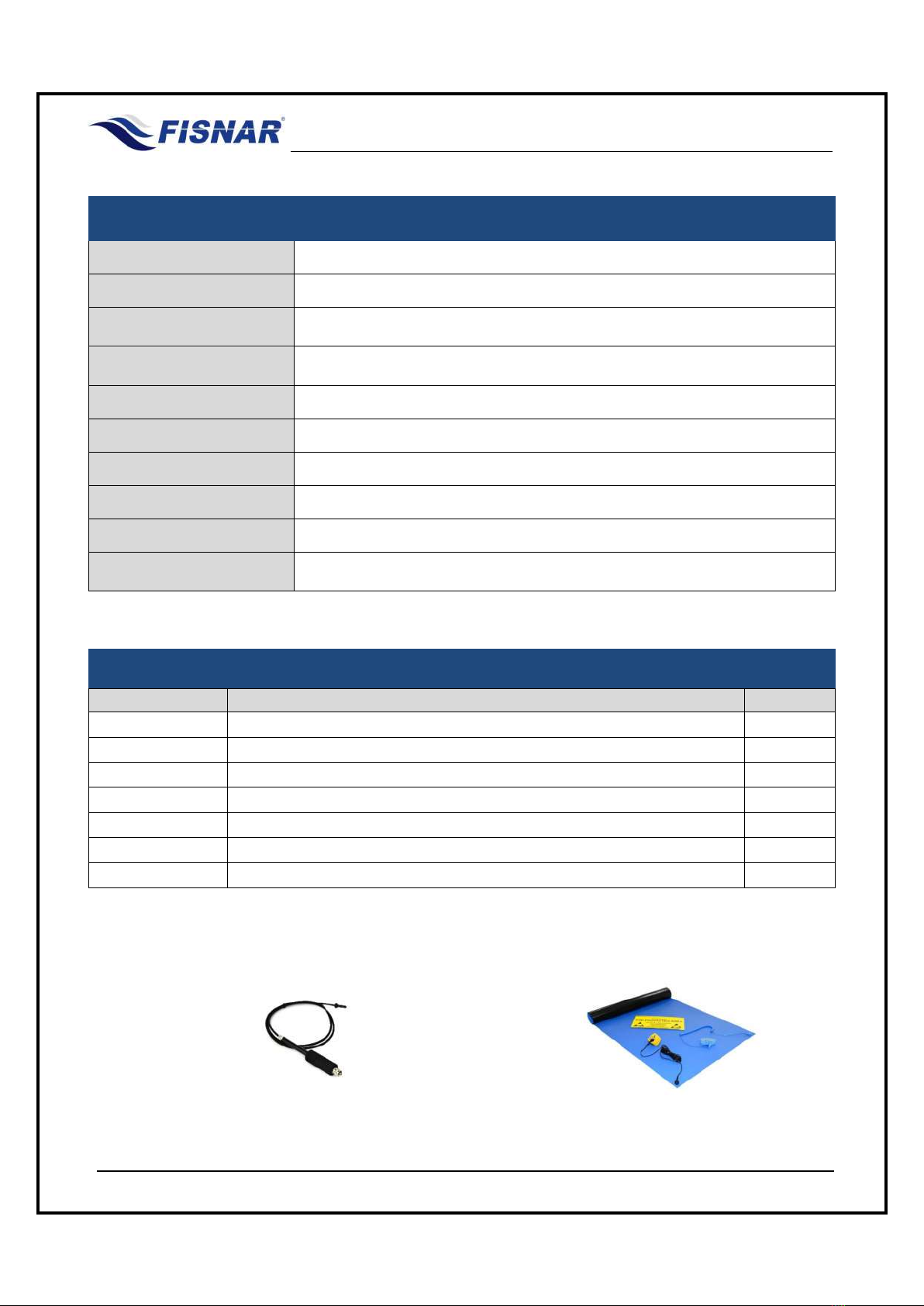

ACCESSORIES
Item Description Quantity
5601911 Power Adaptor (Input: 100 – 240 VAC / Output: 24 VDC) 1
5601888 Foot Pedal Switch 1
561851 Air Inlet Hose Assembly 1
5601947 ESD Grounding Cable Assembly 1
5601948 Vacuum Pickup Pen Holder 1
580046NH-ESD Vacuum Pickup Pen – ESD Safe 1
QK-VTK Vacuum Tip Kit 1
Note: Standard Vacuum Pickup Pen (part # 580046NH) & ESD Workstation kit (part # ESD-WSK-US / ESD-
WSK-EU / ESD-WSK-UK) available to purchase separately.
Part # 580046NH
SPECIFICATIONS
Dimensions (W x D x H): 5.12” x 5.04” x 3.00” (130 x 128 x 76 mm)
Weight: 1.49 lbs (0.68 kg)
Input AC to Power
Supply:
100 – 240 VAC, 50 / 60 Hz
Output DC from Power
Supply: 24 VDC – 1.0 Amp
Relative Humidity: 20 – 90% (No Condensation)
Operating Temperature: 50 – 104
℉
(10 – 40
℃
)
Air Input: 100 psi (7 bar) max
Vacuum: Up to 400 mm-Hg (15.75in.-Hg)
Maximum Pickup Weight Up to 4.4oz (125g)
Standards: CE Approved, RoHS Compliant, EMC Compliant
ESD Safe
Part # ESD-WSK-US
Part # ESD-WSK-EU
Part # ESD-WSK-UK

VPP500 Vacuum Pickup System Operating Manual
© 2020 Fisnar - 7 - VPP500 Rev 01
EXTERNAL CONTROLS
FIG. 1: External Controls - Overview
Item Illustration Item Illustration Item Illustration
1 Power Indicator Light 5 Vacuum Control 9 ESD Grounding Point
2 Vacuum Inlet Port 6 Foot Switch Connector 10 Exhaust Port
3 ESD Input Connector 7 Power Input Connector 11 Air Inlet Port
4 Vacuum Pressure Gauge 8 Power On/Off Switch
REAR
FRONT
3
5
2
4
1
10 8
11
6
7 9

VPP500 Vacuum Pickup System Operating Manual
© 2020 Fisnar - 8 - VPP500 Rev 01
EXTERNAL CONTROLS
FIG. 2: External Controls – Front
1. Power Indicator
Light
Indicates if the machine is switched on or off. If the green color light is
on this confirms the machine power is on.
2. Vacuum Inlet Port The air connector on the vacuum pickup pen is connected here.
3. ESD Input
Connector
The electrical plug on the vacuum pickup pen is connected here.
This does not apply if using optional vacuum pickup pen (#580046NH).
4. Digital Display
Screen
Shows the amount of vacuum pressure being used to pick up a
component by the suction cup.
The vacuum pressure gauge will only display a value when the foot
pedal has been pressed and the machine has begun generating a
vacuum pressure.
5. Vacuum Control
Adjusts the amount of vacuum pressure being used, for the suction cup
to safely and securely pick up the component.
Turn the knob counterclockwise to increase the vacuum pressure to
the desired level.
Vacuum pressure will not be generated until the foot pedal has been
pressed.
1
5
4
2
3

VPP500 Vacuum Pickup System Operating Manual
© 2020 Fisnar - 9 - VPP500 Rev 01
EXTERNAL CONTROLS
FIG. 3: External Controls - Back
1. Foot Switch
Connector
The foot pedal switch (#5601888) is connected here. Or it can be used
for connecting to an external device (e.g. Fisnar dispense robot) that
will send the start signal to the machine.
2. Power Input
Connector
Power input cable from the external power supply (#5601911) is
connected here.
3. On / Off Switch Used to switch the machine on or off.
4. ESD Grounding
Point
ESD grounding cable (#5601947) is connected here. The other end of
the cable is to be connected to a suitable common ESD Safe grounding
point within the workplace environment.
5. Exhaust
When the machine is in use, air will be exhausted from this connector.
A muffler (#560024) can be fitted into the exhaust outlet port to reduce
the emitted noise of the exhausted air.
6. Air In Push
Connector
External Compressed air 70-100 psi (5-7 bar) is to be connected here,
using the supplied ¼” OD air inlet hose.
5
3
6
1
2
4

VPP500 Vacuum Pickup System Operating Manual
© 2020 Fisnar - 10 - VPP500 Rev 01
MACHINE SET UP
FIG. 4: Machine Setup
1. Connect air hose (1) from compressed air 70-100 psi (5-7 bar) to the air inlet port on the
back of the machine. See FIG. 4.
2. Insert the Foot Pedal connector (2) to the port on the back of the machine. See FIG. 4.
3. Attach appropriate country type plug adapter onto the power supply and then connect
Electrical Power Cord (3) to the port on the back of the machine. See FIG. 4.
4.
Insert the air connector and ESD grounding plug (4) from the vacuum pickup pen to the
ports on the front of the machine. See FIG. 4.
If using optional vacuum pickup pen (#580046NH) only the air connector will need to be
attached to the port on the front of the machine.
5.
Insert the ESD grounding cable (5) into the port on the back of the machine. The other
end of the cable is to be connected to a suitable common ESD Safe grounding point
within the workplace environment. See FIG. 4.
If there is no requirement for the machine to be used in an ESD Safe work environment,
this step can be ignored.
1
2
4
3
5

VPP500 Vacuum Pickup System Operating Manual
© 2020 Fisnar - 11 - VPP500 Rev 01
VACUUM PICKUP PEN SETUP

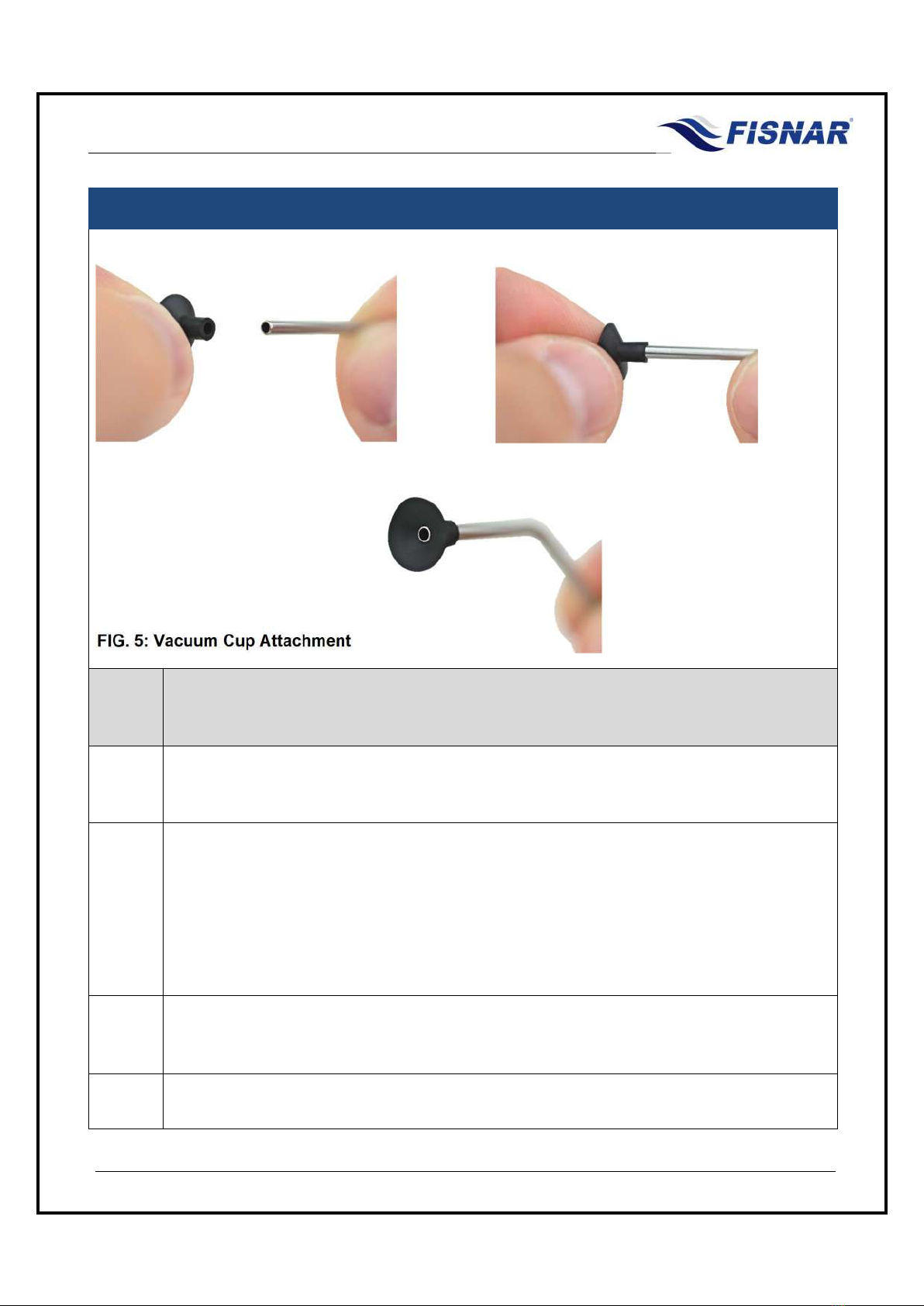

FIG. 5: Vacuum Cup Attachment
1.
Select the correct size vacuum cup based on the size and weight of the component to be
picked up.
2.
Select the correct size pickup tip, by choosing one which has a larger outside diameter,
than the internal hole on the stem of the chosen vacuum cup.
3.
Gently push the stem of the vacuum cup onto the pickup tip. See FIG. 5.
Ensure that the pickup tip does not protrude into the “cup” area of the vacuum cup, as
this may result in damaging the component that is to be picked up.
A successful setup will be confirmed by a tight fit that does not deform the surface of the
vacuum cup.
4.
Insert the pickup tip assembly into the pickup pen, until pickup tip hub is fully secured. If
using a 45° pickup tip, rotate the tip to achieve the correct pickup angle position.
5. Store the pickup pen into the supplied holder, to prevent the vacuum cup from being
damaged when not in use.

VPP500 Vacuum Pickup System Operating Manual
© 2020 Fisnar - 12 - VPP500 Rev 01
OPERATION MODE

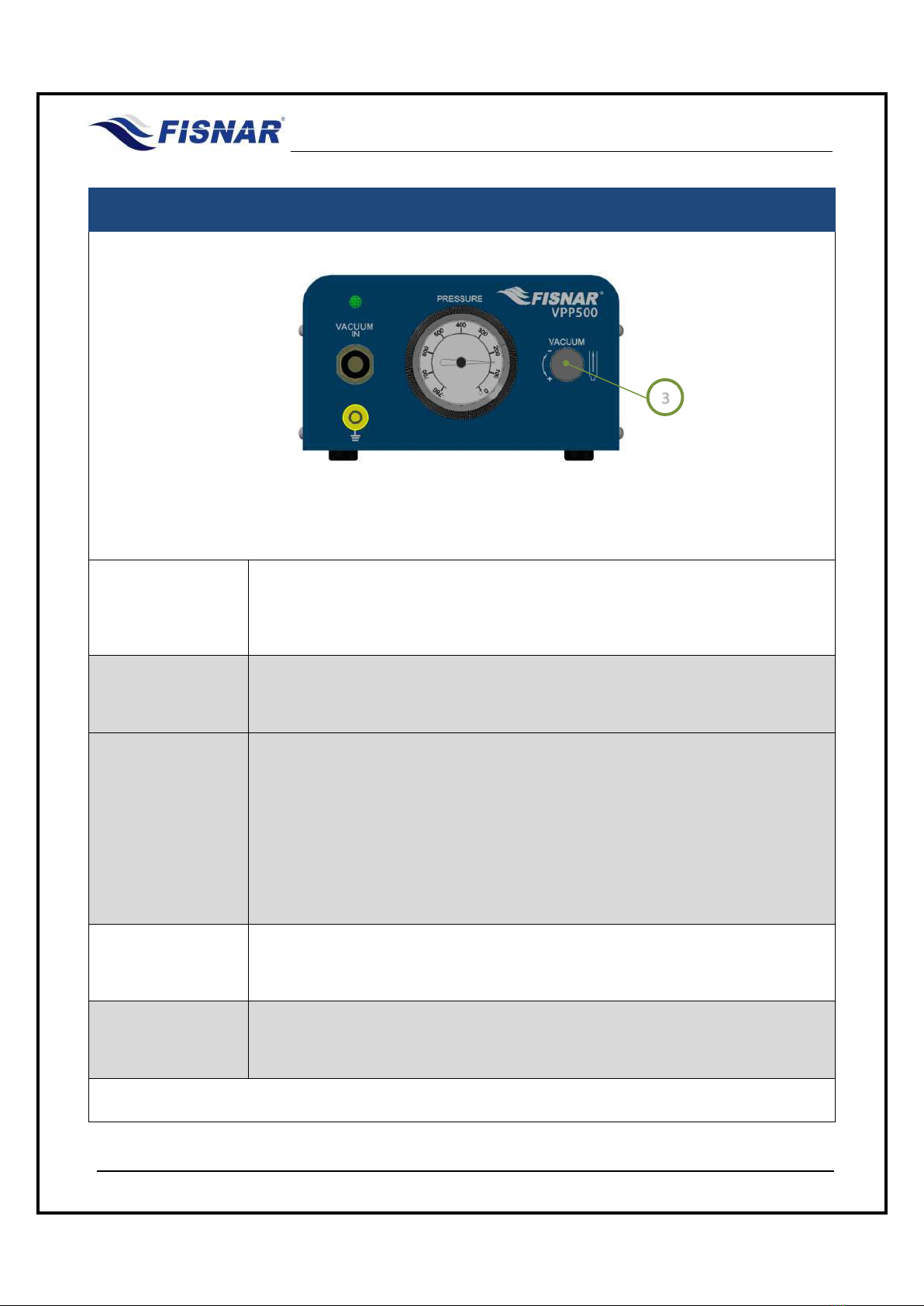

FIG. 6: Operation Mode
1.
Place the suction cup installed on the pick-up pen over the component and
apply a light force so there is no gap between the surface of the suction cup
and surface of the component.
2.
Press and hold down the foot pedal to start the machine generating a vacuum
pressure.
3.
Use the vacuum control knob to increase the vacuum pressure by slowly
turning it counterclockwise to a suitable level where there is enough force to
securely seal the suction cup to the component. See FIG. 6.
This step is only required when initially setting up the machine.
Excessive vacuum pressure may cause damage to small delicate
components. Always use minimum allowable vacuum pressure.
3.
The component can now be picked up and safely positioned in the desired
location.
4.
Release the foot pedal to immediately stop the machine generating a vacuum
pressure, and then remove the suction cup safely away from the component.
3

VPP500 Vacuum Pickup System Operating Manual
© 2020 Fisnar - 13 - VPP500 Rev 01
EXTERNAL MACHINE ACTUATION
FIG. 7: External Machine Actuation
Input A dry contact closure (0 Volt) between the Input (Pin #1) and Common (Pin #2)
pins will trigger a dispense signal. See FIG. 7.
PLEASE READ:
Do not apply a voltage between the input pin (1) and the common pin (2).
Doing so will damage the control board and void all warranty conditions.

VPP500 Vacuum Pickup System Operating Manual
© 2020 Fisnar - 14 - VPP500 Rev 01
SPARE PARTS LIST
Ref. Item Number Description
1 5601949 Power Indicator LED Assembly
2 5601940 Air In/Out Module
3 5601946 ESD Socket Assembly
4 5601942 Vacuum Pressure Gauge (inc. fittings)
5 5601941 Vacuum Control Valve (inc. fittings)
6 5601943 Solenoid Module (inc. fittings)
7 5601887-10FT Ø6mm Transparent PU Tubing (10ft)
8 5601906 Vacuum Transducer (inc. fittings)
9 5601940 Air in/Out Module
10 5601946 ESD Socket Assembly
11 5601944 On/Off Switch Assembly
12 5601909 Power Input Connector Assembly
13 5601945 Foot Switch Connector Assembly
14* 5601911 Power Adaptor (Input: 100 – 240 VAC / Output: 24 VDC)
15* 5601888 Foot Pedal Switch
16* 561851 Air Inlet Hose Assembly
17* 5601947 ESD Grounding Cable Assembly
17* 5601948 Vacuum Pickup Pen Holder
18* 580046NH-ESD Vacuum Pickup Pen (VPP500) – ESD Safe
3
2
4
5
6
8
9
11
12
13
7
*Item Not Shown
10
1

VPP500 Vacuum Pickup System Operating Manual
© 2020 Fisnar - 15 - VPP500 Rev 01
SPARE PARTS LIST – QK-VTK
Ref. Item Number Description
1 QK-VTK Vacuum Tip Selection Kit
2 580052 14ga 45° Vacuum Pickup Tip
3 580053 18ga 45° Vacuum Pickup Tip
4 5601942 14ga Vacuum Pickup Tip
5 5601941 18ga Vacuum PickupTip
6 580047 Vacuum Cup – 3mm
7 580048 Vacuum Cup – 4.75mm
8 580049 Vacuum Cup – 6.5mm
9 580050 Vacuum Cup – 8mm
10 580051 Vacuum Cup – 10mm
9
1
10
8
2
3
6
7
5
4

LIMITED WARRANTY
Manufacturer warrants this product to the original purchaser for a period of one (1) year from the
date of purchase to be free from defects in material and workmanship, but not against damages
caused by misuse, negligence, accident, faulty installation, abrasion, corrosion or by not
operating in accordance with factory recommendations and instructions. Manufacturer will repair
or replace (at factory's option), free of charge, any component of the equipment thus found to be
defective, upon prepaid return of the equipment to the factory during the warranty period of the
equipment. In no event shall any liability or obligation of Manufacturer arising from this warranty
exceed the purchase price of the equipment. This warranty is valid only when 5 micron
filtered air is used. The manufacturer's written liability, as stated herein, cannot be altered or
enlarged except by a written statement signed by an officer of the company. In no event shall
manufacturer be liable for consequential or incidental damages. A return authorization is required
prior to shipping a defective machine to the factory.
Manufacturer reserves the right to make engineering or product modifications without notice.
[email protected]
www.fisnar.com
