Fistech I & C Co., Ltd. FD-4000/R User manual

Operating Instructions
for FD-4000/R

DigitalDoorLock
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates, uses, and can radiate
radio frequency energy and, if not installed and used in accordance with
the instructions, it may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a articular
installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
This device complies with Part 15 of the FCC Rules. Operation is subject
to the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.

DigitalDoorLock
I N D E X
1. Name of parts 3
2. Specifications 4
3. Features 5
4. Operating instruction 6
5. How to add or delete the cards 8
6. Cautions 11
7. How to install
11

DigitalDoorLock

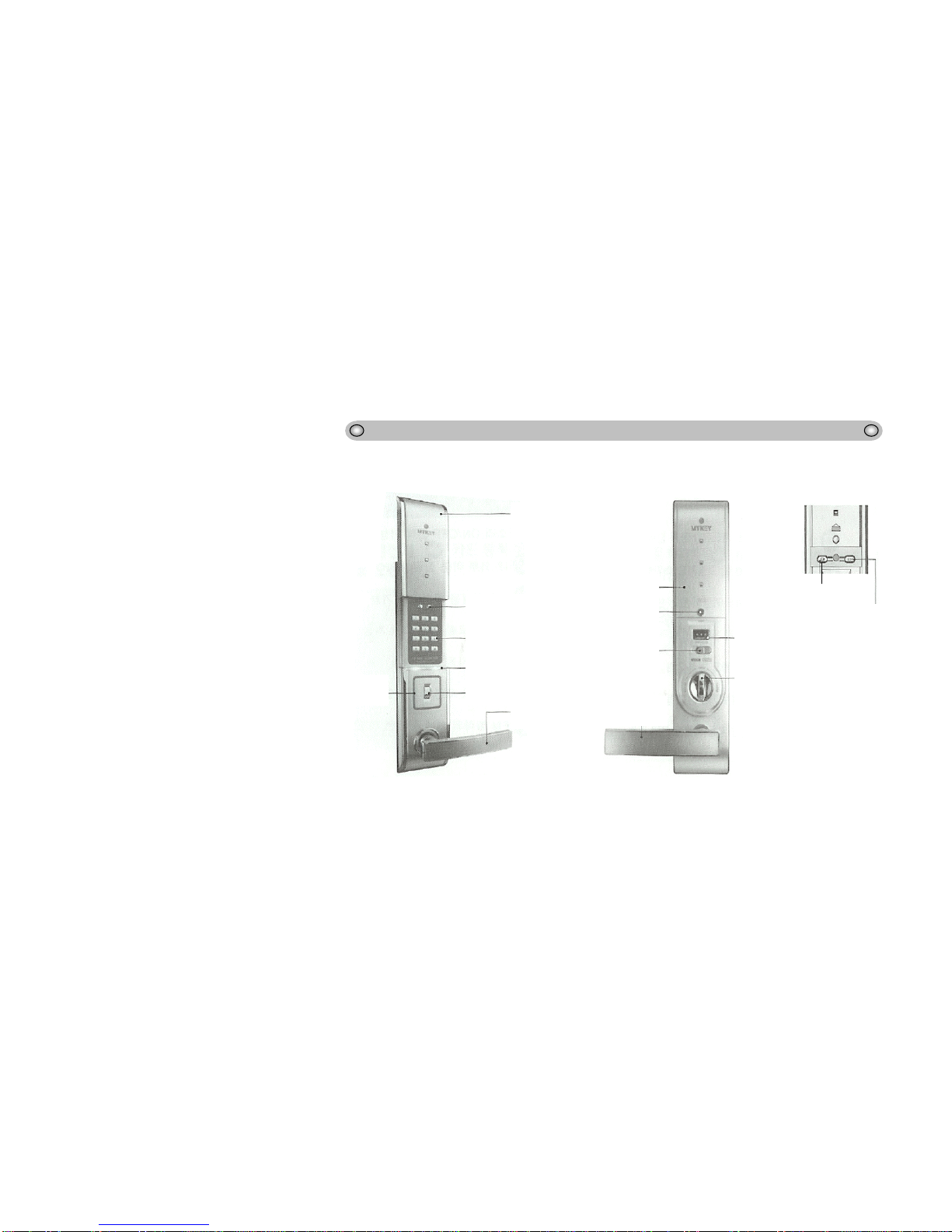

1. Name of part
1) Outer body 2) Inner body
Sliding Cover
Emergency Ports
Key Sensor
Keypads
LED
Handle
Lock Button
Battery Cover
Battery Cove
r
Screw Open/Close
Button
Manual
Override
Handle
Double
Locking Key
Handle
Card Setup Buttons
PIN
Setup
Button

DigitalDoorLock
2. Specifications
Specifications(Main)
Model No. FD-4000
Inner: 299(H) x 76(W) x 33(D) mm
Size Outer: 309(H) x 76(W) x 47(D) mm
Power DC 6V(8 alkaline ‘AA’ batteries)
Battery life 1 year (assuming 10 open/close a day)
Material Die Casting (aluminum), PC, ABS
Reading Range Within 30mm
Available digits of PIN 3-20 digits
Number of cards to register 1-50 cards
Door thickness for installation 35-45mm
Power (for emergency) DC 9V (not included)

DigitalDoorLock
2. Specifications
Specifications(Remote control)
Model No. FD-4000R
Size 120mm(H) x 30mm(W) x 17(D)mm
Power DC 3V(2 alkaline ‘AAA’ batteries)
Battery life 1 year (assuming 10 open/close a day)
Material ABS
Reading Range Within 60m
Output Power Max 5㎽
Band Width Max 8.5㎑
Operating Frequency 447.650㎒±3㎑

DigitalDoorLock
3. Features
-Imaginary numbers before the real PIN
Pressing imaginary numbers (how many digits you want) before the real PIN
prevents people who spy out your PIN.
-Setting and modification of password (3~20 digits)
You can set and modify your password at any time.
-Backlighting system
This feature allows you to see the keypad in low light or dark conditions thanks to self-illumination of
the buttons.
-Auto re-lock function
If enabled, this function will lock the door within six seconds after being closed. The users do not have
to bother locking the door after opening.
-Low battery warning
Red light flashes with an alarm sound to let user know when the battery is running low.

DigitalDoorLock
-Tamper proof
All functions will stop for 30 seconds if you enter the wrong password more than three times by
mistake.
-Easy installation
The installation of this lock is simple and, in most cases, the existing keyhole can be used. Full
installation instruction is supplied.
-PIN memory
Once the PIN is set, it will not be changed or erased even when the batteries are changed.
-Indoor double lock system
The product has an indoor double lock system preventing someone opening the door from the
outside. If this function is activated, no one, even with the correct PIN, can open the door from
outside.
-Outdoor double lock system
The user can use this feature from the outside. If the “Lock Button” is held down for 3 seconds after
locking the door, no one can open the door from inside.

DigitalDoorLock
4. Operating instruction
-How to set up Personal Identification Number
※NOTE: All procedures have to be done in 8 seconds.

DigitalDoorLock
-How to open the door using PIN from outside (when the sliding cover is closed)
-How to open the door using PIN from outside (when the sliding cover is open)

DigitalDoorLock
-How to open the door from inside
Press Open/Close button to
Open the door “Ding Dong Dang”

DigitalDoorLock
-How to close the door when Auto-relock is activated
The lock will automatically lock the door after being closed thanks
to the magnetic sensor.
NOTE: The lock will lock the door 6 seconds after the valid PIN or smart key are input.
-How to close the door when Auto-relock is not activated

DigitalDoorLock
-How to set automatic lock option
-How to set on/off double lock from inside
The door remains locked despite of inputting PIN or
smart keys

DigitalDoorLock
-How to set on/off double lock from outside
*How to set on
1) Press the “Lock Button” on outer body for 5 seconds
2) Press PIN or place the smart keys near to the reader, then press key
3) The double locking function will be activated and the open/close key in the inner side will not work.
*How to set off
It will open only by PIN or smart key from the outside.
*** This function is especially good when no one is in or going out for a long time.
-Ports for emergency
In case of emergency situation when the battery power is run out, you can run to the convenient store
near by and buy a 9V battery, then contact it to the emergency contact points as shown below, located
on the outside body of the door lock, to open the door lock using PIN or smart cards.

DigitalDoorLock
-How to set the buzzer on/off

DigitalDoorLock
5. How to add or delete the cards
You can open this lock by cards, key tags or “pass-watch” supplied with the system.
-How to register the smart keys (up to 50 smart keys)
-How to add the smart keys (up to 50 smart keys)

DigitalDoorLock
-How to delete all the pre-enrolled smart keys
-How to open the door using smart keys
Place the smart keys near to the
“Key Sensor” on outer body

DigitalDoorLock

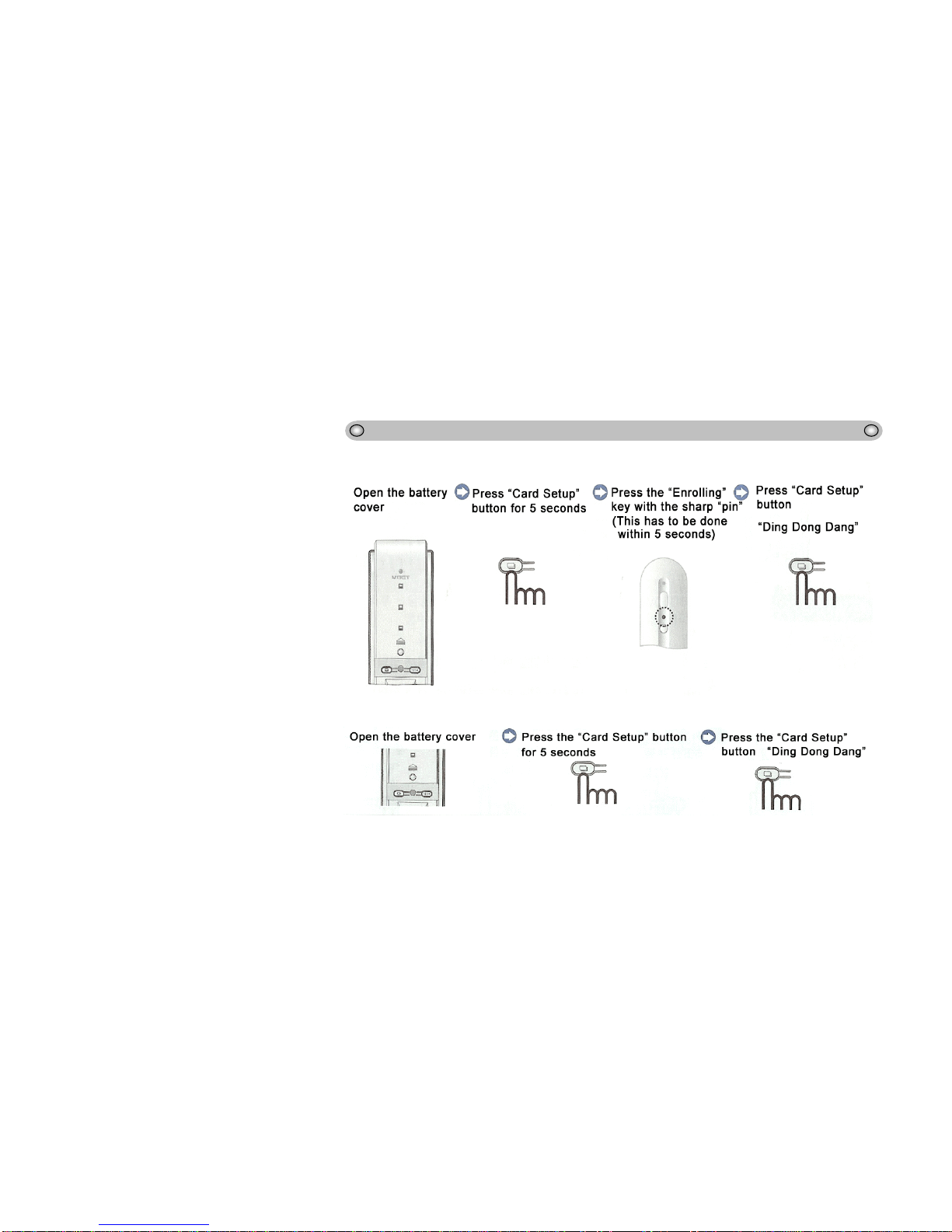

☞How to enroll/delete the remote controller
-How to enroll the remote controller
-How to delete the remote controller

DigitalDoorLock
-How to open and close the door with the remote controller
☞Burglar Alarm System
-The noisy alarm will sound if someone tries to open the door with force.
-Once the alarm goes off, only the registered card or inputting valid PIN will cancel the alarm.
-This Burglar Alarm System is installed in the factory as a default. If you wish it to be set off, please follow the
procedures below,
1) Press the “PIN Setup” button
2) Press keytwice
3) Press key
4) Burglar Alarm System is deactivated (Beep)
Open: press the “open” button (opens within 5 seconds)
Lock: press the “lock” button (locks within 5 seconds)

DigitalDoorLock
-To set the Burglar Alarm System on again, follow the 1), 2) procedures and the Burglar Alarm System will be
installed with the sound of "Beep-Beep-Beep".
1) Press the “PIN Setup” button
2) Press key twice
3) Press key
4) Burglar Alarm System is activated (Beep Beep Beep)
6. How to install
1) Uninstall the existing door lock
2) Change the mortise depending on the hinges
- The included mortise is for both the left and right handed. The default is for the left handed.
- If the door opens inwards and the hinge is on the right side, the direction of mortise latch has to be
changed to the right handed.
- If users push to open the door, install the mortise latch the other way than above.
3) Fixing the mortise on the door, tighten the mortise with screws.
