FitLux 585 User manual

MOTORIZED TREADMILL
585

We reserve the right to make change at any time without notice,
in colors, parts and materials.
IMPORTANT SAFETY INSTRUCTIONS
ELECTRICAL GROUNDING INSTRUCTIONS
CAUTION: BEFORE AND AFTER RUNNING ON THE TREADMILL
RUNNING DECK LUBRICATION
ASSEMBLY PARTS LIST
ASSEMBLY INSTRUCTIONS
TREADMILL OPERATION
HOW TO OPERATE
COMPUTER INSTRUCTION
HOW TO USE ASA SYSTEM
MASTER POWER SWITCH LOCATION
ERROR MESSAGE & TROUBLE SHOOTING
HOW TO ADJUST INCLINE
HOW TO FOLD UP FOR STORAGE
HOW TO FOLD DOWN FOR EXERCISE
ALIGNING THE RUNNING BELT
ADJUSTING THE RUNNING BELT TENSION
CLEANING AND INSPECTING THE RUNNING BELT
CLEANING
INSPECT FASTENERS AND WIRING
HOW TO MOVE
STORAGE
HOW TO WORK OUT SAFELY AND EFFICIENTLY
EXPLODED DRAWING
PARTS LIST
P. 1
P. 2
P. 3
P. 3-4
P. 5
P. 6-7
P. 8
P. 8-10
P. 11-17
P. 17
P. 18
P. 18
P. 18
P. 19
P. 19
P. 20
P. 20
P. 21
P. 21
P. 21
P. 21
P. 21
P. 22
P. 23
P. 24
............................
.......................
.......
.................................
........................................
....................................
......................................
...........................................
....................................
....................................
............................
.......................
.....................................
...............................
............................
.................................
........................
..................
..................................................
..............................
..............................................
..................................................
....................
........................................
.................................................
TABLE OF CONTENTS

1
IMPORTANT SAFETY INSTRUCTIONS
CAUTIONS
* This computer with function of pulse detection is designed for users' reference when
doing exercise, it can not be used for medical purpose.
* Never operate the treadmill if it has been dropped or damaged, or exposed to water
Contact with your distributor for service recommendations.
* Before starting any exercise program, it is recommended that you consult your physician.
* Stop using this appliance if you feel dizziness or discomfort.
* Medical approval and close supervision is necessary when appliance is used by or near
handicapped individuals.
* Use the treadmill only for its intended use as described in this manual.
* Do not pull the treadmill by the power cord or use it as a handle.
* Keep power cord away from heated surfaces and oven flame.
* Do not use or store outdoors.
* Do not operate where aerosol products are being used or where oxygen is being
administered.
* While turning on the power, please stand beside the treadmill, not on the treadmill.
* The weight limit is 159KGS (350LBS).
* Do not operate in a wet or moist condition.
* Do not use the treadmill on a carpet that is greater than 1/2 inch in height.
* Do not operate under a blanket. Excessive heating can occur and cause fire, electrical
shock, or injury to persons.
* Never insert any object into any opening on the treadmill.

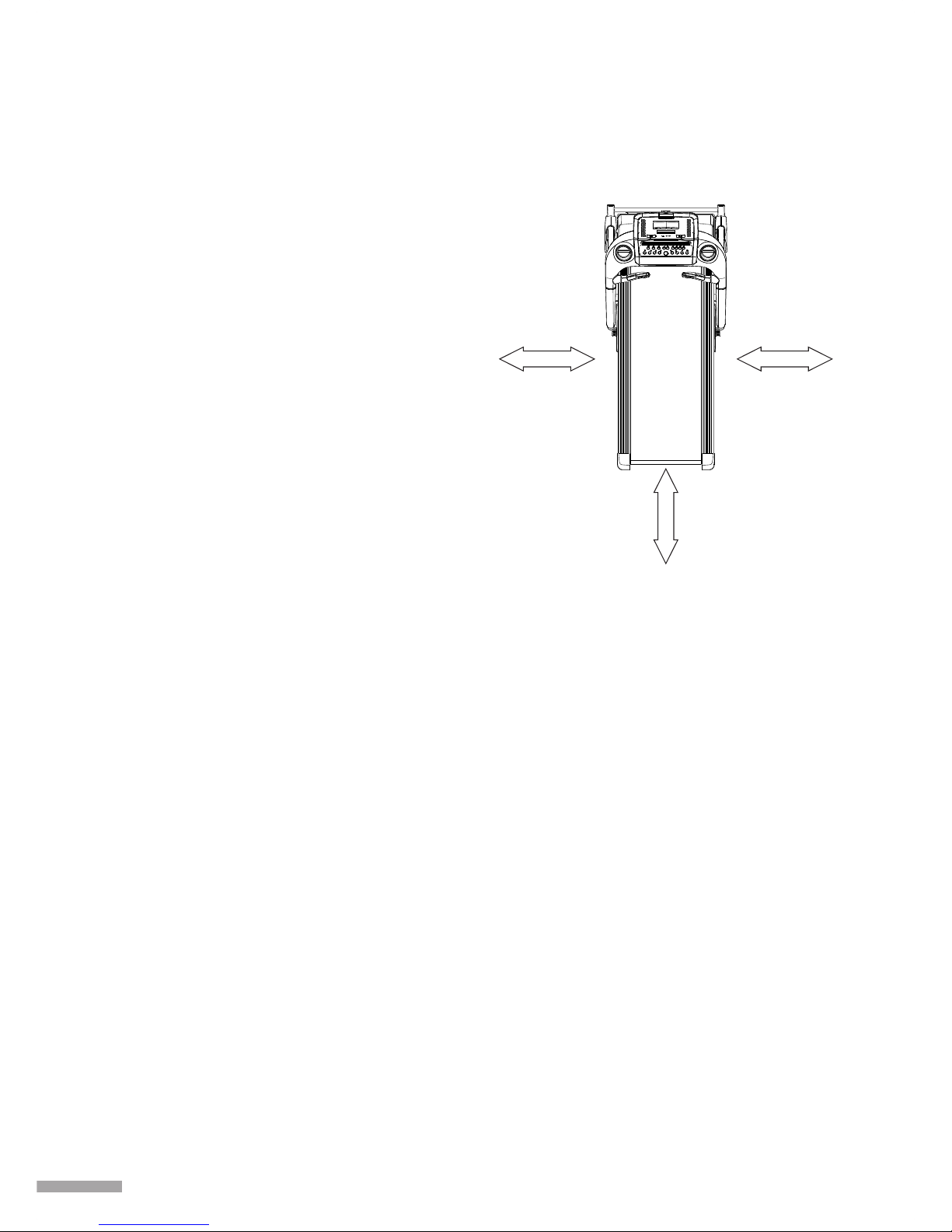

* Keep the treadmill on a solid, level surface with sides at least two feet from any wall. Be
sure the area around the treadmill remains clear during use and has adequate clearance,
see illustration below.
WARNING
* This treadmill requires a dedicated circuit as 110V/220V 15/10AMP separately that is not
shared by any other electrical appliances. Failure to do so can damage the electronics
and the motor, and will void the warranty.
* To reduce the risk of electric shock, always unplug the power cord from electrical outlet
immediately after using and before cleaning, assembling or servicing.
* Never leave the treadmill unattended when plugged in. Disconnect by turning off the
master power switch and unplugging from outlet.
* Always keep hands and feet off the treadmill while others are using it.
* Never place hands or feet under the treadmill.
* Do not allow children on or around treadmill.
Please read the following basic precautions prior to use of the treadmill:
* Never operate the treadmill with the air openings blocked.
* Keep air openings free of lint, hair and the likes.

2 FEET MIN.
2 FEET MIN.2 FEET MIN.
LEFT
SIDE
RIGHT
SIDE
REAR
TOP
VIEW
FRONT
ELECTRICAL GROUNDING INSTRUCTIONS
This product must be grounded. If it should
malfunction or break down, grounding provides
a path of least resistance for the electric
current, reducing the risk of electric shock.
This treadmill is equipped with a cord having
an equipment grounding connector and a
grounding plug. The plug must be plugged into
an appropriate outlet that is properly installed
and grounded in accordance with all local
codes and ordinances.
DANGER
Improper connection of the treadmill grounding
can result in the risk of electric shock. Check
with a qualified electrician if you are in doubt as
to whether the product is properly grounded.
Do not modify the plug provided with the
treadmill.
If it will not fit your outlet, have a properly
grounded outlet installed by a qualified
electrician. This unit must be plugged into a
nominal 110 Volt, 10 AMP or 220 Volt ,7 AMP
circuit, which has a grounding plug. Outlets
that service multiple appliances, or have
fluctuating voltage of more than 5%, may result
in erratic performance or cause damage to the
treadmill electronics. Using electrical power
other than that which has been specified will
ultimately void any warranty, implied or
otherwise. Never remove or bypass the
electrical ground contained in the treadmill's
three-lug with an adapter.
The difference in the RPM of motor is ±10%
* Do not plug into the same outlet with any
other electrical appliance while using this
treadmill.
* Do not walk or jog barefoot or without shoes.
* Do not walk or jog in loose shoes or slippers.
Athletic shoes are always recommended
while using this treadmill.
* Never walk or jog while wearing loose fitting,
long garments such as slacks pajamas or
dresses.
* When walking or jogging always stay on the
forward part of the treadmill.
* Never jog or walk faster than is comfortable
for you.
* Do not jump up on the treadmill from side to
side.
* Do not place any liquids on any parts of the
treadmill.
2

CAUTION:
BEFORE AND AFTER RUNNING ON THE TREADMILL
Before Running:
1. Read the manual first for familiarization of the computer and other important features.
2. Before starting the treadmill, always stand on two side rails on both sides (not on the
running belt) as shown on drawing.
3. Have safety key properly place on the computer console, and have safety clip securely
attach to an article of your clothing.
4. Start the treadmill and allow it to reach at speed of at least 1.0kph, hold your hand on the
handlebar then walk on the running belt to start your exercise program.
After Running:
1. If you hear any abnormal noise from motor, please stop using and contact with your
distributor for necessary maintenance.
2. Please refer to below RUNNING DECK LUBRICATION to do necessary periodical
maintenance for long-term and functional operation.
PLEASE NOTE WITHOUT DOING PERIODICAL MAINTENANCE MIGHT VOID THE
WARRANTY.
RUNNING DECK LUBRICATION
Why to lubricate?
If the lubricant dries out, the friction between the belt and the deck will rise and place undue
stress on the drive motor, drive belt and electronic motor control board, which could result in
catastrophic failure of these expensive components.
When to lubricate?
High-efficient and low-friction running deck is used on this machine. The deck comes pre-
lubricated and subsequent lubrication should be done in every 120 hours, or every 3 months of
operation, whichever comes first. Keeping the deck lubricated at the recommended intervals
ensures the longest life possible for your treadmill.
3

123
4
What to lubricate?
Do not lubricate with other than our approved lubricant. Your treadmill comes with one 30ml tube of
silicone. For further lubrication, you may order from distributor for our 200ml silicone:
200ml silicone in one bottle with 35cm applicator.
100% silicone, non-petroleum base, contains of no harmful solvents, non-toxic and
nonflammable.
Pump action spray bottle.
Good for treadmill that used non-petroleum based lubricant.
How to lubricate?

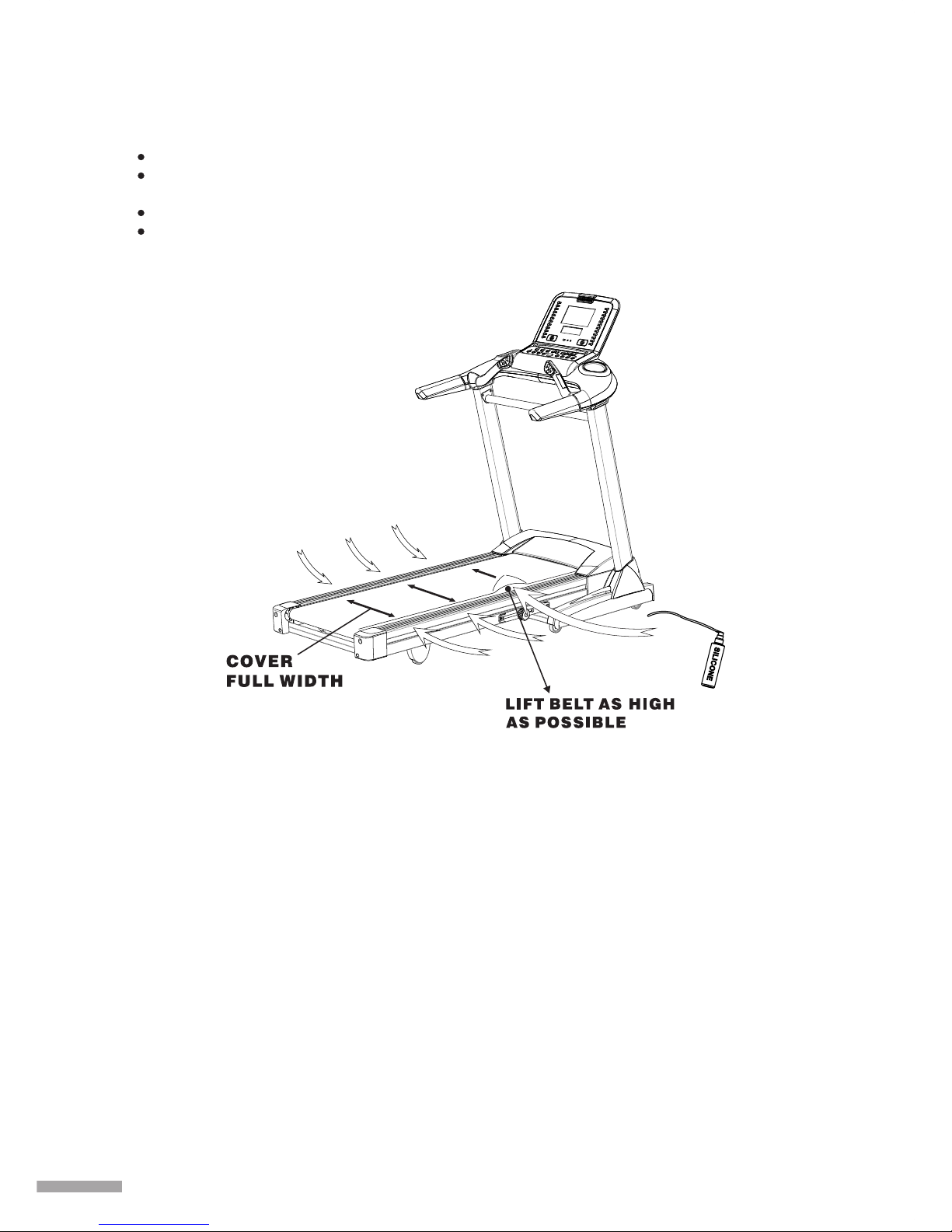

Follow below drawing, lift running belt as high as possible, wipe the deck and the edge of the
belt with a clean lint free cloth to remove any dirt on both sides. Then inserting straw from silicone
bottle from either side of the running belt to reach to the deck surface about 18 inches from motor
cover, pump out the silicone of the tube across the deck, parallel to the motor cover, in about one
foot line. The one foot line should be in the middle of the deck at approximately equal distance from
both side edges of the belt. Repeat above procedures to distribute onto 3 spots on the running deck
as shown on drawing. Once the silicone is applied, you should walk, not run, at low speed on the
treadmill for at least 5 minutes to ensure it is evenly distributed.
You want the lubricant to be applied about the spot that your feet would hit the belt as you are
walking. This should be about 18 inches from the motor cover. You may walk on the treadmill to see
where your feet land on the belt. Please note if you mostly run on the treadmill, the spot where your
feet land may be different from the spot in walking.
Note:
1. IF belt is stuck under side rail, use a screwdriver to lever out for easy lubrication.
2. IF belt is not centered, please refer to P. 20- Aligning The Running Belt.
3. IF static symptom happens, adding silicone on the running deck will also help solve it.

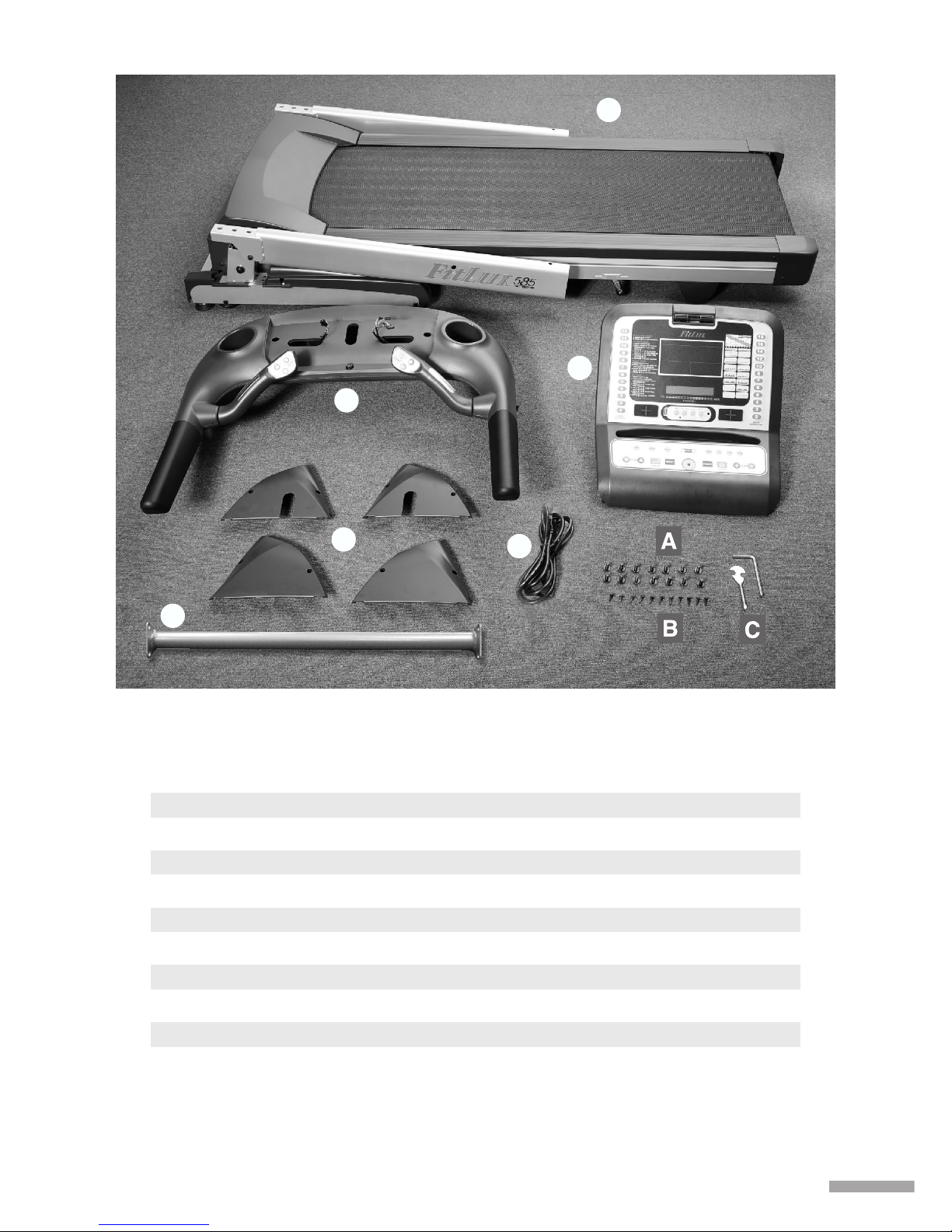

ASSEMBLY PARTS LIST
1.
2.
3.
4.
5.
6.
A.
B.
C.
MAIN FRAME
COMPUTER FRAME
SIDE COVER
COMPUTER
POWER CABLE
CROSS BAR
BOLT
SCREW
TOOLS
................................
............................
................................
................................
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
................................
.....................................
...................................
....................................
1
1
2 + 2
1
1
1
14
11
1 + 1
2
3
6
5
3
3
2
2
3
1
2
3
4
5

STEP 2:
Fix by each 3 Bolts (A) on both sides.
STEP 3:
Fix Side Covers (3) at the Bottom of Front
Post. Wedge the bottom rim of Side Covers
(3) into the frame, then use Screw (B) to
fix.
6
ASSEMBLY INSTRUCTIONS
STEP 1:
Fold up the Front Post.

STEP 5:
Hold the Computer (4) above the Computer
Frame (2). Connect all the cables (2 cables
on the left, and other cables on the right)
from Computer (4) and Computer Frame
(2). Be careful not to cut the cables.
STEP 6:
Then mount the Computer on the Computer
Frame (2) and fix by 7 Bolts (B) from the
back side of Computer Frame (2).
4-2
4-1
4-2
STEP 4:
Ask one person to hold the Computer
Frame (2) at the top of two Front Posts.
Well connect the cables (4-1).
Then insert Computer Frame (2) into top of
Front Posts and fix by SCREW(A) (4-2).
While inserting Computer Frame into Front
Post, please ensure not to cut, press, bend
or deform the cables inside.
4-1. DO NOT CUT, PRESS, BEND or
DEFORM the Cables inside.
4-2. Before fixing the Bolts on both Front
Post, please have Cross Bar (6) put on
the inside of the Front Post, fixed with
2 Bolts (A) on Right and Left side first,
but DO NOT TIGHTEN the bolts yet.
After all Bolts have been screwed on
Front Post, please tighten all bolts.
7

FOR QUICK START
Press START button to start running . Time, distance, and calories will count up from 0. Also 0 appears
on Incline Dot Matrix, and the first dot flashes on Speed Dot Matrix. And 0 will jump to 1 after running
400 meters. And you may press INCLINE up/down or SPEED fast/slow to adjust incline and speed as
you like. You may also press Quick Speed/Incline button to fast reach the speed/incline you prefer.

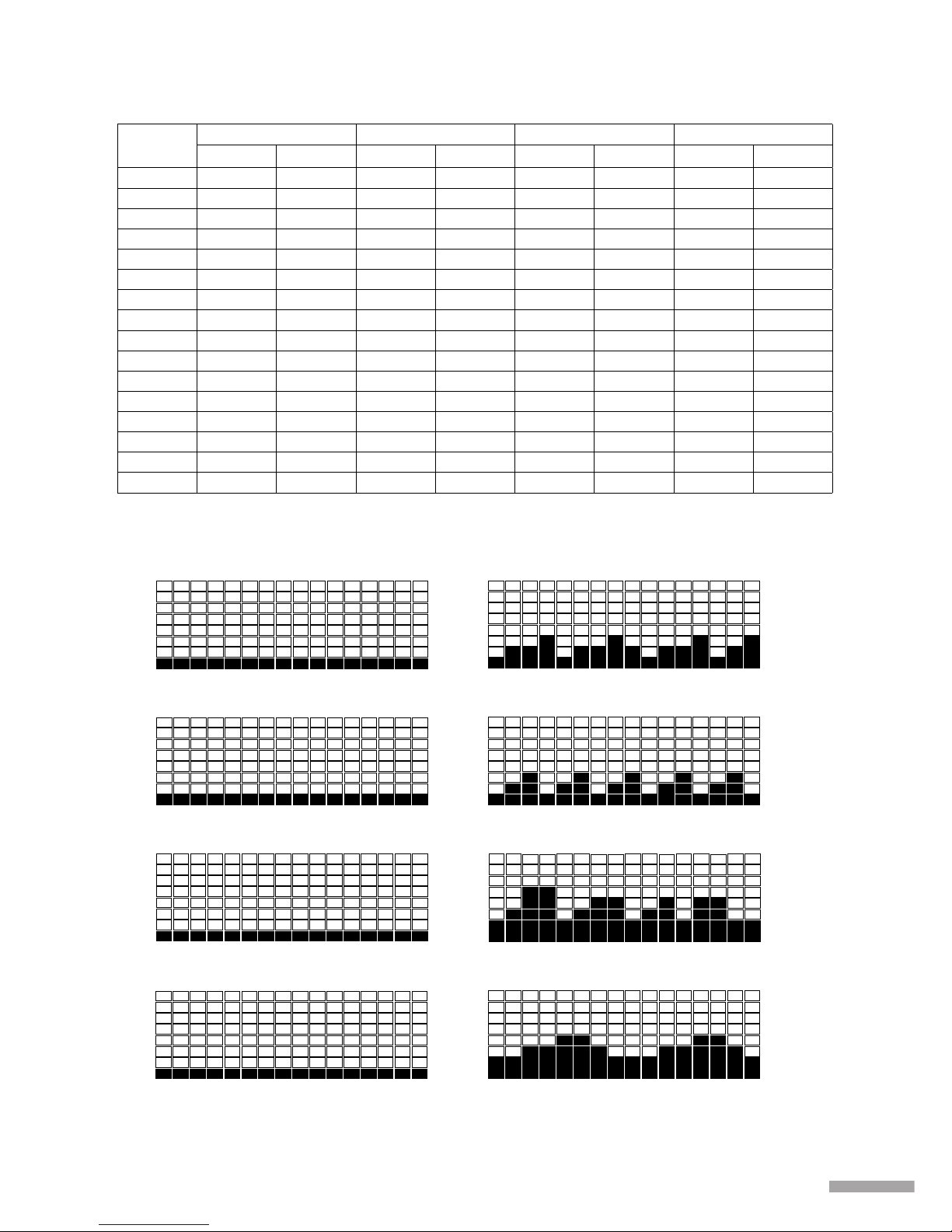

FOR 12 PRESET PROGRAM
Press PROFILE button to choose program: P1 ~ 12.
Press ENTER and INCLINE up/down or SPEED fast/slow button to choose Level 1 ~ 3.
Press ENTER button, preset 32:00 flashes.
Press INCLINE up/down or SPEED fast/slow button to set desired time from 10 ~ 99.
Press ENTER and START button to start running.
FOR TARGET PROGRAM (TIME, DISTANCE, CALORIES)
Choose target program, Time, Distance or Calories for countdown exercise.
Press TIME button for target time, default setting 32:00 flashes, press INCLINE up/down or SPEED
fast/slow button to set desired workout time 10~99 minutes, press ENTER and START button to start
running.
Or press CALORIES button for target calories, default setting 10.0 flashes, press INCLINE up/down
or SPEED fast/slow button to set desired workout calories 10~990 KCAL, press ENTER and START
button to start running.
Or press DISTANCE button for target distance, default setting 1.0 flashes, press INCLINE up/down or
SPEED fast/slow button to set desired workout distance 1~20 km, press ENTER and START button to
start running.
When the set figure counts down to 0, machine will stop automatically.
HOW TO OPERATE
TREADMILL OPERATION
CAUTION:
Before beginning a workout session make sure the safety key is properly placed onto the computer
console and the safety clip is securely attached to an article of your clothing.
Always start the treadmill while standing on the side rails but not on the running belt.
Allow the treadmill to reach a speed of at least 1.0 KPH before walking on the running belt.
Before operating read this page first for familiarization of the treadmill computer console and other
important features.
8

FOR USER PROGRAM (U1, U2, U3)
Press EDIT USER button to choose U1, U2 or U3 for setting user’s desired profile.
Press ENTER button, first range on both Incline and Speed Dot Matrix flashes, then press INCLINE
up/down and SPEED fast/slow button to set desired incline and speed of first range.
Press ENTER button, it jumps to 2nd range on both Dot Matrix, repeat above procedures to set
desired incline and speed of 2nd range.
Repeat above procedures to set all 16 ranges. Then you may press START button based on default
setting 32 minutes to start exercise.
And after any of U1, U2, U3 is set, press USER button to choose U1, U2 or U3. Then, press ENTER
button, default setting 32:00 flashes. Press INCLINE up/down or SPEED fast/slow button to set.
desired time.
Press ENTER and START button to start running.
FOR HRC PROGRAM (H1, H2, H3)
Press HRC button to choose Heart Rate Control program, H1 (or H2, H3).
Press ENTER button, default setting age: 30 shows on Calories window.
Press INCLINE up/down or SPEED fast/slow button to set age: 13 ~ 70.
For example, if you set 35 years old then press ENTER button, heartbeat 111 and Level 1 appear.
You may press INCLINE up/down or SPEED fast/slow button to choose L2 for 138, or L3 for 157 for
different heart beat for exercise.
Then press ENTER button, default setting 32:00 flashes.
Press INCLINE up/down or SPEED fast/slow button to set desired time.
Press ENTER and START button to start running.
REMARKS
HRC 1 (SPEED CONTROL) OPERATION:
1. Hold two hands on pulse plate, in 30 seconds after pressing START button, computer will detect
user’s pulse and show on the computer for further operation.
2. If computer could not detect user’s pulse in 30 seconds, machine will stop, And LCM shows “NO
PULSE”.
3. If user’s actual heartbeat is higher than preset max. heartbeat, speed will decrease 0.2kph per
detection. When the speed reaches to the lowest but the actual heartbeat is still higher than preset
max. heartbeat, suggest you stop running and consult your physician.
4. If actual heart beat is 20 times continuously higher than preset max. heartbeat for 20 seconds,
system will stop to pause mode. LCM shows “HI PULSE”. 3 minutes after pause mode, system will
reset to stop mode.
5. If user’s actual heartbeat is lower than preset max. heartbeat, speed will increase 0.2kph per
detection. When the speed reaches to the highest but the actual heartbeat is still lower than preset
max. heartbeat, machine will keep running in the highest speed.
9

HRC 2 (INCLINE CONTROL) OPERATION:
Operation is same as HRC 1
1. Actual heartbeat is lower than preset max heartbeat:
Increase incline 1% per detection.
2. Actual heartbeat is higher than preset max. heartbeat:
Decrease incline 1% per detection.
HRC 3 (SPEED AND INCLINE CONTROL) OPERATION:
Operation is same as HRC 2
1. Actual heartbeat is lower than preset max heartbeat:
Increase speed first for 0.2 per detection. After it reaches the highest speed, incline 1% will
increase per detection.
2. Actual heartbeat is higher than preset max heartbeat:
Decrease speed first for 0.2 per detection. After it reaches the lowest speed, incline 1% will
decrease per detection.
MAXIMUM HEARTBEAT SETTING:
Level 1: (220 – age) x 60%
Level 2: (220 – age) x 75%
Level 3: (220 – age) x 85%
10

COMPUTER INSTRUCTION:
SPEED DISPLAY BAR:
Warm up: 0.8 ~ 2.0 kph
Running: 9.1 ~ 13.0 kph
Walking: 2.1 ~ 5.0 kph
Springting: 13.1 ~ 20.0 kph
Jogging: 5.1 ~ 9.0 kph
SPRINTING
WALKING JOGGING
WARM UP RUNNING
17.6 ~ 20.0
17.1 ~ 17.5
16.6 ~ 17.0
16.1 ~ 16.5
15.6 ~ 16.0
15.1 ~ 15.5
14.6 ~ 15.0
14.1 ~ 14.5
13.6 ~ 14.0
13.1 ~ 13.5
12.6 ~ 13.0
12.1 ~ 12.5
11.6 ~ 12.0
11.1 ~ 11.5 10.6 ~ 11.0
10.1 ~ 10.5
9.6 ~ 10.0
9.1 ~ 9.5
8.6 ~ 9.0
8.1 ~ 8.5
7.6 ~ 8.0
7.1 ~ 7.5
6.6 ~ 7.0
6.1 ~ 6.5
5.6 ~ 6.0
5.1 ~ 5.5
4.6 ~ 5.0
4.1 ~ 4.5
3.6 ~ 4.0
3.1 ~ 3.5
2.6 ~ 3.0
2.1 ~ 2.0
1.6 ~ 2.0
1.1 ~ 1.5
0.9 ~ 1.5
0.8 ~
PROGRAM: 1 ~ 12
DISTANCE: 0 ~ 99.9KM
INCLINE: 0 ~ 12%
CALORIES: 0 ~ 999.9KCAL
TIME: 0 ~ 99.59 (DEFAULT SETTING 32:00)
“ RUN” showing on Time window is for exercise mode.
“FOLD” showing on Time window is for folding mode.
11
WARM UP WALKING JOGGING SPRINTINGRUNNING
INCLINE DOT MATRIX SPEED DOT MATRIX

12

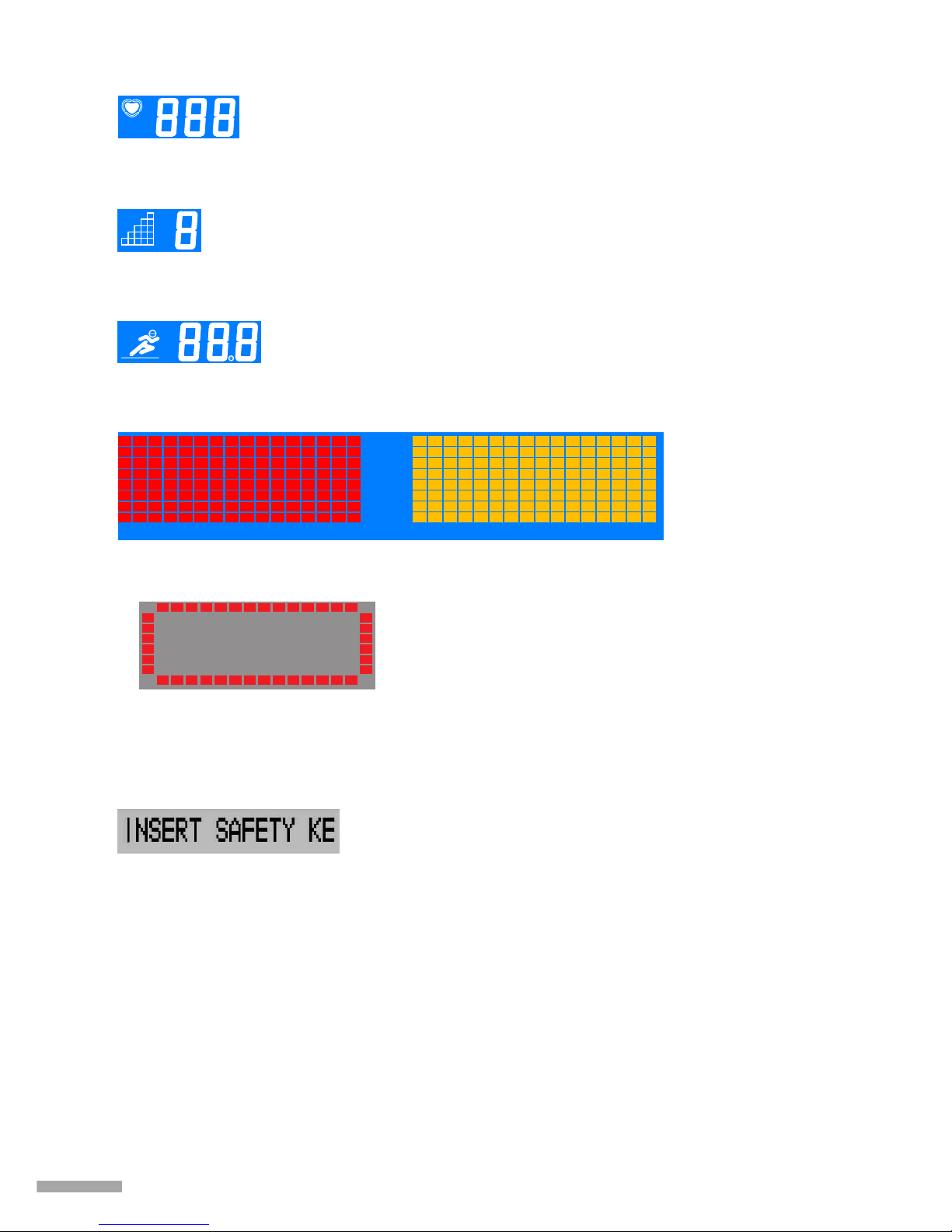

LCM DISPLAY
1. For operation instruction.
2. Finish Rate display: Showing the percentage of the program value you chose has been run.
2. In program mode, Incline Dot Matrix shows the profile of incline, and Speed Dot Matrix shows the
profile of speed.
1. In quick start and target modes, Incline Dot Matrix will show the accumulated laps, and Speed Dot
Matrix will show the circle of lap. 40 dots represent 400 meters in one lap.
DOT MATRIX: 8 X 16 FOR BOTH SPEED AND INCLINE PROFILE
INCLINE DOT MATRIX SPEED DOT MATRIX
SPEED: 0.8 ~ 18KPH
LEVEL: 1 ~ 3
PULSE: 40 ~ 200 BPM

P1
P2
P4
P3
INCLINE DOT MATRIX
0%
1~2%
3%
4~5%
6~7%
8~9%
10~11%
INCLINE DOT MATRIX
0%
1~2%
3%
4~5%
6~7%
8~9%
10~11%
INCLINE DOT MATRIX
0%
1~2%
3%
4~5%
6~7%
8~9%
10~11%
INCLINE DOT MATRIX
0%
1~2%
3%
4~5%
6~7%
8~9%
10~11%
SPEED DOT MATRIX
0.8~2.0 KPH
2.1~4.0 KPH
4.1~6.0 KPH
6.1~8.0 KPH
8.1~10.0 KPH
10.1~12.0 KPH
12.1~14.0 KPH
14.1~16.0 KPH
SPEED DOT MATRIX
0.8~2.0 KPH
2.1~4.0 KPH
4.1~6.0 KPH
6.1~8.0 KPH
8.1~10.0 KPH
10.1~12.0 KPH
12.1~14.0 KPH
14.1~16.0 KPH
SPEED DOT MATRIX
SPEED DOT MATRIX
0.8~2.0 KPH
2.1~4.0 KPH
4.1~6.0 KPH
6.1~8.0 KPH
8.1~10.0 KPH
10.1~12.0 KPH
12.1~14.0 KPH
14.1~16.0 KPH
0.8~2.0 KPH
2.1~4.0 KPH
4.1~6.0 KPH
6.1~8.0 KPH
8.1~10.0 KPH
10.1~12.0 KPH
12.1~14.0 KPH
14.1~16.0 KPH
PROFILES FOR PROGRAMS
P 1 ~ P 4 PROGRAM SPEED & INCLINE
SPEED
LEVEL 1
P1 P2 P3 P4
SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE
Interval 1 0 % 0 % 0 % 0 %
Interval 2 0 % 0 % 0 % 0 %
Interval 3 0 % 0 % 0 % 0 %
Interval 4 0 % 0 % 0 % 0 %
Interval 5 0 % 0 % 0 % 0 %
Interval 6 0 % 0 % 0 % 0 %
Interval 7 0 % 0 % 0 % 0 %
Interval 8 0 % 0 % 0 % 0 %
Interval 9 0 % 0 % 0 % 0 %
Interval 10 0 % 0 % 0 % 0 %
Interval 11 0 % 0 % 0 % 0 %
Interval 12 0 % 0 % 0 % 0 %
Interval 13 0 % 0 % 0 % 0 %
Interval 14 0 % 0 % 0 % 0 %
Interval 15 0 % 0 % 0 % 0 %
Interval 16 0 % 0 % 0 % 0 %
LEVEL 2 is based on LEVEL 1, each speed interval increases 2.0KPH, incline by 1%.
LEVEL 3 is based on LEVEL 2, each speed interval increases 2.0KPH, incline by 1%.
3.0 KPH
6.0 KPH
8.0 KPH
8.0 KPH
3.0 KPH
6.0 KPH
8.0 KPH
8.0 KPH
3.0 KPH
6.0 KPH
8.0 KPH
3.0 KPH
6.0 KPH
8.0 KPH
3.0 KPH
3.0 KPH
3.0 KPH
3.0 KPH
5.0 KPH
6.0 KPH
7.0 KPH
8.0 KPH
6.0 KPH
4.0 KPH
3.0 KPH
3.0 KPH
5.0 KPH
6.0 KPH
7.0 KPH
8.0 KPH
6.0 KPH
4.0 KPH
2.0 KPH
4.0 KPH
6.0 KPH
2.0 KPH
4.0 KPH
6.0 KPH
2.0 KPH
4.0 KPH
6.0 KPH
2.0 KPH
4.0 KPH
6.0 KPH
2.0 KPH
4.0 KPH
6.0 KPH
2.0 KPH
2.0 KPH
3.0 KPH
4.0 KPH
5.0 KPH
2.0 KPH
3.0 KPH
4.0 KPH
5.0 KPH
3.0 KPH
2.0 KPH
3.0 KPH
4.0 KPH
5.0 KPH
2.0 KPH
3.0 KPH
5.0 KPH
13

14
P5
P6
P8
P7
SPEED DOT MATRIX
0.8~2.0 KPH
2.1~4.0 KPH
4.1~6.0 KPH
6.1~8.0 KPH
8.1~10.0 KPH
10.1~12.0 KPH
12.1~14.0 KPH
14.1~16.0 KPH
SPEED DOT MATRIX
0.8~2.0 KPH
2.1~4.0 KPH
4.1~6.0 KPH
6.1~8.0 KPH
8.1~10.0 KPH
10.1~12.0 KPH
12.1~14.0 KPH
14.1~16.0 KPH
SPEED DOT MATRIX
SPEED DOT MATRIX
0.8~2.0 KPH
2.1~4.0 KPH
4.1~6.0 KPH
6.1~8.0 KPH
8.1~10.0 KPH
10.1~12.0 KPH
12.1~14.0 KPH
14.1~16.0 KPH
0.8~2.0 KPH
2.1~4.0 KPH
4.1~6.0 KPH
6.1~8.0 KPH
8.1~10.0 KPH
10.1~12.0 KPH
12.1~14.0 KPH
14.1~16.0 KPH
INCLINE DOT MATRIX
0%
1~2%
3%
4~5%
6~7%
8~9%
10~11%
INCLINE DOT MATRIX
0%
1~2%
3%
4~5%
6~7%
8~9%
10~11%
INCLINE DOT MATRIX
0%
1~2%
3%
4~5%
6~7%
8~9%
10~11%
INCLINE DOT MATRIX
0%
1~2%
3%
4~5%
6~7%
8~9%
10~11%
P 5 ~ P 8 PROGRAM SPEED & INCLINE
INCLINE
LEVEL 1
P5 P6 P7 P8
SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE
Interval 1 2 %
4 %
6 %
4 %
6 %
8 %
8 %
6 %
4 %
2 %
2 %
4 %
6 %
6 %
8 %
8 %
2 %
3 %
2 %
5 %
4 %
3 %
2 %
8 %
7 %
5 %
4 %
3 %
2 %
5 %
4 %
3 %
4.0 KPH
4.0 KPH
4.0 KPH
4.0 KPH
4.0 KPH
4.0 KPH
4.0 KPH
4.0 KPH
4.0 KPH
4.0 KPH
4.0 KPH
4.0 KPH
4.0 KPH
4.0 KPH
4.0 KPH
4.0 KPH
2 %
2 %
6 %
4 %
2 %
6 %
4 %
2 %
6 %
4 %
2 %
6 %
4 %
2 %
6 %
4 %
3 %
6 %
3 %
8 %
8 %
6 %
6 %
8 %
8 %
6 %
6 %
3 %
8 %
8 %
6 %
6 %
Interval 2
Interval 3
Interval 4
Interval 5
Interval 6
Interval 7
Interval 8
Interval 9
Interval 10
Interval 11
Interval 12
Interval 13
Interval 14
Interval 15
Interval 16
LEVEL 2 is based on LEVEL 1, each incline interval increases 1%.
LEVEL 3 is based on LEVEL 2, each incline interval increases 1%.
4.0 KPH
4.0 KPH
4.0 KPH
4.0 KPH
4.0 KPH
4.0 KPH
4.0 KPH
4.0 KPH
4.0 KPH
4.0 KPH
4.0 KPH
4.0 KPH
4.0 KPH
4.0 KPH
4.0 KPH
4.0 KPH
4.0 KPH
4.0 KPH
4.0 KPH
4.0 KPH
4.0 KPH
4.0 KPH
4.0 KPH
4.0 KPH
4.0 KPH
4.0 KPH
4.0 KPH
4.0 KPH
4.0 KPH
4.0 KPH
4.0 KPH
4.0 KPH
4.0 KPH
4.0 KPH
4.0 KPH
4.0 KPH
4.0 KPH
4.0 KPH
4.0 KPH
4.0 KPH
4.0 KPH
4.0 KPH
4.0 KPH
4.0 KPH
4.0 KPH
4.0 KPH
4.0 KPH
4.0 KPH

P9
P10
P12
P11
SPEED DOT MATRIX
0.8~2.0 KPH
2.1~4.0 KPH
4.1~6.0 KPH
6.1~8.0 KPH
8.1~10.0 KPH
10.1~12.0 KPH
12.1~14.0 KPH
14.1~16.0 KPH
SPEED DOT MATRIX
0.8~2.0 KPH
2.1~4.0 KPH
4.1~6.0 KPH
6.1~8.0 KPH
8.1~10.0 KPH
10.1~12.0 KPH
12.1~14.0 KPH
14.1~16.0 KPH
SPEED DOT MATRIX
0.8~2.0 KPH
2.1~4.0 KPH
4.1~6.0 KPH
6.1~8.0 KPH
8.1~10.0 KPH
10.1~12.0 KPH
12.1~14.0 KPH
14.1~16.0 KPH
SPEED DOT MATRIX
0.8~2.0 KPH
2.1~4.0 KPH
4.1~6.0 KPH
6.1~8.0 KPH
8.1~10.0 KPH
10.1~12.0 KPH
12.1~14.0 KPH
14.1~16.0 KPH
INCLINE DOT MATRIX
0%
1~2%
3%
4~5%
6~7%
8~9%
10~11%
INCLINE DOT MATRIX
0%
1~2%
3%
4~5%
6~7%
8~9%
10~11%
INCLINE DOT MATRIX
0%
1~2%
3%
4~5%
6~7%
8~9%
10~11%
INCLINE DOT MATRIX
0%
1~2%
3%
4~5%
6~7%
8~9%
10~11%
INCLINE
LEVEL 1
P9 P10 P11 P12
SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE
Interval 1 2 %
4 %
6 %
8 %
8 %
6 %
6 %
4 %
2 %
2 %
4 %
6 %
8 %
8 %
6 %
4 %
2 %
3 %
2 %
5 %
4 %
3 %
2 %
8 %
7 %
5 %
4 %
3 %
2 %
5 %
4 %
3 %
3.0 KPH
3.0 KPH
5.0 KPH
6.0 KPH
7.0 KPH
8.0 KPH
6.0 KPH
4.0 KPH
3.0 KPH
3.0 KPH
5.0 KPH
6.0 KPH
7.0 KPH
8.0 KPH
6.0 KPH
4.0 KPH
2 %
4 %
6 %
2 %
4 %
6 %
2 %
4 %
6 %
2 %
4 %
6 %
2 %
4 %
6 %
2 %
3 %
6 %
6 %
8 %
8 %
3 %
6 %
6 %
8 %
8 %
6 %
6 %
8 %
8 %
3 %
6 %
Interval 2
Interval 3
Interval 4
Interval 5
Interval 6
Interval 7
Interval 8
Interval 9
Interval 10
Interval 11
Interval 12
Interval 13
Interval 14
Interval 15
Interval 16
3.0 KPH
6.0 KPH
8.0 KPH
8.0 KPH
3.0 KPH
6.0 KPH
8.0 KPH
8.0 KPH
3.0 KPH
6.0 KPH
8.0 KPH
3.0 KPH
6.0 KPH
8.0 KPH
3.0 KPH
3.0 KPH
2.0 KPH
3.0 KPH
4.0 KPH
5.0 KPH
2.0 KPH
3.0 KPH
4.0 KPH
5.0 KPH
3.0 KPH
2.0 KPH
3.0 KPH
4.0 KPH
5.0 KPH
2.0 KPH
3.0 KPH
5.0 KPH
2.0 KPH
4.0 KPH
6.0 KPH
2.0 KPH
4.0 KPH
6.0 KPH
2.0 KPH
4.0 KPH
6.0 KPH
2.0 KPH
4.0 KPH
6.0 KPH
2.0 KPH
4.0 KPH
6.0 KPH
2.0 KPH
LEVEL 2 is based on LEVEL 1, each speed interval increases 2.0KPH, incline by 1%.
LEVEL 3 is based on LEVEL 2, each speed interval increases 2.0KPH, incline by 1%.
P 9 ~ P 12 PROGRAM SPEED & INCLINE
15

FUNCTION OF BUTTONS:
Quick Incline buttons
There are 12 incline buttons 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12(%).
Quick Speed buttons
There are 12 speed buttons 2, 3, 4, 5, 6, 7, 8, 10, 12, 14, 16, 18(KPH).
Target TIME button
It is to select target time for countdown exercise.
Target DISTANCE button
It is to select target distance for countdown exercise.
Target CALORIES button
It is to select target calories for countdown exercise.
PROFILE button
It is to select preset program P1 ~ P12.
HRC button
It is to select heart rate control program H1 ~ H3.
USER button
It is to choose user program U1 ~ U3 for exercise.
EDIT USER button
It is to choose user program U1 ~ U3 to preset desired exercise profile.
SPEED (Fast/Slow) button
They are for speed adjustment and setting adjustment.
INCLINE (Up/Down) button
They are for incline adjustment and setting adjustment.
START button
In stop mode, press to start running.
PAUSE button
In running mode, press this button for pause mode. If the machine is not started again in 20 minutes,
system will be reset to stop mode.
In running mode, if the incline is not at 0% but say at 5%, press the button to stop the machine, incline.
will go down to 0 automatically. When you restart, incline will go up to the original 5%.
RESET button
In pause mode, press this button, system will reset to stop mode.
Press this button during selecting program, system will reset to stop mode.
Press this button during setting exercise figures, system will return to original figure.
ENTER button
It's to confirm the setting figures.
FAN button on the right
It’s for the biggest circulation amount of wind.
FAN button on the left
It's for the small circulation amount of wind.
Pressing for 3 seconds will shut down the operation of fan.
16

17
Handlebar buttons
For convenient operation, there are incline up/down
and stop button on left handlebar, and speed
fast/slow, start buttons on the right handlebar.
EMERGENCY KEY
Insert on the computer for starting the machine.
Remove for emergency stop for safety.
When removing, machine stops, and incline does not descend to 0.
SPEAKER
With two speakers
1. 10W tablet & cell phone charger
2. Headphone plug
3. Audio input
123
There is an ASA system (Adjustable Shock Absorbing system) installed on the two
side of main frame. By turning the knob, user can change shock intensity from soft (1)
(decrease 60%) to Firm (5) (decrease 20%). Do not adjust it when some one is running
on the machine.
HOW TO USE ASA (ADJUSTABLE SHOCK-ABSORBING) SYSTEM
