ICON Health & Fitness NTL15809.2 User manual

www.nordictrack.com
CAUT ON
Read all precautions and instruc-
tions in this manual before using
this equipment. Save this manual
for future reference.
Serial
Number
Decal
Model No. NTL15809.2
Serial No.
Write the serial number in the space
above for reference.
QUEST ONS?
If you have questions, or if parts are
damaged or missing, DO NOT CON-
TACT THE STORE; please contact
Customer Care.
MPORTANT: Please register this
product (see the limited warranty
on the back cover of this manual)
before contacting Customer Care.
CALL TOLL-FREE:
1-800-TO-BE-F T
(1-800-862-3348)
Mon.–Fri. 6 a.m.–6 p.m. MT
Sat. 8 a.m.–4 p.m. MT
ON THE WEB:
www.nordictrackservice.com
USER'S MANUAL

TABLE OF CONTENTS
WARNINGD CALPLAC M NT ..............................................................2
IMPORTANTPR CAUTIONS .................................................................3
B FOR YOUB GIN .......................................................................5
ASS MBLY ...............................................................................6
OP RATIONANDADJUSTM NT ............................................................11
HOWTOFOLDANDMOV TH TR ADMILL ..................................................24
TROUBL SHOOTING ......................................................................25
X RCIS GUID LIN S ...................................................................28
PARTLIST ...............................................................................29
XPLOD DDRAWING .....................................................................31
ORD RINGR PLAC M NTPARTS ..................................................BackCover
LIMIT DWARRANTY...............................................................BackCover
2
This drawing shows the locations of the warning
decals. f a decal is missing or illegible, call the
telephone number on the front cover of this
manual and request a free replacement decal.
Apply the decal in the location shown. Note:
The decals may not be shown at actual size.
WARN NG DECAL PLACEMENT
NordicTrack is a registered trademark of ICON IP, Inc.

3
1. Before beginning this or any exercise pro-
gram, consult your physician. This is espe-
cially important for persons over age 35 or
persons with pre-existing health problems.
2. t is the responsibility of the owner to ensure
that all users of this treadmill are adequately
informed of all warnings and precautions.
3. Use the treadmill only as described.
4. Keep the treadmill indoors, away from mois-
ture and dust. Do not put the treadmill in a
garage or covered patio, or near water.
5. Place the treadmill on a level surface, with at
least 8 ft. (2.4 m) of clearance behind it and 2
ft. (0.6 m) on each side. Do not place the
treadmill on any surface that blocks air open-
ings. To protect the floor or carpet from dam-
age, place a mat under the treadmill.
6. Do not operate the treadmill where aerosol
products are used or where oxygen is being
administered.
7. Keep children under age 12 and pets away
from the treadmill at all times.
8. The treadmill should be used only by per-
sons weighing 350 lbs. (159 kg) or less.
9. Never allow more than one person on the
treadmill at a time.
10. Wear appropriate exercise clothes when
using the treadmill. Do not wear loose
clothes that could become caught in the
treadmill. Athletic support clothes are recom-
mended for both men and women. Always
wear athletic shoes. Never use the treadmill
with bare feet, wearing only stockings, or in
sandals.
11. When connecting the power cord (see page
11), plug the power cord into a surge sup-
pressor (not included) and plug the surge
suppressor into a grounded circuit capable
of carrying 15 or more amps. No other appli-
ance should be on the same circuit. Do not
use an extension cord.
12. Use only a single-outlet surge suppressor
that meets all of the specifications described
on page 11. To purchase a surge suppressor,
see your local NordicTrack dealer or call the
telephone number on the front cover of this
manual and order part number 146148, or see
your local electronics store.
13. Failure to use a properly functioning surge
suppressor could result in damage to the
control system of the treadmill. f the control
system is damaged, the walking belt may
slow, accelerate, or stop unexpectedly, which
may result in a fall and serious injury.
14. Keep the power cord and the surge suppres-
sor away from heated surfaces.
15. Never move the walking belt while the power
is turned off. Do not operate the treadmill if
the power cord or plug is damaged, or if the
treadmill is not working properly. (See
TROUBLESHOOT NG on page 25 if the tread-
mill is not working properly.)
16. Read, understand, and test the emergency
stop procedure before using the treadmill
(see HOW TO TURN ON THE POWER on page
13).
17. Never start the treadmill while you are stand-
ing on the walking belt. Always hold the
handrails while using the treadmill.
WARN NG: To reduce the risk of serious injury, read all important precautions and in-
structions in this manual and all warnings on your treadmill before using your treadmill. CON as-
sumes no responsibility for personal injury or property damage sustained by or through the use of
this product.
MPORTANT PRECAUT ONS

4
18. The treadmill is capable of high speeds.
Adjust the speed in small increments to
avoid sudden jumps in speed.
19. The pulse sensor is not a medical device.
Various factors, including the user's move-
ment, may affect the accuracy of heart rate
readings. The pulse sensor is intended only
as an exercise aid in determining heart rate
trends in general.
20. Never leave the treadmill unattended while it
is running. Always remove the key, unplug
the power cord, and press the power switch
into the off position when the treadmill is not
in use. (See the drawing on page 5 for the lo-
cation of the power switch.)
21. Do not attempt to raise, lower, or move the
treadmill until it is properly assembled. (See
ASSEMBLY on page 6, and HOW TO FOLD
AND MOVE THE TREADM LL on page 24.)
You must be able to safely lift 45 lbs. (20 kg)
to raise, lower, or move the treadmill.
22. Do not change the incline of the treadmill by
placing objects under the treadmill.
23. nspect and properly tighten all parts of the
treadmill regularly.
24. Never insert or drop any object into any
opening on the treadmill.
25. DANGER: Always unplug the power
cord immediately after use, before cleaning
the treadmill, and before performing the main-
tenance and adjustment procedures de-
scribed in this manual. Never remove the
motor hood unless instructed to do so by an
authorized service representative. Servicing
other than the procedures in this manual
should be performed by an authorized service
representative only.
26. The treadmill is intended for in-home use
only. Do not use the treadmill in any commer-
cial, rental, or institutional setting.
27. Over exercising may result in serious injury
or death. f you feel faint or if you experience
pain while exercising, stop immediately and
cool down.
SAVE THESE NSTRUCT ONS

5
Thank you for selecting the revolutionary NordicTrack®
COMM RCIAL 1750 treadmill. The COMM RCIAL
1750 treadmill offers an impressive selection of fea-
tures designed to make your workouts at home more
enjoyable and effective. And when youʼre not exercis-
ing, the unique treadmill can be folded up, requiring
less than half the floor space of other treadmills.
For your benefit, read this manual carefully before
using the treadmill. If you have questions after read-
ing this manual, please see the front cover of this man-
ual. To help us assist you, note the product model
number and serial number before contacting us. The
model number and the location of the serial number
decal are shown on the front cover of this manual.
Before reading further, please look at the drawing
below and familiarize yourself with the labeled parts.
BEFORE YOU BEG N
Handrail
Console Book Holder
Key/Clip
Power Switch
Walking Belt
Foot Rail
Power Cord
Adjustable Cushion
Idler Roller
Adjustment Bolts
Accessory Tray
Pulse Sensor

6
ASSEMBLY
Assembly requires two persons. Set the treadmill in a cleared area and remove all packing materials. Do not
dispose of the packing materials until assembly is completed. Note: The underside of the treadmill walking
belt is coated with high-performance lubricant. During shipping, some lubricant may be transferred to the top of
the walking belt or the shipping carton. This is normal and does not affect performance. If there is lubricant on top
of the walking belt, simply wipe off the lubricant with a soft cloth and a mild, non-abrasive cleaner.
Assembly requires the included hex keys and your own Phillips screwdriver and adjustable
wrench .
Use the drawings below to identify the assembly hardware. The number in parentheses below each drawing is the
key number of the part, from the PART LIST near the end of this manual. The number after the parentheses is the
quantity needed for assembly. Note: Some small parts may have been preassembled. To avoid damaging
parts, do not use power tools for assembly.
3/8" Star Washer
(6)–10
3/8" Jam Nut (7)–2
#8 x 3/4"
Tek Screw (24)–4
3/8" x 3 3/4" Patch Bolt (5)–4
3/8" x 1 1/4"
Patch Bolt (2)–6
3/8" x 2" Bolt (4)–1
3/8" x 1 3/4" Bolt (3)–1
103
Cardboard
Stand
1
1. Make sure that the power cord is unplugged.
With the help of a second person, raise the front
of the treadmill and insert the crossbar on the
Base (103) into the cutout in the cardboard
stand as shown. Have the second person hold
the treadmill until assembly step 3 to prevent
it from moving forward or backward.
WARN NG: Serious injury
may occur if the treadmill moves for-
ward or backward and falls off the card-
board stand. A second person must
hold the treadmill until assembly step 3
to prevent the treadmill from moving,
tipping, or falling.

7
2. Identify the Right Upright (92), which is marked
with a “Right” sticker.
Have a second person hold the Right Upright
(92) near the Right Base Cover (102). See the
inset drawing. Tie the wire tie in the lower end
of the Right Upright securely around the end of
the Upright Wire (93). Then, pull the other end
of the wire tie in the top of the Right Upright until
the Upright Wire is routed through the Right
Upright.
Gently pull up on the Upright Wire (93) as you
set the Right Upright (92) on the Base (103) in-
side the Right Base Cover (102). Be careful not
to pinch the Upright Wire.
Attach the Right Upright (92) to the Base (103)
with two 3/8" x 3 3/4" Patch Bolts (5) and two
3/8" Star Washers (6). Note: It may be neces-
sary to tip the top of the Right Upright forward
slightly as you thread the Patch Bolts into it. Do
not tighten the Patch Bolts yet.
Attach the Left Upright (91) in the same way.
Note: There are no wires on the left side.
103
93
102
2
92
6
5
91
93
92
Wire
Tie
Wire
Tie
3. With the help of a second person, lower the
treadmill off the cardboard stand. The stand will
be used again in assembly step 9.
Identify the Right Upright Sleeve (90) and the
Left Upright Sleeve (89), which are labeled
“Right” and “Left.”
Slide the Right Upright Sleeve (90) onto the
Right Upright (92), and slide the Left Upright
Sleeve (89) onto the Left Upright (91).
89
“Right”
Cardboard
Stand
“Left”
90
3
92
91

8
4. Have a second person hold the console assem-
bly near the Uprights (91, 92).
Connect the Upright Wire (93) to the Console
Wire (88). See the inset drawing. The connec-
tors should slide together easily and snap
into place. If they do not, turn one connector
and try again. F YOU DO NOT CONNECT THE
CONNECTORS PROPERLY, THE CONSOLE
MAY BECOME DAMAGED WHEN YOU TURN
ON THE POWER. Remove the wire tie from the
Upright Wire. Insert the connectors down into
the Right Upright (92).
88
Console
Assembly
4
92
93
91
88 Wire
Tie
93
5. Insert the brackets on the Handrail (110) into the
Uprights (91, 92). Make sure that no wires are
pinched.
5
92
91
110
Console
Assembly
110

9
6. Partially tighten three 3/8" x 1 1/4" Patch Bolts
(2) with three 3/8" Star Washers (6) into the
Right Upright (92); do not fully tighten the
Patch Bolts yet.
Repeat this step with the Left Upright (91).
Firmly tighten all six 3/8" x 1 1/4" Patch Bolts
(2).
91
92
2
2
6
6
6
7. Slide the Right Upright Sleeve (90) up against
the console assembly. Attach the Right Upright
Sleeve with two #8 x 3/4" Tek Screws (24).
Attach the Left Upright Sleeve (not shown) to
the console assembly in the same way.
24
90
24
7
Console
Assembly

10
8. Raise the Frame (67) to the position shown.
Have a second person hold the Frame until
this step is completed.
Orient the Storage Latch (87) so that the large
barrel and the latch knob are in the positions
shown.
Remove the tie from the upper end of the
Storage Latch (87). Attach the upper end of the
Storage Latch to the bracket on the Frame (67)
with a 3/8" x 1 3/4" Bolt (3) and a 3/8" Jam Nut
(7).
Remove the tie from the lower end of the
Storage Latch (87). Keep the holes in the latch
cap aligned with the holes in the Storage Latch.
Make sure to keep the latch cap inside the
Storage Latch. Attach the Storage Latch to the
bracket on the Base (103) with a 3/8" x 2" Bolt
(4) and a 3/8" Jam Nut (7). Note: It may be nec-
essary to move the Frame (67) back and forth
slightly to align the Storage Latch with the
bracket.
Lower the Frame (67) (see HOW TO LOW R
TH TR ADMILL FOR US on page 24).
7
7
Large
Barrel
103
4
67
3
87
8
10. Make sure that all parts are properly tightened before you use the treadmill. Keep the included hex keys
in a secure place; one of the hex keys is used to adjust the walking belt (see pages 26 and 27). To protect
the floor or carpet from damage, place a mat under the treadmill. Extra hardware may be included.
9. With the help of a second person, raise the
front of the treadmill and insert the crossbar on
the Base (103) into the cutout in the cardboard
stand as shown. Have the second person
hold the treadmill to prevent it from moving
forward or backward.
Firmly tighten the four 3/8" x 3 3/4" Patch Bolts
(5).
With the help of the second person, lower the
treadmill off the cardboard stand.
Cardboard
Stand
5
103
5
Latch
Knob
Latch
Cap
9

11
OPERAT ON AND ADJUSTMENT
THE PRE-LUBR CATED WALK NG BELT
Your treadmill features a walking belt coated with high-
performance lubricant. MPORTANT: Never apply sil-
icone spray or other substances to the walking
belt or the walking platform. Such substances will
cause excessive wear.
HOW TO PLUG N THE POWER CORD
Your treadmill, like other electronic equipment, can be
damaged by sudden voltage changes in your homeʼs
power. To decrease the risk of damaging your
treadmill, always use a surge suppressor with your
treadmill (see drawing 1 at the right). To purchase
a surge suppressor, see precaution 12 on page 3.
Use only a single-outlet surge suppressor that is
UL 1449 listed as a transient voltage surge sup-
pressor (TVSS). The surge suppressor must have a
UL suppressed voltage rating of 400 volts or less
and a minimum surge dissipation of 450 joules.
The surge suppressor must be electrically rated for
120 volts AC and 15 amps. There must be a moni-
toring light on the surge suppressor to indicate
whether it is functioning properly. Failure to use a
properly functioning surge suppressor could dam-
age the control system of the treadmill (see precau-
tion 13 on page 3).
This product must be grounded. If it should malfunc-
tion or break down, grounding provides a path of least
resistance for electric current to reduce the risk of elec-
tric shock. This productʼs power cord has an equip-
ment-grounding conductor and a grounding plug. Plug
the power cord into a surge suppressor, and plug
the surge suppressor into an appropriate outlet
that is properly installed and grounded in accor-
dance with all local codes and ordinances.
MPORTANT: The treadmill is not compatible with
GFC -equipped outlets.
This product is for use on a nominal 120-volt circuit
(see drawing 1). A temporary adapter may be used to
connect the surge suppressor to a 2-pole receptacle if
a properly grounded outlet is not available (see draw-
ing 2).
The temporary adapter should be used only until a
properly grounded outlet (see drawing 1) can be in-
stalled by a qualified electrician.
The green-colored rigid ear, lug, or the like extending
from the adapter must be connected to a permanent
ground such as a properly grounded outlet box cover.
The adapter must be held in place by a metal screw.
Some 2-pole receptacle outlet box covers are not
grounded. Contact a qualified electrician to deter-
mine if the outlet box cover is grounded before
using an adapter.
DANGER: mproper connection
of the equipment-grounding conductor in-
creases the risk of electric shock. Check with
a qualified electrician or serviceman if you
are unsure whether the product is properly
grounded. Do not modify the plug—if it will
not fit the outlet, have a proper outlet in-
stalled by a qualified electrician.
1
2
Grounded Outlet Box
Grounded Outlet Box
Grounding Plug
Surge Suppressor
Surge Suppressor
Grounding Pin
Adapter
Lug
Metal Screw
Grounded Outlet
Grounding Pin
Grounding Plug

12
FEATURES OF THE CONSOLE
The treadmill console offers an impressive array of
features designed to make your workouts more effec-
tive and enjoyable. When the manual mode of the con-
sole is selected, you can change the speed and incline
of the treadmill with the touch of a button. As you exer-
cise, the console will display continuous exercise feed-
back. You can even measure your heart rate using the
handgrip pulse sensor.
The console also offers thirty preset workouts—twenty
calorie burn workouts and ten all-terrain trails work-
outs. ach workout automatically controls the speed
and incline of the treadmill as it guides you through an
effective exercise session. In addition, you can set a
time, distance, or calorie goal.
The console also features an iFit Live mode that en-
ables the treadmill to communicate with your wireless
network. With the iFit Live mode, you can download
personalized workouts, create your own workouts,
track your workout results, and access many other
features. See www.iFit.com for complete information.
You can also listen to your favorite workout music or
audio books with the consoleʼs premium stereo sound
system while you get in shape.
To turn on the power, see page 13. To use the man-
ual mode, see page 13. To use a set-a-goal work-
out, see page 16. To use a calorie burn workout or
an all-terrain trails workout, see page 17. To use
the iFit Live mode, see page 19. To use the stereo
sound system, see page 20. To use the settings
mode, see page 20. To use the maintenance mode,
see page 22.
MPORTANT: f there is a sheet of plastic on the
face of the console, remove the plastic. To prevent
damage to the walking platform, wear clean ath-
letic shoes while using the treadmill. The first time
the treadmill is used, observe the alignment of the
walking belt, and center the walking belt if neces-
sary (see page 27).

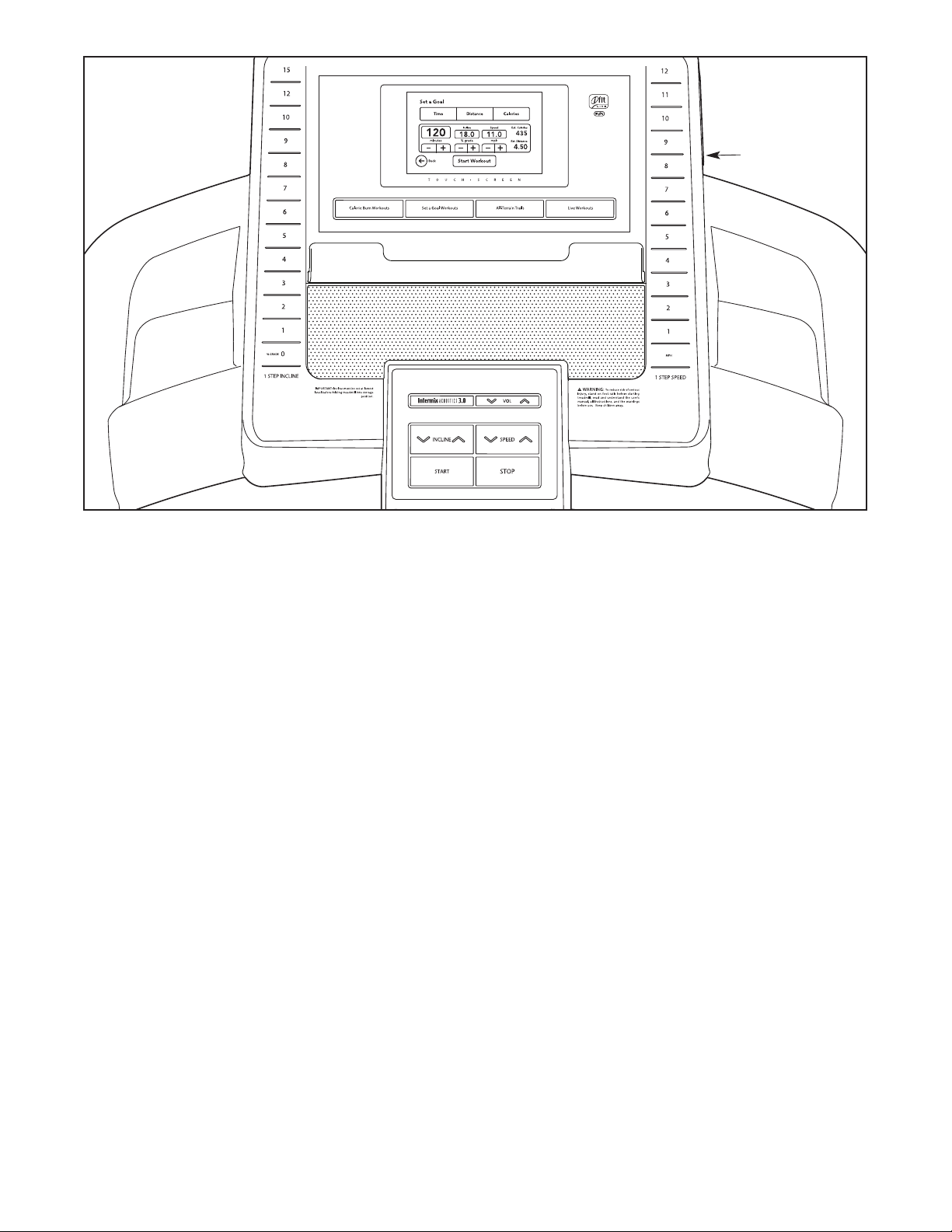

CONSOLE
DAGRAM
Audio
Jack

13
HOW TO TURN ON THE POWER
MPORTANT: f the treadmill has been exposed to
cold temperatures, allow it to warm to room tem-
perature before turning on the power. f you do not
do this, you may damage the console displays or
other electrical components.
Plug in the power cord (see
page 11). Next, locate the
power switch on the treadmill
frame near the power cord.
Make sure that the switch is
in the reset position.
MPORTANT: The console features a display demo
mode, designed to be used if the treadmill is dis-
played in a store. f the demo mode is turned on,
the displays will light a few seconds after you plug
in the power cord and press the power switch into
the reset position, before you insert the key. To
turn off the demo mode, see step 4 on page 21.
Next, stand on the foot
rails of the treadmill.
Locate the clip attached
to the key, and slide the
clip securely onto the
waistband of your
clothes. Then, insert
the key into the con-
sole. After several sec-
onds, the displays will
light. MPORTANT: n an emergency, the key can be
pulled from the console, causing the walking belt
to slow to a stop. Test the clip by carefully taking a
few steps backward; if the key is not pulled from
the console, adjust the position of the clip.
Before using the treadmill, please check for firmware
updates (see step 7 on page 23).
Note: The console may be able to display speed and
distance in either miles or kilometers. To find which
unit of measurement is selected, see step 5 on page
21. For simplicity, all instructions in this manual refer to
miles.
HOW TO USE THE MANUAL MODE
1. nsert the key into the console.
See HOW TO TURN ON TH POW R at the left.
If necessary, press the Incline buttons to adjust the
incline level to 0 percent. Note: t may take a
minute for the console to be ready for use.

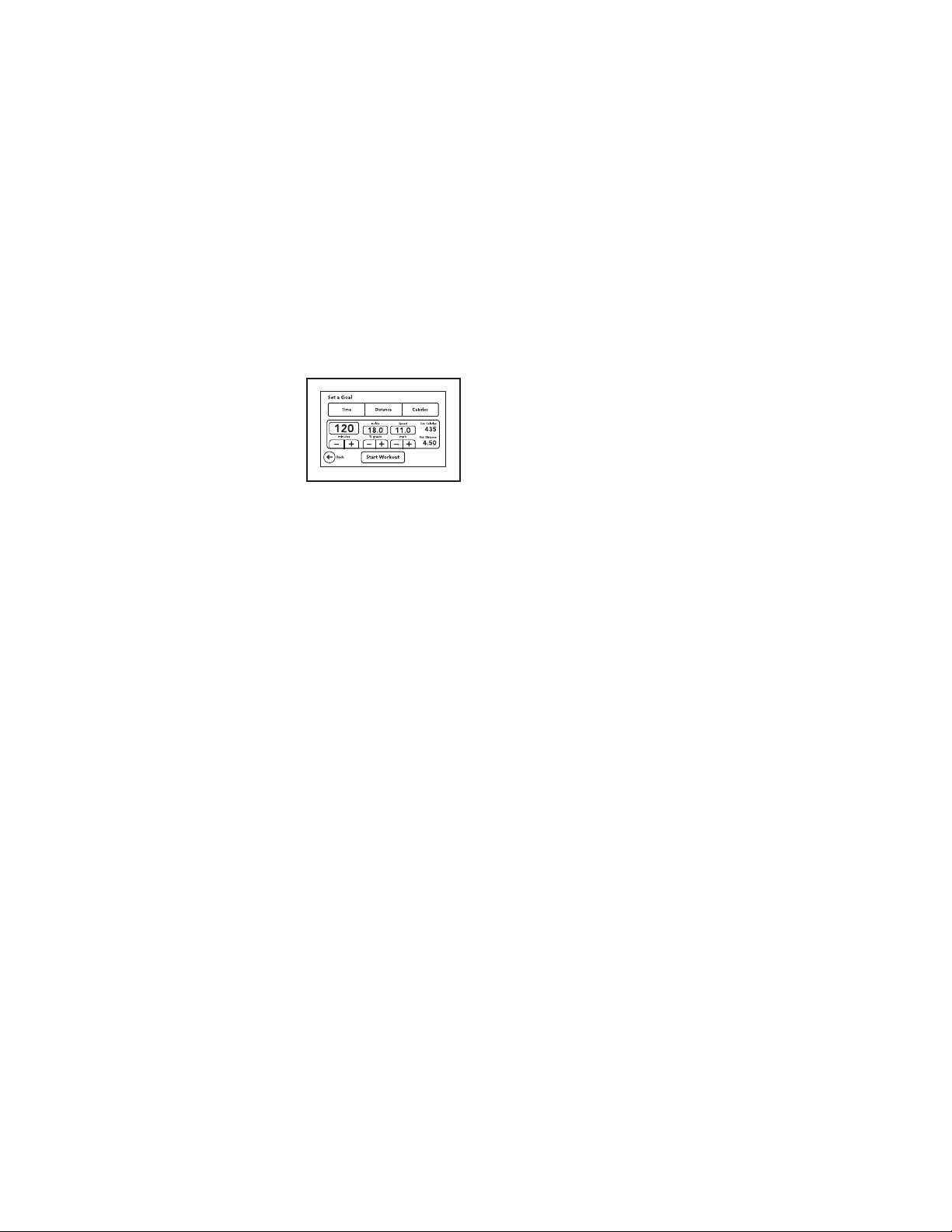

2. Select the start menu.
ach time the key is in-
serted, the start menu
will appear. If you have
selected a workout or
the iFit Live mode, first
press the iFit Menu but-
ton in the upper right
corner of the screen. Next, press the nd Workout
button, and then press the Done button to return to
the start menu.
If the iFit login screen appears, press the Main
Menu button and then press the Back button to re-
turn to the start menu.
Note: A Demo button may appear in the lower left
corner of the screen. If you press the Demo button,
the treadmill will run a demo workout.
3. Start the walking belt and adjust the speed.
To start the walking belt, press the Start button on
the screen or the Start button on the console. The
walking belt will begin to move at 1 mph. As you
exercise, change the speed of the walking belt as
desired by pressing the Speed increase and de-
crease buttons. ach time you press one of the
buttons, the speed setting will change by 0.1 mph;
if you hold down the button, the speed setting will
change in increments of 0.5 mph.
Reset
Key
Clip

14
If you press one of the numbered 1 Step Speed
buttons, the walking belt will gradually change
speed until it reaches the selected speed setting.
To select a speed setting that includes a decimal—
such as 3.5 mph—press two numbered buttons in
succession. For example, to select a speed setting
of 3.5 mph, press the 3 button and then immedi-
ately press the 5 button.
To stop the walking belt, press the Stop button. To
restart the walking belt, press the Start button.
4. Change the incline of the treadmill as desired.
To change the incline of the treadmill, press the
Incline increase and decrease buttons or one of
the 1 Step Incline buttons. ach time you press
one of the buttons, the incline will gradually
change until it reaches the selected incline setting.
5. Monitor your progress.
The console offers several display modes. The dis-
play mode that you select will determine which
workout information is shown. To select the de-
sired display mode, repeatedly press the Display
increase or decrease button on the screen.
As you walk or run on the treadmill, the screen can
show the following workout information:
• The elapsed time
• The approximate number of calories you have
burned
• The distance that you have walked or run
• The incline level of the treadmill
• The speed of the walking belt
• A track representing 1/4 mile (400 meters)
• The time to complete one lap at the current
speed setting
• Your current lap number
• The time remaining
• The approximate number of calories burned per
hour
• The number of vertical feet you have climbed
• Your pace in minutes per mile
• Your heart rate (see step 6 on page 15)
The displays at the top of the screen can show two
pieces of information. Press each display until the
display shows the desired information. Note: The
manual mode does not have a time remaining
countdown.
If desired, adjust the volume level by pressing the
Vol increase and decrease buttons on the con-
sole.

15
To reset the console, press the iFit Menu button in
the upper right corner of the screen. To pause the
workout, press the Pause button. To continue the
workout, press the Resume button or the Start but-
ton. To end the workout and select a new workout,
press the New Workout button. To end the work-
out, press the nd Workout button.
Note: The small wire-
less symbol in the
upper right corner of the
screen will show your
wireless connection sta-
tus. If the symbol is yel-
low, your treadmill is
connected to your wireless network. If the symbol
is green, your treadmill is connected to your wire-
less network and you have logged in to
www.iFit.com. If the symbol does not appear, your
treadmill is not connected to your wireless network.
6. Measure your heart rate if desired.
Before using
the handgrip
pulse sensor,
remove the
sheets of plas-
tic from the
metal con-
tacts, if neces-
sary. In addi-
tion, make
sure that your
hands are clean.
To measure your heart rate, stand on the walking
platform and hold the metal contacts on the
handrails for approximately ten seconds—avoid
moving your hands. When your pulse is detected,
your heart rate will be shown. For the most accu-
rate heart rate reading, continue to hold the
contacts for about 15 seconds.
7. When you are finished exercising, remove the
key from the console.
Step onto the foot rails and press the Stop button
repeatedly until a workout summary appears on
the screen. After you view the workout summary,
press the Done button. Then, remove the key from
the console and put it in a secure place.
When you are finished using the treadmill, press
the power switch into the off position and unplug
the power cord. MPORTANT: f you do not do
this, the treadmillʼs electrical components may
wear prematurely.
Contacts

16
HOW TO USE A SET-A-GOAL WORKOUT
1. nsert the key into the console.
See step 1 on page 13.
2. Select the start menu.
See step 2 on page 13.
3. Select a set-a-goal workout.
To select a set-a-goal workout, press the Workouts
button on the screen. Then, press the Set a Goal
button. You can also press the Set a Goal
Workouts button on the console.
To set a time, distance,
or calorie goal, press
the Time, Distance, or
Calories button. Then,
press the increase and
decrease buttons on
the screen to select a
time, distance, or calorie goal and to select the
speed and incline for the workout. The screen will
show the duration and distance of the workout, and
the approximate number of calories you will burn
during the workout.
4. Start the workout.
Press the Start Workout button to start the work-
out. A moment after you press the button, the walk-
ing belt will begin to move. Hold the handrails and
begin walking.
The workout will function in the same way as the
manual mode (see pages 13 to 15).
The workout will continue until you reach the goal
that you set. The walking belt will then slow to a
stop, and a workout summary will appear on the
screen. After you view the workout summary, press
the Done button.
Note: The calorie goal is an estimate of the
number of calories that you will burn during the
workout. The actual number of calories that
you burn will depend on your weight.
5. Monitor your progress.
See step 5 on pages 14 and 15. The screen can
also show your goal and a status bar showing your
progress toward your goal.
6. Measure your heart rate if desired.
See step 6 on page 15.
7. When you are finished exercising, remove the
key from the console.
See step 7 on page 15.

17
HOW TO USE A CALOR E BURN WORKOUT OR
AN ALL-TERRA N TRA LS WORKOUT
1. nsert the key into the console.
See step 1 on page 13.
2. Select the start menu.
See step 2 on page 13.
3. Select a calorie burn workout or an all-terrain
trails workout.
To select a calorie burn workout or an all-terrain
trails workout, press the Workouts button on the
screen. Then, press the Calorie Burn button or the
All-Terrain Trails button. You can also press the
Calorie Burn Workouts button or the All-Terrain
Trails button on the console.
To select a calorie burn workout, select the de-
sired difficulty level. Then, select the desired work-
out. The screen will show the approximate number
of calories you will burn during the workout. The
screen will also show the duration and distance of
your workout. In addition, the screen will show the
number of vertical feet you will climb and a profile
of the incline settings of the workout.
To select an all-terrain trails workout, select the
desired difficulty level. Then, select the desired
workout. The screen will show the duration of the
workout and the approximate number of calories
you will burn during the workout. The screen will
also show the distance of your workout and the
number of vertical feet you will climb. In addition,
the screen will show a topographic map of the trail.
Press the Profile button at the top of the screen
near the time display to view a profile of the incline
settings of the workout. To return to the map, press
the Trail button at the top of the screen.
4. Start the workout.
Press the Start Workout button to start the work-
out. A moment after you press the button, the walk-
ing belt will begin to move. Hold the handrails and
begin walking.
ach workout is divided into segments. One speed
setting and one incline setting are programmed for
each segment. Note: The same speed setting
and/or incline setting may be programmed for con-
secutive segments.
During the workout, the profile will show your
progress. Press the Display increase and decrease
buttons repeatedly to view the profile. The red line
will indicate the current segment of the workout.
The height of the current segment indicates the in-
cline setting for the current segment.
At the end of the first segment of the workout, a se-
ries of tones will sound. If a different speed and/or
incline setting is programmed for the second seg-
ment, the speed setting and/or incline setting will
flash on the screen for a moment to alert you. The
treadmill will then automatically adjust to the speed
and/or incline settings for the next segment.

18
The workout will continue in this way until the last
segment ends. The walking belt will then slow to a
stop, and a workout summary will appear on the
screen. After you view the workout summary, press
the Done button.
If the speed or incline setting is too high or too low
at any time during the workout, you can override
the setting by pressing the Speed or Incline but-
tons; however, when the next segment begins,
the treadmill will automatically adjust to the
speed and incline settings for the next segment.
To stop the workout at any time, press the iFit
Menu button in the upper right corner of the
screen. To pause the workout, press the Pause
button. To end the workout and select a new work-
out, press the New Workout button. To end the
workout, press the nd Workout button.
To continue the workout, press the Resume button
or the Start button. The walking belt will begin to
move at 1 mph. When the next segment of the
workout begins, the treadmill will automatically ad-
just to the speed and incline settings for the next
segment.
Note: The calorie goal is an estimate of the
number of calories that you will burn during the
workout. The actual number of calories that
you burn will depend on your weight. n addi-
tion, if you manually change the speed or in-
cline of the treadmill during the workout, the
number of calories you burn will be affected.
5. Monitor your progress.
See step 5 on pages 14 and 15. The screen can
also show a profile of the incline settings of the
workout. When an all-terrain trails workout is se-
lected, the screen can show a topographic map of
the trail. The person running on the trail indicates
your progress.
6. Measure your heart rate if desired.
See step 6 on page 15.
7. When you are finished exercising, remove the
key from the console.
See step 7 on page 15.

19
HOW TO USE THE F T L VE MODE
The iFit Live mode enables the treadmill to communi-
cate with your wireless network. With the iFit Live
mode, you can download personalized workouts, cre-
ate your own workouts, track your workout results, and
access many other features. See www.iFit.com for
complete information.
1. Connect your treadmill to your own wireless
network.
See steps 1 and 2 on pages 20 and 21.
To activate and use the iFit Live mode, you must
have your own wireless network. You must have
an 802.11b router with SSID broadcast enabled
(hidden networks are not supported). You will also
need an iFit.com membership.
2. Select the iFit Live mode.
To select the iFit Live mode, first select the start
menu (see step 2 on page 13). Next, press the
Workouts button. Then, press the Live Workouts
button. You can also press the Live Workouts but-
ton on the console.
To set up an iFit Live account, or for more informa-
tion about the iFit Live mode, go to www.iFit.com.
To switch users, press the Switch User button in
the lower right corner of the screen. Then, select
the desired user.
MPORTANT: To comply with FCC and C RF expo-
sure compliance requirements, the antenna used
for this transmitter must be installed to provide a
separation distance of at least 20 cm from all per-
sons and must not be co-located or operating in
conjunction with any other antenna or transmitter.
This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interfer-
ence in a residential installation. This equipment gen-
erates, uses, and can radiate radio frequency energy
and, if not installed and used in accordance with the in-
structions, may cause harmful interference to radio
communications. However, there is no guarantee that
interference will not occur in a particular installation. If
this equipment does cause harmful interference to
radio or television reception, which can be determined
by turning the equipment off and on, the user is en-
couraged to try to correct the interference by one of
the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and
the receiver.
• Connect the equipment into an outlet on a circuit dif-
ferent from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV tech-
nician for help.
FCC CAUT ON: To assure continued compliance,
use only shielded interface cables when connect-
ing to computer or peripheral devices. Any
changes or modifications not expressly approved
by the party responsible for compliance could void
the user's authority to operate this equipment.
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions: (1)
This device may not cause harmful interference, and
(2) this device must accept any interference received,
including interference that may cause undesired oper-
ation.
If you have questions after reading this information,
please call Customer Care toll-free at 1-866-608-1798,
Mon.–Fri. 6 am–6 pm MT, Sat. 8 am–4 pm MT (closed
on holidays); visit www.iFit.com/support; or send e-
mail to [email protected].

20
HOW TO USE THE STEREO SOUND SYSTEM
To play music or audio books through the consoleʼs
speakers, you must connect your MP3 player, CD
player, or other personal audio player to the console.
Locate the audio wire. Plug one end into the audio jack
on the side of the console. Plug the other end into a
jack on your MP3 player, CD player, or other personal
audio player. Make sure that the audio wire is fully
plugged in.
Next, press the Play button on your MP3 player, CD
player, or other personal audio player. Then, adjust the
volume level on your personal audio player or press
the Vol increase and decrease buttons on the console.
If you are using a personal CD player and the CD
skips, set the CD player on the floor or another flat sur-
face instead of on the console.
HOW TO USE THE SETT NGS MODE
The console features a settings mode that allows you
to connect your treadmill to your own wireless network
and to log in to your iFit Live account. The settings
mode also allows you to turn on and turn off the dis-
play demo mode. You may also be able to select the
unit of measurement.
1. Select the settings mode.
Insert the key into the console (see step 1 on page
13). Next, select the start menu (see step 2 on
page 13). Then, press the i button in the lower right
corner of the screen to select the settings mode.
2. Select the wireless network mode.
Press the Wireless
Network button on the
screen.
You must have your own wireless network and an
802.11b router with SSID broadcast enabled (hid-
den networks are not supported).
f your wireless network is unencrypted and
does not require a password, go to step 2a. f
your wireless network is encrypted and re-
quires a password, go to step 2b.
2a. Connect your treadmill to an unencrypted
wireless network.
Select the desired wireless network and press the
Connect button. When the Disconnect button ap-
pears, your exercise equipment is connected to the
wireless network. Then, press the Done button. Go
to step 3.
2b. Connect your treadmill to an encrypted
wireless network.
To connect to your encrypted network, you will
need to know your network SSID (network name),
network encryption type, and network password.
Select the desired wireless network and press the
Advanced button. If your network is encrypted, you
must press the Use ncryption button and fill in the
entry boxes. If desired, you may also set a static IP
address and/or a static domain name server (DNS).
To use encryption, press the Use ncryption but-
ton. Select the encryption type and enter the pass-
word. When you are finished, press the Submit
button. To return to the advanced settings screen,
press the Cancel button.
To use numbers or other characters on the key-
board on the screen, press the .?123 button or the
#+= button. To return to the letter keyboard, press
the ABC button. To capitalize a character, press
the button with an upward-facing arrow. To clear
the last character, press the button with a back-
ward-facing arrow and an X.
