Fitness Benelux virtufit User manual

Folding Bike
User manual
EN
T [phone]
E service@tnessbenelux.nl
Wwww.tnessbenelux.nl
Twekkelerweg 263
7553 LZ Hengelo
The Netherlands
Fitness
Benelux
Benelux
Uw partner in fitness
For questions or missing parts please contact Fitness Benelux:
Folding Bike with Tablet holder

2Virtufit Folding Bike
EN
CONTENTS
Safety instructions 3
Checklist 4
Assembly 5-7
Exploded view 8
Parts list 9-10
Resistance adjustment 11
Levelling the bike 11
How to fold 12
How to adjust 13
Control panel operation 14-16

3Virtufit Folding Bike
EN
SAFETY INSTRUCTION
WARNING: Before you undertake any programme of exercise that will increase
cardiovascular activity please be sure to consult with your doctor. Frequent strenuous
exercise should be approved by your doctor and proper use of your product is
essential. Please read this manual carefully before commencing assembly of your
product or starting to exercise.
WARNING: A heart rate monitor may not be accurate. Overloading during training may
cause serious injury or death. If you feel any discomfort, immediately stop the exercise!
- Please keep all children away from exercise products when in use. Do not allow children to climb or
play on them when they are not in use.
- For your own safety, always ensure that there is at least 1Metre of free space in all directions
around your product while you are exercising.
- Regularly check to see that all nuts, bolts and ttings are securely tightened. Periodically checking all
moving parts for obvious signs of wear or damage.
- Clean only with a damp cloth, do not use solvent cleaners. If you are in any doubt, do not use your
product, but contact CUSTOMER SUPPORT by any of the means listed on the opposite page.
- Before use, always ensure that your product is positioned on a solid, at surface. If necessary, use a
rubber mat underneath to reduce the possibility of slipping in use.
- Always wear appropriate clothing and footwear such as training shoes when exercising. Do not wear
loose clothing that could become caught or trapped during exercise.
- Your product is intended for use in clean dry conditions. You should avoid storage in excessively cold
or damp places as this may lead to corrosion and other related problems that are outside our control.
Conformity
This product conforms to:
(EN 957-1 & EN 957-5), HOME USE – Class (C).
It is NOT suitable for therapeutic purposes.
Weight Limit
220 LBS / 15.6 Stones /
100 KG or less.

4Virtufit Folding Bike
EN
CHECKLIST
When you open the carton, you will nd the below parts in the carton:
Main Frame & Rear Frame
27
Saddle
Saddle support
6
24
Exercise monitor & Handlebar
16
Front stabilizer
Rear stabilizer
9
8
Adjuster Knob Locking pin
26 3
Pedal(L) Pedal(R)
29 29
Tools 45 61 24
72 73 56 57
Water bottle holder 75
51

5Virtufit Folding Bike
eN
AsseMBLY iNstructiON
steP 1
Assemble Rear & Front Stabilizer, Pedal (L / R)

6Virtufit Folding Bike
eN
AsseMBLY iNstructiON
steP 2
Assemble Saddle

7Virtufit Folding Bike
eN
AsseMBLY iNstructiON
steP 3
cOMPLete!
Assemble Handlebar & Exercise Monitor

8Virtufit Folding Bike
eN
eXPLOded drAWiNG

9Virtufit Folding Bike
EN
PARTS LIST
Onderdeelnummer Beschrijving Hoeveelheid
1 Handlebar 1
2 Rear Frame 1
3 Locking pin 1
4 M5*10 Screw 2
5 Oval Line Plug 3
6 Saddle Support 1
7 Main Frame 1
8 Rear Stabilizer 1
9 Front Stabilizer 1
10 Crank (R&L) 2
11 Main Shaft 1
12 Lower Drive Wheel Shaft 1
13 Magnetic Bracket 1
14 Round Steel 2
15 Handle Grip Foam 2
16 Exercise Monitor 1
17 Pulse Sensor Pad 2
18 Chain Cover (U) 1
19 Tension Control Knob 1
20 EVA Sticker 1
21 Control Line 1
22 Pulse Sensor Wire 2
23 Gear Piece 2
24 Saddle 1
25 Saddle Stem Insert 1
26 Seat Adjustment Knob 1
27 Adjustable Hex and Cap 2
28 End Cap 2
29 Pedal (R&L) 2
30 Chain Cover (R&L) 2
31 Pulley Brush 2
32 Flywheel 1
33 Pulley Bracket 1
34 Lower Drive Wheel 1
35 Upper Drive Wheel Shaft 1
36 Upper Drive Wheel 1
37 Sensor Bracket 4
38 Magnet 6

10 Virtufit Folding Bike
eN
PArts List
39 Crank Guard Trim 2
40 Pulley 4
41 Waved Washer 5
42 Spring Washer 4
43 M4*20mm Self-tapping Screw 5
44 M5*15 mm Screw 3
45 M6*12 mm Allen Bolt 4
46 M5*50 mm Screw 1
47 Drive Belt 230J 1
48 Drive Belt 220J 1
49 Spring 1
50 M8*20 mm Allen Bolt 2
51 M8*20 mm Carriage Bolt 4
52 M6*40 mm Screw 2
53 M6*15 mm Screw 8
54 M4*20 mm Self-tapping Screw 4
55 M10 Nut 2
56 M6 Curved Washer 2
57 M6 Flat Washer 2
58 Flat Washer 1
59 Sensor Wire 1
60 M8 Flat Washer 3
61 M8 Dome Nut 4
62 M8 Nylon LockNut 3
63 Flat Washer 2
64 Outer Brush 4
65 Inner Brush 2
66 Lock Ring 1
67 Bearing 1
68 Flat Washer 1
69 M10 Nylon LockNut 1
70 Pulley 2
71 M8 Curved Washer 4
72 M8 Spring Washer 4
73 M6 Spring Washer 4
74 Handlebar cap 2
75 Water bottle holder 1
76 M10 Nut 4

11 Virtufit Folding Bike
eN
resistANce AdJustMeNt
LeveLLiNG the BiKe
To ensure smooth ecient cycling action, the tension belt braking system on your Exercise
Cycle has been correctly adjusted by our factory during production.
To adjust the pedalling resistance during use, start by turning the Tension Control (19) fully
ANTI-CLOCKWISE at the start of your workout. Gradually increase the pedalling resistance by
turning the Tension Controller Knob CLOCKWISE as required.
For security and stability, your Cycle has a factory welded frame and once fully assembled
correctly, should not need further alignment. However, in the interest of safety, please
always ensure that your cycle is positioned on a solid, at surface. If necessary, use a rubber
mat underneath to reduce the possibility of slipping in use. If you need to make a ne
adjustment, simply twist the end of either Rear Frame Stabiliser Adjustable Hex End Cap (27)
to compensate for uneven oors.

12 Virtufit Folding Bike
eN

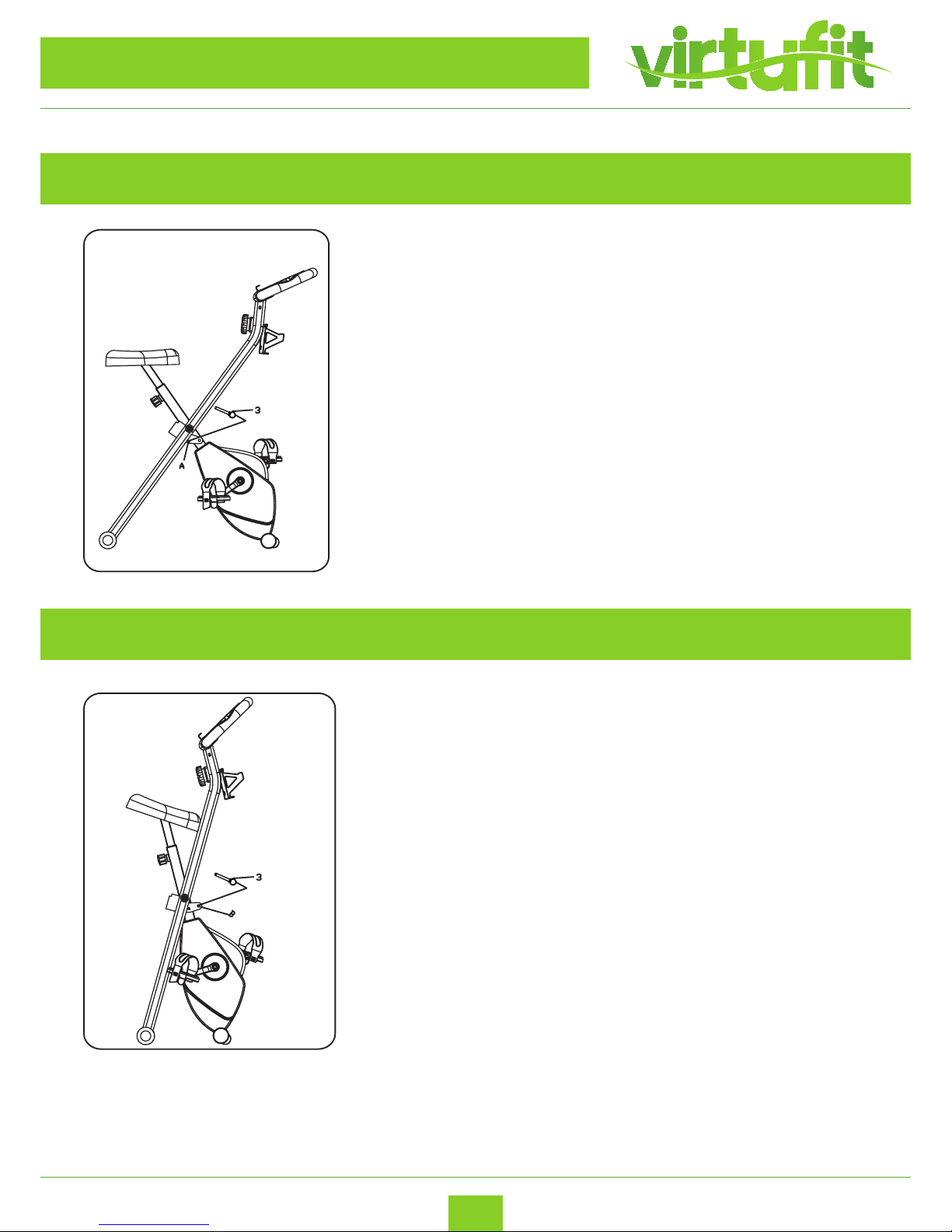

FOLdiNG iNstructiONs
WheNuNFOLded
WheN FOLded
Using the Locking Pin (3) to fold and unfold the bike. When in
use, the Locking Pin (3) is in Position A.
Using the Locking Pin (3) to fold and unfold the bike. When
folded, the Locking Pin (3) is in Positon B.

13 Virtufit Folding Bike
eN
hOW tO AdJust
The Saddle Support has a “Max” sign to show
the maximum height of Saddle. You should not
exceed this height. Unscrew the Seat Adjustment
Knob (26) a couple of turns then pull the knob
outwards to release the Seat Support Tube (6).
Position the Seat Support Tube to the desired
height allowing for a slight bend in the knee at
the lowest pedal position and retighten the Seat
Adjustment Knob (26) .

TIME 0:00 - 99:59 (minutes)
SPEED 0.0 - 999.9 (km/h)
DISTANCE 0.0 - 999.9 (km)
ODOMETER 0 - 9999 (km)
CALORIES 0.0 - 999.9 (kcal)
PULSE 40 - 240 (beats per minute)
14 eN
cONtrOL PANeL OPerAtiON
Virtufit Folding Bike
SCAN
SPEED
DISTANCE
TIME
ODO
CALORIES
PULSE
1. MONITOR
2. ODOMETER
3. CALORIES
4. PULSE
5. MODE
6. TIME
7. DISTANCE
8. SPEED
9. SCAN
6
7
8
1
2
3
4
9
5
FuNctiONs

15 eN
cONtrOL PANeL OPerAtiON
Virtufit Folding Bike
FuNctiONs:
1.TIME: Press the MODE key until pointer lock on to TIME. The total working time will
be shown when starting exercise.
2. SPEED: Press the MODE key until pointer lock on to SPEED. Display current speed
during working time.
3. DISTANCE: Press the MODE key until pointer lock on to DISTANCE. The distance of each
workout will be displayed when starting exercise.
4. CALORIES: Press the MODE key until pointer lock on to CALORIES. The calorie burned
will be displayed when starting exercise.
5. ODO: Automatically accumulates workout distance when starting exercise.
6. PULSE: Press the MODE key until the pointer advance to PULSE function and put ear-clip
to ear or the hand take hole of the sensor about 3 seconds show out.
SCAN Changing from function to function every 4seconds
TIME Count up
SPEED Cycle speed
DISTANCE Exercise distance
ODOMETER Accumulated total distance
CALORIES Computed theoretical calorie burn
PULSE Actual exercise pulse rate
MODE This key lets you to select and lock on to a particular
function you want

16 Virtufit Folding Bike
eN
cONtrOL PANeL OPerAtiON
SCAN: Display changes according to the next diagram every 4 seconds. Automatically
display of the following functions in the order shown:
TIME---SPEED---DISTANCE---CALORIES---ODO ---PULSE---SCAN
NOTE:
1. When there is no signal for 4 to 5 minutes, the LCD display will be shut o automatically.
2. When there is a signal input, the monitor automatically turns on.
3. If you see an improper display on the monitor, please replace the batteries. To ensure a
good result, replace the batteries at the same time.
4. The monitor use 2pcs of 1.5v “AAA” batteries.
T [phone]
E service@tnessbenelux.nl
Wwww.tnessbenelux.nl
Twekkelerweg 263
7553 LZ Hengelo
The Netherlands
Fitness
Benelux
Benelux
Uw partner in fitness
For questions or missing parts please contact Fitness Benelux:
