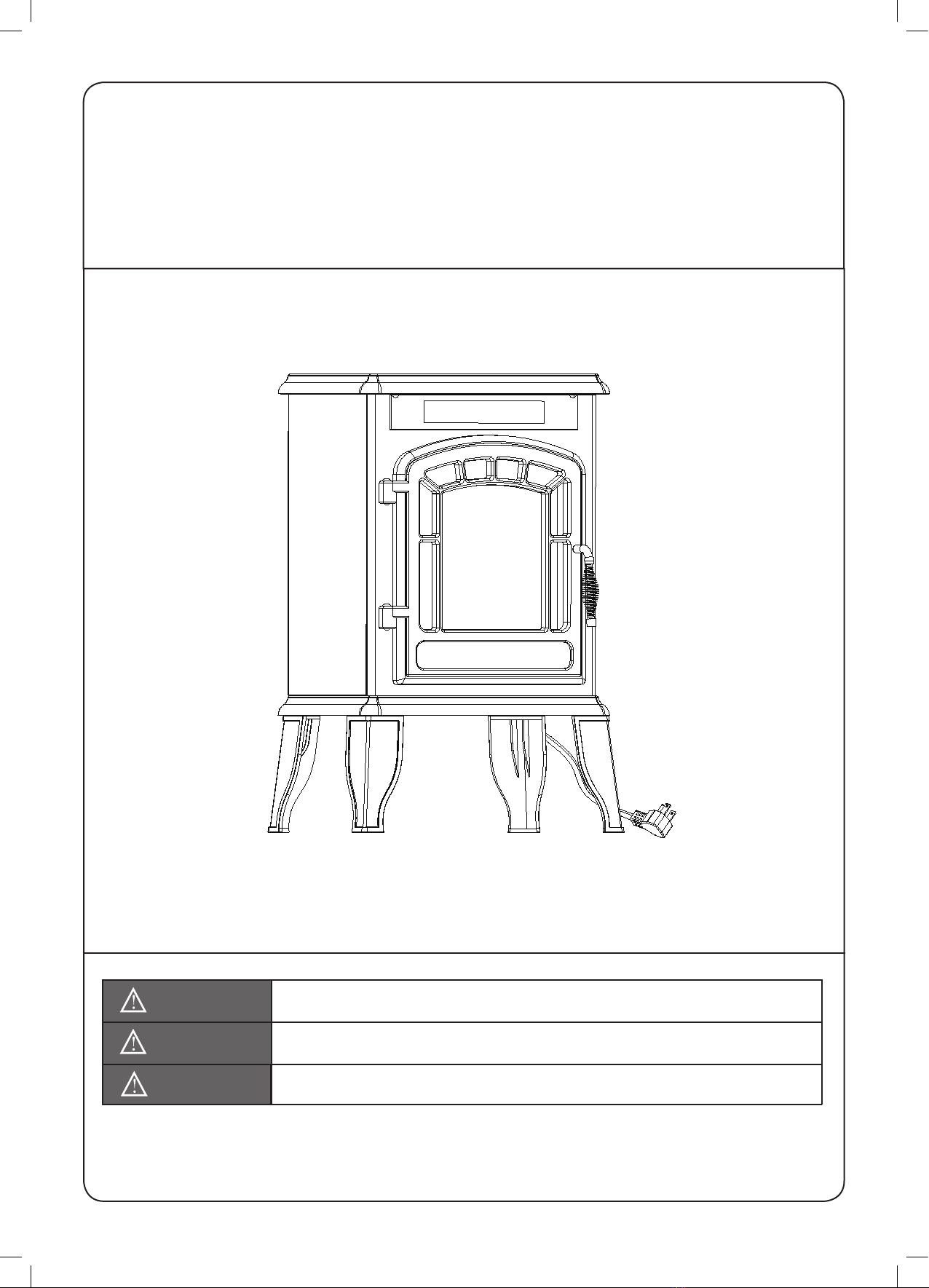

Flame & Shade WALKER User manual

OWNER’S MANUAL
WALKER
ELECTRIC STOVE HEATER
SKU- EFS15ABLK
120V AC; 60 HZ; MAXIMUM POWER 1400 WATTS
ALL ELECTRIC. NO WOOD OR CHARCOAL. NO GAS. NO VENTING REQUIRED.
WARNING
CAUTION
NOTICE
Read and understand this entire owner’s manual, including all safety information, before plugging in
or using this product. Failure to do so could result in fire, electric shock, or serious personal injury.
Keep this owner’s manual in a safe place for future reference. If you sell or give this product away,
make sure this manual accompanies this product.
Pictures within this owner’s manual are for reference only. Please refer to the actual product for
appearance.

2
IMPORTANT SAFETY INSTRUCTIONS!
WARNING
•
•
•
•
•
•
•
•
•
•
•
•
•NEVER use this heater in bathrooms, laundry rooms, or any other location where the
heater could fall into a bathtub or pool, become damp, or come in contact with water.
•AVOID FIRE ! Regularly inspect all air vents to make sure they are free from dust, lint,
or other blockage. Unplug the unit and clean with a vacuum ONLY. DO NOT rinse or get wet.
2
Read these instructions carefully before using this heater!
This heater is hot when the heat mode is in use. To avoid burns, DO NOT let bare skin touch hot
surface. If provided, always use handles when moving this heater. Keep combustible materials,
such as furniture, pillows, bedding, papers, clothes, and curtains at least 3 feet (0.9m) from the
front of the heater, and keep them away from the sides and rear.
EXTREME CAUTION is necessary when any electric heater is used.
NEVER operate this heater with a damaged cord or plug or after the heater malfunctions,
has been dropped or damaged in any manner. Discard heater, or call a certified technician
for examination and or/repair.
NEVER run the power cord under carpeting. DO NOT cover powder cord with throw rugs,
runners, or similar coverings. DO NOT route power cord under furniture or appliances. Arrange
power cord away from any traffic area, and where it will not be tripped over.
Connect to properly grounded power outlets ONLY.
NEVER insert or allow foreign objects to enter any ventilation or exhaust opening,
as this may cause electric shock, fire, or damage the heater.
To prevent a possible fire, DO NOT block air intakes or exhaust in any manner.
Doing so could cause a fire. DO NOT place the heater near soft surface, such as curtains or
bedding, where openings may become blocked.
The heater contains hot and arcing or sparking parts inside. DO NOT use it in areas where
gasoline, paint, or flammable liquids are used or stored.
Use this heater only as described in this manual. Any other use not recommended by the
manufacturer may cause fire, electric shock, or injury to persons.
ALWAYS plug the heater directly into a wall outlet. NEVER use the heater with an extension
cord or relocatable power board (outlet/power strip).
NEVER place the heater near bedding or curtains because objects such as pillows or blankets
can fall off the bed and be ignited by the heater.

3
WARNING
•For residential use only! NOT for commercial use! Any commercial or public use of this
heater voids all warranties , and could cause injury.
•This product is not intended to be a primary heat source. It is for supplemental heat only.
•INDOOR use only! NEVER use this heater outdoors! Doing so may result in electric shock!
•
•NEVER modify this heater. Doing so could result in personal injury or property damage.
Modification of this fireplace completely voids all warranties.
•ALWAYS turn this heater off before unplugging it from the outlet.
•ALWAYS disconnect this unit from the power supply before performing any assembly
or cleaning, or before relocating the product.
•NEVER leave this heater unattended. ALWAYS unplug this heater when not in use.
•ALWAYS store this heater in a dry location. NEVER use the product if it has become wet.
•
•
•NEVER plug this heater into an outlet that is old,cracked, or has any loose wires or
connections. Plugging this heater into a faulty outlet could result in electric arcing within
the outlet that could cause the outlet to overheat or catch fire.
•ALWAYS check your heater cord and plug connections with each use!
i) Make sure the plug fits tight in the outlet! Faulty wall outlet connections or loose plugs
can cause the outlet to overheat.
ii) Heaters draw more current than small appliances. Overheating may occur even if it has
not occurred with the use of other appliances.
iii) During use check frequently to see if the plug outlet or faceplate is HOT!
iv) If the outlet or faceplate is HOT, discontinue use immediately and have a qualified
electrician inspect and/or replace the faulty outlets.

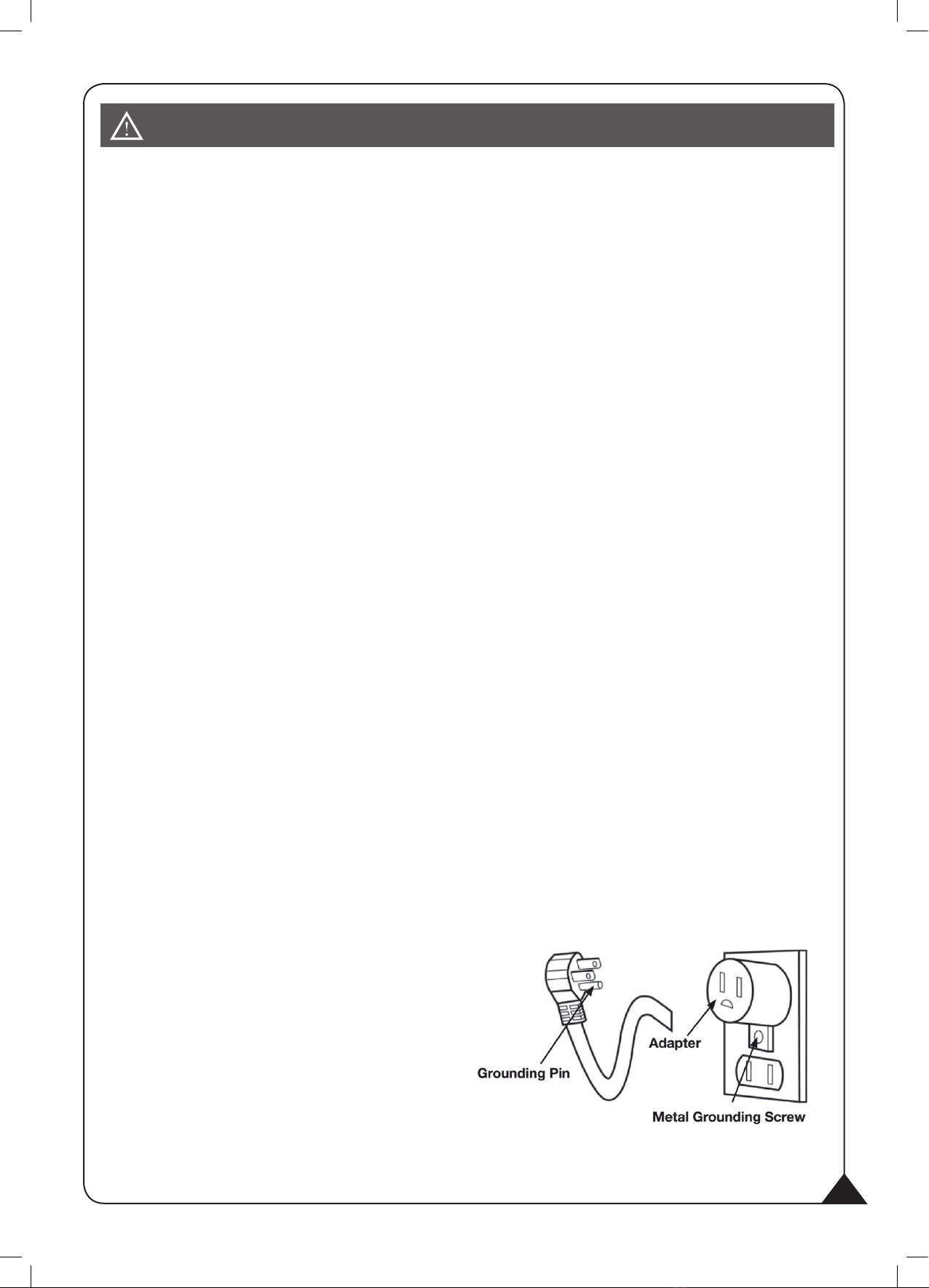

•The power cord supplied with the heater has
three prongs: two flat blades (live and neutral)
and one round pin (ground). If a 3-slot
is not available, an adapter MUST be used.
The adapter MUST be properly grounded
to the outlet box (see figure at right).
[NOTE: Adapter NOT INCLUDED.]
ONLY use this heater on a 120V AC 15-Amp grounded circuit.NEVER overload the circuit. If this
heater trips the circuit breaker, unplug all other appliances on the same circuit before the next use.
Avoid plugging other appliances into the same circuit as this heater.
3
Risk of electric shock! DO NOT REMOVE THE COVER! NO user-serviceable parts inside!
outlet
Ensure a wall outlet is close by so an extension cord is not needed.

PREPARATION
TOOLS NEEDED(NOT INCLUDED)
Phillips Screwdriver
PARTS AND HARDWARE
AB
4
1. Remove all parts and hardware from the carton and place them on a clean, soft
and dry surface.
2. Compare the contents with the parts list to make sure nothing is missing.
3. Dispose of all packaging materials properly.
4. Please recycle whenever possible.
NOTICE
Make sure all parts are dry, and the power cord and plug are not damaged.
See IMPORTANT SAFETY INFORMATION on pages 2 and 3.
1 x Stove Heater 4 x Legs
C
14 x M4x12mm
Screws
D
1 x 40w E-12 Bulb
Spare replacement
if required
NOTICE
This product includes GLASS! ALWAYS use extreme caution when handling glass.
Failure to do so could result in personal injury or property damage.
(2 extra screws included)
4

INSTALLATION AND ASSEMBLY
35
NOTICE
ALWAYS make sure the unit is unplugged before beginning assembly! NEVER
move or clean the heater, or change the bulb, while it is plugged in.
NOTICE
ALWAYS attach the feet before using! NEVER plug in or operate this unit if the feet
are not securely attached!

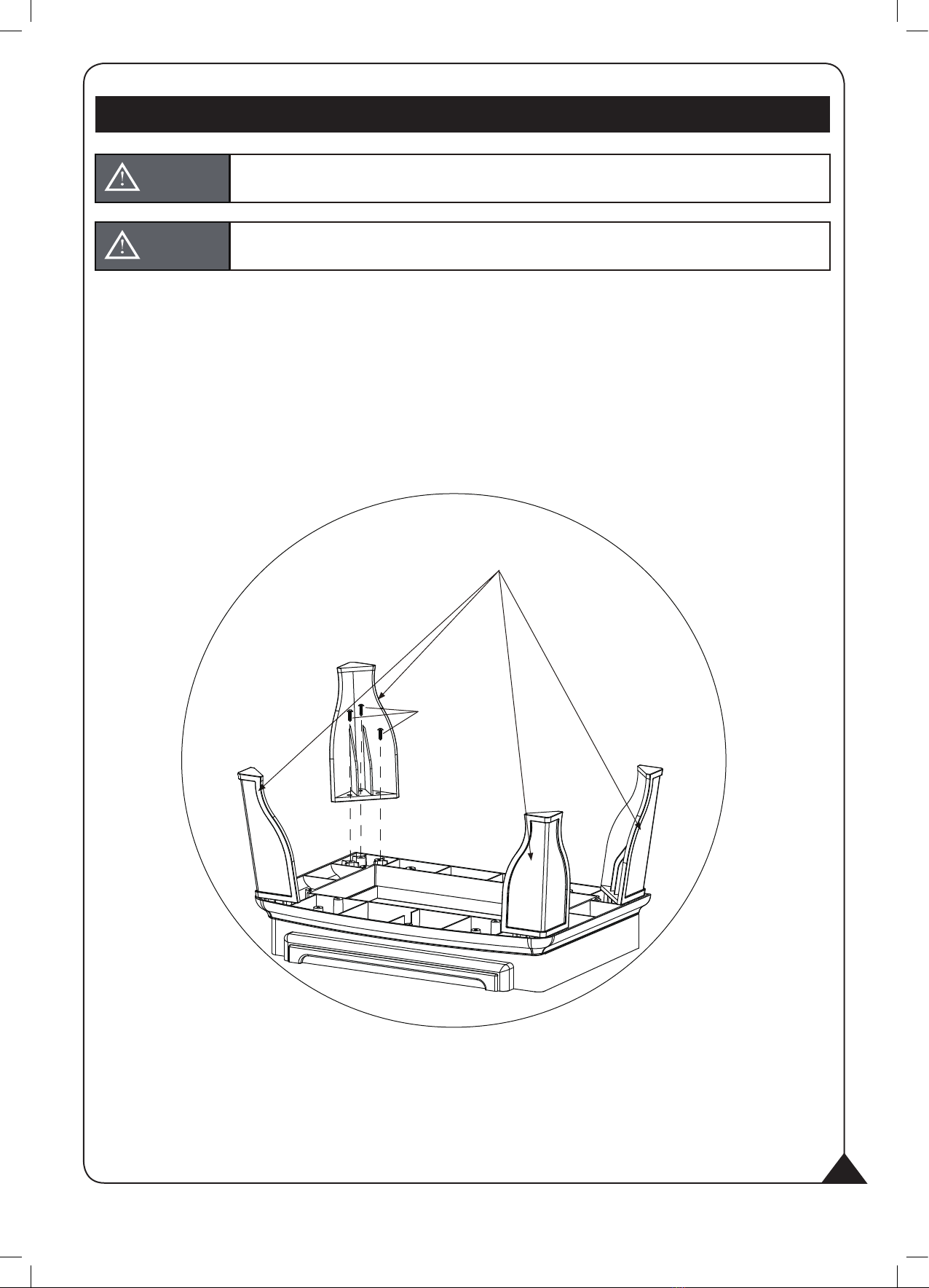

STEP1: Carefully turn the Stove Heater(A) upside down and lay it on a clean soft surface.
STEP2: Align the holes in the Leg(B) with the holes in the corner of the stove frame as shown.
STEP3: Thread three M4x12mm Screws(C) through the holes in the leg and into the stove frame.
STEP4: Partially tighten the screws with a phillips screwdriver. Repeat Step 2 and 3 for the other
three Legs(B).
STEP5: Check the alignment and tighten all.
M4X12mm Screws(C)
Stove Heater(A)
Legs(B)

OPERATION
POWER
METHODS OF OPERATION
TEMPERATURE LIMITING CONTROL - AUTO SHUT OFF
This heater is equipped with a Temperature Limiting Control. Should the heater reach an unsafe
temperature (239°F / 115°C), the heater will automatically turn OFF.

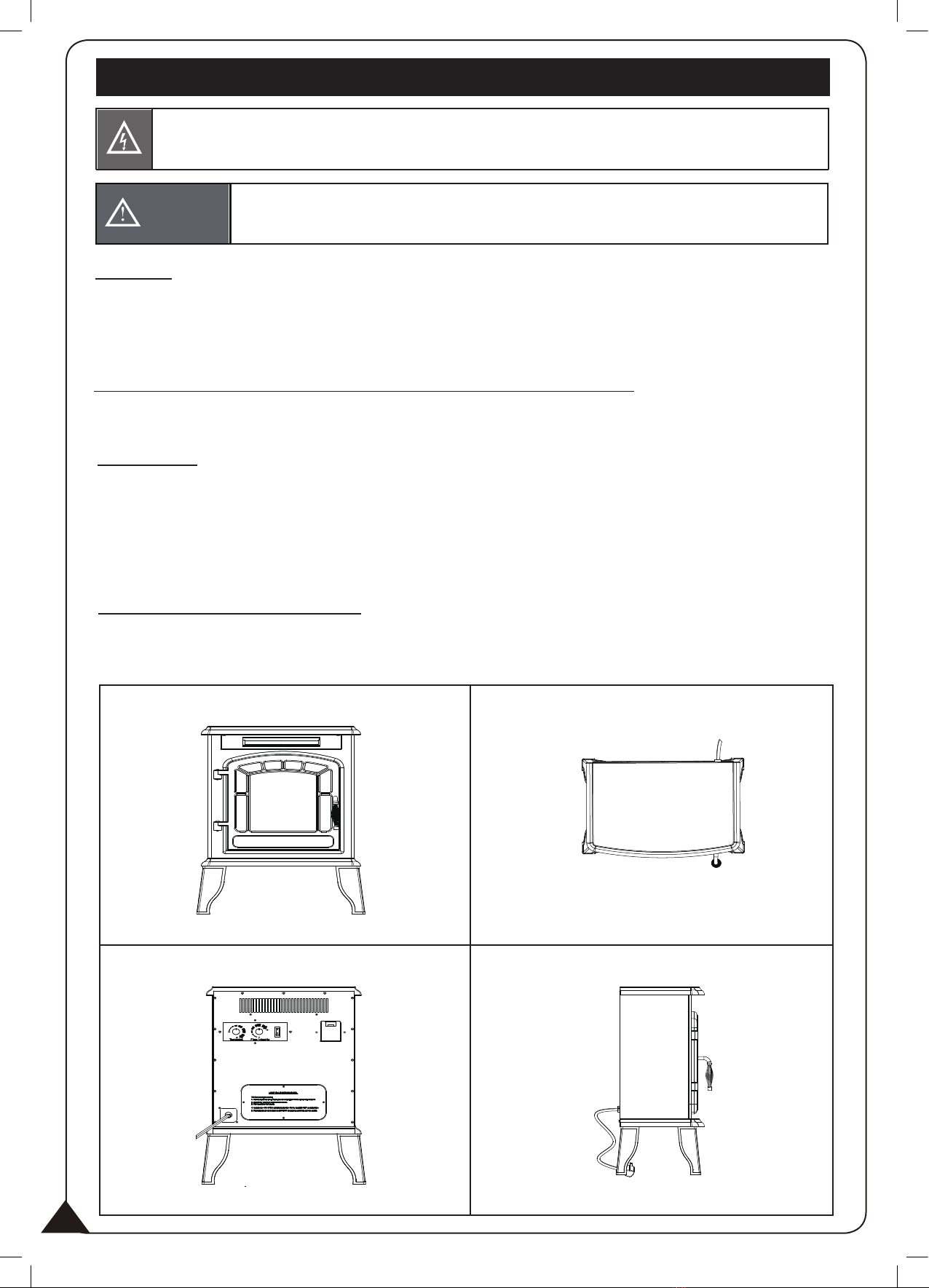

Front View
Back View
Top View
Left Side View
6
6
Read and understand this entire owner’s manual, including all safety information, before
plugging in or using this product. Failure to do so could result in electric shock, fire, serious
injury, or death.
NOTICE
This heater is not intended to be a primary heat source. It is designed to provide
supplemental heat, and should not be left running to continuously for more than
eight hours.
TO RESET
This heater can be operated by the CONTROL PANEL, located on the back panel of the heater. Before
operating, please review the IMPORTANT SAFETY INFORMATION on Page 2 and 3, and follow all
warnings.
Make sure the POWER switch, located on the back panel, is turned OFF. Plug the power cord into
a 120 Volt 15 Amp grounded outlet (see IMPORTANT SAFETY INFORMATION on Pages 2 and 3).
Make sure the outlet is in good condition and that the plug is not loose. NEVER exceed the maximum
amperage for the circuit. DO NOT plug other appliances into the same circuit.
Turn OFF the POWER switch on the CONTROL PANEL. Unplug the power cord from the outlet.
Wait 15 minutes. Inspect the fireplace to make sure no vents are blocked, or clogged with dust or lint.
If they are, use a vacuum to clean the vent areas. With the POWER switch turned OFF, plug the power
cord back into the outlet and turn the POWER switch ON. If the heater switches off again, UNPLUG
THE HEATER RIGHT AWAY! Have the outlets, wiring and breaker box inspected by a professional.
Make necessary repairs before using the heater again.

37
CONTROL PANEL FUNCTIONS
NOTICE
When this heat function is used for the first time, a slight odor may be present.
This is normal and should not occur again unless the heater is not used for an
extended period of time.
CONTROLS FUNCTION
Main Power
On/Off
Press ON.Power turns ON.All functions are enabled.
Press OFF. Power,flame effect, and all functions turn off.
Flame
Intensity
Turn the dimmer dial clockwise or counter clockwise to get the
desired ame intensity. The function will only operate when the
main power switch is ON.
Thermostat
Control
The heat output is controlled by the Thermostat Control dial. Set
the Thermostat Control dial clockwise to the maximum position
initially. When the room reaches the desired temperature, reduce
the setting by slowly turning the thermostat dial counter clockwise
until the heater will click and turn off. The heater will then maintain
the room temperature at the desired level.
NOTE: The Heat enabling switch must be ON for the thermostat
function to operate.
Heat
Enabling
Switch
The Heat Enabling Switch located on the back of the heater box,
must be ON for the heater to work.
Demo Mode Sticker

CARE AND MAINTENANCE
Cleaning
Metal:
Buff using a soft cloth, slightly dampened with a citrus oil-based product.
DO NOT use brass polish or household cleaners as these products will damage the metal trim.

Vents:
Use a vacuum or duster to remove dust and dirt from the heater and vent areas.
Clean the exterior of the fireplace with a slightly damp cloth or duster.




38
ALWAYS turn the heater OFF and unplug the power cord from the outlet before cleaning,
performing maintenance, or moving this fireplace. Failure to do so could result in electric
shock, fire, or personal injury.
NEVER immerse in water or spray with water. Doing so could result in electric shock,fire,
or personal injury.
Maintenance

Electrical and Moving Parts:
Storage:


Risk of electric shock! DO NOT OPEN any panels other than the bulb replacement
plate! No user-serviceable parts inside!
ALWAYS turn the heater OFF and unplug the power cord from the outlet before
cleaning, performing maintenance, or moving this fireplace. Failure to do so could result in
electric shock,fire,or personal injury.
The fan motors are lubricated at the factory and will not require lubrication for the life of the product.
Electrical components are integrated in the fireplace and are not serviceable by the consumer.
Store heater in a clean dry place when not in use.
WARNING
No servicing should be performed by the consumer. DO NOT repair or
service the unit yourself. For service, call a certified electrician.
Glass:
Use a good quality glass cleaner and dry thoroughly with a paper towel or lint-free cloth.
NEVER use abrasive cleansers, liquid sprays, or any cleaner that could scratch the surface.



39

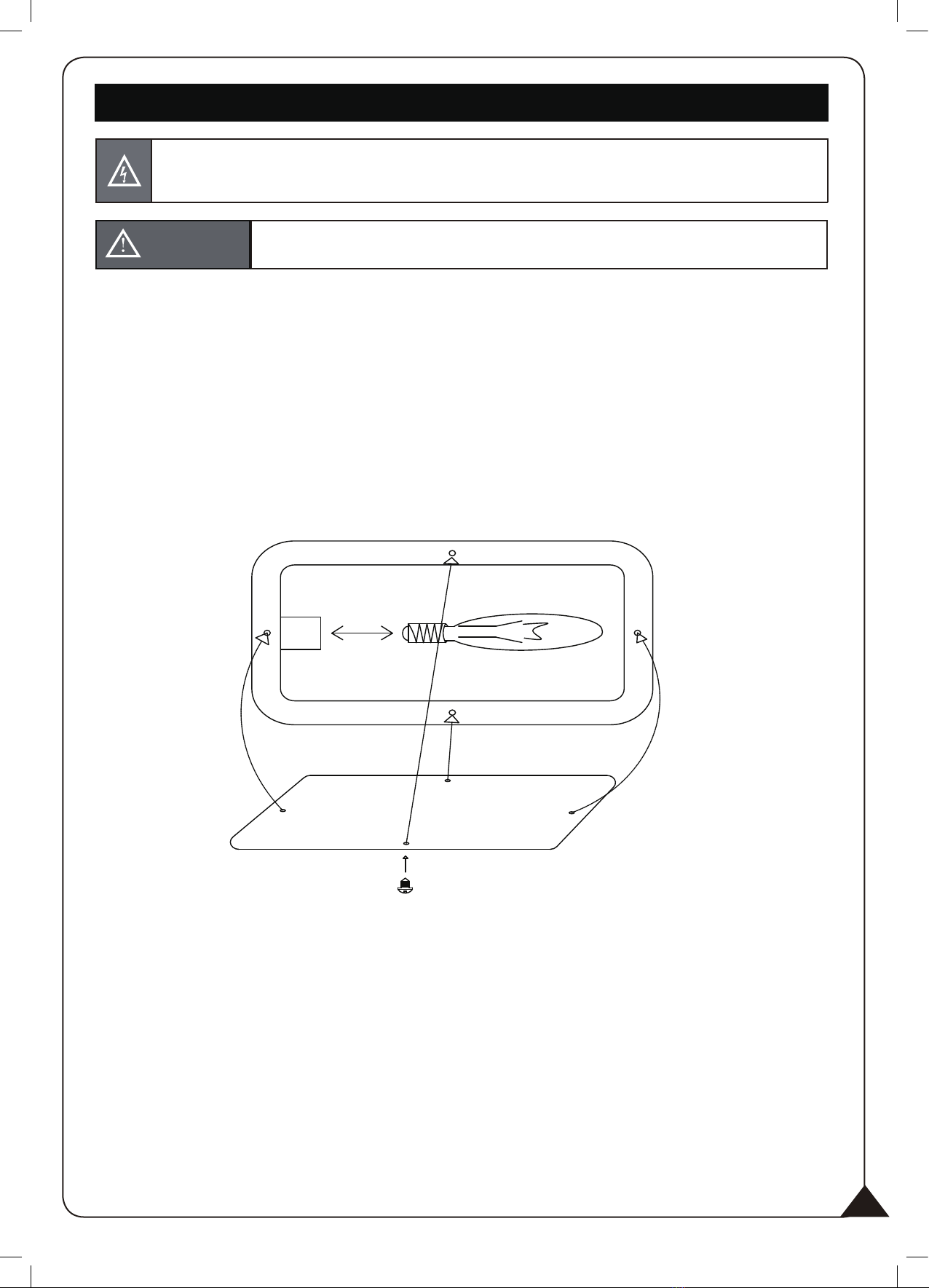

LIGHT BULB MAINTENANCE
1. To inspect or replace the bulb(s), first unplug the power cord from the outlet.
2. Locate the Access Panel on the bottom of the fireplace. Remove the screws and the panel.
3. Check the bulb to see if it is loose. Bulb should be finger tight. DO NOT over-tighten.
4. Replace any damaged or faulty bulb - one spare bulb(E) has been included for your convenience.
5. Reattach the access panel.
• DO NOT operate this heater without the Access Panel in place.
• DO NOT remove the back cover. There are no user-serviceable parts inside.
The flame effect is created by 1 x 40-Watt light bulbs with E-12 (small) socket base. Use only this same
type of bulb as a replacement. If the flame effect does not work, the bulbs may have come loose or
been damaged during shipping.
ALWAYS turn the heater OFF and unplug the power cord from the outlet before cleaning,
changing the light bulbs, or moving this unit. Failure to do so could result in electric
shock, fire, or personal injury.
WARNING
Light bulbs become very hot during use. Allow at least 10 minutes for the
bulb(s) to cool before touching.
Access Panel

6
10
TROUBLESHOOTING GUIDE
PROBLEM SOLUTION
There is no power to the unit.
1. Make sure the power cord is plugged into a working 120V
AC electrical outlet.
2. Check for a tripped circuit breaker, or a blown fuse.
3. If the unit had been working, but then turned off by itself, the
temperature limiting control must be reset. Please see
instructions on Page .
The flame effect does not work.
The flame effect does not turn
off when I press the flame button.
The heater does not work.
Hot air does not blow when the
heater is first turned on. The fans blow cool air before the heating elements turn on, and
after they turn off, to prevent overheating. This is normal.
The power cord, or the outlet
faceplate, is hot.
Turn the heater off immediately. Wait for the cord to cool and
unplug the heater. See the warnings on Page for possible
causes. Call an electrician to examine your home’s wiring.
The thermostat (TEMP button)
does not work.
1. Make sure the heater is turned on. The thermostat will not
work unless the heater is turned on.
2. Make sure the thermostat is not set too low. If the thermostat
is set lower than room temperature, the heater will turn off.
3. If the thermostat was overridden by the heater button, press
the temp button to restart the thermostat.
6
3
Make sure the POWER switch on the control panel is turned on.
The flame effect stays on until the POWER switch is turned off.
1. Ensure the POWER switch is turned ON for the heater
to operate.
2. Make sure the thermostat control is not turned down too
low. If the thermostat is set lower than the room temperature
the heater will not turn on.

311

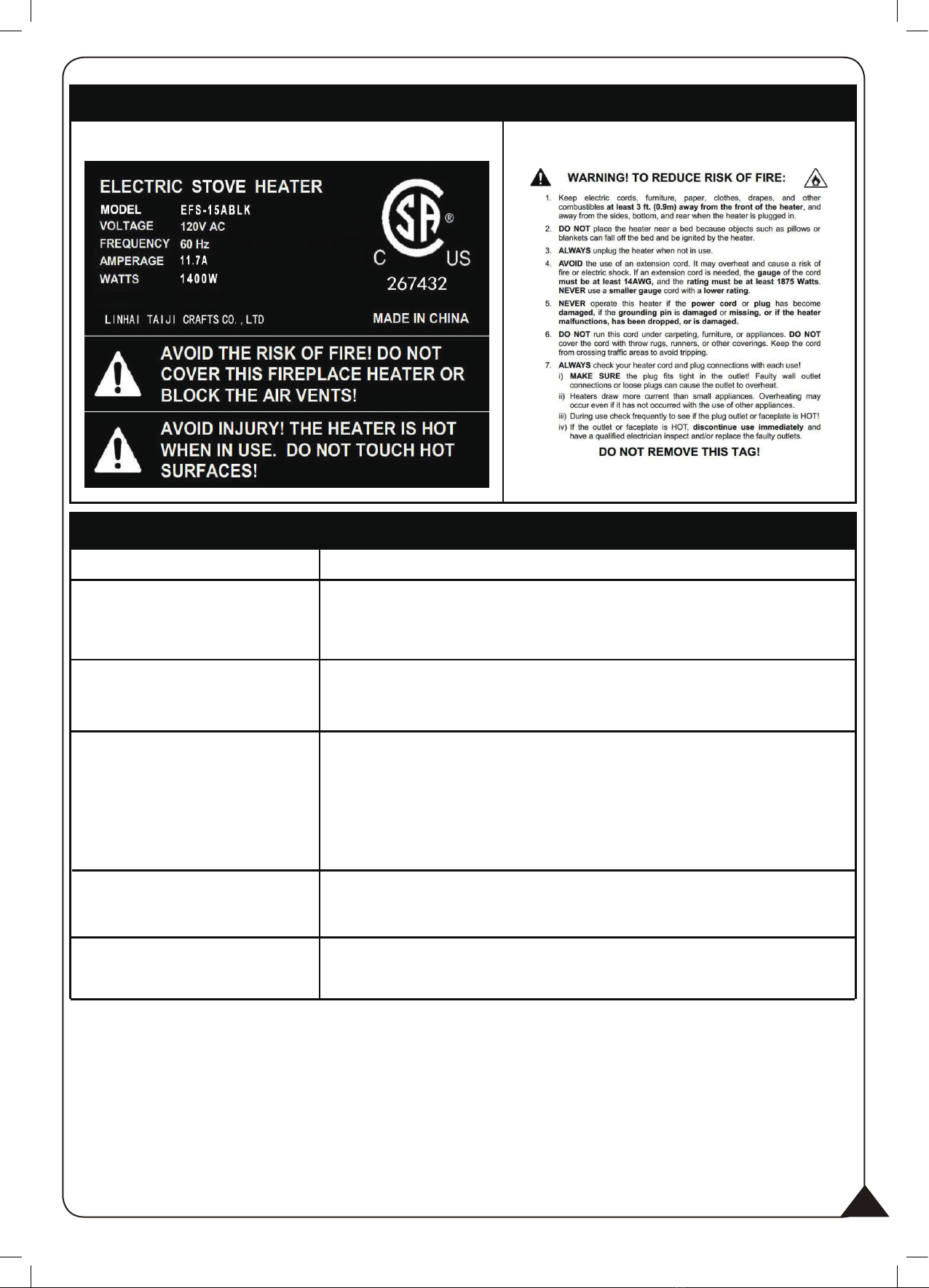

CSA RATING LABEL & POWER CORD LABEL
CSA Rating Label Power Cord Warning Label
FAQ - FREQUENTLY ASKED QUESTIONS
Question Answer
Can I leave the heater
running overnight?
No. This heater is not intended to be a primary heat source. It is
designed to provide supplemental heat, and should not be left
running continuously for more than eight hours.
Is the fireplace safe to use on
carpet?
Yes. However, please note the warnings on Pages 2 and 3 about
the safe placement of the heater. The vents must NEVER be
blocked, and must always be kept clear.
How much does it cost each
month to run the heater?
Example: 1500 Watts equals 1.5 Kilowatt Hours (KWH). Contact
your utility to find out the cost per KWH. Then, use this formula: 1.5
x ($0.00/KWH) = $0.00 per hour. For example: If the utility charges
$0.20 per KWH, then the cost is 1.5 x $0.20 = $0.30 per hour. If
you run the heater 5 hours per day, the cost will be 5 x $0.30 =
$1.50/day. 30 days x $1.50 = $45.00/month.
Should the motor be loud
when the heater is running?
Can I get replacement parts
for my electric heater?
Some parts can be replaced. Please contact our Customer
Service representative to check availability.
No. The flame effect motors and heater blowers are not silent, but
they should not be loud.

LIMITED LIABILITY
This product is not intended to be used as a primary heat source. Read and understand all assembly and operating
instructions, and all safety information and warnings before use.
in contract, in tort, or on any other basis, for any indirect, special, punitive, exemplary, consequential, or incidental
loss, cost, or damage arising out of or in connection with the sale, maintenance, use, or inability to use this product,
agents be liable for any direct losses, costs, or damages that exceed the purchase price of the product. Some states
do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion
may not apply to the purchaser.
