Flame boss 100 User manual

MODELS 100 & 200 MANUAL
www.FlameBossVideos.com

REMOTE CONTROL
WARNING: Important safety instructions
It is important for the safety of persons to follow these instructions. Save these instructions.
Follow all instructions, as incorrect installation and use can lead to injury or property damage.
Flame Boss™ 100/200 is intended for use only in dry, outdoor locations. Store the unit indoors
in a dry location. If you know or suspect that the Flame Boss™ controller or power adapter has
been exposed to excessive moisture or rain or was submerged in water, do not use the unit.
The 12 Vdc power to the unit shall be supplied by a properly certified power adapter with SELV
/ LPS output.
Use only the power adapter provided with the unit.
Do not allow children to play with a Flame Boss™ 100/200. Keep away from children.
Flame Boss™ 100/200 is not to be used by persons with reduced physical, sensory, or mental
capabilities, or lack of experience and knowledge.
Do not place or mount a Flame Boss™ 100/200 where it is exposed to excessive heat from the
grill or smoker.

2
Models 100 & 200 Manual
• Flame Boss smoker controller
• 110-240 volt AC power adapter
• Pit temperature probe
• Meat temperature probe
• Blower
• 3 blower adapters for your grill/smoker (Kamado kit only)
• Blower manifold with fasteners (Universal kit only)
In the Package
Cruise control for your smoker

3www.FlameBossVideos.com
Kamado - Blower Installation
1
2
3

4
Kamado - Blower Installation
4
5
6

1
2
3
Weber Smokey Mountain - Blower Installation
5www.FlameBossVideos.com

4
5
Weber Smokey Mountain - Blower Installation
6

1
2
3
7www.FlameBossVideos.com

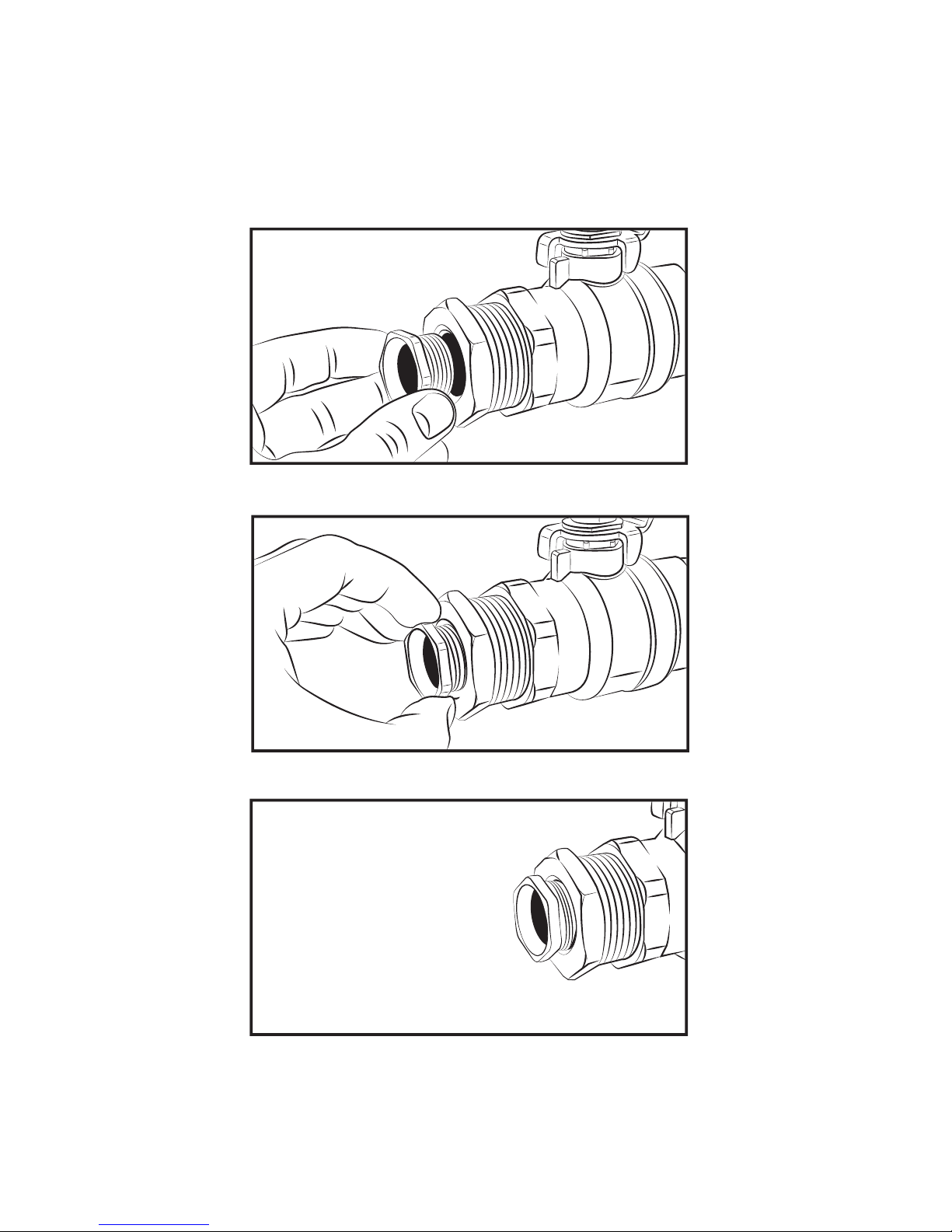

Pipe Thread Universal Blower Installation Using 3/4" Bushing (not included)

8
4
5
Pipe Thread Universal Blower Installation Using 3/4" Bushing (not included)

www.FlameBossVideos.com
9
Top vent almost closed

10
1
2
3
Probe Installation and Connecting Smoker Controller

The main screen shows the set temperature, pit temperature, blower speed, and meat
temperature.
On each screen just press Up or Down to change the setting, or press Menu to save your
setting and go to the next screen.
Using Flame Boss™ 100 & 200
Screens
11 www.FlameBossVideos.com
The set temperature is your desired temperature for the pit.
To change the set temperature just press Up or Down.
Press Menu to see other screens.
Pressing Menu enough times will bring you back to the main screen.You can also just wait
15 seconds to go back to the main screen automatically.
After the main screen are:
• Timer Set
• Timer Start/Stop
• Meat Alarm
• Meat Done Temp
• Keep Warm Temp
• Pit Alarm
• Sound
SET 225 PIT 224
FAN 21% MEAT 110
-Continuing on WiFi models only:
•Wifi On/Off
•Wifi Status or Server Name with Device ID and PIN
• Wifi Configuration Screens (see Setting up Wifi)
-Continuing on all models:
• LCD Contrast
• Temp Scale
• Open Pit Pause
• Factory Reset
• Version

12
Screen Details
Timer Set
Up/Down changes the timer value
Timer Start/Stop
Up/Down starts and stops the timer
Meat Alarm
Up/Down cycles through these options:
Off – No alarm
On – Alarm when meat reaches the Meat Done temperature
On + Keep Warm – Alarm when meat reaches the Meat Done temperature then
change the set temperature to the Keep Warm temperature
Meat Done Temp
(Only shown when Meat Alarm is On)
Up/Down changes the Meat Done temperature
Keep Warm Temp
(Only shown when Meat Alarm is On + Keep Warm)
Up/Down changes the Keep Warm temperature
Pit Alarm
Up/Down changes the temperature range outside which the Pit Alarm will trigger. It
also shows the current status using the following codes:
WAIT-PIT Pit alarm is not active because the pit temp must first get
close to the set temp
WAIT-OPEN Pit alarm is not active because the controller is in open pit
mode
ACTIVE Pit alarm is active and will trigger if the pit temp goes
outside the configured range about the set temp
WiFi Screens are covered in the next section.
LCD Contrast
Up/Down changes the LCD Contrast
Temp Scale
Up/Down changes the temperature scale between Celsius and Fahrenheit

Configure WLAN?
Yes
Wifi Name(SSID)
Some-wifi-name
1. Plug in the power and wait for the controller to show this on the
display:
2. Press the Menu button to answer Yes. The display will show:
Alternatively, if this notice screen in step 1 has already shown and you
selected No, then you can simply press Menu until you see the WiFi
Name (SSID) screen.
3. Press the up and down buttons to cycle through the SSIDs
detected by the controller and press the menu to select your SSID.
Then the display will show:
www.FlameBossVideos.com
13
Setting up Wifi (Flame Boss 200 Only)
Flame Boss 200 has a WiFi interface that allows you to monitor and control your cooks
from any device on the Internet with a web browser. Here is how to configure the
controller for WiFi.
Open Pit Pause
Up/Down changes the amount of time the controller will keep the blower off after
detecting an open pit condition
Factory Reset
Pressing Up three times will erase restore all settings to their factory defaults. Note,
this will delete your WiFi configuration on WiFi models.
Version
Shows the version of the firmware
Wifi Password
_

14
myflameboss.com
1111-2222
If your WiFi network is using WEP security, you will enter the key in hex
and the display will show:
4. Enter your password as follows:
a) Press Up or Down to select a character
b) Press Menu to move to the next position
c) If you make a mistake select (back arrow) to backspace
d) Repeat until all characters of your password are entered
e) Select and press Menu
Wait for the controller to connect. When connected the display will
show:
The first number is your Device ID and the second is the Device PIN.
(Share your Device ID to let others view your device at
MyFlameBoss.com, but share your Device PIN only with those allowed
to change settings on your controller.)
Congratulations, your controller is online! Now visit MyFlameBoss.com
with the browser of your mobile phone, tablet, or computer to monitor
and control your Flame Boss controller remotely.
Please visit FlameBoss.com for more information and support.
For More Information
Wifi Password(HEX)
_

Cruise control for your smoker
325 S McGee Avenue,Apopka FL 32703
www.FlameBossVideos.com
Copyright © 2013 Flame Boss™
suppor[email protected]
