Flextool SP118OFT Guide

OPERATION AND PARTS MANUAL
THIS MANUAL MUST ACCOMPANY THE EQUIPMENT AT ALL TIMES.
Revision #0 (01/04/10)
PN: 38364
SP1 SERIES
CONCRETE/ASPHALT STREET
MODEL SP118OFT
HONDA GX390 PETROL ENGINE
SERIAL NO. ____________

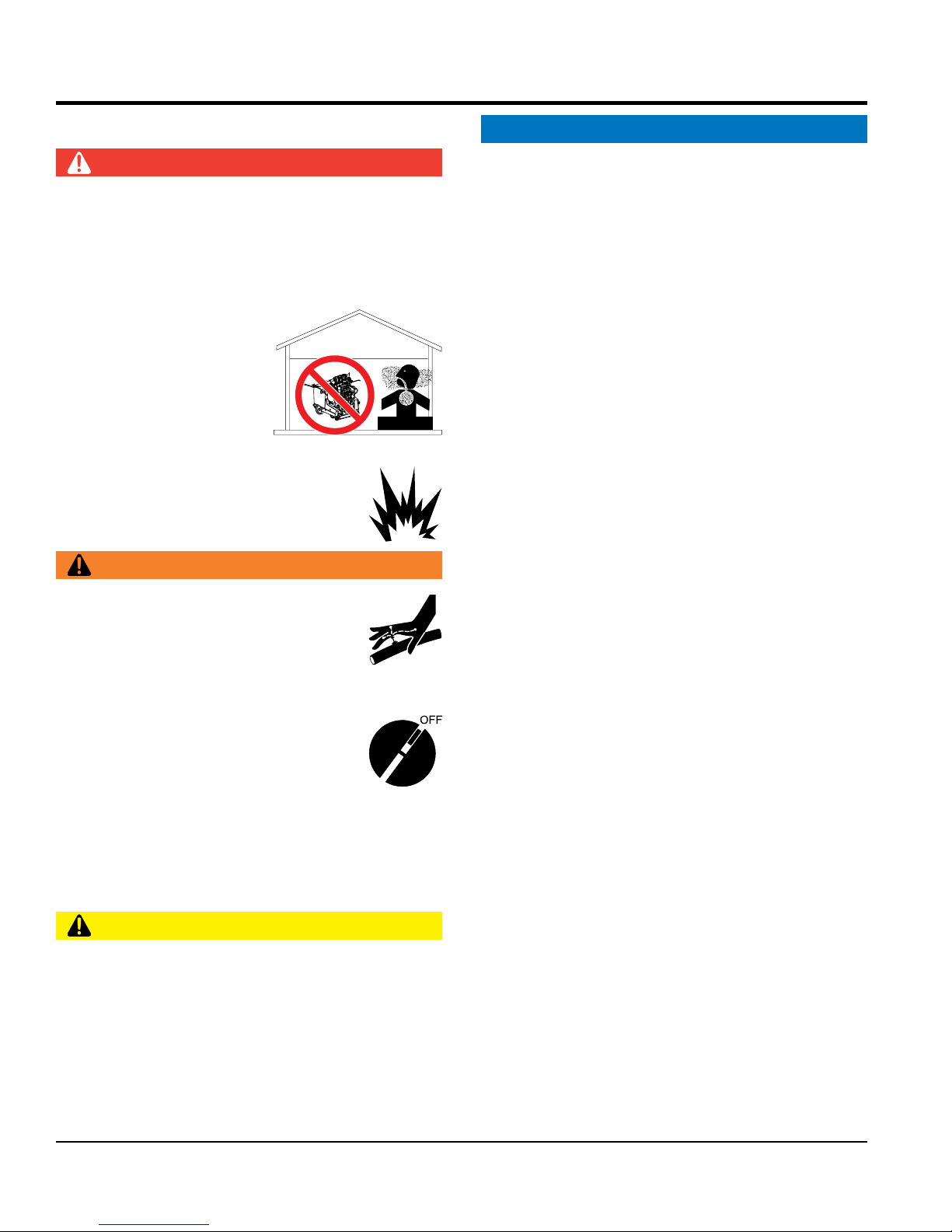

PAGE 2 — SP1 PAVEMENT SAW • OPERATION AND PARTS MANUAL — REV. #0 (01/04/10)
PROPOSITION 65 WARNING
Engine exhaust and some of
its constituents, and some dust created
of California to cause cancer, birth
defects and other reproductive harm.
by power sanding, sawing, grinding,
drillingandotherconstructionactivities
contains chemicals known to the State
Some examples of these chemicals are:
Leadfromlead-basedpaints.
Crystallinesilicafrombricks.
Cementandothermasonryproducts.
Arsenicandchromiumfromchemically
treatedlumber.
Your risk from these exposures varies,
dependingonhowoftenyoudothistype
of work. To reduce your exposure to
these chemicals: work in aALWAYS
well ventilated area, and work with
approved safety equipment, such as
dust masks that are specially designed
to filter out microscopic particles.

SP1 PAVEMENT SAW • OPERATION AND PARTS MANUAL — REV. #0 (01/04/10) — PAGE 3
Grinding/cutting/drilling of masonry, concrete, metal and
other materials with silica in their composition may give
off dust or mists containing crystalline silica. Silica is a
basic component of sand, quartz, brick clay, granite and
numerous other minerals and rocks. Repeated and/or
substantial inhalation of airborne crystalline silica can
cause serious or fatal respiratory diseases, including
silicosis. In addition, California and some other
authorities have listed respirable crystalline silica as a
substance known to cause cancer. When cutting such
materials, always follow the respiratory precautions
mentioned above.
WARNING
Grinding/cutting/drilling of masonry, concrete, metal and
other materials can generate dust, mists and fumes
containing chemicals known to cause serious or fatal
injury or illness, such as respiratory disease, cancer,
birth defects or other reproductive harm. If you are
unfamiliar with the risks associated with the particular
process and/or material being cut or the composition of
the tool being used, review the material safety data
sheet and/or consult your employer, the material
manufacturer/supplier, governmental agencies such as
OSHA and NIOSH and other sources on hazardous
materials. California and some other authorities, for
instance, have published lists of substances known to
cause cancer, reproductive toxicity, or other harmful
effects.
Control dust, mist and fumes at the source where
possible. In this regard use good work practices and
follow the recommendations of the manufacturers or
suppliers, OSHA/NIOSH, and occupational and trade
associations. Water should be used for dust
suppression when wet cutting is feasible. When the
hazards from inhalation of dust, mists and fumes cannot
be eliminated, the operator and any bystanders should
always wear a respirator approved by NIOSH/MSHA for
the materials being used.
WARNING
SILICOSIS WARNING RESPIRATORY HAZARDS
SILICOSIS/RESPIRATORY WARNINGS

PAGE 4 — SP1 PAVEMENT SAW • OPERATION AND PARTS MANUAL — REV. #0 (01/04/10)
TABLE OF CONTENTS
SP1 StreetPro
Professional Pavement Saw
Proposition 65 Warning ........................................... 2
Silicosis/Respiratory Warnings ................................ 3
Table Of Contents .................................................... 4
Training Checklist ..................................................... 6
Daily Pre-Operation Checklist ................................. 7
Safety Information .............................................. 8-14
Dimensions/Specifications (Saw) .......................... 16
Specifications (Engine) .......................................... 17
General Information ............................................... 18
Components .......................................................... 19
Basic Engine .......................................................... 20
Inspection/Setup ............................................... 21-23
Blades ............................................................... 24-26
Raise/Lower And Depth Stop ................................ 27
Operation .......................................................... 28-31
Maintenance (Saw) ................................................ 32
Maintenance (Engine) ........................................... 33
Decommissioning/Water Tank (Optional) ............... 34
Troubleshooting (Saw) ........................................... 35
Troubleshooting (Engine) ....................................... 36
Explanation Of Code In Remarks Column ............ 38
Suggested Spare Parts ......................................... 39
Component Drawings
Nameplate And Decals ..................................... 40-41
Console Frame Assembly ................................. 42-43
Platform Frame/Undercarriage Assembly ......... 44-45
Raise/Lower Assembly ..................................... 46-47
Lifting Bale Assembly ....................................... 48-49
Pointer Assembly .............................................. 50-51
Blade Spindle Assembly ................................... 52-53
Blade Guard Assembly ..................................... 54-55
Engine Assembly .............................................. 56-57
Belts And Tensioning Assembly ........................ 58-59
Belt Guard Assembly ........................................ 60-61
Water System Assembly ................................... 62-63
Optional Water Tank Assembly ......................... 64-65
Honda GX390U1QWT2 Engine
Air Cleaner Assembly ....................................... 66-67
Camshaft Assembly .......................................... 68-69
Carburetor Assembly ........................................ 70-71
Control Assembly ............................................. 72-73
Crankcase Assembly ........................................ 74-75
Crankshaft Assembly ........................................ 76-77
Cylinder Barrell Assembly ................................ 78-79
Cylinder Head Assembly .................................. 80-81
Fan Cover Assembly ......................................... 82-83
Flywheel Assembly ........................................... 84-85
Fuel Tank Assembly .......................................... 86-87
Ignition Coil Assembly ...................................... 88-89
Muffler Assembly .............................................. 90-91
Piston Assembly ............................................... 92-93
Recoil Starter Assembly ................................... 94-95
Labels Assembly .............................................. 96-97

SP1 PAVEMENT SAW • OPERATION AND PARTS MANUAL — REV. #0 (01/04/10) — PAGE 5
NOTES

PAGE 6 — SP1 PAVEMENT SAW • OPERATION AND PARTS MANUAL — REV. #0 (01/04/10)
TRAINING CHECKLIST
Training Checklist
No, Description OK? Date
1Read operation manual
completely.
2
Machine layout, location of
components, checking of engine
and hydraulic oil levels.
3 Fuel system, refueling procedure.
4 Operation of spray and lights.
5Operation of controls (machine
not running).
6Safety controls, safety stop switch
operation.
7 Emergency stop procedures.
8Startup of machine, pre-heat,
engine choke.
9 Forward and reverse travel.
10 Starting a cut.
11 Pavement cutting techniques.
12 Stopping a cut.
13 Restart after stopping blade within
work surface — explanation
14 Shutdown of machine.
15 Lifting of machine (lift loops).
16 Machine transport and storage.

SP1 PAVEMENT SAW • OPERATION AND PARTS MANUAL — REV. #0 (01/04/10) — PAGE 7
DAILY PRE-OPERATION CHECKLIST
Daily Pre-Operation Checklist      
1 Hardware and damage check
2 Engine oil level
3 Hydraulic oil level
4 Condition of blade
5 Safety stop switch operation
6 Braking control operation

PAGE 8 — SP1 PAVEMENT SAW • OPERATION AND PARTS MANUAL — REV. #0 (01/04/10)
SAFETY INFORMATION
Do not operate or service the equipment before reading
the entire manual. Safety precautions should be followed
at all times when operating this equipment.
Failure to read and understand the safety
messages and operating instructions could
result in injury to yourself and others.
SAFETY MESSAGES
The four safety messages shown below will inform you
about potential hazards that could injure you or others. The
safety messages specifi cally address the level of exposure
to the operator and are preceded by one of four words:
DANGER, WARNING, CAUTION or NOTICE.
SAFETY SYMBOLS
DANGER
Indicates a hazardous situation which, if not avoided,
WILL result in DEATH or SERIOUS INJURY.
WARNING
Indicates a hazardous situation which, if not avoided,
COULD result in DEATH or SERIOUS INJURY.
CAUTION
Indicates a hazardous situation which, if not avoided,
COULD result in MINOR or MODERATE INJURY.
NOTICE
Addresses practices not related to personal injury.
Potential hazards associated with the operation of this
equipment will be referenced with hazard symbols which
may appear throughout this manual in conjunction with
safety messages.
Lethal exhaust gas hazards
Explosive fuel hazards
Burn hazards
Rotating parts hazards
Symbol Safety Hazard
Cutting and crushing hazards
Hydraulic fluid hazards

SP1 PAVEMENT SAW • OPERATION AND PARTS MANUAL — REV. #0 (01/04/10) — PAGE 9
SAFETY INFORMATION

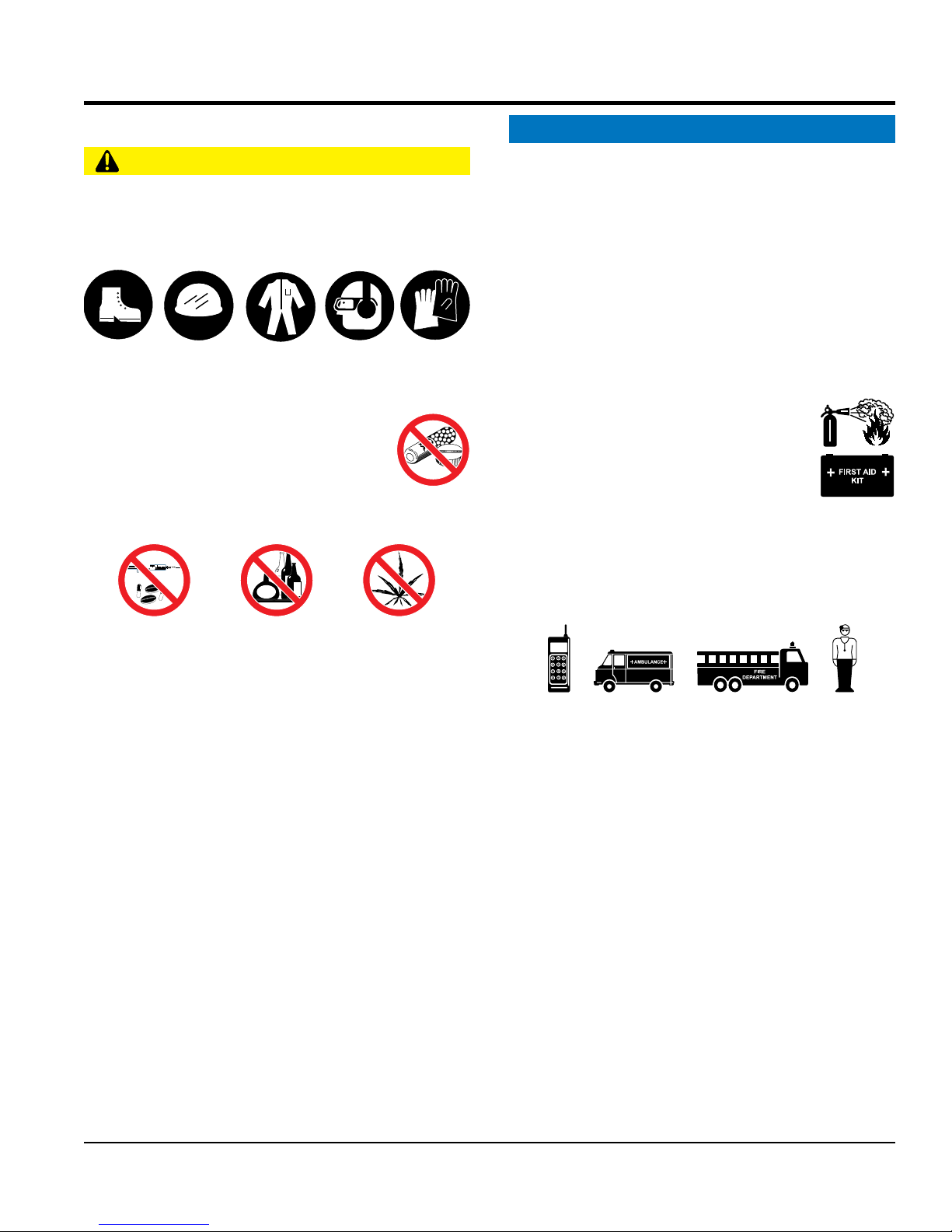

GENERAL SAFETY
CAUTION
NEVER operate this equipment without proper protective
clothing, shatterproof glasses, respiratory protection,
hearing protection, steel-toed boots and other protective
devices required by the job or city and state regulations.
Avoid wearing jewelry or loose fi tting clothes that may
snag on the controls or moving parts as this can cause
serious injury.
NEVER operate this equipment when not
feeling well due to fatigue, illness or when
under medication.
NEVER operate this equipment under the
infl uence of drugs or alcohol.
ALWAYS clear the work area of any debris, tools, etc.
that would constitute a hazard while the equipment is
in operation.
No one other than the operator is to be in the working
area when the equipment is in operation.
DO NOT use the equipment for any purpose other than
its intended purposes or applications.
NOTICE

This equipment should only be operated by trained and
qualifi ed personnel 18 years of age and older.

Whenever necessary, replace nameplate, operation and
safety decals when they become diffi cult read.
Manufacturer does not assume responsibility for any
accident due to equipment modifi cations. Unauthorized
equipment modifi cation will void all warranties.
NEVER use accessories or attachments that are not
recommended by Multiquip for this equipment. Damage
to the equipment and/or injury to user may result.
ALWAYS know the location of the nearest
fi re extinguisher.
ALWAYS know the location of the nearest
fi rst aid kit.
ALWAYS know the location of the nearest phone or
keep
a phone on the job site.
Also, know the phone numbers
of the nearest ambulance, doctor and
fi re department.
This information will be invaluable in the case of an
emergency.

PAGE 10 — SP1 PAVEMENT SAW • OPERATION AND PARTS MANUAL — REV. #0 (01/04/10)
SAFETY INFORMATION
SAW SAFETY
DANGER
Engine fuel exhaust gases contain poisonous carbon
monoxide. This gas is colorless and odorless, and can
cause death if inhaled.
The engine of this equipment requires an adequate free
fl ow of cooling air. NEVER operate this equipment in any
enclosed or narrow area
where free fl ow of the air is
restricted. If the air fl ow is
restricted it will cause injury
to people and property and
serious damage to the
equipment or engine.

NEVER operate the equipment in an explosive
atmosphere or near combustible materials. An
explosion or fi re could result causing severe
bodily harm or even death.
WARNING

If applicable, NEVER use your hand to fi nd
hydraulic leaks. Use a piece of wood or
cardboard. Hydraulic fl uid injected into the
skin must be treated by a knowledgeable
physician immediately or severe injury or
death can occur.

Accidental starting can cause severe injury
or death. ALWAYS place the ON/OFF
switch in the OFF position.
NEVER disconnect any emergency or safety devices.
These devices are intended for operator safety.
Disconnection of these devices can cause severe injury,
bodily harm or even death. Disconnection of any of these
devices will void all warranties.
CAUTION
Anytime the saw is lifted onto its nose or tilted fully
back, such as for maintenance access, the high end of
the saw MUST be blocked up to prevent the possibility
of crush injury.
DANGEROUS
GAS FUMES
NOTICE
ALWAYS ensure saw is securely
placed on appropriate
blocks or jackstands when performing maintenance
requires elevation of the saw.
If saw has brakes, ensure brakes are applied when
leaving or when using on a slope. Some saws utilize a
brake system where the brakes are automatically applied
when the engine is stopped.
If saw has a parking brake, ensure that the parking
brake is engaged and holds the saw safely in place
when parking on a slope.. Turning the saw across the
angle of the slope will help prevent accidental downhill
movement.
ALWAYS block the saw with appropriate blocks when
leaving the saw parked on a slope.
To prevent unexpected loss of control, DO NOT
start
engine on a sloping surface
DO NOT
use on excessive slopes or on extremely uneven
surfaces
ALWAYS start engine with the control handle in
NEUTRAL position to prevent unexpected movement.
ALWAYS
keep the machine in proper running condition.
Fix damage to machine and replace any broken parts
immediately.

Make sure there is no buildup of concrete, grease, oil or
debris on the machine.
ALWAYS
store equipment properly when it is not being
used. Equipment should be stored in a clean, dry location
out of the reach of children and unauthorized personnel.
