Fluo FSS101EI/JDF-N3 User manual

Thank you for choosing our product.
For proper operation, please read and keep this manual carefully.
If you have lost the User's Manual, please contact the local agent or visit www.skyworth-ac.com or sent
email to [email protected] for electronic version.
USER'S MANUAL
Split Air Conditioner
MODEL
FSS101EI/JDF-N3
FSS121EI/JDF-N3
FSS181EI/JDF-N3
FSS 241 EI/JDF-N3

Operation Notices
Precautions ........................................................................................................ 1
Parts name.......................................................................................................... 6
Operation Guide
Operation guide.................................................................................................. 7
Remote controller .............................................................................................. 8
Buttons on remote controller............................................................................ 9
Indoor unit address inquiry............................................................................. 13
Maintenance
Clean and maintenance................................................................................... 13
Malfunction
Malfunction analysis........................................................................................ 15
Safety operation of ammable refrigerant..................................................... 18
Installation Notice
Installation drawing ......................................................................................... 20
Installation prepare.......................................................................................... 21
Installation
Installation of indoor unit................................................................................ 24
Check after installation ................................................................................... 29
Test operation................................................................................................... 30
Content
This marking indicates that this product should not be disposed with other
household wastes throughout the EU. To prevent possible harm to the
environment or human health from uncontrolled waste disposal, recycle it
responsibly to promote the sustainable reuse of material resources. To return
your used device, please use the return and collection systems or contact
the retailer where the product was purchased. They can take this product for
environmental safe recycling.
If it needs to install, move or maintain the air conditioner, please contact dealer or local
service center to conduct it at rst. Air conditioner must be installed, moved or maintained
by appointed unit. Otherwise, it may cause serious damage or personal injury or death.
R32:675

1
Precautions
Please read this operating manual carefully before operating the unit.
Appliance lled with ammable gas R32.
Before use the appliance, read the owner's manual rst.
Befoer install the appliance, read the installation manual rst.
Befoer repair the appliance, read the service manual rst.
The gures in this manual may be different with the material objects, please refer to the
material objects for reference.
To realize the function of the air conditioner unit, a special refrigerant circulates in the system.
The used refrigerant is the uoride R32, which is specially cleaned. The refrigerant is
ammable and inodorous. Furthermore, it can leads to explosion under certain condition.
But the ammability of the refrigerant is very low. It can be ignited only by re.
Compared to common refrigerants, R32 is a nonpolluting refrigerant with no harm to the
ozonosphere. The inuence upon the greenhouse effect is also lower. R32 has got very
good thermodynamic features which lead to a really high energy efciency. The units
therefore need a less lling.
The Refrigerant
WARNING:
Do not use means to accelerate the defrosting process or to clean, other than those
recommended by the manufacture. Should repair be necessary, contact your nearest
authorized Service Center.
Any repairs carried out by unqualied personnel may be dangerous.
The appliance shall be stored in a room without continuously operating ignition sources.
(For example: open ames, an operating gas appliance or an operating electric heater.)
Do not pierce or burn.
Appliance shall be installed, operated and stored in a room with a oor area larger than
“X”m2 (see table 1). (only applies to appliances that are not xed appliances)
Appliance lled with ammable gas R32. For repairs, strictly follow manufacturer's
instructions only.
Be aware that refrigerants not contain odour.
Read specialist’s manual.

2
This appliance can be used by children aged of 8 years and
above and persons with reduced physical, sensory or mental
capabilities or lack of experience and knowledge if they have
been given supervision or instruction concerning use of the
appliance in a safe way and understand the hazards involved.
Children shall not play with the appliance.
Cleaning and user maintenance shall not be made by children
without supervision.
Do not connect air conditioner to multi-purpose socket.
Otherwise, it may cause re hazard.
Do disconnect power supply when cleaning air conditioner.
Otherwise, it may cause electric shock.
If the supply cord is damaged, it must be replaced by the
manufacturer, its service agent or similarly qualied persons in
order to avoid a hazard.
Do not wash the air conditioner with water to avoid electric
shock.
Do not spray water on indoor unit. It may cause electric shock
or malfunction.
After removing the lter, do not touch ns to avoid injury.
Do not use re or hair dryer to dry the lter to avoid deformation
or re hazard.
Maintenance must be performed by qualied professionals.
Otherwise, it may cause personal injury or damage.
Do not repair air conditioner by yourself. It may cause electric
shock or damage. Please contact dealer when you need to
repair air conditioner.
Do not extend ngers or objects into air inlet or air outlet. It may
cause personal injury or damage.
Precautions
Operation and Maintenance
WARNING

3
Attachment
Installation must be performed by qualied professionals.
Otherwise, it may cause personal injury or damage.
Must follow the electric safety regulations when installing the
unit.
According to the local safety regulations, use qualied power
supply circuit and circuit break.
Do install the circuit break. If not, it may cause malfunction.
An all-pole disconnection switch having a contact separation of
at least 3mm in all poles should be connected in xed wiring.
Air Conditioner should be properly grounded. Incorrect
grounding may cause electric shock.
Do not block air outlet or air inlet. It may cause malfunction.
Do not spill water on the remote controller, otherwise the
remote controller may be broken.
When below phenomenon occurs, please turn off air conditioner
and disconnect power immediately, and then contact the dealer
or qualied professionals for service.
● Power cord is overheating or damaged.
● There’s abnormal sound during operation.
● Circuit break trips off frequently.
● Air conditioner gives off burning smell.
● Indoor unit is leaking.
If the air conditioner operates under abnormal conditions, it
may cause malfunction, electric shock or re hazard.
When turning on or turning off the unit by emergency operation
switch, please press this switch with an insulating object other
than metal.
Precautions WARNING

4
Including an circuit break with suitable capacity, please note the
following table.Air switch should be included magnet buckle
and heating buckle function, it can protect the circuit-short and
overload.
Don't use unqualied power cord.
Make sure the power supply matches with the requirement of
air conditioner.Unstable power supply or incorrect wiring or
malfunction. Please install proper power supply cables before
using the air conditioner.
Properly connect the live wire, neutral wire and grounding wire
of power socket.
Be sure to cut off the power supply before proceeding any work
related to electricity and safety.
Do not put through the power before nishing installation.
If the supply cord is damaged, it must be replaced by the
manufacturer, its service agent or similarly qualied persons in
order to avoid a hazard.
The temperature of refrigerant circuit will be high, please keep
the interconnection cable away from the copper tube.
The appliance shall be installed in accordance with national
wiring regulations.
Installation must be performed in accordance with the
requirement of NEC and CEC by authorized personnel only.
The air conditioner is the rst class electric appliance. It must
be properly grounding with specialized grounding device
by a professional. Please make sure it is always grounded
effectively, otherwise it may cause electric shock.
The yellow-green wire in air conditioner is grounding wire,
which can't be used for other purposes.
The grounding resistance should comply with national electric
safety regulations.
Precautions WARNING

5
Working temperature range
NOTE:
The operating temperature range (outdoor temperature) for cooling is 18°C ~43°C ; Heating
temperature range for the model without electric heating belt for chassis is -15°C ~ 24°C ;
Heating temperature range for the model with electric heating belt for chassis is
-20°C ~24°C .
Indoor side DB/WB(°C) Outdoor side DB/WB(°C)
Maximum cooling 32/23 43/26
Maximum heating 27/- 24/18
The appliance must be positioned so that the plug is accessible.
All wires of indoor unit and outdoor unit should be connected
by a professional.
If the length of power connection wire is insufcient, please
contact the supplier for a new one. Avoid extending the wire by
yourself.
For the air conditioner with plug, the plug should be reachable
after nishing installation.
For the air conditioner without plug, an circuit break must be
installed in the line.
If you need to relocate the air conditioner to another place, only
the qualied person can perform the work. Otherwise, it may
cause personal injury or damage.
Select a location which is out of reach for children and far away
from animals or plants.If it is unavoidable, please add the fence
for safety purpose.
The indoor unit should be installed close to the wall.
Precautions WARNING

6

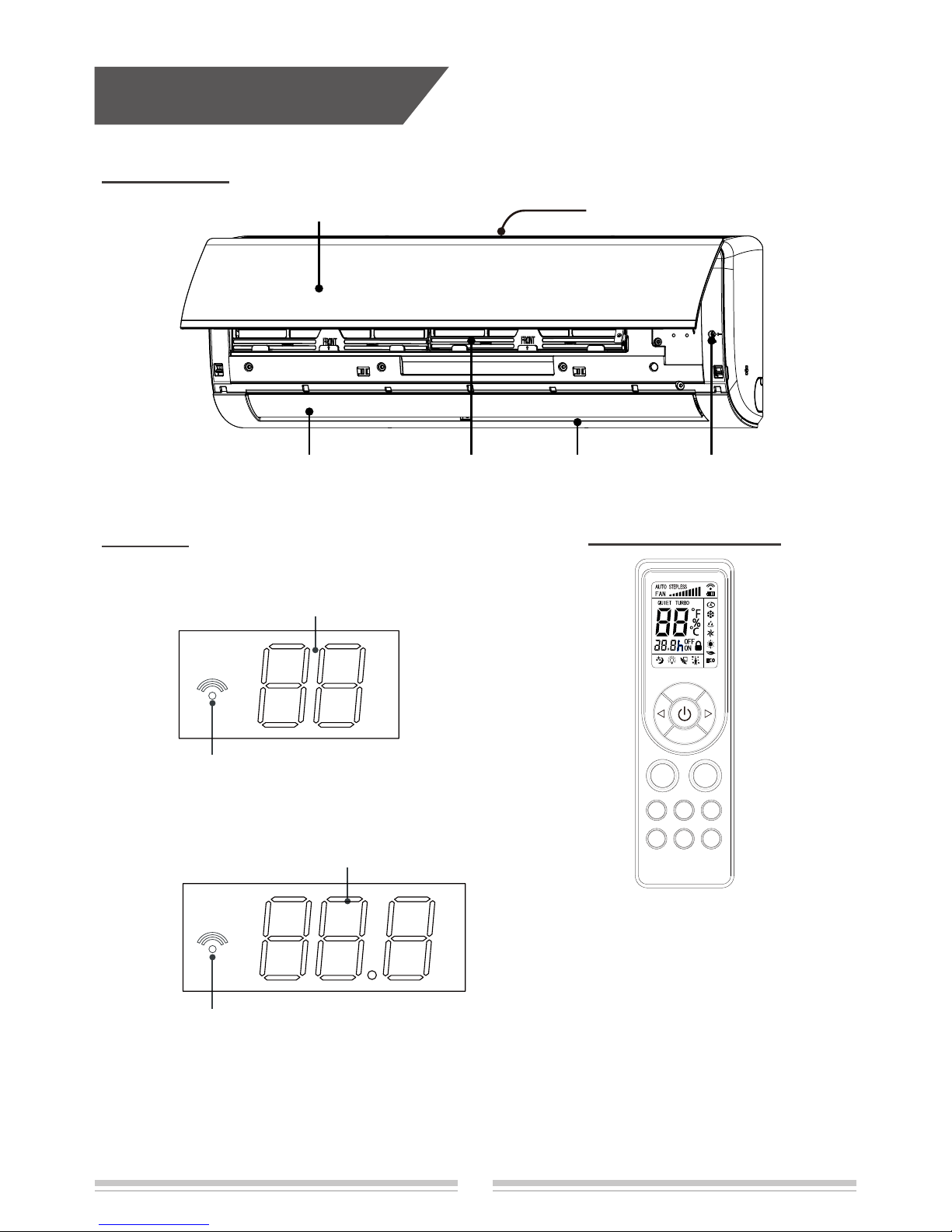

Parts name
Panel
Horizontal louver Aux.button
Air inlet
Filter Air outlet
Indoor unit
Remote controller
Actual product may be different from above graphics,please refer to actual products.
NOTE:
Display
Temp.indicator
Temp.indicator
Wi-Fi indicator
Wi-Fi indicator
)$1
6:,1*
02'(
785%2
7,0(5
+($/7+
6/((3
/,*+7
(&2
For some model:
For some model:

7
● During operation, point the remote control signal sender at the receiving window on indoor unit.
● The distance between signal sender and receiving window should be no more than 8m, and there
should be no obstacles between them.
● Signal may be interfered easily in the room where there is uorescent lamp or wireless telephone;
remote controller should be close to indoor unit during operation.
● Replace new batteries of the same model when replacement is required.
● When you don’t use remote controller for a long time, please take out the batteries.
● If the display on remote controller is fuzzy or there’s no display, please replace batteries.
NOTE:
Operation guide
1. Press the back side of remote controller marked
with " ", as shown in the g, and then push out
the cover of battery box along the arrow direction.
2. Installation two 7# (AAA 1.5V) dry batteries, and
make sure the position of "+" polar and "-" polar are
correct.
3. Reinstall the cover of battery box.
Installation batteries
Operation guide
1. After connecting the power, press " " button on remote controller to turn on the air
conditioner.
2. Press "MODE" button to select your required mode: Auto, Cool, Dry, Fan, Heat.
3. Press " " or " " button to set your required temperature. (Temperature can’t be
adjusted under auto mode).
4. Press "FAN" button to set your required fan speed: auto , quiet , fan1, fan2 , fan3 , fan4 ,
fan5 , stepless speed.
5. Press "SWING" button to turn on or turn off the swing function.
ὐ
ὑὒ

8
Remote controller
)$1
6:,1*
02'(
785%2
7,0(5
+($/7+
6/((3
/,*+7
(&2
Turbo function
Quiet function
Set fan speed
Child lock
Sleep function
Swing function
Light
Dual-8 nixietube
Auto mode
Cooling mode
Dry mode
Fan mode
Heating mode
Health function
ECO function
Clock display
SWING button
TURBO button
TIMER button
HEALTH button
button
button
ON/OFF button
SLEEP button
FAN button
MODE button
ECO button
LIGHT button
Battery
I feel function
Smart function
There is no this function for
the unit.

9
Buttons on remote controller
After connecting the power, the air conditioner will make a sound.
Power indicator is ON. After that, you can operate the air conditioner by using remote controller.
In state of turning on, pressing the button on the remote controller, the air conditioner will make a
"beep" sound, which means the signal has been sent to the air conditioner.The display will show the
corresponding setting function icons.
In state of turning off, light icon will be displayed on the display of remote controller (If timer on and
light functions are set, the corresponding icons will be displayed on the display of remote controller at
the same time).
ON/OFF button
Press this button can turn on or turn off the air conditioner.
MODE button
Press this button to select your required operation mode.
Auto Cool Dry Fan Heat
●
When selecting auto mode, air conditioner will operate automatically according to ex-factory
setting. Setting temperature can’t be adjusted and will not be displayed as well. Press "FAN"
button can adjust fan speed. Press "SWING" button turn on or turn off the swing function.
● When selecting cool mode, air conditioner will operate under cooling mode. Press " " or
" " button to adjust setting temperature. Press "FAN" button to adjust fan speed.
Press "SWING" button to turn on or turn off the swing function.
●
When selecting dry mode, the air conditioner will operate in fan1, fan speed can’t be adjusted.
Press "SWING" button to turn on or turn off the swing function.
● When selecting fan mode, the air conditioner will only blow, no cooling and no heating.
Press "FAN" button to adjust fan speed. Press "SWING" button to turn on or turn off the
swing function.
● When selecting heat mode, the air conditioner will operate in heating mode. Press " " or
" " button to adjust setting temperature. Press "FAN" button to adjust fan speed. Press
"SWING" button to turn on or turn off the swing function. (Cooling only unit won’t receive
heat mode signal. If setting heating mode with remote controller, press ON/OFF button
can’t start up the unit).
Note:
● To preventing cold air, after starting up heating mode, indoor unit will delay 1~5 minutes
to blow air (actual delay time is depend on indoor ambient temperature).
● Seting temperature range from remote controller: 16~31°C;
Fan speed: auto, quiet, fan1, fan2, fan3, fan4, fan5, stepless speed.

10
Buttons on remote controller

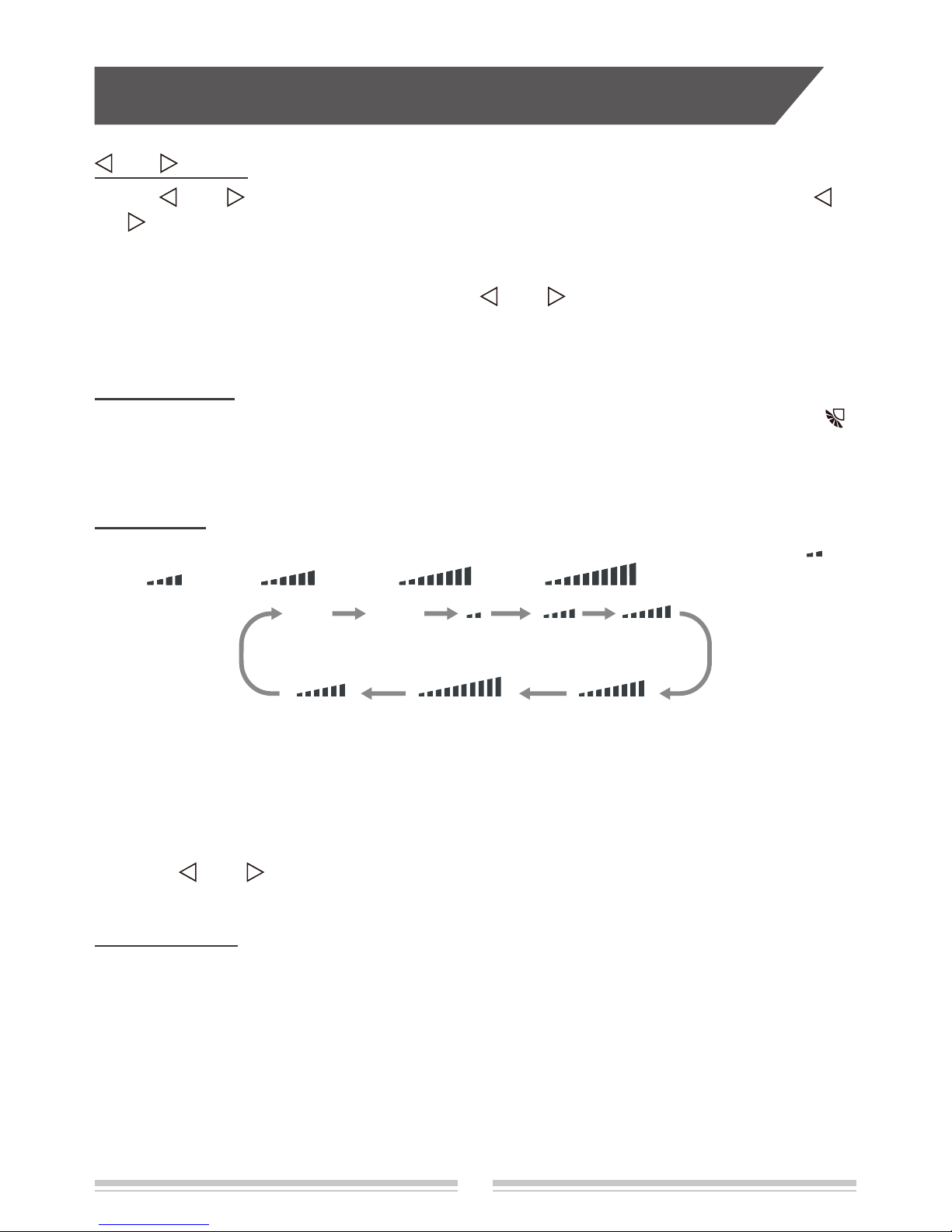

FAN button
Pressing this button can set fan speed circularly as: auto (AUTO), quiet(QUIET), fan1( ),
fan2 ( ) , fan3 ( ) , fan4 ( ), fan5 ( ), stepless speed.
Note:
● In AUTO speed, air conditioner will select proper fan speed automatically according to
ambient temperature.
● Fan speed under dry mode is fan1.
● No quiet fan speed under FAN mode.
● After entering the stepless speed function, users can adjust the fan speed according to the
button " " or " ".
AUTO QUIET
fan1 fan2 fan3
fan4
fan5stepless speed
SWING button
Press this button can turn on or turn off the swing function. When swing function is on, " "
icon is displayed on remote controller.
TURBO button
Press this button to turn on or turn off the turbo function in cool、heat、fan mode. When turbo
function is on, "
TURBO " icon is displayed on remote controller.
Note:
● Press "FAN" button the unit will quit this function.
● This function is no use in auto mode or dry mode.
● When start turbo function, quiet fan speed will quit automatically.
and button
Press " " or " " button once to increase or decrease 1℃of temperature. Holding " "
or " " button, temperature on remote controller will change quickly. On releasing button
after setting is nished, temperature indicator on indoor unit will change accordingly.
(Temperature can’t be adjusted under auto mode)
When setting TIMER ON, TIMER OFF, press " " or " " button to adjust time.
(Refer to " TIMER " button)

11
Buttons on remote controller
ECO button
In cool mode, press this button can turn on or turn off the ECO function. When ECO function
is on, "
ECO " icon is displayed on remote controller.
Note:
● Air conditioner will operate at auto speed. Set temperature can’t be adjusted.
●
Under cool mode, sleep function can not work with ECO function together at the same time.
● Change mode will exit the ECO function.
● No turbo function under ECO condition.
SLEEP button
Press this button to turn on or turn off the Sleep function under cool, heat, dry mode. When
Sleep function is on, " " icon is displayed on remote controller.
Note:
● This function is off as defaulted after power on.
● It will be cleared after changing mode.
● It is no use under "Fan" mode and "Auto" mode.
TIMER button
This button can set the time for timer on(timer off). After pressing this button, " " icon
displayed and " ( ) " icon blinking. Press " " or " " button within 5s to set timer on
(timer off) time. Each pressing of " " or " " button, the time will increase or decrease
0.5 hour. Hold " " or " " button, the time will change quickly until reaching your required
time. Press "TIMER" button to conrm it. The icon " ( ) " will stop blinking.
Cancel Timer on (off)
In the condition of timer on (off) is started up, press "TIMER" button to cancel it.
Note:
● Time set range 0.5~24hours, time scale is 0.5 hours.
● Timing of the initital set hour is 0.0 hour.
LIGHT button
Press this button can turn on or turn off the light for indoor unit’s display . When light function
is on, " " icon is displayed on remote controller.
HEALTH button
Press this button to turn on or turn off the health function. When health function is on, " "
icon is displayed on remote controller.
Note: This function is not available for some models.

12
Buttons on remote controller
Function introduction for combination buttons
Child lock function
Press " " and " " simultaneously to turn on or turn off child lock function. When child
lock function is on, " " icon is displayed on remote controller. If you operate the remote
controller, the " " icon will blink three times without sending signal to the unit.
In the heating mode, press "FAN" and "MODE" buttons together for 3s would start or cancel
the Force defrost.
Force defrost
● In heating mode, pressing "MODE" and " " button at the same time will enter/exit the low
temperature heating function.
● " " would be showed on the remote controller after entered into the low temperature
heating funtion.
● When switching from one mode to another mode, low temperature heating function was
canceled. Turn off and then turn on air conditioner that will remain the low temperature
heating function. After powered on, the low temperature heating mode was default to off
status.
● In the low temperature heating function, "Sleep" and "Low temperature heating" function
cannot start at the same time. When low temperature heating function has already started,
meanwhile you press the "SLEEP" button, the air conditioner will exit low temperature
heating
mode and enter the sleep mode. Vice versa.
Note:
1. In the low temperature heating function, the fan speed was default to Auto and non-ajusatable.
2. In the low temperature heating function, Turbo function can't be set. If enter the low
temperature heating function , the turbo and quiet function that started before will be
canceled.
As well as when exit the low temperature heating function, it will resume .
3. When exit from the low temperature heating function, the speed and temperature will turn
into the original condition before it started.
4. You can set up other function.
Low temperature heating function setting

13
Indoor unit address inquiry
● If match with MULTI-S outdoor unit, when units has malfunction and need to inquire the
address to maintainance, the step is as below:
Remote controller aims to the indoor display, press "Light" and "-" buttons at the same time
for 3s , then will display the indoor unit address(1~5) for 3s.
WARNING
■ Turn off the air conditioner and disconnect the power before cleaning the
air conditioner to avoid electric shock.
■ Do not wash the air conditioner with water to avoid electric shock.
■ Do not use volatile liquid to clean the air conditioner.
Clean surface of indoor unit
When the surface of indoor unit is dirty, it is
recommended to use a soft dry cloth or wet
cloth to wipe it.
Note:
Do not remove the panel when cleaning it.
Clean lter
Open panel Remove lter
Pull out the panel to a certain angle as
shown in the g.
Remove the lter as indicated in the g.
1 2
Clean and maintenance

14
NOTE:
● The lter should be cleaned every three months. If there is much dust in the operation
environment, clean frequency can be increased.
● After removing the lter, do not touch ns to avoid injury.
● Do not use re or hair dryer to dry the lter to avoid deformation or re hazard.
Checking before use-season
1. Check whether air inlets and air outlets are blocked.
2. Check whether air switch, plug and socket are in good condition.
3. Check whether lter is clean.
4. Check whether drainage pipe is damaged.
Checking after use-season
1. Disconnect power supply.
2. Clean lter and indoor unit's panel .
Notice for recovery
1. Most of packing materials are recyclable materials.
Please dispose them in appropriate recycling unit.
2. If you want to dispose the air conditioner, please contact local dealer or consultant
service center for the correct disposal method.
Clean and maintenance
Clean lter Installation lter
Use dust catcher or water to clean the
lter. when the lter is very dirty, use
the water (below 45°C) to clean it, and
then put it in a shady and cool place to
dry.
Installtion the lter and then close the
panel cover tightly.
3 4

15
General phenomenon analysis
Please check below items before asking for maintenance. If the malfunction still can't be
eliminated,please contact local dealer or qualied professionals.
Phenomenon Check items Solution
Indoor unit can’t
receive remote
controller’s signal
or remote
controller has no
action.
Whether it's interfered severely
(such as static electricity, stable
voltage)?
Pull out the plug. Reinsert the plug
after about 3min, and then turn on
the unit again.
Whether remote controller is
within the signal receiving range? Signal receiving range is 8m.
Whether there are obstacles? Remove obstacles.
Whether remote controller is
pointing at the receiving window?
Select proper angle and point the
remote controller at the receiving
window on indoor unit
Is sensitivity of remote controller
low; fuzzy display and no display?
Check the batteries. If the power of
batteries is too low,please replace
them.
No display when operating
remote controller?
Check whether remote controller
appears to be damaged. If yes,
replace it.
Fluorescent lamp in room?
Take the remote controller close to
indoor unit.
Turn off the uoresent lamp and then
try it again.
No air emitted
from indoor unit.
Air inlet or air outlet of indoor unit
is blocked? Eliminate obstacles.
Under heating mode, indoor
temperature is reached to set
temperature?
After reaching to set temperature,
indoor unit will stop blowing out air.
Heating mode is turned on just
now?
In order to prevent blowing out cold
air, indoor unit will be started after
delaying for several minutes, which is
a normal phenomenon.
Air conditioner
can’t operate
Power failure? Wait until power recovery.
Is plug loose? Reinsert the plug.
Circuit break trips off or fuse is
burnt out?
Ask professional to replace circuit
break or fuse.
Wiring has malfunction? Ask professional to replace it
Unit has restarted immediately
after stopping operation?
Wait for 3min, and then turn on the
unit again.
Whether the function setting for
remote controller is correct? Reset the function.
Malfunction analysis

16
Phenomenon Check items Solution
Mist is emitted
from indoor unit’s
air outlet.
Indoor temperature and humidity
is high?
Because indoor air is cooled rapidly.
After a while, indoor temperature and
humidity will be decrease and mist
will disappear.
Set temperature
can’t be adjusted
Unit is operating under auto
mode?
Temperature can’t be adjusted under
auto mode.
Please switch the operation mode if
you need to adjust temperature.
Your required temperature
exceeds the set temperature
range?
Set temperature range:
16℃~31℃
Cooling (heating)
effect is not good.
Voltage is too low? Wait until the voltage resumes
normal.
Filter is dirty? Clean the lter.
Set temperature is in proper
range? Adjust temperature to proper range.
Door and window are open? Close door and window.
Odours are
emitted
Whether there’s odour
source,such as furniture and
cigarette, etc.
Clean the lter.
Eliminate the odour source.
Air conditioner
operates normally
suddenly
Whether there’s interference,such
as thunder, wireless devices, etc.
Disconnect power, put back
power, and then turn on the
unit again.
“ Water owing”
noise
Air conditioner is turned on or
turned off just now?
The noise is the sound of refrigerant
owing inside the unit, which is a
normal phenomenon.
Cracking noise
Air conditioner is turned on or
turned off just now?
This is the sound of friction caused by
expansion and/or contraction of panel
or other parts due to the change of
temperature.
Malfunction analysis
When below phenomenon occurs, please turn off air conditioner and disconnect power
immediately, and then contact the dealer or qualied professionals for service.
● Power cord is overheating or damaged.
● Air conditioner gives off burning smell.
● There’s abnormal sound during operation.
● Circuit break trips off frequently.
● Indoor unit is leaking.
Do not repair or ret the air conditioner by yourself.
If the air conditioner operates under abnormal conditions, it may cause malfuntion, electric
shock or re hazard.
Contact us

17
Error Code
When air conditioner status is abnormal, temperature indicator on indoor unit will blink to
dispiay corresponding error code. Please refer to below list for identication of error code.
Below listed error codes are only part error codes. Please refero to error code list in serive
manual for more information.
If there're other error codes, please contact qualied professionals for service.
Malfunction analysis
Error
code Troubleshooting Solution
CL Filter lth blockage alert
Power off,clean lter.If the lter is not dirtey, turn off
the air conditioner for 2s then restart,the code will be
removed automatically.
E1 Overheat protection Turn off,restart after 5min,if the code occurs again after
a few minutes, please contact the professional person.
E2 Overcurrent protection Turn off,restart after 5min,if the code occurs again after
a few minutes, please contact the professional person.
HE Auxiliary heat control
circuit malfunction
Pull out the plug, please contact the professional
person.
L0 Jumper malfunction Pull out the plug, restart after 10s, if the code occurs
again , please contact the professional person.
L1
PG motor(indoor)zero-
crossing detecting circuit
malfunction
Turn off,restart after a few seconds, if the code
occurs again after a few minutes, please contact the
professional person.
L2 No feedback signal of
indoor unit fan
Turn off,restart after a few seconds, if the code
occurs again after a few minutes, please contact the
professional person.
L3/L6 Communication
malfunction
Power off the unit, restart after 10s, if the code occurs
again ,please check the communication wire of indoor
unit and outdoor unit is correct of not, then power on
again.
U0 Short/open circuit of indoor
environment sensor
Power off the unit, restart after 10s, if the code occurs
again , please contact the professional person.
U1 Short/open circuit of indoor
unit tube sensor
Power off the unit, restart after 10s, if the code occurs
again , please contact the professional person.
U6 Liquid pipe temp. sensor
malfunction
Power off the unit, restart after 10s, if the code occurs
again , please contact the professional person.
U7 Gas pipe temp. sensor
malfunction
Power off the unit, restart after 10s, if the code occurs
again , please contact the professional person.
PC Mode conict
The mode of this indoor unit is conicting with other
indoor units, please turn off other indoor units or
change the mode to non-conicted mode.

18
Safety operation of ammable refrigerant
Qualication requirement for installation and maintenance man
All the work men who are engaging in the refrigeration system should bear the valid certication
awarded by the authoritative organization and the qualicationfor dealing with the refrigeration
system recognized by this industry. If it needs other technician to maintain and repair the
appliance, they should be supervisedby the person who bears the qualication for using the
ammable refrigerant. It can only be repaired by the method suggested by the equipment’s
manufacturer.
Installation notes
1.The air conditioner is not allowed to use in a room that has running re (such as resource,
working coal gas ware, operating heater).
2.It is not allowed to drill hole or burn the connection pipe.
3.The air conditioner must be installed in a room that is larger than the minimum roomarea.
The minimum room area is shown on the nameplate or following table 1.
4.Leak test is a must after installation.
Minimum
room area
( m2 )
Charge amount (kg) ≤1.2 1.3 1.4 1.5 1.6 1.7 1.8 1.9 2.0 2.1 2.2 2.3 2.4 2.5
oor location /14.5 16.8 19.3 22.0 24.8 27.8 31.0 34.4 37.8 41.5 45.4 49.4 53.6
window mounted / 5.2 6.1 7.0 7.9 8.9 10.0 11.2 12.4 13.6 15 16.3 17.8 19.3
wall mounted / 1.6 1.9 2.1 2.4 2.8 3.1 3.4 3.8 4.2 4.6 5 5.5 6.0
ceiling mounted / 1.1 1.3 1.4 1.6 1.8 2.1 2.3 2.6 2.8 3.1 3.4 3.7 4.0
Maintenance notes
Check whether the maintenance area or the room area meet the requirement of the
nameplate.
— It’s only allowed to be operated in the rooms that meet the requirement of the
nameplate.
Check whether the maintenance area is well-ventilated.
— The continuous ventilation status should be kept during the operation process.
Check whether there is re source or potential re source in the maintenance area.
— The naked ame is prohibited in the maintenance area; and the “no smoking” warning
board should be hanged.
Check whether the appliance mark is in good condition.
— Replace the vague or damaged warning mark.
Table 1:Minimum room area (m2)
