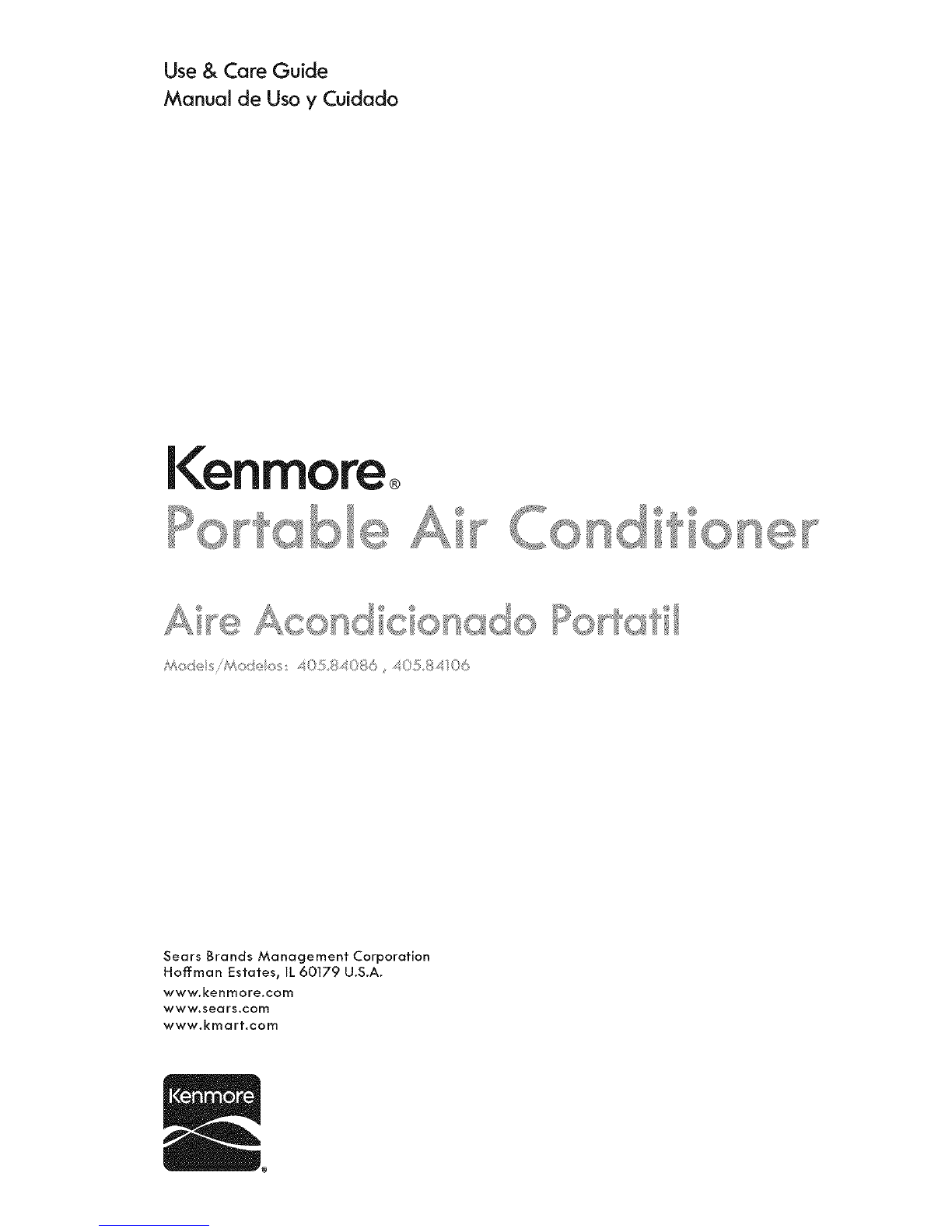

Kenmore 405.84086 User manual

Use & Care Guide
Manual de Uso y Cuidado
Kenmore_
Fo_abte ConJ "_,o
_sl_o_eF
Mx_:siMx_: ::,s; 4 5 ;4 86 4 5;4]f6
Sears Brands Management Corporation
Haft:man Estates t IL 60179 U.S.A.
www.kenmore.com
www.sears.com
www.kmartcom

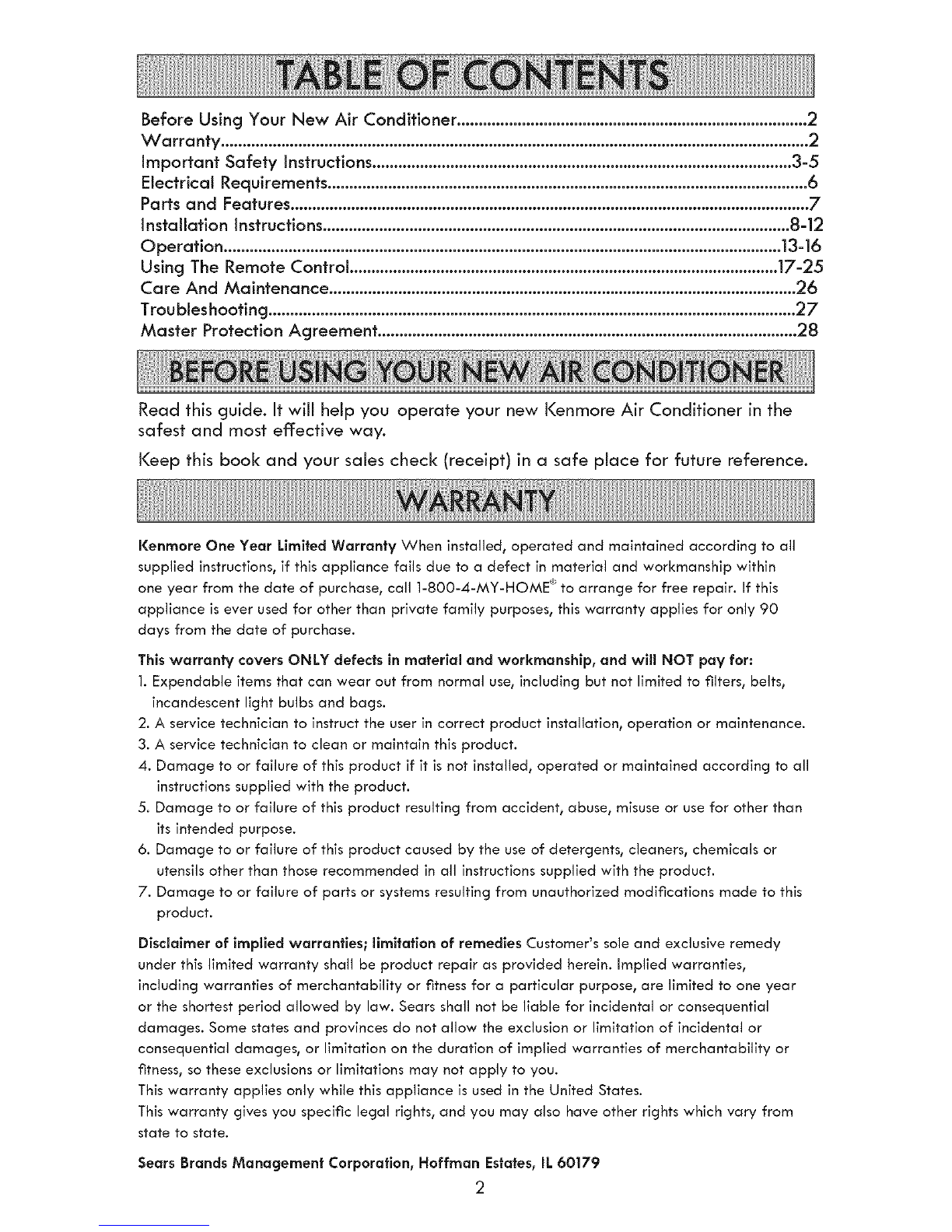

Read this guide. It will help you operate your new Kenmore Air Conditioner in the
safest and most effective way.
Keep this book and your sales check (receipt) in o safe place for future reference.
Kenmore One Year Limited Warranty When installed, operated and maintained according to all
supplied instructions, if this appliance fails due to a defect in material and workmanship within
one year from the date of purchase, call 1-800-4-MY-HOME ® to arrange for free repair, if this
appliance is ever used for other than private family purposes, this warranty applies for only 90
days from the date of purchase.
This warranty covers ONLY defects in material and workmanship, and will NOT pay for:
1. Expendable items that can wear out from normal use, including but not limited to filters, belts,
incandescent light bulbs and bags.
2. A service technician to instruct the user in correct product installation, operation or maintenance.
3. A service technician to clean or maintain this product.
4. Damage to or failure of this product if it is not installed, operated or maintained according to all
instructions supplied with the product.
5. Damage to or failure of this product resulting from accident, abuse, misuse or use for other than
its intended purpose.
6. Damage to or failure of this product caused by the use of detergents, cleaners, chemicals or
utensils other than those recommended in all instructions supplied with the product.
7. Damage to or failure of parts or systems resulting from unauthorized modifications made to this
product.
Disclaimer of implied warranties; limitation of remedies Customer's sole and exclusive remedy
under this limited warranty shall be product repair as provided herein. Implied warranties,
including warranties of merchantability or fitness for a particular purpose, are limited to one year
or the shortest period allowed by law. Sears shall not be liable for incidental or consequential
damages. Some states and provinces do not allow the exclusion or limitation of incidental or
consequential damages, or limitation on the duration of implied warranties of merchantability or
fitness, so these exclusions or limitations may not apply to you.
This warranty applies only while this appliance is used in the United States.
This warranty gives you specific legal rights, and you may also have other rights which vary from
state to state.
Sears Brands Management Corporation, Hoffman Estates, IL 60179
2

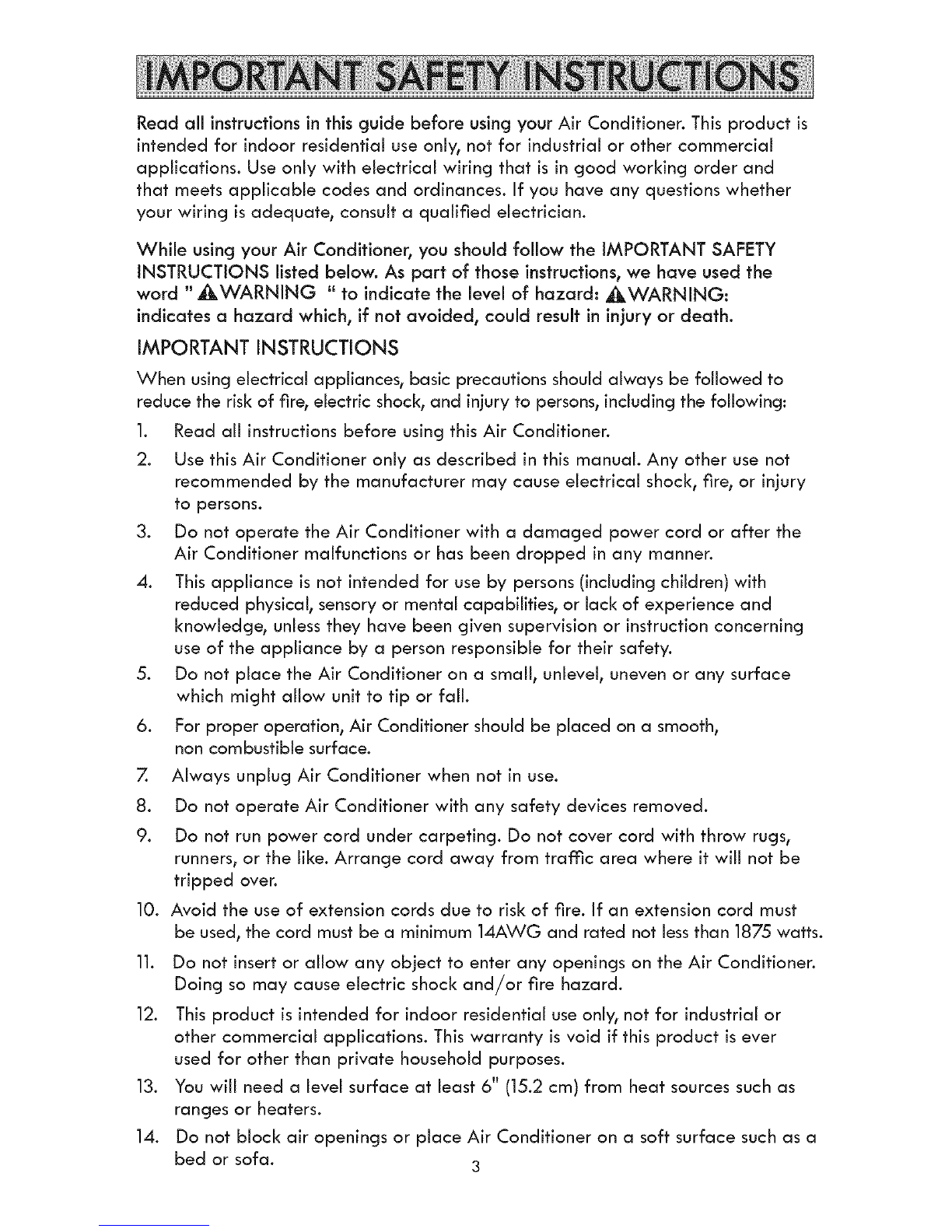

ReadallinstructionsinthisguidebeforeusingyourAirConditioner.Thisproductis
intendedforindoorresidentialuseonly,not for industrial or other commercial
applications. Use only with electrical wiring that is in good working order and
that meets applicable codes and ordinances. If you have any questions whether
your wiring is adequate, consult a qualified electrician.
While using your Air Conditioner, you should follow the IMPORTANT SAFETY
INSTRUCTIONS listed below. As part of those instructions, we have used the
word "_WARNING "to indicate the level of hazard: _.WARNING:
indicates a hazard which, if not avoided, could result in injury or death.
IMPORTANT INSTRUCTIONS
When using electrical appliances_ basic precautions should always be followed to
reduce the risk of fir% electric shock_and injury to persons_including the following:
1. Read all instructions before using this Air Conditioner.
2. Use this Air Conditioner only as described in this manual. Any other use not
recommended by the manufacturer may cause electrical shock_ fire_ or injury
to persons.
3. Do not operate the Air Conditioner with a damaged power cord or after the
Air Conditioner malfunctions or has been dropped in any manner.
4. This appliance is not intended for use by persons (including children) with
reduced physical_ sensory or mental capabilities_ or lack of experience and
knowledge_ unless they have been given supervision or instruction concerning
use of the appliance by a person responsible for their safety.
5. Do not place the Air Conditioner on a small_ unlevel_ uneven or any surface
which might allow unit to tip or fall.
6. For proper operation_ Air Conditioner should be placed on a smooth_
non combustible surface.
7. Always unplug Air Conditioner when not in use.
8. Do not operate Air Conditioner with any safety devices removed.
9. Do not run power cord under carpeting. Do not cover cord with throw rugs_
runners_ or the like. Arrange cord away from traffic area where it will not be
tripped over.
10. Avoid the use of extension cords due to risk of fire. If an extension cord must
be used_the cord must be a minimum 14AWG and rated not lessthan 1875 watts.
11. Do not insert or allow any object to enter any openings on the Air Conditioner.
Doing so may cause electric shock and!or fire hazard.
12. This product is intended for indoor residential use only_not for industrial or
other commercial applications. This warranty is void if this product is ever
used for other than private household purposes.
13. You will need a level surface at least 6" (15.2 cm) from heat sources such as
ranges or heaters.
14. Do not block air openings or place Air Conditioner on a soft surface such as a
bed or sofa. 3

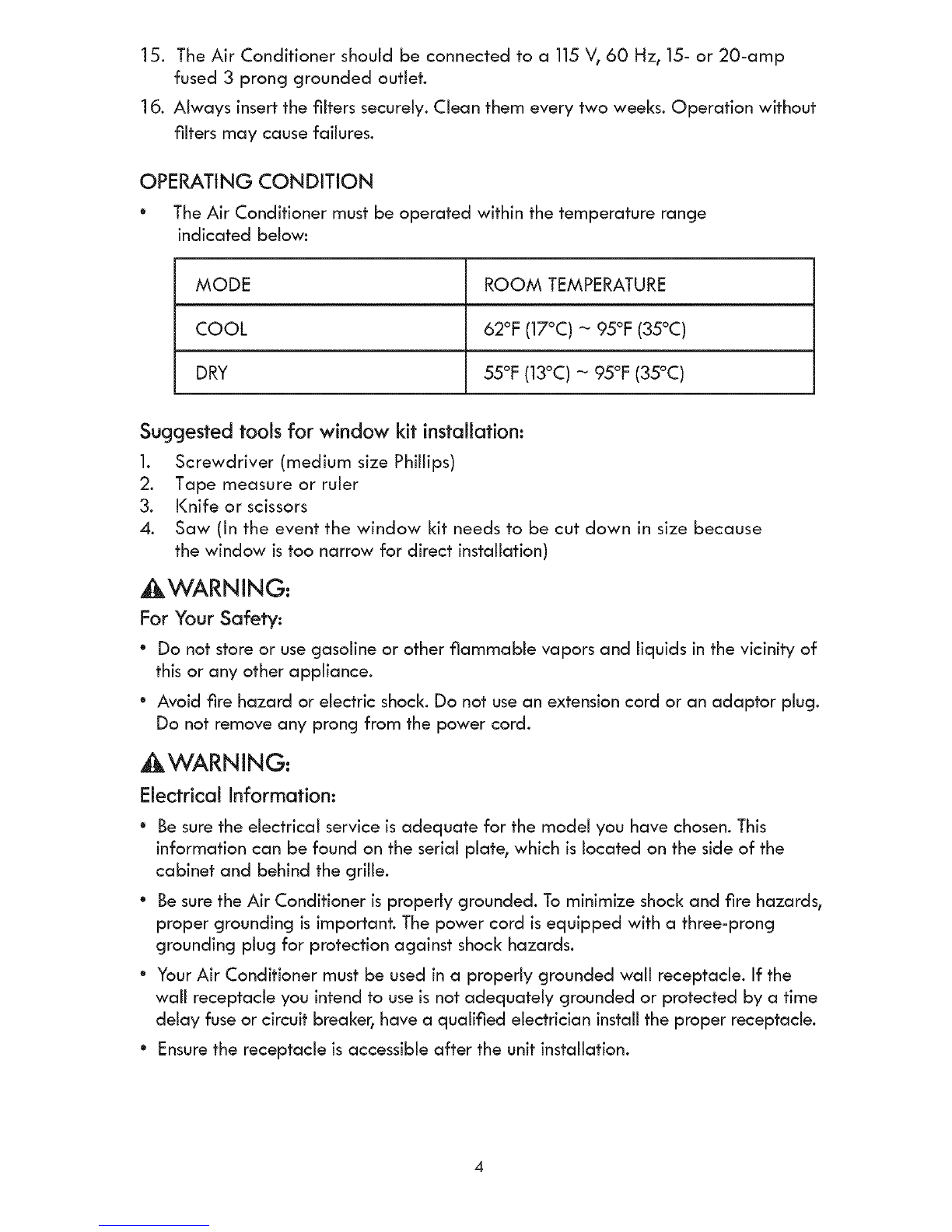

15.TheAirConditionershouldbeconnectedtoa115V,60Hz,15-or20-amp
fused3pronggroundedoutlet.
16.Alwaysinsertthefilterssecurely.Cleanthemevery two weeks. Operation without
filters may cause failures.
OPERATING CONDITION
o The Air Conditioner must be operated within the temperature range
indicated below:
MODE ROOM TEMPERATURE
COOL 62°F (17°C) - 95°F (35°C)
DRY 55°F (13°C) - 95°F (35°C)
Suggested tools for window kit installation:
1. Screwdriver (medium size Phillips)
2. Tape measure or ruler
3. Knife or scissors
4. Saw (in the event the window kit needs to be cut down in size because
the window is too narrow for direct installation)
`&WARNING:
For Your Safety:
Do not store or use gasoline or other flammable vapors and liquids in the vicinity of
this or any other appliance.
Avoid fire hazard or electric shock. Do not use an extension cord or an adaptor plug.
Do not remove any prong from the power cord.
,&WARNING:
Electrical information:
Be sure the electrical service is adequate for the model you have chosen. This
information can be found on the serial plafer which is located on the side of the
cabinet and behind the grille.
Be sure the Air Conditioner is properly grounded. To minimize shock and fire hazardsr
proper grounding is important. The power cord is equipped with a three-prong
grounding pbg for protection against shock hazards.
Your Air Conditioner must be used in a properly grounded wail receptacle. If the
wall receptacle you intend to use is not adequately grounded or protected by a time
delay fuse or circuit breaker_have a qualified electrician install the proper receptacle.
Ensurethe receptacle is accessible after the unit installation.

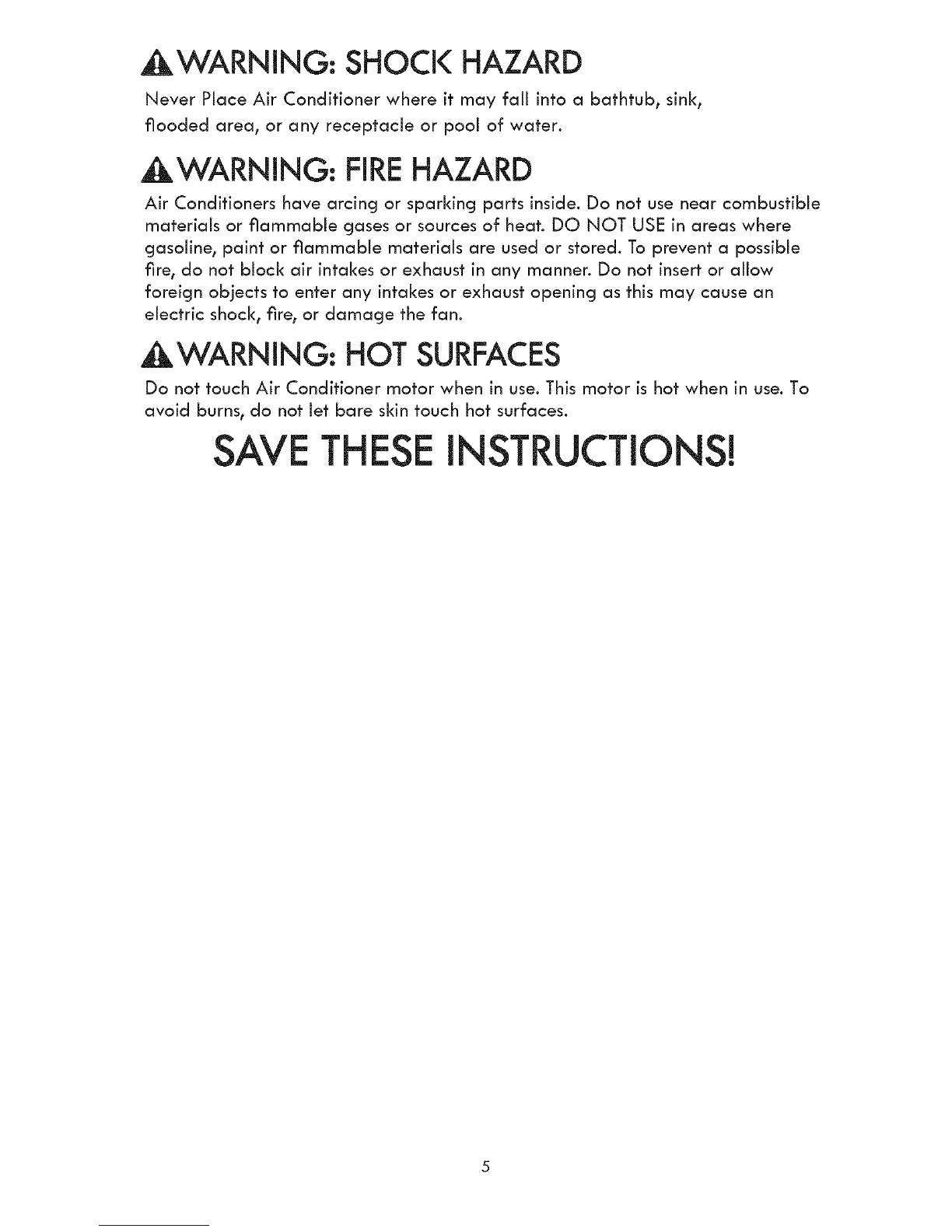

_,WARNING: SHOCK HAZARD
Never PJace Air Conditioner where it may faJJ into a bathtub I sink l
flooded area I or any receptacJe or pooJ of water.
4_,WARNING: FiREHAZARD
Air Conditioners have arcing or sparking parts inside. Do not use near cornbustibJe
rnateriaJs or flarnrnabJe gases or sources of heat. DO NOT USE in areas where
gasoNne I paint or flarnrnabJe rnateriaJs are used or stored. To prevent a possibJe
fire I do not bJock air intakes or exhaust in any manner. Do not insert or aJJow
foreign objects to enter any intakes or exhaust opening as this may cause an
eJectric shockl fire I or damage the fan.
_WARNING: HOT SURFACES
Do not touch Air Conditioner motor when in use. This motor is hot when in use. To
avoid burnsI do not Jet bare skin touch hot surfaces.
SAVE THESE INSTRUCTIONS!

OBSERVE ALL LOCAL CODES
AND ORDINANCES,
DO NOT, UNDER ANY CIRCUMSTANCES,
REMOVE THE POWER SUPPLY CORD
GROUND PRONG.

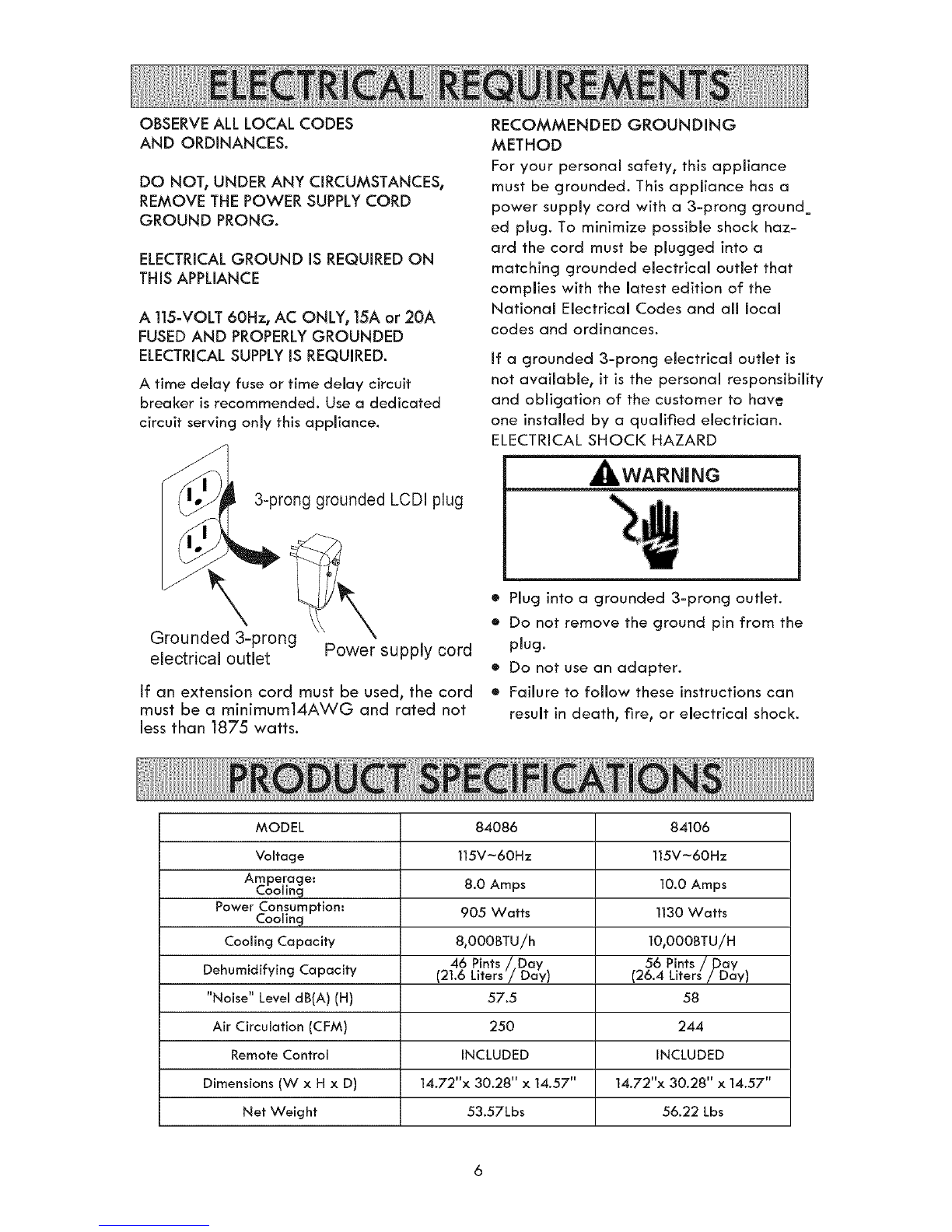

ELECTRICAL GROUND iS REQUIRED ON
THiS APPLIANCE
A 115-VOLT 60Hz, AC ONLY, 15A or 20A
FUSED AND PROPERLY GROUNDED
ELECTRICAL SUPPLYIS REQUIRED.
A time delay fuse or time delay circuit
breaker is recommended. Use a dedicated
circuit serving only this appliance.
3-prong grounded LCDI plug
RECOMMENDED GROUNDING
METHOD
For your personal safety, this appliance
must be grounded. This appliance has a
power supply cord with a 3-prong ground_
ed plug. To minimize possible shock haz-
ard the cord must be plugged into a
matching grounded electrical outlet that
complies with the latest edition of the
National Electrical Codes and all local
codes and ordinances.
if a grounded 3-prong electrical outlet is
not available, it is the personal responsibility
and obligation of the customer to have
one installed by a qualified electrician.
ELECTRICAL SHOCK HAZARD
_WARNING
Grounded 3-prong
electrical outlet Power supply cord
If an extension cord must be used, the cord
must be a minimum14AWG and rated not
less than 1875 watts.
ePlug into a grounded 3-prong outlet.
• Do not remove the ground pin from the
plug.
eDo not use an adapter.
eFailure to follow these instructions can
result in death, fir% or electrical shock.
MODEL
Voltage
Amperage:
Cooling
Power Consumption:
Cooling
Cooling Capacity
Dehumidifying Capacity
"Noise" Level dB(A) (H)
Air Circulation (CFM)
Remote Control
Dimensions (W x H x D)
Net Weight
84086
115V-60Hz
8.0 Amps
905 Watts
8,000BTU/h
46 Pints j Day
(21.6 Liters /Day)
57.5
250
INCLUDED
14.72"x 30.28" x 14.57"
53.57Lbs
84106
115V-60Hz
10.0 Amps
1130 Watts
10,000BTU/H
56 Pints /ay
(26.4 Liters ?[_ay)
58
244
INCLUDED
14.72"x 30,28" x 14,57"
56,22 Lbs

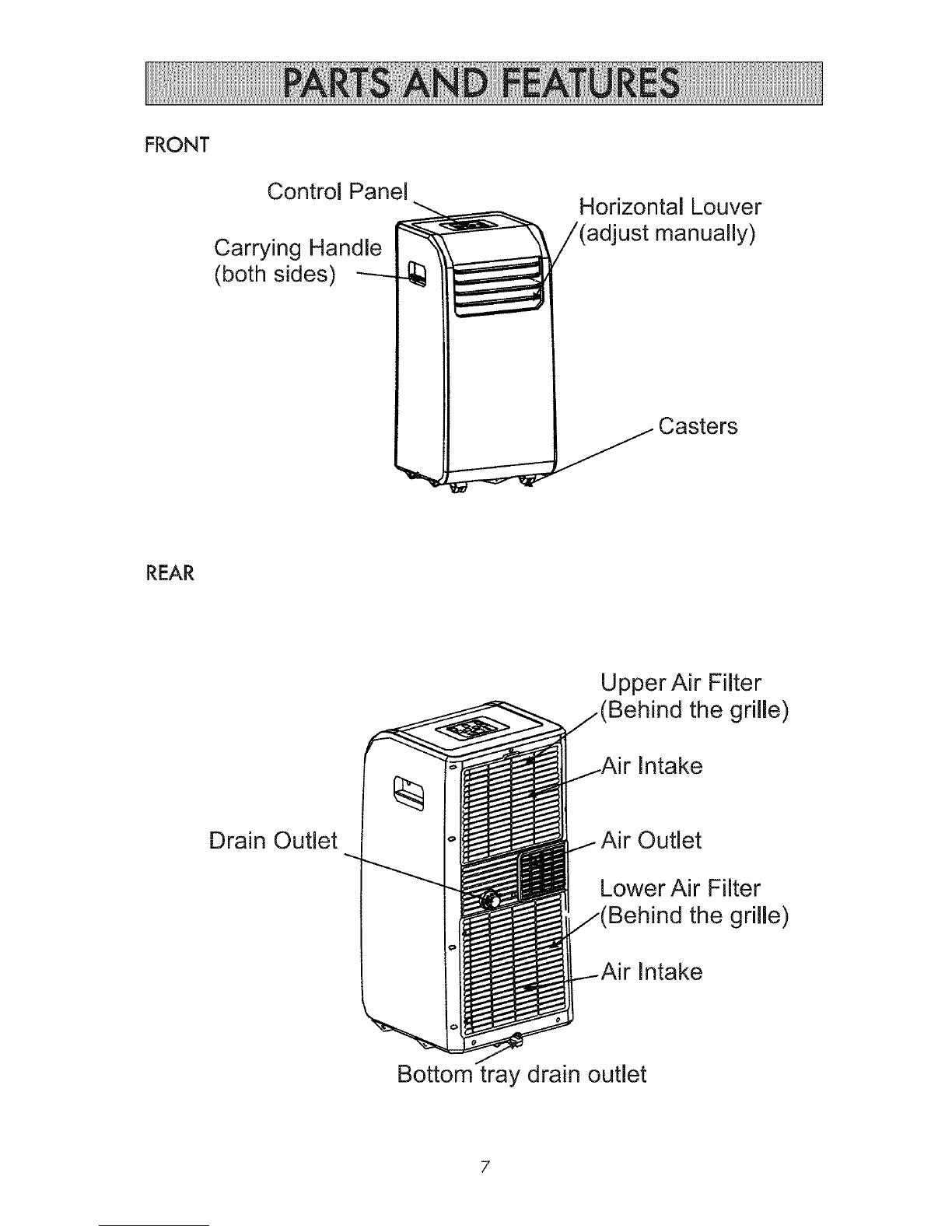

FRONT
Control Panel
Carrying Handle
(both sides)
Horizontal Louver
(adjust manually)
_ Casters
REAR
Upper Air Filter
the grille)
Intake
Drain Outlet Air Outlet
Lower Air Filter
the grille)
Intake
Bottom tray drain outlet

LOCATION
The Air Conditioner should be placed on a firm
foundation to minimize noise and vibration. For safe
and secure positioning, place the unit on a smooth,
level floor strong enough to support the unit.
The unit has casters to aid placement, but it should
only be rolled on smooth, flat surfaces. Use caution
when rolling on carpet surfaces. Do not attempt to
rolltheunitover objects.
The unit must be placed within reach of a properly
rated grounded socket.
Never place any obstacles around the air inlet or
outlet of the unit.
Allow at least 12"of space from the wall
for maximum performance.

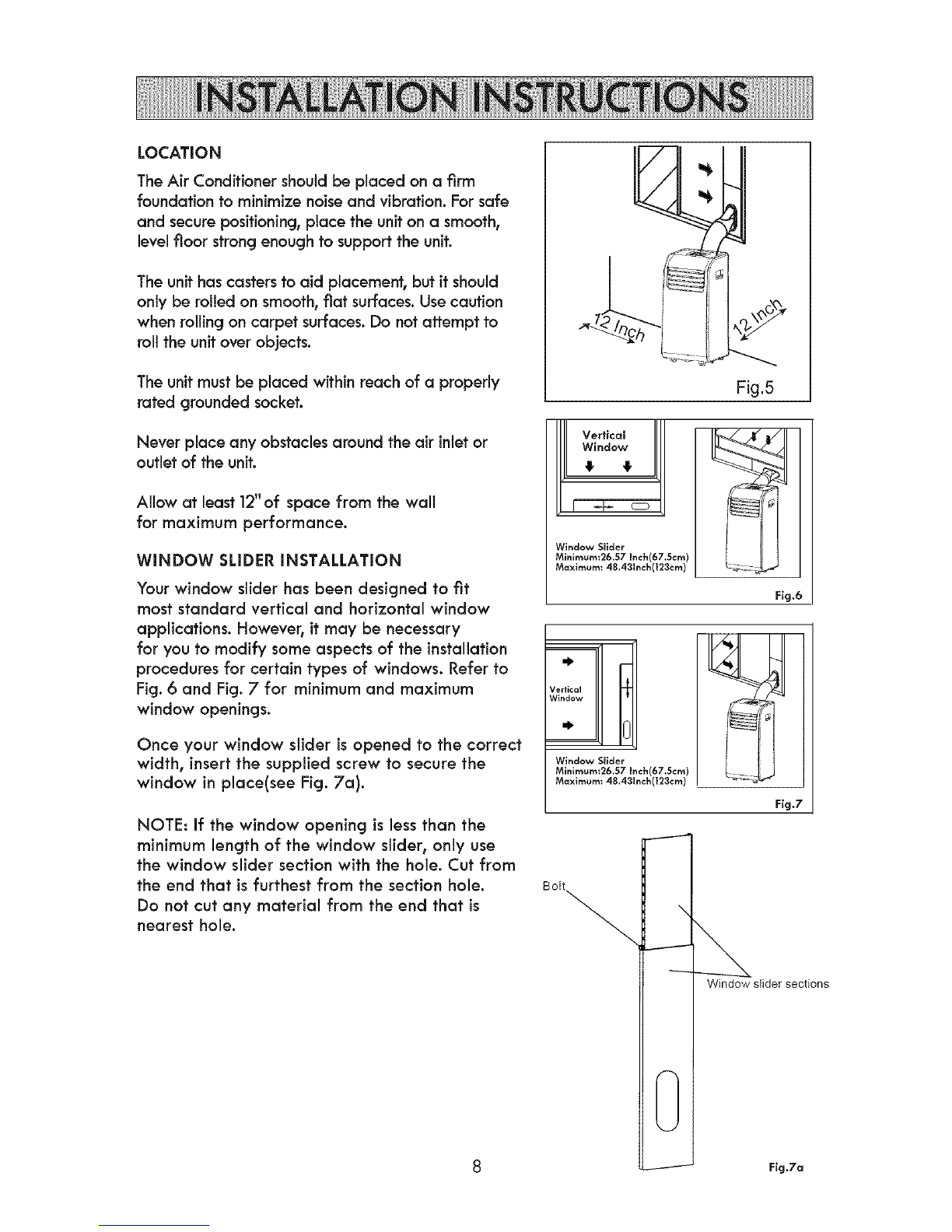

WINDOW SLIDER iNSTALLATION
Your window slider has been designed to fit
most standard vertical and horizontal window
applications. However, it may be necessary
for you to modify some aspects of the installation
procedures for certain types of windows. Refer to
Fig. 6 and Fig. 7 for minimum and maximum
window openings.
Once your window slider is opened to the correct
width, insert the supplied screw to secure the
window in place(see Fig. 7a).
!Vert{cal
W_ndow
4 €
Fig.5
Window Slider
Minlmum:26.57 inch(67.Scm)
Maximum: 48.431nch(123cm)
,€.
Vertical f
Window
Fig.6
* 0
Window Slider
Minlmum:26.57 I ,(67.5cm)
Maximum: 48.43 (123cm)
NOTE: If the window opening is less than the
minimum length of the window slider, only use
the window slider section with the hole. Cut from
the end that is furthest from the section hole. Bolt
Do not cut any material from the end that is
nearest hole.
Window slider sections
Fig.7a

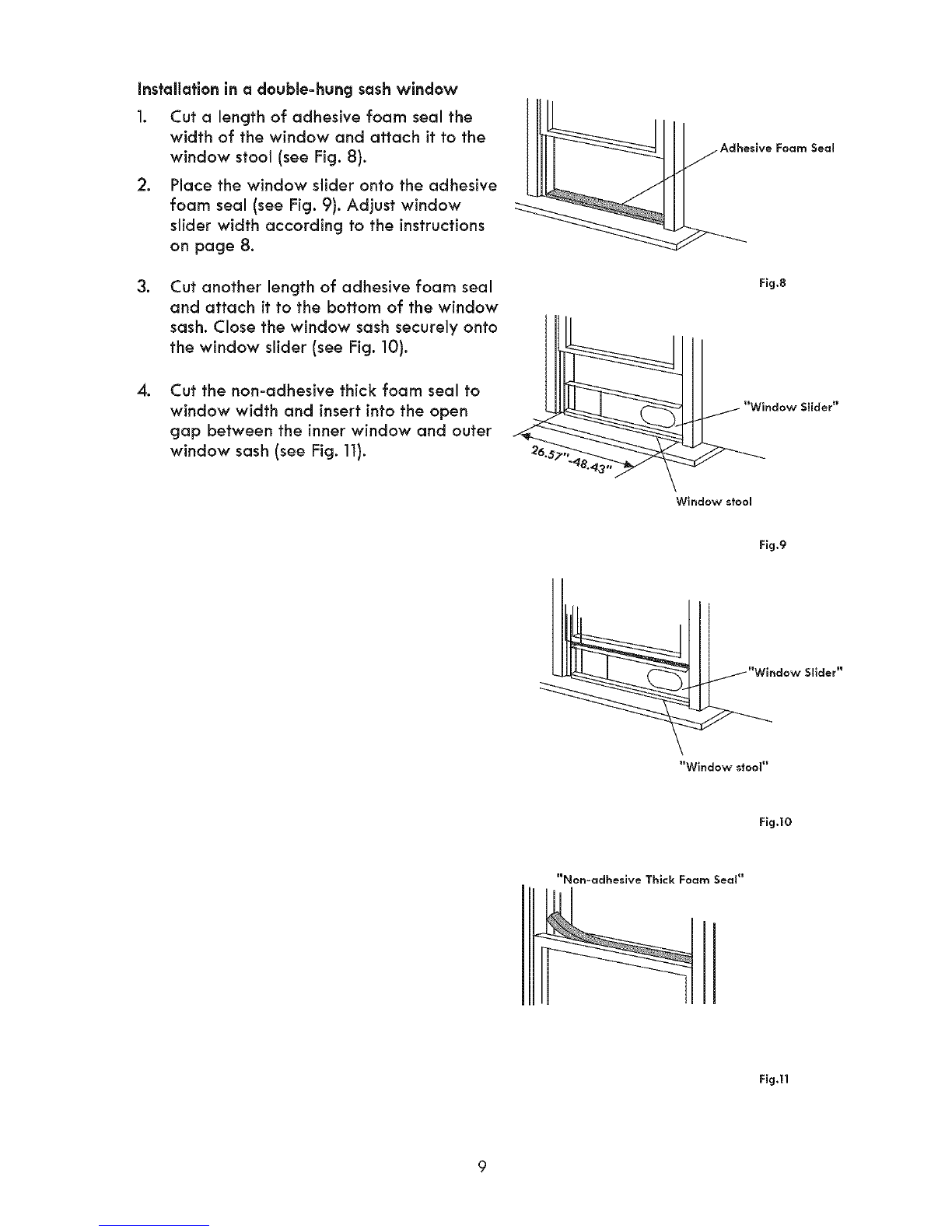

Installationin a double-hung sashwindow
1. Cut a length of adhesive foam seal the
width of the window and attach it to the
window stool (see Fig. 8).
2. Place the window slider onto the adhesive
foam seal (see Fig. 9). Adjust window
slider width according to the instructions
on page 8.
3. Cut another length of adhesive foam seal
and attach it to the bottom of the window
sash. Close the window sash securely onto
the window slider (see Fig. 10).
4, Cut the non-adhesive thick foam seal to
window width and insert into the open
gap between the inner window and outer
window sash (see Fig.11).
iiie,,veFoamSea,
Fig.8
Window stool
Fig.9
"Window stool"
Fig.lO
"Non-adheslve Thick Foam Seal"
Fig.ll

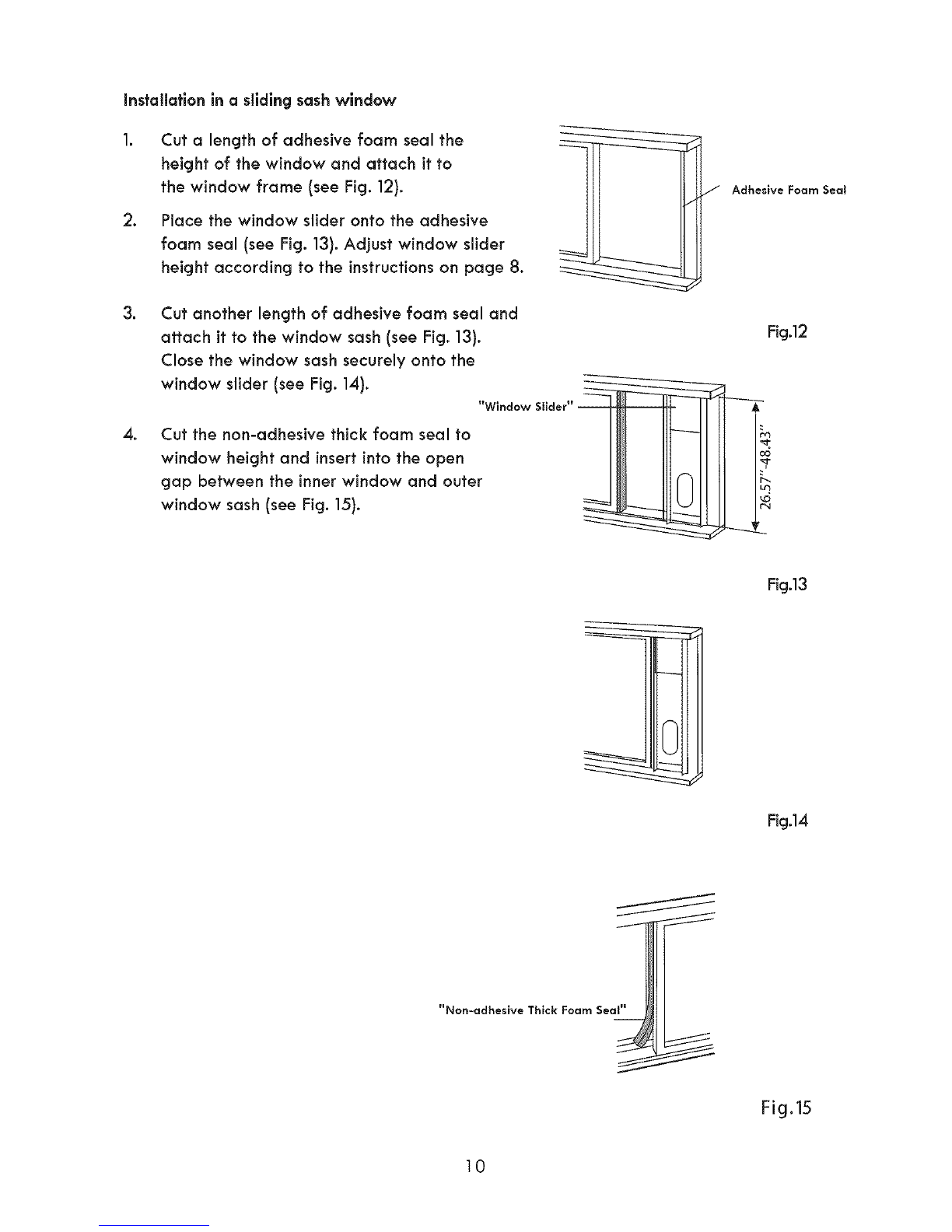

Installation in aslidingsashwindow
2.
Cut a length of adhesive foam seal the
height of the window and attach it to
the window frame (see Fig. 12).
Place the window slider onto the adhesive
foam seal (see Fig. 13). Adjust window slider
height according to the instructions on page 8.
3.
4.
Cut another length of adhesive foam seal and
attach it to the window sash (see Fig. 13).
Close the window sash securely onto the
window slider (see Fig. 14).
"Window Silder"
Cut the non-adhesive thick foam seal to
window height and insert into the open
gap between the inner window and outer
window sash (see Fig. 15).
Fig.13
Fig.14
Fig.lS
10

Exhausthose installation
Theexhausthose and adaptor must be
installed or not installed in accordance
with the usagemode.
COOL or AUTO mode Install
adaptor
Fig.16a
FAN or DEHUMIDIFY mode Do not install
1. Screw adaptor Band adaptor Ionto
the exhaust hose as shown inFig. 16a.
2. Align tabs of Badaptor with slotsof
air outlet and push down to secure in
place (see Fig. 17).
NOTE: The exhaust hose can be compressed or
extended as needed, but optimum performance
decreases at greater lengths.
IMPORTANT:
DO NOT BEND THE EXHAUST HOSE TOO
SHARPLY (See Fig. 18a)
CONNECT THE HOSE SMOOTHLY
(See Fig.18b)
Caution:
Forthe unit to exhaust properly, make sure
that there isno obstaclewithin 20 inchesof
the window slider opening.
Air Outlet
Adaptor B
Fig.17
11/"
_-/1"
////
///,,
2"/4
///I
Fig.18a
///"
////
f///
_,-//,
111"
rrr_
///"
r///
///"
///"
////
N
Fig.18b
11

Water drainage
1. For dehumidifying mode, pull the drain
plug from the upper drain hole tiffing.
Push the open end of the supplied drain
hose securely over the tiffing. Place the
adaptor end of the hose directly over a
floor drain so that the water will flow into
the drain. See Fig. 19.
You may also screw the end of a garden
hose over the threaded tiffing of the upper
drain hole.
NOTE: Make sure the hose is securely fitted to
the upper drain so there are no leaks. Direct
the hose toward the floor drain so that there
are no kinks to stop or interfere with water
flow. Make sure that the end of the hose is
positioned so that water flows into the floor
drain.
2. if water in the bottom tray reaches a
predetermined level, the unit beeps 8
times and P1appears in the display.
Air conditioning or dehumidifying will
immediately stop; however, the fan
willcontinueto operate.
Carefully move the unit to a drain
location, and remove the bottom
drain plug to drain the water from
the bottom tray.
Remove the
upper drain plug
_Continuous
Drain Hose
@
_in hose
adaptor
Fig.19
Fig.20
NOTE: Be sure to reinstall the bottom drain plug
before using the unit.
12

CONTROL PANEL
/
O
MODE button
Press this button to select the
operating mode in asequence
that advances from AUTO to
COOL to DRY to FAN. An indicator
light will illuminate for each mode
setting.
O SLEEP button
Used to initiate the SLEEP operation.
OUP(>) and DOWN (<) button
Pressto increase or decrease
temperature settingsin 2°F (1°C)
incrementsfrom 62°F (17°C) to
88°F (30°C), or TIMER setting
from 0 to 24 hrs.
NOTE: Temperature can be displayed
in Fahrenheit or Celsius. To change
from one to the other, press and hold
the Up and Down buttons at the same
time for 3 seconds.
OPOWER button with OPERATION
indicator
Powerswitchon/off.
O TIMER button
Used to initiatethe AUTO ON start
time and AUTO OFFstop time program,
in conjunction with the < & > buttons.
An indicator light will illuminatewith
each setting.
0
@
0
FAN button
Press to select four different fan
speed settings: LOW, MED, HI
and AUTO. An indicator light
willilluminatefor each speed
setting.
LED Display
Shows the set temperature in °C or
°F and the Auto-timer settings.
While in DRY and FAN modes, the
display shows the room temperature.
TEMP SENSOR feature
NOTE: This feature can be activated
from the remote control ONLY. The
remote control serves as a remote
thermostat allowing for precise
temperature control at its location.
To activate the TEMP SENSOR feature,
point the remote control towards the
unit and press the TEMP SENSOR
button. The remote display shows the
actual temperature at it's location. The
remote control will send this signal to
the Air Conditioner at intervals of every
3 minutes until pressing the TEMP
SENSOR button again.
If the unit does not receive the TEMP
SENSOR signal during any 7 minute
interval, the unit will beep to indicate the
TEMP SENSOR mode has ended.
13

ACCESSORIES
PART PART NAME QUANTITY
Exhaust hose and Adaptor I 1 set
__ (narrow mouth)and Adaptor B
(round mouth), Window Slider
and Screw
Foam SeaLs: 2 Adhesive, 3pc
1 Non-adhesive
Remote Control and Battery 1pc
Drain hose and drain hose adaptor 1pc
ERROR CODES AND PROTECTION CODE:
El- Room temperature sensor error - Unplug the unitand plug it back in. If error repeats, arrange
for service.
E2- Evaporator temperature sensor error - Unplug the unit and plug ff back in. If error repeats,
arrange for service.
E3- Condenser temperature sensor error - Unplug the unit and plug it back in. if error repeats,
arrange for service.
E4- Display panel communication error - Unplug the unit and plug it back in. if error repeats,
arrange for service.
P1-Bottom tray is full - Connect the drain hose and drain the collected water away.
If error repeats, arrange for service.
OPERATING INSTRUCTIONS
COOL operation
1. Press the "MODE" button until the "COOL" indicator light comes on.
2. Press the "+" or "-" buttons to select your desired room temperature.
The temperature can be set within a range of 62°E (17°C) - 88°E (30°C).
3. Press the "FAN" button to choose the fan speed.
14

AUTO operation
1. When Air Conditioner isin AUTO mode, it will automatically choose cooling or fan-only
operation based on the set temperature point.
2. In AUTO mode you cannot manually set the fan speed.
FAN operation
1. Press the "MODE" button until the "FAN " indicator light comes on.
2. Press the "FAN " button to choose the fan speed. The temperature cannot be
adjusted.
3. In FAN mode, detach the exhaust hose from the air outlet in the back of the unit.
TIMER operation
1. With the unit on, press the Timer button. The Off light will indicate the Auto Stop
function may be programmed. Within 5 seconds press the UP or DOWN buttons to select
a period of time after which operation will stop. Press the Timer button twice. The On light
will indicate the Auto Start function may be programmed. Within 5 seconds press the UP or
DOWN buttons to select a period of time after which operation will resume.
2. With the unit off, press the Timer button. The On light will indicate the Auto Start
function may be programmed. Within 5 seconds press the UP or DOWN buffons to select
a period of time after which operation will start. Press the Timer button twice. The Off light
will indicate the Auto Stop function may be programmed. Within 5 seconds press the UP or
DOWN button to select a period of time after which operation will stop.
3. NOTES:
- Auto time changes in 0.5 hour increments up to 10 hours, then in 1 hour increments
up to 24 hours.
-Turning the unit ON or OFF or adjusting both timer settings to 0.0 will cancel the
Auto Start/Stop timer program.
- When a malfunction (El, E2, E3 or E4) occurs, Auto Start/Stop will also be cancelled.
SLEEP operation
Press the SLEEP button for the selected temperature setting to increase to 20 F (10 C)
warmer after 30 minutes, and another 20 F (1° C) warmer after another 30 minutes.
The warmer temperature will be maintained for 7 hours, at which time the unit will
return to the originally selected temperature.
NOTE: The SLEEP feature is not available in the FAN or DRY mode.
15

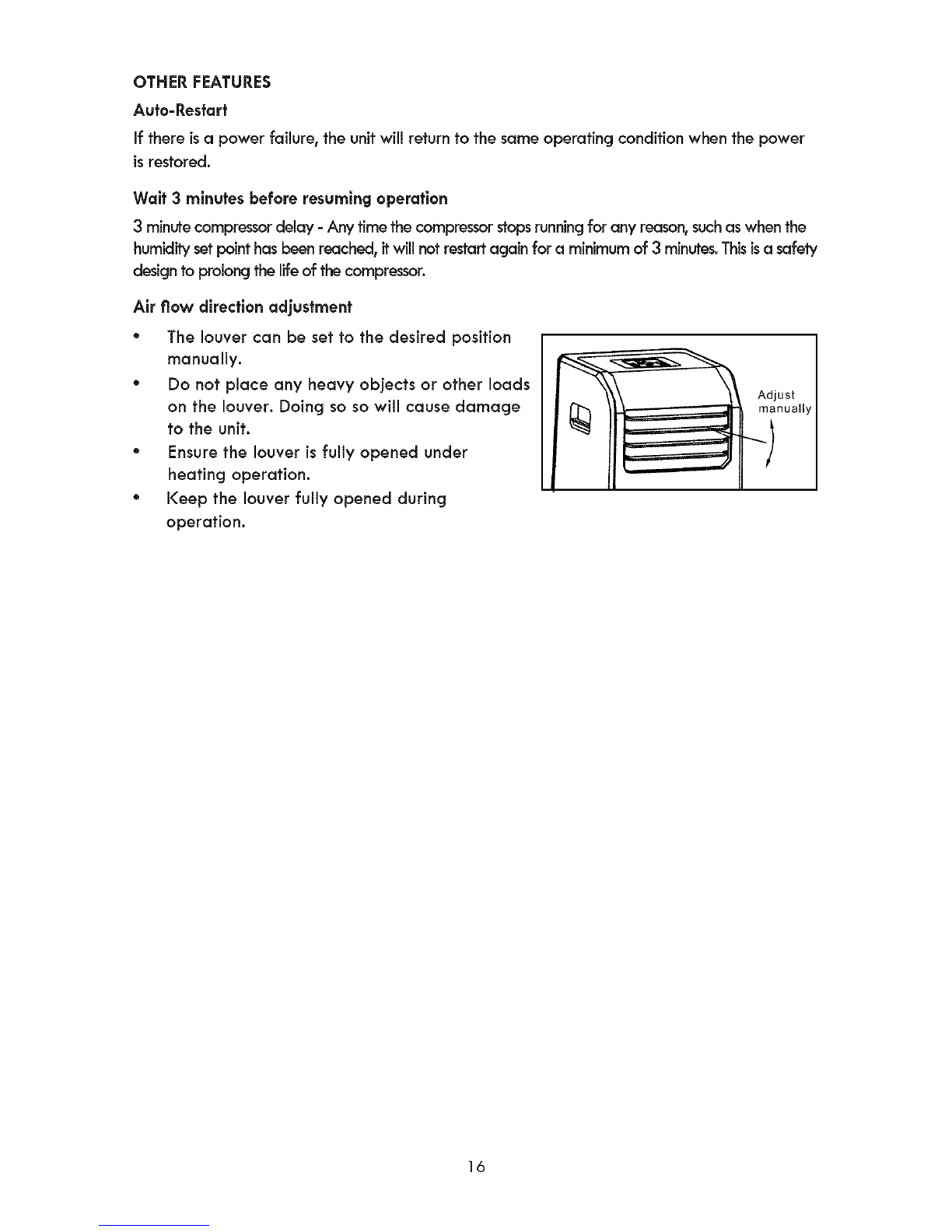

OTHERFEATURES
Auto-Restart
if there isa power failure, the unit will return to the same operating condition when the power
isrestored.
Waif 3 minutes before resuming operation
3minute compressordelay -Any time the compressor stops runningfor any reason,suchas when the
humidify set point has been reached, ffwill not restart again for a minimum of 3 minutes. This isasafety
design to prolong the life of the compressor.
Air flow directionadjustment
®
®
®
®
The louver can be set to the desired position
manually. _iuust a
Do not place any heavy objects or other loads
on the louver. Doing so so will cause damage lly
to the unit.
Ensure the louver is fully opened under
heating operation.
Keep the louver fully opened during
operation.
16

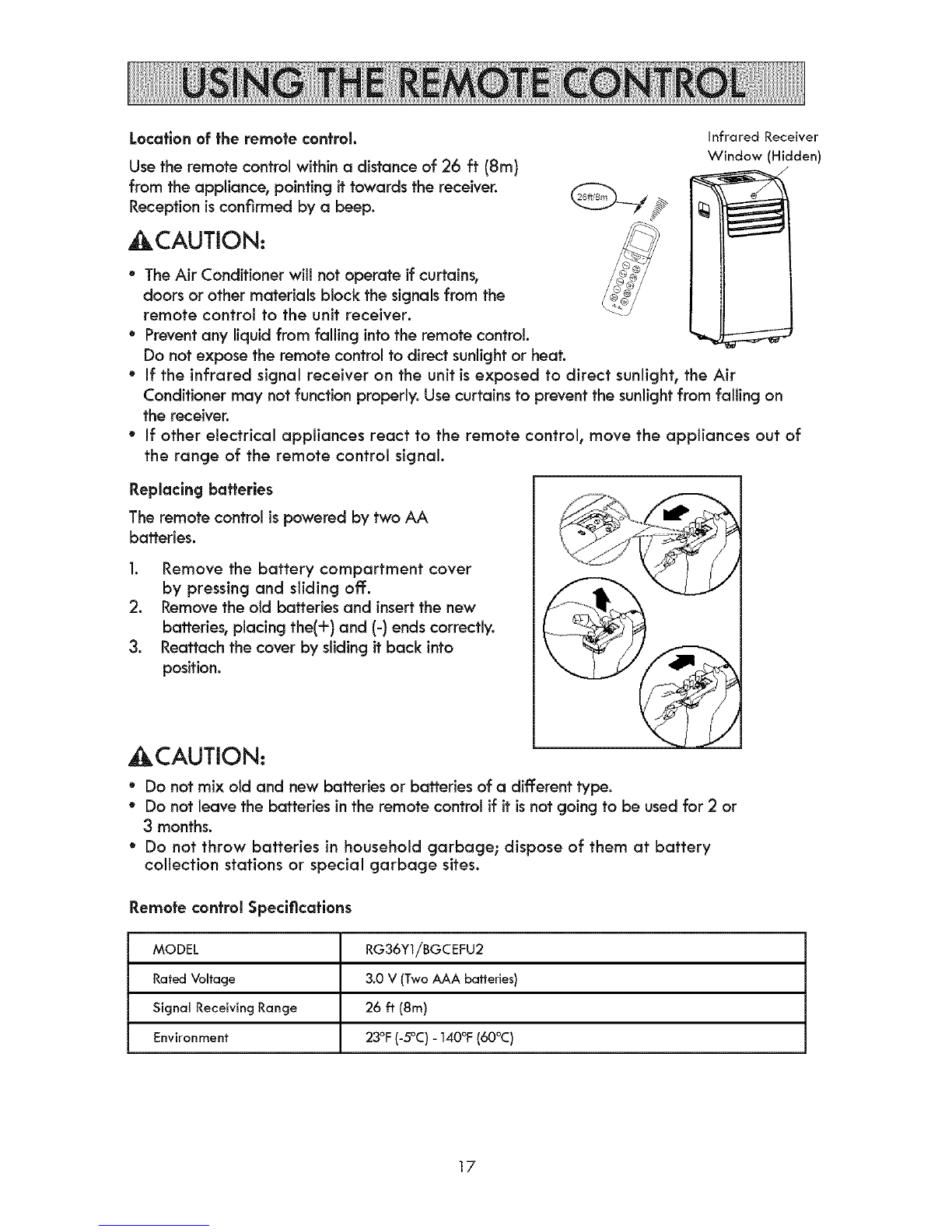

Location of the remote control.
Usethe remote control within a distance of 26 ft (8m)
from theappliance, pointing it towardsthereceiver.
Receptionisconfirmed by a beep.
_CAUTION:
°The Air Condffioner will not operate if curtains,
doors or other materials block the signals from the
remote control to the unit receiver.
*Prevent any liquid from falling into the remote control.
Do not expose the remote control to direct sunlight or heat.
Infrared Receiver
Window (Hidden)
°If the infrared signal receiver on the unit is exposed to direct sunlight, the Air
Conditioner may not function properly. Use curtains to prevent the sunlight from falling on
the receiver.
*If other electrical appliances react to the remote control, move the appliances out of
the range of the remote control signal.
Replacing batteries
The remote control is powered by two AA
batteries.
1. Remove the battery compartment cover
by pressing and sliding off.
2. Remove the old batteries and insert the new
batteries, placing the(+) and (-) ends correctly.
3. Reattach the cover by sliding it back into
position.
_,CAUTION:
°Do not mix old and new batteries or batteries of a different type.
*Do not leave the batteries in the remote control if it is not going to be used for 2 or
3 months.
°Do not throw batteries inhousehold garbage; dispose of them at battery
collection stations or special garbage sites.
Remote control Specifications
MODEL RG36Y1iBGCEFU2
Rated Voltage 3,0 V (Two AAA batteries)
Signal Receiving Range 26 ft (Sm)
Environment 23°F(-5°C) - 140°F (60°C)
17

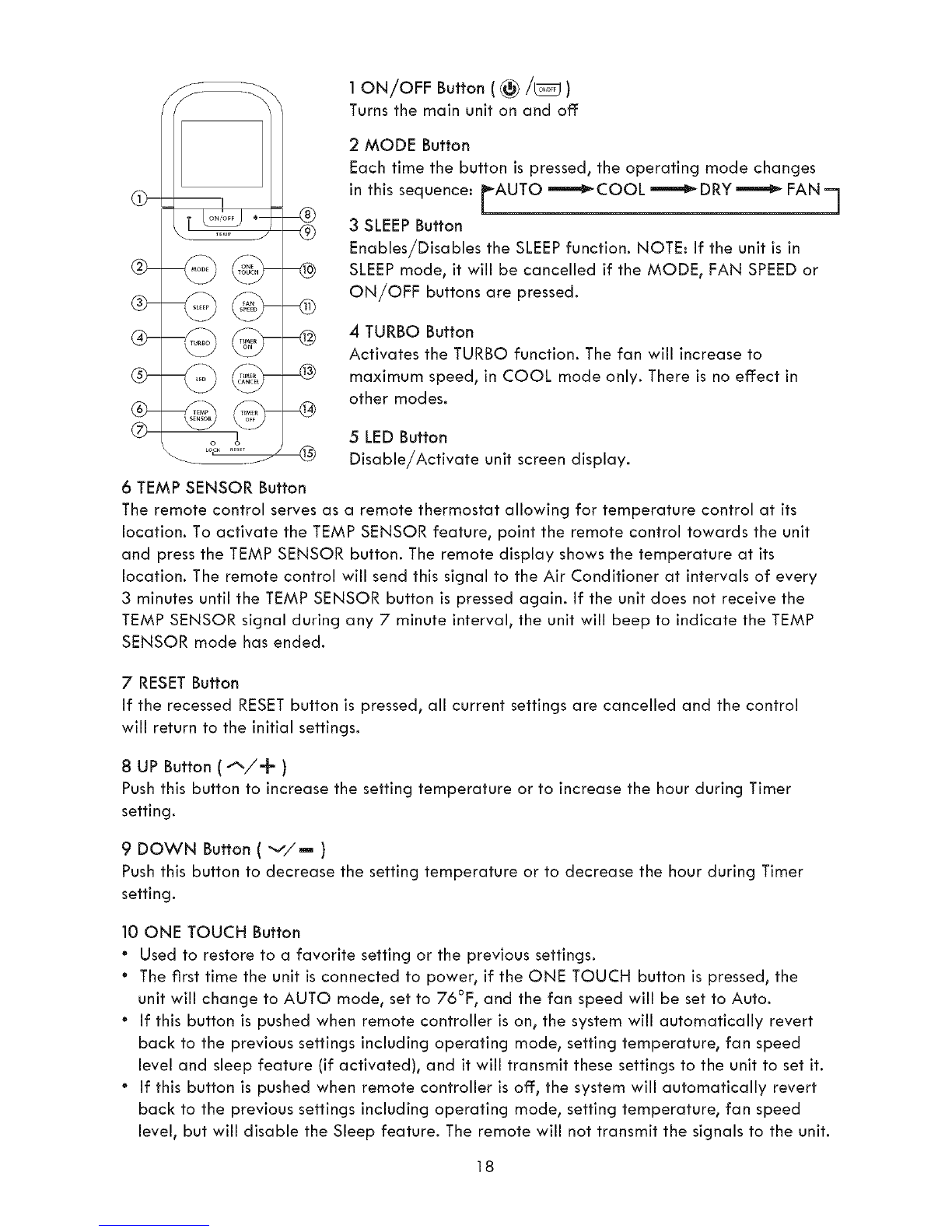

d)-
@-
@-
@-
®
®
I
o
6 TEMP SENSOR Button
1ON/OFF Button ( _/_ )
Turns the main unit on and off
2 MODE Button
Each time the button is pressed, the operating mode changes
in this sequence: FAUTO _-'_COOL _-"_DRY _ FAN "'1
3 SLEEP Button
Enables/Disables the SLEEPfunction. NOTE: If the unit is in
SLEEP mode, it will be cancelled if the MODE, FAN SPEED or
ON/OFF buttons are pressed.
4TURBO Button
Activates the TURBO function. The fan will increase to
maximum speed, in COOL mode only. There is no effect in
other modes.
5 LED Button
Disable/Activate unit screen display.
The remote control serves as a remote thermostat allowing for temperature control at its
location. To activate the TEMP SENSOR feature, point the remote control towards the unit
and press the TEMP SENSOR button. The remote display shows the temperature at its
location. The remote control will send this signal to the Air Conditioner at intervals of every
3 minutes until the TEMP SENSOR button is pressed again. If the unit does not receive the
TEMP SENSOR signal during any 7 minute interval, the unit will beep to indicate the TEMP
SENSOR mode has ended.
7 RESET Button
If the recessed RESET button is pressed, all current settings are cancelled and the control
will return to the initial settings.
8 UP Button ( "_/-k )
Push this button to increase the setting temperature or to increase the hour during Timer
setting.
9 DOWN Button ( v/m )
Push this button to decrease the setting temperature or to decrease the hour during Timer
setting.
10 ONE TOUCH Button
*Used to restore to a favorite setting or the previous settings.
The first time the unit is connected to power, if the ONE TOUCH button is pressed, the
unit will change to AUTO mode, set to 76°F, and the fan speed will be set to Auto.
If this button is pushed when remote controller is on, the system will automatically revert
back to the previous settings including operating mode, setting temperature, fan speed
level and sleep feature (if activated), and it will transmit these settings to the unit to set it.
If this button is pushed when remote controller is off, the system will automatically revert
back to the previous settings including operating mode, setting temperature, fan speed
level, but will disable the Sleep feature. The remote will not transmit the signals to the unit.
18

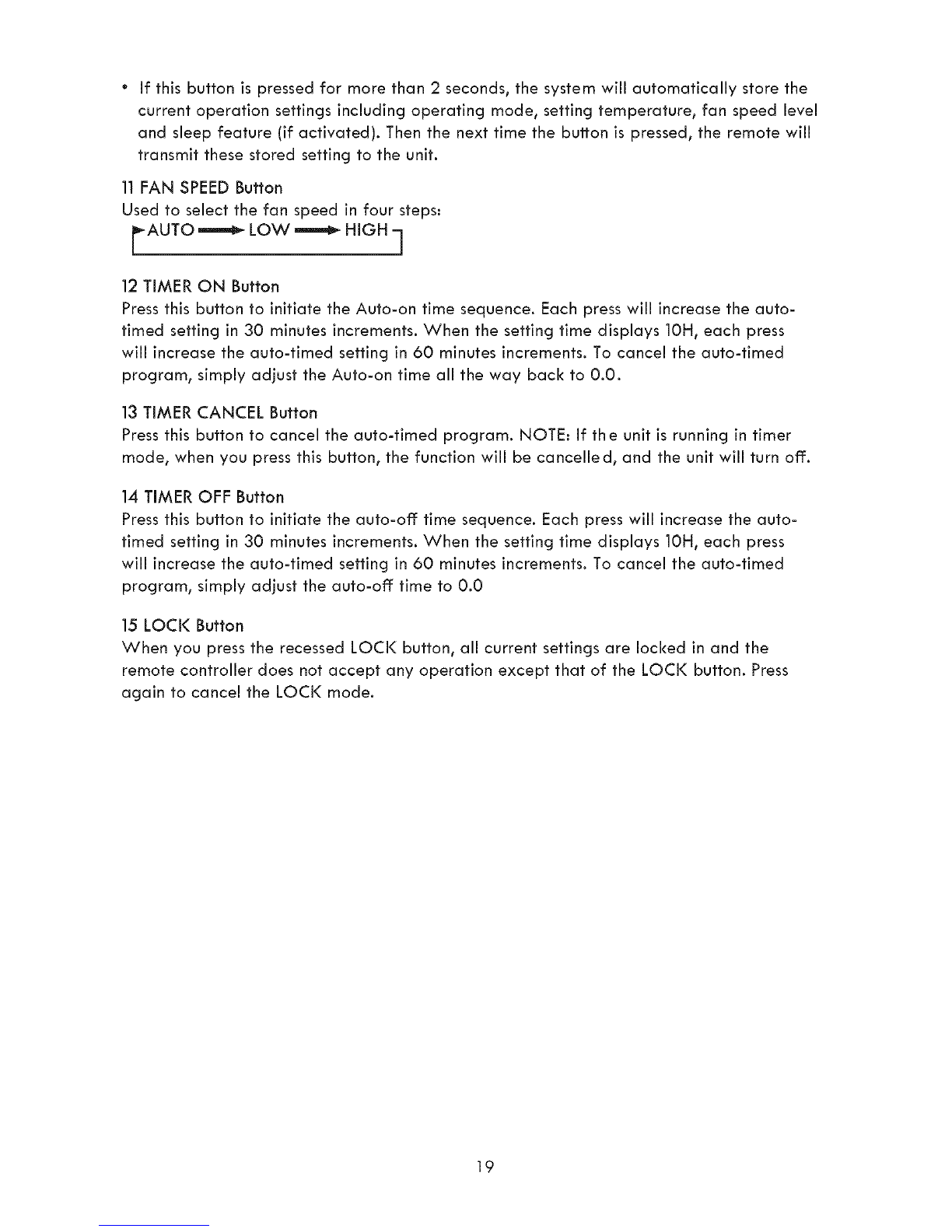

ifthisbuttonispressedformorethan2seconds,thesystemwillautomaticallystorethe
currentoperationsettingsincludingoperatingmode,settingtemperature,fanspeedlevel
andsleepfeature(ifactivated).Thenthenexttimethebuttonispressed,theremotewill
transmitthesestoredsettingtotheunit.
11FANSPEEDButton
Usedtoselectthefanspeedin four steps:
rAUTO _ LOW _,_ HIGH q
12 TIMER ON Button
Press this button to initiate the Auto-on time sequence. Each press will increase the auto-
timed setting in 30 minutes increments. When the setting time displays ]OH, each press
will increase the auto-timed setting in 60 minutes increments. To cancel the auto-timed
program, simply adjust the Auto-on time all the way back to 0.0.
13 TIMER CANCEL Button
Press this button to cancel the auto-timed program. NOTE: If the unit is running in timer
mode, when you press this button, the function will be cancelled, and the unit will turn off:.
14 TIMER OFF Button
Press this button to initiate the auto-off time sequence. Each press will increase the auto-
timed setting in 30 minutes increments. When the setting time displays 10H, each press
will increase the auto-timed setting in 60 minutes increments. To cancel the auto-timed
program, simply adjust the auto-off time to 0.0
15 LOCI( Button
When you press the recessed LOCi( button, all current settings are locked in and the
remote controller does not accept any operation except that of the LOCK button. Press
again to cancel the LOCK mode.
19

iNDiCATORSONLCD
Transmission indicator
This transmission indicator lights when remote
controller transmits signals to the indoor unit.
Mode display
Displays the currej3t operation mode. including
auto( C_,D), cool( _ ), dry( _'_ ), fan( _ )and
back to auto( d'_D ).
auto cool dry fan
-_) SETTEMP.TIMERONOFF
sleep
__ Temp./Timer display
Displays the temperature setting 62°F_88°F
(17°C _ 30°C). When you set the operating
mode to FAN, no temperature setting is displayed.
And if in the TIMER mode, shows the ON and OFF
settings of the TIMER.
Fan speed display
Displays the selected fan speed, AUTO(no display)
and three fan speed levels " ==" (LOW) " i " (HIGH)
can be indicated. The fan speed is TUTO when the
operating mode is either AUTO or DRY.
follow me lock
L
run ON/OFF display
Displayed bypressing the ON/OFF button.
Press the ON/OFF button again to remove.
Lock Display
Displayed when LOCK mode is activated.
Follow me/TEMP SENSOR Display
Displayed when TEMP SENSOR function is activated.
Sleep Display
Displayed under sleeping operation.
Press the SLEEP button again to remove.
Note:
All indicators shown in the figure are for the purpose
of clear presentation. But during the actual operation
only the relative functional signs are shown on the
display window.
2O
