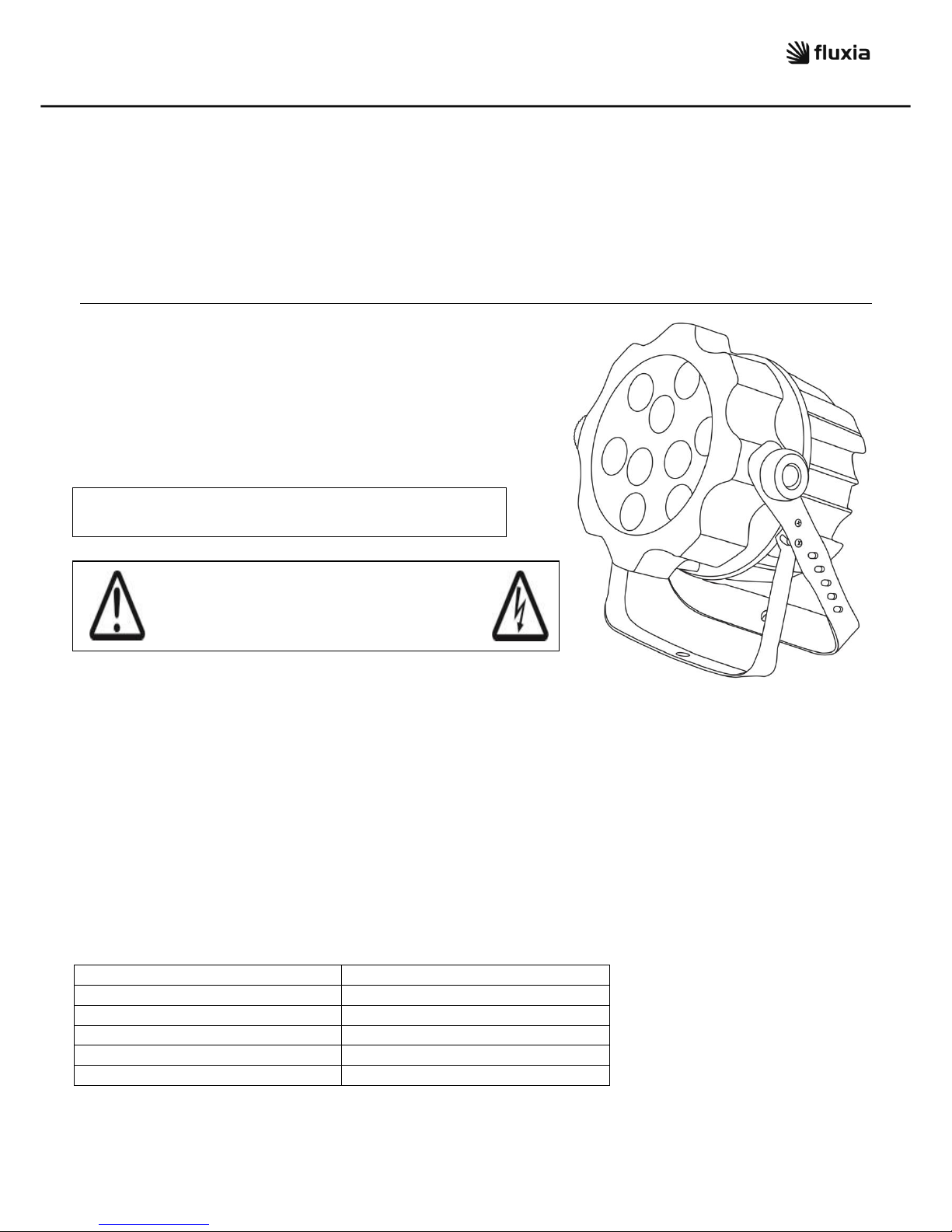

fluxia PD9H-25 User manual

154.321UK User Manual
PD9H-25
COMPACT OUTDOOR DMX HEX-LED PAR48 CAN
Item ref: 154.321UK
User Manual
Thank you for choosing this outdoor PAR Can. Weatherproof LED
lighting PAR48 can in an aluminium housing with adjustable stand
bracket. Full colour mixing can be accessed through stand-alone
control or via DMX512 input. Built-in 6-in-1 HEX LEDs are capable
of displaying red, green, blue, white, amber and UV. These LEDs
allow for richer and warmer colour blending. A versatile fixture for
adding dynamic colour to indoor or outdoor areas.
Installation:
This PAR can is powered by mains, therefore installation should be carried out certified electrician only. Before
installation, always ensure the mains is switched OFF at the consumer unit and the fuse block should be
removed on the circuitry that you are working on to ensure the mains will not be accidentally switched back
on while working.
This PAR can is supplied with a double bracket for free standing on the floor or overhead mounting. There is
also a fixed U bracket at the back for the unit to be mounting on a spade bracket.
IP65 rating applies to the unit only. For the wiring connection, we recommend to use waterproof junction box
and gland or waterproof resin jointing kit for full IP65 protection. Below table shows wire colour and
connection, please ensure all connections are made correctly.
Wire colour reference:
Colour
Carry
Brown
Mains –live
Blue
Mains –neutral
Yellow/Green
Mains –earth
Red
DMX –dmx+ signal
White
DMX –dmx- signal
Product layout:
Please read through this manual thoroughly before use, any damage
cause by misuse of product will not be covered by warranty.
Please do not open cover, no user serviceable or
repairable parts within. Opened unit WILL void the IP65
rate and makes the unit unsuitable for outdoor
installation, please refer unit to licensed electrician in
event of product failure.
er or professional when unit malfunction.

154.321UK User Manual
Manual control menu:
Press the “menu” button to enter setting menu.
Press “up” and “down” to navigate through various setting options.
Press “enter” to enter desire setting.
Choose set value by “up” and “down” buttons and confirm setting by pressing “enter”.
Display
Mode
Press ENTER for setting

DMX address
to 

Channel mode
Select DMX control through 2, 3, 4, 5, 6, 9 channels

Slave mode
= master, = slave

Auto mode
Option of fade (colour scroll), jump, sound to light and 63
preset static colours.

Sound activation
= sound to light on, = sound to light off

Microphone sensitivity
(0-100% gain)

RGB colour mixing mode
Press up and down to set individual RBG dimmer to allow
colour mixing.

LED display
 = stays on, = turns off after 10 sec untouched

LED display inverted
 / (normal or inverted display)

Fixture test sequence
Fixture steps through all functions –press MENU to exit

Fixture hours
Displays how many hours of use for the fixture
Auto mode:
Enter auto mode menu by press enter on on the LCD display, 4 auto mode options are available as
follows:
Fade (scroll) –press enter at  to set unit to scroll through preset static colours. Options for scroll speed
 to , dimming  to  and strobe  to  are available to adjust.
Jump –press enter at  to set unit to jump through preset static colours. Options for jump speed  to
, dimming  to  and strobe  to  are available to adjust.
Sound-to-light –press enter at  to set unit to chase sound.

154.321UK User Manual
Static colour –there are 63 preset colours available to choose from. Press enter at , static colours are
chosen through  to , dimming  to  and strobe  to  are available to adjust within
the same menu.
Master/slave mode:
One or more PAR Cans can be synchronized to one master unit. Simply set the main control unit to master
() on  menu and the synchronizing units to slave () on  menu. Connect DMX out from the
master unit to DMX in of the slave unit; further slave units can be controlled by daisy chain DMX out signal
from the slave unit.
DMX mode:
This PAR Can will enter DMX mode automatically when DMX signals are detected, ensure the DMX initial
address is set so that it’s function can be controlled correctly. DMX initial address can be set under 
menu, simply press enter to enter and up/down for address value and enter again to confirm.
This PAR Can can be controlled by 2/3/4/5/6/9 DMX channel modes, different DMX control modes can be set
via the  menu.
2CH –2 channels
Channel
Value
Function
Channel 1
000 - 255
Master dimmer 0-100%
Channel 2
000 - 255
Static colour selection
3CH1 –3 channels Op1
Channel
Value
Function
Channel 1
000 - 255
Red dimmer 0-100%
Channel 2
000 - 255
Green dimmer 0-100%
Channel 3
000 - 255
Blue dimmer 0-100%
3CH2 –3 channels Op2
Channel
Value
Function
Channel 1
000 - 255
Master dimmer 0-100%
Channel 2
000 - 255
Strobe
Channel 3
000 - 004
Black out
005 - 080
Static colour selection
081 - 150
Colour jump, speed increase with value
151 - 220
Colour scroll, speed increase with value
221 - 255
Sound to light chase
4CH –4 channels
Channel
Value
Function
Channel 1
000 - 255
Red dimmer 0-100%
Channel 2
000 - 255
Green dimmer 0-100%
Channel 3
000 - 255
Blue dimmer 0-100%
Channel 4
000 - 255
White dimmer 0-100%
5CH –5 channels
Channel
Value
Function
Channel 1
000 - 255
Red dimmer 0-100%
Channel 2
000 - 255
Green dimmer 0-100%
Channel 3
000 - 255
Blue dimmer 0-100%
Channel 4
000 - 255
White dimmer 0-100%
Channel 5
000 - 255
Amber dimmer 0-100%
6CH –6 channels
Channel
Value
Function
Channel 1
000 - 255
Red dimmer 0-100%
Channel 2
000 - 255
Green dimmer 0-100%
Channel 3
000 - 255
Blue dimmer 0-100%
Channel 4
000 - 255
White dimmer 0-100%
Channel 5
000 - 255
Amber dimmer 0-100%
Channel 6
000 - 255
UV dimmer 0-100%

154.321UK User Manual
9CH –9 channels
Channel
Value
Function
Channel 1
000 - 255
Master dimmer 0-100%
Channel 2
000 - 255
Strobe, speed 0-100%
Channel 3
000 - 255
Red dimmer 0-100%
Channel 4
000 - 255
Green dimmer 0-100%
Channel 5
000 - 255
Blue dimmer 0-100%
Channel 6
000 - 255
White dimmer 0-100%
Channel 7
000 - 255
Amber dimmer 0-100%
Channel 8
000 - 255
UV dimmer 0-100%
Channel 9
000 - 004
N/A
005 - 080
Static colour selection
081 - 150
Colour jump, speed increase with value
151 - 220
Colour scroll, speed increase with value
221 - 255
Sound to light chase
Specifications:
Power
100-240Vac, 50/60Hz
DMX channels
2, 3, 4, 5, 6, 9
Fuse
F3A
LED lifespan
50,000 hours
Total luminous flux
3982lm
Operating temp
-20°C to +45°C
Luminous efficacy
23.5lm/W
Luminance : red
1300Lux @1m
Power consumption
169W
Luminance : green
2100Lux @1m
LED qty
9
Luminance : blue
2200Lux @1m
LED power
18W
Luminance : white
3200Lux @1m
LED colour
6-in-1 HEX (red, green,
blue, UV, amber & white)
Luminance : amber
1100Lux @1m
Beam angle
25º
Luminance : UV
1000Lux @1m
Housing material
Aluminium
Luminance : full on
8300Lux @1m
Projection distance
10m
IP rating
IP65
Housing colour
Black
Dimensions
235 x 265 x 210mm
DMX connection
Red: DMX+, White: DMX-, Braid:
ground
Weight
4.3kg
Troubleshooting:
No power
(mains)
Check mains wiring is correctly to mains in connection
Check mains outlet and consumer unit is switched on
No LED
display
Press any control panel button and check LED setting in menu
No light
output
Check control panel mode settings ensure dimming is not set to minimum
Check DMX settings from controller (dimmer levels, blackout etc.)
No strobe
output
Check strobe settings on control panel or from DMX controller
Unresponsive
to DMX
Check DMX connection/joints to ensure dmx + and –not shorted and ground is continuous to eliminate interference
Check that DMX mode is enabled (set “Addr” on control panel)
Check dmx lead and connector is in good workable condition
Overheating/
cutting out
Ensure that the unit is not too close to a heat source
Ensure that adequate airflow is afforded for cooling
Ensure alien object and dirt is not built up between heat sink fins
This product is classed as Electrical or Electronic equipment and should not be disposed with other household or commercial waste
at the end of its useful life. The goods must be disposed of according to your local council guidelines.
Errors and omissions excepted.
Copyright© 2014. AVSL Group Ltd.
