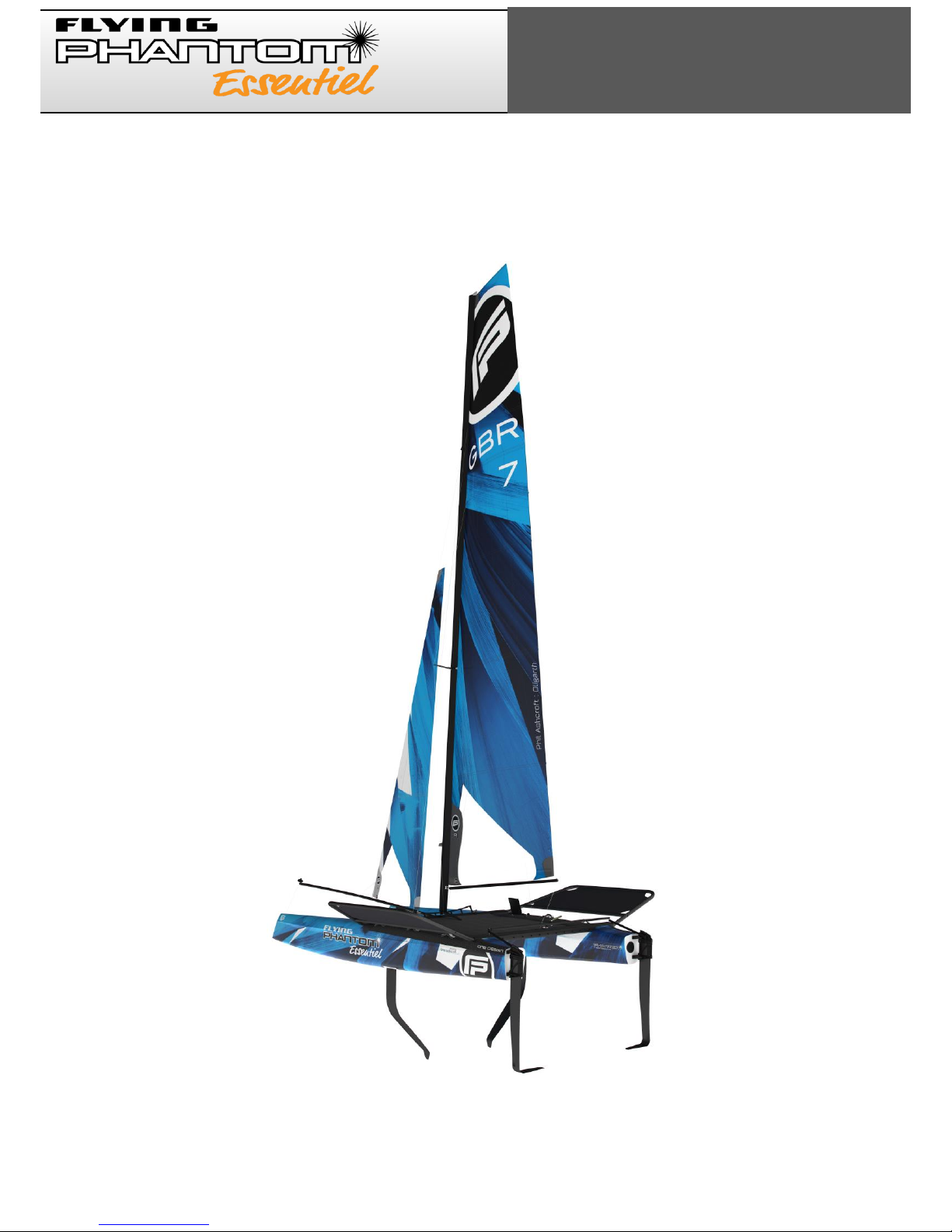

Flying Phantom Essentiel User manual

ASSEMBLING MANUAL

2
Table of contents
1. Foreword.......................................................................................................................................... 3
2. Overview .......................................................................................................................................... 4
3. List of Parts....................................................................................................................................... 6
4. Needed Tools ................................................................................................................................... 9
................................................................................................................................................................ 10
5. Beach Trolley Set-up ......................................................................................................................10
6. Platform.......................................................................................................................................... 11
6.1. Hulls ...................................................................................................................................... 11
6.2. Trampoline............................................................................................................................12
6.3. Platform / Ropes Plan...........................................................................................................17
7. Mast ............................................................................................................................................... 18
7.1. Diamond ............................................................................................................................... 18
7.2. Cables.................................................................................................................................... 20
7.3. Haylards ................................................................................................................................22
7.4. Mast Setting.......................................................................................................................... 25
7.5. Mast Rotator......................................................................................................................... 25
7.6. Cunningham.......................................................................................................................... 26
7.7. Trapezes................................................................................................................................ 26
8. Bowsprit ......................................................................................................................................... 28
8. Wings..............................................................................................................................................31
9. Rudders ..........................................................................................................................................35
3.1. Crossbar ................................................................................................................................35
3.2. Stick.......................................................................................................................................36
10. Sails...................................................................................................................................................37
10.1. Main Sail ............................................................................................................................... 37
10.2. Jib..........................................................................................................................................38
10.3. Gennaker ..............................................................................................................................39
11. Foils ...........................................................................................................................................40
TABLE OF CONTENTS

3
1. Foreword
Dear Owner,
Welcome to the world of foiling catamarans.
This Assembling Manual is designed to help you assemble your Flying Phantom Essentiel step by
step. It is very important that you follow every instruction.
You may also use resort to Phantom International for help at a certain cost.
The Owner’s Manual provided to you with your craft gives you all the technical characteristics of
your Flying Phantom Essentiel, as well as maintenance recommendations and the compulsory safety
regulations necessary for sailing.
Before assembling your Flying Phantom Essentiel and start sailing, read carefully these two
manuals, and make sure that you have understood both contents.
Should you have any trouble or doubts, please contact Phantom International via contact@phantom-
international.com.
Phantom International will not, under no account, be considered liable for failure of not following
all recommendations mentioned in the manuals.
Regular updates of the two manuals are available on Phantom International website www.phantom-
international. We highly recommend you to visit this site on a regular base.
Thanks for your trust. We wish you a “pleasant flight”,
Alex Udin
KEEP YOUR OWNER’S BOOK AND THE ASSEMBLING MANUAL IN A SAFE PLACE.
GIVE IT TO THE NEW OWNER WHEN YOU SELL YOUR FLYING PHANTOM
THE MANUAL IS ALSO AVAILABLE ON OUR WEBSITE: www.phantom-international
FOREWORD

4

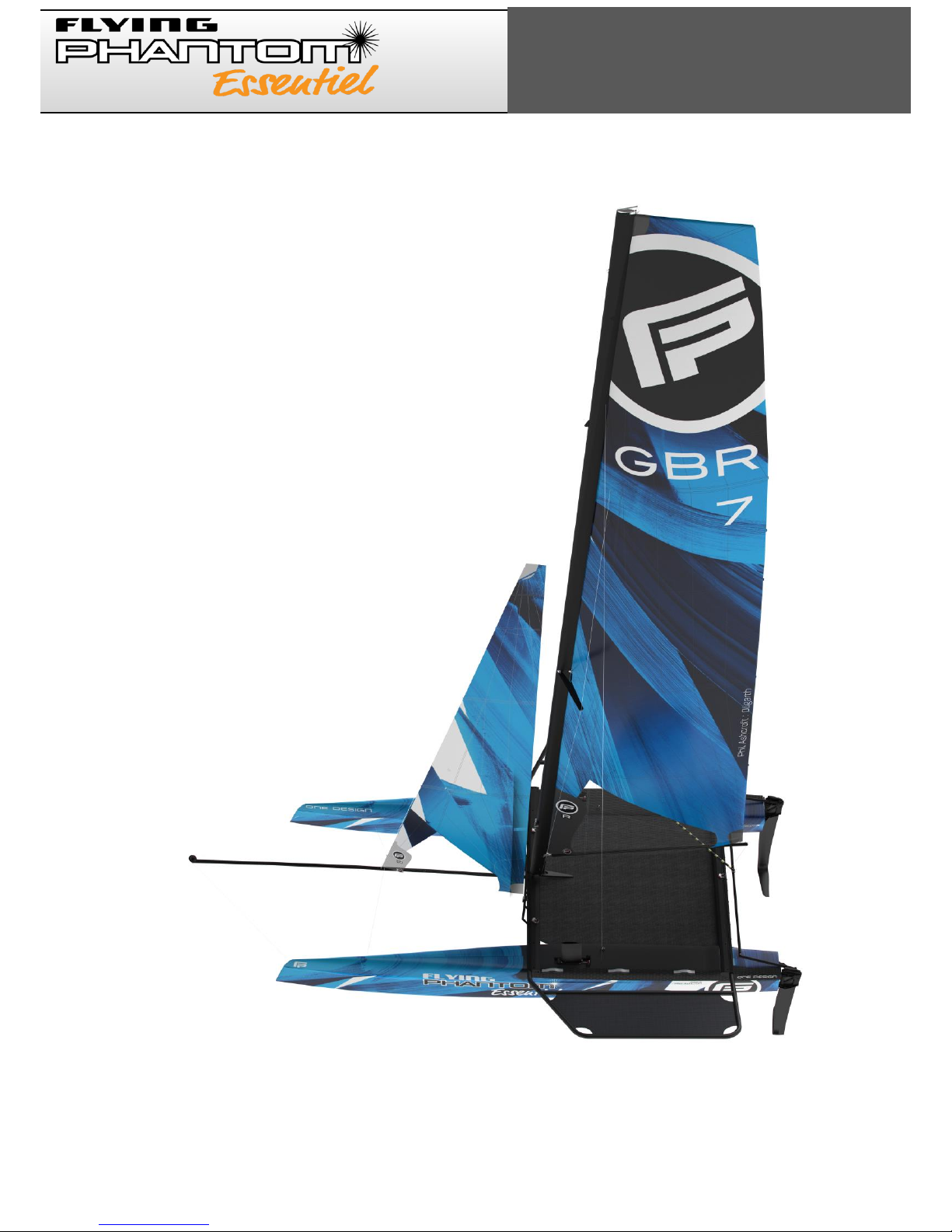

2. Overview
OVERVIEW

5
OVERVIEW

6
3. List of Parts
In order to make the first assembling easier, all components are pre-assembled, and only a few
packs have to be set up by the sailor.
Pack
name
fonctional number
Big box
Rotator block
HARK467
1
Rotator connecting line premium mast rotation
M2902
1
Gennaker furler
TG1012
1
Big box
Rotator
M2901
1
Geenacker sheet
SP1306
1
Geenaker sheet bungee
T1113
1
Geenaker winch block shackle
PA1901
2
Mast rotation control
M2903
1
Rake tension rope
T1109
1
Towing rope
T1106
1
Winch block 57mm
HARK2625
2
Winch block 57mm fe
HARK2151
2
Trampo tension rope
T1115
1
Rope to fix the hook to the gennaker furler rope
T1116
1
Gennaker winch rope
T1117
1
Hook to catch the gennaker winch rope
WD 2313
1
Mainsail cuningham strap
PA1502
2
Mainsail cuningham strap single block
HARK404
2
Big box/ mast /rigging
Eye screw
DIN444 A4 M6*30
2
Forestay eye screw
DIN444 A4 M6*40
1
Lateral front shackles
WD1201
2
Lateral medium shackle
W
2
Nut
DIN985 A4 M6
2
Premium jib strop
M3406
1
Shackle
WD1244
1
Spacer washer
RMUNYLM8
6
Jib stropped block
HARK404
1
Big box/ mast/ mast
rotator
Nut
Din985 A4 M6
1
Shaft
Din912 A4 M6*95
1
Washer
RMUNYLM6N
2
Big box/ mast/ mastfoot
Diamond bronze
M1902a
1
Diamond screw
Din933 A4 M10
1
Main halyard block holder Luff rope block line in
mastfoot
M1104
1
LIST OF PARTS

7
Mainsail luff rope down block
HARK404
1
Mast foot cuni holder 3 blocks line
M1103
1
Stainless Washer
NFE25514 10*22*2
1
Washer
003 1000 599 02
1
Big box/ mast/ ropes
Geenacker halyard
SP1305
1
Mainsail halyard
M3203
1
Cunningham jib arbalet pulley
HARK404
1
Upper jib Cunningham rope
TG1014
1
Halyard jib lead Lancelin
TG1101
1
Jib halyard shackle Wichard
WD1201
1
big box/ mast/ trapeze
Clam trapeze textile shackle
M2802
4
Cleat with sheave
Selden 432-020R
4
Crew trapeze
M2708
1
Crew trapeze bungy
M2706
1
Elastic trapeze block
HARK404
4
Red handle
Ronstan PNP171RED
4
Skipper trapeze
M2707
1
Skipper trapeze bungy
M2705
1
Trapeze control
M2801
4
Trapeze handles
M2703
4
Big box/ mast/spreaders
Shaft washer
NFE25514 A4 4*9
125A4M4
12
Spreader lock
M2601
2
Spreaders
AG+31524
2
Junction piece spreader actuator
AG+31530
2
Spreader actuator
M2606/AG+31534
2
Spreader clevis
M2607
2
Spreader bolting
1
Big box/ trampo/ MS
Down tackle
HARK HC8454
1
Main hoist shackle
BO1401
1
Mainsail sheet
BO1404
1
Snap hook
WD 2293
1
Up tackle
HARK 2762
1
Big box/ wings
Washer
W1021
4
Side beam ring rope wings
M0633
4
Wichard wings locking pulley
RF30224
4
Wings trampo tension rope
W1012
2
Front connection
W1013
2
Back connection
W1014
2
Foot strap ropes
W1023
2
Hook attachment rope
W1025
4
Fastening locking pulley rope
W1027
4
Wings blocking pulley rope
W1028
4
Dyneema textile shackle for locking the wings
W1029
4
Cunningam sheet snap hook
WD2313
4
LIST OF PARTS

8
Big box/Bowsprit assy
Textile shackle for pulley jib Cunni on forestay
TG1104
1
Pulley for Cunningham rope
HARK404
1
Textile shackle pulley jib sheet idler arbalet
TG1307
1
Jib sheet pulley on bowsprit idler arbalet
HARK404
1
Pool front kepper adjuster
TG1311
2
Forestay eye bolt
582 A4 M5
1
Forestay eye screw
DIN944 M5x30
1
Pulley rope cunni fix
HARK404
1
Jib Cuni cleat rope
TG1102
1
Cunni fix rope between arbalet and Cunni top rope
TG1103
1
Forestay
TG1308
1
Forestay shackle for jib
WD1242
1
Big box/Steering System
Split ring bearing
BF1216
4
Portside front helm tube cap
BF1207b
1
Starboard front helm tube cap
BF1207b
1
Portside rear helm tube cap
BF1208b
1
Starboard rear helm tube cap
Horizontal axis screw
Iso7380 M5x35
1
Nylstop nut
Din985 A4 M5
1
Split pin
8144A4 diam10
4
Elastic band rudder up keeper
BF1305
2
Screw
Din912 A4 M5x12
8
Split ring for breakthrough pin
8383A4M1,5X19
4
Stick plastic ring
RMUNYL M5
2
Boom assy
Bowsprit assy
Chocks assy
Dagger board assy
Foil assy
Front beam assy
Back beam assy
Helm tube assy
Hull assy
Casting
Mast assy
Bags packs
Rigging pack
Rudders assy
Sails
Gennaker
Steering system assy
Stick assy
Beach trolley assy
Trampo Assy
Wings trampo assy
LIST OF PARTS

9
4. Needed Tools
You will need the following tools in order to assemble your FLYING PHANTOM Essentiel:
1. Flat wrench : 7, 8, 10, 17, et 19 mm
2. Hexagonal wrench CHC : M4, M5 et M6
3. Screwdriver and hexagonal screwdriver
4. Universal pliers
5. Tape measurer 5m
6. Torque measurer
7. Cable tensiometer
8. Angle measurer
9. Navy fat
10. Teflon or soapy water
11. Grey tape
TOOLS

10

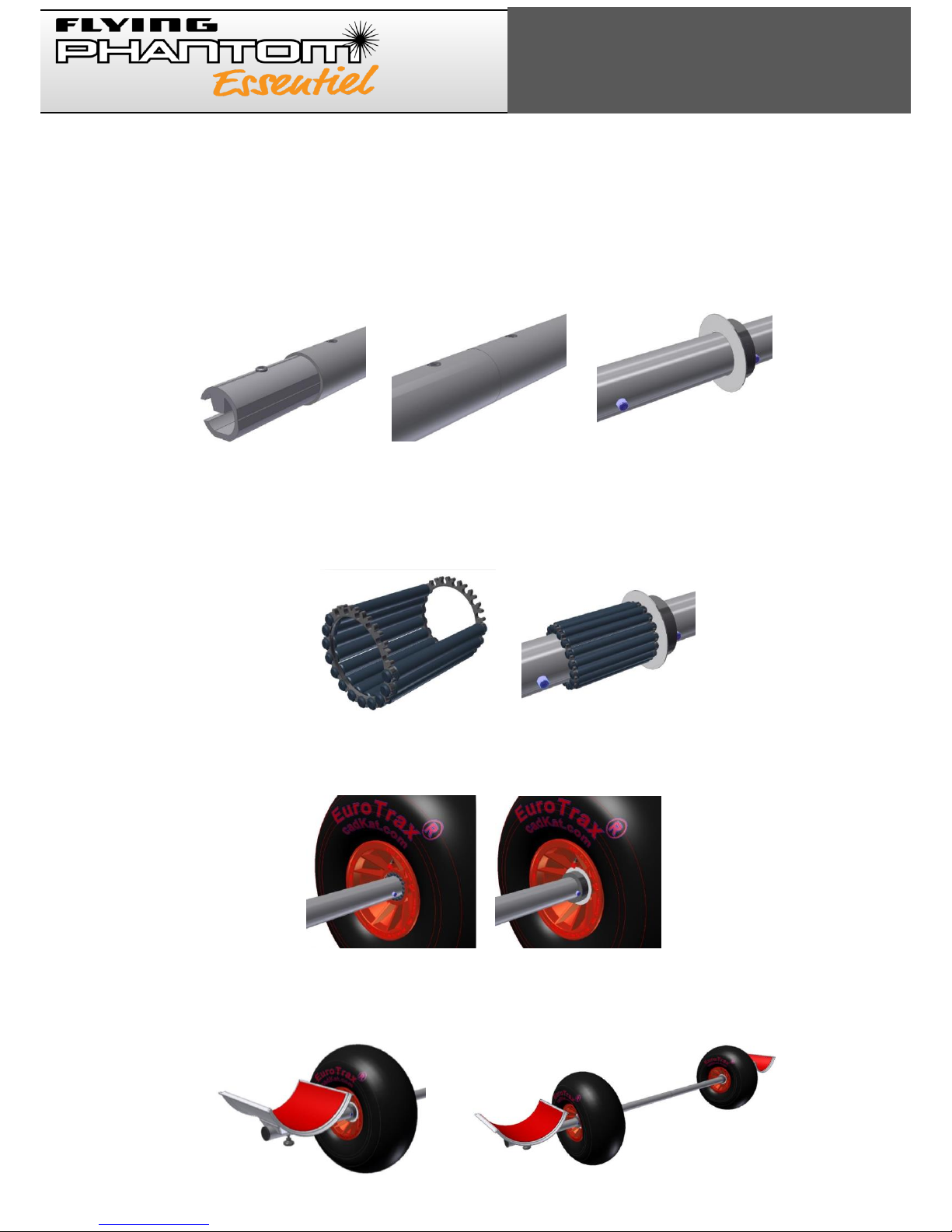

5. Beach Trolley Set-up
1. Start with the 2-pieces axle and insert the connector. Align the second half of the axle and
tighten the grub screws. Slide the inner fixation elements onto the axle against the inner
p
u
s
h
p
i
n
s
2. Complete both roller bearing units by clicking the pins into the pin-holder. Slide the roller-
bearing units onto the axle once they are completed.
3. Get the wheels on the axle. Take the other fixation elements to hold the wheels safe in place.
4. Get the cradles onto the axle.
BEACH TROLLEY

11

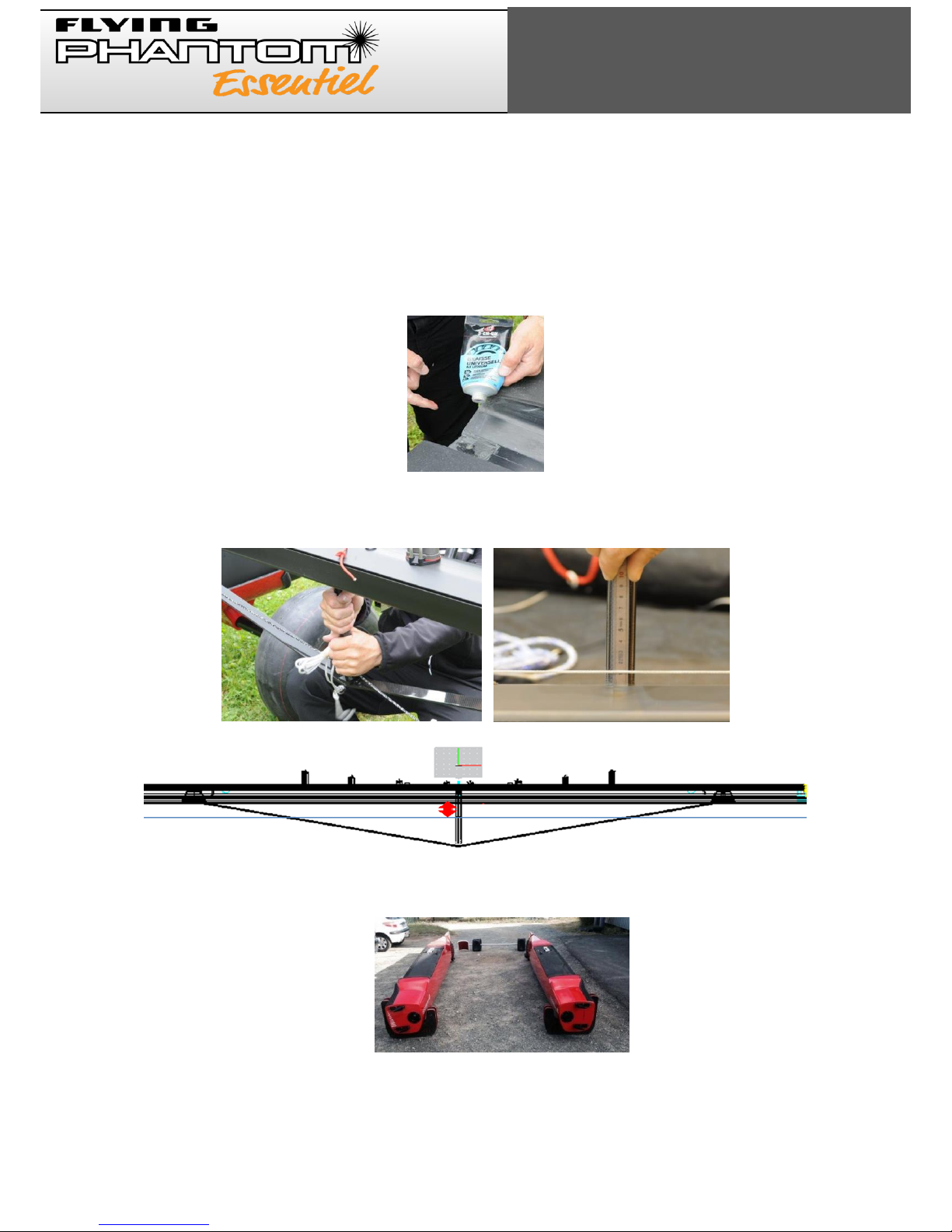

6. Platform
6.1. Hulls
1. Introduce some navy fat in the inserts.
2. Pre-arch of the front beam: loosen the dolphin striker, stretch a thread between the two
external bolts then screw back again the dolphin striker to reach a value of 4-5mm.
3. Set the hulls in parallel and at the same height on the chocks.
4. Be sure that the internal reinforcements are well positioned on the beams.
PLATFORM

12

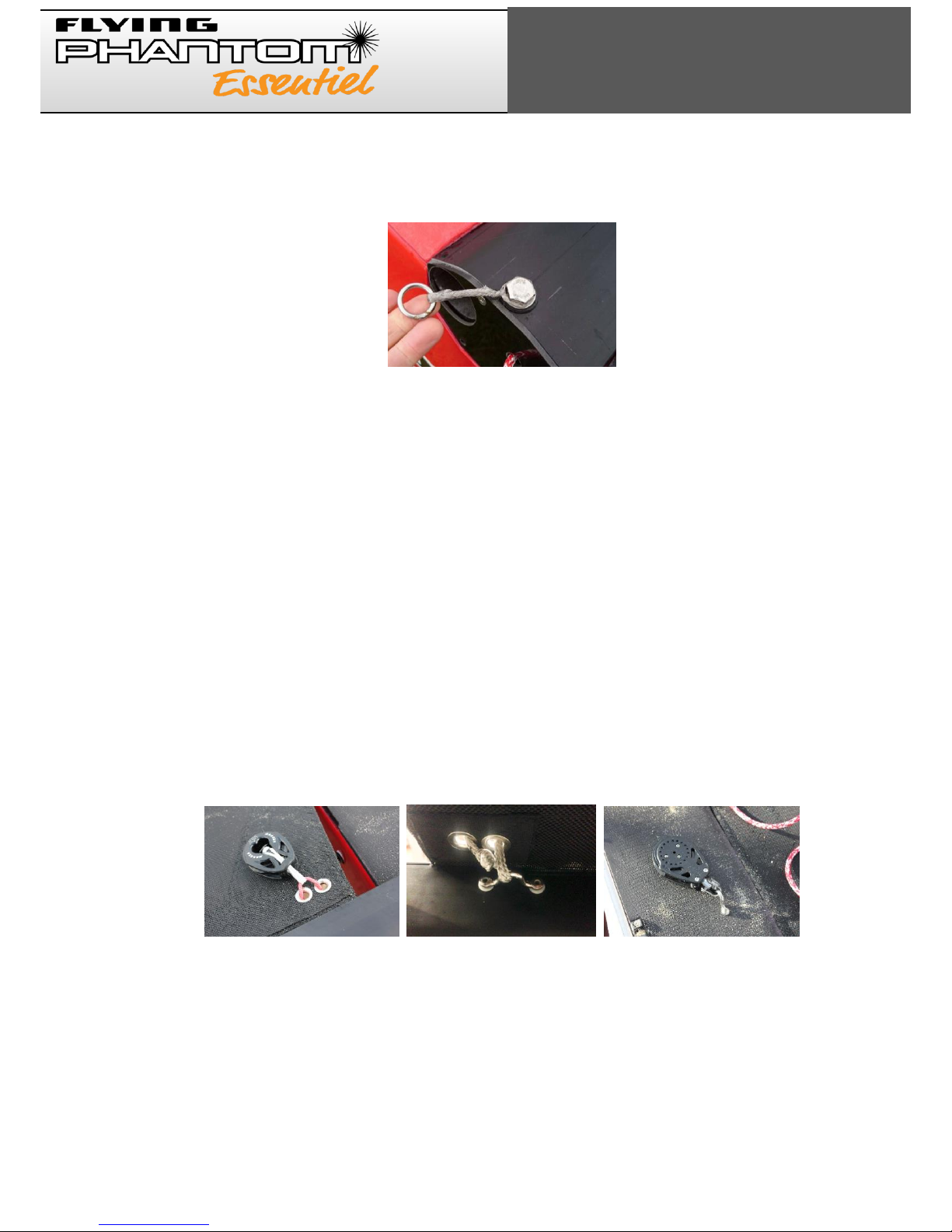

5. Loosen the beam hood screws, remove the bolts from the beams.
6. Put the four Dyneema textile shackles on beam for blocking the wings (W1029)
7. Position the front beam and introduce the bolts in it without tightening them. Repeat the
procedure with the back beam.
If the bolts are not immediately facing the hulls holes, gently move up the hulls front or back.
8. Do not immediately tighten the bolts in order to facilitate the trampoline positioning.
9. One must comply with the maximum onboard weight of 152 kg. If the onboard weight
exceeds 152Kg one must increase the buoyancy reserve of each hull. Compensate each Kg by
increasing the buoyancy of one liter. As an example if the onboard weight is of 200Kg, one
must increase the buoyancy reserve of 48 liters (24 liters per hull). In order to do so, you may
introduce 6 polyethylene foam noodles of 4 liters each in each hull via the hatches
6.2. Trampoline
1. See the List of parts on page 7 (and further) and take Trampo Assy, Big box Trampo Assy et
Big box/ Trampo/ MS.
2. Remove the front beam cover.
3. Insert the trampoline bolt-rope in the beam groove.
4. Center the trampoline, then set the winch pulleys Harken 2625) with the textile shackle
(PA1901) in the eyelets and corresponding saddle.
5. Put soapy water (ideally some teflon) in the hull groove.
PLATFORM

13
6. Introduce the trampoline one centimeter on each side in the groove of the hulls. Then,
without forcing, keep introducing the trampoline little by little alternating on one side then
the other. Use two ropes as a tackle between the back beam and the trampoline as shown
here below. Make sure you introduce the trampoline all the way to the end.
7. Screw the bolts all the way tightly.
8. After the first sailing session, ensure that the bolts are tightly screwed.
9. Lace-up the trampoline tension rope as shown on the figure here below, starting from the
eyelet as far left as possible. Stretch tight. One can also use a hook to stretch tight.
PLATFORM

14
10. To install the rope of central rack T1115, undo the screw connecting the worm screw to the
bilge of the foil, holding the nut underneath and pass the end around the same screw, and
the pulley.
11. Strech the central rack T1115 rope thanks to rope T1109 (Grey Dyneema).
12. Install IPS SP1306 sheets. Connect them using the elastic band T1116.
PLATFORM

15
13. Install the gennaker furler rope T1117 using the rope (fixing shackle gennaker furler rope
T1116). Ensure that the rope of the gennaker furler goes under the other trampoline ropes
and between the 2 lips of the groove, as shown on the pictures.
14. Preinstall the mast rotator rope M2903.
PLATFORM

16

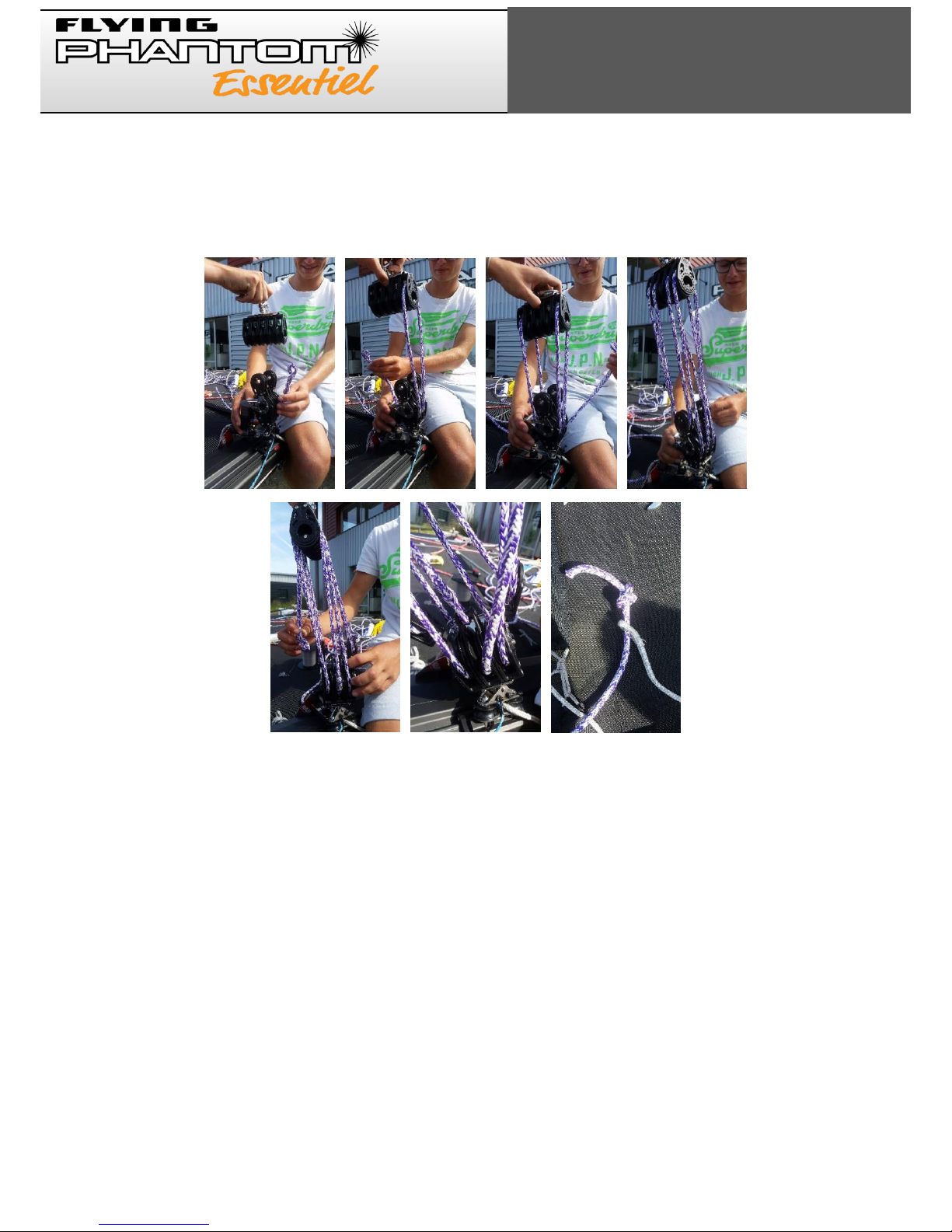

15. Install Main Sail tackle using the trailor axis.
PLATFORM

17
6.3. Platform / Ropes Plan
PLATFORM

18
7. Mast
7.1. Diamond
1. Look at the plans of the following pages and use the packs Big box/mast/spreaders, Big
box/mast/mastfoot and Big box/rigging
2. Install the spreaders.
3. Undo the mast foot.
4. Install the Cables M1803 in diamond bronze M1902, the cable ending screw must be flush to
the diamond bronze; insert them inside the mast, then through the two slits at the bottom of
the mast, and hang them on the metal parts of either side of the mast.
MAST

19
5. Install the mast foot. Make sure there is some navy grease. Install diamond tensioner screw in
the mast foot and then in the diamond bronze.
6. Screw back the mast foot, starting with the screws on either side of the mast.
7. Put the cables on the spreaders and tighten screw.
8. Make sure the mast is straight. If not, adjust using the threaded stem of the diamond cable by
repeating the former procedure.
9. Tighten the threaded stem until pre-arching the mast (approximately 350 Kg of tension in the
cables).
10. Check that the spreaders are perpendicular to the mast.
11. Wrap the ligation of spreader M2601 around the cable.
MAST

20
7.2. Cables
1. Take the Big box/rigging, Big box/trapeze packs and Pack rigging.
2. Lay the mast on the boat, spreaders down, and with the top of the mast to the rear of the
boat.
3. Arrange the cables with regard to the mast: a shroud Str M3503 on each side and the Str
M3405 forestay in the middle.
4. Repeat the above procedure for the trapezes M2707 and M2708.
5. Fix the trapezes on the side of the small loop at the shrouds eyelet with a lark’s head as
shown below.
6. Attach the cables to the mast using the caping shackle of the mast. Insert the washers to
remove the loose.
MAST
