FMI BV36(B) Safety guide
For more information, visit www.fmiproducts.com
WARNING: If the information in this manual is not
FOR USE ONLY WITH A LISTED GAS-FIRED UNVENTED
DECORATIVE ROOM HEATER NOT TO EXCEED 40,000
DO NOT INSTALL AN APPLIANCE IN THIS FIREBOX
UNLESS THIS FIREBOX MEETS THE MINIMUM DIMEN-
UNVENTED (VENT-FREE) UNIVERSAL FIREBOX
OWNER’S OPERATION AND INSTALLATION MANUAL
NON-CIRCULATINg MODELS
BV36(B), VBV36, BV42(B) AND VBV42
CIRCULATINg MODELS
BV36L(B), VBV36L, BV42L(B) AND VBV42L
PFS
®
US
www.fmiproducts.com 123492-01F2
SAFETy
TABLE OF CONTENTS
Safety .................................................................. 2
Local Codes......................................................... 3
Product Features................................................. 3
Locating Firebox.................................................. 4
Product Specications......................................... 4
Air For Combustion and Ventilation ..................... 5
Installation ........................................................... 7
Parts .................................................................. 12
Replacement Parts............................................ 14
Technical Service............................................... 14
Accessories ....................................................... 14
Warranty ..............................................Back Cover
chemicals known to the state
of California to cause cancer or
-
IMPORTANT: Read this owner’s
-
WARNING: Do not allow fans
-
-
service or maintenance can
Refer to this manual for correct
additional information consult
State of Massachusetts: The
-
-
room installation in the Com-
www.fmiproducts.com
123492-01F 3
will remain hot for a time after
-
dren when they are in the room
SAFETy
Continued
1. Do not use this rebox as a wood-burning
replace. Use only decorative unvented
room heaters (log sets).
2. Do not add extra logs or ornaments such as
pine cones, vermiculite or rock wool. Using
these added items can cause sooting.
3. Use only provided hood.
4. Vent-free gas log heaters installed in these
reboxes require fresh air ventilation to
run properly. See Air for Combustion and
Ventilation, page 5.
5. Do not run rebox
• where ammable liquids or vapors are
used or stored
• under dusty conditions
6. Do not use this rebox to cook food or
burn paper or other objects.
7. Turn rebox off and let cool before servic-
ing. Only a qualied service person should
service and repair rebox.
8. Operating rebox above elevations of
4,500 feet could cause pilot outage.
9. Do not use rebox if it has been under water
due to shock hazard that could result with
the blower accessary (if installed) in place.
LOCAL CODES
Install and use heater with care. Follow all
local codes. In the absence of local codes,
use the latest edition of The National Fuel Gas
Code, ANSI Z223.1/NFPA 54*. Firebox must
be electrically grounded in accordance with
the National Electrical Code, ANSI/NFPA70
(latest edition).
*Available from:
American National Standards Institute, Inc.
1430 Broadway
New York, NY 10018
National Fire Protection Association, Inc.
Batterymarch Park
Quincy, MA 02269
PRODUCT FEATURES
OPERATION
This rebox is designed for use with approved
ANSI Z21.11.2 decorative type unvented room
heaters. (Physical size limitations apply. Refer
to minimum rebox requirements supplied
with log heater.) It requires no outside venting
or chimney making installation easy and in-
expensive. This rebox requires no electricity
making it ideal for emergency backup heat.
OUTSIDE AIR KIT ACCESSORY
The optional AK4 air kit provides additional
outdoor air to improve burner efciency and
reduce build-up of condensation in living space.
Follow instructions included with air kit.
www.fmiproducts.com 123492-01F4
22.5" (36" Models)
28.5" (42" Models)
25"
3.875"
25°
6.664
21.375"
19.75"
33.125"
36.875"
38.125" (36" Models)
44.125" (42" Models)
40" (36" Models)
46" (42" Models)
36.125" (36" Models)
42" (42" Models)
21"
9.25"
13"
26.5"
24.5"
8"
3.875"
9.75"
13"
19" 12.5"
21"
LOCATINg FIREBOX
PLANNING
Plan where you will install the rebox. This will
save time and money later when you install
the rebox. Before installation, consider the
following:
1. Where the rebox will be located. Allow for
wall and ceiling clearances (see Installa-
tion Clearances, page 8).
PRODUCT SPECIFICATIONS
Figure 1 - Firebox Dimensions
Right Side View
Firebox Top View
Front View
Outside Air
Kit Location
(Optional)
Left Side
View with
Air Kit
2. Everything needed to complete installation.
3. These models CANNOT be installed in a
bedroom unless the maximum Btu rating
of the installed vent-free log set is less
than 10,000 Btu/hr.
4. Proper air for combustion and ventilation
(page 6).
www.fmiproducts.com
123492-01F 5
AIR FOR COMBUSTION AND VENTILATION
The air that leaks around doors and windows
may provide enough fresh air for combustion
and ventilation. However, in buildings of un-
usually tight construction, you must provide
additional fresh air.
construction where:
-
-112
and
and
If your home meets all of the three criteria
Ventilation Air From Outdoors,
If your home does not meet all of the three
Determining
Fresh-Air Flow for Firebox Location,
The National Fuel Gas Code, ANSI Z223.1/
NFPA 54 denes a conned space as a space
whose volume is less than 50 cubic feet per
1,000 Btu per hour (4.8 m3 per kw) of the ag-
gregate input rating of all appliances installed
in that space and an unconned space as a
space whose volume is not less than 50 cubic
feet per 1,000 Btu per hour (4.8 m3 per kw)
of the aggregate input rating of all appliances
installed in that space. Rooms communicating
directly with the space in which the appliances
are installed*, through openings not furnished
with doors, are considered a part of the un-
conned space.
* Adjoining rooms are communicating only if
there are doorless passageways or ventilation
grills between them.
WARNING: This heater shall
-
National Fuel Gas Code, ANSI
Z223.1/NFPA54, the International
Fuel Gas Code,
Today’s homes are built more energy efcient
than ever. New materials, increased insulation
and new construction methods help reduce
heat loss in homes. Home owners weather
strip and caulk around windows and doors
to keep the cold air out and the warm air in.
During heating months, home owners want
their homes as airtight as possible.
While it is good to make your home energy
efcient, your home needs to breathe. Fresh
air must enter your home. All fuel-burning ap-
pliances need fresh air for proper combustion
and ventilation.
Exhaust fans, reboxes, clothes dryers and
fuel burning appliances draw air from the
house to operate. You must provide adequate
fresh air for these appliances. This will insure
proper venting of vented fuel-burning appli-
ances.
PROVIDING ADEQUATE
VENTILATION
The following are excerpts from National Fuel
Gas Code, ANSI Z223.1/NFPA 54, Air for
Combustion and Ventilation.
All spaces in homes fall into one of the three
following ventilation classications:
1. Unusually Tight Construction
2. Unconned Space
3. Conned Space
The information on page 5 through 7 will help
you classify your space and provide adequate
ventilation.
www.fmiproducts.com 123492-01F6
DETERMINING FRESH-AIR FLOW
FOR HEATER LOCATION
Use this work sheet to determine if you have
a conned or unconned space.
Includes the room in which you will
install heater plus any adjoining rooms with
doorless passageways or ventilation grills
between the rooms.
1. Determine the volume of the space (length
x width x height).
Length x Width x Height = ______cu. ft.
(volume of space)
Example: Space size 22 ft. (length) x 18
ft. (width) x 8 ft. (ceiling height) = 3168 cu.
ft. (volume of space)
If additional ventilation to adjoining room
is supplied with grills or openings, add the
volume of these rooms to the total volume
of the space.
2. Multiply the space volume by 20 to deter-
mine the maximum Btu/Hr the space can
support.
_____ (volume of space) x 20 = (Maxi-
mum Btu/Hr the space can support)
Example: 3168 cu. ft. (volume of space) x
20 = 63,360 (maximum Btu/Hr the space
can support)
3. Add the Btu/Hr of all fuel burning appli-
ances in the space.
Vent-free heater _______ Btu/Hr
Gas water heater* _______ Btu/Hr
Gas furnace _______ Btu/Hr
Vented gas heater _______ Btu/Hr
Gas replace logs _______ Btu/Hr
Other gas appliances* + ______ Btu/Hr
Total = ______ Btu/Hr
* Do not include direct-vent gas appli-
ances. Direct-vent draws combustion
air from the outdoors and vents to the
outdoors.
Example:
Gas water heater _________ Btu/Hr
Vent-free heater +________ Btu/Hr
Total =________ Btu/Hr
AIR FOR COMBUSTION AND VENTILATION
Continued
4. Compare the maximum Btu/Hr the space
can support with the actual amount of
Btu/Hr used.
_________ Btu/Hr (maximum the space
can support)
_________ Btu/Hr (actual amount of
Btu/Hr used)
Example: 63,360 Btu/Hr (maximum the
space can support)
79,000 Btu/Hr (actual amount
of Btu/Hr used)
The space in the above example is a conned
space because the actual Btu/Hr used is more
than the maximum Btu/Hr the space can sup-
port. You must provide additional fresh air.
Your options are as follows:
A. Rework worksheet, adding the space
of an adjoining room. If the extra space
provides an unconned space, remove
door to adjoining room or add ventilation
grills between rooms. See Ventilation Air
From Inside Building, page 7.
B. Vent room directly to the outdoors. See
Ventilation Air From Outdoors, page 7.
C. Install a lower Btu/Hr heater, if lower
Btu/Hr size makes room unconned.
If the actual Btu/Hr used is less than the
maximum Btu/Hr the space can support, the
space is an unconned space. You will need
no additional fresh air ventilation.
WARNING:Iftheareainwhich
-
National Fuel
Gas Code,ANSI Z223.1/NFPA 54,
the International Fuel Gas Code,
40,000
39,000
79,000
www.fmiproducts.com
123492-01F 7
VENTILATION AIR
This fresh air would come from an adjoining
unconned space. When ventilating to an
adjoining unconned space, you must provide
two permanent openings: one within 12" of the
ceiling and one within 12" of the oor on the
wall connecting the two spaces (see options
1 and 2, Figure 2). You can also remove door
into adjoining room (see option 3, Figure 3).
Follow the National Fuel Gas Code, ANSI
Z223.1/NFPA 54, Air for Combustion and
Ventilation for required size of ventilation
grills or ducts.
AIR FOR COMBUSTION AND VENTILATION
Continued

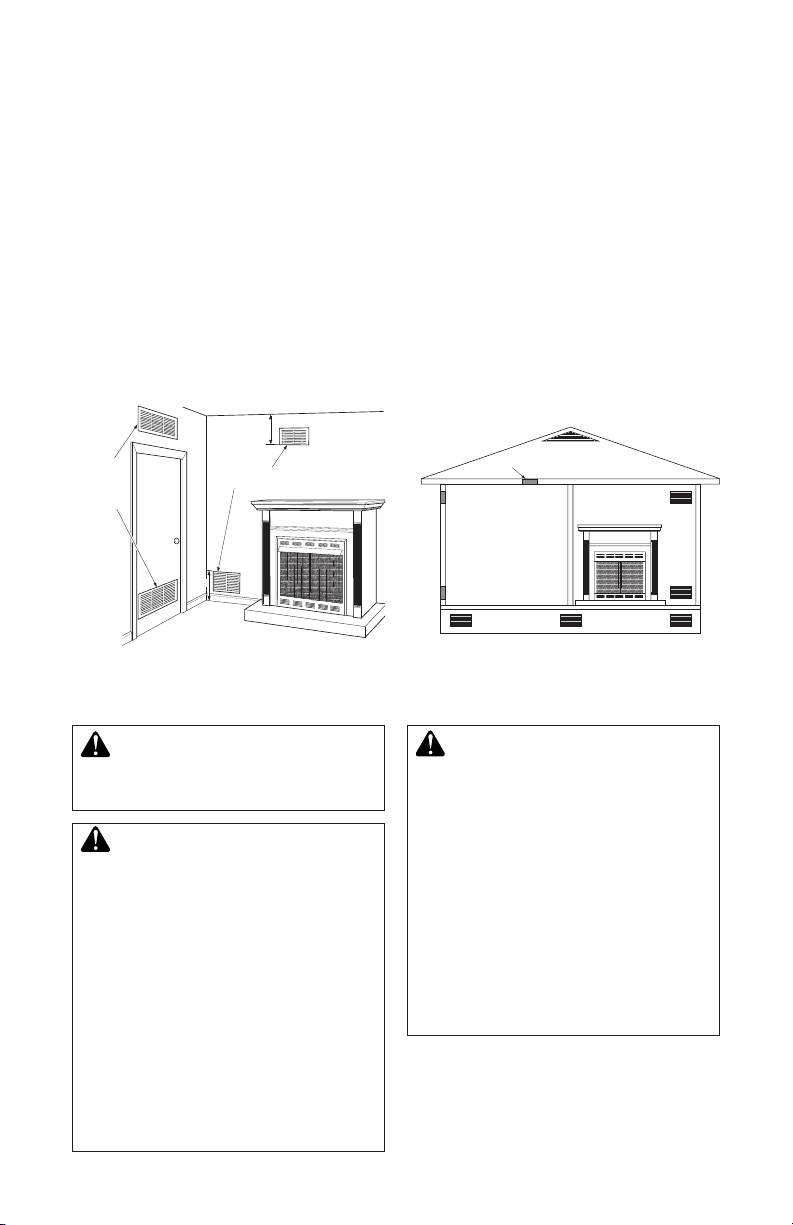

Figure 3 - Ventilation Air from Outdoors
Figure 2 - Ventilation Air from Inside
Building
Ventilation Air From Outdoors
Provide extra fresh air by using ventilation
grills or ducts. You must provide two perma-
nent openings: one within 12" of the ceiling
and one within 12" of the oor. Connect these
items directly to the outdoors or spaces open
to the outdoors. These spaces include attics
and crawl spaces. Follow the National Fuel
Gas Code, ANSI Z223.1/NFPA 54, Air for
Combustion and Ventilation for required size
of ventilation grills or ducts.
IMPORTANT: Do not provide openings for
inlet or outlet air into attic if attic has a thermo-
stat-controlled power vent. Heated air entering
the attic will activate the power vent.
INSTALLATION
Or
Remove
Door into
Adjoining
Room,
Option
3
V e ntilation Grills
Into Adjoining Room,
Option 2
V e ntilation
Grills
Into Adjoining
Room,
Option 1
12"
12"
Outlet
Air
V e ntilated
Attic
Outlet
Air
Inlet
Air
Inlet Air V e ntilated
Crawl Space
T o
Crawl
Space
T o Attic
-
WARNING: Never install the
-
arelessthan42"fromthefront,
rated at 10,000 Btu/Hr or less
-
rents move heat to wall surfaces
next to vinyl or cloth wall cover-
-
the air exist, may discolor walls
www.fmiproducts.com 123492-01F8
IMPORTANT: Vent-free gas log heaters add
moisture to the air. Although this is benecial,
installing firebox in rooms without enough
ventilation air may cause mildew to form from
too much moisture. See Air for Combustion
and Ventilation, page 5.
IMPORTANT: Make sure rebox is level. If re-
box is not level, log set will not work properly.
Note: Your rebox is designed to be used in zero
clearance installations. Wall or framing material can
be placed against any exterior surface on the rear,
sides, top or bottom of your rebox, except where
standoff spacers are integrally attached. If standoff
spacers are attached to your rebox, these spac-
ers can be placed directly against wall or framing
materials. Use the dimensions shown for rough
opening to create the easiest installation.
Use dimensions shown for rough openings
to create the easiest installation (see Built-In
Firebox Installation, page 9).
INSTALLATION CLEARANCES
WARNING: Maintain the
Carefully follow these instructions. This will
ensure safe installation.
A. Clearances from the side of fireplace
cabinet to any combustible material and
wall should follow diagram in Figure 4.
Example: The face of a mantel, bookshelf,
etc. is made of combustible material and
protrudes 3 1/2" from the wall. This com-
bustible material must be 4" from the side
of the replace cabinet (see Figure 4).
B. Clearances from the top of rebox opening
to ceiling should not be less than 42".
C. When rebox is installed on carpeting or
other combustible material, other than
wood ooring, rebox should be installed
on a metal or wood panel extending the
full width and depth of enclosure.
D. Clearances from bottom of rebox to the
oor is 0".
These reboxes can be installed as freestanding
units against a wall with the approved, optional
cabinet mantels (see Accessories, page 14) or as
a built-in unit. Clearances are the same for either
installation method.
INSTALLATION
Continued
Figure 4 - Minimum Clearance for
Combustible to Wall
*Minimum 16" from Side Wall
*
-
Example
Mantel Clearances for Built-In Installation
If placing custom mantel above built-in rebox,
you must meet the minimum allowable clear-
ance between mantel shelf and top of rebox
opening shown in Figure 5, page 9. These are
the minimum allowable mantel clearances for
a safe installation. Use larger clearances wher-
ever possible to minimize the heating of objects
and materials placed on the mantel.
CAUTION: Do not allow
-
-
Follow all minimum clearances
NOTICE: If your installation does
notmeettheminimumclearances
shown, you must do one of the
-
www.fmiproducts.com
123492-01F 9
66 7/8"
72 7/8"
47 3/8"
52 1/2"
INSTALLATION
Continued
BUILT-IN FIREBOX INSTALLATION
Built-in installation of this rebox involves
installing rebox into a framed-in enclosure.
This makes the front of rebox ush with wall.
Optional brass trim accessories are available
(see Accessories, page 14). The brass trim
will extend past sides of rebox approximately
1/2". This will cover the rough edges of the
wall opening. If installing a mantel above the
rebox, you must follow the clearances shown
in Figure 5. Follow the instructions below to
install the rebox in this manner.
1. Frame in rough opening. The firebox
framing should be constructed of 2 x 4
lumber or heavier. Use dimensions in the
table and rough opening layout in Figure
6a. Adjust framing so that rebox ushes
with nished wall surface. If installing in a
corner, use dimensions in Figures 6b for
rough opening.
2. Install gas piping to rebox location. See
Installing Gas Line,page 10 and Con-
necting to Gas Supply in log set owner’s
manual.
3. Carefully set rebox in front of rough open-
ing with back of rebox inside wall open-
ing. IMPORTANT: If installing a perimeter
trim kit, see instructions included with
trim accessory. You must install shoulder
screws from trim kit now.
4.
Carefully insert rebox into rough opening.
5. Attach rebox to wall studs using nails
or wood screws through holes in nailing
ange (see Figure 7, page 10).
6. If using an optional perimeter trim kit,
install the trim after nal nishing and/or
painting of wall. See instructions included
with trim accessory for attaching trim.
7. Install and properly test gas log heater.
Follow installation instructions included
with the vent-free gas log heater that is
being installed.
IMPORTANT: When nishing your rebox,
combustible materials such as wall board,
gypsum board, sheet rock, drywall, plywood,
etc. may be butted up next to the sides and top
of the rebox. Combustible materials should
never overlap the rebox front facing.
Figure 5 - Minimum Mantel Clearances
for Built-In Installation
Supplied
Firebox Hood
Must Be Used
at All Times
Wire-mesh
Screen
Firebox
Noncombustible
Material May
Project Off this
Surface above
the Firebox Hood
Mantel Shelf
Note: Any portion of the
mantel shelf must NOT
extend beyond this profile.
12" 16" 20"
1
1
/
2
"
6
3
/
4
"
12"
Note: All vertical
measurements are
from top of fireplace
hood opening to
bottom of mantel shelf.
These minimum
clearances replace any
other recommended
clearances supplied
with your ANSI Z21.11.2
approved gas logs.
Wa ll board or facing
material (above
firebox) may be of
combustible material,
including decorative
mantel ornaments or
other similar projec-
tions off of the facing
material.
Framing
Material
Built-in Installation
Model
Front Width
(Inside to Inside) Height
Depth
(Min.)
36" 38 1/4"37 5/8" 22"
42" 44 1/4"37 5/8" 22"
Figure 6 - Rough Opening for Installing
in Wall
Depth
(Minimum)
Width
(Inside to Inside)
Height
Figure
6a
Figure
6b
www.fmiproducts.com 123492-01F10
WARNING: Do not allow any
IMPORTANT: Noncombustible materials such
as brick, tile, etc. may overlap the front facing,
but should never cover any necessary open-
ings like louvered slots.
WARNING: Do not allow
WARNING: Use only non-
-
INSTALLATION
Continued
Figure 7 - Attaching Firebox to Wall
Studs
Nailing
Flanges
Nails or
Wood
Screws
Figure 8 - Installing Gas Line and
Equipment Shutoff Valve (Model May
Vary From Illustration)
Knockout
Locations
(Knock Out
One Hole)
Gas Line Hole
Equipment Shutoff
Valves (Install One)
INSTALLING FIREBOX USING
OPTIONAL ACCESSORY MANTELS
-
This rebox may be installed using a cabinet
mantel accessory against a wall in your
home. The rebox and cabinet mantel can
be installed directly on the oor. A trim kit is
included with the mantel accessories. Follow
instructions with mantel for installation.
INSTALLING GAS LINE
-
IMPORTANT: See Connecting to Gas Supply
in your log set owner’s manual for details on
gas hookup.
You may run the gas line from either side of
the rebox (see Figure 9). Decide which side
you want to run the gas line from.
Note: This is one option for installing shutoff
valve. Check local codes for equipment shut-
off valve location requirements.
www.fmiproducts.com
123492-01F 11
INSTALLATION
Continued
Figure 9 - Location of Knockout for Gas
Line
INSTALLING FIREPLACE HOOD
Attach hood to rebox using screws provided
(see Figure 10).
Figure 10 - Screw and Hood Placement
(Model May Vary From Illustration)
Screws
Hood
1/2" Thick Liner
Side View
Firebrick Side Wall
Knockout Remove
This Area
USING OPTIONAL FIBER PANELS
There is a gas knockout in each side panel
for the gas line to feed through. Determine on
which side the gas connection will be located.
Using a utility knife or cutting blade, remove
the identied gas knockout.
CAUTION: Do not use ex-
cessive force to remove the
www.fmiproducts.com 123492-01F12
PARTS
10
13
13 23
4
3
2
1
12
5
14
18
7
9
22
20
21
20
17
16
15
11
8
6
19
24
26
25
24
www.fmiproducts.com
123492-01F 13
KEY
DESCRIPTION
1 ** Insulation Pan •••••••• 1
2 ** Air Spacer •••••••• 1
3 ** Firebox Top •••••••• 1
4 111431-01 Air Deector • • • • 1
108302-01 Air Deector • • • • 1
5 ** Fireplace Top •••••••• 1
6 ** Firebox Wrapper •••••••• 1
7 ** Outer Wrapper/Insulation Assembly •••••••• 1
8 ** Firebox Floor •••••••• 1
9 ** Wrapper Bottom •••••••• 1
10 ** Front Face Weldment, Smooth • • • • 1
** Front Face Weldment, Louvered • • • • 1
11 21198 Blower Access Plate • • • • • • • • 1
12 ** Top Insulation •••••••• 1
13 123495-01 Bracket •••••••• 2
14 20280 Top Standoff •••• 4
106959-01 Top Standoff •••• 4
15 11418 Push-On Nut •••••••• 2
16 107127-01 Screen •••• 2
108424-01 Screen •••• 2
17 20806 Screen Rod •••• 2
108780-01 Screen Rod •••• 2
18 ** Side Damper Weldment •••••••• 1
19 107128-01 Gas Conduit •••••••• 4
20 ** Firebox Legs Rear •••••••• 2
21 ** Firebox Leg, Left •••••••• 1
22 ** Firebox Leg, Right •••••••• 1
23 123494-01 Hood •••• 1
123494-02 Hood •••• 1
24 124483-01 Side Refractory ••••2
25 124484-01 Rear Refractory • • 1
124485-01 Rear Refractory • • 1
26 20027 Refractory Bracket ••••2
** Not a eld replaceable part
PARTS
This list contains replaceable parts used in your rebox. When ordering parts, follow the
instructions listed under Replacement Parts on page 14 of this manual.
BV42B
BV42LB
www.fmiproducts.com 123492-01F14
REPLACEMENT PARTS
NOTICE: All accessories may
Purchase these accessories from your local
dealer. If they can not supply these accessories
call FMI PRODUCTS, LLC at 1-866-328-4537
for information. You can also write to the ad-
dress listed on the back page of this manual.
Creates the sound of a real burning re.
Note: Use only original replacement parts.
This will protect your warranty coverage for
parts replaced under warranty.
PARTS UNDER WARRANTY
Contact authorized dealers of this product.
If they can’t supply original replacement
part(s), call FMI PRODUCTS, LLC at
1-866-328-4537.
When calling, have ready:
• your name
• your address
• model and serial numbers of your heater
• how heater was malfunctioning
• purchase date
Usually, we will ask you to return the part to
the factory.
PARTS NOT UNDER WARRANTY
Contact authorized dealers of this product.
If they can’t supply original replacement
part(s), call FMI PRODUCTS, LLC at
1-866-328-4537 for referral information. A
list of authorized dealers can be found by
visiting
When calling FMI PRODUCTS, LLC, have
ready:
• model and serial numbers of your heater
• the replacement part number
TEChNICAL SERVICE
You may have further questions about
installation, operation, or troubleshooting.
If so, contact FMI PRODUCTS, LLC at
1-866-328-4537.
When calling please have your model and
serial numbers of your heater ready.
You can also visit FMI PRODUCTS, LLC’s
web site at .
ACCESSORIES
OUTSIDE AIR KIT
AK4 - Complete Kit w/ Collar, Hood & 3' of
Flex Tube
Optional kit provide additional air to reduce
build-up of condensation that occurs in
today’s tightly constructed homes.
RUNNING BOND CERAMIC FIBER
BRICK LINER KITS
- 36" Liner Kit
BLB42SF - 42" Liner Kit
RUNNING BOND REFRACTORY
BRICK LINER KITS
- 36" Liner Kit
BLB42SR - 42" Liner Kit
www.fmiproducts.com
123492-01F 15
_____________________________________________________
______________________________________________________
______________________________________________________
______________________________________________________
______________________________________________________
______________________________________________________
______________________________________________________
______________________________________________________
______________________________________________________
______________________________________________________
______________________________________________________
______________________________________________________
______________________________________________________
_____________________________________________________
______________________________________________________
______________________________________________________
______________________________________________________
______________________________________________________
______________________________________________________
______________________________________________________
______________________________________________________
______________________________________________________
______________________________________________________
______________________________________________________
______________________________________________________
______________________________________________________
_____________________________________________________
______________________________________________________
______________________________________________________
______________________________________________________
______________________________________________________
______________________________________________________
______________________________________________________
______________________________________________________
______________________________________________________
NOTES
123492-01
Rev. F
03/10
WARRANTy
KEEP ThIS WARRANTy
FMI PRODUCTS, LLC LIMITED WARRANTIES
New Products
Standard Warranty: FMI PRODUCTS, LLC warrants this new product and any parts thereof to be free from defects
in material and workmanship for a period of four (4) years from the date of rst purchase from an authorized dealer
provided the product has been installed, maintained and operated in accordance with FMI PRODUCTS, LLC’s
warnings and instructions.
For products purchased for commercial, industrial or rental usage, this warranty is limited to 90 days from the date
of rst purchase.
Factory Reconditioned Products
Limited Warranty: FMI PRODUCTS, LLC warrants factory reconditioned products and any parts thereof to be
free from defects in material and workmanship for 30 days from the date of rst purchase from an authorized dealer
provided the product has been installed, maintained and operated in accordance with FMI PRODUCTS, LLC’s
warnings and instructions.
Terms Common to All Warranties
The following terms apply to all of the above warranties:
Always specify model number and serial number when contacting the manufacturer. To make a claim under this
warranty the bill of sale or other proof of purchase must be presented.
This warranty is extended only to the original retail purchaser when purchased from an authorized dealer, and only
when installed by a qualied installer in accordance with all local codes and instructions furnished with this product.
This warranty covers the cost of part(s) required to restore this product to proper operating condition and an allow-
ance for labor when provided by a FMI PRODUCTS, LLC Authorized Service Center or a provider approved by
FMI PRODUCTS, LLC. Warranty parts must be obtained through authorized dealers of this product and/or FMI
PRODUCTS, LLC who will provide original factory replacement parts. Failure to use original factory replacement
parts voids this warranty.
Travel, handling, transportation, diagnostic, material, labor and incidental costs associated with warranty repairs,
unless expressly covered by this warranty, are not reimbursable under this warranty and are the responsibility of
the owner.
Excluded from this warranty are products or parts that fail or become damaged due to misuse, accidents, improper
installation, lack of proper maintenance, tampering, or alteration(s).
This is FMI PRODUCTS, LLC’s exclusive warranty, and to the full extent allowed by law; this express warranty
excludes any and all other warranties, express or implied, written or verbal and limits the duration of any and all
implied warranties, including warranties of merchantability and tness for a particular purpose to four (4) years on
new products and 30 days on factory reconditioned products from the date of rst purchase. FMI PRODUCTS, LLC
makes no other warranties regarding this product.
FMI PRODUCTS, LLC’s liability is limited to the purchase price of the product, and FMI PRODUCTS, LLC shall not
be liable for any other damages whatsoever under any circumstances including indirect, incidental, or consequential
damages.
Some states do not allow limitations on how long an implied warranty lasts or the exclusion or limitation of incidental
or consequential damages, so the above limitation or exclusion may not apply to you.
This warranty gives you specic legal rights, and you may also have other rights which vary from state to state.
For information about this warranty contact:
Model (
located on product or identication tag
) _____________________________
Serial No. (
located on product or identication tag
) __________________________
Date Purchased __________________________
Keep receipt for warranty verication.
2701 S. Harbor Blvd.
Santa Ana, CA 92704
1-866-328-4537
www.fmiproducts.com
This manual suits for next models
11
Table of contents
Other FMI Indoor Fireplace manuals
FMI
FMI GL36St Quick start guide
FMI
FMI ELIMINATOR 36E User manual
FMI
FMI DVF32TMHPN-LS User manual
FMI
FMI S36 Series Quick start guide
FMI
FMI (V)KC36N series Quick start guide
FMI
FMI (V)GL36PN Safety guide
FMI
FMI FSF32NRWS User manual
FMI
FMI VT32EN-A Series User manual
FMI
FMI DVF-36NLT-D User manual
FMI
FMI Deluxe II 36 ECM II Installation instructions
FMI
FMI VVC36N Quick start guide
FMI
FMI GL36PN Quick start guide
FMI
FMI C42MW-LS Quick start guide
FMI
FMI VT32N-A Quick start guide
FMI
FMI P324E Quick start guide
FMI
FMI C36 Quick start guide
FMI
FMI CCAT36 Series Quick start guide
FMI
FMI EL TORO User manual
FMI
FMI COMPACT HEAT MAJIC FMH26TN Quick start guide
FMI
FMI VGM Series Quick start guide
Popular Indoor Fireplace manuals by other brands
Saey
Saey Fenix 60 Optic Operation manual
Twin-Star International
Twin-Star International 26MM4155 Instruction manual enclosed
Duraflame
Duraflame 48HF201CGT instructions
Desa
Desa CDCFPR OWNER'S OPERATION AND INSTALLATION MANUAL
Majestic
Majestic MARQUIS MARQ36IN-B installation manual
Enviro
Enviro Westley-820 owner's manual
Napoleon
Napoleon GL24NE Installation and operating instructions
Empire
Empire B3RSTHK18N Installation instructions and owner's manual
Heatilator
Heatilator G136 Owner's manual and installation instructions
Amantii
Amantii TRD Series Fixing instructions
Travis Industries
Travis Industries Maverick owner's manual
Comfortec
Comfortec C36MN Installation and operating instructions
Style selections
Style selections 88294 user manual
baltur
baltur BGN 300 DSPGN ME INSTALLATION, USE AND MAINTENANCE INSTRUCTION MANUAL
Amantii
Amantii INS-FM-30 quick start guide
Muskoka
Muskoka MEF2803CCHB Assembly instructions
Frigidaire
Frigidaire Dallas DSF-1/0302 Important instructions & operating manual
FLAMEN
FLAMEN SIGMA Series Installation and operation instructions for fireplace inserts
