Focal Point 23UG37-I9V User manual

©2019 Focal Point Fires plc.
Please note: Except where otherwise stated, all rights,
including copyright in the text, images and layout of this
booklet is owned by Focal Point Fires plc. You are not
permitted to copy or adapt any of the content without
the prior written permission of Focal Point Fires plc.
1
All instructions must be handed to the user for
safekeeping.
Revision C - 08/19
MICROWAVE OVEN
Owner’s Instructions GB IE
Focal Point Fires plc.
Christchurch, Dorset BH23 2BT
Tel: [phone]
Fax: [phone]
www.focalpointfires.co.uk
e : [email protected].uk
MODELS COVERED BY THESE INSTRUCTIONS
23UG37-I9V MICROWAVE OVEN

Section Contents Page No.
1.0 Safety Precautions 2
2.0 Installation 3
3.0 Appliance Data 4
4.0 Cleaning 7
Section Contents Page No.
5.0 Product Instructions 8
6.0 Operating The Control Panel 9
7.0 Cooking Tips 15
8.0 Maintenance and Servicing 16
I N S T A L L A T I O N I N S T R U C T I O N S
©2019 Focal Point Fires plc.
2
1.0 SAFETY PRECAUTIONS
GB IE
The following basic precautions should always be followed when using electrical appliance:
1. Read all instructions before using.
2. Make sure the voltage in your living area corresponding to the one shown on the rating label of the appliance. And the wall
socket is properly grounded.
3. To reduce the risk of fire in the oven cavity:
a. Do not overcook the food.
b. Remove wire twist -ties from paper or plastic bags before placing bags in the oven.
c. Do not heat oil or fat for deep drying as the temperature of oil cannot be controlled.
d. After use wipe the waveguide cover with a damp cloth, followed by dry cloth to remove any food splashes and grease. Built
-up grease may overheat and begin to cause smoke or catch fire.
e. If materials inside the oven should smoke or ignite, keep oven door closed, turn oven off and disconnect the power supply.
f. When heating food in plastic or paper containers, keep an eye on the oven due to the possibility of ignition.
4. To reduce the risk of explosion and sudden boiling:
a. WARNING: Liquids and other foods must not be heated in sealed container since they are liable to explode; Baby bottles
fitted with a screw cap or teat are considered to be sealed containers.
b. Use the wide -mouthed container to cook liquid, and the cooked liquid should not be removed out immediately. Several
moments should be waited before removing. In order to avoid possible hazards caused by delayed eruptive boiling of liquids.
c. Potatoes, sausage and chestnut should be peeled or pierced before cooking. Eggs in their shell, whole hard -boiled eggs
should not be heated in microwave ovens since they may explode, even after microwave heating has ended.
d. The contents of feeding bottles and baby food jars are to be stirred or shaken and the temperature is to be checked before
consumption, in order to avoid burns.
5. If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a qualified technician in order
to avoid a shock hazard.
6. After cooking, the container is very hot. Using gloves to take out the food and avoid steam burns by directing steam away
from the face and hands.
7. Slowly lift the furthest edge of dishes cover and microwave plastic wrap and carefully open popcorn and oven cooking bags
away from the face.
8. To prevent the turntable from breaking:
a. Let the turntable cool down before cleaning.
b. Do not place hot foods or utensils on the cold turntable.
c. Do not place frozen foods or utensils on the hot turntable.
9. Make sure the utensils do not touch the interior walls during cooking.
10. Only use utensils that are suitable for use in microwave ovens.
11. Do not store food or any other things inside the oven.
12. Do not operate the oven without any liquid or food inside the oven. This would do damage the oven.
13. When the appliance is operated in the combination mode, children should only use the oven under adult supervision due to
the temperatures generated.
14. Any accessories not recommended by the manufacturer may cause injuries to persons.
15. Do not use outdoors.
16. Save these instructions.
17. WARNING: If the door or door seals are damaged or the oven is malfunctioned, the oven must not be operated until it
has been repaired by a competent person;
18. WARNING: It is hazardous for anyone other than a competent person to carry out any service or repair operation that
involves the removal of a cover which gives protection against exposure to microwave energy;
19. If smoke is emitted, switch off or unplug the appliance and keep the door closed in order to stifle any flames;
20. Microwave heating of beverages can result in delayed eruptive boiling; therefore care must be taken when handling the
container;
21. Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since they can scratch the surface,
which may result in shattering of the glass.
22. The lamp of microwave oven is not intended for other purposes.

©2019 Focal Point Fires plc.
3
23. The appliances are not intended to be operated by means of an external timer or separate remote -control system.
24. This appliance is intended to be used in household and similar applications, such as:
• Staff kitchen areas in shops, offices and other working environments;
• Farm houses;
• By clients in hotels, motels and other residential environments;
• Bed and breakfast type environments.
25. The microwave oven is intended for heating food and beverages. Drying of food or clothing and heating of warming pads,
slippers, sponges, damp cloth and similar may lead to risk of injury, ignition or fire.
26. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental
capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the
appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user
maintenance shall not be made by children unless they are older than 8 and supervised. Keep the appliance and its cord out of
reach of children less than 8 years.
27. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities,
or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by
a person responsible for their safety.
28. Children should be supervised to ensure that they do not play with the appliance.
29. A steam cleaner is not to be used.
30. The door or the outer surface may get hot when the appliance is operating.
31. WARNING: Accessible parts may become hot during use. Young children should be kept away.
32. During use the appliance becomes hot. Care should be taken to avoid touching heating elements inside the oven.
33. The surfaces are liable to get hot during use.
: CAUTION: HOT SURFACE
Household use only
1.0 SAFETY PRECAUTIONS GB IE
2.0 APPLIANCE DATA
Model 23UG37-19V
Rated voltage 220-240V
Rated power frequency 50Hz
Total capacity 23L
Input power 1400W
Output power 900W
Grill power 900-1000W
Microwave frequency 2450MHZ
Turntable diameter 267mm
Power levels 5
Microwave dimensions Width 593.5mm
Height 458.5mm
Depth 375.1mm

3.0 INSTALLATION
©2019 Focal Point Fires plc.
4
GB IE
Top air guide
Self-lock screw
M4*8(4PCS)
Figure 2
B) Installation of top air guide, as shown in Fig.2.
Screw
ST4*14(8PCS)
High foot
Figure 1
1) The position of the oven shall be such that it is far from the TV, Radio or antenna as picture disturbance, or noise may occur.
2) The appliance must be positioned so that the plug is accessible.
3) This is a cabinet microwave oven, which is subject to PRECAUTIONS and INSTALLATION below.
①PRECAUTIONS:
Given the limited room of the cabinet, the microwave oven must be installed under the following instructions so as to avoid
danger.
A) Intake and exhaust port position, as shown in Fig.4.
B) Net depth≥550mm, as shown in Fig.4.
C) Reference plate thickness between 18 and 20mm.
A) Install the high feet with self-lock screws, as shown in Fig.1

3.0 INSTALLATION - CONTINUED
©2019 Focal Point Fires plc.
5
GB IE

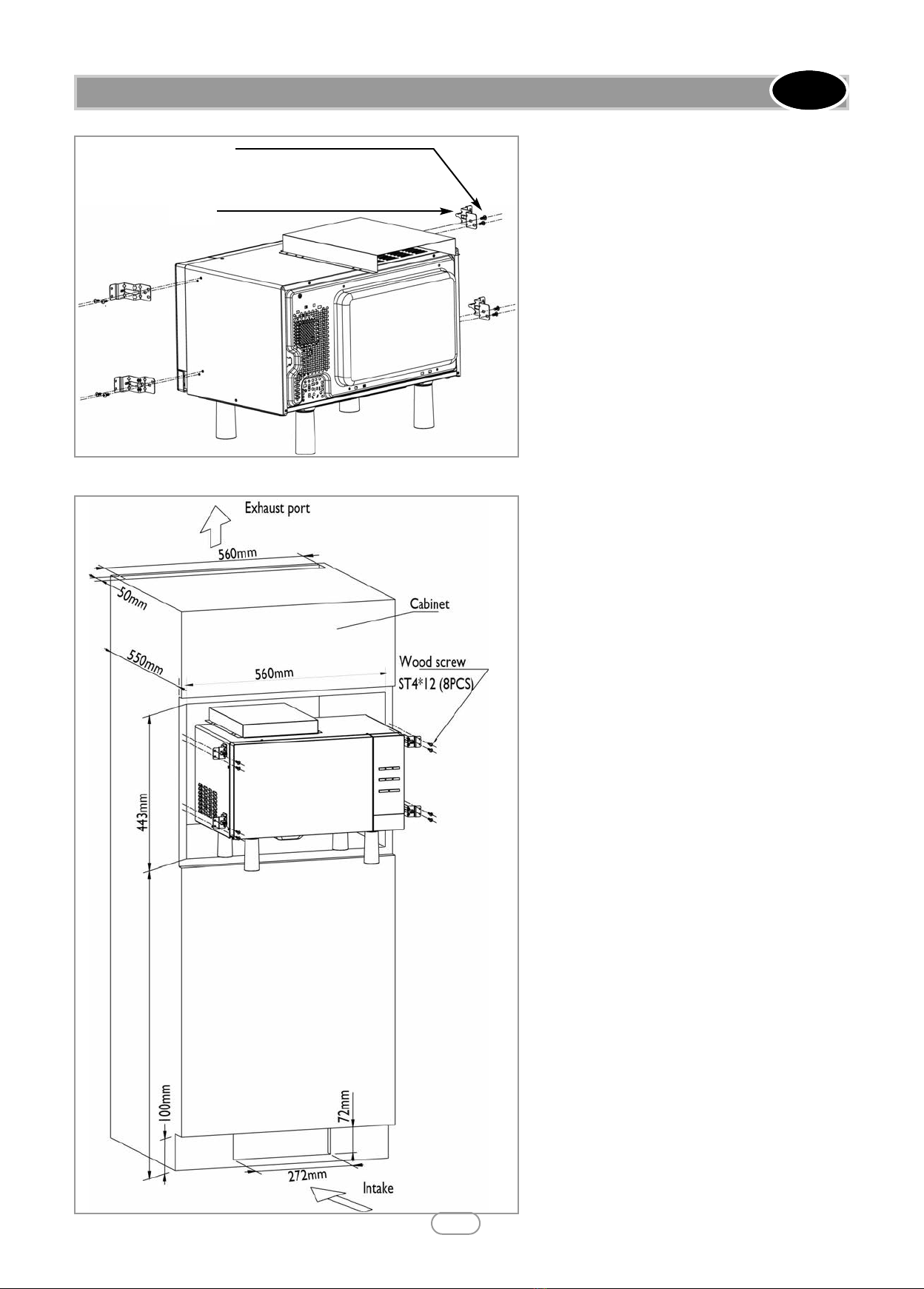

D) Place microwave oven into cabinet, and then fix it with wood screws, as shown in Fig.4
Cabinet details:
Cavity: (L) 560mm*(H) 443mm*(D) 550mm;
Intake: (L)≥272mm*(W)≥72mm
Exhaust Port: (L) ≥560mm*(W)≥50mm
Figure 4
Figure 3
Self-lock Screw
M4*8(4PCS)
Holder
C) Installation of holder, as shown in Fig.3

3.0 INSTALLATION - CONTINUED GB IE
©2019 Focal Point Fires plc.
6

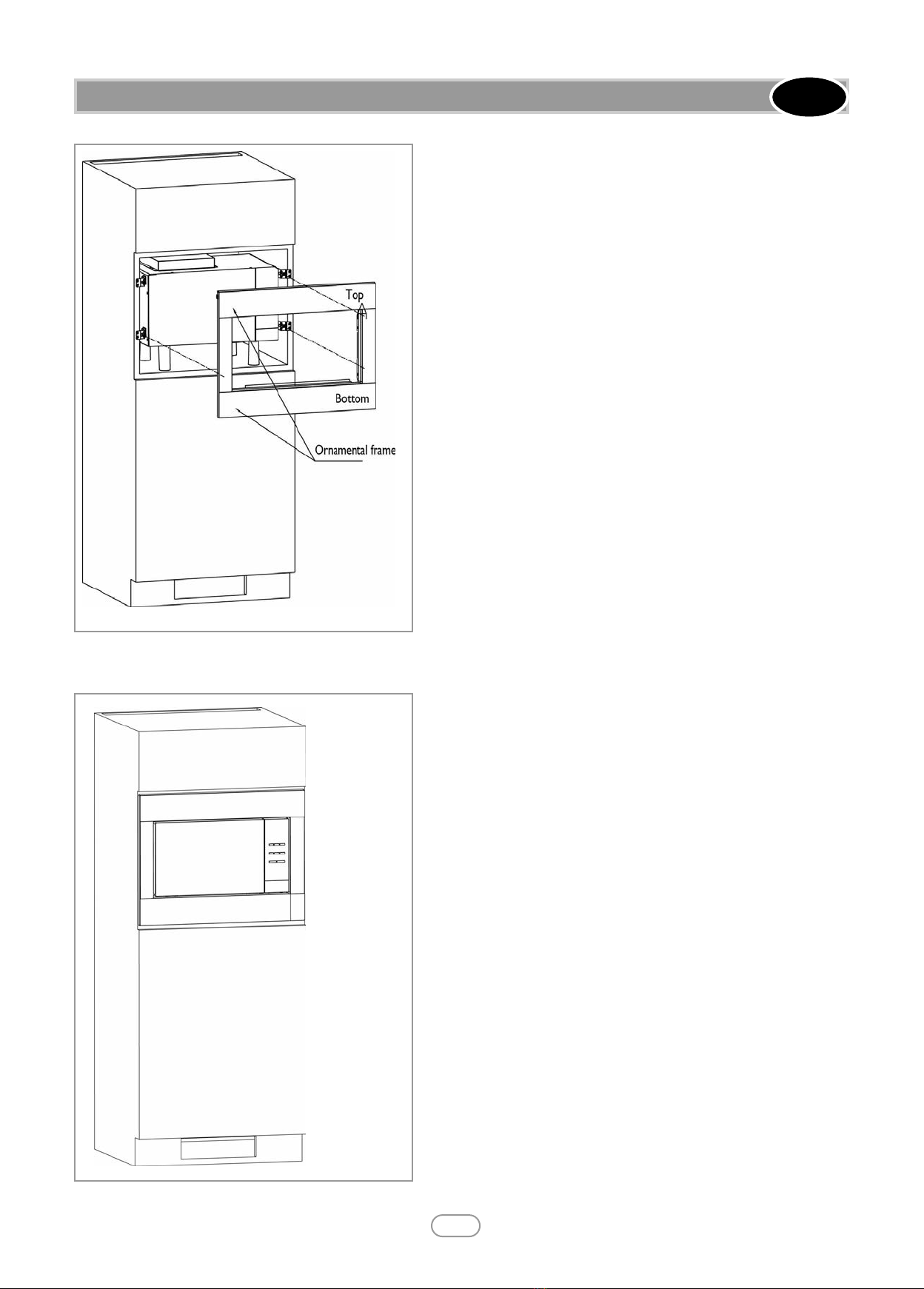

E) Secure ornamental frame to holders, as shown in Fig.5.
F) Final assembly as shown in Fig.6.
Figure 5
Figure 6

©2019 Focal Point Fires plc.
7
3.0 INSTALLATION - CONTINUED GB IE
G) Cabinet airflow chart as shown in Fig.7.
MICROWAVE OVEN CARE
CAUTION
The oven should be cleaned regularly and any food deposits removed.
WARNING
1. Remove the power cord from the wall outlet before cleaning. Don't immerse the appliance in water or other fluids when
cleaning.
2. Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life
of the appliance and possibly result in a hazardous situation
3. Never use hard detergent, gasoline, abrasive powder or metal brush to clean any part of the appliance
4. Do not remove the waveguide cover
5. When the microwave oven has been used for a long time, there may be some strange odors exist in oven, Following 3
methods can get rid of them:
a. Place several lemon slices in a cup, then heat with high Micro Power for 2-3 min.
b. Place a cup of red tea in oven, then heat with high micro power.
c. Put some orange peel into oven, and then heat them with high Micro Power for 1 minute.
6. WARNING: Only allow children to use the oven without supervision when adequate instructions have been given so that
the child is able to use the oven in a safe way and understands the hazards of improper use;
Figure 7
4.0 CLEANING

©2019 Focal Point Fires plc.
8
4.0 CLEANING - CONTINUED
TIPS FOR CLEANING
Details for cleaning door seals, cavity and adjacent parts:
Exterior:
Wipe the enclosure with a dampened soft cloth
Door:
Using a dampened soft cloth, wipe clean the door and window
Wipe the door seals and adjacent parts to remove any spill or spatter
Wipe the control panel with a slightly dampened soft cloth
Interior walls:
Wipe clean the cavity with a dampened soft cloth
Wipe clean the waveguide cover to remove any food splashed
Turntable/ Rotation ring/ Rotation axis:
Wash with mild soap water
Rinse with clean water and allow drying thoroughly
GB IE
5.0 PRODUCT INSTRUCTIONS
Figure 8
1) Door lock
Microwave oven door must be properly closed in order for it to operate
2) Viewing window
Allow user to see the cooking status
3) Rotating axis
The glass turntable sits on the axis; the motor underneath it drives the turntable to rotate
4) Rotating ring
The glass turntable sits on its wheels; it supports the turntable and helps it to balance when rotating
5)Turntable
The food sits on the turntable, its rotation during operation helps to cook food evenly
CAUTION
- Place the rotating ring first
- Fit the turntable onto the rotating axis and make sure that it is geared in properly
6) Control panel
See below in details (the control panel is subject to change without prior notice)
7) Waveguide cover
It is inside the microwave oven, next to the wall of control panel.
WARNING
Never remove the waveguide cover
8) Grill rack
Use to place the roasting food.

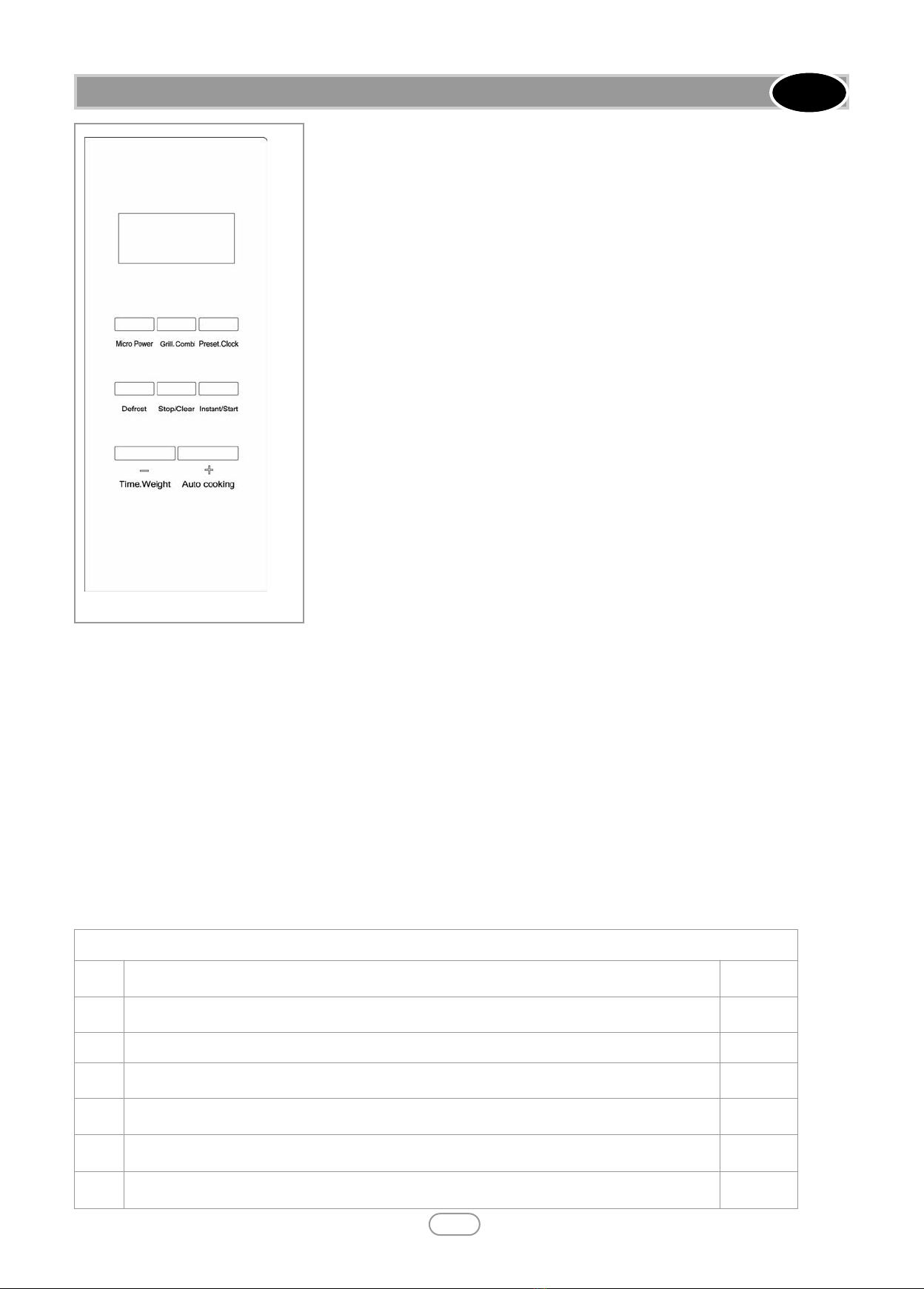

6.0 OPERATING THE CONTROL PANEL
©2019 Focal Point Fires plc.
9
GB IE
1. BEFORE COOKING
The LED flashes 3 times when plugged in power supply. Then it flashes “:”, prompting you to input the cooking menu and time.
2. AUTO COOKING/TIME.WEIGHT BUTTON
You can increase or decrease cooking time, weight or set auto cooking menu during operation by pressing Auto Cooking/
Time.Weight button.
3. STOP/CLEAR
At the initial or input stage: press once to cancel input programs and resume initial stage.
During cooking: press once to stop oven operation, press twice to cancel cooking programs.
4. AUTO REMINDER
When your preset cooking procedure have finished, the LED Display will show End and three beeps sound will be heard to
prompt you to take out food. If you do not press Stop/Clear button once or open the door, the beep will be sounded at an
interval of 3 minutes.
5. CLOCK SETTING
Clock button make it available for you to input current or preset time. When “:” flashes onto LED display after plugged in, or
try to skip it over to continue if unnecessary.
Example: to set 12:30
Steps Display
1After power-up, the colon flashes :
2Press Preset. Clock button once 0:00
3Press Auto Cooking/Time Weight button to set exact hours. 12:00
4Press Preset. Clock button once again. 12:00
5Press Auto Cooking /Time Weight button to set exact minutes. 12:30
6Press Preset. Clock button once again or wait for 5 seconds, and the numbers will go steadily.
Figure 9

©2019 Focal Point Fires plc.
10
6.0 OPERATING THE CONTROL PANEL - CONTINUED GB IE
6. MICROWAVE COOKING
This function is used for cooking and heating food. Press Micro Power button, LED cycles to show 100P — 80P — 60P —
40P — 20P.
CAUTION
a. The max time which can be set is 60 minutes
b. Never operate the oven empty.
c. Never use the grill rack during microwave cooking.
d. If you turn the food during operation, press the Instant/Start button once and the preset cooking procedure will continue.
e. If you intend to remove the food before the preset time, you must press Stop/Clear button once to clear the preset
procedure to avoid unintended operation of next time use.
f. At the maximum microwave power, the oven will automatically lower the power after a certain time of cooking to lengthen
the service life.
7. GRILL AND GRILL COMBINATION
This function use for grill food, Press this button LED display will cycle to show G-C.1-C.2.
CAUTION
In the mode of grill/combi, all of the oven parts, as well as the rack and cooking containers, may become very hot. Use caution
when removing any item from the oven. Use heavy potholders or oven mitts to PREVENT BURNS.
High power 100% microwave power. Applicable for quick and thorough cooking
Medium
high power
80% microwave power. Applicable for medium express cooking
Medium
power
60% microwave power. Applicable for steaming food
Medium low
power
40% microwave power. Applicable for defrosting food
Low
power
20% microwave power. Applicable for keeping warm
Example: To cook at P80 for 10 minutes.
Steps Display
1After power-up, the colon flashes :
2Select the desired microwave power by pressing Micro Power button consecutively 80P
3Set cooking time by pressing Auto Cooking/Time Weight button 10:00
4Press Instant/Start button to start and LED will count down to show running time.
GGrill, the heat element will be energized during operation time. Which is applicable for rolling
thin meats or pork, sausage, chicken wing as good brown colour can be obtained
C.1 Combination of grill and microwave cooking. 30% of time microwave output and 70% of time
grilling
C.2 Combination of grill and microwave cooking. 55% of time microwave output and 45% of time
grilling

6.0 OPERATING THE CONTROL PANEL - CONTINUED GB IE
©2019 Focal Point Fires plc.
11
8. DEFROST
This function use for defrost food; Press the Defrost button and the LED display will cycle to show d.1-d.2-d.3.
CAUTION
a. It is necessary to turn over the food during operation to obtain uniform effect.
b. Usually defrosting will need longer time than that of cooking the food.
c. If the food can be cut by knife, the defrosting process can be considered completed.
d. Microwave penetrates around 4cm into most food
e. Defrosted food should be consumed as soon as possible, it is not advised to put back to fridge and freeze again.
Example: To grill food with C2 cook menu for 10 minutes
Steps Display
1After power-up, the colon flashes :
2Press Grill .Combi button to select desired grill menu C.2
3Set cooking time by pressing Time. Weight/Auto cooking button 10:00
4Press Instant/Start to start cooking
D.1 For defrosting meat, the weight range from 0.1 to 2.0 kg.
D.2 For defrosting poultry, the weight range from 0.2 to 3.0kg.
D.3 For defrosting seafood, the weight range from 0.1 to 0.9kg.
Example: To defrost 0.4kg poultry
Steps Display
1After power-up, the colon flashes :
2Press Defrost button to set the food kind. D.2
3Press Auto Cooking/Time Weight button to set the defrost weight 0.4
4In half way during defrosting beep sounds will be heard to prompt you turn over the food.
Open the door and turn over the food. Then close the door. Press Instant/start button again
to continue defrosting

6.0 OPERATING THE CONTROL PANEL - CONTINUED GB IE
©2019 Focal Point Fires plc.
12
9. AUTO COOKING
The oven has default cooking menu for simple operation. When the LED flash colon, press the Auto Cooking button and LED
will cycle to show A.1, A.2 …… A.8
Choose the appropriate menu according to the food type and weight and strictly observe the directions in below table,
otherwise the cooking effect will be largely influenced.
CAUTION
a. The temperature of food before cooking would be 20-25℃. Higher or lower temperature of the food before cooking would
require increase or decrease of cooking time.
b. The temperature, weight and shape of food will largely influence the cooking effect. If any deviation has been found to the
factor noted on above menu, you can adjust the cooking time for best result.
Display Kind Method
A1 Popcorn Suitable for popping a bag of corn, which is available in the market, weighted
3.0Oz(85g). Popcorn prior to completing, if the popping speed has been decreased
to 1 time per 1-2 seconds you should press Stop/Clear button to stop the
popping process
A2 Popcorn Same as A.1 except 3.5Oz(100g) weight
A3 Pizza Warm a piece of chilled pizza of 0.15 kg
A4 Beverage Heating a cup of 250 ml liquid. The liquid temperature is about 5-10℃. Use a big
mouth cup and do not seal
A5 Beverage Heating a cup of 500 ml liquid. The liquid temperature is about 5-10℃. Use a big
mouth cup and do not seal
A6 Potato Cooking the potato strips, cut into 5mm width and height, length. Total weight is
about 0.45kg. Place the strips on a large dish and cover the dish with a thin film
to prevent water loss
A7 Potato Same as A.6 except the weight of potato strips is about 0.65 kg
A8 Fish Suitable for steaming a fish of 0.45kg. After the fish washed and scales removed,
make a slits on the skin of fish .Put the fish on a shallow dish of 22-27cm diameter
sprinkle lightly with some ingredient and cover the dish with a thin film to prevent
water loss. After cooking, stand for 2 minutes.
Example: Steam 0.45kg fish
Steps Display
1After power-up, the colon flashes :
2Press Auto Cooking/Time Weight button to set the cooking menu A:8
3Start cooking by pressing Instant/Start button and LED will count down to show running
time.
0.4

6.0 OPERATING THE CONTROL PANEL - CONTINUED GB IE
©2019 Focal Point Fires plc.
13
10. AUTOMATIC STARTING (DELAYED FUNCTION)
If you do not want the menu be started immediately, you can preset the cooking menu and time and the preset menu will be
automatically started at your set time. The setting will consist of 2 steps:
●Setting the current clock;
●Setting the cooking menu and time.
Example: Now it is 12:30 clock, if you hope that the microwave oven will automatically start cooking
with 100P microwave power for 9 minutes and 30 seconds at 14:20
Steps Display
1After power-up, the colon flashes :
1.1 Press Preset. Clock button 0:00
1.2 Set hours by pressing Auto Cooking/Time Weight button 12:00
1.3 Press Preset. Clock button again to confirm hours 12:00
1.4 Set minutes by pressing Auto Cooking/Time Weight button 12:30
1.5 Press Preset. Clock button once or waiting for 5 seconds, and the numbers will go steady. 12:30
2Set the cooking menu and time
2.1 Select cooking power by pressing Micro Power button 100P
2.2 Press Auto Cooking /Time Weight button to set cooking time 9:30
2.3 Press and hold Preset. Clock button for 3 seconds to return to current clock.
3Set the time you expect to start. Repeat the steps of 1.2, 1.3, 1.4
4Press Preset. Clock button to confirm the delayed menu. Now the program has been
activated. And the menu will be started at 14:20.
5You may check the preset starting time by pressing Preset. Clock button.

6.0 OPERATING THE CONTROL PANEL - CONTINUED GB IE
©2019 Focal Point Fires plc.
14
11. MULTI-SEQUENCE COOKING
To obtain best cooking result, some recipes call for different cook mode and time. You may program your personalized menu as
follow:
CAUTION
a. When microwave power cooking is finished, microwave oven will begin grilling operation automatically.
b. Max 4 sequences can be set per time, repeat the steps
12. CHILD LOCK FUNCTION
Use this feature to lock the control panel when you are cleaning or so that children can not use the oven unsupervised. All the
buttons are rendered inoperable in this mode.
1) Set lock---Hold Stop.Clear button about 3 seconds.
2) Cancel lock---Hold Stop.Clear button about 3 seconds.
Example: You want cook food with 100P microwave for 3 minutes then grill for 9 minutes. This is 2
sequence setting.
Steps Display
1100P microwave for 3min
1.1 Press Micro Power button to select power level. 100P
1.2 Press Auto Cooking/Time Weight button to set cooking time. 3:00
2Grill for 9min
2.1 Press Grill .Combi button to select desired grill menu G
2.2 Press Auto Cooking/Time Weight button to set cooking time. 9:00
3Start cooking by pressing Instant/Start

6.0 OPERATING THE CONTROL PANEL - CONTINUED
7.0 COOKING TIPS
GB IE
©2019 Focal Point Fires plc.
15
UTENSILS GUIDELINE
It is strongly recommended to use the containers which are suitable and safe for microwave cooking. Generally speaking, the
containers which are made of heat-resistant ceramic, glass or plastic are suitable for microwave cooking. Never use the metal
containers for microwave cooking and combination cooking as spark is likely to occur. You can take the reference of below
table.
Microwave Grill Combi Notes
Heat-resistant
ceramic Yes Yes Yes Never use the ceramics which are decorated with metal rim or glazed
Heat-resistant
plastic Yes No No Can not be used for long time microwave cooking
Heat-resistant
glass Yes Yes Yes
Plastic film Yes No No It should not be used when cooking meat or chops as
the over-temperature may do damage to the film
Grill rack No Yes Yes
Metal container No No No It should not be used in microwave oven .Microwave
can not penetrate through metal.
Lacquer No No No Poor heat-resistant. Can not be used for
High-temperature cooking
Bamboo wood
and paper No No No Poor heat-resistant. Can not be used for High-temperature cooking
The following factors may affect the cooking result:
Food arrangement
Place thicker areas towards outside of dish, the thinner part towards the centre and spread it evenly. Do not overlap if
possible.
Cooking time length
Start cooking with a short time setting, evaluate it after it times out and extend it according to the actual need. Over cooking
may result in smoke and burns.
Cooking food evenly
Food such as chicken, hamburger or steak should be turned once during cooking.
Depending on the type of food, if applicable, stir it from outside to centre of dish once or twice during cooking
Allow standing time
After cooking times out, leave the food in the oven for an adequate length of time, this allows it to complete its cooking cycle
and cooling it down in a gradual manner
Whether the food is done
Colour and hardness of food help to determine if it is done, these include:
- Steam coming out from all parts of food, not just the edge
- oints of poultry can be moved easily
- Pork or poultry shows no signs of blood
- Fish is opaque and can be sliced easily with a fork

7.0 COOKING TIPS - CONTINUED GB IE
Browning dish
When using a browning dish or self-heating container, always place a heat-resistant insulator such as a porcelain plate under it
to prevent damage to the turntable and rotating ring.
Microwave safe plastic wrap
When cooking food with high fat content, do not allow the plastic wrap come into contact with food as it may melt
Microwave safe plastic cookware
Some microwave safe plastic cookware might not be suitable for cooking foods with high fat and sugar content. Also, the
preheating time specified in the dish instruction manual must not be exceeded
Microwave safe plastic cookware
Some microwave safe plastic cookware might not be suitable for cooking foods with high fat and sugar content. Also, the
preheating time specified in the dish instruction manual must not be exceeded
Please check the following before calling for services.
1. Place one cup of water (approx.150ml) in a glass measure in the oven and close the door securely. Oven lamp should go off
if the door is closed properly. Let the oven work for 1 min.
2. Does the oven lamp light?
3. Does the cooling fan work?
(Put your hand over the rear ventilation openings.)
4. Does the turntable rotate?
(The turntable can rotate clockwise or counter clockwise. This is quite normal.)
5. Is the water inside the oven hot?
If “NO” is the answer to any of the above questions, please check your wall socket and the fuse in your meter box.
If both the wall socket and the fuse are functioning properly, CONTACT YOUR NEAREST SERVICE CENTER APPROVED.
SERVICING SAFEGUARDS
CAUTION: MICROWAVE RADIATION
1. The high voltage capacitor remains charge after disconnection; short the negative terminal of H. V capacitor to the oven
chassis (use a screwdriver) to discharge before touching.
2. During servicing below listed parts are liable to be removed and give access to potentials above250V to earth.
●Magnetron
●High voltage transformer
●High voltage capacitor
●High voltage diode
●High voltage fuse
3. The following conditions may cause undue microwave exposure during servicing.
Improper fitting of magnetron;
Improper matching of door interlock, door hinge and door;
Improper fitting of switch support;
Door, door seal or enclosure has been damaged.
Correct Disposal of this product
This marking indicates that this product should not be disposed with other household wastes throughout the EU. To
prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to
promote the sustainable reuse of material resources. To return your used device, please use the return and collection
systems or contact the retailer where the product was purchased. They can take this product for environmental safe
recycling.
8.0 MAINTENANCE AND SERVICING
©2019 Focal Point Fires plc.
16
F861379
