Focal FP Dual Monitor User manual

In order to validate your guarantee, please fill out and return the last page of this document
within 10 days of purchase :
Focal-JMlab - P 374 - 108 rue de l’avenir - 42353 LA TALAUDIERE cedex - France
WARNING
This symbol denotes important instructions. Non respect of these instructions may lead to serious
injuries and even fatal injuries.
CAUTION
This symbol denotes important instructions. Non respect of these instructions may lead to injury or
material damage
We thank you for choosing Focal amplifiers for your Car Audio system and for sharing our
philosophy “the Spirit of Sound”. This product offers the latest advances in Focal amplifiers. In
order to obtain the best results, we highly recommend you have your new amplifier installed by
your local Focal distributor. To maximise the use all the functionalities of your amplifier and to fully
enjoy its performance levels, we recommend that you read the entire instructions in this booklet,
as well as the Focal Dual Monitor software manual. We recommend you keep the manuals for
future reference.
FP Dual Monitor
user manual
Contents of the packaging
- 1 FP Dual Monitor amplifier
- 1 Focal Dual Manager D-ROM
- 1 FP Dual Monitor amplifier user’s manual
- 1 Focal Dual Manager software user’s guide
- 4 screws
- 4 x 40 amp fuses (spares)
- 1 controller
- 1 controller cable
(for connecting amplifier to controller)
- 1 x 5 metre long USB cable
(for connection between the amplifier and a P )
- 1 BTR key-set
- 1 quality control sheet
Due to constant technological advances, Focal reserves its right to modify specifications without notice. Images may not conform exactly to specific product.
Focal-JMlab® - BP 374 - 108, rue de l'Avenir - 42353 La Talaudière cedex - France - www.focal-fr.com
Tel. [phone] - Fax [phone]
Français page 19
notice dual monitor gb.indd 1notice dual monitor gb.indd 1 28/09/06 17:14:1528/09/06 17:14:15
All manuals and user guides at all-guides.com
all-guides.com

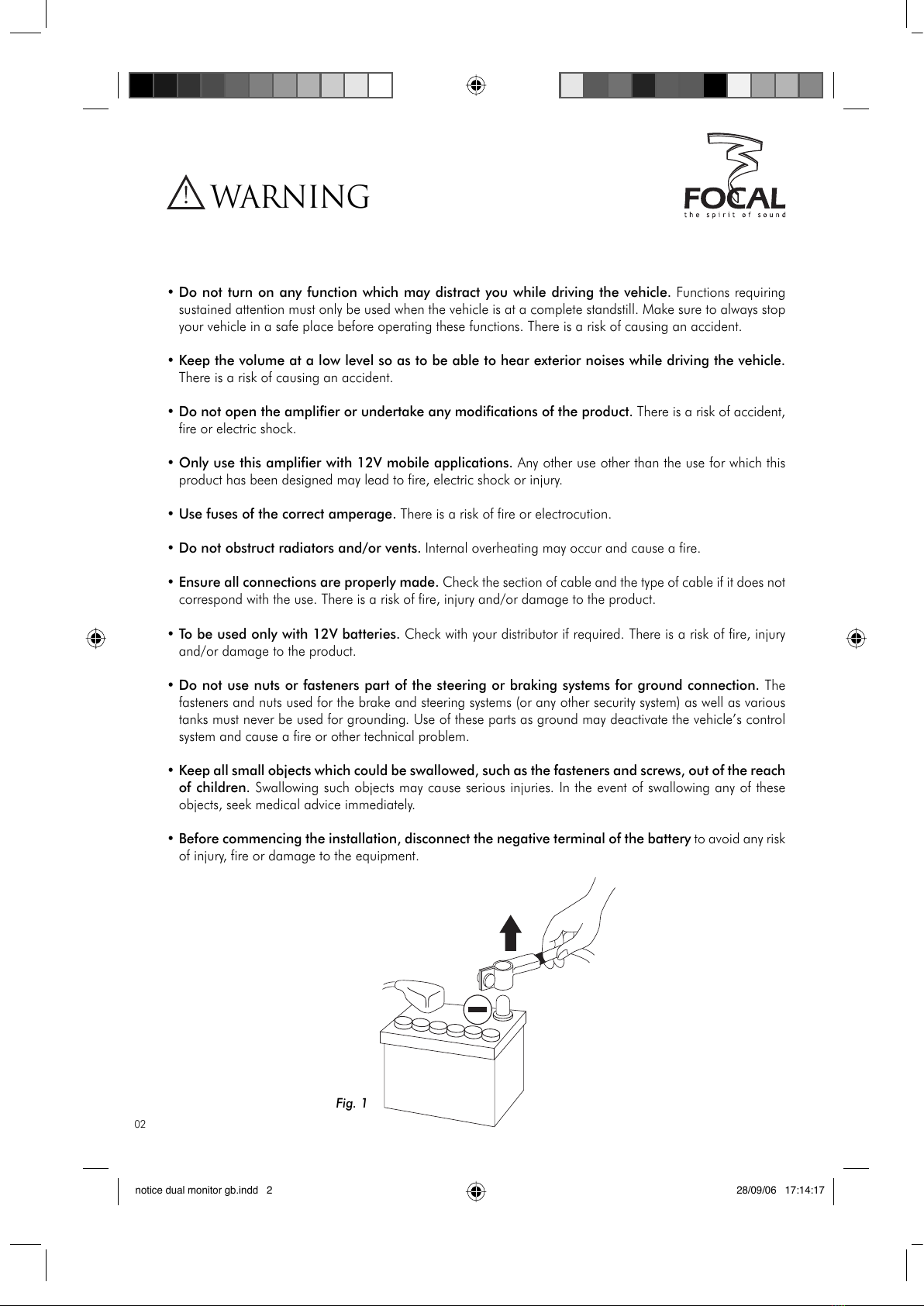

WARNING
• Do not turn on any function which may distract you while driving the vehicle. Functions requiring
sustained attention must only be used when the vehicle is at a complete standstill. Make sure to always stop
your vehicle in a safe place before operating these functions. There is a risk of causing an accident.
• Keep the volume at a low level so as to be able to hear exterior noises while driving the vehicle.
There is a risk of causing an accident.
• Do not open the amplifier or undertake any modifications of the product. There is a risk of accident,
fire or electric shock.
• Only use this amplifier with 12V mobile applications. Any other use other than the use for which this
product has been designed may lead to fire, electric shock or injury.
• Use fuses of the correct amperage. There is a risk of fire or electrocution.
• Do not obstruct radiators and/or vents. Internal overheating may occur and cause a fire.
• Ensure all connections are properly made. heck the section of cable and the type of cable if it does not
correspond with the use. There is a risk of fire, injury and/or damage to the product.
• To be used only with 12V batteries. heck with your distributor if required. There is a risk of fire, injury
and/or damage to the product.
• Do not use nuts or fasteners part of the steering or braking systems for ground connection. The
fasteners and nuts used for the brake and steering systems (or any other security system) as well as various
tanks must never be used for grounding. Use of these parts as ground may deactivate the vehicle’s control
system and cause a fire or other technical problem.
• Keep all small objects which could be swallowed, such as the fasteners and screws, out of the reach
of children. Swallowing such objects may cause serious injuries. In the event of swallowing any of these
objects, seek medical advice immediately.
• Before commencing the installation, disconnect the negative terminal of the battery to avoid any risk
of injury, fire or damage to the equipment.
02
Fig. 1
notice dual monitor gb.indd 2notice dual monitor gb.indd 2 28/09/06 17:14:1728/09/06 17:14:17
All manuals and user guides at all-guides.com

Listening for prolonged period at a high volume level, over 100dB, can lead to permanent
deterioration of your hearing. Listening at a volume of over 130dB, even for short periods of time,
can cause incurable damage and injury to your hearing.
Stop operation in the event of a problem. Failure to heed this precaution may result in injuries or damage
to the product. If a problem persists, return the product to your Focal distributor for repair.
Use the specified accessories and be sure to install them correctly. Only use the accessories specified in
the user’s manual and those which are supplied with the package. The use of other components could cause
internal damage to the product, and their installation risks to not being correctly installed. The parts being used
risk becoming loose and causing damages or technical faults with the product.
Do not assemble in very humid or dusty places. Avoid assembling the product in places with high levels of
humidity or an excessive presence of dust. Humidity or dust getting inside the product may cause a technical fault.
Installation of the amplifier
The installation of this product requires technical knowledge and experience. In case you are uncertain of your
ability to correctly install the amplifier, we strongly recommend you contact your Focal distributor to install it for
you, so that you will be able to take full advantage of all the different possibilities of the amplifier.
Wiring of the amplifier
Only use the wires recommended in this manual. The loudspeaker wire must ONLY be used for connecting the
amplifier to the loudspeakers. The section of power cables must correspond with that which is detailed in the
table (page 7) and correspond with the power of the amplifier and the length of the cable. Use double or triple
shielded R A cables to avoid any interference of the low level signal.
Duration of operation of the amplifier
Avoid operating the amplifier for more than 10 minutes before starting the vehicle. This may cause the battery
to go flat.
Warm-up period
In order to get the best sound quality of the FP Dual Monitor amplifier, we advise you to respect a
warm-up period.
CAUTION
03
notice dual monitor gb.indd 3notice dual monitor gb.indd 3 28/09/06 17:14:1728/09/06 17:14:17
All manuals and user guides at all-guides.com

Material required for the installation
• 2 conduits of suitable cross-section (1 conduit for the power cable, 1 conduit for the loudspeaker, REMOTE,
R A signal and REMOTE ONTROL cables).
• Multimeter (voltage/amperage)
• Soldering iron + solder
• rimping tool
• Stripping pliers
• Wire cutter
• Spanner for battery terminal
• Hand drill and assorted drills
• Heat shrinks of suitable diameter for the different cables.
• Power cable of suitable length and section
• Remote turn on cable (REMOTE) of suitable length and section
• Ground cable of suitable length and section
• Assorted connectors
• Fuse holder and suitable fuse
• Joint tag for the battery’s positive (+) terminal
• Joint tag for the vehicle’s chassis (-)
• Screw with minimum 6mm screw head and its nut for ground connection to the chassis of the vehicle.
FOREWORD NOTES
04
notice dual monitor gb.indd 4notice dual monitor gb.indd 4 28/09/06 17:14:1728/09/06 17:14:17
All manuals and user guides at all-guides.com

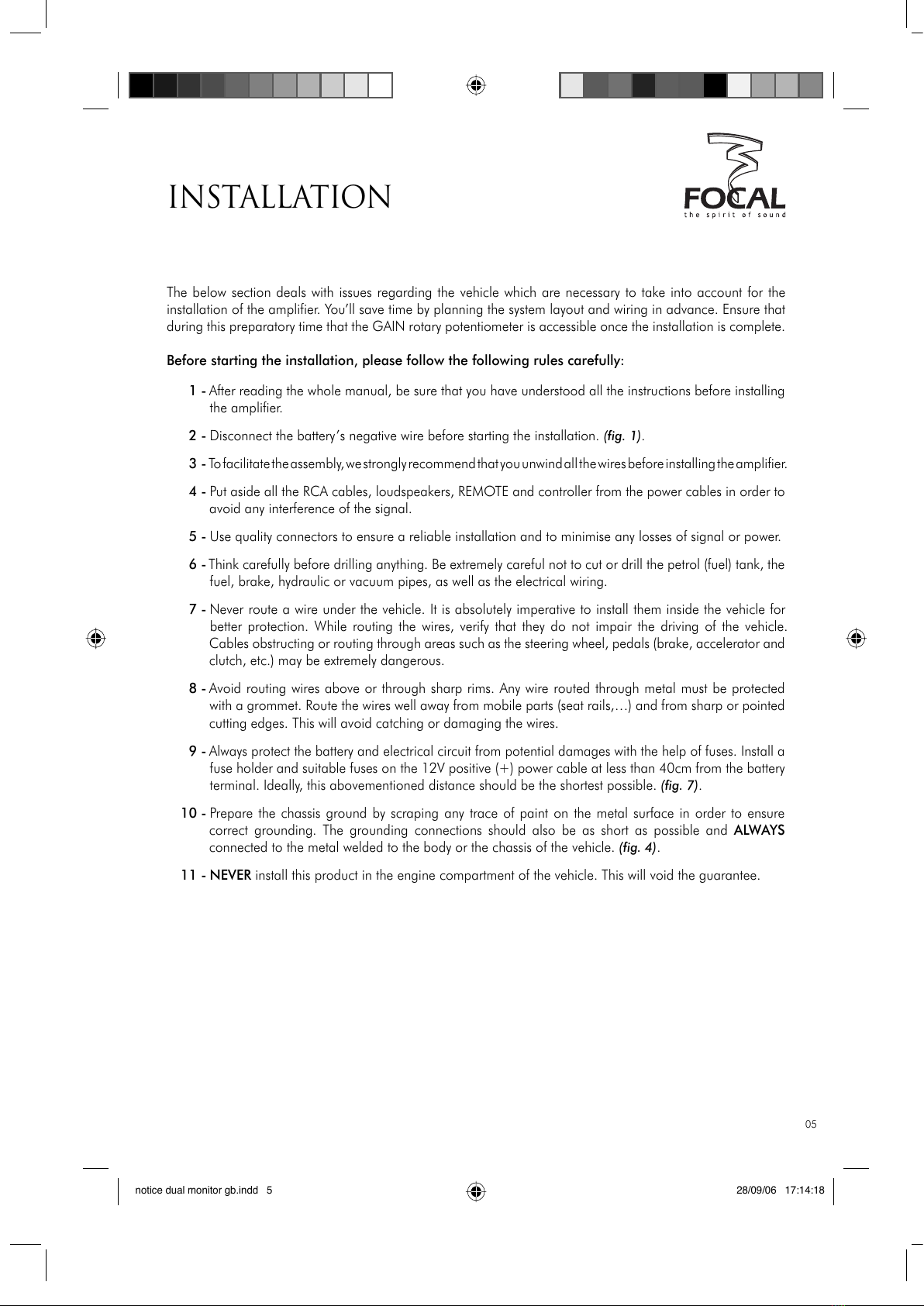

The below section deals with issues regarding the vehicle which are necessary to take into account for the
installation of the amplifier. You’ll save time by planning the system layout and wiring in advance. Ensure that
during this preparatory time that the GAIN rotary potentiometer is accessible once the installation is complete.
Before starting the installation, please follow the following rules carefully
Installation
1 - After reading the whole manual, be sure that you have understood all the instructions before installing
the amplifier.
2 - Disconnect the battery’s negative wire before starting the installation. (fig. 1).
3 -To facilitate the assembly, we strongly recommend that you unwind all the wires before installing the amplifier.
4 - Put aside all the R A cables, loudspeakers, REMOTE and controller from the power cables in order to
avoid any interference of the signal.
5 - Use quality connectors to ensure a reliable installation and to minimise any losses of signal or power.
6 -Think carefully before drilling anything. Be extremely careful not to cut or drill the petrol (fuel) tank, the
fuel, brake, hydraulic or vacuum pipes, as well as the electrical wiring.
7 - Never route a wire under the vehicle. It is absolutely imperative to install them inside the vehicle for
better protection. While routing the wires, verify that they do not impair the driving of the vehicle.
ables obstructing or routing through areas such as the steering wheel, pedals (brake, accelerator and
clutch, etc.) may be extremely dangerous.
8 - Avoid routing wires above or through sharp rims. Any wire routed through metal must be protected
with a grommet. Route the wires well away from mobile parts (seat rails,…) and from sharp or pointed
cutting edges. This will avoid catching or damaging the wires.
9 - Always protect the battery and electrical circuit from potential damages with the help of fuses. Install a
fuse holder and suitable fuses on the 12V positive (+) power cable at less than 40cm from the battery
terminal. Ideally, this abovementioned distance should be the shortest possible. (fig. 7).
10 - Prepare the chassis ground by scraping any trace of paint on the metal surface in order to ensure
correct grounding. The grounding connections should also be as short as possible and ALWAYS
connected to the metal welded to the body or the chassis of the vehicle. (fig. 4).
11 - NEVER install this product in the engine compartment of the vehicle. This will void the guarantee.
05
notice dual monitor gb.indd 5notice dual monitor gb.indd 5 28/09/06 17:14:1828/09/06 17:14:18
All manuals and user guides at all-guides.com

I - Set-up and cabling
Where to install the amplifier?
The amplifier power is such that substantial heat is generated when it is operation. This is why the amplifier has
to be placed in a well-ventilated area of the car.
2 - Attaching the amplifier
The surface onto which you want to attach the amplifier (boot of the car, etc.) may not be smooth enough (due
to bumps, ribs, etc) to make it easy or even possible to fasten the amplifier. If this is the case, we recommend
that you mount the amplifier and its attachment system on a wooden base – i.e. MDF, plywood – which itself
is attached to the surface in question.
Position the amplifier at the desired location. Mark the location of attachment holes using appropriate means
– i.e. an indelible marker, a screwdriver, etc. Make sure that there is nothing below the surface which could
be damaged during drilling – i.e. tanks, bundles of cables, etc. Remove the amplifier, making sure that you
are using a 3mm-diameter drill bit, and then drill. Put the amplifier back into the initial position you chose
for it. Attach the amplifier using the four self-tapping screws supplied. For additional help, see the “General
Installation Guidelines” section.
WARNING
Think carefully before drilling anything. Be extremely careful not to cut or drill the petrol (fuel) tank,
the fuel, brake, hydraulic or vacuum pipes, as well as the electrical wiring.
Installation
06
Fig. 2
- Screws
- Holes
- Steel base
- MDF base
notice dual monitor gb.indd 6notice dual monitor gb.indd 6 28/09/06 17:14:1828/09/06 17:14:18
All manuals and user guides at all-guides.com
all-guides.com

3 - Cabling
WARNING
If there is a doubt as to your ability to install the amplifier and to cable the system properly, get a
Focal distributor to do it for you.
WARNING
Before you begin the connection phase of set-up, remove the vehicle battery’s negative (-) terminal (fig. 1).
CAUTION
Avoid routing power supply cables close to low-level input cables (R A), to your car’s radio aerial, or to
sensitive units. High-current power supply cables can cause static/interference that affects audio signals.
CAUTION
Keep cables as short as possible to optimise the system’s set-up performance and to reduce
signal loss.
3.1 - What power supply wire gauge should I use?
Amplifier Main fuse Length of Cable in Metres
0 - 4m 4 - 8m
FP Dual Monitor 160A
35mm253mm2
2AWG* 0AWG
*AWG : American Wire Gauge
Installation
07
notice dual monitor gb.indd 7notice dual monitor gb.indd 7 28/09/06 17:14:1928/09/06 17:14:19
All manuals and user guides at all-guides.com

3.2 - Route the low-level audio cables (R A cable, coaxial and/or optic cable), the loudspeaker cables, the
POWER REMOTE cable, as well as the controller cable, ensuring to isolate them from powerful automobile
accessories, particularly electric motors (windshield wiper,…). Keep the whole length of the cables, which will
be adjusted later on.
NOTE The FP Dual Monitor amplifier has three types of input connectors for feeding the low level signal from
the source to the amplifier. It is possible to connect all the connectors between the source and the amplifier.
The selection of the type of connectors to feed the low level signal will be done later on while setting up the
parameters of the amplifier with the Focal Dual Manager software. The OAXIAL and OPTI AL digital inputs
only accept the signal in SPDIF format.
3.3 - Route the positive power cables (+). Make sure when doing so to route them opposite the cables that you
have previously drawn – this is to avoid any interference. DO NOT ONNE T THE ABLE YET.

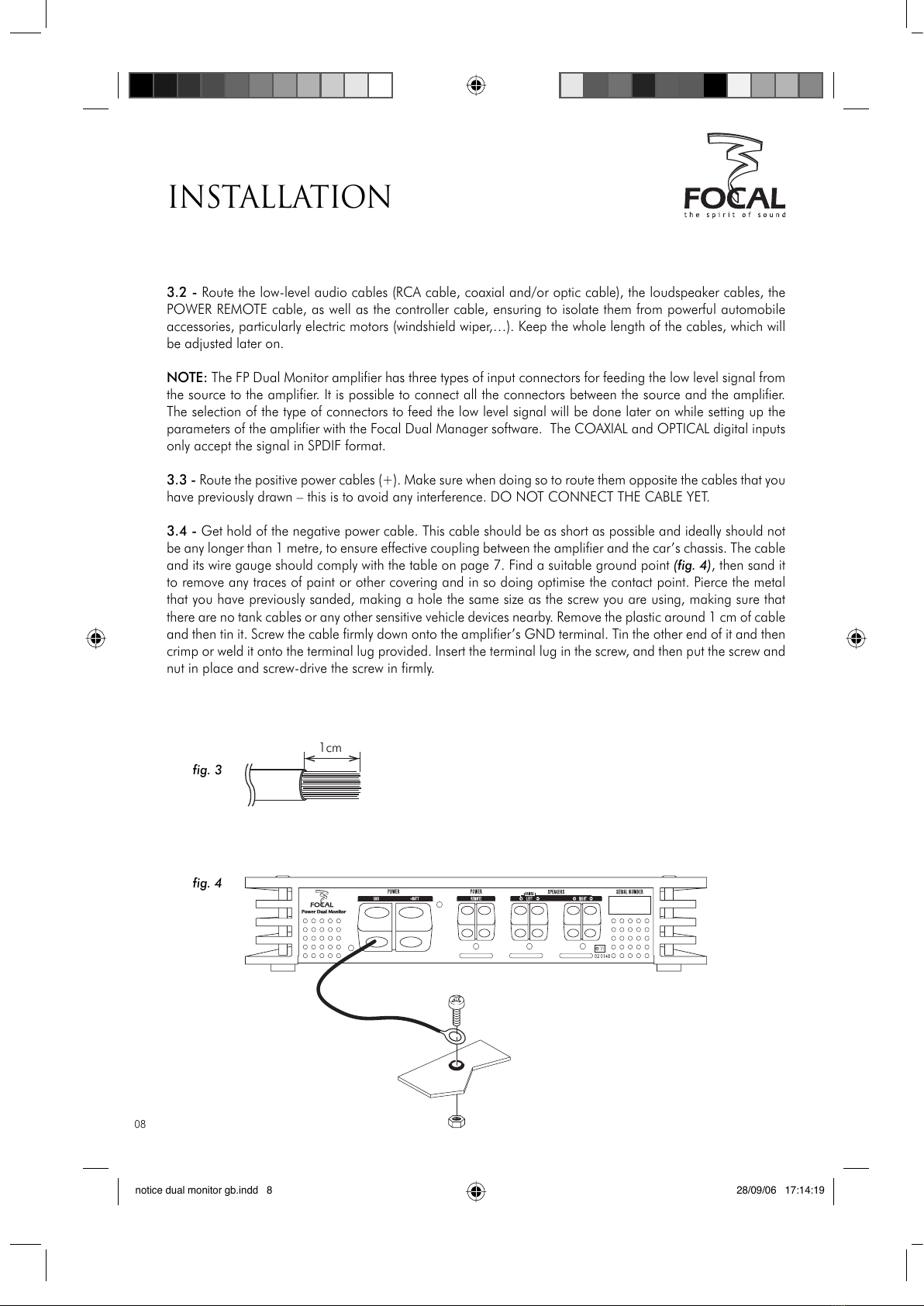

3.4 - Get hold of the negative power cable. This cable should be as short as possible and ideally should not
be any longer than 1 metre, to ensure effective coupling between the amplifier and the car’s chassis. The cable
and its wire gauge should comply with the table on page 7. Find a suitable ground point (fig. 4), then sand it
to remove any traces of paint or other covering and in so doing optimise the contact point. Pierce the metal
that you have previously sanded, making a hole the same size as the screw you are using, making sure that
there are no tank cables or any other sensitive vehicle devices nearby. Remove the plastic around 1 cm of cable
and then tin it. Screw the cable firmly down onto the amplifier’s GND terminal. Tin the other end of it and then
crimp or weld it onto the terminal lug provided. Insert the terminal lug in the screw, and then put the screw and
nut in place and screw-drive the screw in firmly.
fig. 4
fig. 3
1cm
Installation
08
notice dual monitor gb.indd 8notice dual monitor gb.indd 8 28/09/06 17:14:1928/09/06 17:14:19
All manuals and user guides at all-guides.com

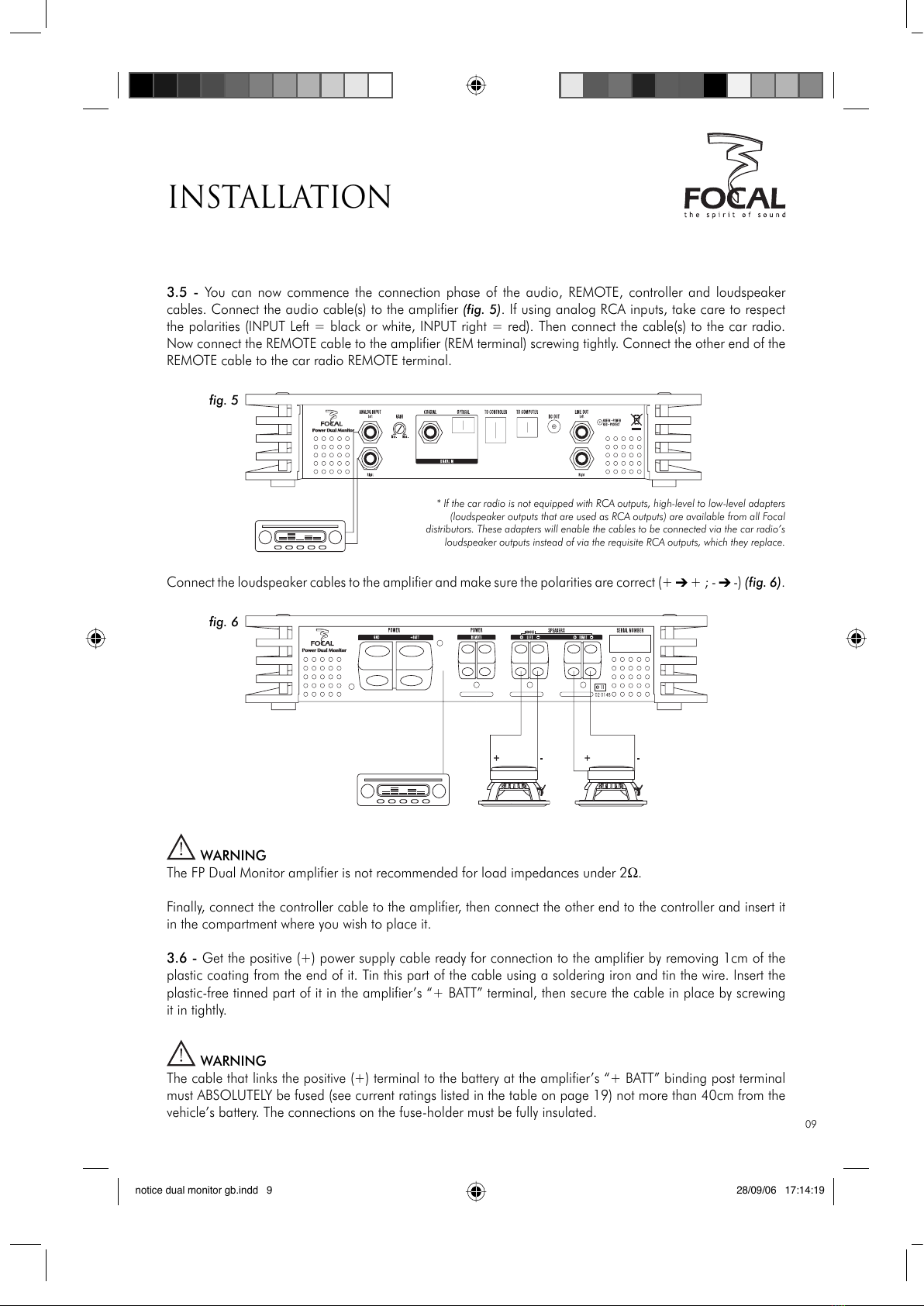

3.5 - You can now commence the connection phase of the audio, REMOTE, controller and loudspeaker
cables. onnect the audio cable(s) to the amplifier (fig. 5). If using analog R A inputs, take care to respect
the polarities (INPUT Left = black or white, INPUT right = red). Then connect the cable(s) to the car radio.
Now connect the REMOTE cable to the amplifier (REM terminal) screwing tightly. onnect the other end of the
REMOTE cable to the car radio REMOTE terminal.
onnect the loudspeaker cables to the amplifier and make sure the polarities are correct (+ + ; - -) (fig. 6).
WARNING
The FP Dual Monitor amplifier is not recommended for load impedances under 2Ω.
Finally, connect the controller cable to the amplifier, then connect the other end to the controller and insert it
in the compartment where you wish to place it.
3.6 - Get the positive (+) power supply cable ready for connection to the amplifier by removing 1cm of the
plastic coating from the end of it. Tin this part of the cable using a soldering iron and tin the wire. Insert the
plastic-free tinned part of it in the amplifier’s “+ BATT” terminal, then secure the cable in place by screwing
it in tightly.
WARNING
The cable that links the positive (+) terminal to the battery at the amplifier’s “+ BATT” binding post terminal
must ABSOLUTELY be fused (see current ratings listed in the table on page 19) not more than 40cm from the
vehicle’s battery. The connections on the fuse-holder must be fully insulated.
* If the car radio is not equipped with RCA outputs, high-level to low-level adapters
(loudspeaker outputs that are used as RCA outputs) are available fro all Focal
distributors. These adapters will enable the cables to be connected via the car radio’s
loudspeaker outputs instead of via the requisite RCA outputs, which they replace.
Installation
09
fig. 6
fig. 5
notice dual monitor gb.indd 9notice dual monitor gb.indd 9 28/09/06 17:14:1928/09/06 17:14:19
All manuals and user guides at all-guides.com

3.7.1 - The implementation phase of the fuse holder for a safe installation can now be commenced. The fuse
holder should be linked at both end of the positive (+) power cable. It should be placed close to the battery
{10 to 40cm. (fig. 7)}. Remove the fuse holder taking care to remove the fuse. Fix the fuse holder’s fuse
base. ut the red power cable between 10 and 40cm. (maximum) from the battery (fig. 7). Strip 1 cm. (fig.3),
then solder. Screw the cable to the holder base.
3.7.2 - ollect the remaining scrap cable. Strip 1cm. (fig.3), then solder. Screw the cable to the other fuse
holder terminal. Tin the end of the power supply cable before you connect it to the battery’s positive (+)
terminal. Weld the end of the cable to the terminal lug that is going to be used for the battery’s positive (+)
terminal. onnect the terminal lug to the battery’s positive terminal.
3.8 - Insert the fuse into the fuse-holder(s), and screw in tightly.
3.9 - onnect the loudspeaker cables to the right and left channel crossover networks, making sure that
the polarities are the same (note: + = cable with a red border if you are using a Focal kit) as those used
for standard cabling set-ups. The FP Dual Monitor can operate in bridged mode (see product specifications
page 15) for amplifying subwoofers. To do so, simply connect the positive (+) loudspeaker cable to the left
channel’s (“LEFT”) positive (+) binding post terminal and connect the negative (-) loudspeaker cable to the
right channel’s (“RIGHT”) negative (-) binding post terminal.
CAUTION When connecting several subwoofers, check for the impedance compatibility. The FP Dual
Monitor amplifier should ONLY be used with load impedances between 2 and 4 Ohms.
NOTE
Loudspeakers coils have specific impedances (generally 4, 2 or 1Ω). The nominal power of the amplifier
depends on the load impedance to which it is connected. The lower the load impedance, the higher the power
supplied by the amplifier. onnection of several subwoofers on a single one and same channel of the amplifier
allows the impedance to vary as follows:
fig. 7
40 cm max
installation
10
notice dual monitor gb.indd 10notice dual monitor gb.indd 10 28/09/06 17:14:2028/09/06 17:14:20
All manuals and user guides at all-guides.com

installation
- Connection in series of several subwoofers of the same impedance
Total impedance = Nominal impedance X number of subwoofer(s)
- Parallel connection of several subwoofers of the same impedance
Total impedance = Nominal impedance/number of subwoofer(s) and/or coils.
3.10 - The connection phase is now complete. You must still verify the correct power supply as well as the
correct operation of the complete system (car radio/amplifier/loudspeakers). Set all gains (source, amplifier
and controller) to their minimum. Turn on the different elements. Once all elements are on, carry out a test at
low volume, adjusting the various gains.
NOTE The FP Dual Monitor can be connected to a second Focal amplifier via the LINE OUT output. Please
remember that this output is configured with the help of the Focal Dual Manager software programme.
NOTE The FP Dual Monitor amplifier has internal fuses. hanging these parts requires the opening of the
amplifier’s rear cover. Only a Focal distributor can change these parts. Please bring the product to your
installer to carry out the change and to thus avoid any damage to the product, electric shock, or cancellation
of the guarantee.
WARNING
Do not open the amplifier or undertake any modifications to the product. There is a risk of accident, fire or
electric shock.
fig. 9
fig. 10
11
notice dual monitor gb.indd 11notice dual monitor gb.indd 11 28/09/06 17:14:2028/09/06 17:14:20
All manuals and user guides at all-guides.com
all-guides.com

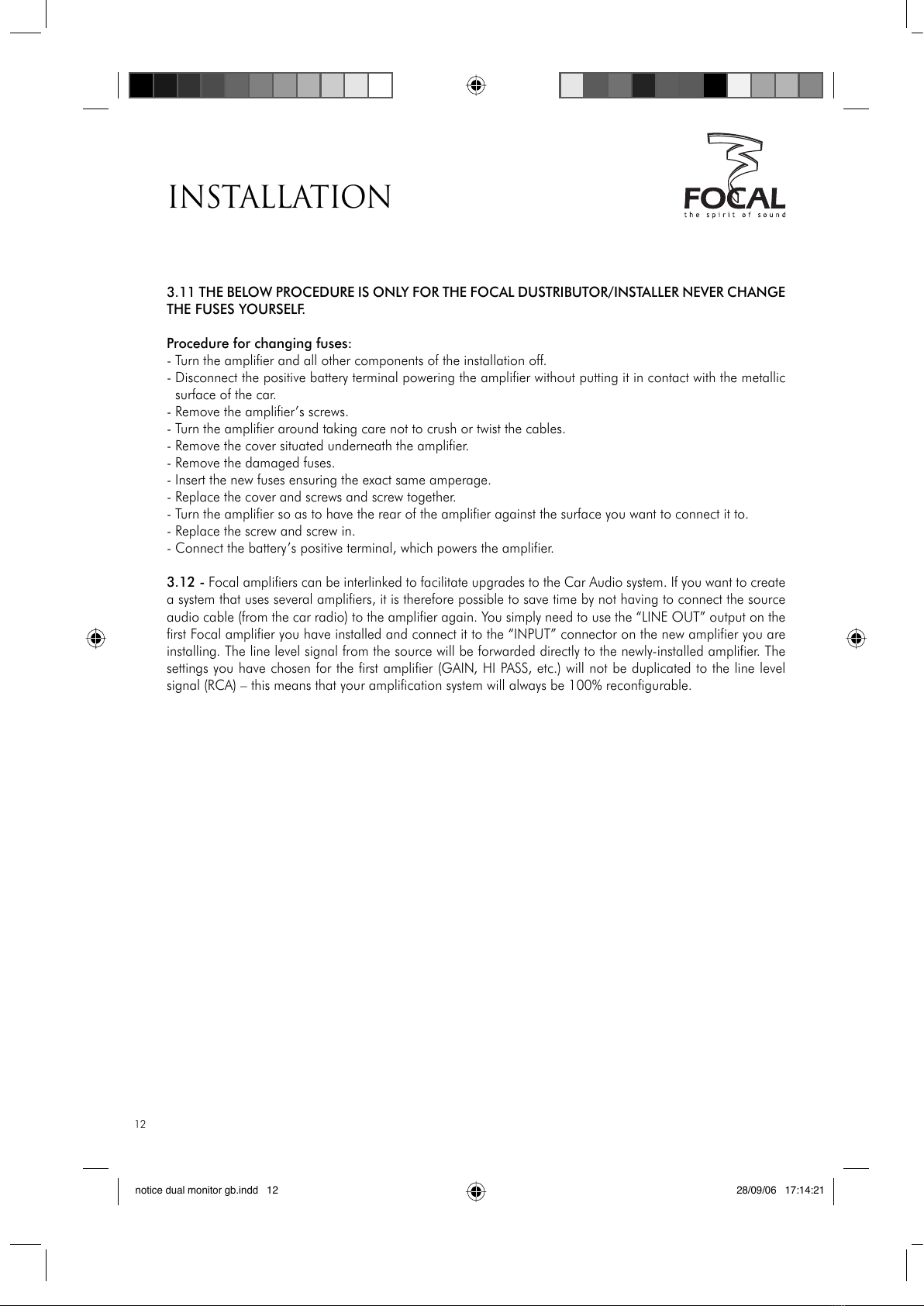

3.11 THE BELOW PROCEDURE IS ONLY FOR THE FOCAL DUSTRIBUTOR/INSTALLER NEVER CHANGE
THE FUSES YOURSELF.
Procedure for changing fuses
- Turn the amplifier and all other components of the installation off.
- Disconnect the positive battery terminal powering the amplifier without putting it in contact with the metallic
surface of the car.
- Remove the amplifier’s screws.
- Turn the amplifier around taking care not to crush or twist the cables.
- Remove the cover situated underneath the amplifier.
- Remove the damaged fuses.
- Insert the new fuses ensuring the exact same amperage.
- Replace the cover and screws and screw together.
- Turn the amplifier so as to have the rear of the amplifier against the surface you want to connect it to.
- Replace the screw and screw in.
- onnect the battery’s positive terminal, which powers the amplifier.
3.12 - Focal amplifiers can be interlinked to facilitate upgrades to the ar Audio system. If you want to create
a system that uses several amplifiers, it is therefore possible to save time by not having to connect the source
audio cable (from the car radio) to the amplifier again. You simply need to use the “LINE OUT” output on the
first Focal amplifier you have installed and connect it to the “INPUT” connector on the new amplifier you are
installing. The line level signal from the source will be forwarded directly to the newly-installed amplifier. The
settings you have chosen for the first amplifier (GAIN, HI PASS, etc.) will not be duplicated to the line level
signal (R A) – this means that your amplification system will always be 100% reconfigurable.
installation
12
notice dual monitor gb.indd 12notice dual monitor gb.indd 12 28/09/06 17:14:2128/09/06 17:14:21
All manuals and user guides at all-guides.com

Technical specifications
FP Dual Monitor
Nominal power measured at 13.8V
continuously @ 4Ω
2 x 250WRMS
Nominal power measured at 13.8V
continuously @ 2Ω
2 x 400WRMS
Power in bridge mode measured at
13.8V continuously @ 4Ω
1 x 800WRMS
Power in bridge mode measured at
13.8V continuously @ 2Ω
1 x 1200WRMS
Power supplies Dual fully regulated
Signal/noise ratio > 110dB (A)
Damping factor at 4Ω > 600
Frequency response 10Hz – 40kHz
Input impedance 13kΩ
Input sensibility 0.2 – 5V
Digital input oaxial/optic
Output stages Transistors :
6 x Toshiba 2S 5200
6 x Toshiba 2SA1943
Operational amplifiers Burr-Brown®
DSP 2 internal DSP, 180 MIPS per DSP
Converters 24-bit/96kHz rystal®
Software Provided
Remote control Provided (gain + 5 presets)
Digital EQ (each input channel) 30 bands of 1/3 octave
Digital delay line (each input channel) 4 independent outputs, 22ms max
Digital control From external P via USB port
High-pass filter (with on/bypass switch) Frequency and slope fully adjustable
Low-pass filter (with on/bypass switch) Frequency and slope fully adjustable
Parametric EQ (Q Bass) 1 band fully adjustable
Maximum cross section of loudspeaker
cables
10mm2
7AWG
Maximum cross section of power cables 53mm2
0AWG
Protections Short-circuit
ontinual power
Over-heating
lipping limiter
Overvoltage
Polarity reversal
Dimensions (H x W x D) 50 x 540 x 280mm (2 x 21.25 x 11“)
Weight 7.5kg (16.53lb)
omment: In our endeavour to continually improve our products, Focal reserves the right to modify the technical specifications of this product without prior notice.
13
notice dual monitor gb.indd 13notice dual monitor gb.indd 13 28/09/06 17:14:2128/09/06 17:14:21
All manuals and user guides at all-guides.com

LEGENDS
Connections, features and controls
14
notice dual monitor gb.indd 14notice dual monitor gb.indd 14 28/09/06 17:14:2128/09/06 17:14:21
All manuals and user guides at all-guides.com

LEGENDS
ANALOG INPUT the R A sockets are dedicated to low level analog signal input. These connectors allow
to feed the low level signal from the source to the amplifier.
GAIN the GAIN rotary potentiometer allows you to adjust the level of the input signal in the amplifier.
ATTENTION: increasing the input gain does not mean more power, but more noise. The amplifier’s input
accepts a signal with amplitude between 0.2 and 5V.
COAXIAL the OAXIAL input is a digital input. This connector allows to feed the low level signal from the
source to the amplifier. The signal transmitted from the source should only be in SPDIF format.
OPTICAL the OPTI AL input is a digital input. This connector allows to feed the low level signal from the
source to the amplifier. The signal transmitted from the source should only be in SPDIF format.
TO CONTROLLER the TO ONTROLLER connector provides the connection between the amplifier and
the controller of the FP Dual Monitor.
TO COMPUTER the TO OMPUTER connector provides the connection between the amplifier and a
P type computer in order to set the parameters of the FP Dual Monitor with the help of the Focal Dual
Manager software programme.
NOTE: Focal Dual Manager only works on a P .
DC OUT the D OUT connector allows you to connect accessories. The output voltage is 5V of
direct current.
LINE OUT the LINE OUT output enables the connection of a second amplifier in cascade, without the need
to feed additional R A cables from the source to the additional amplifier.
NOTE: to configure the LINE OUT output, use the Focal Dual Manager software programme.
Light (indicator) the light allows you to verify if the amplifier is working correctly. If the LED indicator is
green, this means the amplifier is powered on and is working correctly. A red LED means the amplifier is in
protective mode after any malfunction (overheating, faulty wiring,…).
GND the GND (ground) power connector receives the negative (-) cable providing the connection between
the amplifier and the vehicle’s chassis.
+BATT the +BATT power connector is for the power cable and ensures the connection between the
amplifier and the battery’s positive (+) terminal. This connection should have a fuse between 10 and 40cm
from the battery.
REMOTE the REMOTE connector links the amplifier, an additional amplifier and the source (car radio) via
a REM or REMOTE car radio output. This enables the automatic turn-on of the amplifier and the additional
amplifier from the source (car radio). The right connector can be used to link the FP Dual Monitor amplifier
to the source, and the left connector can be linked to an additional amplifier.
SPEAKERS the SPEAKERS’ connectors link the amplifier and the loudspeaker’s crossovers (or the
loudspeakers in the case of active filtering). It is IMPERATIVE to respect the polarities (+ amplifier fi +
crossover or + loudspeaker / - amplifier fi - crossover or – loudspeaker).
NOTE: the FP Dual Monitor amplifier can be used in bridged mode for connecting a subwoofer (the two
loudspeaker outputs increase their respective power and become a sole loudspeaker channel.
Vol. The Vol. rotary potentiometer allows you to adjust the amplifier’s volume from - ∞ to 0dB.
Buttons the 5 buttons on the controller allows automatic recall of 5 presets of the FP Dual Monitor
amplifier carried out through the Focal Dual Manager software programme. 15
notice dual monitor gb.indd 15notice dual monitor gb.indd 15 28/09/06 17:14:2228/09/06 17:14:22
All manuals and user guides at all-guides.com

Troubleshooting
1 The LED indicators on the top and on the side of the amplifier are off
- heck that there is a D voltage of 10.5 to 15.5V at the amplifier power supply connector.
- heck that there is a D voltage of 10.5 to 15.5V at the battery positive terminal and at the remote switch-
on cable (REMOTE). heck the quality of the connections at the two cables of the amplifier, the audio
source, the battery and fuse holder Repair or replace if necessary.
- heck the fuse(s) of the battery’s positive cable.
- heck the fuse(s) situated on the sides of the amplifier.
- heck that the ground connection is properly implemented on the vehicle’s chassis, and that it is on a
clean metal surface (without any traces of paint or varnish).
2 The LED indicator on the top of the amplifier is off, the indicator on the side of the amplifier is on and red
- Switch off the amplifier and the source (car radio).
- Turn on the source (car radio) and the amplifier after waiting for its upper side to cool down.
- If the problem persists, go to step 3.
3 Verification of the amplifier’s audio connections
- heck that the R A input connections are properly connected both at the audio source and to the
amplifier. Ensure that the cables are not twisted or broken.
4The amplifier turns on then turns off
- Verify that no loudspeaker cable is in contact with the vehicle’s body (ground point).
- Switch off the audio source and the amplifier. Disconnect the loudspeaker cables and test the loudspeakers
with a multimeter adjusted to the impedance measurement to ensure they are working correctly.
- Touch the amplifier with care to check its temperature. If the temperature is high, the amplifier is in thermal
protection mode and must cool down.
- Verify the voltage of the + BATT cable. If the voltage is over 15V or below 10.5V, refer to a specialist in
car electrical systems.
5 No sound on one channel
- heck the connections of the amplifier end and at the audio source.
- Also check the balance (audio source), then check the loudspeakers with a multimeter in order to make
sure there is no short-circuit.
6 Sound level is low
- heck the setting of the potentiometer (volume) of the audio source and the input sensibility of the
amplifier (gain).
7 The amplifier stops after a long period of operation
- heck the colour of the LED indicator on the side. If it is red, the amplifier is likely in thermal shutdown.
This is evidence of poor cooling due to an improper location or positioning of the amplifier.
- If cooling is ok, check the impedance of the loudspeakers to ensure that it is compatible with the amplifier’s
capabilities.
- If this is the case, make sure that the positive terminal of the vehicle’s battery do supply a D voltage
comprised between 10.5V and 15V. Also check that the cable cross section is according to the
recommendations of page 7.
- heck that the fuse contained in the fuse holder situated near the vehicle’s battery is suitable.
16
notice dual monitor gb.indd 16notice dual monitor gb.indd 16 28/09/06 17:14:2228/09/06 17:14:22
All manuals and user guides at all-guides.com
all-guides.com

Troubleshooting
Once all these verifications have been undertaken and if the amplifier still does not work, contact
your nearest Focal distributor.
Conditions of the Guarantee
In the event of a problem, firstly contact your Focal distributor.
The guarantee for France of all Focal material is for 1 year. In the event of faulty material, this should be sent
at your cost in its original packaging to your distributor, who will analyse the equipment and determine the
nature of the problem. If it is under guarantee, the equipment will be returned to you or replaced “post-paid”.
Otherwise a quote for the repair job will be given to you. The guarantee does not cover damages caused by
improper use of improper connection of the amplifier.
Outside France, Focal equipment is covered by a guarantee with local conditions which are set out locally by
the official Focal distributor in each country, in accordance with local legislation.
8 Noise increasing with accelerating vehicle
- This is a ground loop phenomenon. To verify if this noise is caused by an incorrect grounding, switch off
the amplifier and the audio source, then remove the amplifier’s R A cables (ensure that they are shielded
and are not touching the chassis once disconnected). Switch the amplifier and the audio source on.
- If the problem persists, it is a grounding problem. If it disappears, the problem is due to the R A cables
being either damaged or too close to the power cables. It is thus necessary to change and place the R A
cables opposite the power cables.
- In the event of a grounding problem, ensure that the ground cables are correctly connected and that the
quality of the contacts is good (no paint or varnish on the grounding area).
17
notice dual monitor gb.indd 17notice dual monitor gb.indd 17 28/09/06 17:14:2328/09/06 17:14:23
All manuals and user guides at all-guides.com

18
SETTINGS
12345
notice dual monitor gb.indd 18notice dual monitor gb.indd 18 28/09/06 17:14:2328/09/06 17:14:23
All manuals and user guides at all-guides.com

Pour validation de la garantie, merci de retourner la dernière page de ce document,
dûment remplie, dans les dix jours suivant l’acte d’achat, à l’adresse suivante :
Focal-JMla - BP 374 - 108 rue de l’avenir - 42353 LA TALAUDIERE cedex - France
AVERTISSEMENT
Ce symbole désigne les instructions importantes. Le non-respect de ces instructions peut entraîner de
graves blessures, voire la mort.
ATTENTION
Ce symbole désigne des instructions importantes. Le non-respect de ces instructions peut entraîner
des blessures ou des dommages matériels.
Nous vous remercions d’avoir choisi Focal pour l’amplification de votre syst me Car Audio et de
partager avec nous notre philosophie : “the Spirit of Sound”. Pour obtenir les meilleurs résultats,
nous vous recommandons de faire installer votre nouvel amplificateur par votre revendeur Focal.
Afin d’exploiter l’ensemble des fonctionnalités de votre amplificateur et ainsi profiter pleinement de
ses performances, nous vous conseillons de lire attentivement les instructions de ce livret ainsi que
celles du manuel dédié au logiciel de contrôle Focal Dual Manager. Nous vous invitons à les conserver
pour vous y référer ultérieurement. Tout probl me dû au non-respect des r gles d’utilisation peut
entraîner une invalidation de la garantie.

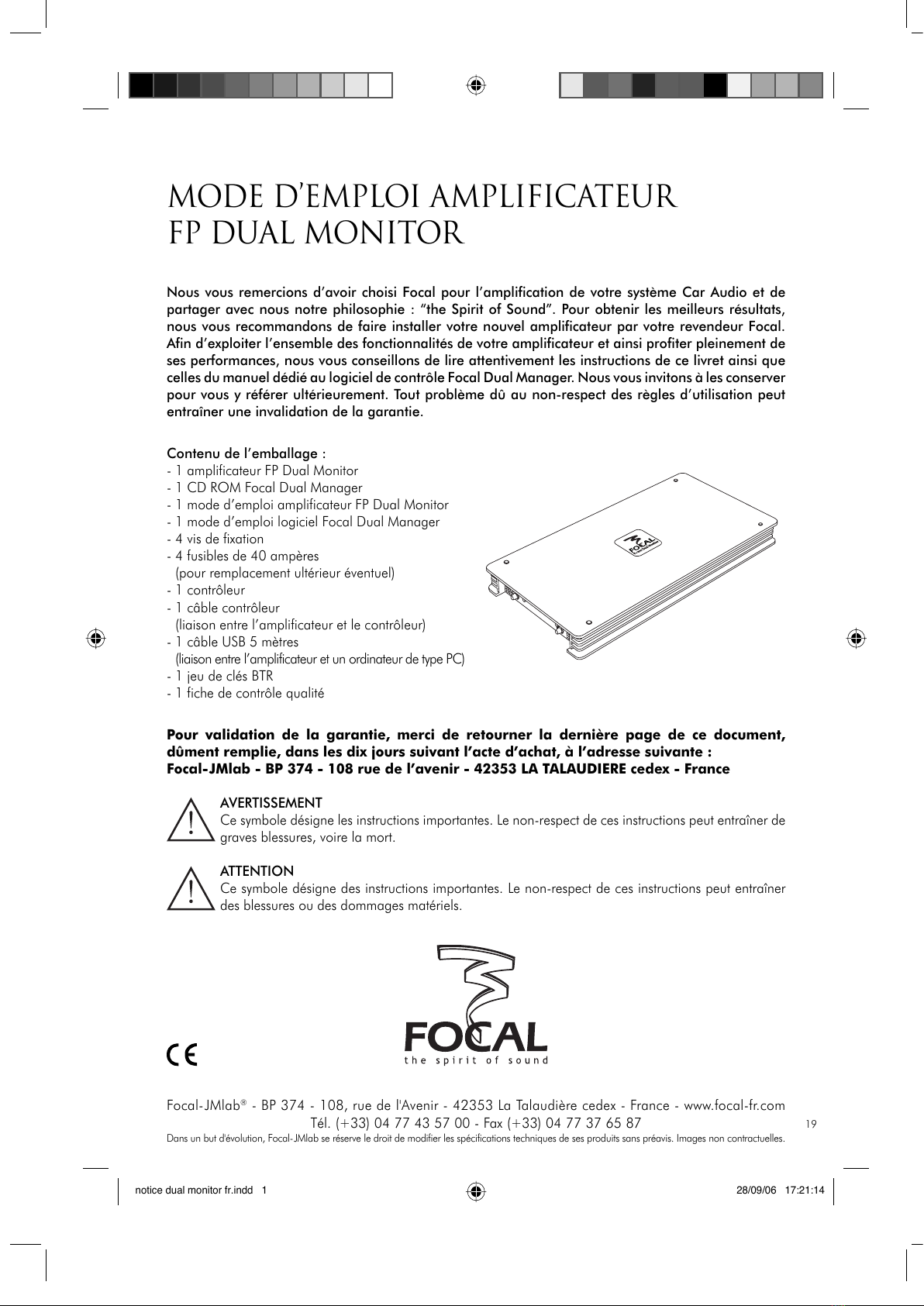

Mode d’emploi amplificateur
FP Dual Monitor
Focal-JMlab® - B 374 - 108, rue de l'Avenir - 42353 La Talaudière cedex - France - www.focal-fr.com
Tél. [phone] - Fax [phone]
Dans un but d'évolution, Focal-JMlab se réserve le droit de modifier les spécifications techniques de ses produits sans préavis. Images non contractuelles.
Contenu de l’emballage :
- 1 amplificateur F Dual Monitor
- 1 CD ROM Focal Dual Manager
- 1 mode d’emploi amplificateur F Dual Monitor
- 1 mode d’emploi logiciel Focal Dual Manager
- 4 vis de fixation
- 4 fusibles de 40 ampères
(pour remplacement ultérieur éventuel)
- 1 contrôleur
- 1 câble contrôleur
(liaison entre l’amplificateur et le contrôleur)
- 1 câble USB 5 mètres
(liaison entre l’amplificateur et un ordinateur de type C)
- 1 jeu de clés BTR
- 1 fiche de contrôle qualité
19
notice dual monitor fr.indd 1notice dual monitor fr.indd 1 28/09/06 17:21:1428/09/06 17:21:14
All manuals and user guides at all-guides.com

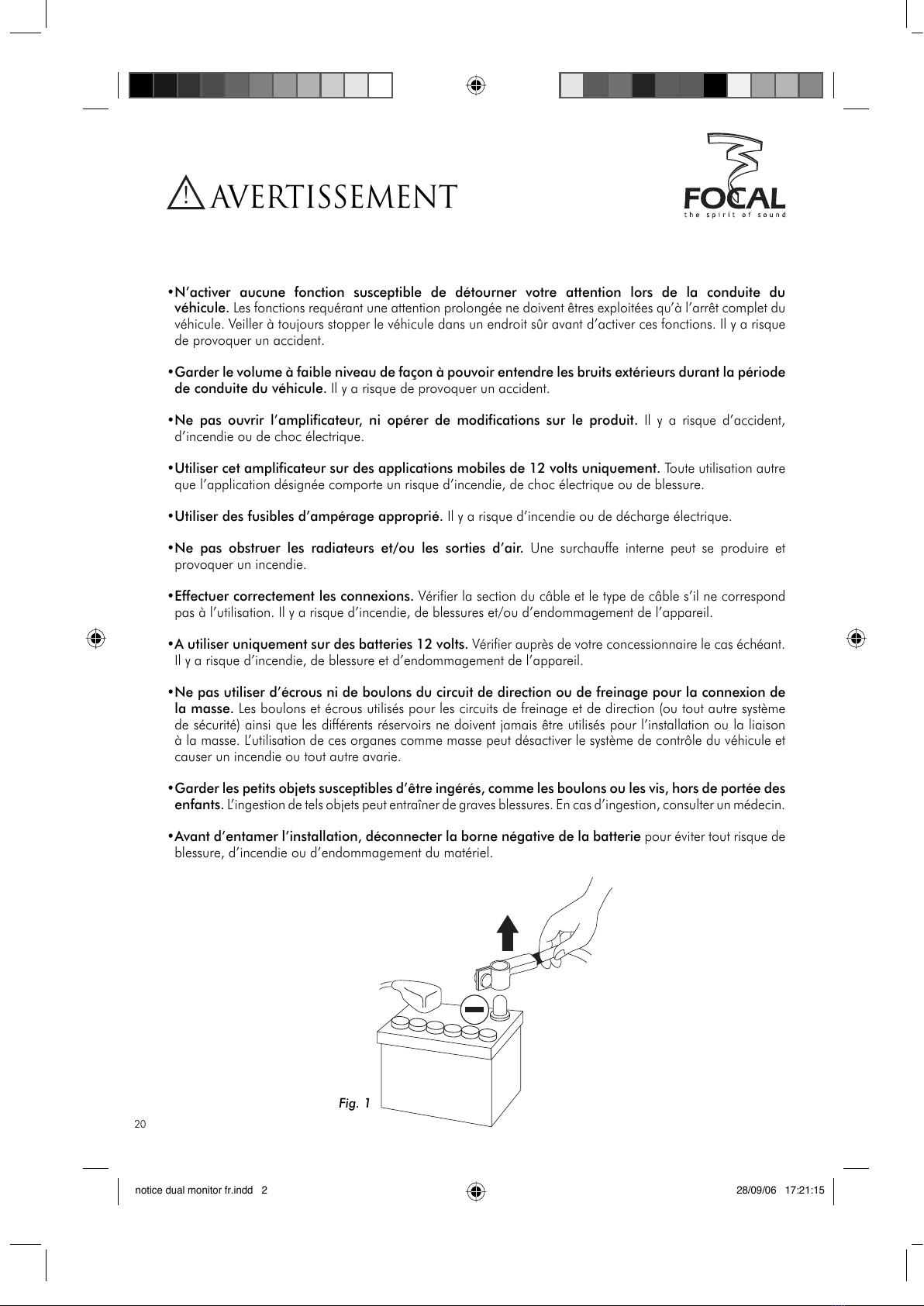

avertissement
• N’activer aucune fonction susceptible de détourner votre attention lors de la conduite du
véhicule. Les fonctions requérant une attention prolongée ne doivent êtres exploitées qu’à l’arrêt complet du
véhicule. Veiller à toujours stopper le véhicule dans un endroit sûr avant d’activer ces fonctions. Il y a risque
de provoquer un accident.
• Garder le volume à faible niveau de façon à pouvoir entendre les bruits extérieurs durant la période
de conduite du véhicule. Il y a risque de provoquer un accident.
• Ne pas ouvrir l’amplificateur, ni opérer de modifications sur le produit. Il y a risque d’accident,
d’incendie ou de choc électrique.
• Utiliser cet amplificateur sur des applications mobiles de 12 volts uniquement. Toute utilisation autre
que l’application désignée comporte un risque d’incendie, de choc électrique ou de blessure.
• Utiliser des fusibles d’ampérage approprié. Il y a risque d’incendie ou de décharge électrique.
• Ne pas obstruer les radiateurs et/ou les sorties d’air. Une surchauffe interne peut se produire et
provoquer un incendie.
• Effectuer correctement les connexions. Vérifier la section du câble et le type de câble s’il ne correspond
pas à l’utilisation. Il y a risque d’incendie, de blessures et/ou d’endommagement de l’appareil.
• A utiliser uniquement sur des batteries 12 volts. Vérifier auprès de votre concessionnaire le cas échéant.
Il y a risque d’incendie, de blessure et d’endommagement de l’appareil.
• Ne pas utiliser d’écrous ni de boulons du circuit de direction ou de freinage pour la connexion de
la masse. Les boulons et écrous utilisés pour les circuits de freinage et de direction (ou tout autre système
de sécurité) ainsi que les différents réservoirs ne doivent jamais être utilisés pour l’installation ou la liaison
à la masse. L’utilisation de ces organes comme masse peut désactiver le système de contrôle du véhicule et
causer un incendie ou tout autre avarie.
• Garder les petits objets susceptibles d’être ingérés, comme les boulons ou les vis, hors de portée des
enfants. L’ingestion de tels objets peut entraîner de graves blessures. En cas d’ingestion, consulter un médecin.
• Avant d’entamer l’installation, déconnecter la borne négative de la batterie pour éviter tout risque de
blessure, d’incendie ou d’endommagement du matériel.
20
Fig. 1
notice dual monitor fr.indd 2notice dual monitor fr.indd 2 28/09/06 17:21:1528/09/06 17:21:15
All manuals and user guides at all-guides.com
