Focal FLAX EVO PS 165 FE User manual

PS 165 FE |PS 165 FSE |PS 165 FXE
PS 165 F3E |PS 130 FE |PC 165 FE
Manuel d’utilisation / User Manual / Gebrauchsanleitung/
Manuale d’uso / Manual de uso / Manual de utilização /
Handleiding / Instrukcja obsługi /
Руководство по эксплуатации / 使用手册 /
FLAX EVO™
Français : page 10
English : page 14
Deutsch : Seite 18
Italiano : pagina 22
Español : página 26
Português : página 30
Nederlands : pagina 34
Polska : strona 38
Русский: стр. 42
中文：第48页
한국어 : 50 페이지
日本語 : ページ 54

2 3
FLAX EVO™
Manuel d’utilisation / User manual
FLAX EVO™
Manuel d’utilisation / User manual
Right output
Left output
Woofer
Tweeter
Woofer
Tweeter
Input
Input FRONT
Right Right
LeftLeft
REAR
SPEAKER min. 2Ω
FRONT BRIDGE REAR BRIDGE Woofer
Tweeter
Woofer
Tweeter
RCA INPUTS SPEAKER OUTPUTS
Right output
Left output
Woofer
Tweeter
Woofer
Medium
Input
Input
Medium
Tweeter
Right output
Left output
Woofer
Tweeter
Woofer
Tweeter
Input
Input
A
C
D
B

4 5
FLAX EVO™
Manuel d’utilisation / User manual
FLAX EVO™
Manuel d’utilisation / User manual
8.5
Ø40
Ø52
VUE NOTICE TWEETER TAM
8.5
Ø40
Ø52
VUE NOTICE TWEETER TAM
8.5
Ø40
Ø52
VUE NOTICE TWEETER TAM
PS 165 FXE - PS 165 F3E PS 165 FE - PS 130 FE - PS 165 FSE
PS 165 FXE - PS 165 F3E
Tweeter adjustment
0 dB, -3 dB
Mid adjustment 0/-3 dB
PS 130 FE - PS 165 FE - PS 165 FSE
Tweeter adjustment: 0 dB, -3 dB
PC 165 FE
VUE_NOTICE_PC165FE
E H
I
J
E
F

8 9
FLAX EVO™
Specifications
FLAX EVO™
Specifications
PS 165 FE PS 165 FSE
Type 2-way component kit 2-way component kit
Woofer 61/2” (165mm) 61/2” (165mm)
Woofer depth 27/8” (72.7mm) 21/8” (54.5mm)
Cone Flax Flax
Tweeter
TAM tweeter (aluminium
/ magnesium ‘M’-profile
inverted dome tweeter)
TAM tweeter (aluminium
/ magnesium ‘M’-profile
inverted dome tweeter)
Max. power 140W 120W
Nom. power 70W RMS 60W RMS
Sensitivity (2.83V/3’ 3
3/8”(1m)) 91.5dB 91.5dB
Frequency response 60-28000Hz 70-28000Hz
Voice coil diameter 1” (25mm) 11/4 ” (32mm)
Magnet Ferrite Ferrite
Surround TMD TMD
Impedance 4Ω 4Ω
Crossover 12dB/Oct @3kHz 12dB/Oct @3kHz
PS 130 FE PS 165 FXE
Type 2-way component kit 2-way component kit
Woofer 5” (130mm) 61/2” (165mm)
Woofer depth 23/8” (59.7mm) 31/16” (77mm)
Cone Flax Flax
Tweeter
TAM tweeter (aluminium
/ magnesium ‘M’-profile
inverted dome tweeter)
TAM tweeter (alumi-
nium / magnesium
‘M’-profile inverted
dome tweeter)
Max. power 120W 160W
Nom. power 60W RMS 80W RMS
Sensitivity (2.83V/3’ 3 3/8”(1m)) 90.5dB 90.5dB
Frequency response 75-28000Hz 55-28000Hz
Voice coil diameter 1” (25mm) 11/4 ” (32mm)
Magnet Ferrite Ferrite
Surround TMD TMD
Impedance 4Ω 4Ω
Crossover 12dB/Oct @3kHz 12dB/Oct @3kHz
PC 165 FE
Type 2-way coaxial kit
Woofer 61/2” (165mm)
Woofer depth 27/8” (72.7mm)
Cone Flax
Tweeter Aluminium / magnesium ‘M’-profile inverted dome
coaxial tweeter
Max. power 140W
Nom. power 70W RMS
Sensitivity (2.83V/3’ 3 3/8”(1m)) 90dB
Frequency response 60-28000Hz
Voice coil diameter 1” (25mm)
Magnet Ferrite
Surround TMD
Impedance 4Ω
Crossover 6dB/oct
PS 165 F3E
Type 3-way component kit
Woofer/Midrange 61/2” (165mm) / 3” (80mm)
Woofer/Midrange depth 27/8” (72.7mm) / 15/16” (33.5mm)
Cone Flax
Tweeter TAM tweeter (aluminium / magnesium ‘M’-profile
inverted dome tweeter)
Max. power 160W
Nom. power 80W RMS
Sensitivity (2.83V/3’ 3 3/8”(1m)) 90.5dB
Frequency response 60-28000Hz
Voice coil diameter 11 /4”(32mm)
Magnet Ferrite
Surround TMD
Impedance 4Ω
Crossover 18dB/Oct @600-4000Hz

FLAX EVO™
User manual
READ FIRST!
IMPORTANT SAFETY INSTRUCTIONS!
The exclamation mark represented in an
equilateral triangle is intended to alert users
to the existence of important instructions
in the user manual relating to the use and
maintenance of the device.
1. Read these
instructions.
2. Keep these
instructions.
3. Heed all the
warnings.
4.Follow all the
instructions.
5. To avoid damaging
your hearing,
do not listen to
loudspeakers at
high volumes for
long periods of
time. Listening to
loudspeakers at high
volumes can cause
damage to the user’s
ears and may lead
to hearing problems
(temporary
or permanent
deafness, buzzing
in the ears, tinnitus,
hyperacusis).
Exposure to
excessive volumes
(over 85 dB) for
more than one
hour can cause
irreparable damage
to your hearing.
6. If a subwoofer
is installed in
your vehicle, it
is important to
secure it firmly. We
recommend that you
attach the enclosure
to the floor or
chassis of the vehicle
for safety.
If the subwoofer
is not properly
secured, it could
become a projectile
in the event of
an accident. This
point is even
more important
if the subwoofer
is installed in a
hatchback, a station
wagon, a utility
vehicle or a van.
7. If cables or
harnesses are
provided, use them
the proper way
(like mentioned in
this user manual)
without replacing or
modifying them.
8. If a fuse is included
in the kit or harness,
use only same
rating one in case of
replacement.
(CEI 60417-6044)
GB
Our policy of continual product improvement means
that Focal-JMlab reserves the right to modify the technical specifications
of its products without notice. Product may vary from images.
English
Please validate your Focal-JMlab warranty,
it is now possible to register
your product online:
www.focal.com/warranty
Thank you for choosing Focal kits and sharing our passion for
sound and for music, expressed with precision and purity:
“Listen Beyond”. These high-tech speaker drivers incorporate
enhanced Focal features in speaker driver design to achieve a
powerful, high-quality sound. To get the very best out of your
system and to exploit the full performance of its speaker drivers,
we recommend that you read this booklet, then store it in a
safe place to refer to in the future. Any problems caused by
failure to follow the instructions may invalidate your guarantee.
For optimum results, we recommend that you have the system
installed by a professional.
Important recommendations
First of all, check the space available for fitting the speaker drivers
(refer to the plans on the packaging) then proceed with the cutting
required. If mounted in the factory location, check that there is
sufficient space between the speaker driver and the protective
grille.
• Clear the speaker drivers of any metal shavings and dust
particles.
• Clean carefully before mounting the speaker drivers.

16 17
FLAX EVO™
User manual
FLAX EVO™
User manual
Conditions of warranty
All Focal loudspeakers are covered by warranty drawn up by
the official Focal distributor in your country. Your distributor can
provide all details concerning the conditions of warranty. Warranty
cover extends at least to that granted by the legal warranty in force
in the country where the original purchase invoice was issued.

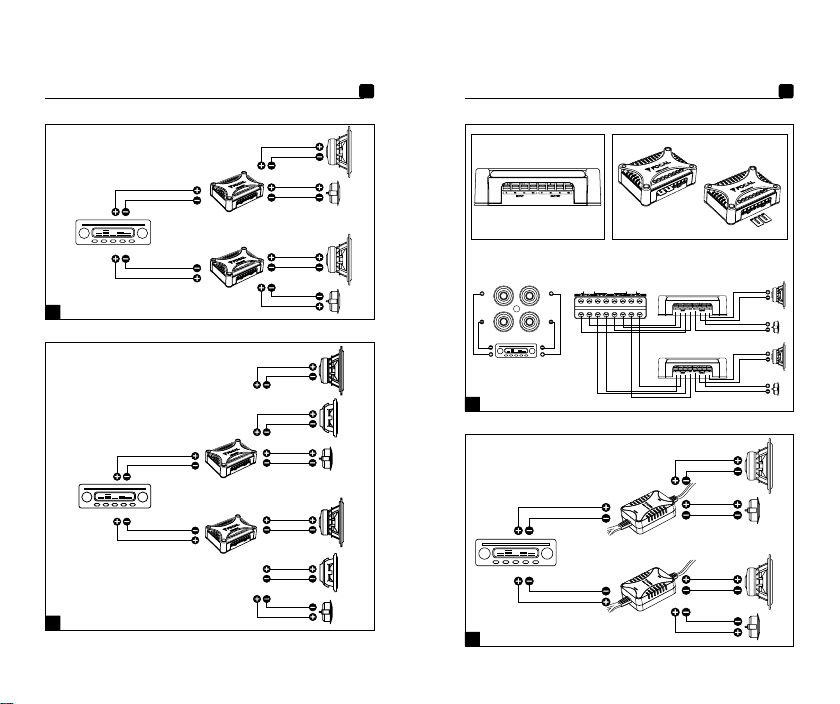

• 2-way kit connections - PS 165 FXE - (fig A)
• 3-way kit connections - PS 165 F3E - (fig B)
• 2-way bi-amplification kit connections PS 165 FXE
(4-channel amplification) - (fig C)
• 2-way kit connections
PS 130 FE, PS 165 FE, PS 165 FSE - (fig D)

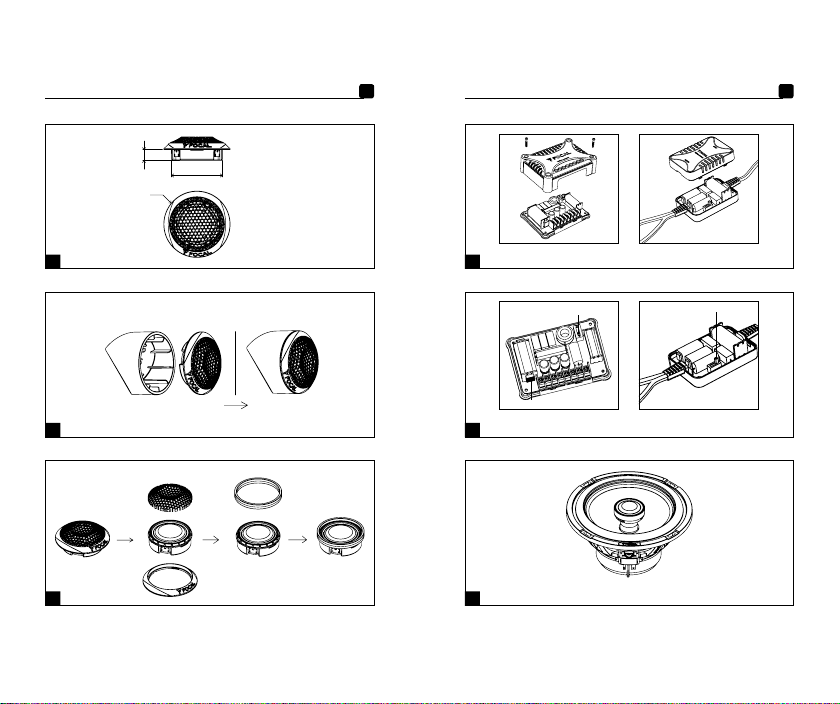

• Alumium-magnesium tweeter installation
(PS 165 FXE/PS 165 F3E/PS 130 FE/PS 165 FE/PS 165 FSE)
There are 3 mounting options:
Flush-fitted mounting - (fig E)
Allow for custom cutting; insert the tweeter as delivered.
Angled surround mounting - (fig F)
Choose the angle (25 or 45°), fix the surround using the screws
supplied, thread the wires then insert the tweeter with its grille
into the surround.
Free integrated mounting - (fig G)
Detach the grille by pushing the “Focal” ring towards the back of
the tweeter. Insert the mounting spacer around the tweeter. Fit the
whole unit behind the mounting location grille.
Fitting the crossovers - (fig H)
The crossovers must be fitted (using supplied screws or double-
sided screws) in a dry, preferably well-ventilated, place. To open
the enclosure, press following the arrows on the diagram opposite.
If the filters are not easily accessible, proceed with the wiring and
adjustments before fitting permanently.
• Tweeter level adjustment - (fig I)
The switch placed inside the crossover allows you to adjust the
tweeter level according to your taste and the location of speaker
drivers in your cabin, in order to achieve the best possible sound
reproduction.
Too much treble produces an aggressive sound, and too little alters
the definition and dynamics.
If the tweeter is installed very close to the bass-midrange speaker
driver, adjust it to 0.
If the tweeter is installed on the dashboard or above the door, and
the woofer is located in the door, adjust it to -3 or 0dB.
• Coaxial kit PC 165 FE - (fig J)
This coaxial kit is equipped with an integrated tweeter crossover
(6dB/oct); please follow the general installation recommendations.
NB: the tweeter stand cannot be angled or rotated; it has been
designed to be as compact as possible, and therefore compatible
with as many different spaces as possible.

P
Eliminação correta deste produto.
Esta marca indica que, na UE, este produto não deve ser
eliminado com outro lixo doméstico. Como medida de
prevenção para o ambiente e para a saúde humana, deve ser
reciclado de modo responsável, para promover a reutilização
dos recursos materiais. Para devolver o seu dispositivo usado,
recorra aos sistemas de devolução e recolha ou contacte o
comerciante em que o produto foi adquirido. Este poderá
proceder à reciclagem do produto com toda a segurança.
PL
Prawidłowe usuwanie produktu.
To oznaczenie informuje, że produktu nie należy usuwać wraz z
innymi odpadami z gospodarstwa domowego na terenie UE. W
celu ochrony środowiska i zdrowia człowieka, należy w sposób
odpowiedzialny prowadzić recykling i wspierać ponowne
wykorzystywanie materiałów. Aby zwrócić swoje urządzenie,
należy skorzystać z systemu zwrotu i odbioru prowadzonego
przez sprzedawcę detalicznego, u którego produkt został
nabyty. Sprzedawca będzie w stanie w sposób bezpieczny
przeprowadzić recykling produktu.
FIN
Tuotteen asianmukainen hävittäminen.
Tämä merkintä osoittaa, että EU:ssa tätä tuotetta ei saa
hävittää muiden kotitalousjätteiden mukana. Kierrätä se
vastuullisesti ehkäistäksesi mahdollisia vaaroja ympäristölle tai
ihmisten terveydelle ja edistääksesi aineellisten voimavarojen
uudelleenkäyttöä. Palauta käytetty laite käyttämällä
saatavilla olevia palautus- ja keräysjärjestelmiä tai ota yhteys
jälleenmyyjään, jolta ostit tuotteen. He voivat kierrättää tämän
tuotteen turvallisesti.
RU
Правильная утилизация продукта.
Данная маркировка указывает на то, что в пределах
ЕС этот продукт не может утилизироваться вместе с
бытовым мусором. В целях предотвращения загрязнения
окружающей среды и нанесения ущерба здоровью человека
утилизируйте продукт должным образом, позволяющим
произвести его повторную переработку. Для того чтобы
вернуть бывшее в употреблении устройство, используйте
системы возврата и сбора сырья либо обратитесь в пункт
розничной торговли, в котором вы приобретали продукт,
для организации повторной переработки с соблюдением
всех норм безопасности.
NL
Correcte verwijdering van dit product.
Deze markering geeft aan dat dit product in de EU niet samen
met ander huishoudelijk afval mag worden weggegooid. Om het
milieu en de gezondheid van de mens te beschermen, dient u
het product op verantwoorde wijze te recyclen om hergebruik
van materiële hulpbronnen te stimuleren. U kunt uw gebruikte
apparaat retourneren bij een recyclepunt of milieustation,
of neem contact op met de winkel waar u het product hebt
gekocht. Zo kan het product op verantwoorde wijze worden
gerecycled.
F
Élimination correcte de ce produit.
Ce marquage indique que ce produit ne doit pas être éliminé
avec les autres déchets ménagers au sein de l’UE. Par mesure
de prévention pour l'environnement et pour la santé humaine,
veuillez le recycler de manière responsable, pour favoriser la
réutilisation des ressources matérielles. Pour retourner votre
appareil usé, veuillez utiliser les systèmes de retour et de collecte
ou contactez le détaillant chez lequel le produit a été acheté.
Celui-ci pourra procéder au recyclage du produit en toute
sécurité.
GB
Correct elimination of this product.
This marking indicates that within the EU this product should
not be disposed of with other household wastes. To prevent any
risk to the environment or human health, please recycle them
responsibly to encourage the reuse of material resources. To
return your used device, please use the return and collection
systems available, or contact the retailer where you purchased
the product. They can recycle this product safely.
D
Ordnungsgemäße Entsorgung des Produkts.
Diese Kennzeichnung weist darauf hin, dass dieses Produkt
innerhalb der EU nicht mit anderen Haushaltsabfällen entsorgt
werden darf. Als Präventivmaßnahme für die Umwelt und die
menschliche Gesundheit muss auf eine verantwortungsbewusste
Wiederverwertung zur Förderung der Wiederverwendung von
materiellen Ressourcen geachtet werden. Für die Rückgabe von
Gebrauchtgeräten verwenden Sie bitte zur Verfügung stehende
Rückgabe- und Recyclingsysteme oder wenden Sie sich an den
Händler, bei dem Sie das Produkt erworben haben. Letzterer
kann das Gerät sicher dem Wertstoffkreislauf zuführen.
E
Eliminación correcta de este producto.
Este símbolo indica que este producto no debe eliminarse
con el resto de residuos domésticos dentro de la UE. Con el
objetivo de proteger el medioambiente y la salud pública,
recicle de forma responsable para favorecer la reutilización de
los recursos materiales. Para devolver su aparato usado, utilice
los sistemas de devolución y recogida o póngase en contacto
con el vendedor del producto. Este podrá proceder al reciclaje
del producto de forma totalmente segura.
I
Corretto smaltimento di questo prodotto.
Questa marcatura indica che, nell'UE, questo prodotto non
deve essere smaltito insieme agli altri rifiuti domestici. A titolo
preventivo per l'ambiente e la salute, deve essere riciclato in
modo responsabile per favorire il riutilizzo delle risorse materiali.
Per mandare indietro l'apparecchio usato, si prega di utilizzare il
sistema di reso e raccolta o di contattare il rivenditore da cui è
stato acquistato il prodotto, il quale potrà procedere a riciclare il
prodotto in totale sicurezza.

Focal-JMlab®- BP 374 - 108, rue de l'Avenir -
42353 La Talaudière cedex - France - www.focal.com
Tel. [phone] - Fax [phone] -
SCPP-190812/1 - CODO1592

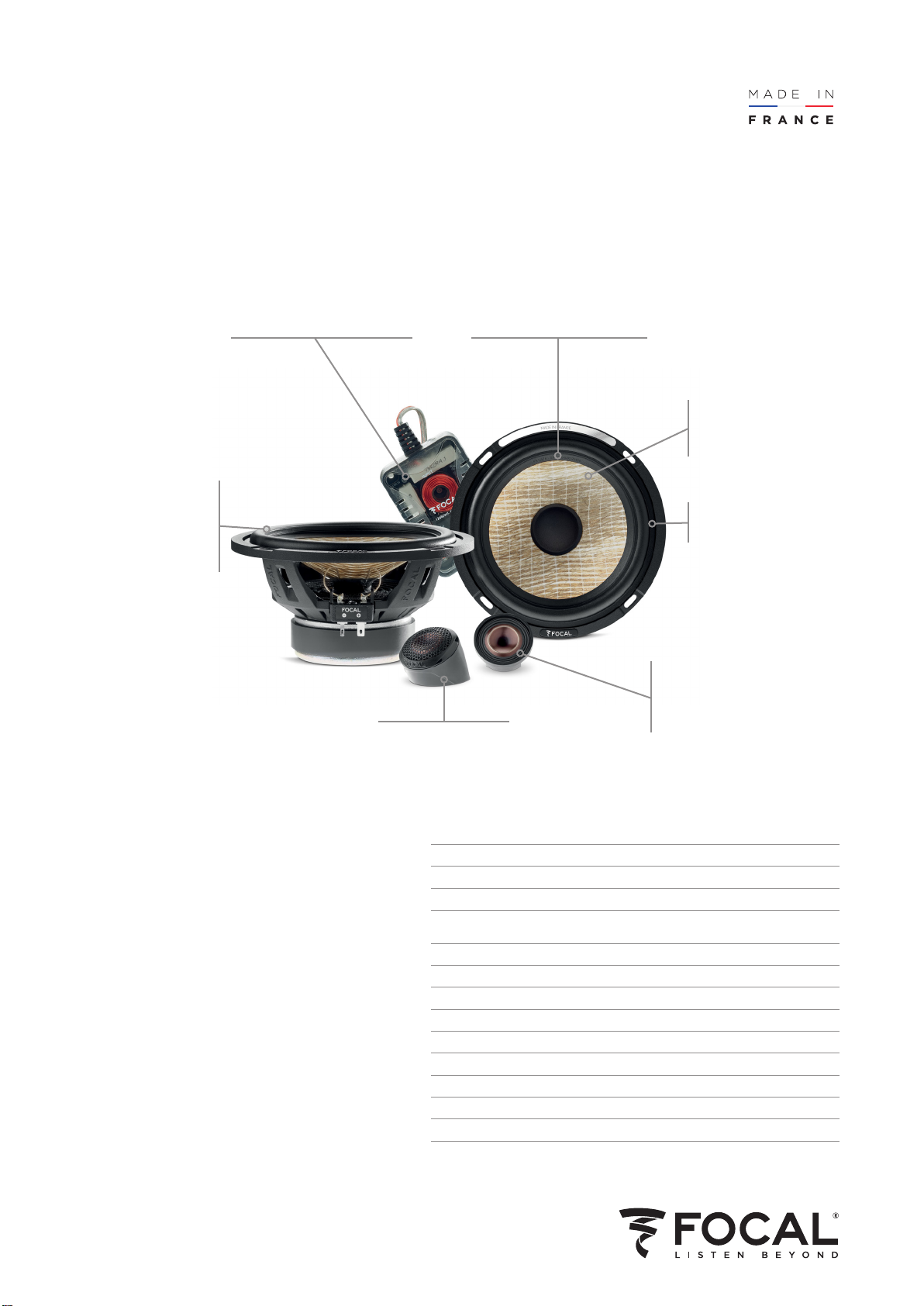

Aluminium Basket
Rigid and non-magnetic
Design
"M" shape inverted dome tweeter
Better definition
without directivity
"TMD" suspension
Tilted mounting
Easier installation
Flax cone
Neutral sound without
coloration
More dynamic
Butyl suspension,
exclusive "TMD" (Tuned
Mass Damper) profile
Enhanced control, more
neutral, linear sound
FLAX EVO
PS 165 FE
Product Data Sheet
2-way component kit
Key points
• High sensitivity
• Focal last technology
• Wider diusion angle
• Unique and patented
Flax cone (N°1350116)
Type 2-way component kit
Woofer 61/2” (165mm)
Woofer depth 27/ 8 ” (72.7mm)
Cone Flax sandwich
Tweeter TAM tweeter (Aluminium/Magnesium
‘M’-profile inverted dome tweeter)
Max. power 140W
Nom. power 70W RMS
Sensitivity (2,83 V/1 m) 91.5dB
Frequency response 60Hz-28kHz
Voice coil diameter 1” (25mm)
Magnet Ferrite
Surround TMD
Impedance 4Ω
Crossover 12dB/oct @3kHz
Focal®is a trademark of Focal-JMLab®- www.focal.com - SCDB191022/1
Compact crossover, prewired
Easy to install
Engraved serial number
Guarantee of authenticity

SPECIFICATIONS
Focal®is a trademark of Focal-JMLab®- www.focal.com - SCDB241019/1
FREQUENCY RESPONSE/IMPEDANCE
MECHANICAL DRAWING
PARAMETERS
Nominal power 70W
Maximum power 140W
Sensitivity 91.5dB
Nom. impedance 4Ω
Cone Flax
Surround TMD - Rubber
DC resistance 3.3Ω
VC diameter 25mm 1"
Former Kapton
Layers 2
Wire Copper
Net weight 1,050g 2.32lbs
Frequency response 60-28kHz
Crossover 12 dB/Oct @3kHz
Rdc 3.3Ω
Fs 56Hz
Mms 15.2g
Cms 0.52mm/N
Vas 12 l
Qts 0.56
Qes 0.61
Qms 7
Bxl 5.4N/A
Sd 127cm2
SPL 91.5dB
Xmax 4mm
165
155.5
90°
7.8
3.8
143.6
72.7
6.5
11.15
0
10
20
30
40
50
60
70
80
50,00
55,00
60,00
65,00
70,00
75,00
80,00
85,00
90,00
95,00
100,00
105,00
110,00
10,00 100,00 1000,00 10000,00
Frequency response - 0°
Frequency response - 30°
Impedance (Ohm)
6½"Woofer
FLAX EVO
PS 165 FE
Technical Sheet

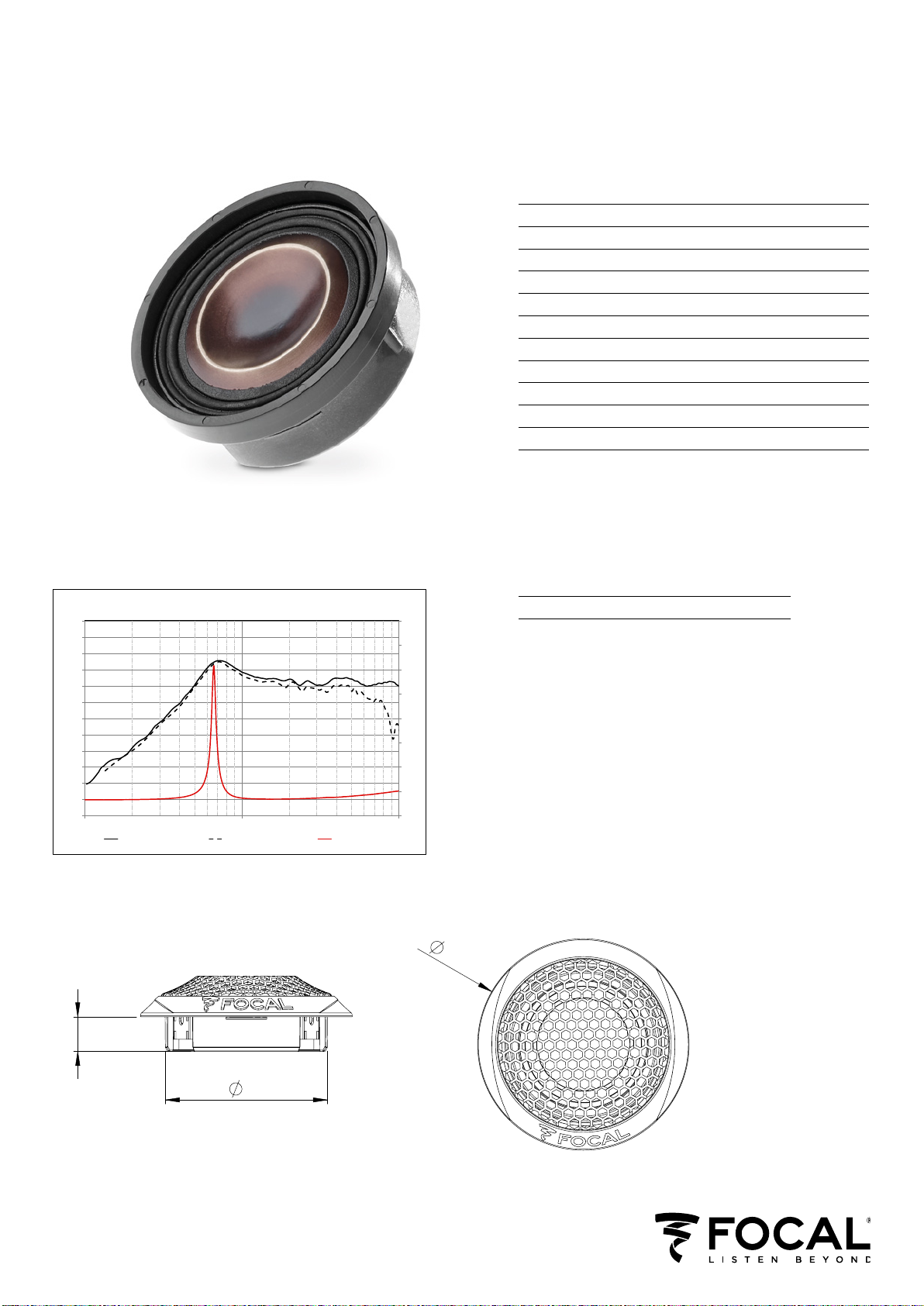

Tweeter
SPECIFICATIONS
Focal®is a trademark of Focal-JMLab®- www.focal.com - SCDB190924/1
FREQUENCY RESPONSE/IMPEDANCE
MECHANICAL DRAWING
PARAMETERS
Nominal power 20W
Maximum power 150W
Sensitivity 92dB
Nom. impedance 4Ω
Cone Al - Mg
Surround TMD - Rubber
DC resistance 3.4Ω
VC diameter 23mm ⁄
Former Kapton
Layers 2
Wire Alu
Net weight 60g 0.13lb
Rdc 3.4Ω
Fs 1,200Hz
8.5
40
52
0,00
5,00
10,00
15,00
20,00
25,00
30,00
35,00
40,00
50,00
55,00
60,00
65,00
70,00
75,00
80,00
85,00
90,00
95,00
100,00
105,00
110,00
200,00 2000,00 20000,00
Frequency response - 0° Frequency response - 30° Impedance
Impedance (Ohm)
FLAX EVO
TAM
Technical Sheet

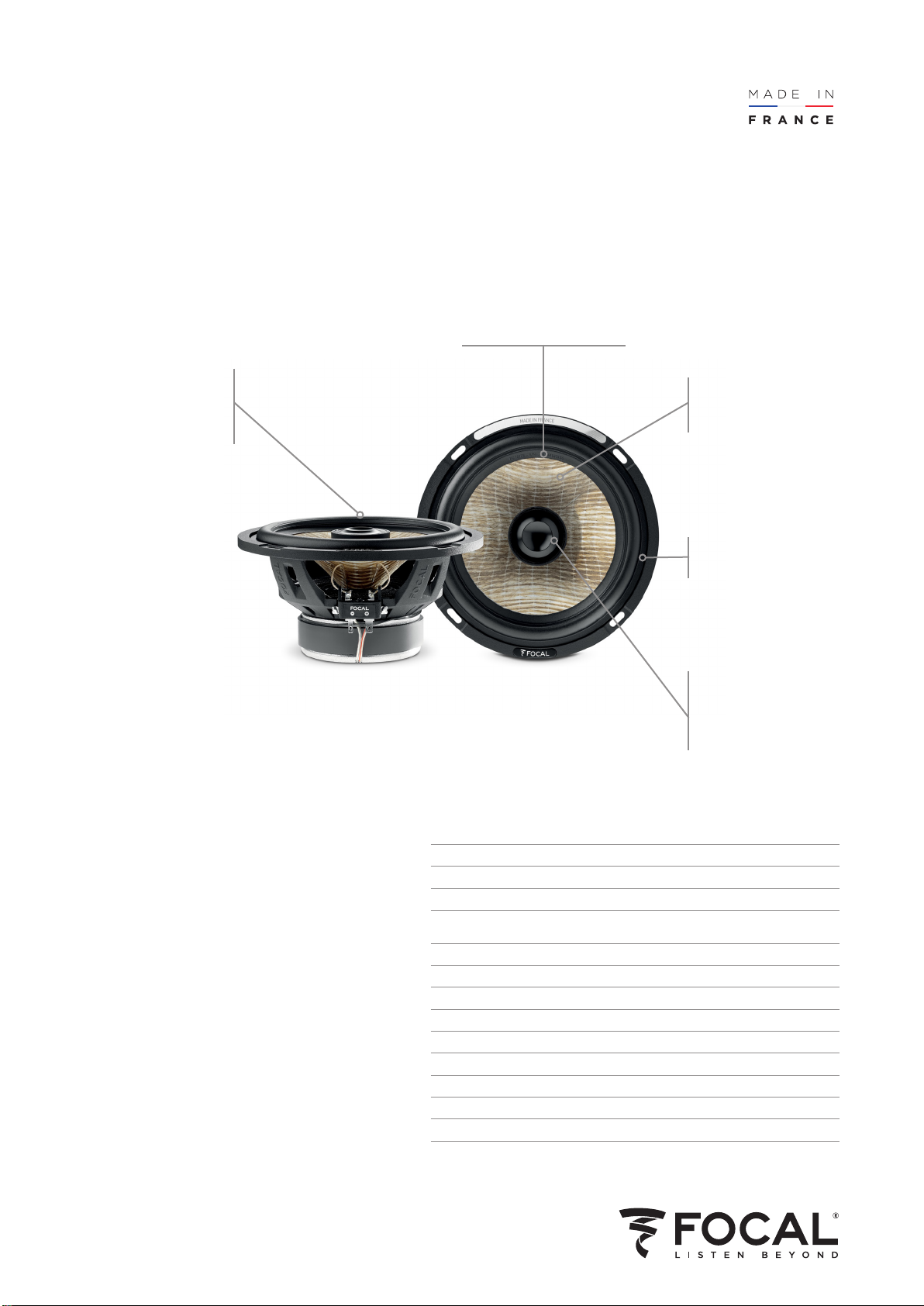

FLAX EVO
PC 165 FE
Product Data Sheet
2-way coaxial kit
Key points
• High sensitivity
• Focal last technology
• Wider diusion angle
• Unique and patented
Flax cone (N°1350116)
• Integrated crossover
Type 2-way coaxial kit
Woofer 61/2” (165mm)
Woofer depth 27/ 8 ” (72.7mm)
Cone Flax sandwich
Tweeter Aluminium/Magnesium 'M' profile
inverted dome coaxial tweeter
Max. power 140W
Nom. power 70W RMS
Sensitivity (2,83V/1m) 90dB
Frequency response 60Hz-28kHz
Voice coil diameter 1” (25mm)
Magnet Ferrite
Surround TMD
Impedance 4Ω
Crossover 6dB/oct
Focal®is a trademark of Focal-JMLab®- www.focal.com - SCDB191023/1
'M' profile inverted
dome coaxial tweeter
Better definition
without directivity
"TMD" suspension
Aluminium basket
Rigid and non-magnetic
Design
Flax cone
Neutral sound
without coloration
More dynamic
Butyl suspension,
exclusive "TMD" (Tuned
Mass Damper) profile
Enhanced control, more
neutral, linear sound
Engraved serial number
Guarantee of authenticity

SPECIFICATIONS
Focal®is a trademark of Focal-JMLab®- wwwfocalcom - SCDB
FREQUENCY RESPONSE/IMPEDANCE
MECHANICAL DRAWING
PARAMETERS
Nominal power 70W
Maximum power 140W
Sensitivity 90dB
Nom. impedance 4Ω
Cone Flax
Surround TMD - Rubber
DC resistance 3.3Ω
VC diameter 25mm 1"
Former Kapton
Layers 2
Wire Copper
Net weight 1,150g 2.54lbs
Frequency response 60-28kHz
Crossover 6dB/oct
Rdc 3.3Ω
Fs 64.7Hz
Mms 13.6g
Cms 0.44mm/N
Vas 10l
Qts 0,87
Qes 0,96
Qms 8,52
Bxl 4.48N/A
Sd 127cm2
SPL 86.5dB
Xmax 4mm
144
6.5
11.1572.7
165
155.5
90°
45°
7.8
3.8
0
10
20
30
40
50
60
70
80
50,00
55,00
60,00
65,00
70,00
75,00
80,00
85,00
90,00
95,00
100,00
105,00
110,00
10,00 100,00 1000,00 10000,00
Frequency response - 0°
Frequency response - 30°
Impedance (Ohm)
FLAX EVO
PC 165 FE
Technical Sheet
2-way coaxial speaker
