FOCOMM SW-M-8G-2SFP User manual

User manual
SW-M-8G-2SFP
8 port Gigabit Layer 2 Managed PoE Switch

1
Installation manual introduction
The Product installation manual mainly describes
switch hardware features, installation methods, and precautions
during the installation
This manual includes the following chapters:
Chapter 1: Product Introduction. Briefly describes the basic
features, Detailed hardware & software specifications of the
switch and the appearance details.
Chapter 2: Product Installation. Guide the switch hardware
installation methods and precautions.
Chapter 3: Hardware Connections. Guide the connection
between switches and other devices and precautions.
Chapter 4: Packaging and product usage suggestions.

2
Chapter 1: Product Introduction
1.1 Products description
SW-M-8G-2SFP is managed PoE switch for security transmission and WIFI
coverage, meet the need of PoE power supply for WIFI AP, IP-camera,
WIFI bridge, IP phones and other types of equipment. New generation of
high-performance hardware and software platforms are used, providing
flexible, cost-effective full Gigabit access and uplink ports, complete
security mechanisms, improved ACL / QoS strategy and rich VLAN
capabilities. It is easy to manage and maintain, meet the users'
requirements for network equipment easy to manage, high security and
low cost.Support Apollo Cloud One-stop Management Platform, realizing
status checking and management monitoring functions, suitable for
campus, Hotel and enterprise park network access, convergence, core
application scenarios.

3
1.2 Product Features
Full Gigabit Port
8 1000Mbps RJ45 ports (support PoE power supply) with 2 Gigabit SFP
ports, Data transmission is not jammed.
Realtek chip, the performance is more stable and powerful
Realtek high-performance chip can greatly improve network data
processing rate
Convenient operation
AI VLAN mode: Separating 1-8 ports from each other, can effectively
restrain network storm and improve network performance.
·AI Extend mode: Designed for monitoring application scenarios, 1-8 ports
support 250 meters long distance power supply.
·AI PoE mode：automatically check, reboot the device while find it fake
dead
·AI QoS mode：video data first, more fluent transmission
Support Apollo Cloud Platform One-stop Management
Support cloud platform for resource visualization management of
switches and downloaded PD devices, make operation and maintenance
management easy

4
1.3 product specification
Hardware Specifications
Chipset
RealtekHigh Performance Chipset
Flash
16MB
RAM
128DDR
Port
8 10/100/1000Mbps RJ45 ports
2 Gigabit SFP fiber ports
PoE
8 10/100/1000Mbps RJ45 port support
PoE
Max 96W
Single port max 46W
LEDs
10 Link/Act LEDs
8 POE LEDs
1 Power LEDs
1 SYS LED
Performance
Forwarding mode: store and forward
Switch Volume (Full-duplex) ：20Gbps
Packet forwarding rate：14.88Mpps
8K MAC address table
lightning protection
±6KV
ESD
No barrier: ±6KV Air：±8KV
Input
DC：48V-56V
Dimension （L×W×H）
225mm×120mm×35mm

5
Software Specifications
Network standard
IEEE 802.3: Ethernet Media Access Control
(MAC) protocol
IEEE 802.3i:10BASE-T Ethernet
IEEE 802.3u:100BASE-TX fast Ethernet
IEEE 802.3ab:1000BASE-T gigabit Ethernet
IEEE 802.3z:1000BASE-X gigabit Ethernet
（fiber）
IEEE 802.3ad: comply link aggregation
standard
IEEE 802.3x: flow control
IEEE 802.1p: About the traffic priority of
the second layer of Qos / Cos protocol
(multicast filtering)
IEEE 802.1q:VLAN Bridge operation
IEEE 802.1d:STP spanning tree
IEEE 802.1s:MSTP spanning tree
IEEE 802.1w:RSTP spanning tree
IEEE 802.3af
IEEE 802.3at
Shortcut function
One key VLAN
One key Exnted(1-8 port 250meters PoE
distance)
One key QoS (Video priority)
One key AI power supply

6
DHCP
Support DHCP Snooping
VLAN
Support 4K VLAN
Support 802.1Q VLAN、Port VLAN、Voice
VLAN
MAC address table
Comply the IEEE 802.1d standard
Support MAC address learning and aging
automatically
Support static, dynamic, filter address table
Safety
Password protection
Support based on the port number, IP
address, MAC address restrictions on user
access
Support HTTPS、SSL V3、TLS V1、SSH
V1/V2
Based on user rating management and
password protection
Support IP-MAC-PORT
Support ARP protection, IP sources
protection, DoS protection
Support DHCP Snooping、DHCP attack
protection

7
Support 802.1X AAA
Support port security, port isolation
Support CPU protection
PoE
Support setting the PoE port priority
Support viewing POE Chip Status
Support setting PoE power supply period
Support setting port power
Access control (ACL)
Support L2(Layer 2)～L4(Layer 4) packet
filtering function
Support port mirroring, port redirection,
flow rate limit, QoS re-marking
QoS
Support 8 port queue
Support port priority, 802.1p priority, DSCP
priority
Support SP、RR、WRR、WFQ Priority
scheduling algorithm
Support automatically identify, manage
and acquire of connected equipment
information
Multicast
Support IGMP v1/v2 Snooping
Support static multicast

8
Support multicast VLAN
Spanning Tree
Support STP(IEEE 802.1d)，RSTP(IEEE
802.1w) and MSTP(IEEE 802.1s) protocol
Support loop protection, BPDU
protection， TCprotection，BPDUfilter
Storm suppression
Support for multicast suppression
Support broadcast suppression
Support for unknown unicast suppression
Link aggregation
Support static aggregation
Support dynamic aggregation
Support IP, MAC, hybrid load balancing
mode
Supports up to 32 aggregation groups
IPV6
Support IPv6 Ping、IPv6 Tracert、IPv6
Telnet
Support IPv6 SSH 、IPv6 SSL
Management and
maintenance
Support WEB management（HTTP、
HTTPS、SSL V3）
Support CLI（Telnet、local serial port）

9
Support SNMP V1/V2/V3
Support LLDP、RMON
Support SNMP
Support ARP Protection, IP Source
protection、DoS protection
Support Apollo Cloud Platform
Support CPU monitor、memory
monitoring
Support system log
Support Ping, Tracert detect cable testing

10
1.4 Appearance

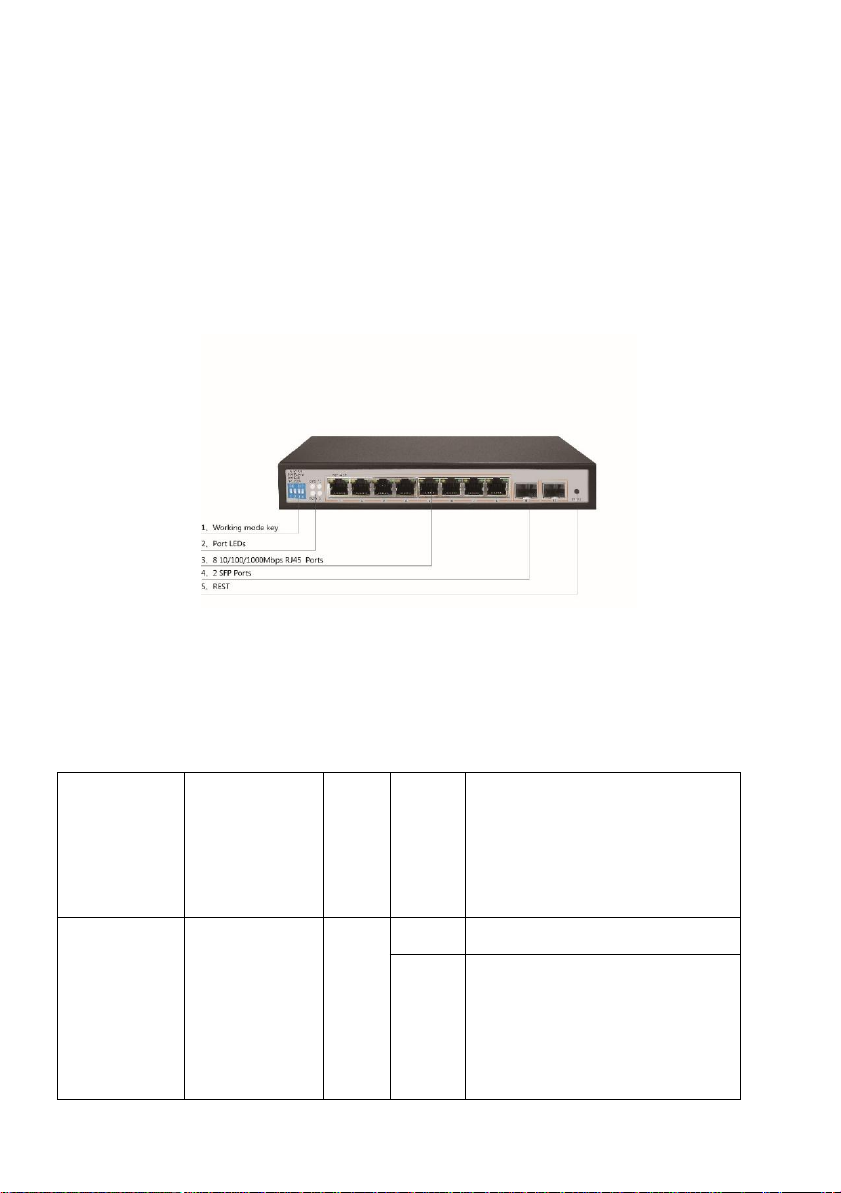

Front Panel
Including indicators, RJ45 port, DIP switch, RST button, SFP port, as shown
below
indicator
SW-M-8G-2SFP The indicator working status is shown as the
following table
Indicators
Title
Col
or
Wor
k
statu
s
Description
POWER
Power
indicator
Red
Solid
Power is normal
Off
No power, the power
switch is not turned on,
power supply is
abnormal

11
POE
POE power
indicator
Yell
ow
Solid
The corresponding RJ45
port is connected to the
powered device and the
power supply is normal
Off
The corresponding RJ45
port is not connected to
the powered device or
the power supply is
abnormal
LINK/ACT
Connection
indicator
Gre
en
Blink
ing
A valid link is
established
Off
An invalid link is
established
SYS
System
indicator
Gre
en
Blink
ing
System is functioning
properly
Off
System is functioning
improperly Software is
damaged
9-10
SFP
indicator
Gre
en
Blink
ing
A valid link is
established on the SFP
port
Off
An invalid link is
established on the SFP
port

12
Shortcut button
AI QoS: Improve video data processing capabilities and improve
the monitoring of Caton and Mosaic phenomena in the
network
AI Extend: 1-8 port rate down to 10Mbps, but the transmission
distance up to 250 meters
AI VLAN: Isolating ports 1-8 from each other, suppress network
storms effectively and improve network performance
AI power supply: Detect PD, power failure and restart dead
equipment
RJ45 Port
SW-M-8G-2SFP
with 8 10/100/1000Mbps PoE port, all ports support
IEEE802.3af and IEEE802.3at standard
When the switch mode of operation is CCTV mode, 1-8 port
can support 250 meters power supply with 10Mbps speed rate
SFP Port
SW-M-8G-2SFP provides 2 Gigabit SFP optical ports
(SFP1, SFP2), can
be inserted into the Gigabit SFP module

13
RST Button
When the switch is powered on, press the button with the
needle to release the device and enter the restarting state.
When the SYS lamp restarts, the device restarts. When the
switch is powered on, press and hold the button for more than
5s to release the button and enter the reset state. When SYS is
re-lit, the device is reset successfully
Back Panel
Including: power socket, power switch, ground terminal
Power socket
A 100-240VAC 50/60 Hz power receptacle for
accommodating the supplied power cord
Ground terminal
Please use the grounding wire to prevent lightning. To avoid

14
product lightning strikes and extend product life
Chapter2 Installation
2.1 Installation Precautions
Note：To avoid improper use of equipment damage and personal
injury, please observe the following precautions
Installation safety precautions
The power should be kept off during the installation, while wearing
anti-static wrist, and to ensure well touch between anti-static wrist and
skin to avoid potential safety hazard;
The switch just works normally when it is powered by the correct
power supply. Make sure that the power supply voltage matches the
voltage indicated by the switch
Before powering on the switch, make sure that the power circuit is not
overloaded, which may affect the normal operation of the switch and
even cause unnecessary damage
To avoid the risk of electric shock, do not open the case while the
switch is working. Do not open the case even when it is not powered
Before cleaning the switch, unplug the switch from the power cord and

15
do not wipe it with wet cloth. Do not wash it with liquid
temperature and humidity
To ensure the long-term stability working of the switch, please maintain
a certain temperature and humidity environment. High or low
humidity easily lead to leakage of insulation materials, deformation
and even the corrosion of metal parts, the temperature is too high will
accelerate the aging process of insulating materials, seriously affecting
the service life of equipment. The normal operation of this series of
switches and storage temperature / humidity are as follows
Environmental
description
temperature
Relative humidity
Working
environment
0℃~40℃
10%～90% RH no
condensation
Storage
environment
-40℃～70℃
5%～90% RH no
condensation
Altitude
Products with this logo are only for safe use in areas below 2000m
altitude
Dust-proof
Dust on the switch surface will cause electrostatic adsorption, poor
contact of the metal contacts. Although the device itself has done

16
some measures in anti-static, but when the static electricity exceeds a
certain intensity, it will still cause fatal damage to the electronic
components on the internal circuit board.
In order to prevent static electricity from affecting the normal
operation of the equipment, please note the following:
1. Regular dust, keep the indoor air clean;
2. Make sure the equipment is well grounded to ensure smooth
transfer of static electricity
Electromagnetic interference
Electromagnetic interference have an impact on the device capacitance,
inductance and other electronic components by capacitance, inductive
coupling, impedance coupling and other conductive, in order to
reduce the adverse effects caused by electromagnetic interference,
please note the following：
1. Power supply system to take the necessary anti-grid interference
measures;
2. Switches should be far away from high-frequency high-power,
high-current devices, such as wireless transmitters;
3. If necessary, take electromagnetic shielding measures
Lightning protection
When a lightning strike occurs, a strong current will be generated in an
instant cause fatal damage to electronic equipment. To achieve better

17
lightning protection, please note the following：
1. Make sure the rack and the ground to maintain good contact;
2. Make sure the power outlet is in good contact with the earth;
3. Reasonable wiring, to avoid the internal sense ray;
4. Outdoor wiring, it is recommended to use the signal lightning
protection device
Installation desk requirement
Regardless of whether the switch is installed in a rack or on another
horizontal workbench, be aware of the following:
1. Make sure the rack or workbench is stable, strong, and can
withstand at least 5.5Kg weight;
2. Make sure the rack has a good cooling system, or maintain
good indoor ventilation;
3. Make sure the rack is well grounded, the power outlet and
switch are within 1.5 meters
Prepare tools for installation
You may need to use a screwdriver during installation, electrostatic wrist
strap, fiber optic cable and other tools to prepare your own

18
Chapter3 Hardware connection
3.1 RJ45 port connection
Connect the RJ45 port of the switch and the corresponding network device
via cables, the POE power supply function of the switch is default enabled
on the downlink port of the switch, which can be used for IEEE802.3af or
IEEE802.3at standards powered devices such as APs, bridges, and network
cameras
Note：
When the switch connected workstations, servers, routers or
other ethernet devices the cable length should be within 100
meters;
The Auto-MDI / MDIX ethernet interface is enabled by default. Category
5,the standard network cable or crossover cable can be used for Ethernet
connection.

19
Do not connect the RJ45 port to the phone line
SFP Port connection
SFP port only support Gigabit fiber module. Recommended
use of standard SFP module products
The process of installing a fiber module on a switch is as follows:
1、grasp the optic fiber module from the side, insert it smoothly
along the SFP port slot until the optic fiber module and switch are in
close contact;
2、 confirm the Rx and Tx ports of the fiber module when connecting,
insert one end of the fiber into the Rx and Tx ports correspondingly,
ensure that the Tx and Rx ends of the interface are connected correctly
and the other end of the fiber is connected to another device;
3、 please check the corresponding indicator light status after power
on. If the light blinking that the link is properly connected, if the light is
off , the link is failure, please check the line to confirm that the
corresponding equipment is enabled.
Note：
DO NOT excessive bending fiber, the radius of curvature should not be
lessthan 10cm;
Ensure the cleanliness of the fiber surface;
Please DO NOT look directly into the optical fiber connector with your
