AVE 2PSWT User manual

1
2PSWT
2-Position Sequencing,
Homing Switcher
Operation Manual

2
WARNING: TO PREVENT FIRE
OR ELECTRIC SHOCK,
DO NOT EXPOSE THIS
APPLIANCE TO RAIN
OR MOISTURE
Thelightningflashwiththearrowheadsymbol,withinanequilateraltriangle,is
intended to alert the user to the presence of uninsulated “dangerous voltage”
withintheproduct’senclosurethatmaybeofsufficientmagnitudetoconstitute
a risk of electrical shock to persons.
The exclamation point within an equilateral triangle is intended to alert the
user to the presence of important operating and maintenance (servicing)
instructions in the literature accompanying the appliance.
WARNING!
This equipment generates, uses, and can radiate radio frequency energy
and if not installed and used in accordance with the instructions manual,
may cause interference to radio communications. It has been
tested and found to comply with the limits for a class A computing device
pursuant to subpart J of part 15 of FCC rules, which are designed to provide
reasonable protection against such interference when operated in a
commercialenvironment.
Operation of this equipment in a residential area is likely to cause interference
in which case the user at his own expense will be required to take whatever
measures
CAUTION!
RISK OF ELECTRICAL SHOCK
DO NOT OPEN CAUTION!
TO PREVENT ELECTRIC SHOCK
DO NOT REMOVE COVER.
NO USER SERVICEABLE COMPONENTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL

3
INTRODUCTION
The2PSWTisa2positionsequencing,homing switcher.Thefront
paneltoggleswitchallowsforautomaticsequencing,orhoming of
the 2 video inputs. Sequencing is controlled by a front panel
recessed dwell pot. This pot is recessed to eliminate accidental
adjustment. The dwell adjustment varies from approximately .2
second to 60 seconds.
OPERATION
Whenthetoggleswitchisintheuppositiontheswitcherhomesto
camera #1. When the toggle switch is in the down position the
switcher homes to camera #2. When the toggle switch is in the
centerpositiontheswitchersequencesbetweenthetwocameras.
DWELL
The dwell or time that each camera appears on screen can be
adjusted by the recessed front panel control. This can be varied
from approximately .2 second to 60 seconds. Use a small flat
bladedscrewdrivertoadjustthiscontrol.Turningthispottotheright
increasesthedwelltime.
POWER
Theswitcherispoweredbytheincludedwalltransformer.Theunit
canbepoweredfrom5to12VDC.ThecenterpostoftheDCCoax
isPOSITIVE.
CONNECTIONS
TheVIDEOinputsareBNCtypeconnectors.Theinputsare75ohm
terminatedandrequire1VP-P. Theoutputis1VP-Pandwilldrive
a75ohm load. Connect thevideocameras totheswitcher in the
desiredorder.ConnectVideoouttoyourVCRorMonitor. Plugin
theDCCoaxconnector.Theswitcherisnowoperational.Selectthe
desiredfrontpanelcontrolsandadjustthedwell.

4

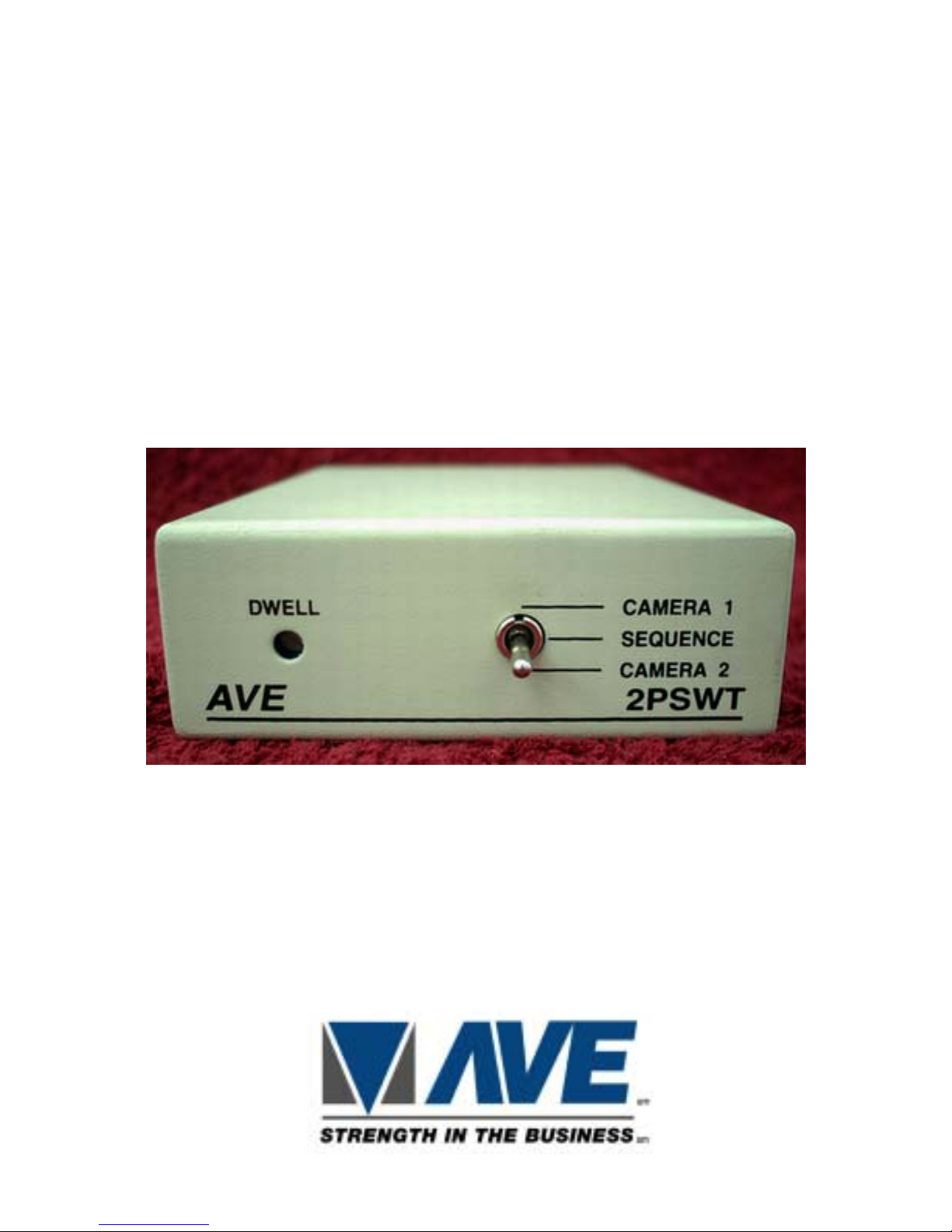

2PSWT Front Panel
2PSWT Rear Panel
Note:
The2PSWTfrontpaneltoggleswitchmerelyswitches+voltagefor
camera#1andgroundforcamera#2.Anexternalrelayortransistor
couldbeuserconnectedtothisswitchinternally toproducealow
cost alarming 2 position switcher. Remove the toggle switch and
wire the alarm trigger to the center position and to ground on the
PCB.

5
SPECIFICATIONSCIFICATIONS
VideoInputs:...................................1VP-PTerminated@75ohm
..............................................toggleswitchselectable
Togglepositions:.............................Home1,Sequence&Home2
VideoOutput:....................................................1VP-Pinto75Ohm
Dwelladjust:.............................................Frontpanelrecessedpot
DwellTime:.................Fromapproximately.2secondto1minute
Power:.................................................................................5-12VDC
PowerSupply.......................................9-12VDCWallTransformer
Connectors:
VideoIn/Out................................................................................BNC
PowerInput.............................................DCCoax2.1mmx5.5mm
AlarmInput...........................Screwterminalwithquickdisconnect
Mechanical:
Case ........................ Beige Metal 3.15” W x 4.53” L x 1.18” H
(80mm W x 115mm L x 30mm H)
Weight........................................................................0.40kg.(0.84lbs.)
Box Size..................................................8.0” W x 7.0” L x 2.5” H
(240mmW x178mm L x 64mm H)

6
