FoiCare FC-P2 User manual
Website:www.foicare.com
E‐mail:foicare@foinoe.com
PRECAUTIONS
ThankyouforpurchasingtheFC‐P2.Wesincerelyhopethatitwillbring
convenienceandenjoymenttoyourdailylife.
Pleasereadtheinstructionsbeforeusingthechairinordertooperateandmaintain
itproperly.FC‐P2assumesnoresponsibleforpersonalinjuryorpropertydamage
sustainedbyorthroughtheuseofthisproduct.
Pleasepayattentiontothefollowingscontentwiththese
warningsymbols.
Failuretotakeprecautionscouldresultinseriousinjuries.
Itcanalsodamageordecreasethelifeexpectancyofthe
FC‐P2.
TABLEOF
CONTENTS
Components
……….………….……….…….…….…….……………...........1
SafetyGuide
……………………...………..…………...........................2
Instructions
……..…………………………......................................…8
Batteriesandchargers
………………………..................…………...17
TroubleShooting
...……………………………......................…….….20
TechnicalSpecifications
.………………………..…..................…….21
PackingList
.…………………………..……………………..................…….22
ServiceHistory
……………....….…………….............................…....23
WarrantyInformation
……………..............………..................…..23
WarrantyCard
……………..........................………..................…..24
1
Components
Handle
Cushion
Arm
Joystick
Electricmotor
Seatcushion
Frame
Footpedal
Foldbackknob
Guardplate
Frontwheel
Battery
Anti‐tipping
SafetyGuide
2
The user must be with sound mind and judgment. They must be
conscious and have unimpaired motor functions in their hand to use
the controller.
The user must read this user’s guide before operating the chair and get
familiar with its components and features.
The user should practice driving skills with assistance on open, flat,
and safe grounds before normal use.
MovingforwardandParking
Tomoveforward,pushthejoystickforwardlightly
Tostop,releasethejoystick.
Movingbackwards
Tomovebackwards,pushthe
joystick
backwardslightly
Theusermustbeawareofwhatisbehindthembeforemaneuvering
backwardstoavoidcollisions
Turning
Toturn,pushthejoysticktotheleftorright
Theusermustbeawareofwhatistotheleftorrighttoavoid
collisionswhenturning
Sa
f
ety Guide (continued)
3
Drivingonbends
Lightlypushthe
joystick
inthe
direction
ofthebend.
Practice
speed
control.
Practice
avoidingobstacles
Lightlypushthe
joystick
ineither
directions
toavoidandmaneuveraround
theobstacle/s,
practice
speedcontrol.
DrivingFast
Pushthe
joystick
allthewayinthe
direction
youwanttogo.Pullthejoy‐
Stick
backtothemiddleifyoudonotfeelyouare100%incontrol.
Drivingoversmallcurbs
Lightlypushthe
joystick
anddriveslowlyoverthecurb.Thestepshouldnot
behigherthan3centimeters
DrivingUphill
Keepyourbodytiltedforwardtokeepthecenterofgravitystable.Drive
slowly.Werecommendtheslopebelessthan12degreesforoptimal
performance.
Sa
f
ety Guide (continued)
4
Entering&
Exiting
Elevator
Theusershouldpayattentiontotheopeningandclosingintervalsof
theelevatordoortoavoidcollisionswhileenteringor
exiting
theelevator.
Drivingonsidewalks
Theusershouldstayonthesidewalkandavoidenteringthemotor
vehiclelaneunlesstocrossthestreet.Payattentiontoobstaclesand
avoidcontactwiththem.
Crossingthestreet
Payattentiontoavoidcarsandonlycrosswhenyouareallowed.
Mustdriveslowlyoverthecurb,togetbackonthesidewalk,which
shouldnotbemorethan3cmhigh.
Drivingovertrain/railroadracks
Wehighlyrecommendyoudonotcrossrailroad/traintracks
aloneintheFC‐P2.Youshouldbeaccompaniedbyanassistant.
Attemptingtocrosstracksthatareelevatedtoohigh(more
than3cm)couldresultinarolloveroraccident.Itcouldendanger
thepersonalsafetyoftheuser.
Sa
f
ety Guide (continued)
5
Drivingoverahighcurb/stepor
steepincline.
Drivingovertoohighofacurb/step
(morethan3cm)couldresultin
rollover.
Drivingonaverysteepinclinecould
alsoresultinarollover.
Gettingintoandoutofabed/chair/couches
Werecommendthattheuserhasassistancegettingoutandinto
thechair.
Movethearmrestsandfootrestoutofthewaybeforeentering
and
exiting
thechair.
Drivingdownhill
Makesurethe
electromagnetic
brakeisclosed
beforedrivingdownhill.Otherwiseitmayleadto
personalinjury.Checktheimagetotherighttosee
howthebrakeshouldappearclosed.
CrossingtheRoad
Payattentiontothetrafficlightandlookbothwaysforoncoming
traffic.
Sa
f
ety Guide (continued)
6
Drivingthroughthecrosswalk
Makesureyourchairhassufficientpowerbeforecrossingthe
crosswalk.Stoppingsuddenlybecauseofpowerlossinthemiddleof
thestreetcancausepersonalinjuryorevendeath.
SelfrepairoftheFC‐P2
DONOTattempttorepairtheproductonyourown.Itmaycause
permanentdamagetothechairandcouldputyourselfatriskofinjury
ordeath.
Theproductshouldberepairedbyaprofessionalrepairshopor
maintenanceservicepersonnel.
SeatBelt
Usetheseatbelt
anytime
whenusingtheFC‐P2
Movingsomeoneintothe
chair
Avoidmovingorhandlingthebatterycasewhen
assistingusers
onor
offthechair,Itcouldresultindamagetothechairandcouldcauseharm.
Sa
f
ety Guide (continued)
7
WashingtheFC‐P2
DO NOT hose down(Spray) the chair with water or any liquids.
It will cause damage to the chair and could also harm or endanger
your personal safety.
Wipe with a cloth.
The seat cushion could also be removed to be washed separately
Batteryhandlingandcare1
DO NOT leave the battery or electrical components of the chair in a
car that is baking(heating up) in the sun .It will cause permanent damage.
Keep the battery away from fire and heat sources.
Batteryhandlingandcare2
DO NOT allow children access to the battery or electrical components
to the chair.
Store the battery in a cool, dry area that children do not have access to
Batteryhandlingandcare3
DO NOT place any items over or on the charger while it is charging.
If the battery becomes hot, deformed, or emits an odor while charging,
stop the charging immediately.
Batteryhandlingandcare4
DO NOT store the battery in direct sunlight. Again, it should be
stored in a dry, cool, and ventilated area that children don’t have access to.
DO NOT store in a severe cold environment. It will damage and
decrease the life of the battery.
I
nstruct
i
ons
8
1Installation
(1).Putthebothsidesofthehandrailoutward,pressdownstronglyonbothsidesofthe
seatcushionuntiltheseatcushionflattened.
(2).Unfoldthehandleyouhearthebuzz,checkwhetherthereexistsshakingornot.
(3.)Installthelegsupport
I
nstruct
i
ons
9
(4).Expandthepedaldown
(5).Installthebattery,connectthebatterypowercord.
(6).Installthecontroller
Note:Donothandgraspthecushiononbothsidesoftheframetube,topreventthe
fingerswerepressed.
2Folding
(1).Turnoffthepower
(2.)Foldupthefootpedalupwards
I
nstruct
i
ons
10
(3).Pullupfromthemiddleofthecushion
(4).Openthefoldingmechanismofthecard,thepushhanddown.
3Otherfunctions
(1).Pullthefootbracketswitch.Afterrotatingoutward,liftupandremovethefoottray.
I
nstruct
i
ons
11
(2) .Pulltheanti‐tippingswitch,youcanadjusttheheightupanddown.
.
(3).Therotaryswitchadjuststhefrontandbackdistancesofthecontroller.

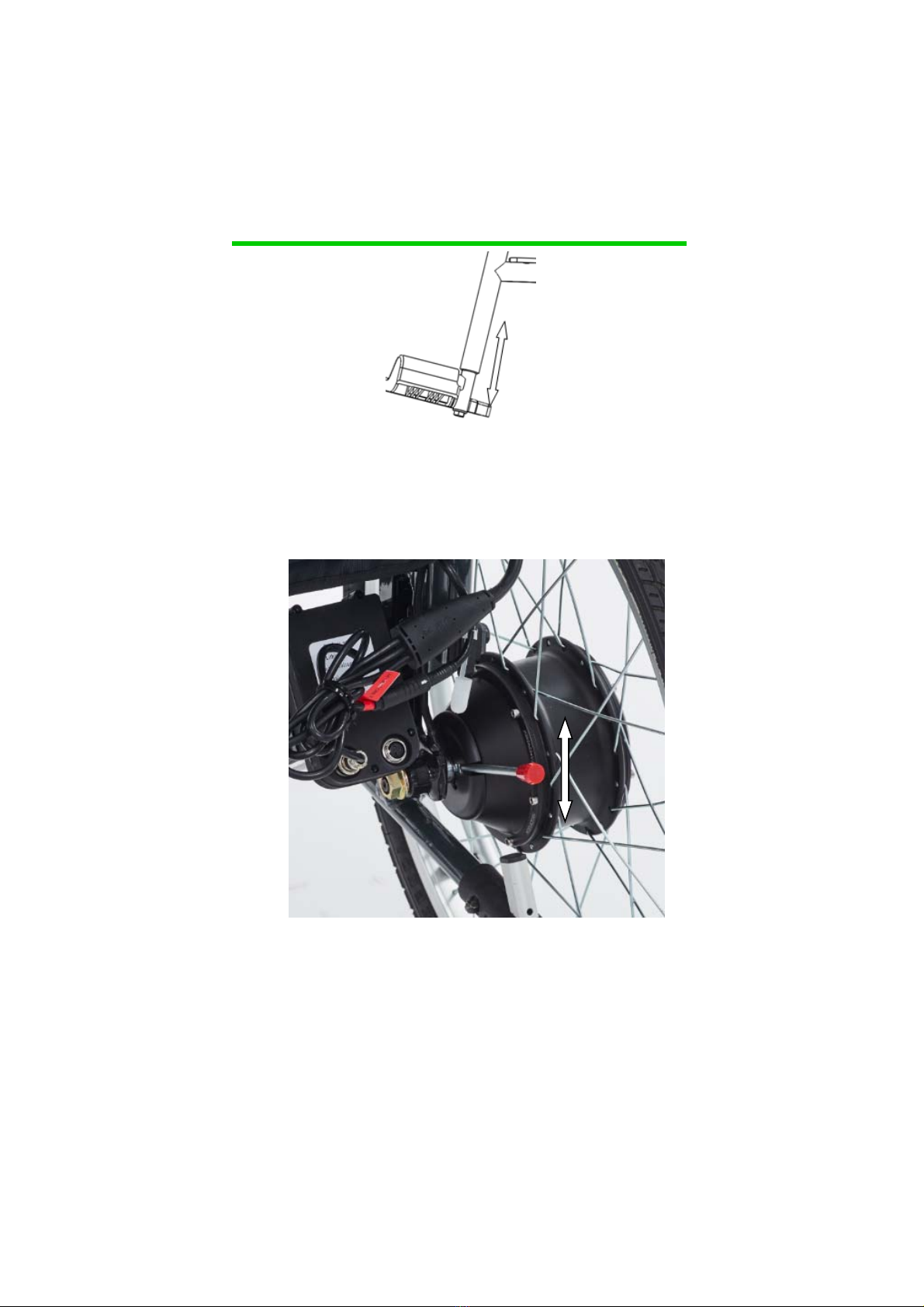

(4).Adjustthefootpedalheight.(Note:Pleaseensurethatthefootpedalfromtheground
heightof50mmormore)
I
nstruct
i
ons
12
(5).Pressupanddowntheredrodtoswitchbetweenelectricandmanualmode.
Electric
Manual
I
nstruct
i
ons
13
4InstructionofFC‐P2wheelchairAPP
(1).Userscanchoosethecorrespondingtwo‐dimensionalcodeaccordingtothemobile
phonesystem.
Wheelchair APP (for Android) Wheelchair APP (for ISO)
(2)Afterdownloading,firstly,turnontheBluetoothfunctionofthemobilephone,then
turnonthewheelchairpowerbuttonandApp,selectthecorrespondingBluetoothserial
numberofthewheelchair,andentertheuserinterface.
(3)Userscanreadthedetailedinformationofthewheelchairthroughtheoperationof
APP,suchastheleftandrightwheelspeed,gradient,electricity,remainingmileage,etc.
TheparametersofwheelchaircanalsobesetbyAPP,suchassettinggear,setting
steeringsensitivityandsettingdrivingsensitivity.Bluetoothremotecontrolcanalsobe
usedtocontrolthemovementofwheelchair.
I
nstruct
i
ons
14
(4)CharacteristicsofFC‐P2powersystem
1Temperaturedetection,whenthecontrollertemperatureistoohigh(55
degrees),itwillautomaticallyalarm.
2
Inte
ll
igent
d
etectiono
f
roa
d
con
d
itions:
A.roadsurfacegradientishigherthan9degrees,willautomaticallyalarm,
remindcautiondriving;
B.downhillautomaticallylimitsspeedandspeed.
C.whentheturningspeedistoolargeandthereisdanger,itwillautomatically
alarm.
D.themotorwillbeturnedoffwhenthereareseriousaccidentssuchasrollover.
3Overcurrentdetection,currentlimiting
4Overvoltageprotection,lowvoltagealarm
5
App
h
asmany
f
unctions:
A.setturnsensitivityanddrivingsensitivityaccordingtousers'individualneeds.
B.hasBluetoothremotecontrolfunction.
C.Bluetoothremoteswitchmachine.
D.canbeupgradedonline.
6Manufacturerappcanconfigureproductioninformationbyitself,suchasmotor
size,frontandreardrive,currentlimiting,gearspeedandsoon.
75speedadjustable
8Theself‐checkingfunctionoftheboothardwareisabundant,sothatthe
hardwareisstableandreliable.
9Ithasvoicefunctionandrichvoiceinformation.
10Powersaving,longjourneyduration
11Therampstopsanddoesnotslide.
I
nstruct
i
ons
15
(5)APPinterfaceforelectricwheelchair:
Instructions
16

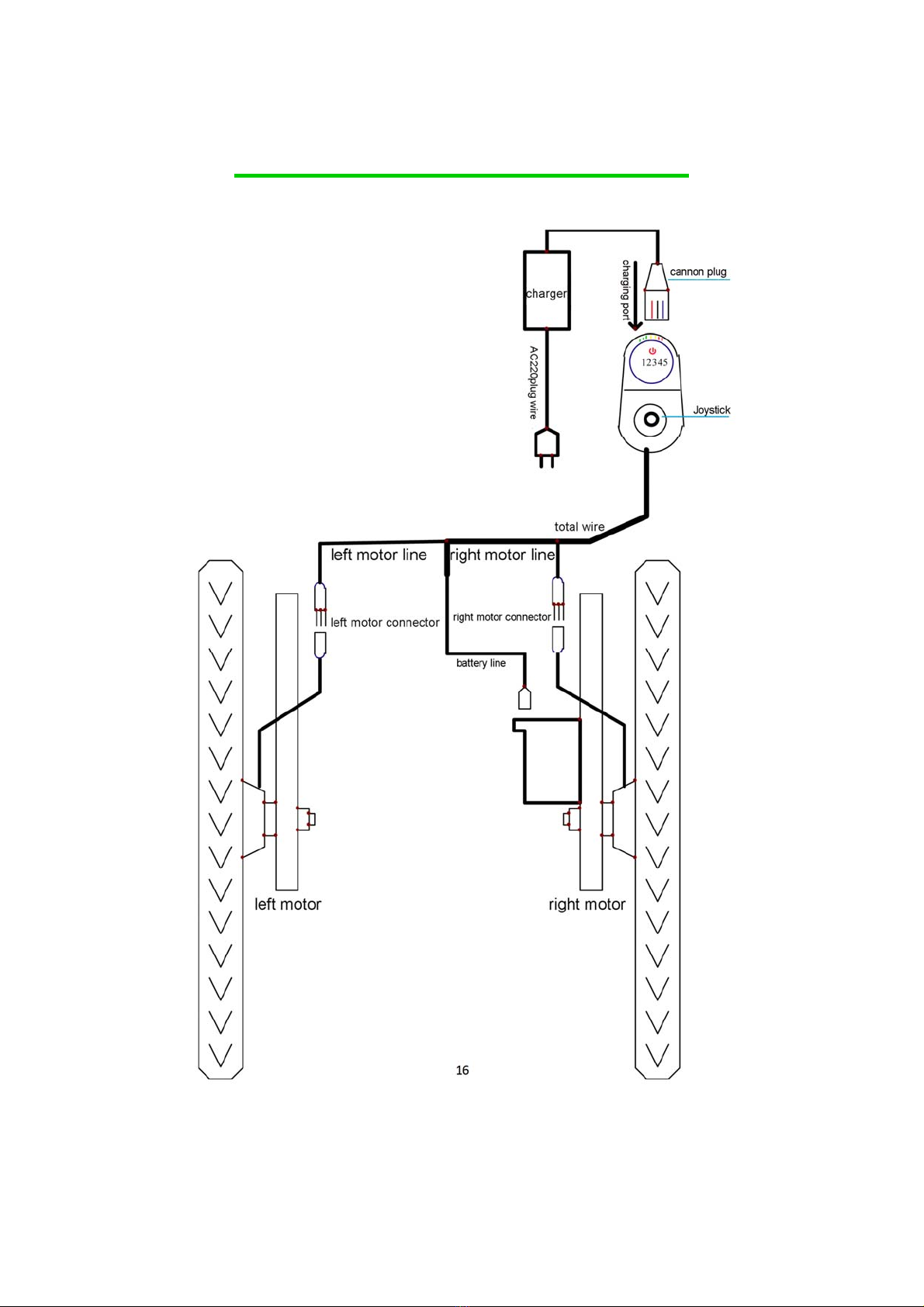

Electricalconnectiondiagram
Batteriesandchargers
17
1safeuseandmaintenanceofthebattery
Thisproducthastwobatteries,placethemundertheelectricwheelchair,donotneed
tomove.
(1)Incorrectreplacement
Thebatterymaybeatriskofexplosion.Replacethebattery,youcanonlyusethesame
orthemanufacturerrecommendedthesametypeofbattery,andshouldpayattentionto
thebatterypolarityshouldbecorrect.
(2).Thepointtoextendthebatterylife:regularcharge(twiceaweek)evenifyoudonot
usethechair
2Chargerrequirements
Chargerfortheelectricwheelchairinternalpowersupplychargetousewhencharging,in
theelectricwheelchairwhenchargingthisproductcannotbeused.
3Specificationsofcharger
Inputvoltage：AC220V
Outputvoltage：24V/DC
Outputcurrent：2.8A
4Chargingsteps
Thechargerprovideschargingfortheelectricwheelchair,themainplugisconnectedto
thepowersupply,andtheotherchargingconnectorisconnectedtothelowerslotofthe
controller.Pleasefollowthebelowinstructionstocompletethechargingprocedures:
