Fomis TYX-586 User manual

Shenzhen Yuyuanxin Electronic Technology Co.,Ltd.
TYX-586 keyboard 2.4G specification
PRODUCT NAME: XBOXONE keyboard DOCUMENT NO：20151029
ITEM NO：TYX-586 VERSION：A1.0
Product application and function
1. It is applicable for New Generation TYX-586 XBOXONE keyboard.
2. The Second Generation TYX-586 XBOXONE handle keyboard is designed for a
Microsoft XBOX ONE controller.It can connect with original XBOX ONE old and new
controllers perfectly. it will not affect the usage of headphones.and be compatible with the
various of XBOX ONE console system (as image 1). It can input fonts,text, and symbols
conveniently and quickly.
3.The players can group chat with this keyboard comfortably .It is easy to connect and take
out of the controller and also can combine with any version of XBOX one original
controller, and provide text inputting,group chatting and playing game as well.
4.The keyboard surface is using the import environmental protection silicone an.The
keyboard surface is using the import environmental protection silicone and using the dome
sheep switch to make it more comfortable.
Product Pictures

Shenzhen Yuyuanxin Electronic Technology Co.,Ltd.
1

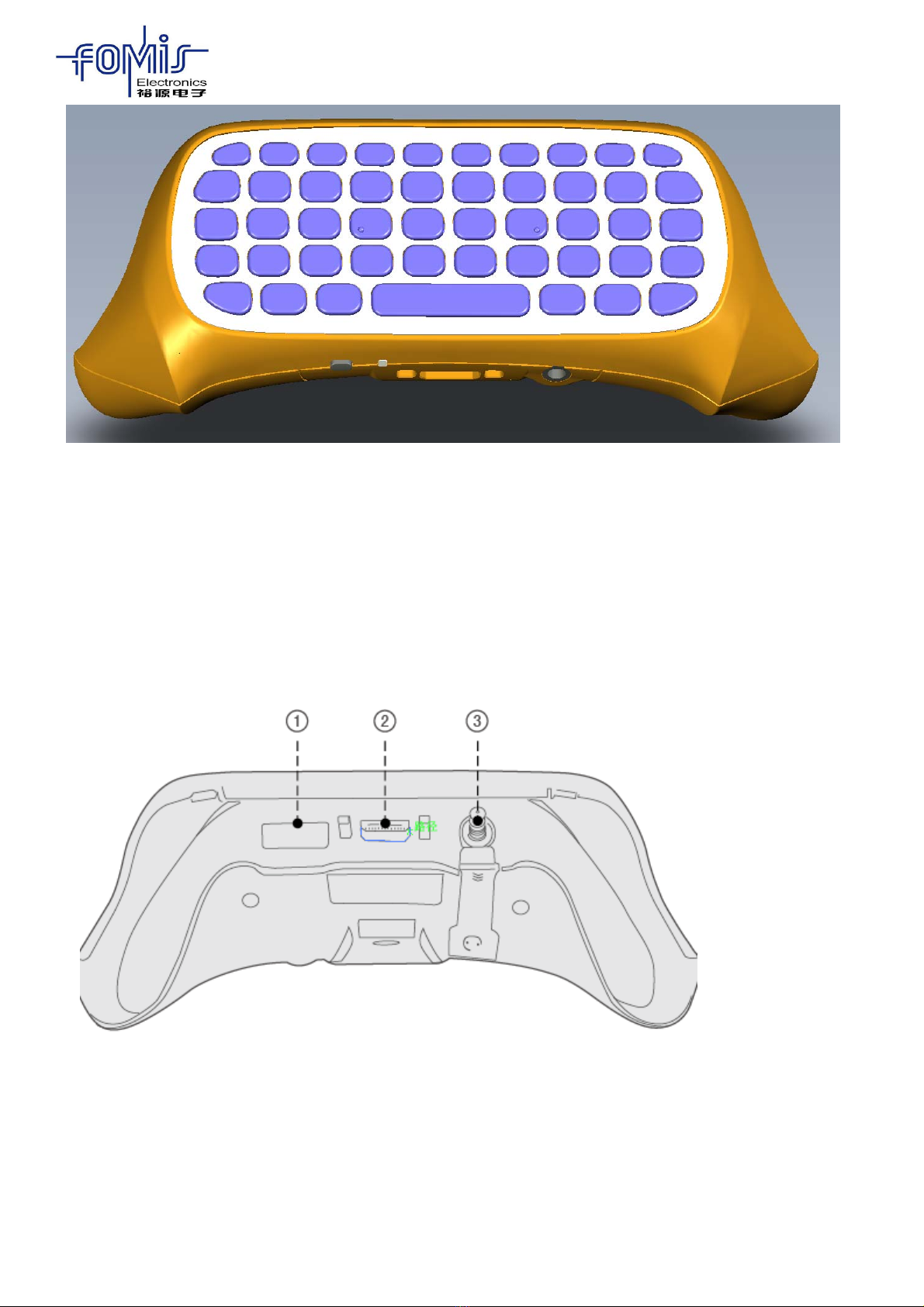

图1
Product dimension
L 142m* W 63* H 45m
Keyboard interface Introduction
1、Storage for 2.4G receiver
2、X-one original earphone jack
3、3.5 phone jack

Shenzhen Yuyuanxin Electronic Technology Co.,Ltd.
2
4、Paring key
5、2.4G paring indicator
6、X-one original earphone jack
7、3.5 audio jack
8、0-9(number key )
9、Caps Lock
10、Shift
11、Back space
12、SPACE
13、26 letters and commonly symbol keys
14、Enter

Shenzhen Yuyuanxin Electronic Technology Co.,Ltd.
3
Usage guideline：
1．Connect the power for XBOX ONE(S)console firstly then connect HDMI cable with
LCD equipment, open the XBOX ONE (S)console and the indicator will be on.
2.Connect the controller with XBOX ONE (S)console. (can refer to the host
specification)
3.For new controller it need to use the 3.5 audio jack to remove the silicone by arrow
direction at the bottom of the keyboard,then rotate 3.5 audio jack outward until it is
connected.
4.Aim two joint pin of the keyboard at XBOX (S)one directional hole, and its headset
jack at the bottom of XBOX ONE(S) controller. then push the keyboard into the XBOX
ONE(S)controller slowly and securely.
5.Under the connection status, insert the 2.4G receiver into any USB port of XBOX ONE
console,and enter the pairing key on the back of the XBOX ONE keyboard within 15
seconds.It will be automatically paired while the blue indicator will glitter.
(Note:when pairing,the distance between keyboard and receiver must be within 0.5
meters,if it fails, do above steps again.)
6.It pairs when the blue indicator will turn off, and can do regular work.
7.Pair only once between the XBOX ONE keyboard with 2.4G receiver. Open the
console to awake the controller automatically for further use.
8.Its XBOX ONE headset jack can be compatible with the XBOX ONE original headset
and have the same effect as connecting with the controllers, the new controller also can
Be compatible with original earphone for PS4 and iphone .
9.It is in sleeping mode while the XBOX one handle sleeps, Please press

Shenzhen Yuyuanxin Electronic Technology Co.,Ltd.
“ ” Button to awake it and controller.
Technical parameters:
1、Applicable range：XBOX ONE handle
2、Wireless Protocol：2.4G
3、Wireless distance:effective range:8-10 meter
4、Working current（press the buttons ）：0.8mA
5、Working current（No button pressing）：8uA
6、Weight：undetermined
7、Product dimension：142x63x45MM
8、Material：ABS
Matters need attention:
In order to use this bluetooth product correctly, insure a good performance, please read
carefully and comply with the follows:
●Do not hit the keyboard seriously.
●Do not let this product contact with benzene,thinner,chemical.etc.
●Do not close to strong magnetic field ,electric field.
●Please avoid direct lighting or heating apparatus.
●Do not disassemble , repair or reconstruct by yourself.
●Please classify and deal with the waste packaging, batteries and old electronic
products properly.
