Fondital SPOT SMART THERMOSTAT User manual

SPOT SMART THERMOSTAT
INSTALLATION, USE
OFF
EN
Translation of the original
instructions (in Italian)
IST 03 C 1349 - 01

Thank You for choosing and buying one of our products. Please read these instructions carefully in
order to properly install, operate, and maintain the product.
WARNING: this instruction manual is an integral and essential part of the
product. It shall be supplied by the installer to the user who shall keep it
carefully to consult it whenever necessary. This document shall be sup-
plied together with the equipment in case the latter is sold or transferred
to others. Use for purposes other than those specied in this manual is not
permitted. All installation or maintenance operations must be carried out
by qualied personnel. The manufacturer cannot be held responsible for
any damage to persons, animals and/or property caused by improper use of
the product or failure to comply with these instructions. The manufacturer
reserves the right to modify the products and/or its components as deemed
necessary, in any moment and without prior notice.
DANGER: during cleaning, maintenance, electrical connection operations it
is mandatory to disconnect the gateway and boiler from the power supply.
DANGER: do not carry out operations that involve removing the appliance
from its installation.
DANGER: do not use the appliance for purposes other than for domestic
use or similar.

DANGER: do not use insecticides, solvents or aggressive detergents to cle-
an the appliance.
WARNING (applies to Thermostat only): the appliance may be used by
children of at least 8 years of age and by persons with reduced physical,
sensory or mental capabilities or lack of the necessary knowledge, provided
that they are under supervision or have been instructed in the use of the ap-
pliance. Children may not play with the appliance and/or clean the appliance
unless they have been properly instructed beforehand.
WARNING (APPLIANCE DISPOSAL): once the electronic appliance comes to
the end of its life, it must be disposed of in compliance with the regulations
in force (WEEE waste from electrical and electronic equipment) and in re-
spect of the environment. If in doubt, contact the appliance manufacturer's
representative in your country.

THERMOSTAT CHARACTERISTICS
Dimensions: diameter: 70mm, thickness 35mm
Colour: White, with coloured rubber rings
Wireless technology: Bluetooth 4.1 BLE
Distance between thermostat and Gateway: Maximum 15 m (30 m in open space)
Reading range: 0°C to 40°C
Reading accuracy: +/- 0.1 K
Setting range: 5°C to 30°C
Temperature increase range: 0.5 K
Power supply: No. 2 1.5 V AAA batteries (not rechargeable)
mod.LR03 Battery duration approx. 2 years*
Fastening: screws and plugs on bracket with integrated
level
GATEWAY / RADIO RELAY CHARACTERISTICS
Power supply 230Vac + 10%-15%
Frequency 50/60Hz
Relay dry contact (gateway relay only) 230Vac 0.5A cos phi 1max
Relay live contact (radio relay only) 230Vac 10A cos phi 1max
Communication with boiler (gateway only) wired bus
Wi-Fi radio communication 802.11 b/g/n (2.4Ghz)
Bluetooth radio communication 4.1 BLE
Operating ambient temperature 0 ÷ +40 °C
Storage ambient temperature -10 ÷ +50 °C
* duration calculated with normal use, with use at ambient temperature from 16°C to 27°C

THERMOSTAT INSTRUCTIONS
Thermostat description
2
1
3
4
5
6 7 98 10
12
11
OFF
KEY:
1 - failure display area
2 - weather
3 - burner status: on/o󰀨
4 heating request in progress
4 DHW request in progress
5 technical support enabling
5 battery 100%
5 battery 75%
5 battery 50%
KEY:
5 battery 25%
5 low battery
6progr. thermostat in manual
mode
6 progr. thermostat active
6progr. thermostat partially
active
7-9 + winter
7-9 summer
8 - OFF
11 - set temperature
12 - ambient temperature

Navigation gestures:
turn press press for three seconds
wait for ve seconds
Set temperature
21
.0
Set programmable thermostat function
copy whole day
paste whole day
exit
day of the week
click to change day of the week

How to select and set the time:
How to select and set the temperature:

Navigation through the Jotto menus
MODE
11:24
SCHEDULE
11:24
SCHEDULE OFF
11:24
SCHEDULE ON
11:24
BACK
SETTING LANGUAGE
11:24
BACK
DIAGNOSTIC
11:24
DOM
11:24
SAB
11:24
TEMPERATURA
OFF
15°C
THERMOSTAT
11:24
DATA & TIME
11:2411:24
BACK
Selection of the boiler operating mode.
Programmable thermostat settings. It is possible to set 4 time slots per each day, with free temperature for each time slot.
Setting of the tempera- ture in the times outside the time slots.
Going back to the main page.
Disabling of the automatic mode: Spot will operate in manual mode.
Automatic mode activa- tion: Spot will follow the set time and temperature settings.

MODE
11:24
SCHEDULE
11:24
SCHEDULE OFF
11:24
SCHEDULE ON
11:24
BACK
SETTING LANGUAGE
11:24
BACK
DIAGNOSTIC
11:24
DOM
11:24
SAB
11:24
TEMPERATURA
OFF
15°C
THERMOSTAT
11:24
DATA & TIME
11:2411:24
BACK
Date and time setting.
Language set-up. Boiler thermore-
gulation setting. Domestic hot water settings. Area relay delay setting.
Display of: - Mac address - Bluetooth signal quality - Connection status - Battery level Press here to pair the Spot with the gateway.
Going back to the main page.

Operating mode
MODE
BACK
WINTER
OFF
SUMMER
WINTER
OFF
SUMMER
WINTER
OFF
SUMMER
WINTER
OFF
SUMMER
OFF

WINTER: the boiler is enabled to produce both hot water for heating and domestic hot water.
SUMMER: the boiler is enabled to produce domestic hot water only. Heating is disabled.
OFF: each boiler operation request is disabled. Antifreeze function is guaranteed.

CH temperature setting
HEATING
WATER
MAX
MIN
70°C
30°C
11:24
THERMOSTAT
11:24
BACK
BACK
HEATING
WATER
MAX
MIN
70°C
30°C
HEATING
WATER
MAX
MIN
70°C
30°C
HEATING
WATER

MIN: is the minimum temperature of the heating water that the boiler will provide in modulating
operation
(regulation type=room temp /external temp/ room-external).
MAX: is the maximum temperature of the heating water that the boiler will provide in modulating
operation
(regulation type=room temp /external temp/ room-external).
MAX: is the maximum temperature of the heating water that the boiler will provide in static operation
(regulation type=on/o󰀨).

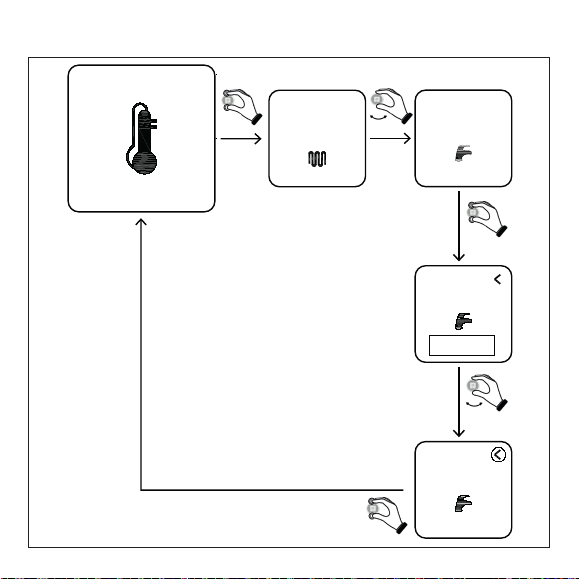

DHW temperature setting
BACK
HEATING
WATER
DOMESTIC
HOT WATER
DOMESTIC
HOT WATER
49°C
49°C
DOMESTIC
HOT WATER
11:24
THERMOSTAT

DOMESTIC HOT WATER: the boiler will produce domestic hot water at the temperature set with
this parameter.

Setting of di󰀨erential - antifreeze temperature - probe correction
DIFFERENTIAL
ON OFF
-0.1 0
CORR
0.0
5.0
11:24
THERMOSTAT
HEATING
WATER
DOMESTIC
HOT WATER
DIFFERENTIAL
DIFFERENTIAL
ON OFF
-0.1 0
CORR
0.0
5.0
DIFFERENTIAL
ON OFF
-0.1 0
CORR
0.0
5.0
DIFFERENTIAL ON: value to be subtracted from the ambient set- point that determines a heating request. [e.g.: Tset=20; Di󰀨erential on=-0.5; the heating request starts at 19.5°C].

DIFFERENTIAL
ON OFF
-0.1 0
CORR
0.0
5.0
11:24
THERMOSTAT
HEATING
WATER
DOMESTIC
HOT WATER
DIFFERENTIAL
DIFFERENTIAL
ON OFF
-0.1 0
CORR
0.0
5.0
DIFFERENTIAL
ON OFF
-0.1 0
CORR
0.0
5.0
Antifreeze: is the ambient temperature under which an antifre- eze request is triggered regardless of the operating mode. CORR: ambient probe correction. Value to add / subtract to o󰀨set any error. DIFFERENTIAL OFF: value to be added to the ambient set-point that determines the end of heating. [e.g.: Tset=20; Di󰀨erential o󰀨=+0.5; the heating request stops at 20.5°C].

Setting the type of regulation of hot water for heating
11:24
THERMOSTAT
HEATING
WATER
DOMESTIC
HOT WATERDIFFERENTIAL REGULATION
TYPE
REGULATION TYPE
ROOM TEMP. EXTERNAL TEMP. ROOM+EXTERNAL ON - OFF
REGULATION TYPE
ROOM TEMP. EXTERNAL TEMP. ROOM+EXTERNAL ON - OFF
REGULATION TYPE
ROOM TEMP. EXTERNAL TEMP. ROOM+EXTERNAL ON - OFF
REGULATION TYPE
ROOM TEMP.
EXTERNAL TEMP.
ROOM+EXTERNAL
ON - OFF
REGULATION TYPE
ROOM TEMP.
EXTERNAL TEMP. ROOM+EXTERNAL
ON - OFF
BACK
ROOM: the temperature of the hot water for heating varies (within MAX - MIN values) depending on the ambient tem- perature. This guarantees lower gas consumption compared to a traditional thermostat system and an excellent comfort (recommended). ON-OFF: the temperature of hot water for heating is xed and equal to the MAX value set in the “HEATING WATER” menu.

11:24
THERMOSTAT
HEATING
WATER
DOMESTIC
HOT WATERDIFFERENTIAL REGULATION
TYPE
REGULATION TYPE
ROOM TEMP. EXTERNAL TEMP. ROOM+EXTERNAL ON - OFF
REGULATION TYPE
ROOM TEMP. EXTERNAL TEMP. ROOM+EXTERNAL ON - OFF
REGULATION TYPE
ROOM TEMP. EXTERNAL TEMP. ROOM+EXTERNAL ON - OFF
REGULATION TYPE
ROOM TEMP.
EXTERNAL TEMP.
ROOM+EXTERNAL
ON - OFF
REGULATION TYPE
ROOM TEMP.
EXTERNAL TEMP. ROOM+EXTERNAL
ON - OFF
BACK
ROOM + EXTERNAL: the temperature of the hot water for hea- ting varies (within MAX - MIN values) depending on the external temperature and the ambient temperature. EXTERNAL: the temperature of the hot water for heating varies (within MAX - MIN values) depending on the external tempe- rature. This guarantees lower gas consumption compared to a traditional thermostat system.

Setting the regulation curve of hot water for heating (to be made by the installer)
11:24
THERMOSTAT
DIFFERENTIAL REGULATION
TYPE
CURVE
PROPORTIONAL
FACTOR
11:24
BACK
HEATING
WATER
DOMESTIC
HOT WATER
CURVE
1.5
CURVE
1.5
BACK
HEATING
DELAY
