Fopo S12 User manual
Portable Monitor
Triple Portable Monitor
Contents
1. Overview
2. Package Contents
3. Inputs and Buttons
4. Set It Up
5. Connect the Monitor with Your Laptop
6. Choose Your cables
7. Connection Methods
7.1 Two Type-C or Thunderbolt 3 Ports
7.2 One Type-C and One HDMI Port
7.3 One HDMI Port
8. Laptop Display Configuration
8.1 PC/WINDOWS
8.2 MAC
9. OSD Function Introduction
10. OSD Setting
11. Supported Brands & Models
12. Tech Specs
13. Cleaning & Maintenance
14. Contact Us
------------------------------------------------------------------------------------
--------------------------------------------------------------------------------------
----------------------------------------------------------------------
---------------------------------------------------------------------
--------------------------------------------------------------------------
---------------------------------------------------------------------------------------
-------------------------------------------------------------------------------
--------------------------------------------------------------------------------
--------------------------------------------------------------------------------
---------------------------------------------------------
--------------------------------------------------------------
-------------------------------------------------------------
---------------------------------------------------------------------------
---------------------------------------------------------
-------------------------------------------------------
--------------------------------------------------
----------------------------------------------
-------------------------------------------------------------------------
-----------------------------------------------------------------------
1
2
3
5
6
7
8
8
10
11
12
12
13
14
15
18
22
23
24

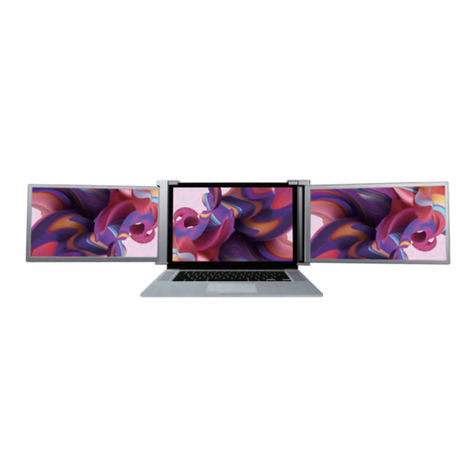

1. Overview
Triple Monitor
2*Mini HDMI to
HDMI Cables
VIDEO ONLY
1* Hook-and-loop
Fastener
1*Power Adapter
2*USB-C to USB-C
(90-degree) Cables
VIDEO & POWER
2*USB-C to USB-A
Cables
POWER ONLY
1
2. Package Contents
1* Portable Triple Monitor
2* Type-C Cables
2* HDMI Cables
1* Cleaning Cloth
2* Screen Protector
1* Power Adapter
1* Hook-and-loop Fastener
Please kindly check out all the accessories in the package. If you find anything
missing here, please don’t hesitate to contact us via the email address
fopo@afterservice.vip and we will help you solve the problems as soon as
possible.
Note:
2
3
3. Inputs and Buttons
*It only displays the interfaces and buttons function. Please check the actual
machine for the specific position of interfaces and buttons.
Type-C Full Function Port: Power Supply, Video
Signal Transmission
Mini HDMI Port (No Power Supply): Video Signal
Transmission
Press the Menu to enter the OSD (On-Screen Display) menu.
Increase the brightness; Enter the Menu, and press it to turn to
the next selection; Increase the value.
Decrease the brightness; Return to the previous page; Increase
the value.
Type-C Port (Power Supply Only): Power Supply, Reverse Charging,
Compatible with PD2.0 power supply protocol, Supporting 5-20V
voltage input
Warning
Please handle the triple monitor with care and do not press the screens to avoid
damages. Do not unfold it to exceed its maximum turning angle showing as
below.
4
Turning Angle of Screens
Right screen(0° - 180°)Left Screen(0°-235°)
Note:
4. Set It Up
5
Unpack the triple monitor.
Open two screens in the directions as
shown in Fig. 2.
Place the bracket at the back of the
laptop screen and install it well with
the bracket clamping the screen
firmly.
Lift up the stand and stretch to its end.
Press and hold the button to retract
the stand.
(The stand is embedded at the back of
the triple monitor, which can offer
extra support to the triple monitor. )
Using the necessary cables, plug one
end of the cable into the triple moni-
tor and the other into your laptop.
(See “Inputs and Buttons” on page 3
for the input diagram. )
1)
2)
3)
4)
5)
1
3
5
2
4
5. Connect the Monitor with Your Laptop
6
Length: 255-372mm (10-14.6 inch)
Height : >210mm (>8.27 inch)
Thickness: <7mm (<0.28 inch)
Please measu e the length, Heightr and thickness of the laptop first to make
sure it can be compatible with the monitor.
If it is not within this range, please feel free to contact us via the email address
fopo@afterservice.vip and we will help you solve the problems as soon as
possible.
Compatibility of Laptops for the Triple Monitor:
Notes:
6. Choose Your Cables
7
To determine which cables you will use, first identify your laptop’s ports accord-
ing to the figure below or your laptop’s user manual.
*Make sure your USB-C port on the laptop is full-functioned Port. Please refer to
your laptop's user manual.
Notes:
VIDEO & POWER:
VIDEO ONLY
POWER ONLY
7. Connection Methods
8
There are 2 Type-C or Thunderbolt 3 ports on the laptop.
Use two Type-C cables to connect the laptop with the monitors.
Please make sure that the Type-C port is a full-functioned.
And make sure that the laptop has a power supply.
If you can't connect the monitor with the laptop, please contact us via the email
address fopo@afterservice.vip, and inform the customer service of the model
number of your laptop to quickly determine the compatibility of the connecting
port.
7.1 Two Type-C or Thunderbolt 3 Ports
Notes:
7. Connection Methods
fopo@afterservice.vip 9
①Make sure the Type-C of your laptop is a Full-functioned Type-C port(support
both video & data transmission).
②Make sure 5V/2A or above power can be supported through Type-C port.
An external power supply of 5V/2A or above is needed for normal use (adjust
brightness and volume above 50).
Some Type-C ports may not be able to transmit currents above 5V/2A, please
connect an external power supply to better use the monitor.
If you can't connect the monitor with the laptop, please contact us via
fopo@afterservice.vip, and inform the Tech. Support of the model number of
your laptop to quickly solve your issues.
Notes:
USB-C to USB-A
7. Connection Methods
10
There is one Type-C and one HDMI port on the laptop.
1) Plug the Type-C cable into Type-C port on one side of the monitor.
2) Meanwhile, plug the HDMI cable into the Mini HDMI port on the other side of
the monitor.
3) And then plug the monitor into the power supply.
The HDMI port does not provide power, so the monitor must be plugged into the
power supply（5V/2A or Above）.
7.2 One Type-C and One HDMI Port
Notes:
USB-C to USB-A
USB-C to USB-A
7. Connection Methods
11
There is only one HDMI port on the laptop.
1) Plug the HDMI cable into the Mini HDMI port on one side of the monitor.
2) And then plug the monitor into the power supply.
You can contact us via the email address fopo@afterservice.vip for the
connection adapter and inform the customer service of the model number of the
laptop, and we will find the connection adapter for you.（5V/2A or Above）
7.3 One HDMI Port
Notes:
USB-C to USB-AUSB-C to USB-A
8. Laptop Display Configuration
8.1 PC/WINDOWS
1.Enter the Display Settings interface. (Start >Settings > System > Display)
2.Identify the Screen/Set Display Direction
Click and drag the screens to the configuration shown.
3.Start Duplication/Extension Setting
If you need to set different display modes on the triple monitor, please click 1/2/3 (click the “Identify”
Button down the screen to find the corresponding screen). Select one of them, and then enter into the
“Multiple displays” menu to set.
4.Start Rotation Setting
If any of the screens are upside down, click the display menu on the screen. Then click the “Orientation”
dropdown menu and select “Landscape (flipped)”
5.Start Scaled Ratio Setting
To increase the zoom, click the dropdown of “Change the size of text, apps, and other items” and select
“150%”.
* In the setting of the graphic card, you can set three displays sync. If you have any problems, please consult
the local distributor.
12
8.2 MAC
1. Identify the Screen/Display Direction Setting
Open the “System Preferences” . Select “Display” from the menu. And then Click
“Arrangement”. Click and drag the screens to the configuration shown.
2. Start Duplication/Extension Setting
Duplication Setting: Select “Mirror Display”.
Extension Setting: Cancel “Mirror Display”.
3. Rotation Setting
If any of the screens are upside down, click the display menu on that screen and
select “180°” from the dropdown.
4. Scaled Ratio Setting
To increase the zoom, click the “Scaled Ratio” Button.
8. Laptop Display Configuration
13
9. OSD Function Introduction
1. Press the “ ” Menu button to activate the OSD menu.
2. Press “+” button to choose your settings.
3. Press the “ ” Menu button to confirm.
4. Press “-” button to return to the previous page.
BRIGHTNESS
BRIGHTNESS
CONTRAST
BLACK LEVEL
SHARPNESS
14
10. OSD Setting
Brightness
Brightness: The adjusting range is from 0 to 100.
Contrast: The adjusting range is from 0 to 100.
Black Level: The adjusting range is from 0 to 100.
Sharpness: The adjusting range is from 0 to 100.
ECO: Presets the display settings for various
modes (Standard/Game/Movie/Text/FPS/ RTS
Modes).
DCR: Selects ON or OFF to enable or disable the
dynamic contrast ratio function.
Aspect: Adjusts the aspect ratio to 4:3/WIDE.
BRIGHTNESS
BRIGHTNESS
CONTRAST
BLACK LEVEL
SHARPNESS
ECO STANDARD
DCR
ASPECT
OFF
WIDE
15
10. OSD Setting
Color Temp
Color Temp: Enables the adjustment of each
RGB color, or select a Warm or Cool preset level.
Red: The adjusting range is from 0 to 100.
Green: The adjusting range is from 0 to 100.
Blue: The adjusting range is from 0 to 100.
OSD Setting
Language: Selects OSD language. The selections
are as follows, English, French, German, Simpli-
fied Chinese, Italian, Spanish, Portuguese,
Turkish, Polish, Dutch, Japanese, Korean.
OSD Timer: Sets time-out for monitor settings
menu (10-60 seconds).
Transparency: Sets the transparency of monitor
settings menus.
COLOR TEMP
COLOR TEMP COOL
RED
GREEN
BLUE
38
43
45
OSD SETTING
LANGUAGE
OSD TIMER
TRANSPARENCY
OSD H.POS.
OSD V.POS.
20
16
50
50
16
10. OSD Setting
Reset
Reset: Selects RESET to revert all settings to
the factory default mode.
MISC
Signal Source:
Contains two signal sources: Type-C and HDMI.
Low Blue Light:
Decreases the amount of blue light in the
display.
HDR MODE:
Enables HDR (High Dynamic Range) when
connected to a compatible device, with three
modes (OFF/Auto/2084).
RESET
RESET
MISC.
SIGNAL SOURCE TYPE C
LOW BLUE LIGHT
HDR MODE
1920 X 1080 60HZ
OFF
0
17
