Forster FOREG 2000 Operating manual

Static Shelving
User and Installation Manual
2000

2000
2 User Manual: status as of 21th March 2020 Version A
Static Shelving
Read this user manual thoroughly.
It provides important information on how to safely
operate the shelving system.
Please keep it next to the system for further use at
all times.

2000
Version A User Manual: status as of 21th March 2020 3
Static Shelving
Content
1 Static Shelving System FOREG 2000 ...................................... 3
2 Safety and operation ............................................................... 4
2.1 Safety standards and norms.................................................................................... 4
2.2 Operation ................................................................................................................. 4
2.3 Stored goods ........................................................................................................... 5
3 Installation............................................................................... 5
3.1 Stability .................................................................................................................... 5
3.2 Load index ............................................................................................................... 6
3.3 Shelves – Types and Loads ..................................................................................... 6
4 Maintenance and servicing ..................................................... 9
5 Accessories ........................................................................... 10
Attachment:
General System Information
Acceptance Report (hand-over certificate)

2000
4 User Manual: status as of 21th March 2020 Version A
Static Shelving
1 Static Shelving System FOREG 2000
Definitions
single frame
double frame
drilling in bottom
frame corner
basic unit add-on unit
aisle (min. 0,75 m)
aisle (min. 0,75 m)
traffic route
(min. 1,25 m)

2000
Version A User Manual: status as of 21th March 2020 5
Static Shelving
2 Safety and operation
• Comply with the maintenance and inspection inter-
vals.
• Staff should be instructed in operating the system,
and records kept of such instructions.
• Ensure that the shelving is used in accordance with
the operating instructions as misuse could be harm-
ful to users and / or damage the system.
• The shelving system has been designed in accor-
dance with the accepted international safety regula-
tions.
2.1 Safety standards and norms
The shelving system complies with the following stan-
dards and safety regulations:
DGUV Regel 108 – 007
Lagereinrichtungen und Geräte (Storage
facilities and equipment), updated version of
9/2006
RAL-RG 614/1
Gütesicherung Lager- und Betriebseinrichtungen
(Quality assurance for storage and operating
equipment)
• Monitoring Agreement NR 12 7858 12 - 4 with the
material testing office of NRW

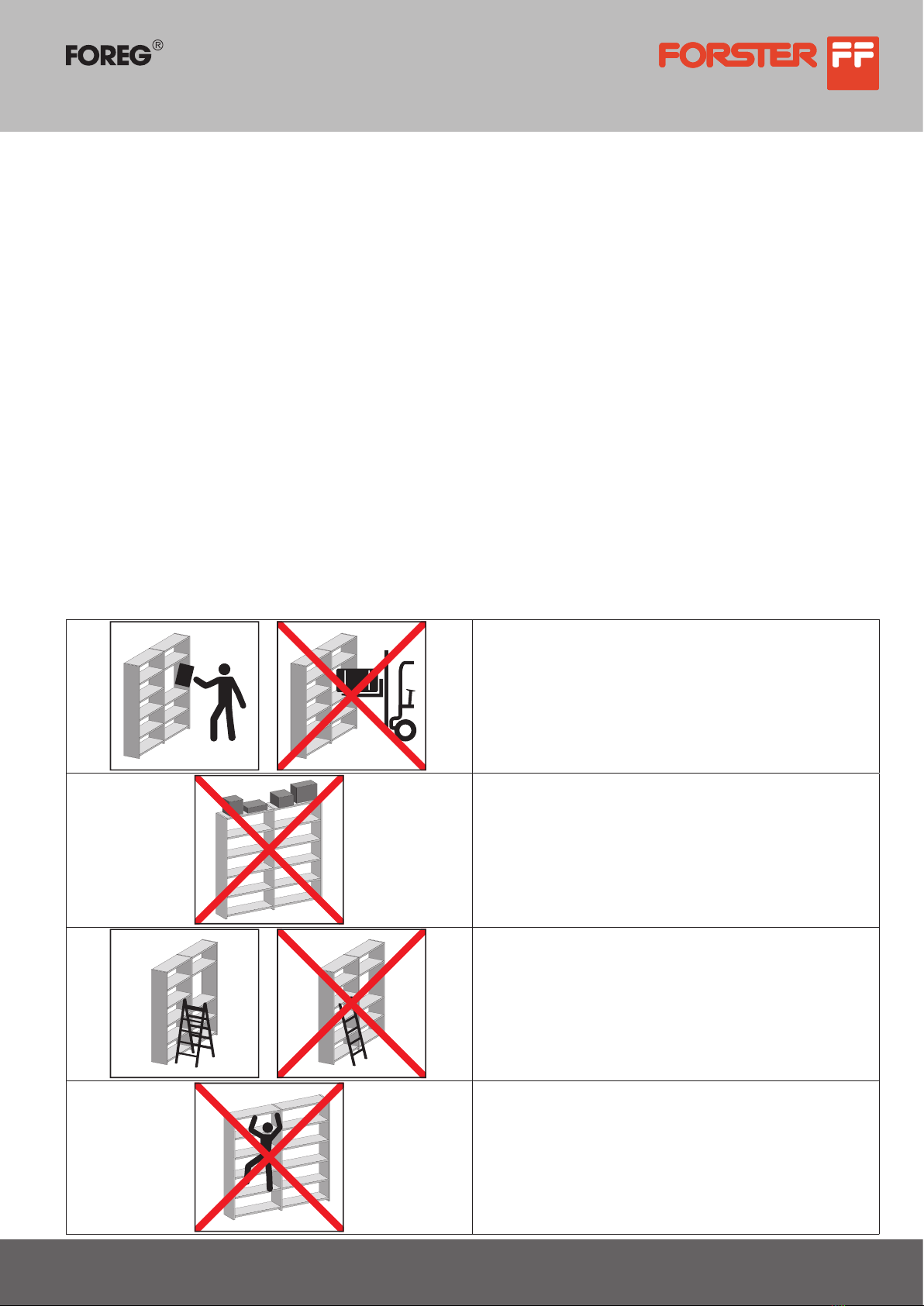

2.2 Operation
The system will be loaded/unloaded by hand.
Do not store anything on the top cover shelves.
Use ladders to place or remove anything from the
upper shelves. Please note that ladders must not be
leaned on the shelving system.
Do not step on the shelving.

2000
6 User Manual: status as of 21th March 2020 Version A
Static Shelving
3 Installation
3.1 Stability
• The floor fixture may only be omitted if a wall fixture will
be used.
• Static shelving systems with pull-out interior equipment
or hinged doors ALWAYS have to be fixed.

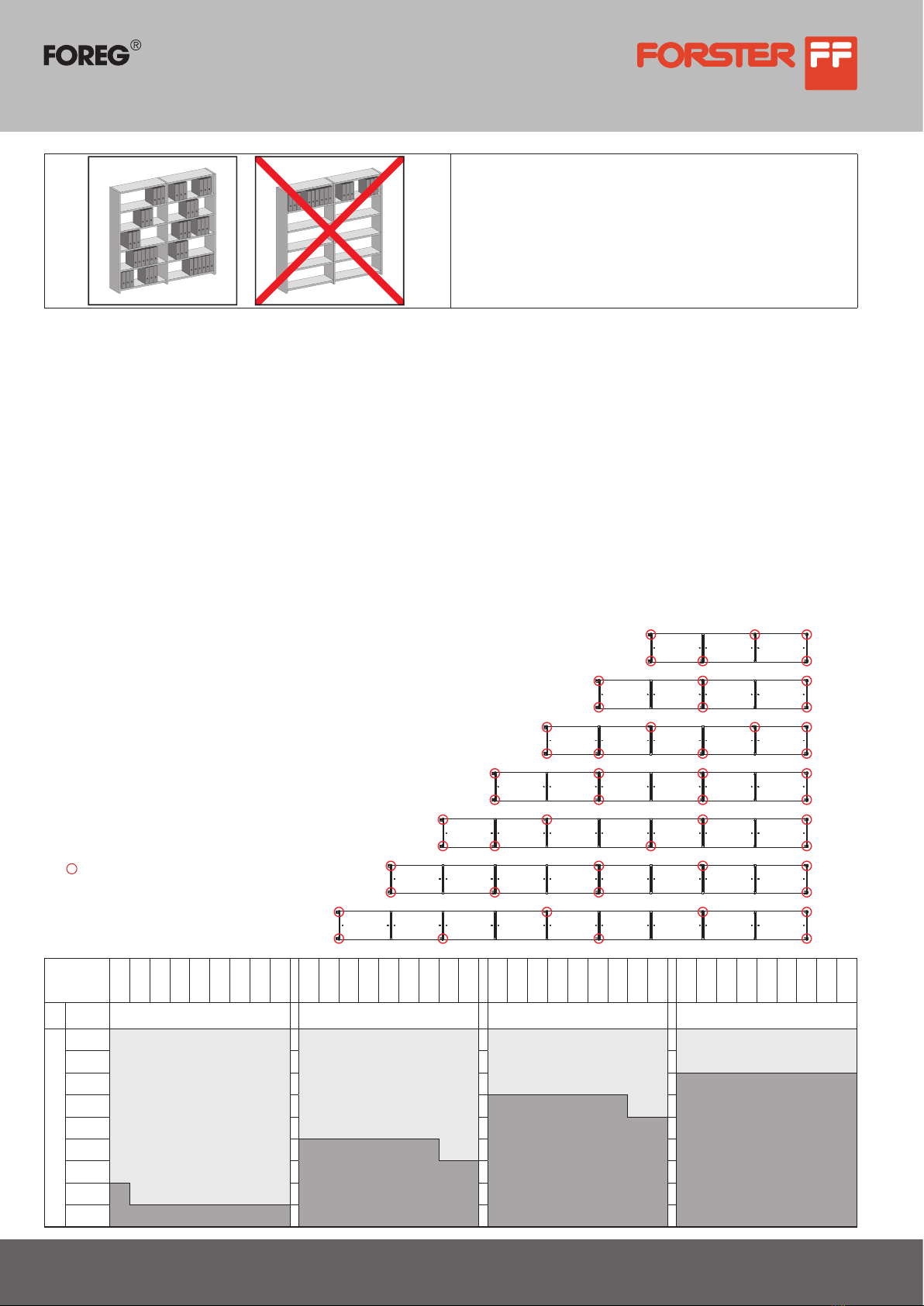

• general propostion for distribution:
.......floor fixture
frame
height
1632 1832 1952 2032 2112 2232 2312 2592 2952 1632 1832 1952 2032 2112 2232 2312 2592 2952 1632 1832 1952 2032 2112 2232 2312 2592 2952 1632 1832 1952 2032 2112 2232 2312 2592 2952
with 1 bay with 2 bays with 3 bays from 4 bays
shelf depth
250
with floor fixture
with floor fixture
with floor fixture with floor fixture
300
350
without floor fixture
400
450
without floor fixture
500
600
without floor fixture
700
800 without floor fixture
It is recommended to distribute the load as equally as
possible (loading and unloading).
• Please note the maximum permissible loads as specified in the enclosed data sheet for your system and the type
plate on your system.
2.3 Stored goods
• Ensure that the stored goods (small parts, boxes, files, stacks, etc.) are stored safely. Loose parts, bulk goods,
liquids, etc. must be placed in suitable boxes or bottles that will safely retain their contents.
Caution: loose or odd shaped items can topple and cause injury.
We offer customised solutions for the safe storage of your goods.
• For the storage of high-risk materials comply with the storage instructions as specified in the safety data sheet from
the manufacturer.
3 bays
4 bays
5 bays
6 bays
7 bays
8 bays
9 bays

2000
.
.
.
32 32 25
Version A User Manual: status as of 21th March 2020 7
Static Shelving
Permissible shelf load (kg)
Type Length (mm)
870 970 1070 1170
Shelves 2000 S 130 kg 120 kg 110 kg 100 kg
Shelves 2000 L 70 kg 65 kg 60 kg 55 kg
Shelves 25 – 242 mm 70 kg 65 kg 60 kg 50 kg
Shelves 25 > 242 mm 120 kg 110 kg 100 kg 90 kg
Permissible frame load (kg/frame)
for static shelving systems (including dead weight)
SINGLE FRAME DOUBLE FRAME
height No. of
crossbars Type Type
1632 2 2020 1500 kg 2520 2600 kg
1832 2 2020 1100 kg 2520 2050 kg
1952
2 2020 950 kg 2520 1850 kg
3 2030 2000 kg 2530 3100 kg
SIP 2012 2512
2032
2 2020 900 kg 2520 1750 kg
3 2030 1950 kg 2530 3050 kg
SIP 2012 2512
2112
2 2020 725 kg 2520 1600 kg
3 2030 1625 kg 2530 2900 kg
SIP 2012 2512
2232
2 2020 650 kg 2520 1450 kg
3 2030 1575 kg 2530 2750 kg
SIP 2012 2512
2312
2 2020 575 kg 2520 1350 kg
3 2030 1400 kg 2530 2650 kg
SIP 2012 2512
2592
2 2020 375 kg 2520 1100 kg
3 2030 1025 kg 2530 2350 kg
SIP 2012 2512
2952 3 2030 750 kg 2530 2100 kg
SIP 2012 2512
3.2 Load index
• The permissible shelf loads and shelf bay loads
must not be exceeded (tested statical calculation).
It must be ensured that the floor can safely support
the loads from the shelves.

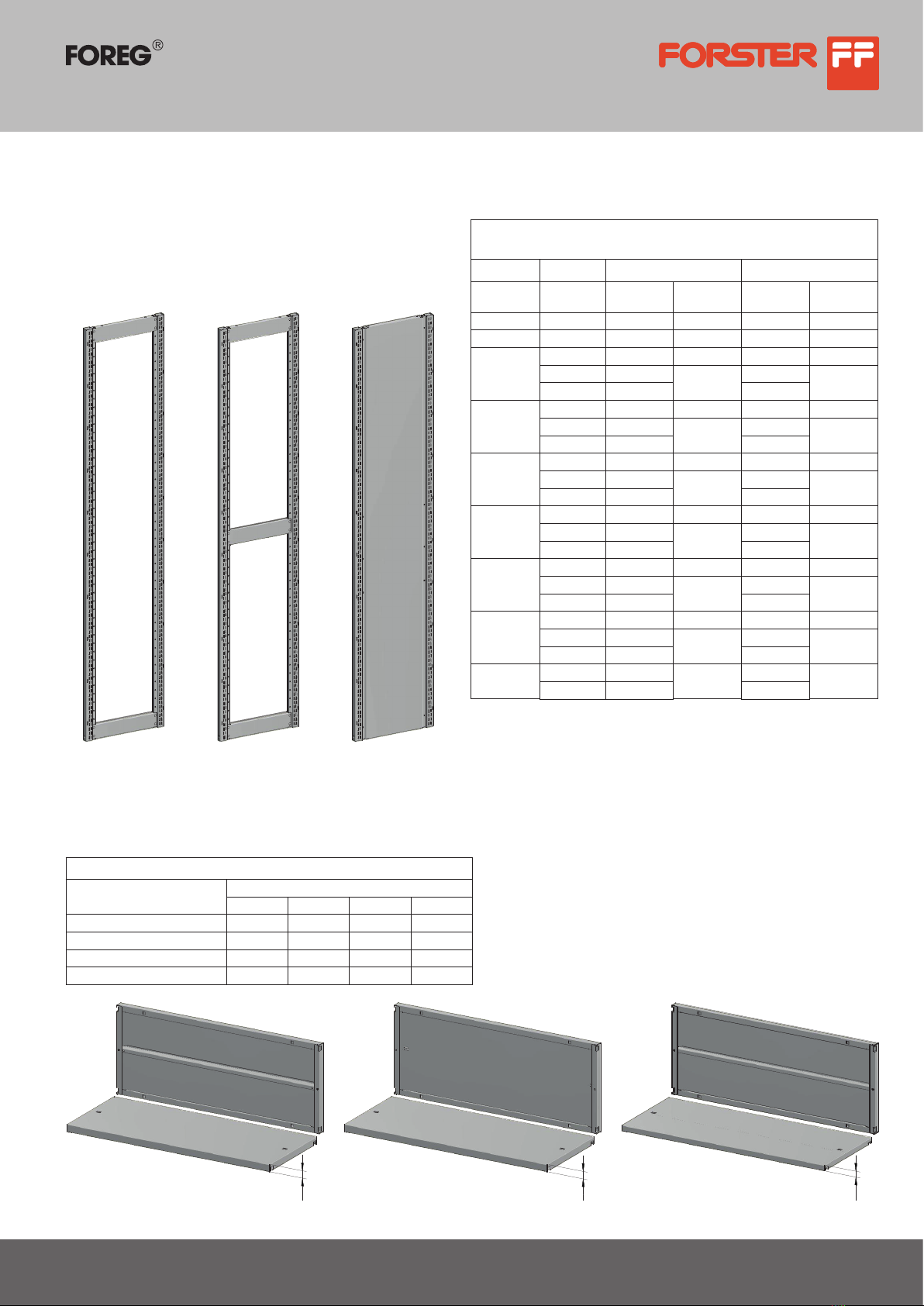

3.3 Shelves – Types and Loads
Shelves Type S can be used from 292 mm shelf-
depth.
Shelves with higher load capacity on request.
2 crossbars 3 crossbars SIP
type 2020 type 2030 type 2012
Shelves 2000 S Shelves 2000 L Shelves 25

2000
8 User Manual: status as of 21th March 2020 Version A
Static Shelving
Fix plastic foot plate or frame
floor fixture on each post.
It needs to be ensured that the
shelves are vertical. Use shim
plates if necessary.
1 - plastic foot plate
2 - frame floor fixture
3 - shim plates
Alternative to the frame floor
fixture a frame-wall-fixture may
be used.
1 - frame-wall-fixture
Fix only bottom and top shelf
first.
1 - bracket
2 - shelf
Plastic foot plate, frame floor fixture and shim plates
alternative: Frame-wall-fixture
Shelf installation
13
1
1
2
2
1 mm
2 mm
3 mm

2000
.
.
A B
200
200
Version A User Manual: status as of 21th March 2020 9
Static Shelving
Bays with bracings
Number and arrangement of cross braces
Cross Bracing
Number of cross braces required per bay
Height of
upright frame 1632 1832 1952 2032 2112 2232 2312 2592 2952
Width of bay No.
900 2 2 2 2 2 2 2 3 3
1000 1 1 2 2 2 2 2 2 3
1100 1 1 2 2 2 2 2 2 3
1200 1 1 1 1 2 2 2 2 2
................Arrangement of 2. cross brace as per A
................Arrangement of 2. cross brace as per B

2000
.
10 User Manual: status as of 21th March 2020 Version A
Static Shelving
Shelf installation Steel plinth
4 Maintenance and servicing
Maintenance
• Systems are designed to be free of maintenance
and should require only a periodic service check
providing they are operated in accordance with the
users instructions.
Cleaning
• The system must be cleaned regularly by trained
personnel only.
• Clean the system using a damp cloth. Add a mild
detergent (citrus-based) when necessary, but do not
use any etchants, acids or strong chemicals. Under
no circumstances should any sharp implements or
abrasive cleaners be used.
• Use only mild soapy water to clean plastic parts,
seals, transparent protective covers.
compartment height
= clear height

2000
Version A User Manual: status as of 21th March 2020 11
Static Shelving
5 Accessories

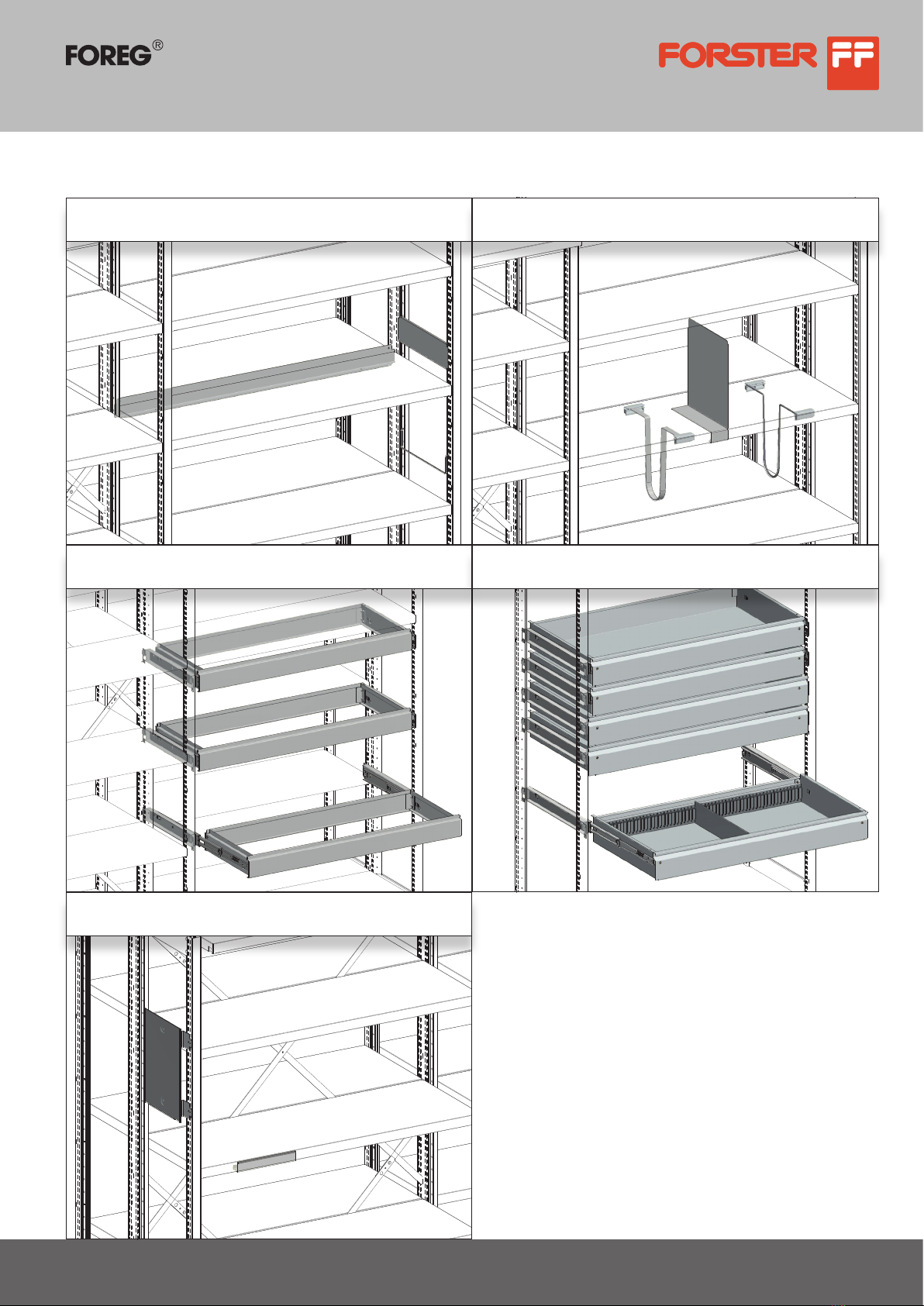

Stops
Pull-out filing frames
Sign boards and labelling strips
Book supports
Drawers
These and further accessories on request.
