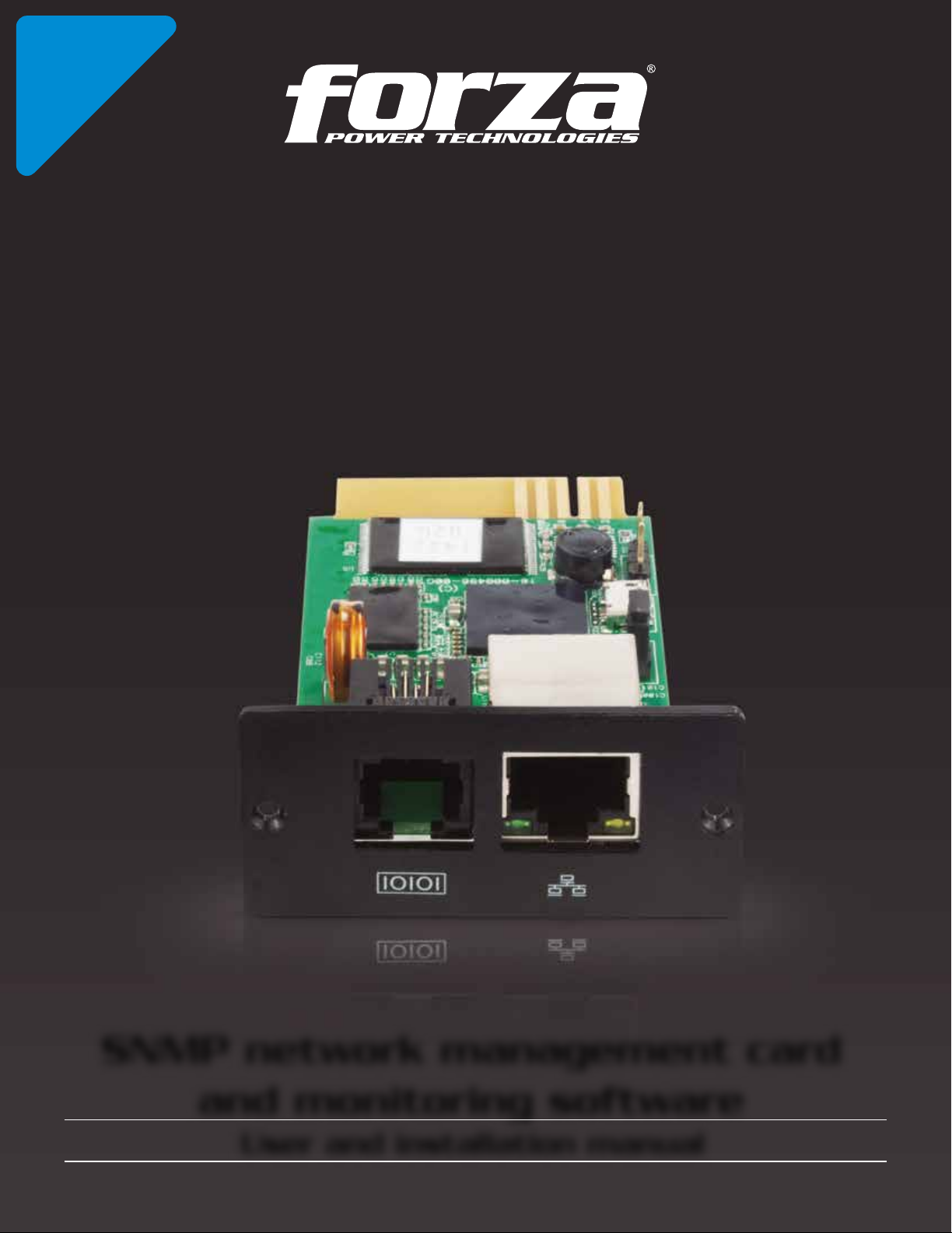

Forza SNMP Operating manual

SNMP network management card
and monitoring software
User and installation manual
1-
year
warranty

This SNMP web card from Forza allows the web server to monitor and manage multiple UPS units in a networked environment,
including LAN and INTERNET. By connecting the card to an EMD (Environmental Monitoring Device), this can also detect ambient
temperature and humidity.
The integrated Shutdown Wizard does not only prevent data loss from power outages by safely shutting down UPS units, but also
stores programming data and scheduled power off times. All UPS warnings and fault event records can be kept in the SNMP web
card, which also comes with an integrated ViewPower Pro software to monitor and to access remotely all distributed SNMP web
cards in a LAN or INTERNET.
SNMP web management card
Management software CD
Quick installation guide
User manual (digital copy)
1.2 Package content
Follow the instructions below to install the web card inside the SNMP slot of the UPS.
As this is a hot-swappable web card, the UPS does not need to be unplugged or powered down to install it.
Step 1: Locate the intelligent slot on the back panel of UPS. Using a screwdriver, remove the cover protecting the slot.
1.4 Preliminary installation
1.3 Product overview
∙ Allows remote management of the UPS from any workstation through Internet or Intranet
∙ Open monitor via web browser
∙ SNMP MIB to monitor UPS status
∙ Automatic detection and exchange 10Mbps/100Mbps fast ethernet.
∙Supports the Wake-On-LAN function.
∙Main protocols supported: TCP/IP, UDP, SNMP, SMTP, SNTP, HTTP, HTTPS, SSL, SSH, IPV4/IPV6 and DHCP
∙ An integrated shutdown wizard designed to prevent data loss from power outage and to safely shut down systems
∙Event log storage and export capability of over 200,000 threads, including UPS warnings, faults and EMD events from web
and ViewPower Pro users
∙Event recording and data log export capability.
∙Event daily reports and data log
∙Scheduled UPS on/off and battery test
∙ Supports EMD monitoring and SMS sending
∙Equipped with real-time clock to record log with date and keep running up to 7 days without power connected
1. Introduction
Ethernet port status LEDs:
Features
1. Port for environment sensor
2. Ethernet port with status LEDs
3. Golden contacts: for connection of the card to the UPS slot
4. Jumper
100M LED (green)
Link status LED (yellow)
On
Off
Blinking
Off
The port is operating at 100Mbit/s
The current web bandwidth is 10Mbit/s
The link is active
The card is not connected to the network
Jumper pin assignment:
Pin #
Pin 1 & Pin 2
Pin 2 & Pin 3
Status
Closed
Closed
Description
Normal operation
After reconnecting to utility power, the IP address
of the SNMP web card and password will be
restored to their default settings.
Default static IP address: (192.168.102.230)
Default password: 12345678
NOTICE: After settings are restored to default, make sure to return Pin 1 and Pin 2 of the jumper to their
original position to resume normal operation.
4
3
1 2
2 3

Step 2: Carefully insert the card into the slot and secure it with the screws you removed in step 1.
Step 3: Plug a user-supplied ethernet cable to the ethernet port (RJ-45) on the SNMP web manager.
Step 4: Use a RJ-11 cable to connect the sensor port on the SNMP web manager to an optional environmental monitoring
device, if adding one in your installation.
∙Monitor service: It is the core of ViewPower Pro software. Monitor service automatically find UPSs in the networks, store UPS
working data and event information. It will communicate with UPS, record events, notify users with events, and execute
command according to the user’s request.
∙ WEB service: It offers HTTP or HTTPS service for local or remote users. Users can manage and monitor UPSs for real-time
status information and modify UPS setting parameters via browser such as IE and Firefox.
∙Tray service: It is management tool for ViewPower Pro software. It includes start monitor, stop monitor, SNMP manager and
so on.
2. ViewPower Pro software
WWW
Connects to
Environmental
Monitoring Device
LAN
WAN
Router
SNMP Web Pro
ViewPower Pro is an advanced UPS management software which is perfect for home users and enterprises. It can monitor and
manage from one to multiple UPSs in a networked environment including LAN, INTERNET and RS485based networks. Integrated
with Shutdown Wizard, it cannot only prevent data loss from power outage and safely shutdown systems, but it also stores
programming data and performs scheduled shut down of the UPSs. All UPS operating data and event records can be kept in
local database systems.
ViewPower Pro includes monitor service, WEB service and tray service.
2.1 Overview
∙ Centralized control and monitoring of up to 1000 UPS units via SNMP or Modbus networks.
∙Offers WEB service to allow remote monitoring service via Intranet or Internet.
∙ Offers quick overview for the monitoring of the UPS in Text and Graphic view.
∙Offers user-customized background picture for graphic view with simple drag and drop.
∙ Scheduled UPS on/off, battery test, and scheduled wake-on-LAN programs.
2.2 Features
UPS with Modbus
UPS with SNMP
UPS with SNMP
PC With ViewPower Pro
Ethernet
Internet
Modbus network
UPS with Modbus
PC With
Shutdown wizard
PC With
Shutdown wizard
EMD
LAN
LAN
TCP / IP
4 5
PC With
Shutdown wizard
UPS with Modbus
UPS with SNMP

∙ 1 GB physical memory at least (2 GB is recommended)
∙2 GB hard disk space at least
∙ Administrator authority is required
∙A display with more than 16-bit colors and a resolution of over 800 x 600 is recommended
∙ TCP/IP protocol must be installed for network management
∙Platforms supported by software are listed below:
∙Windows 2000
∙Windows XP/2003/Vista/2008 (32-bit & 64-bit)
∙ Windows 7 / 8 / 10 (32-bit & 64-bit)
∙Windows SBS 2011
∙ Linux RedHat 8.9
∙Linux RedHat Enterprise AS3, AS5, AS6 (32-bit)
∙Linux RedHat Enterprise AS6 (64-bit)
∙ Linux RedHat Enterprise 5.2 (32-bit & 64-bit)
∙Linux SUSE 10 (32-bit & 64-bit)
∙ Linux Cent OS 5.4 (32-bit)
∙Linux Ubuntu 8.X, 9.X,10.X (32-bit)
∙Linux Ubuntu 10.X (64-bit)
∙ Linux Ubuntu 12.04 (32-bit & 64-bit)
∙ Linux Fedora 5
∙ Linux OpenSUSE 11.2 (32-bit & 64-bit)
∙ Linux Debian 5.x, 6.x (32-bit)
∙ Linux Debian 6.x (64-bit)
∙ Mac OS 10.6 (x64-bit)
∙ Mac OS 10.7 (x64-bit)
∙Solaris 10 for x86 (32-bit)
2.3 System requirements
Step 1: Insert the software CD into the CD ROM of your PC. The installation menu will be automatically displayed, or you
can run autorun.exe to start the installation in CD directory.
Step 2: When the following window appears, click on the ViewPower Pro option to launch the installation.
Step 3: After clicking install, the progress bar will be displayed, as illustrated below.
2.4 Software installation
Menu
autoru.exe
Step 4: Choose the preferred language and then click OK to continue.
Step 5: Click Next to move on to the following screen.
6 7

Go to Start>>All Programs>>ViewPower Pro>>Uninstall and follow the instructions on the screen. It is important to close any
other active applications first and then log in as an Administrator in order for the changes to take effect.
2.5 Software uninstall utility
The installer will generate a shortcut icon on your desktop. Simply click on the icon to start the software and enable the orange
plug icon in taskbar. To launch the GUI, double-click the plug icon or choose Open Monitor by clicking the right button of the
mouse, as seen below:
An alternate method to open the application is through the start menu. Go to
Start>>All Programs>>ViewPower Pro>>ViewPower Pro (in Windows 7 or
below).
2.6 Service tray utility
This software will be automatically activated when installing it as a service application. In this case, users can remotely monitor
UPS units through the web browser even when they are not logged in the operating system.
If the service application cannot be registered successfully, when starting up the tray service, it will automatically activate the
monitoring application. If it fails or if stopped manually, simply click on the Start Monitor option to activate it.
2.7 Start monitor
Step 6: Click on the Choose button to change the default folder, if desired. After selecting the destination folder, click Next
as illustrated below.
Note: If during the installation ViewPower Pro detects that an earlier version of the software is present, users will be
prompted to delete the old one first.
Step 7: The installation path will be shown along with the disk-space information. Click on Install to confirm and begin
installing the software in your PC.
Step 8: Once the installation process is completed, click the Done button to exit the installer interface.
ViewPower Pro icon
Shortcut icon
8 9

To deactivate monitoring from the application, simply click on the Stop Monitor option.
2.8 Stop monitor
SNMP Manager is a plug-in utility for ViewPower Pro designed to search and operate all SNMP devices in the LAN.
Select the SNMP Manager to access the SNMP management tool. This is made up of four sections, as seen in the illustration
below:
A. Function menu: contains the main parameters for setting SNMP devices.
B. SNMP device list: displays all SNMP devices with their IP addresses.
C. Configuration area: includes IP settings, online upgrade, password management and static address menus.
D. Output window: exhibits messages related to the device operation.
2.9 SNMP manager
The default value listed in the window would be the current PC IP segment. For example, if the IP address of PC being used is
192.168.102.10, then it will be displayed as 192.168.102 when first enabling the SNMP Manager.
Scan
Click the Scan button to search for the UPS within the IP segment selected.
Add
Click on the Add button to open up the window for entering a specific IP segment. Then, click on the Apply button to add an IP
address (Subnet) as seen in the image below.
2.9.1- SNMP device list
Delete
You may select an IP address from the list and remove it by clicking the Del button.
SNMP status
This section displays the SNMP status, 0 or 1, after selecting an IP from the corresponding list. If there is a program inside the
selected SNMP card, the status becomes 1; otherwise 0 will be displayed. If no IP address is selected, then “---“ will be shown
as default.
Reset
Should the IP addresses of devices need to be reinitiated, check the SNMP reset enable box followed by the Reset button.
Once login is confirmed, you can restart the device. In order to do so, please follow the procedure detailed below:
Step 1: Select the IP address you need to restart from the IP list. Then, SNMP reset enable will become available.
This tool will check if the monitoring application is registered as a service application. If done successfully, this software will be
activated from the service mode. Otherwise, this software will be activated in the monitoring mode. Users can identify the
application mode from the tray icon as detailed below:
∙ Monitoring application is not activated successfully:
∙ Monitoring application is activated as service mode:
∙ Monitoring application is activated as monitoring mode:
10 11

User ID must be verified for remote access of SNMP devices. The default password is 12345678.
Step 1: Select System >> Login.
Step 2: Enter the default password and then click the Login button. Or click Cancel to exit the login interface.
3. Function menu
3.1 System login
Use system time
When the Use system time option is selected, the SNMP card will automatically apply the PC system time. See illustration
below:
Step 3: Once you click on the Reset button, a dialog box will pop up asking you to confirm this operation.
Step 4: When Yes is selected, the system will ask the user to log in first. If No is selected, the operation will be cancelled instead.
Step 5: Proceed to enter the correct password and click the Login button (the default is 12345678). The target device will be
then restarted.
12 13
Step 2: Check the SNMP reset enable box to now enable the Reset button.

Logout
Clears all currently logged in accounts.
Quit
Select Quit to exit the SNMP Manager.
The user can manually enter the basic information belonging to SNMP cards, such as UPS name, Address, and also view
verification messages.
This section is divided into two parts:
Part A: Contains two methods for obtaining an IP address.
Part B: Enter the DNS (Domain Name System) and click the Apply button, as shown in the above illustration.
Three methods are available to perform online upgrades:
Step 1: select the FTP server IP address as seen in the illustration included above.
NOTE: If upgrading the SNMP Web Server in the LAN, the FTP server IP address will be the IP address of the current PC in the
LAN. If upgrading the SNMP Web Server in a network, the FTP server IP address will be the IP address of the current PC with
internet access.
3.2. Parameter section
Basic info
IP settings
Online upgrade
∙ Automatically obtain IP address (DHCP)
It will allow the system to automatically obtain an IP address. If there is no this kind of service provided in the LAN, the default
IP will be displayed as 192.168.102.230, with a Subnet mask of 255.255.255.0 and a default gateway of 0.0.0.0. Simply click the
Apply button to implement this change.
∙ Use a static IP address
It will allow users to enter a static IP address for SNMP devices. When entering an IP address, Subnet mask and gateway
address, simply click the Apply button to implement this change.
∙Upgrade the selected devices: It will update all SNMP devices listed in the IP list.
∙Upgrade all un-upgraded devices: It will only update SNMP devices which are not using the latest version.
∙ Force to upgrade all devices: No matter what version is being used for SNMP devices listed in the IP list, the system will
update to the latest version for all SNMP devices.
14 15

Step 2: Click Browse button to choose program file.
Step 3: Click the Upgrade button to initiate the device update.
Step 4: When the update is complete, you may check the message in the output window.
NOTE: If an error occurs during the process, the system will automatically reinitiate the update. If the same error is repeated five
times, then the system will automatically cancel the operation. In this case, check if the LAN is working correctly.
System management
Part A: You can set the SNMP protocol version for the selected or all the devices. Simply choose the SNMP protocol version
first. The default setting is V2. If choosing V3, the encryption of data packets must be set. Select devices to apply this setting.
∙Select device: sets the SNMP protocol version for the selected SNMP devices in the list.
∙Select all: sets the SNMP protocol version for all SNMP devices in the list.
When done, click on the Apply button to finish the version setting in the system.
Part B: You may modify a single password for one SNMP device or all passwords for all SNMP devices. Enter original password,
new password and reenter the new password. Select the devices this setting will be applied to.
∙Select device: changes the password for the selected SNMP device in the list.
∙Select all: changes the passwords for all SNMP devices on the list.
When done, click on the Apply button for the password change to take effect.
16 17

There are 12 languages available in the SNMP Manager:
The default language is set to English.
3.3 Language
NOTE: The password must be between 8 ~ 15 characters in length. If this change is applied to all SNMP devices, then the same
password must be consistently used to access each of them.
NOTE: This software allows a SNMP device to send trap messages to 2 static trap addresses and 8 dynamic trap addresses. The
host computer with the software installed as a dynamic trap address is defined as the default agent. If a communication failure
occurs between the SNMP card and host computer for over 10 minutes, trap messages will be interrupted.
Static trap address
It is possible to configure two static addresses and change the port through the SNMP Manager. The default port is 162, as
shown in the illustration below.
∙ Chinese (simplified)
∙ Chinese (traditional)
∙ English
∙ German
∙Polish
∙Portuguese
∙ Russian
∙Spanish
∙Turkish
∙ Italian
∙Ukrainian
∙French
∙Web Service port: 15178
∙Web service shutdown port: 8005
∙ AJP port: 8009
Communication protocol: When HTTPS is chosen, HTTPS selection will be accessible from the tray menu. The port cannot be
modified if the communication port of the HTTPS is fixed in 18443. In this case, the URL of the monitoring screen will change to:
https://xxx.xxx.xxx.xxx:18443/ViewPowerPro.
When HTTP is chosen, HTTPS selection will not be allowed; however, the port modification option will be now enabled in the
system.
4. System configuration
4.1 HTTPS/HTTP
If a port conflict occurs, you may modify the value assigned to that port. (Refer to section B of the illustration included in
chapter 4). The default values for the port are listed below:
The value assigned to a port can be any number between 0 and 65536. If a value has already been applied, the system will
remind users to enter another number again.
NOTE 1: Do not modify any port value unless a port conflict occurs. This modification will affect the remote monitoring website.
For example, if the web service port is changed to 15177, then the remote monitoring website will be changed to:
http://xxx.xxx.xxx.xxx:15177/ViewPowerPro
NOTE 2:To avoid any possible conflicts, make sure to enter a sequence of at least 4 digits.
4.2 Port modification
18 19

1. Select Apply the proxy configuration;
2. Enter the IP address and port of the server
3. If credentials are requested, select Enable authentication and enter User Name and Password.
4. Connection test: click this button to test if all settings were configured correctly.
∙Server startup type: If Automatic is selected, the software will automatically start up when the PC is turned on. If Manual is
selected, users have to manually start the ViewPower Pro software.
∙Exit to stop monitoring: If selected, it will completely exit the program cancelling the monitoring service. If unselected, it will
continue monitoring in the background even after exiting the program.
∙Import Certificate: it will import a HTTPS certificate from a third party. It supports JKS and PCKS12 types of certificate as
shown in the dialog box below.
Refer to section C in the illustration included in section 4 for a detailed configuration of the ViewPower Pro start and exit setting:
4.3 ViewPower Pro Start and Exit Setting
∙ Specify the URL for update files: this is the directory to online update software. Do not change it unless instructed by the
software vendor.
∙Save files to: the destination directory for saved files in your PC.
∙Online auto-update: when selected, it will automatically check for new versions that might have been launched online once
every hour.
∙When the online upgrade is selected, you must follow the procedure described below:
Refer to section D in the illustration included in section 4 for a detailed configuration of the online upgrade page.
4.4 Software upgrades
Click on Apply to save all the new parameters entered in the configuration page. Click Cancel if you wish to discard the changes.
4.5 Saving your new configuration The software update can be performed manually or online:
4.7 Software update
This section includes the Certificate Generation and Import Certificate options.
∙Certificate Generation: it will automatically generate an alphanumeric certificate based on the information provided by the
user. Refer to the illustration below.
∙Online update
Click Online Update to search the latest software version. If a new version is detected, the system will automatically
download and update the program.
Note 1: Please enter the internet domain name and IP address in the First and last name field.
Note 2: The password should be at least 6 characters in length.
4.6 HTTPS
20 21

Click on Open monitor to access the monitoring page.
4.8 Open monitor
Click on Exit to close the application.
4.9 Exit
ViewPower Pro GUI includes a function menu, shortcut buttons, a login section and a main screen.
5. ViewPower Pro GUI
∙ Manual update
Users can manually update the software, as detailed below:
1．Click on Manually Update from the dropdown menu.
2．Click Browse to choose the destination directory followed by Upgrade to download the new version.
6. ViewPower Pro Menu
Password setting
This password configuration is reserved for administrator only. The default user name and password is administrator. For
security considerations, please login and modify the default password before operating and configuring the software. Users will
only have access to browse the UPS information and status as Guests, without logging in as an Administrator. Guests are NOT
allowed to control or change any parameter settings.
Step 1: Select Configuration>>Password as seen in the screen below.
6.1 Configuration
∙ Centralized monitoring.
∙ Password, group area, UPS setting, SMS, email, load configuration, event action, log setting, EMD manager, Modbus
communication setting.
∙ Scheduled power on/off, scheduled battery self-test and scheduled wake-on-LAN.
∙ Event log, event statistics, data, diagram and EMD log.
∙Refresh.
A. Function menu
It offers a complete set of tools designed for navigation and for setting the GUI.
B. Login section
It shows the type of the currently logged-in user.
C. Shortcut button
D. Main screen
It displays information and/or instructions according to the shortcut or the function menu selected.
22 23

Step 2 Enter the old password and type twice the new one. (The password should be at least 6 characters in length). Then click
the Apply button to successfully modify password for the administrator.
NOTE 1: Simply click the Login button on the top right corner to sign in to the software.
NOTE 2: Should the user forget the password, it will be necessary to reinstall the software.
Select Configuration>>group area, in order to assign monitored UPSs into different groups for best management. ViewPower
Pro has a default group called Unassigned. When a UPS is detected, it will automatically place it in the Unassigned group.
Users are able to not only create and customize groups here, but also assign groups in the UPS setting page.
Section A Group list: shows the information of a particular group.
Section B Group editor: add/delete, set up and modify a particular group.
6.2 Group area
Select Configuration >> UPS setting in order to assign or reassign groups for monitored UPSs. When a new UPS is detected, it
will automatically place it in the default group Unassigned.
6.3 UPS setting
Use it for configuring the SMS recipient list. In the event an alarm is triggered, a message about the UPS status will be sent to the
specified users via mobile phone.
The type of alarm is set in the Event Action page described later in the manual.
6.4 SMS
∙ Background image: click the Customize button to import the preferred image into the software and use it as background for
graphic view. Or users can simply pick photos from the default image database by clicking the Select button.
∙ Add group: enters a new group into the list in section B. Then click the Add button to confirm.
∙ Modify group: select the group from the list in section A you wish to modify. Its current setting will be shown in section B. After
entering the new data, simply click the Modify to accept changes.
∙ Delete group: select the group from the list in section A you wish to erase. Then click the delete button to confirm.
∙Query
The user can query the system based on Group area, Port, UPS name by clicking each column tab.
∙Modify
Select the UPS from the list you wish to change and click the Modify button. The information screen of each monitored UPS is
displayed to allow users assign or reassign units in the group area. The UPS location and name can also be entered here for
internal reference. Click the Apply button to save all recent changes.
∙Delete
Select a UPS and click the Delete button to remove it from the list.
Note 1: The default group can only be modified, it can NEVER be deleted.
Note 2: When the Add button is disabled, you must press the Clear button first.
Section C: Maximum number for a device group: displays the maximum number of UPS units assigned to each group.
24 25

1. Select Configuration >> SMS, as in the illustration below: 1. Enter the SMTP server, SMTP port, Send from Email address, User name and password. Check the box next to password if
authentication is required. If an Exchange Server is used as the mailbox system, it is required to configure its domain name in
the SMTP sever field and check the corresponding box. Then, click the Apply button to continue.
2. Enter correct accounts in E-mail field. Click Add to include them in the recipient list. To erase an email account, simply select
it from the recipient list and click the Delete button.
3. Click Apply to save your changes. The Test button can be used to send a test email to check the operation status of the link.
When the test emails are successfully sent to specific recipients, a notification message will be displayed on the PC.
Otherwise, a dialogue box will be displayed to notify that the message has failed to be sent due to an error in the parameter
settings.
2. Select the communication port and baud rate.
3. Enter the mobile phone numbers in the dedicated field and click the Add button to save them in the recipient list. To delete
numbers, simply select the entries from the list of recipients and click Delete to continue.
4. Click the Apply button to save all changes. The Test button can be used to send SMS test messages to check the operation
status of the link. If all the parameters have been set up correctly, the system will send a test communication to the recipients,
accompanied by the successful notification message on the PC. Otherwise, a failure message will be displayed to indicate
that an error has occurred while setting these parameters.
NOTE: A GSM modem is required for sending SMS messages to mobile phones.
This feature enables the configuration of an alarm to be sent via a SMTP server. To set up the alarm type, refer to the Event
Action page.
To use this function, the email service must be correctly configured. All values in this page are left blank by default. This action
cannot be executed without if the SMTP information, a valid email account and password are missing. Besides, the sender
account should be allowed to use the SMTP/POP3 forwarding option.
Select Configuration >> E-mail, as shown in the illustration below:
6.5 E-mail
Load configuration can remotely manage other computers via intranet or internet. It can set up remote computers in power-off-
mode, view MAC addresses, execute files, it can accept or reject scheduled UPS shutdown commands, and define the delay
time for load shutdown and so on. In addition, it allows one computer to communicate with multiple UPS units. When any event
occurs on the UPS, the software can be configured to control the monitored UPS through the linked computer.
1. Select Configuration>>Load configuration, as shown below:
6.6 Load configuration
2. Add: allows the user to input information about the loads (in one computer).
26 27

This menu is used to configure the type of actions to be taken after an event has occurred.
Select Configuration>>Event action as seen below:
Section A: lists all detected UPS systems. The default is set to All.
Section B: displays the UPS event list.
Section C: this is the event configuration page.
After selecting a UPS from section A, choose an event from section B. When selecting an event, at least one follow-up action
must the set from section C. Click on the Apply button to save your settings.
This software provides seven types of actions that can be assigned to the different UPS events.
6.7 Event action
∙ Refresh frequency: this setting ranges from 2 to 600 seconds. It will affect the rate at which the data is updated in the
software screen.
∙Record interval: this parameter can be set by the user in order to establish The max. Number of logs for historical data and
The max. Number of logs for historical events to be recorded, based on the actual events.
This setting ranges from 30 to 600 seconds. It will affect the rate at which history data is displayed under View >> History
>>Data.
∙Dry-contact sensor event: the user can select an event and set up the warning level. After an event is successfully added, the
alarm to be triggered can also be programmed here.
1. Select Configuration>>Log setting.
2. Enter the time interval and click Apply button to save the latest parameters.
3. Click the Default button to restore the system to its factory settings.
6.8 Log setting
This menu is used to manage Environmental Monitoring Devices. Users can define events and set text messages for each
occurrence. Warning levels for temperature, humidity and smoke detection devices can also be configured in this page.
6.9 EMD manager
∙ Enter the IP address of the computer being used, followed by its MAC address. The MAC address can be obtained by selecting
the Auto match button as long as there is active connection in the system.
∙Power-off option: selects the preferred method to power off the system.
∙ Complete shutdown: if this box is checked, the selected UPS systems will be powered off completely. This option is
selected by default.
∙ Sleep mode: when this box is checked, the selected UPS systems will enter into standby mode instead of a complete
shutdown. This function is supported by Windows 2000 or higher.
∙On shutdown execute file: enter the path of the file to be executed upon system shutdown.
∙Waiting time for load shutdown: when Accepts scheduled UPS shutdown is selected, the delay timer is started to disconnect
the loads before shutting down the UPS.
∙Selected UPS: marks the UPS systems scheduled for shutdown.
Click the Apply button to save all changes.
∙Wake-on-LAN: this technology remotely wakes up one computer by a network message. It is also required to have ATX power
and hardware support in the remote PCs for this function to be implemented. When this option is checked, the software will wake
up the PC if an event occurs.
∙Execute file: when an event occurs, it will request the connected computer to execute the file.
∙Event record: when and event occurs, it will save the event records in the database.
∙Audible alarm: when an event occurs, then the selected media file will be played. If the user wants to use a different alert sound,
a media file must be imported by clicking the Customize button of this program. Once the media file appears on the screen, click
the Select button to save it in the system.
∙Load shutdown: when an event occurs, it will notify the Shutdown wizard on the remote PCs to power down the computer.
∙Warning dialog (local): when an event occurs, a pop up message will appear to notify users.
∙SMS: when an event occurs, an alert message will be sent to the mobile phone of the assigned recipients.
∙ Email: when an event occurs, an alert message will be sent to e-mail accounts of the assigned recipients. Addresses can also
be edited in this page.
∙ UPS shutdown: when an event occurs, it will cause the UPS to shut down.
3. Modify: select a UPS from the list you wish to change by clicking the Modify button. The information belonging to a UPS can
also be erased by clicking the Delete button in this page.
4. Export: load setting tables in PDF format can be shared by clicking Export button.
Note 1: the user needs to install the Shutdown Wizard in order to be able to power down the loads.
Note 1: When editing the recipient list in the SMS or email sections, you need to refresh the event action page in order for the
updates to take effect.
Note 2: The event list will vary according to different types of UPS systems.
28 29

Scheduled power off
UPS on/off times can be scheduled as a one-time occurrence, or on a daily or weekly basis. Click on the UPS and select the time
parameters you wish to apply. It is recommended to set only one action at a particular time. If multiple tasks are programmed
simultaneously, some might be ignored. If an action is not supported by the UPS system, it will have no effect.
Step 1: Select the Schedule followed by the Scheduled on/off tab, as shown below:
6.11 Schedule tasks
This page displays all connected PCs through the ModBus interface.
Step 1: Select Configuration>> ModBus Communication Setting
Step 2: Communication port setting:
6.10 Modbus communication setting
∙ Text Message: contains a description of the event assigned to the selected dry-contact sensor.
∙Default dry-contact: defines the dry-contact sensor number to which a specific monitoring event is assigned. There are five
selections: none, 1, 2, 3 and 4. If a value from 1 to 4 is selected, any environmental monitoring device (EMD) that detects a
defined event will send an alert message. If none is selected instead, it means that such event is considered special. Then, a
specific environmental monitoring device (EMD) can be selected to trigger the event alert. This special setting is explained
below.
∙ Configuration of the dry-contact sensor: users can define special events and assign them to dry-contact sensors linked to
environmental monitoring devices (EMD). If any defined event is detected by the selected device, the software will send an
alarm notification message to the contacts in the list.
∙The default ID for the designated communications port is 0.
∙Selectable baud rates are 1200, 2400, 4800, 9600 and 19200.
The default setting is 19200.
∙Selectable data bit is 7 and 8. The default setting is 8.
∙ Supported parity is ODD parity, even parity and NONE. The default setting is NONE.
NOTE: This function is available only for a UPS equipped with A ModBus communication port.
∙Alarm settings: establishes a range for temperature and humidity levels. If the values detected fall outside this setting, the
program will send an alarm message.
30 31

Centralized monitoring
It includes Text view and Graphic view. The mode can be toggled by clicking the Text view and Graphic view buttons on the
upper section of this page.
7. View
Step 2: Set the frequency and time on the right column.
NOTE: Please be aware of the following rules when setting the schedule.
Step 3: Click Add to include the task. If a task is successfully set, it will be displayed in the list on the left-hand side of the
screen. Simply select and click the Delete button if you wish to eliminate a particular task.
Note 1:When multiple actions are scheduled at the same time, only one of them will be executed.
Note 2:If the UPS scheduled for shutdown has loads connected, the program has also the option of having them properly
disconnected.
Scheduled battery self-test
Battery tests may be scheduled for one time only, or on a daily, weekly, or monthly basis. Click on the UPS and select the time
parameters you wish to apply. It is recommended to set only one task at a time. If multiple tasks are programmed simultaneously,
some might be ignored. If an action is not supported by the UPS system, it will have no effect.
Go to Schedule >> Battery Self-Test, as shown below:
Wake-on-LAN (WOL)
It is used to turn on one or more computers remotely on your local area network as a one time occurrence, or on a daily, weekly
or monthly basis.
1. Select Schedule >> Wake on LAN schedule, as illustrated below:
1. Select method and time parameters. The unit provides three types of battery self-tests:
∙ 10-second self-test: the battery will discharge for 10 seconds.
∙ Self-test: it is a user-defined battery discharge time for self-test.
∙ Deep test: this test will allow the battery to discharge until the minimum voltage threshold is reached.
2. Click Add to include the task. If a task is successfully set, it will be displayed in the list on the left-hand side of the screen.
Simply select and click the Delete button if you wish to eliminate a particular task.
2. Select IP, Cycle, Date and Time. When done, click the Add button to save the scheduled task.
3. Simply select and click the Delete button if you wish to eliminate a particular task.
Once – power-off time should be earlier than power-on time.
Daily schedule – power-off time should be earlier than power-on time. Power-on and power-off times should be set on the
same day.
Weekly schedule – power-off time should be earlier than power-on time. Power-on and power-off times should be within
the same week.
∙ Text view: The operating status and related information of each UPS is arranged in a panel format. The screen contains
multiple panels so as to display several UPS units simultaneously.
∙ List view: The operating status and related information of each UPS is arranged in a table format, as seen below.
32 33

Power Flow
Select Status >> Power Flow to open the window where the dynamic power flow of the UPS is displayed.
There are four information blocks where input, output, UPS and battery information is displayed.
∙ Input information includes the supplied voltage and frequency.
∙ Output information includes the voltage, frequency, load level, and current provided by the UPS.
∙ UPS information includes its current operating mode and temperature.
∙ Battery information includes voltage, capacity and remaining backup time of the cells.
Green and black flow means that the unit is functioning properly.
A grey bar represents an object that is present, but not in use at the moment.
7.1 Status
∙ Graphic view: Each UPS is represented by an icon. It shows the icon on a background picture. To avoid mistakes, it has a
security function, whereby only administrators are permitted to “unlock” such icons and be able to drag and drop them at will.
These icons are set to lock by default Refer to the illustrations below.
∙UPS detailed information: On Text view mode, the user can access an individual UPS monitoring interface by double-clicking
the corresponding UPS panel. On Graphic view mode, users can access an individual UPS monitoring interface by double-clicking
the icon representing that UPS. Refer to the illustration below.
34 35

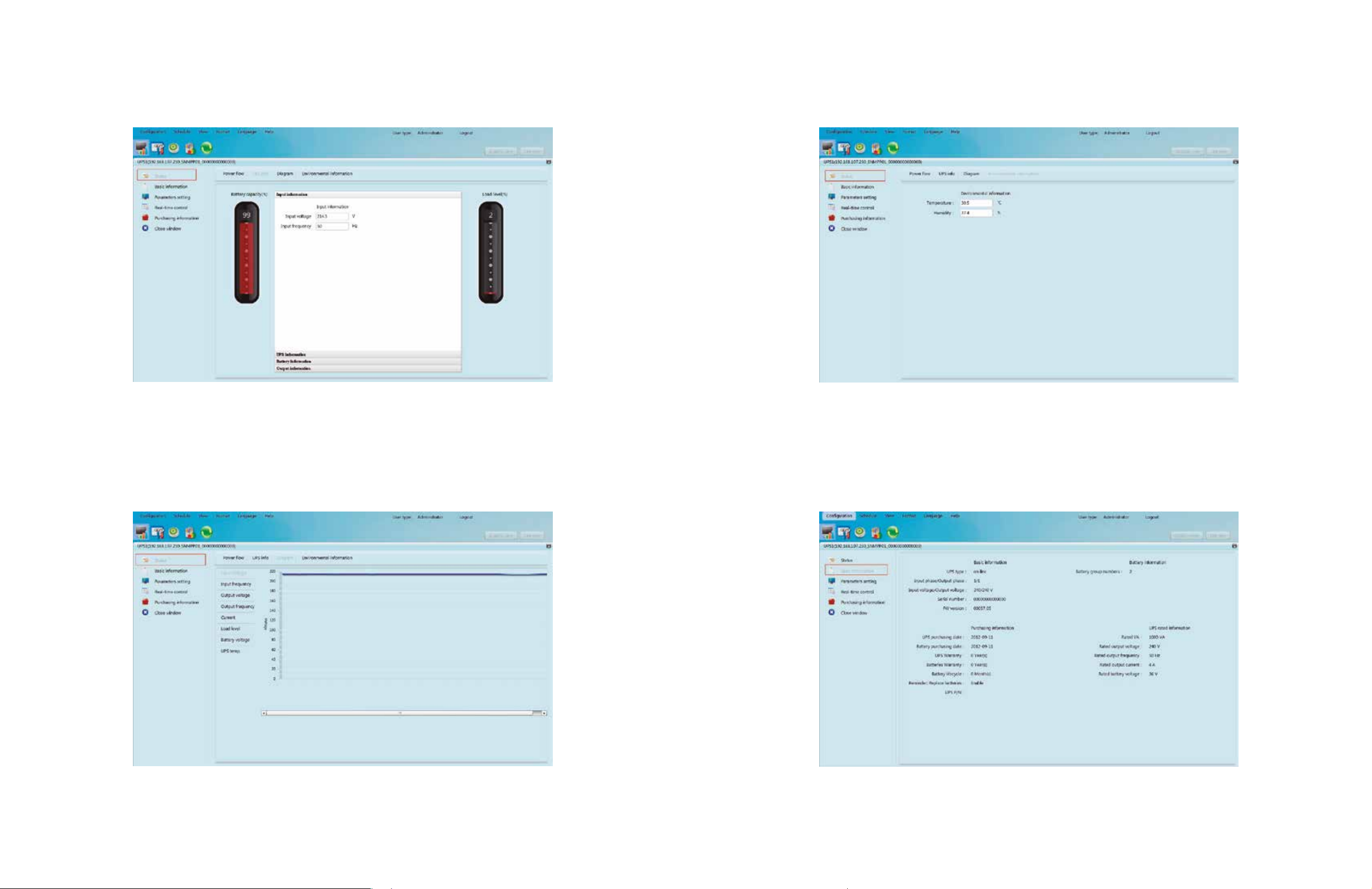

It includes basic data about the UPS and batteries, in addition to purchasing details and rated values pertaining to the system.
7.2 Basic information
UPS info
Select Status followed by the UPS Info tab.
In this window, the monitored UPS information is shown in real time, such as battery, load, input and output values.
Environmental information
In the Environmental information window, the current temperature and humidity readings are displayed.
Select Status followed by the Environmental information tab.
Note: This information is available only when the SNMP card is connected to an Environmental monitoring device (EMD).
Diagram
Select Status followed by the Diagram tab.
In this window, the monitored UPS information is shown in real time, such as voltage, frequency, load and temperature values.
36 37

Some UPS functions can be set and modified via software. Parameter settings include backup time for programmable outlets
(P1), battery number settings, voltage and frequency range settings for bypass mode, in addition to voltage range settings for
ECO mode. Refer to illustration below.
Note: You can access different parameter settings from different UPS units.
Note: Access will not be granted to the functions that are not supported by the UPS.
1. Select the functions by clicking Enable or Disable. Use the arrows to modify the values or enter the numbers directly in
the fields.
2. Click Apply to save your settings.
Each function setting is saved by clicking “Apply” button in each section.
3. Click Default to restore the system to its factory settings.
∙ UPS alarm: If enabled, the alarm will be activated, and vice versa.
∙ Alarm at bypass mode: If enabled, the alarm will beep when operating in bypass mode, and vice versa.
∙ Alarm at battery mode: If disabled, no alarm will sound when transferring to battery mode.
∙ Auto reboot: If enabled, the UPS will restart automatically when the AC is restored.
∙ Bypass when the UPS is off: If enabled, AC power will be supplied directly to connected devices when the UPS is off, and
vice versa.
∙ Converter mode: If enabled, the UPS will operate in converter mode and vice versa.
∙ ECO mode: If enabled, the UPS will operate in ECO mode when the input voltage is within an acceptable range, and vice
versa.
∙ Battery open status check: If enabled, the monitored UPS will verify if the battery connection is working properly when the
UPS is turned on.
∙ Cold start: When disabled, the UPS can only be started when connected to the AC mains.
∙ Bypass not allowed: If enabled, the UPS will not transfer to bypass mode under any condition. If disabled, the UPS will be
allowed to transfer to bypass mode according to the UPS internal settings.
∙ Battery deep-discharge protection: If enabled, the monitored UPS will shut down based on the minimum voltage threshold
and it will also disconnect the load on the battery to protect it.
∙ Site fault detection: If enabled, the monitored UPS will beep when the neutral and hot wires are reversed.
∙ P1 programmable outlet control (battery mode): If enabled, when the UPS is on battery mode, it will cut off P1 outlets after
reaching backup setting times. If disabled, the UPS will provide continuous power to P1 outlets until the battery is exhausted.
∙ Outlet settings: Users can set a period of backup time for P1 outlets, when the UPS is on battery mode.
7.3 Parameters setting
You can monitor the operational status of the UPS in real time by performing these tests:
Realtime control is enabled by clicking the On or the Start buttons under each function.
∙
Alarm control: Select on or off to activate or deactivate the UPS alarm.
∙
UPS turn On/Off: Connects or disconnects the UPS.
∙ Battery Self-test: The unit provides three types of battery self-tests:
The 10-second self-test, the deep discharge test and the minute self-test. Select the type you wish to run and click
Start to begin.
∙ Outlet control: It will cut off programmable outlets (P1) once the time interval is reached. If 0 is entered in the timer
field, supply to the outlets will be interrupted as soon as the UPS goes into battery mode.
Note: You can access different parameter settings from different UPS units.
7.4 Real-time control
Users can enter UPS purchasing date, battery purchasing date, UPS warranty period, battery warranty, battery lifecycle, and
battery replacement reminder for future reference.
7.5 Purchasing information
∙ Battery number settings: It is used to set the number of batteries connected in parallel.
∙ Voltage and frequency range for bypass mode: It is used to set acceptable voltage and frequency range to operate in
bypass mode.
∙ Maximum and minimum voltage: When the UPS is on bypass mode and input voltage falls outside the setting
range, the UPS will go into battery mode.
∙ Maximum and minimum frequency: When the UPS is on bypass mode and the input frequency falls outside the
setting range, the UPS will go into battery mode.
∙ Voltage range for ECO mode: Sets an acceptable voltage range to operate in ECO mode.
38 39
