FOTILE GLS30501 User manual

FOTILE
USER MANUAL
Read all instructions before
using this appliance
Gas Cooktop
GLS30501
ARERNHRENRINAFMPAEENEELEHRA. A, BT~ mAEEEH, TARRE
L E = R AREIEANF, BARABITEA.
w 1E B TRIDAEEBRAE
AIE (RE) ZEMRMNERXIESR 82185
44
/A
5).
FOTILE
AMERICALLC.
6 Campus Dr, Suite 210, Parsippany, NJ 07054
Y
ir.
WWW.FOTILEGLOBAL.COM
110200250492A/20201012

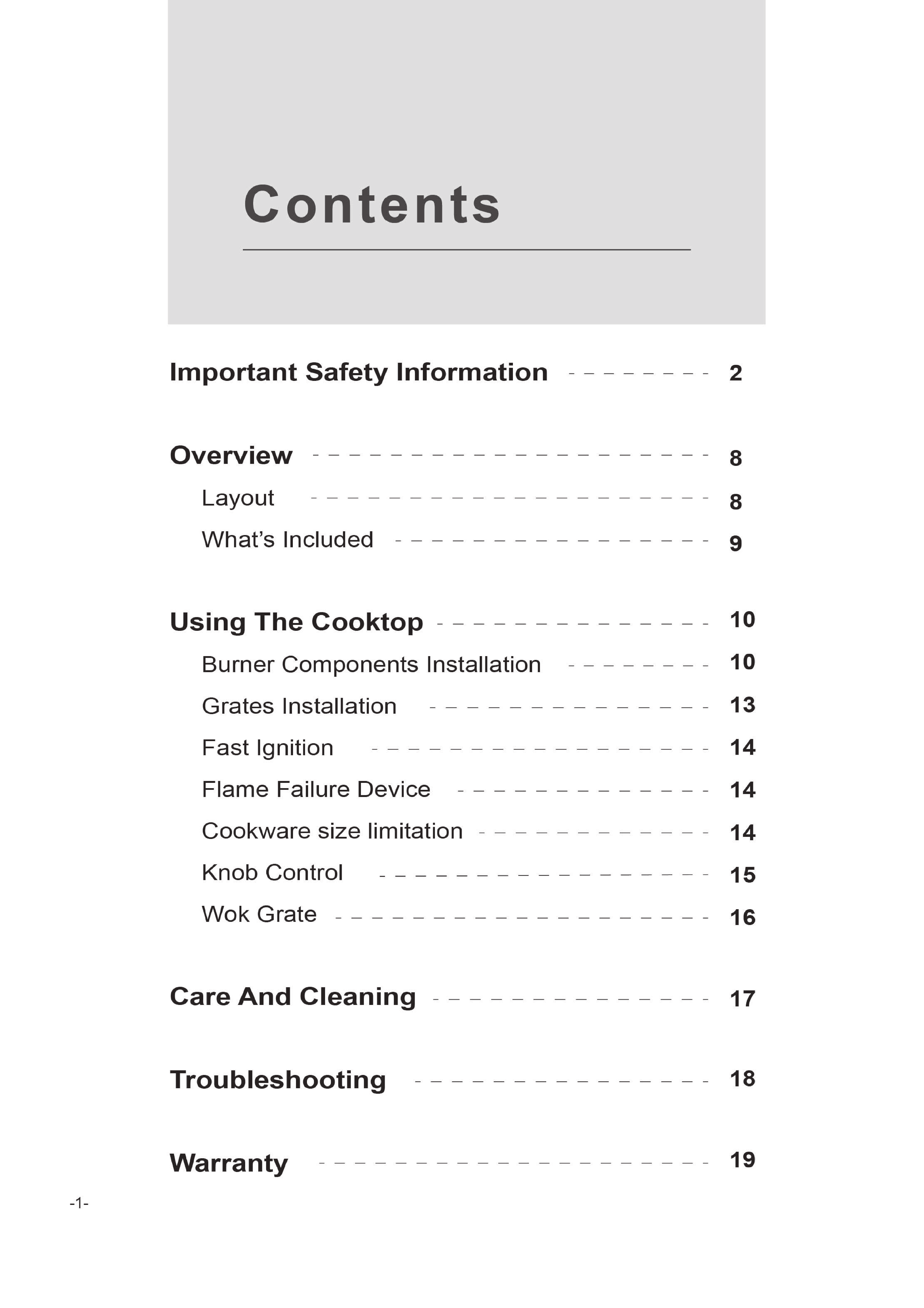

Contents
Important Safety Information -
Overview -
Layout -
What's Included -
Using The Cooktop -
Burner Components Installation
Grates Installation -

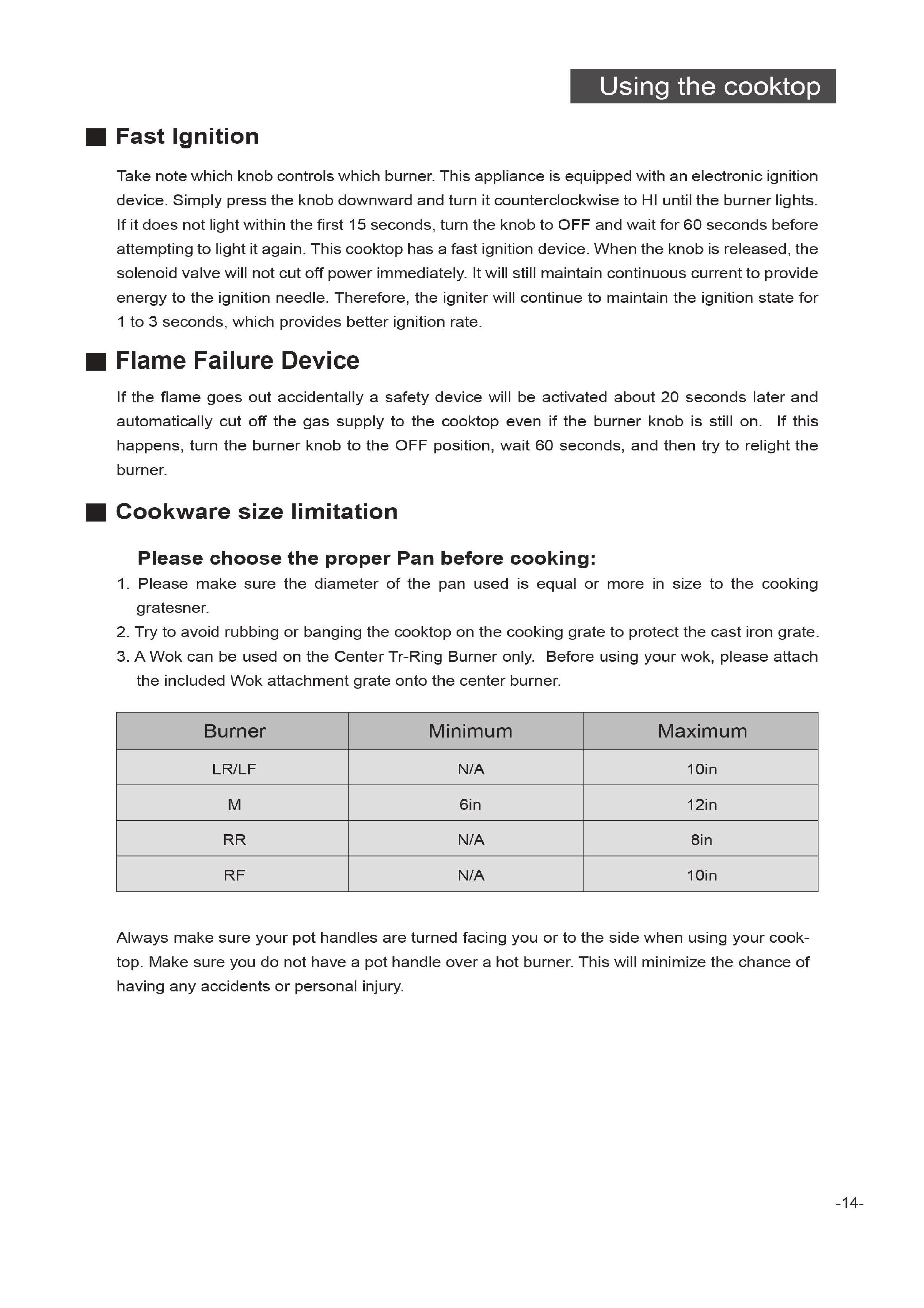

Fast Ignition -
Flame Failure Device -
Cookware size limitation
Knob Control -
Wok Grate -
Care And Cleaning -
Troubleshooting -
Warranty -
17
18
19

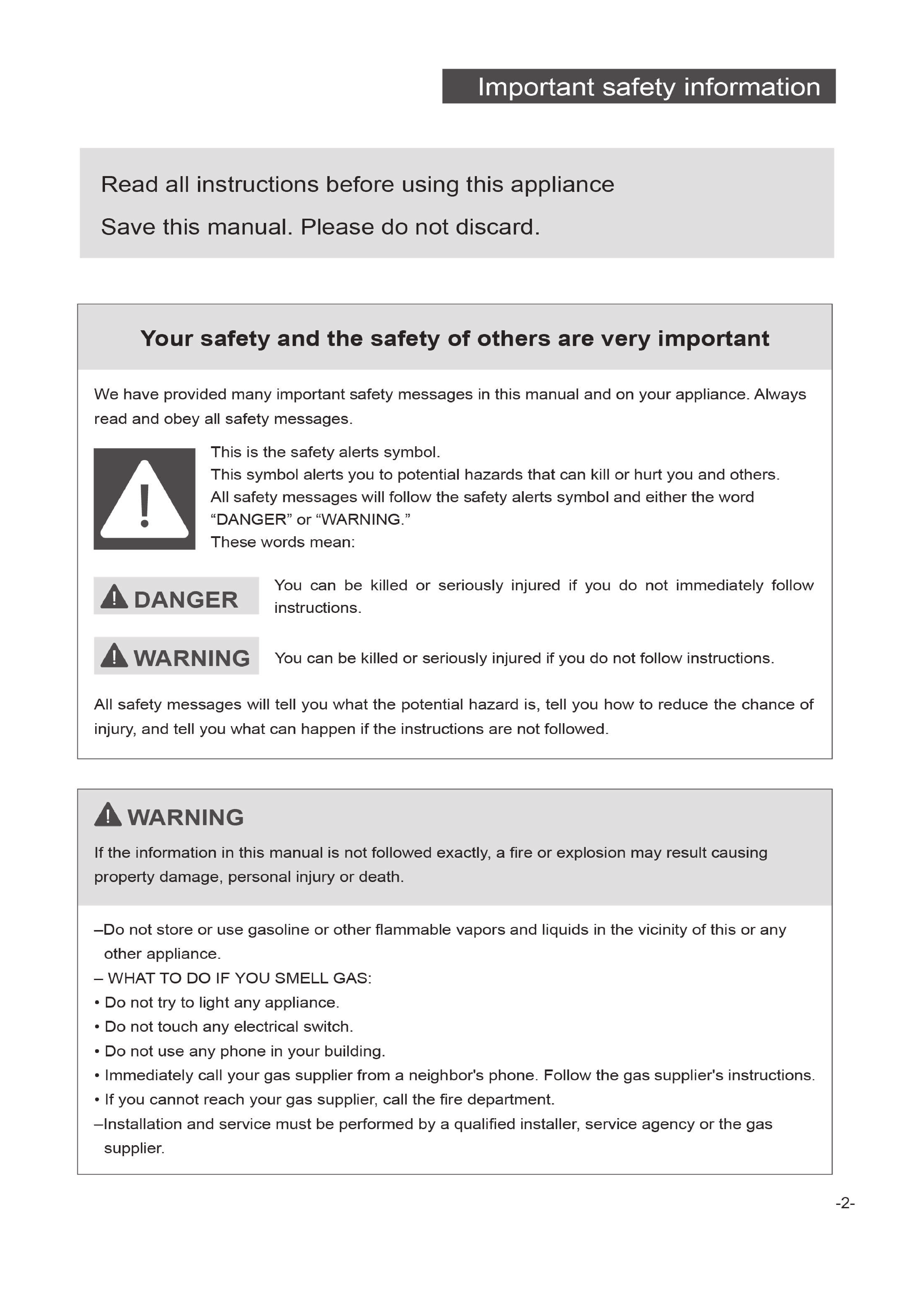

Important safety information
Read all instructions before using this appliance
Save this manual. Please do not discard.
Your safety and the safety of others are very important
We have provided many important safety messages in this manual and on your appliance. Always
read and obey all safety messages.
This is the safety alerts symbol.
This symbol alerts you to potential hazards that can kill or hurt you and others.
All safety messages will follow the safety alerts symbol and either the word
“DANGER” or “WARNING.”
These words mean:
You can be killed or seriously injured if you do not immediately follow
A DANGER
instructions.
A WARNING You can be killed or seriously injured if you do not follow instructions.
All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of
injury, and tell you what can happen if the instructions are not followed.
A
WARNING
If the information in this manual is not followed exactly, a fire or explosion may result causing
property damage, personal injury or death.
—Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any
other appliance.
— WHAT TO DO IF YOU SMELL GAS:
* Do not try to light any appliance.
* Do not touch any electrical switch.
* Do not use any phone in your building.
* Immediately call your gas supplier from a neighbor's phone. Follow the gas supplier's instructions.
« If you cannot reach your gas supplier, call the fire department.
—Installation and service must be performed by a qualified installer, service agency or the gas
supplier.

Contents
Important Safety Information -
Overview -
Layout -
What's Included -
Using The Cooktop -
Burner Components Installation
Grates Installation -
Fast Ignition -
Flame Failure Device -
Cookware size limitation
Knob Control -
Wok Grate -
Care And Cleaning -
Troubleshooting -
Warranty -
17
18
19
Important safety information
Read all instructions before using this appliance
Save this manual. Please do not discard.
Your safety and the safety of others are very important
We have provided many important safety messages in this manual and on your appliance. Always
read and obey all safety messages.
This is the safety alerts symbol.
This symbol alerts you to potential hazards that can kill or hurt you and others.
All safety messages will follow the safety alerts symbol and either the word
“DANGER” or “WARNING.”
These words mean:
You can be killed or seriously injured if you do not immediately follow
A DANGER
instructions.
A WARNING You can be killed or seriously injured if you do not follow instructions.
All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of
injury, and tell you what can happen if the instructions are not followed.
A
WARNING
If the information in this manual is not followed exactly, a fire or explosion may result causing
property damage, personal injury or death.
—Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any
other appliance.
— WHAT TO DO IF YOU SMELL GAS:
* Do not try to light any appliance.
* Do not touch any electrical switch.
* Do not use any phone in your building.
* Immediately call your gas supplier from a neighbor's phone. Follow the gas supplier's instructions.
« If you cannot reach your gas supplier, call the fire department.
—Installation and service must be performed by a qualified installer, service agency or the gas
supplier.

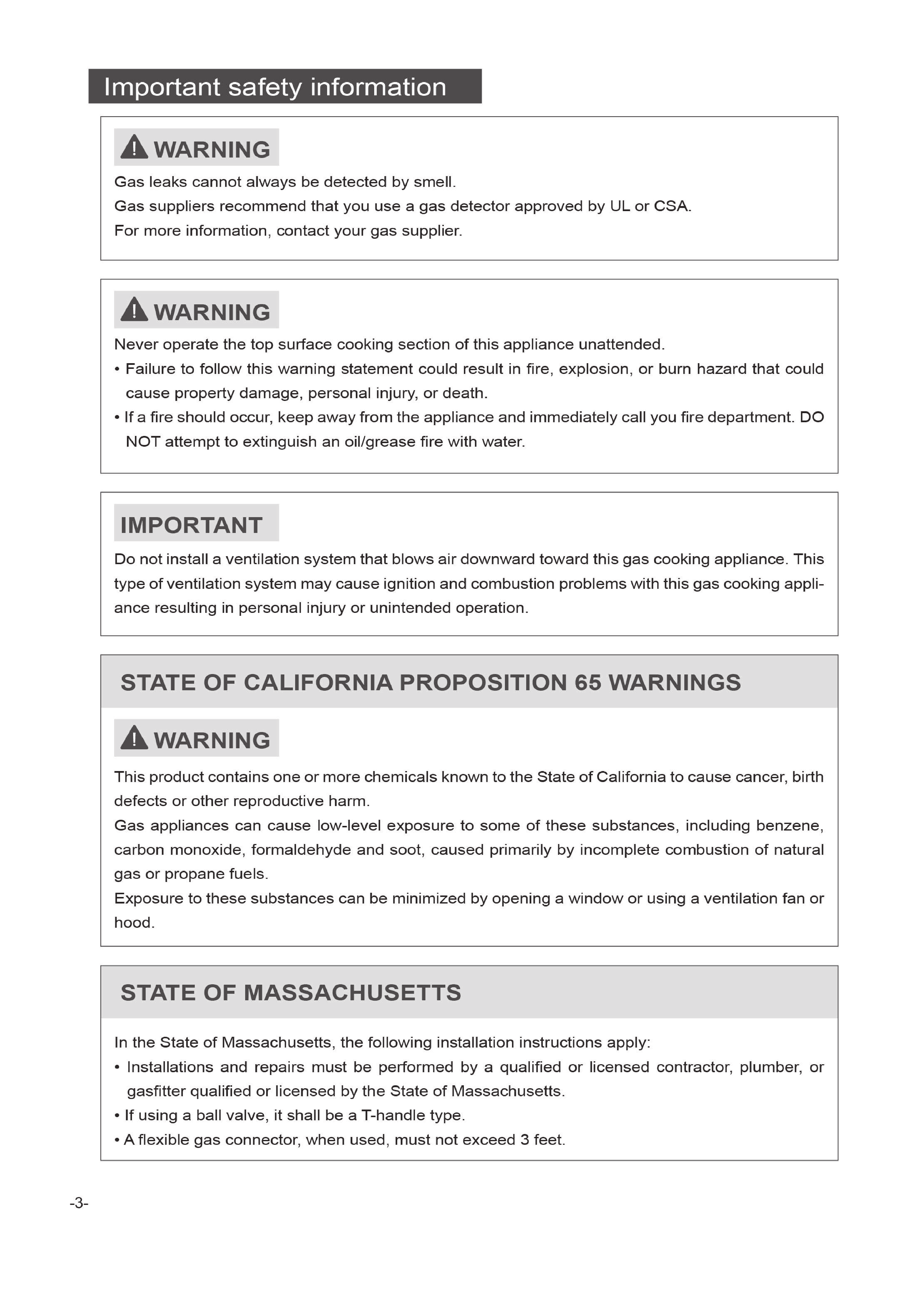

Important safety information
A WARNING
Gas leaks cannot always be detected by smell.
Gas suppliers recommend that you use a gas detector approved by UL or CSA.
For more information, contact your gas supplier.
A WARNING
Never operate the top surface cooking section of this appliance unattended.
» Failure to follow this warning statement could result in fire, explosion, or burn hazard that could
cause property damage, personal injury, or death.
« If a fire should occur, keep away from the appliance and immediately call you fire department. DO
NOT attempt to extinguish an oil/grease fire with water.
IMPORTANT
Do not install a ventilation system that blows air downward toward this gas cooking appliance. This
type of ventilation system may cause ignition and combustion problems with this gas cooking appli-
ance resulting in personal injury or unintended operation.
STATE OF CALIFORNIA PROPOSITION 65 WARNINGS
A WARNING
This product contains one or more chemicals known to the State of California to cause cancer, birth
defects or other reproductive harm.
Gas appliances can cause low-level exposure to some of these substances, including benzene,
carbon monoxide, formaldehyde and soot, caused primarily by incomplete combustion of natural
gas or propane fuels.
Exposure to these substances can be minimized by opening a window or using a ventilation fan or
hood.
STATE OF MASSACHUSETTS
In the State of Massachusetts, the following installation instructions apply:
* Installations and repairs must be performed by a qualified or licensed contractor, plumber, or
gasfitter qualified or licensed by the State of Massachusetts.
If using a ball valve, it shall be a T-handle type.
A flexible gas connector, when used, must not exceed 3 feet.

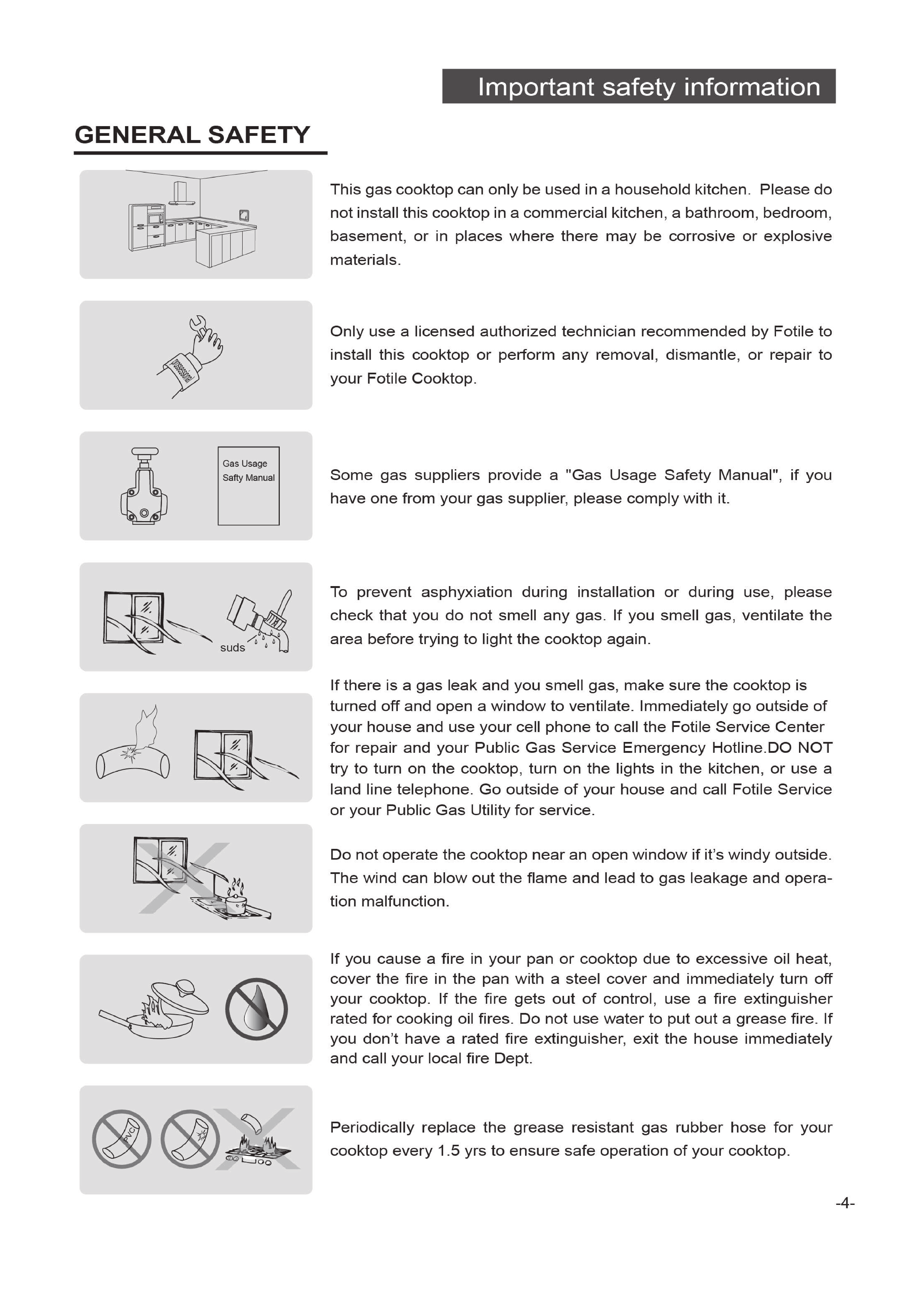

GENERAL SAFETY
Gas Usage
Safty Manual
Important safety information
This gas cooktop can only be used in a household kitchen. Please do
not install this cooktop in a commercial kitchen, a bathroom, bedroom,
basement, or in places where there may be corrosive or explosive
materials.
Only use a licensed authorized technician recommended by Fotile to
install this cooktop or perform any removal, dismantle, or repair to
your Fotile Cooktop.
Some gas suppliers provide a "Gas Usage Safety Manual”, if you
have one from your gas supplier, please comply with it.
To prevent asphyxiation during installation or during use, please
check that you do not smell any gas. If you smell gas, ventilate the
area before trying to light the cooktop again.
If there is a gas leak and you smell gas, make sure the cooktop is
turned off and open a window to ventilate. Immediately go outside of
your house and use your cell phone to call the Fotile Service Center
for repair and your Public Gas Service Emergency Hotline.DO NOT
try to turn on the cooktop, turn on the lights in the kitchen, or use a
land line telephone. Go outside of your house and call Fotile Service
or your Public Gas Utility for service.
Do not operate the cooktop near an open window if it's windy outside.
The wind can blow out the flame and lead to gas leakage and opera-
tion malfunction.
If you cause a fire in your pan or cooktop due to excessive oil heat,
cover the fire in the pan with a steel cover and immediately turn off
your cooktop. If the fire gets out of control, use a fire extinguisher
rated for cooking oil fires. Do not use water to put out a grease fire. If
you don’t have a rated fire extinguisher, exit the house immediately
and call your local fire Dept.
Periodically replace the grease resistant gas rubber hose for your
cooktop every 1.5 yrs to ensure safe operation of your cooktop.

Important safety information
A WARNING
Gas leaks cannot always be detected by smell.
Gas suppliers recommend that you use a gas detector approved by UL or CSA.
For more information, contact your gas supplier.
A WARNING
Never operate the top surface cooking section of this appliance unattended.
» Failure to follow this warning statement could result in fire, explosion, or burn hazard that could
cause property damage, personal injury, or death.
« If a fire should occur, keep away from the appliance and immediately call you fire department. DO
NOT attempt to extinguish an oil/grease fire with water.
IMPORTANT
Do not install a ventilation system that blows air downward toward this gas cooking appliance. This
type of ventilation system may cause ignition and combustion problems with this gas cooking appli-
ance resulting in personal injury or unintended operation.
STATE OF CALIFORNIA PROPOSITION 65 WARNINGS
A WARNING
This product contains one or more chemicals known to the State of California to cause cancer, birth
defects or other reproductive harm.
Gas appliances can cause low-level exposure to some of these substances, including benzene,
carbon monoxide, formaldehyde and soot, caused primarily by incomplete combustion of natural
gas or propane fuels.
Exposure to these substances can be minimized by opening a window or using a ventilation fan or
hood.
STATE OF MASSACHUSETTS
In the State of Massachusetts, the following installation instructions apply:
* Installations and repairs must be performed by a qualified or licensed contractor, plumber, or
gasfitter qualified or licensed by the State of Massachusetts.
If using a ball valve, it shall be a T-handle type.
A flexible gas connector, when used, must not exceed 3 feet.
GENERAL SAFETY
Gas Usage
Safty Manual
Important safety information
This gas cooktop can only be used in a household kitchen. Please do
not install this cooktop in a commercial kitchen, a bathroom, bedroom,
basement, or in places where there may be corrosive or explosive
materials.
Only use a licensed authorized technician recommended by Fotile to
install this cooktop or perform any removal, dismantle, or repair to
your Fotile Cooktop.
Some gas suppliers provide a "Gas Usage Safety Manual”, if you
have one from your gas supplier, please comply with it.
To prevent asphyxiation during installation or during use, please
check that you do not smell any gas. If you smell gas, ventilate the
area before trying to light the cooktop again.
If there is a gas leak and you smell gas, make sure the cooktop is
turned off and open a window to ventilate. Immediately go outside of
your house and use your cell phone to call the Fotile Service Center
for repair and your Public Gas Service Emergency Hotline.DO NOT
try to turn on the cooktop, turn on the lights in the kitchen, or use a
land line telephone. Go outside of your house and call Fotile Service
or your Public Gas Utility for service.
Do not operate the cooktop near an open window if it's windy outside.
The wind can blow out the flame and lead to gas leakage and opera-
tion malfunction.
If you cause a fire in your pan or cooktop due to excessive oil heat,
cover the fire in the pan with a steel cover and immediately turn off
your cooktop. If the fire gets out of control, use a fire extinguisher
rated for cooking oil fires. Do not use water to put out a grease fire. If
you don’t have a rated fire extinguisher, exit the house immediately
and call your local fire Dept.
Periodically replace the grease resistant gas rubber hose for your
cooktop every 1.5 yrs to ensure safe operation of your cooktop.

Important safety information
‘D
B ¢
[ Gas Type Code
—
N g
e
PH>7 PH<7
Never operate your cooktop when you are sleeping or when you leave
the house. You should never leave a working cooktop unattended. If
you go to bed or leave your house, be sure to turn off your cooktop.
Keep away any plastic packaging from small children to avoid suffo-
cation.
Do not modify this appliance
Only operate the Fotile Cooktop with natural gas or LPG. This cook-
top can not be used with other gas types.
Only use this cooktop for cooking food. Do not attempt to use it for
other purposes such as drying clothes or as a heater.
Do not attempt to use the cooktop when there is no pot on the cook-
top or no food in the pan. This can damage your cooktop and your
cooking pan.
To avoid burning yourself, please do not touch the cooktop or its
burners immediately after using the cooktop.
Do not store any flammable materials in a drawer near your cook-
top.
Please don’t place any acidic or alkaline substance on the cooktop
(vinegar, lemon juice, etc).

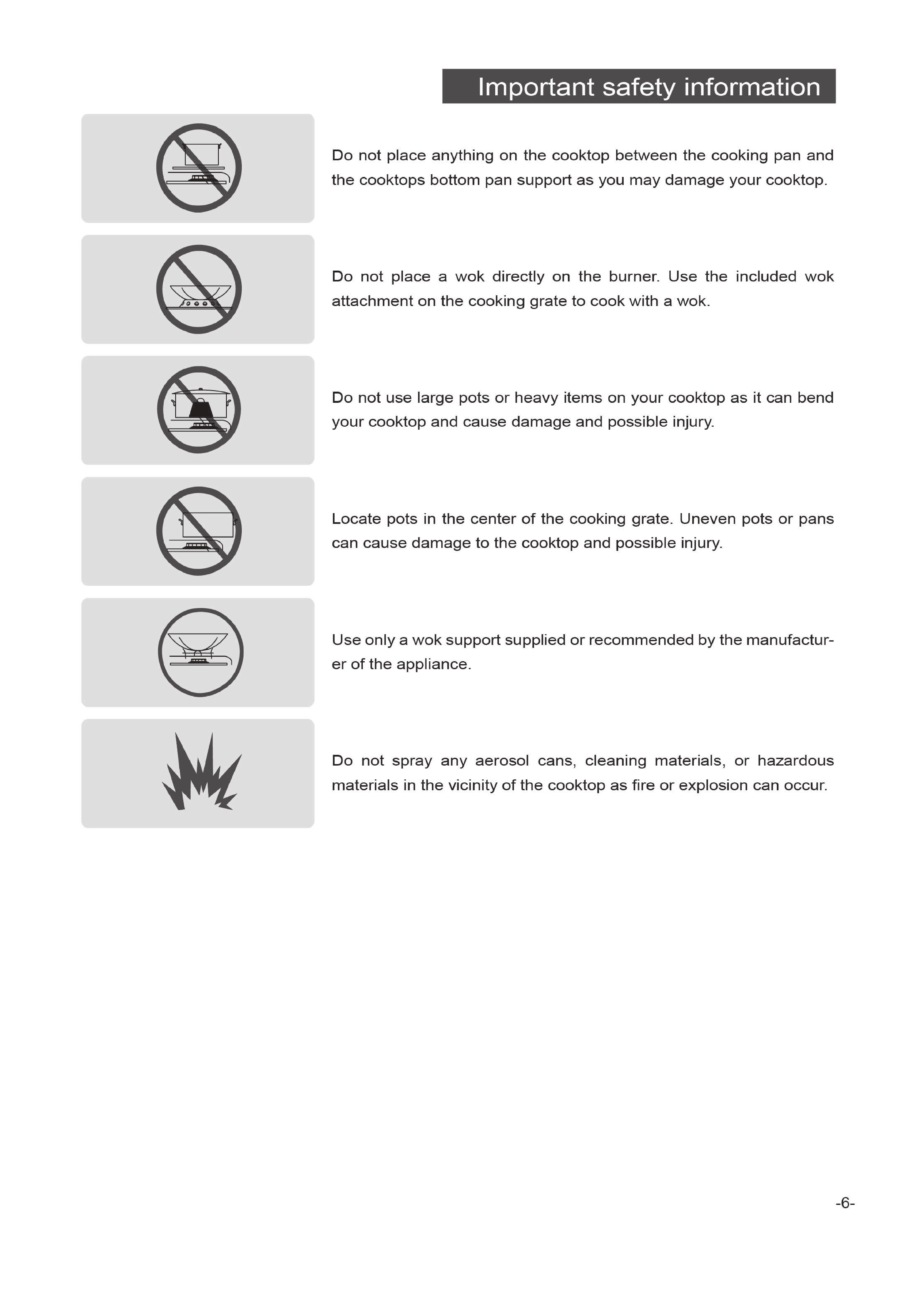

Important safety information
Do not place anything on the cooktop between the cooking pan and
the cooktops bottom pan support as you may damage your cooktop.
Do not place a wok directly on the burner. Use the included wok
attachment on the cooking grate to cook with a wok.
Do not use large pots or heavy items on your cooktop as it can bend
your cooktop and cause damage and possible injury.
Locate pots in the center of the cooking grate. Uneven pots or pans
can cause damage to the cooktop and possible injury.
Use only a wok support supplied or recommended by the manufactur-
er of the appliance.
Do not spray any aerosol cans, cleaning materials, or hazardous
materials in the vicinity of the cooktop as fire or explosion can occur.

Important safety information
‘D
B ¢
[ Gas Type Code
—
N g
e
PH>7 PH<7
Never operate your cooktop when you are sleeping or when you leave
the house. You should never leave a working cooktop unattended. If
you go to bed or leave your house, be sure to turn off your cooktop.
Keep away any plastic packaging from small children to avoid suffo-
cation.
Do not modify this appliance
Only operate the Fotile Cooktop with natural gas or LPG. This cook-
top can not be used with other gas types.
Only use this cooktop for cooking food. Do not attempt to use it for
other purposes such as drying clothes or as a heater.
Do not attempt to use the cooktop when there is no pot on the cook-
top or no food in the pan. This can damage your cooktop and your
cooking pan.
To avoid burning yourself, please do not touch the cooktop or its
burners immediately after using the cooktop.
Do not store any flammable materials in a drawer near your cook-
top.
Please don’t place any acidic or alkaline substance on the cooktop
(vinegar, lemon juice, etc).
Important safety information
Do not place anything on the cooktop between the cooking pan and
the cooktops bottom pan support as you may damage your cooktop.
Do not place a wok directly on the burner. Use the included wok
attachment on the cooking grate to cook with a wok.
Do not use large pots or heavy items on your cooktop as it can bend
your cooktop and cause damage and possible injury.
Locate pots in the center of the cooking grate. Uneven pots or pans
can cause damage to the cooktop and possible injury.
Use only a wok support supplied or recommended by the manufactur-
er of the appliance.
Do not spray any aerosol cans, cleaning materials, or hazardous
materials in the vicinity of the cooktop as fire or explosion can occur.

Important
safety
information
GENERAL
SAFETY
Hl
Layout
This appliance is not connected to any type of combustion exhaust system. It must be
installed in accordance with local and manufacturer installation guidelines. Particular atten- @ @
tion should be placed on the requirements regarding proper ventilation.
Before installation, please ensure your local gas distribution type is right for your cooktop. @
This cooktop appliance is compatible with Natural Gas and LPG. Please check with your local
provider to ensure compatibility.
Never use this appliance as a heating appliance. Doing so may result in carbon monoxide
poisoning and damage to your cooktop from overheating. @
Please discard all packaging materials in the appropriate designated garbage or store in a
safe place out of the reach of children.
Never block the vent openings provided for ventilation and heat dispersal
The product name plate containing technical data, serial number, and other important product @
information must never be removed from the cooktop. This is important information for a
ice technician about ktop.
service techniclian about your cooktop (1) Center:21000BTU, Versatile Tri-Ring Burner (2) Left Rear/Left Front: 13000BTU, Rapid Burner
Hot Surface Hazard) Never touch th ktop surf f it ts duri
(Hot Surface Hazard) Never touch the cooktop surface or any of its components during or (3) Right Rear: 3000BTU, Simmer Burner (@) Right Front: 6000BTU, Semi Rapid Burner
right after use as they can become extremely hot.
(5) Edge to Edge Cooking Grates (6) Octagonal Knobs
(Fire Hazard) Never leave the cooktop appliance unattended when in use. Burning food can
cause a fire and lead to personal injury.
Do not spray any aerosols in the vicinity of the cooktop when in use. This can result in fire and
personal injury.
(Explosion Hazard) Do not use your cooktop near flammable materials. Do not store any
flammable materials near the cooktop. Doing so, can result in personal injury.
This appliance is intended for use by adults only. Keep children at a safe distance.
Center Burner Other Burners
Always
check
that
the
control
knobs
are
turned
off
after
each
use.
(7)
Thermocouple
Ignition
device
The manufacturer waives all responsibility for injury or damage caused by failure to comply
with the above regulations or tampering or modifying the cooktop with non-original parts.

Important
safety
information
GENERAL
SAFETY
Hl
Layout
This appliance is not connected to any type of combustion exhaust system. It must be
installed in accordance with local and manufacturer installation guidelines. Particular atten- @ @
tion should be placed on the requirements regarding proper ventilation.
Before installation, please ensure your local gas distribution type is right for your cooktop. @
This cooktop appliance is compatible with Natural Gas and LPG. Please check with your local
provider to ensure compatibility.
Never use this appliance as a heating appliance. Doing so may result in carbon monoxide
poisoning and damage to your cooktop from overheating. @
Please discard all packaging materials in the appropriate designated garbage or store in a
safe place out of the reach of children.
Never block the vent openings provided for ventilation and heat dispersal
The product name plate containing technical data, serial number, and other important product @
information must never be removed from the cooktop. This is important information for a
ice technician about ktop.
service techniclian about your cooktop (1) Center:21000BTU, Versatile Tri-Ring Burner (2) Left Rear/Left Front: 13000BTU, Rapid Burner
Hot Surface Hazard) Never touch th ktop surf f it ts duri
(Hot Surface Hazard) Never touch the cooktop surface or any of its components during or (3) Right Rear: 3000BTU, Simmer Burner (@) Right Front: 6000BTU, Semi Rapid Burner
right after use as they can become extremely hot.
(5) Edge to Edge Cooking Grates (6) Octagonal Knobs
(Fire Hazard) Never leave the cooktop appliance unattended when in use. Burning food can
cause a fire and lead to personal injury.
Do not spray any aerosols in the vicinity of the cooktop when in use. This can result in fire and
personal injury.
(Explosion Hazard) Do not use your cooktop near flammable materials. Do not store any
flammable materials near the cooktop. Doing so, can result in personal injury.
This appliance is intended for use by adults only. Keep children at a safe distance.
Center Burner Other Burners
Always
check
that
the
control
knobs
are
turned
off
after
each
use.
(7)
Thermocouple
Ignition
device
The manufacturer waives all responsibility for injury or damage caused by failure to comply
with the above regulations or tampering or modifying the cooktop with non-original parts.

Overview

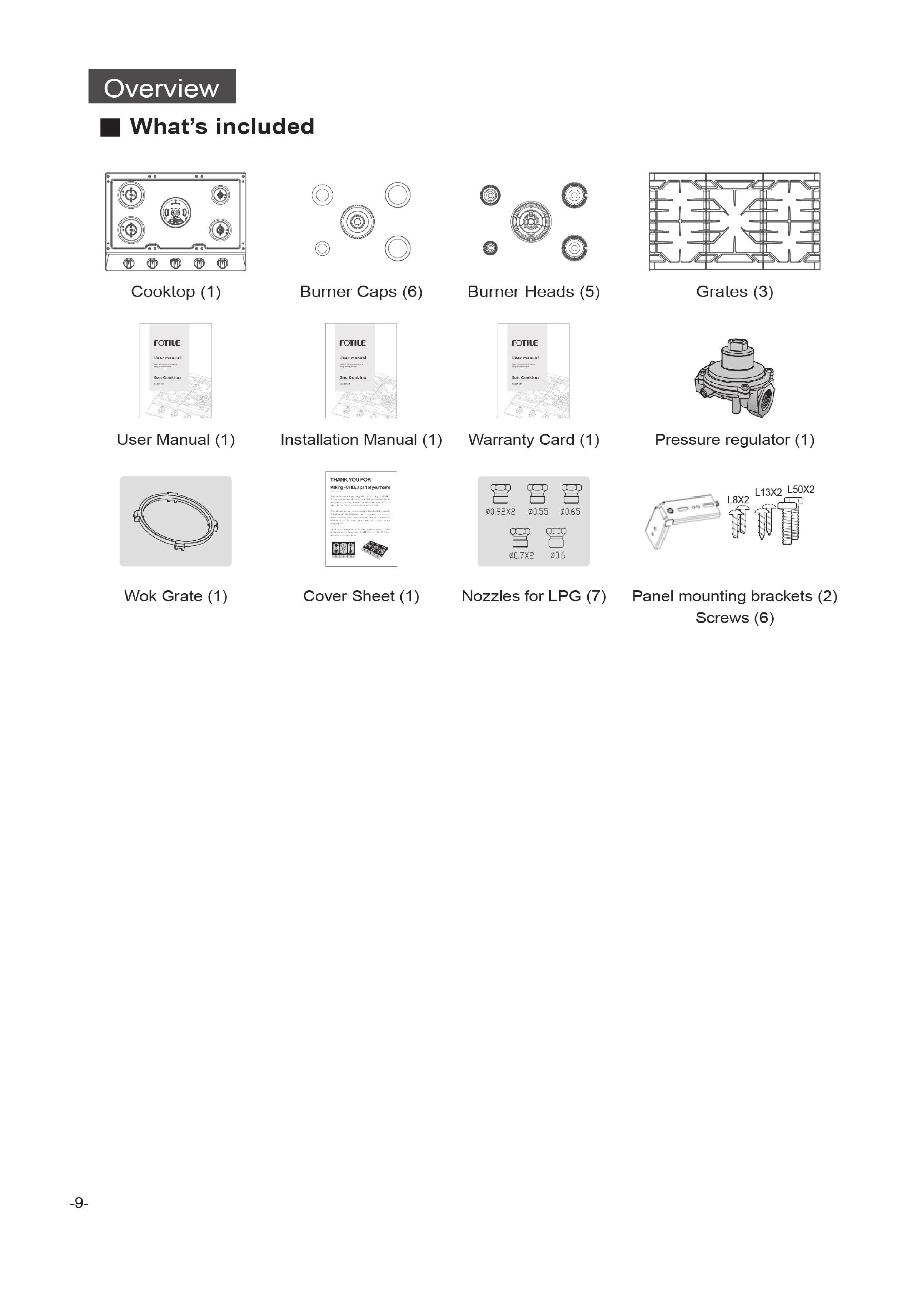

B What’s included
FOTILE
User Manual (1)
Wok Grate (1)
Burner Caps (6)
FOTILE
Installation Manual (1)
Cover Sheet (1)
Burner Heads (9) Grates (3)
Warranty Card (1) Pressure regulator (1)
D «H D L50X2
=)
—
O
—
LBX2
L13x2
=
80.92X2
8055
8065
S
=
fij‘
{. B I E
90.7X2 906
Nozzles for LPG (7) Panel mounting brackets (2)
Screws (6)
Using the cooktop

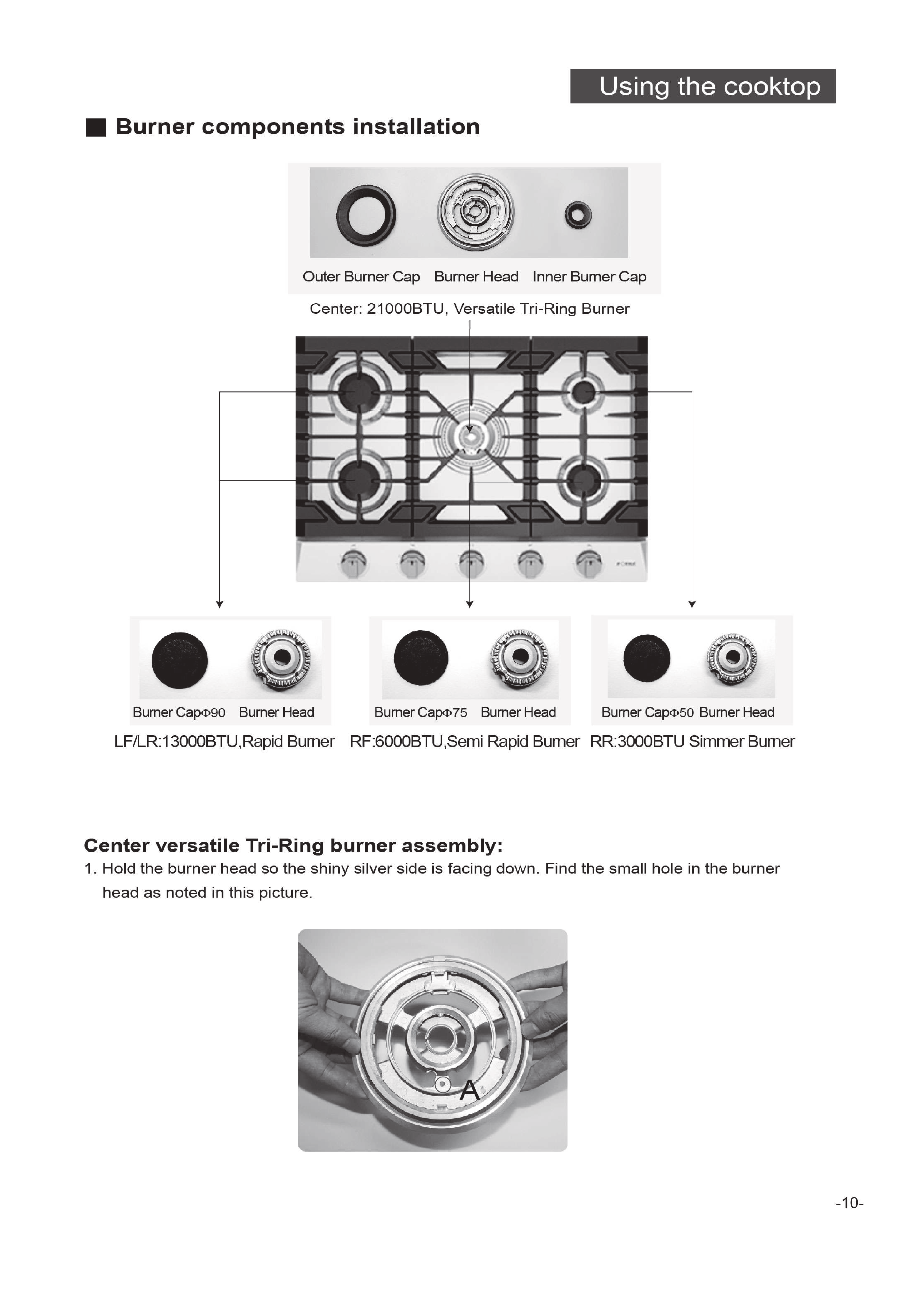

Il Burner components installation
Outer Burner Cap Burner Head Inner Burner Cap
Center: 21000BTU, Versatile Tri-Ring Burner
Bumer Cap®90 Burmer Head Bumer Cap®75 Bumer Head Bumer Cap®50 Burmer Head
LF/LR:13000BTU,Rapid Bumer RF:6000BTU,Semi Rapid Burner RR:3000BTU Simmer Bumer
Center versatile Tri-Ring burner assembly:
1. Hold the burner head so the shiny silver side is facing down. Find the small hole in the burner
head as noted in this picture.
<J ()=

Overview
B What’s included
FOTILE
User Manual (1)
Wok Grate (1)
Burner Caps (6)
FOTILE
Installation Manual (1)
Cover Sheet (1)
Burner Heads (9) Grates (3)
Warranty Card (1) Pressure regulator (1)
D «H D L50X2
=)
—
O
—
LBX2
L13x2
=
80.92X2
8055
8065
S
=
fij‘
{. B I E
90.7X2 906
Nozzles for LPG (7) Panel mounting brackets (2)
Screws (6)
Using the cooktop
Il Burner components installation
Outer Burner Cap Burner Head Inner Burner Cap
Center: 21000BTU, Versatile Tri-Ring Burner
Bumer Cap®90 Burmer Head Bumer Cap®75 Bumer Head Bumer Cap®50 Burmer Head
LF/LR:13000BTU,Rapid Bumer RF:6000BTU,Semi Rapid Burner RR:3000BTU Simmer Bumer
Center versatile Tri-Ring burner assembly:
1. Hold the burner head so the shiny silver side is facing down. Find the small hole in the burner
head as noted in this picture.
<J ()=

Using the cooktop
= b -
2. Place the burner head onto the cooktop surface so that “hole A” gets inserted into “pin B” on
the cooktop. Make sure “Pin B” is firmly seated into “hole A” on the Burner Head. If not,
remove the burner head and try it again. Please refer to the pictures below for this step.
3. Place the lined part of outer burner cap to fit in the lined part of the burner head. Shake the
outer burner cap gently to check if it is firmly seated (you will be able to rotate the outer burner
cap, but it should be firmly seated in the burner head.)
4. Next, place the inner burner cap on the burner head and make sure it is firmly set by gently
sliding it from side to side.
5. Check if the burner head/burner cap is firmly seated. If the burner head/cap is not level or is
unstable, you must take it off, and reinsert it again.
Using the cooktop

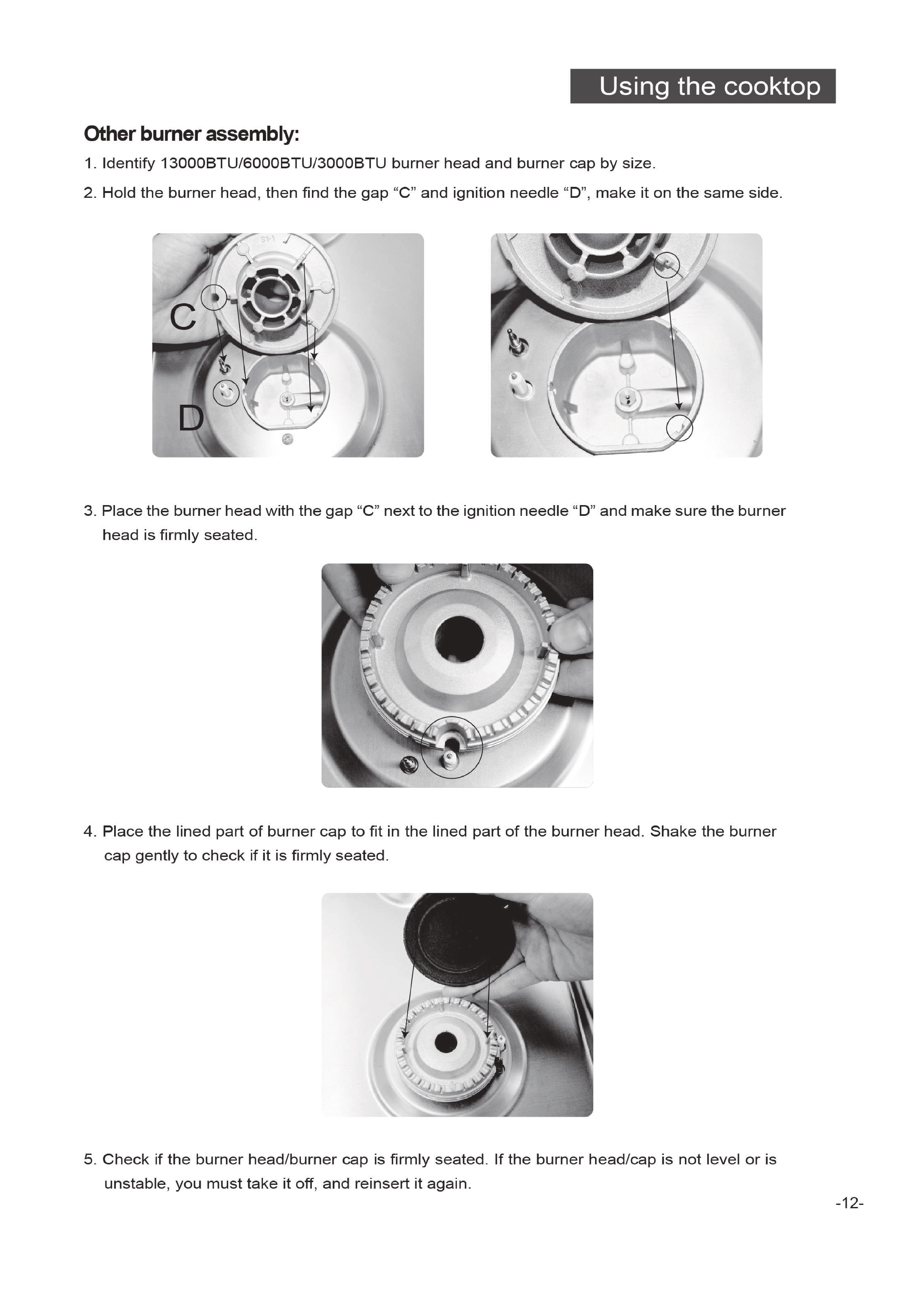

Other burner assembly:
1. Identify 13000BTU/6000BTU/3000BTU burner head and burner cap by size.
2. Hold the burner head, then find the gap “C” and ignition needle “D”, make it on the same side.
3. Place the burner head with the gap “C” next to the ignition needle “D” and make sure the burner
head is firmly seated.
4. Place the lined part of burner cap to fit in the lined part of the burner head. Shake the burner
cap gently to check if it is firmly seated.
5. Check if the burner head/burner cap is firmly seated. If the burner head/cap is not level or is
unstable, you must take it off, and reinsert it again.
W

Using the cooktop
= b -
2. Place the burner head onto the cooktop surface so that “hole A” gets inserted into “pin B” on
the cooktop. Make sure “Pin B” is firmly seated into “hole A” on the Burner Head. If not,
remove the burner head and try it again. Please refer to the pictures below for this step.
3. Place the lined part of outer burner cap to fit in the lined part of the burner head. Shake the
outer burner cap gently to check if it is firmly seated (you will be able to rotate the outer burner
cap, but it should be firmly seated in the burner head.)
4. Next, place the inner burner cap on the burner head and make sure it is firmly set by gently
sliding it from side to side.
5. Check if the burner head/burner cap is firmly seated. If the burner head/cap is not level or is
unstable, you must take it off, and reinsert it again.
Using the cooktop
Other burner assembly:
1. Identify 13000BTU/6000BTU/3000BTU burner head and burner cap by size.
2. Hold the burner head, then find the gap “C” and ignition needle “D”, make it on the same side.
3. Place the burner head with the gap “C” next to the ignition needle “D” and make sure the burner
head is firmly seated.
4. Place the lined part of burner cap to fit in the lined part of the burner head. Shake the burner
cap gently to check if it is firmly seated.
5. Check if the burner head/burner cap is firmly seated. If the burner head/cap is not level or is
unstable, you must take it off, and reinsert it again.
W

.
Using the cooktop
B
Grates
Installation
@ Left/Right Grate(same) @ Center Grate
The three cooktop grates are designed to fit in specific positions on the cooktop. For maximum
stability, these grates should only be used in their proper positions.
To properly setup your cooking grates, please follow these steps:
1. Take out the three grates and find the center grate first. Note, the left and right grids are exactly
the same.
2. Gently lower the legs of the center grate so they rest in the center grate dimples of the cooktop.
3. Take the other two grates and make sure the thicker sides of the grates face the outer left and
right sides of the cooktop.
4. Gently lower the legs of the grates into the dimples of the cooktop. When properly installed,
neither grate will make contact with the overhangs of the center grate.
Thicker
side
Thicker
side
Using the cooktop
l Fast Ignition
Take note which knob controls which burner. This appliance is equipped with an electronic ignition
device. Simply press the knob downward and turn it counterclockwise to HI until the burner lights.
If it does not light within the first 15 seconds, turn the knob to OFF and wait for 60 seconds before
attempting to light it again. This cooktop has a fast ignition device. When the knob is released, the
solenoid valve will not cut off power immediately. It will still maintain continuous current to provide
energy to the ignition needle. Therefore, the igniter will continue to maintain the ignition state for
1 to 3 seconds, which provides better ignition rate.
B Flame Failure Device
If the flame goes out accidentally a safety device will be activated about 20 seconds later and
automatically cut off the gas supply to the cooktop even if the burner knob is still on. If this
happens, turn the burner knob to the OFF position, wait 60 seconds, and then try to relight the
burner.
B Cookware size limitation
Please choose the proper Pan before cooking:
1. Please make sure the diameter of the pan used is equal or more in size to the cooking
gratesner.
2. Try to avoid rubbing or banging the cooktop on the cooking grate to protect the cast iron grate.
3. AWok can be used on the Center Tr-Ring Burner only. Before using your wok, please attach
the included Wok attachment grate onto the center burner.
Burner Minimum Maximum
LR/LF N/A 10in
M Bin 12in
RR N/A 8in
RF N/A 10in
Always make sure your pot handles are turned facing you or to the side when using your cook-
top. Make sure you do not have a pot handle over a hot burner. This will minimize the chance of
having any accidents or personal injury.
-14-

.
Using the cooktop
B
Grates
Installation
@ Left/Right Grate(same) @ Center Grate
The three cooktop grates are designed to fit in specific positions on the cooktop. For maximum
stability, these grates should only be used in their proper positions.
To properly setup your cooking grates, please follow these steps:
1. Take out the three grates and find the center grate first. Note, the left and right grids are exactly
the same.
2. Gently lower the legs of the center grate so they rest in the center grate dimples of the cooktop.
3. Take the other two grates and make sure the thicker sides of the grates face the outer left and
right sides of the cooktop.
4. Gently lower the legs of the grates into the dimples of the cooktop. When properly installed,
neither grate will make contact with the overhangs of the center grate.
Thicker
side
Thicker
side
Using the cooktop
l Fast Ignition
Take note which knob controls which burner. This appliance is equipped with an electronic ignition
device. Simply press the knob downward and turn it counterclockwise to HI until the burner lights.
If it does not light within the first 15 seconds, turn the knob to OFF and wait for 60 seconds before
attempting to light it again. This cooktop has a fast ignition device. When the knob is released, the
solenoid valve will not cut off power immediately. It will still maintain continuous current to provide
energy to the ignition needle. Therefore, the igniter will continue to maintain the ignition state for
1 to 3 seconds, which provides better ignition rate.
B Flame Failure Device
If the flame goes out accidentally a safety device will be activated about 20 seconds later and
automatically cut off the gas supply to the cooktop even if the burner knob is still on. If this
happens, turn the burner knob to the OFF position, wait 60 seconds, and then try to relight the
burner.
B Cookware size limitation
Please choose the proper Pan before cooking:
1. Please make sure the diameter of the pan used is equal or more in size to the cooking
gratesner.
2. Try to avoid rubbing or banging the cooktop on the cooking grate to protect the cast iron grate.
3. AWok can be used on the Center Tr-Ring Burner only. Before using your wok, please attach
the included Wok attachment grate onto the center burner.
Burner Minimum Maximum
LR/LF N/A 10in
M Bin 12in
RR N/A 8in
RF N/A 10in
Always make sure your pot handles are turned facing you or to the side when using your cook-
top. Make sure you do not have a pot handle over a hot burner. This will minimize the chance of
having any accidents or personal injury.
-14-

Using the cooktop

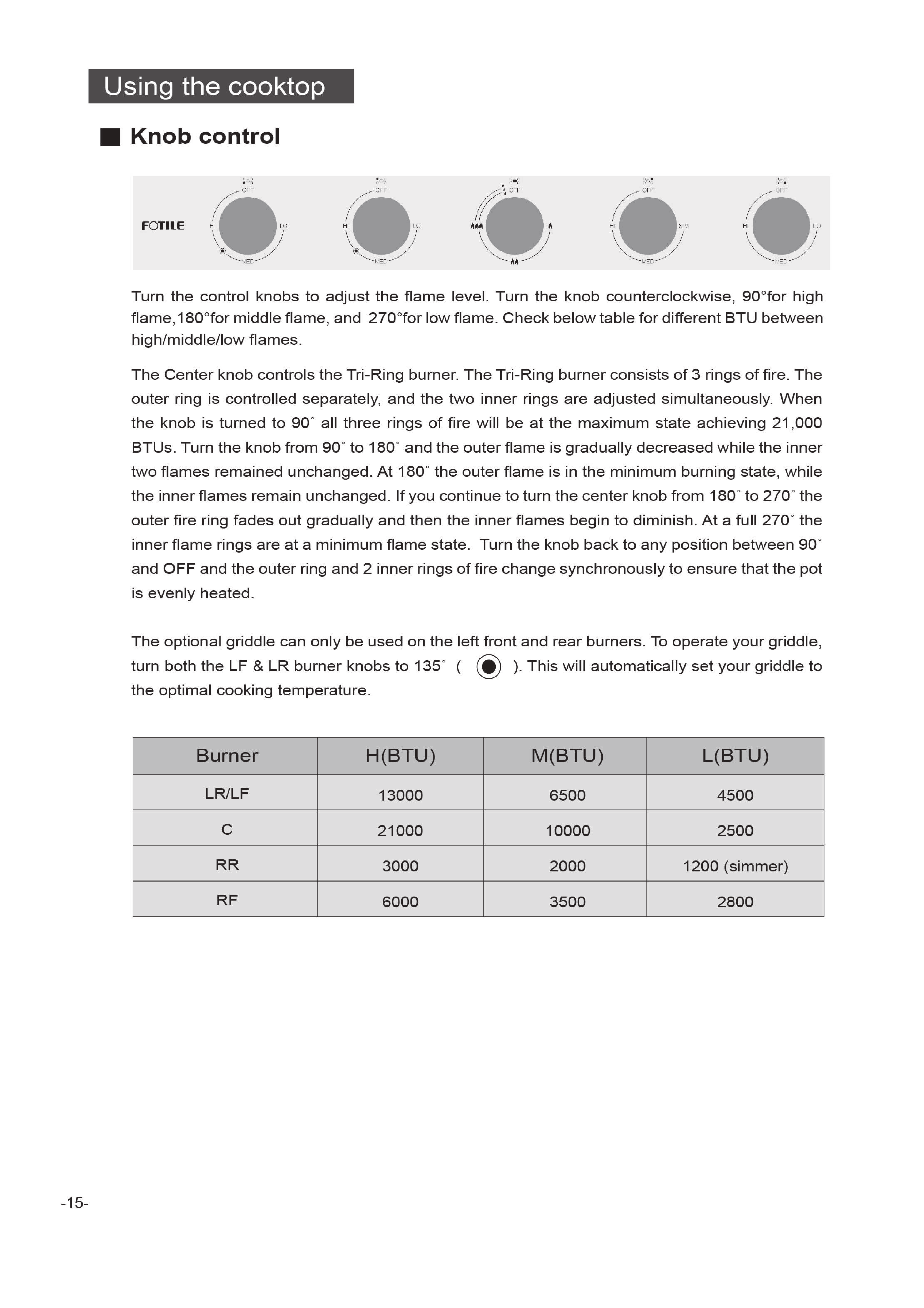

Bl Knob control Burner purpose Characteristics Food type
Quick
heating
Good
source
of
medium
to
high
|
All
types
of
food
7 DA | R/LE | General-purpose cooking | heat, All Purpose Burners
It
;’
FOTILE
|
X
’ /f’ Griddle Cooking Foods that require large cook- | Hamburgers, Pancakes,
S ing area with even distribution | eggs, omelets, breakfast
of medium to high heat sausages, sautéed
Turn the control knobs to adjust the flame level. Turn the knob counterclockwise, 90°for high vegetables
flame,180°for middle flame, and 270°for low flame. Check below table for different BTU between
high/middle/low flames. Power Boiling, Stir Versatile 3 Ring burner with Stir Fry, Meats,
o o | ' _ frying, Searing, Pan 21,000 BTU to 2,500 BTU, Vegetables, Eggs,
The Center knob controls the Tri-Ring burner. The Tri-Ring burner consists of 3 rings of fire. The Frying, Poaching, Extremely High Heat to low Pancakes, Crepes,
outer ring is controlled separately, and the two inner rings are adjusted simultaneously. When C to light Simmering simmer Soups, Sauces
the knob is turned to 90" all three rings of fire will be at the maximum state achieving 21,000 , _
BTUs. Turn the knob from 90" to 180" and the outer flame is gradually decreased while the inner e SRR SUE el e
two flames remained unchanged. At 180" the outer flame is in the minimum burning state, while Low simmering, heat Food that requires low Sauces, Chocolate
the inner flames remain unchanged. If you continue to turn the center knob from 180° to 270° the RR | preservation and heat for a long time butter, Casseroles
outer fire ring fades out gradually and then the inner flames begin to diminish. At a full 270" the duration
inner
flame
rings
are
at
a
minimum
flame
state.
Turn
the
knob back
to
any
position
between
90°
.
, Low/Medium heat to :
and
OFF
and
the
outer
ring
and
2
inner
rings
of
fire
change
synchronously
to
ensure
that
the
pot
RF
General
cooking
light
simmer
General
Purpose
cooking
is evenly heated.
The optional griddle can only be used on the left front and rear burners. To operate your griddle,
turn both the LF & LR burner knobs to 135" ( @ ). This will automatically set your griddle to
the optimal cooking temperature.
Using the cooktop
Bl Wok Grate (included)
Wok:
Woks are often used for stir-frying and pan frying. To use a Wok, you need to attach the Wok
Grate so your Wok will sit on the burner properly and safely.
1. The wok grate attachment can only be placed on the center burner cooking grate.
Burner H(BTU) M(BTU) L(BTU) 2. Do not try to use an oversize pan with the wok attachment as damage and injury could occur.
Only use a wok on the wok attachment.
LR/LF
13000
6500
4500
4
_ ,
3. Do not try to remove the wok grate until the cooking grates and cooktop surface have complete-
C
21000
10000
2500
ly
cooled
down.
RR 3000 5000 1200 (=immer) 4. Do not use the wok grate and the griddle at the same time.
RF 6000 3500 2800
i
B LPG Conversion
FOTILE gas cooktops are manufactured and shipped to be used with natural gas. If you want to
use LPG, please convert the cooktop to LPG following the instructions in the Installation Manual.
e 5

Using the cooktop
Bl Knob control Burner purpose Characteristics Food type
Quick
heating
Good
source
of
medium
to
high
|
All
types
of
food
7 DA | R/LE | General-purpose cooking | heat, All Purpose Burners
It
;’
FOTILE
|
X
’ /f’ Griddle Cooking Foods that require large cook- | Hamburgers, Pancakes,
S ing area with even distribution | eggs, omelets, breakfast
of medium to high heat sausages, sautéed
Turn the control knobs to adjust the flame level. Turn the knob counterclockwise, 90°for high vegetables
flame,180°for middle flame, and 270°for low flame. Check below table for different BTU between
high/middle/low flames. Power Boiling, Stir Versatile 3 Ring burner with Stir Fry, Meats,
o o | ' _ frying, Searing, Pan 21,000 BTU to 2,500 BTU, Vegetables, Eggs,
The Center knob controls the Tri-Ring burner. The Tri-Ring burner consists of 3 rings of fire. The Frying, Poaching, Extremely High Heat to low Pancakes, Crepes,
outer ring is controlled separately, and the two inner rings are adjusted simultaneously. When C to light Simmering simmer Soups, Sauces
the knob is turned to 90" all three rings of fire will be at the maximum state achieving 21,000 , _
BTUs. Turn the knob from 90" to 180" and the outer flame is gradually decreased while the inner e SRR SUE el e
two flames remained unchanged. At 180" the outer flame is in the minimum burning state, while Low simmering, heat Food that requires low Sauces, Chocolate
the inner flames remain unchanged. If you continue to turn the center knob from 180° to 270° the RR | preservation and heat for a long time butter, Casseroles
outer fire ring fades out gradually and then the inner flames begin to diminish. At a full 270" the duration
inner
flame
rings
are
at
a
minimum
flame
state.
Turn
the
knob back
to
any
position
between
90°
.
, Low/Medium heat to :
and
OFF
and
the
outer
ring
and
2
inner
rings
of
fire
change
synchronously
to
ensure
that
the
pot
RF
General
cooking
light
simmer
General
Purpose
cooking
is evenly heated.
The optional griddle can only be used on the left front and rear burners. To operate your griddle,
turn both the LF & LR burner knobs to 135" ( @ ). This will automatically set your griddle to
the optimal cooking temperature.
Using the cooktop
Bl Wok Grate (included)
Wok:
Woks are often used for stir-frying and pan frying. To use a Wok, you need to attach the Wok
Grate so your Wok will sit on the burner properly and safely.
1. The wok grate attachment can only be placed on the center burner cooking grate.
Burner H(BTU) M(BTU) L(BTU) 2. Do not try to use an oversize pan with the wok attachment as damage and injury could occur.
Only use a wok on the wok attachment.
LR/LF
13000
6500
4500
4
_ ,
3. Do not try to remove the wok grate until the cooking grates and cooktop surface have complete-
C
21000
10000
2500
ly
cooled
down.
RR 3000 5000 1200 (=immer) 4. Do not use the wok grate and the griddle at the same time.
RF 6000 3500 2800
i
B LPG Conversion
FOTILE gas cooktops are manufactured and shipped to be used with natural gas. If you want to
use LPG, please convert the cooktop to LPG following the instructions in the Installation Manual.
e 5

T e
Care and cleaning
A WARNING
Before cleaning your cooktop, please make sure it is OFF and it has cooled down.
1. Before cleaning, please remove pan supports and flame caps.
2. Only use a mild neutral cleaning solution to clean your cooktop burner parts, and cooking grates.
Only use warm water, mild detergent, and a soft towel or paper towel.
3. Please do not wipe your cooktop with steel wool or anything abrasive, as it will scratch the surface
of your cooktop and possibly damage it.
4. Wash the removable parts of the burner in warm water with a mild detergent soap. Remove any
food spilled on the burner parts during washing. Completely dry the burner parts otherwise white
spots may appear. Note, if this happens, this will not affect the cooking performance of the cook-
top.
S. Take a look at the fire holes on the burners and gently remove any carbon buildup by wiping them
with a soft towel or rag.
6. After cleaning your cooktop, make sure everything is dry before putting it back together and using it.
/. Do not put your burner parts, cooking grates, or Wok grate into the dishwasher as they may get
damaged.
8. After spilling the pot, please clean up the spilt liquid in time. Do not let the spilt liquid flow into the
bottom cup of the burner.
Troubleshooting
Problems Possible cause Action
You smell gas. Gas leak
Do not use cooktop. Turn the burner
knob to OFF and open the window.
Do not touch any light switches or
telephone. Leave the house immedi-
ately and go outside to call your gas
supplier for help with a cell phone.
Burners do not light
Gas supply is not
properly connect-
ed or turned on
Turn the burner knob to OFF and retry
lighting the burner again. If still does
not work, please call your gas supplier
for help.
Too much Air is mixed
with the gas pipe
Light the burner repeatedly until the
air has completely gone out
The burner heads and
caps are not in place
Remove the Burner head/cap and
reinsert it again firmly. (check burner
assembly instruction for details.)
Ignition device dirty or
wet
Wipe with a dry cloth
Safety valve not open Press and turn the knob, make sure
the burner is on and keep pressing
for 3 to 4 seconds.
Thermocouple is dirty Wipe with a dry cloth
The burners are dirty, or
nozzle is blocked
Remove burners,rinse with clean
water and wipe dry.
The flame is small
The burners’ nozzle is
blocked
Clean the fire hole surface on
the burner
Flame length is uneven
The burners are dirty,
or nozzle is blocked
Remove burners, rinse with clean
water and wipe it.
The burner heads and
caps are not in place
Remove the Burner head/cap and
reinsert it again firmly. (check burner
assembly instruction for details.)
Flame length is uneven
After the overflow of the
pot, a large amount of soup
overflowed and flowed into
the inner cavity of the bottom
cup of the burner, causing
uneven air output.
Please clean up the spilt liquid in time
after spilling the pot. Clean the spill with
a clean rag, remove the flamethrower
and fire cover, check whether there is
liquid in the bottom cup of the burner, if
there is, please clean it in time.
) B

T e
Care and cleaning
A WARNING
Before cleaning your cooktop, please make sure it is OFF and it has cooled down.
1. Before cleaning, please remove pan supports and flame caps.
2. Only use a mild neutral cleaning solution to clean your cooktop burner parts, and cooking grates.
Only use warm water, mild detergent, and a soft towel or paper towel.
3. Please do not wipe your cooktop with steel wool or anything abrasive, as it will scratch the surface
of your cooktop and possibly damage it.
4. Wash the removable parts of the burner in warm water with a mild detergent soap. Remove any
food spilled on the burner parts during washing. Completely dry the burner parts otherwise white
spots may appear. Note, if this happens, this will not affect the cooking performance of the cook-
top.
S. Take a look at the fire holes on the burners and gently remove any carbon buildup by wiping them
with a soft towel or rag.
6. After cleaning your cooktop, make sure everything is dry before putting it back together and using it.
/. Do not put your burner parts, cooking grates, or Wok grate into the dishwasher as they may get
damaged.
8. After spilling the pot, please clean up the spilt liquid in time. Do not let the spilt liquid flow into the
bottom cup of the burner.
Troubleshooting
Problems Possible cause Action
You smell gas. Gas leak
Do not use cooktop. Turn the burner
knob to OFF and open the window.
Do not touch any light switches or
telephone. Leave the house immedi-
ately and go outside to call your gas
supplier for help with a cell phone.
Burners do not light
Gas supply is not
properly connect-
ed or turned on
Turn the burner knob to OFF and retry
lighting the burner again. If still does
not work, please call your gas supplier
for help.
Too much Air is mixed
with the gas pipe
Light the burner repeatedly until the
air has completely gone out
The burner heads and
caps are not in place
Remove the Burner head/cap and
reinsert it again firmly. (check burner
assembly instruction for details.)
Ignition device dirty or
wet
Wipe with a dry cloth
Safety valve not open Press and turn the knob, make sure
the burner is on and keep pressing
for 3 to 4 seconds.
Thermocouple is dirty Wipe with a dry cloth
The burners are dirty, or
nozzle is blocked
Remove burners,rinse with clean
water and wipe dry.
The flame is small
The burners’ nozzle is
blocked
Clean the fire hole surface on
the burner
Flame length is uneven
The burners are dirty,
or nozzle is blocked
Remove burners, rinse with clean
water and wipe it.
The burner heads and
caps are not in place
Remove the Burner head/cap and
reinsert it again firmly. (check burner
assembly instruction for details.)
Flame length is uneven
After the overflow of the
pot, a large amount of soup
overflowed and flowed into
the inner cavity of the bottom
cup of the burner, causing
uneven air output.
Please clean up the spilt liquid in time
after spilling the pot. Clean the spill with
a clean rag, remove the flamethrower
and fire cover, check whether there is
liquid in the bottom cup of the burner, if
there is, please clean it in time.
) B

=15
Please staple your receipt here, proof of original purchase is required
for service.
All warranty service is provided by our Factory Service Centers, or an authorized Customer
Care Technician.To schedule a service appointment, please call FOTILE America Service at
1-888-315-0366 or email us at [email protected]. Please have your serial number, model
number, and proof of purchase receipt available when calling for service.
GAS COOKTOP WARRANTY:
5 years Limited warranty: 1 year on Parts and Labor, 4 years on Parts only.
Any part of the cooktop which fails due to defect in materials or workmanship. During this limited
warranty, FOTILE America will provide free of charge all labor and in-home service to replace
the defective part for a period of 1 year. For the remaining 4 years, FOTILE America will cover
parts only.
What FOTILE America will not cover under Warranty:
1. Service trips to your home to provide tutorials on the use and maintenance knowledge.
2. Improper installation, delivery or maintenance.
3. Failure of the product if it is abused, misused, modified or used for other purpose or used
commercially.
4. Damage to the glass cooktop by use of cleaners other than recommended cleaning creams and
pads. Damage to the cooktop to spills of sugary materials or melted plastics that are not
cleaned according to directions in the owner’s manual.
. Replacement of house fuses or resetting of circuit breakers.
. Damage to the product caused by accident, fire, floods or acts of God.
. Incidental or consequential damage caused by possible defects with this appliance.
0
N
O
O
. Damage caused after delivery.
9. Product not accessible to provide required service.
10. Service to repair or replace light bulbs, except for LED lights under warranty.
11. Damage to finish such as surface rust, tarnish, or small blemishes not reported within 48 hours
of delivery
B Exclusion of Implied Warranties:
This warranty is extended to the original purchaser and any succeeding owner for products
purchased for home use within the USA. If the product is located in an area where service by
a FOTILE Appliances Authorized Service Technician is not available, you may be responsible
for a trip charge or you may be required to bring the product to an authorized FOTILE Service
location for service. In Alaska, the warranty excludes the cost of shipping or service calls to your
home. Some states do not allow the exclusion or limitation of incidental or consequesntial
damages. This warranty gives you specific legal rights, and you may also have other rights
which vary from state to state. To know what your legal rights are, consult your local or state
consumer affairs office or your state’s Attorney General.
WARRANTOR:FOTILE AMERICALLC
Fotile America
[email protected] 1-888-315-0366
Consumer Support:
FOTILE Website
Have a question or need assistance with your appliance? Try the Fotile Appliances Website 24
hours a day, any day of the year! You can also shop for more great FOTILE Appliance products
at www.fotileglobal.com
Register Your Appliance
Professional your new appliance on-line at your convenience! Timely product registration will
allow for enhanced communication and prompt service under the terms of your warranty,
should the need arise. You may mail iin the pre-printed registration card included in the packing
material, or you can register online by visiting:
https://shop.fotileglobal.com/register-today-for-product-support/
Schedule Service
Expert FOTILE Appliance repair service is only one step away from your door. Simply call us at
1-888-315-0366 or email us at [email protected] to schedule your service call.
Parts and Accessories
To purchase optional accessories, please visit https://shop.fotileglobal.com/product-category/-
accessories/ or contact your authorized retailer where you purchased your FOTILE Appliance.
To purchase parts for your FOTILE Appliance, please call FOTILE America at 1-888-315-0366.
Contact Us
If you have any questions during your setup or installation process, or have questions during
use, do not hesitate to call FOTILE America at 1-888-315-0366 or email us at serviceusa@fo-
tile.com
ol I LaxAC]
Y
L
FOTILE ls ! .
h'#' FOTILE
e
Repair Parts Page Official Website Accessories Page
Al
