Foxconn 661FX7MF series User manual

This manual is the intellectual property of Foxconn, Inc. Although the
information in this manual may be changed or modified at any time,
Foxconn does not obligate itself to inform the user of these changes.
Statement:
All trademarks are the property of their respective owners.
User’s Manual V1.0 in English for 661FX7MF/648FX7MF/648C7MF series
motherboard.
P/N: 91-181-U48-M0-0E
Symbol description:
Note: refers to important information that can help you to use motherboard
better.
Attention: indicates that it may damage hardware or cause data loss,
and tells you how to avoid such problems.
Warning: means that a potential risk of property damage or physical
injury exists.
More information:
If you want more information about our products, please visit Foxconn’s
website: http://www.foxconnchannel.com
Version:
Trademark:

Item Checklist:
Thank for your purchasing Foxconn’s 661FX7MF/648FX7MF/648C7MF series
motherboard. Please check the package; if there are missing or damaged items,
contact your distributor as soon as possible.
661FX7MF/648FX7MF/648C7MF series motherboard (x1)
Foxconn Utility CD (x1)
User’s Manual (x1)
RAID Manual (x1) (optional)
IDE Ribbon Cable (x1)
FDD Ribbon Cable (x1)
I/O Shield (x1)
S-ATA Signal Cable (x1) (optional)
S-ATA Power Cable (x1) (optional)

Declaration of conformity
HON HAI PRECISION INDUSTRY COMPANY LTD
66 , CHUNG SHAN RD., TU-CHENG INDUSTRIAL DISTRICT,
TAIPEI HSIEN, TAIWAN, R.O.C.
declares that the product
Motherboard
661FX7MF/648FX7MF/648C7MF series
is in conformity with
(reference to the specification under which conformity is declared in
accordance with 89/336 EEC-EMC Directive)
 EN 55022/A1: 2000 Limits and methods of measurements of radio disturbance
characteristics of information technology equipment
 EN 61000-3-2/A14:2000 Electromagnetic compatibility (EMC)
Part 3: Limits
Section 2: Limits for harmonic current emissions
(equipment input current <= 16A per phase)
 EN 61000-3-3/A1:2001 Electromagnetic compatibility (EMC)
Part 3: Limits
Section 2: Limits of voltage fluctuations and flicker in low-voltage
supply systems for equipment with rated current <= 16A
 EN 55024/A1:2001 Information technology equipment-Immunity characteristics limits
and methods of measurement
Signature : Place / Date : TAIPEI/2004
Printed Name : James Liang Position/ Title : Assistant President

Declaration of conformity
Trade Name: Foxconn
Model Name: 661FX7MF/648FX7MF/648C7MF
Responsible Party: PCE Industry Inc.
Address: 458 E. Lambert Rd.
Fullerton,CA92835
Telephone: [phone]
Facsimile: 714-738-8838
Equipment Classification: FCC Class B Subassembly
Type of Product: Motherboard
Manufacturer:HON HAI PRECISION INDUSTRY
COMPANY LTD
Address: 66 , CHUNG SHAN RD., TU-CHENG
INDUSTRIAL DISTRICT, TAIPEI HSIEN,
TAIWAN, R.O.C.
Supplementary Information:
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions : (1) this device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation.
Tested to comply with FCC standards.
Signature : Date : 2004

Product Introduction
Installation Instructions
Supply ............................................................................................
BIOS Description
StandardCMOSFeatures .......................................................................... 28
BIOSFeatures ...........................................................................................
Advanced BIOS Features ..........................................................................
Advanced Chipset Features ......................................................................
IntegratedPeripherals ................................................................................
PowerManagement Setup .........................................................................
PnP/PCIConfigurations...............................................................................
PCHealthStatus ........................................................................................
Frequency/Voltage Control.........................................................................
Load Fail-Safe Defaults .............................................................................
LoadOptimized Defaults ............................................................................
Set Supervisor/User Password ................................................................. 52
Save & Exit Setup ......................................................................................
ExitWithout Saving ....................................................................................
Table of Contents
Chapter
Chapter
Chapter

Driver CD Introduction
UtilityCDcontent........................................................................................
Start to install drivers .................................................................................
Table of Contents
Chapter

1. Attach the CPU and heatsink using silica gel to ensure full contact.
2. It is suggested to select high-quality, certified fans in order to avoid
damage to the motherboard and CPU due to high temperatures.
3. Never turn on the machine if the CPU fan is not properly installed.
4. Ensure that the DC power supply is turned off before inserting or
removing expansion cards or other peripherals, especially when
you insert or remove a memory module. Failure to switch off the DC
power supply may result in serious damage to your system or
memory module.
Warning:
We cannot guarantee that your system will operate normally while
over-clocked. Normal operation depends on the over-clock capacity of
your device.
Warning:
Attention:
Since BIOS programs are upgraded from time to time, the BIOS de-
scription in this manual is just for reference. We do not guarantee that
the content of this manual will remain consistent with the actual BIOS
version at any given time in the future.
Attention:
The pictures of objects used in this manual are just for your reference.
Please refer to the physical motherboard.

Chapter
Thank you for your buying Foxconn’s 661FX7MF/
648FX7MF/648C7MF series motherboard. This series of
motherboard is one of our new products and offers superior
performance, reliability and quality, at a reasonable price. This
motherboard adopts the advanced SiS 661FX/648FX/648 +
964/964L chipset, providing users a computer platform with
a high integration-compatibility-
performance price ratio.
This chapter includes the following information:
Main Features
Motherboard Layout

Chapter 1 Product Introduction
2661FX7MF/648FX7MF/648C7MF Series User Manual
Main Features
Size
mATX form factor of 9.6” x 8.3”
Microprocessor
Supports Intel® Prescott-T processor in an LGA775 package
Supports FSB at 533MHz/800MHz
Supports Hyper-Threading technology
Note: 648C7MF series motherboard do not support FSB 800MHz CPU.
Chipset
661FX7MF Series: SiS 661FX (North Bridge) + SiS 964 (South Bridge)
648FX7MF Series: SiS 648FX (North Bridge) + SiS 964 (South Bridge)
648C7MF Series: SiS 648 (North Bridge) + SiS 964L (South Bridge)
System Memory
Two 184-pin DIMM slots
Supports PC 3200/PC 2700/PC 2100 memory
Supports 128 Mb/256 Mb/512 Mb/1 Gb technology up to 2GB
Note: 648C7MF series motherboard do not support PC3200 memory.
USB 2.0 Ports
Supports hot plug
Eight USB 2.0 ports (four rear panel ports, two onboard USB header providing
four extra ports)
Supports wake-up from S1 and S3 mode
Supports USB 2.0 protocol up to 480 Mbps transmission rate
Onboard Serial A TA (optional)
150MBps transfer rate
Supports two S-ATA devices, such as HDD, etc.
Supports RAID 0, RAID 1 and JBOD (optional)

3
661FX7MF/648FX7MF/648C7MF Series User Manual
Chapter 1 Product Introduction
Supports hot plug
With rate of transmission up to 400Mbps
Self-configured addressing
Can connect with 2 independent 1394 units synchronously at most, such as
HDD, CD-ROM
Onboard LAN (-L)
Supports 10/100Mbit/sec Ethernet
LAN interface built-in on board
AGP 8X
AGP 8X (AGP 3.0) is the VGA interface specification that enabled enhanced
graphics performance with high bandwidth speeds up to 2.12 GB/s
Onboard Audio (-6)
AC’ 97 2.3 Specification Compliant
Supports S/PDIF output
Onboard Line-in jack, Microphone jack, Line-out jack
Supports 5.1 channels audio (setting via software)
Expansion Slots
Three PCI slots
One AGP slot
BIOS
Licensed advanced AWARD (Phoenix) BIOS, supports flash ROM, plug-and-
play ready
Supports HDD, CD-ROM or USB device boot up
Green Function
Supports ACPI (Advanced Configuration and Power Interface)
Supports S0 (normal), S1 (power on suspend), S3 (suspend to RAM), S4
(suspend to disk – depends on OS) and S5 (soft-off)

Chapter 1 Product Introduction
4661FX7MF/648FX7MF/648C7MF Series User Manual
Advanced Features
PCI 2.2 Specification Compliant
Supports Windows 98/2000/ME/XP soft-off
Supports Wake-on-LAN
Supports PC Health function (capable of monitoring system voltage, CPU
temperature, system temperature and fan speed)

5
661FX7MF/648FX7MF/648C7MF Series User Manual
Chapter 1 Product Introduction

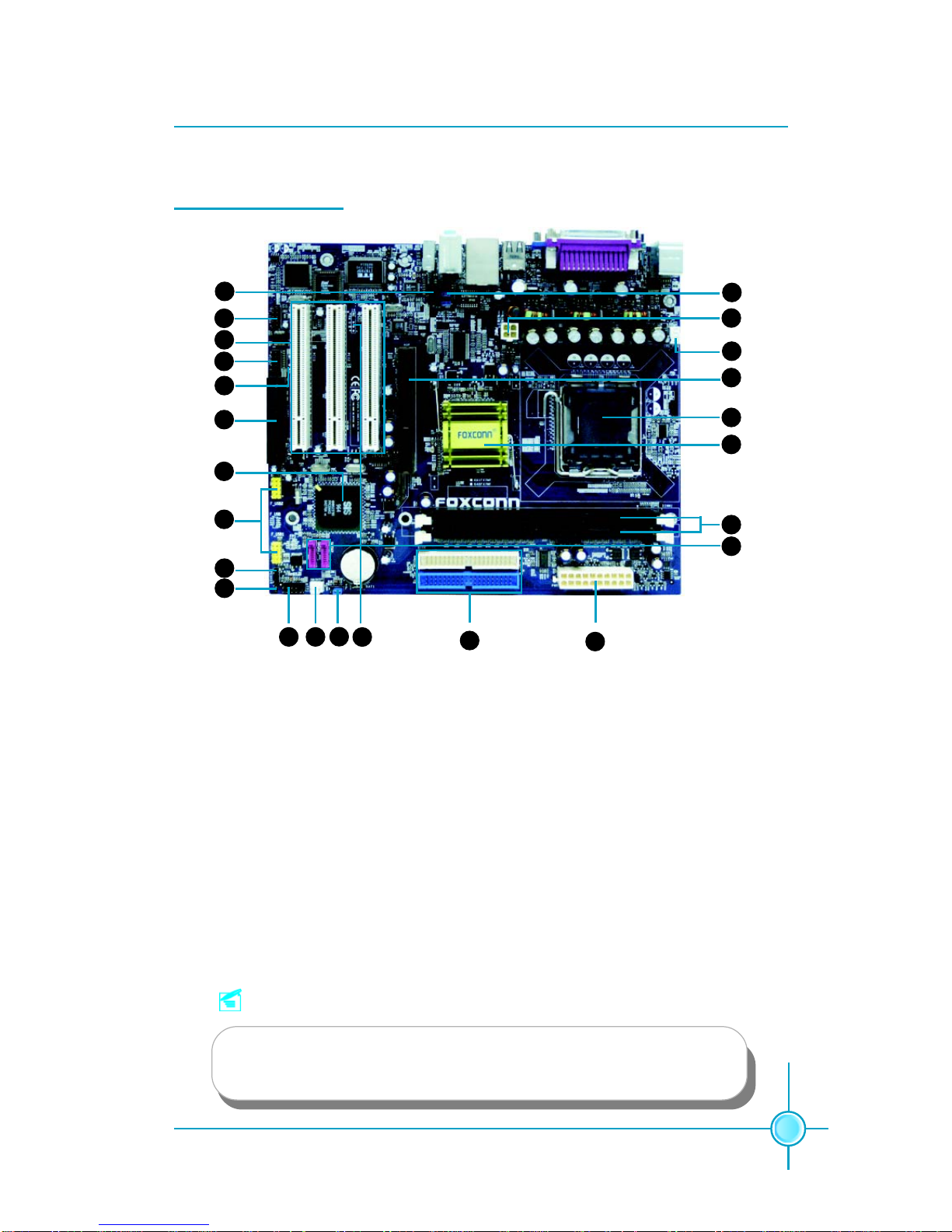

MotherboardLayout
Note:
The above motherboard layout is provided for reference only;
please refer to the physical motherboard.
1. CD_IN Connector
2. 1394 Header (optional)
3. PCI Slots
4. COM2 Connector
5. S/PDIF OUT Connector (optional)
6. FDD Connector
7. South Bridge: SiS 964/964L
8. Front USB Headers
9. Speaker Connector
10. Chassis Intruder Connector
11. Front Panel Connector
12. System Fan Connector
13 Clear CMOS Jumper
14. IrDA Header (optional)
15. HDD Connector
16. 20-pin ATX Power Connector
17. SATAConnector
18. Memory Slots
19. North Bridge: SiS 661FX/648FX/648
20. CPU Socket
21.AGP 8X Slot
22. CPU Fan Connector
23. 4-pin ATX 12V Power Connector
24. Front Audio Connector
24
23
21
20
19
18
17
15 16
11
6
2
3
7
8
9
22
12
1
10
4
5
13 14

Chapter 2 Installation Instructions
6661FX7MF/648FX7MF/648C7MF Series User Manual
This chapter introduces the hardware installation process,
including the installation of the CPU and memory. It also
addresses the connection of your power supply, use of the
rear panel connectors, connection of hard drive and floppy
drive data cables, and setting up various other feature of
the motherboard. Caution should be exercised during the
installation process. Please refer to the motherboard
layout prior to any installation and read the contents in
this chapter carefully.
This chapter includes the following information:
CPU
Memory
Power Supply
Rear Panel Connectors
Other Connectors
Expansion Slots
Jumpers
Chapter

7
661FX7MF/648FX7MF/648C7MF Series User Manual
Chapter 2 Installation Instructions
Take note of the following precautions before you install compo-
nents or change settings.
1. Use a grounded wrist strap or touch a safely grounded object,
such as an attached power supply, before handling compo-
nents to avoid damaging them due to static electricity.
2. Unplug the power cord before opening your chassis or touching
any component.
3. Hold components by their edges to avoid touching any exposed
integrated circuits (ICs).
4. Whenever you uninstall a component, place it on a grounded
anti-static pad or into anti-static bag that it came in.

Chapter 2 Installation Instructions
8661FX7MF/648FX7MF/648C7MF Series User Manual
CPU
This motherboard supports single Pentium®4 Processor including Prescott
desktop CPUs in an LGA 775 package. It also supports Hyper-Threading Tech-
nology and FSB Dynamic Bus Inversion (DBI).
Installation of CPU
Load lever
Load stiffener
Load plate
Load cap
Lifted tab

9
661FX7MF/648FX7MF/648C7MF Series User Manual
Chapter 2 Installation Instructions
Correct Wrong

Chapter 2 Installation Instructions
10 661FX7MF/648FX7MF/648C7MF Series User Manual
Note :
Excessive temperatures will severely damage the CPU and
system. Therefore, you should install CPU cooling fan and make
sure that the cooling fan works normally at all times in order to
prevent overheating and damaging to the CPU. Please refer to your
CPU fan user guide to install it properly.

11
661FX7MF/648FX7MF/648C7MF Series User Manual
Chapter 2 Installation Instructions
CPU Qualified Vendor List
The following table lists the CPUs that have been tested and qualified for
use with this motherboard.
661FX7MF & 648FX7MF Series:
Vendor T y p e F S B Frequence
Intel Pentium (prescott) 800MHz 3.0G
Intel Pentium (prescott) 800MHz 3.2G
Intel Pentium (prescott) 800MHz 3.6G
Intel Celeron -D 533MHz 2.93G
Intel Celeron -D 533MHz 3.06G
Intel Pentium (prescott) 800MHz 3.4G

Chapter 2 Installation Instructions
12 661FX7MF/648FX7MF/648C7MF Series User Manual
Memory
This motherboard includes two, 184-pin, dual in-line memory module (DIMM)
sockets. You can install corresponding PC 3200 (DDR400), PC 2700
(DDR333), or PC 2100 (DDR266) memory modules. You must install at least
one memory module to ensure normal operation. If you install two modules,
they must be the same speed. Mixed memory modules from different manufac-
turers is not recommended.
Installation of DDR Memory
1. There is only one gap in the center of the DIMM socket, and the memory
module can be fixed in one direction only. Unlock a DIMM socket by pressing
the module clips outward.
2. Align the memory module to the DIMM socket and insert the module verti-
cally into the DIMM socket.
3. The plastic clips at both sides of the DIMM socket will lock automatically.
104
Pins 80 Pins
Warning :
Be sure to unplug the AC power supply before adding or removing
expansion cards or other system peripherals, especially the
memory devices, otherwise your motherboard or the system
memory might be seriously damaged.
