Foxconn 400M01 Series User manual

Chapter
Thank you for your buying Foxconn’s 400M01 series
motherboard. This series of motherboard is one of our new
products and offers superior performance, reliability and
quality, at a reasonable price. This motherboard adopts the
advanced VIA KM400/KM400A + VT8235/VT8237 chipset, pro-
viding users a computer platform with a high integration-com-
patibility-performance price ratio.
This chapter includes the following information:
Main Features
Motherboard Layout
1
1
400M01-FOXCONN-V1.0-HW-en-030304.p65 2004-3-18, 13:511

Chapter 1 Product Introduction
2400M01 Series User Manual
Main Features
Size
mATX form factor of 9.6”x 8.5”
Microprocessor
Supports AMD socket 462 K7, DuronTM, AthlonTM, AthlonTM XP processors
Supports FSB at 200MHz/266MHz/333MHz/400MHz (400MHz only for KM400A)
Chipset
VIA chipset: KM400/KM400A (North Bridge)+VT8235/VT8237 (South Bridge)
System Memory
Two 184-pin DIMM slots
Supports PC1600/PC2100/PC2700/PC3200 memory (PC3200 only for
KM400A )
Supports 128/256/512 Mb technology up to 2GB
Onboard IDE
Supports up to 4 independent drives
Supports Ultra DMA 133/100/66/33
Two fast IDE interfaces supporting four IDE devices, including IDE hard disk
and CD-ROM/DVD-ROM drives
Onboard Serial ATA (only for VT8237)
150MB/s transfer rate
supports two S-ATA devices
Supports Raid0, Raid1 and JBOD
USB 2.0 Ports
Supports hot plug
Six USB 2.0 ports (four rear panel ports, one onboard USB header provid-
ing two extra ports)
Supports wake-up from S1 and S3 mode
Supports USB 2.0 protocol up to 480 Mbps transmission rate
400M01-FOXCONN-V1.0-HW-en-030304.p65 2004-3-18, 13:512

Chapter 1 Product Introduction
3
400M01 Series User Manual
Onboard 1394 (optional)
Supports hot plug
With rate of transmission up to 400Mbps
Self-configured addressing
Can connect with 2 independent 1394 units synchronously at most, such
as HDD, CD-ROM
Onboard LAN
VIA VT6103L 10/100Mbps Ethernet PHY
LAN interface built-in on board
Onboard Graphics
Integrated VIA UniChromeTM Graphics
Onboard Audio
AC’ 97 2.1 Specification Compliant
Supports 48KHz of S/PDIF output
Onboard Line-in jack, Microphone jack, Line-out jack
Supports 5.1 channels audio (setting via software)
AGP 8X support
AGP 8X (AGP 3.0) is the VGA interface specification that enabled enhanced
graphics performance with high handwidth speeds up to 2.12 GB/s
Expansion Slots
Three PCI slots
One AGP slot
One CNR slot (optional)
BIOS
Licensed advanced AWARD (Phoenix) BIOS, supports flash ROM, plug-
and-play ready
Supports HDD, CD-ROM, SCSI HDD, LAN or USB device boot up
400M01-FOXCONN-V1.0-HW-en-030304.p65 2004-3-18, 13:513

Chapter 1 Product Introduction
4400M01 Series User Manual
Green Function
Supports ACPI (Advanced Configuration and Power Interface)
Supports S0 (normal), S1 (power on suspend), S3 (suspend to RAM), S4
(suspend to disk – depends on OS) and S5 (soft-off)
Advanced Features
PCI 2.2 Specification Compliant
Supports Windows 98/2000/ME/XP soft-off
Supports Wake-on-LAN, Wake-on-Modem
Supports PC Health function (capable of monitoring system voltage, CPU
temperature, system temperature and fan speed)
400M01-FOXCONN-V1.0-HW-en-030304.p65 2004-3-18, 13:514

Chapter 1 Product Introduction
5
400M01 Series User Manual
Motherboard Layout
Note:
The above motherboard layout is provided for reference only;
please refer to the physical motherboard.
3
4
5
6
7
8
9
11
15
13
12
10
14
16
2
1
400M01-FOXCONN-V1.0-HW-en-030304.p65 2004-3-18, 13:515

Chapter 1 Product Introduction
6400M01 Series User Manual
Flash Rom
This 4Mb firmware contains the programmable BIOS program.
ATX power connector
This 20-pin connector connects to an ATX power supply. The power supply
must have at least 1A on the +5V standby lead (+5VSB).
AGP slot
This Accelerated Graphics Port (AGP) slot supports 1.5V AGP 8X/4X mode
graphics cards for 3D graphical applications.
CPU socket
Socket 462 (socket A) Zero Insertion Force (ZIF) for the AMD processor,
with 200/266/333/400MHz (400MHz only for KM400A) system bus.
North Bridge controller
The VIA KM400/KM400A controller integrates a high performance host
interface for the AMD processor, a DDR memory controller, and support AGP
8X/4X technology. It also loaded with the VIA UniChromeTM 2D/3D graphics
core for efficient multimedia applications including DVD and video playback
support.

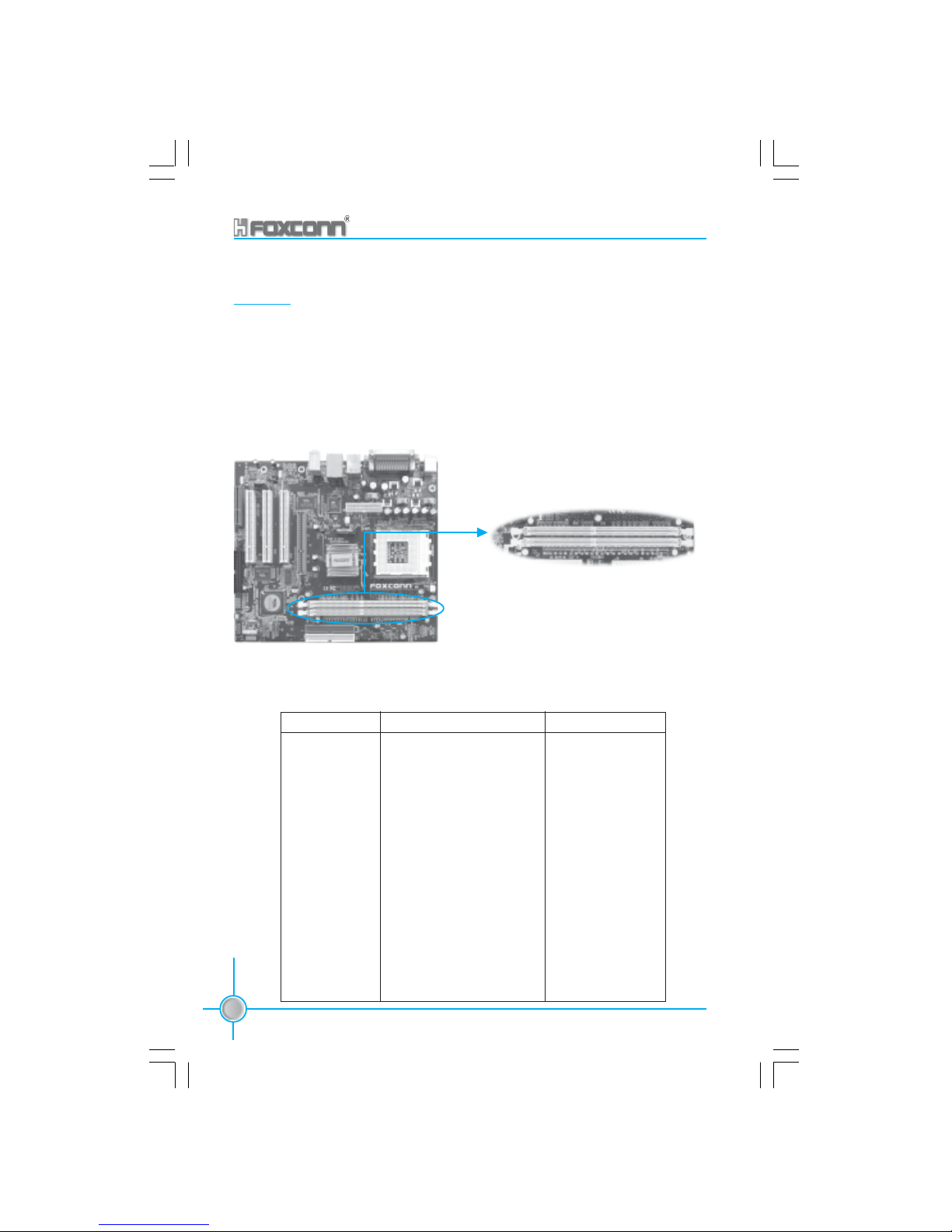

DDR DIMM sockets
These two 184-pin DIMM sockets support up to 2GB system memory
using unbuffered non-ECC PC1600/PC2100/PC2700/PC3200 (only for
KM400A) DDR DIMMs.
IDE connectors
These dual-channel bus master IDE connectors support Ultra DMA 133/
100/66/33 devices. Both the primary (blue) and secondary (white) connectors
are slotted to prevent incorrect insertion of the IDE ribbon cable.
Serial ATA connectors (only for VT8237)
These connectors support Serial ATA HDDs and allow for up to 150MB/s
data transfer rate, faster than the standard Parallel ATA with 133MB/s.
3
4
1
2
5
6
7
8
400M01-FOXCONN-V1.0-HW-en-030304.p65 2004-3-18, 13:516

Chapter 1 Product Introduction
7
400M01 Series User Manual
South Bridge controller
The VIA VT8235/VT8237 integrated peripheral South Bridge controller
communicates with the North Bridge at the rates of up to 533MB/s using the
VIA 8X VLink technology. This controller supports standard UltraATA 133/
100/66/33 and provides separate data paths for each IDE channel for up to
two IDE devices. This controller also integrates SATA RAID controller (only
for VT8237), Ethernet MAC, Universal Serial Bus Host controller.
1394 controller (optional)
VT6307 is the controller for IEEE1394a on motherboard. The VT6307 is a
complete small package single chip PCI solution at 400Mbps, low power
seamless plug and play connections to the latest IEEE 1394 enabled
devices.
Floppy disk connector
This connector accommodates the provided ribbon cable for the floppy disk
drive. One side of the connector is slotted to prevent incorrect insertion of
the floppy disk cable.
PCI slots
These three 32-bit PCI 2.2 expansion slots support bus master PCI cards
like SCSI or LAN cards with 133MB/s maximum throughput.
CNR Slot (optional)
This slot is specifically designed for the Communication and Networking
Riser (CNR) card. The CNR supports V.90 analog modem only.
Super I/O controller
The VIA VT1211 I/O controller offers support for a variety of I/O function.
Provides a high-performance floppy disk controller for a 360K/720K/1.44M/
2.88M floppy disk drive, a multi-mode parallel port, one serial port and a
Flash ROM interface.
9
10
11
12
13
14
400M01-FOXCONN-V1.0-HW-en-030304.p65 2004-3-18, 13:517

Chapter 1 Product Introduction
8400M01 Series User Manual
Audio CODEC
The VIA VT1616 provides 6-channel outputs fully supporting surround sound
applications, along with 4 stereo and 2 mono inputs. Supporting the AC’97
2.1 specification, the VIA VT1616 enables 20-bit resolution, and a variable
sampling rate with 1Hz resolution.
10/100M LAN PHY
The VT6103L is a single-port PHY transceiver with an MII (Media Independent
Interface) and supports 10/100 Mbps data transfer rate.
16
15
400M01-FOXCONN-V1.0-HW-en-030304.p65 2004-3-18, 13:518

Chapter 2 Installation Instructions
9
400M01 Series User Manual
This chapter introduces the hardware installation process,
including the installation of the CPU and memory. It also
addresses the connection of your power supply, use of the
rear panel connectors, connection of hard drive and floppy
drive data cables, and setting up various other feature of the
motherboard. Caution should be exercised during the in-
stallation process. Please refer to the motherboard lay-
out prior to any installation and read the contents in this
chapter carefully.
This chapter includes the following information:
CPU
Memory
Power Supply
Rear Panel Connectors
Other Connectors
Expansion Slots
Jumpers
Chapter2
2
400M01-FOXCONN-V1.0-HW-en-030304.p65 2004-3-18, 13:519

Chapter 2 Installation Instructions
10 400M01 Series User Manual
Notes:
Take note of the following precautions before you install compo-
nents or change settings.
1. Use a grounded wrist strap or touch a safely grounded object,
such as an attached power supply, before handling compo-
nents to avoid damaging them due to static electricity.
2. Unplug the power cord before opening your chassis or touching
any component.
3. Hold components by their edges to avoid touching any exposed
integrated circuits (ICs).
4. Whenever you uninstall a component, place it on a grounded
anti-static pad or into anti-static bag that it came in.
