Foxconn 865G User manual

This manual is the intellectual property of Foxconn, Inc. Although the
information in this manual may be changed or modified at any time,
Foxconn does not obligate itself to inform the user of these changes.
Statement:
All trademarks are the property of their respective owners.
User’s Manual V1.0 in English for 865G/GV/PE7MC motherboard.
P/N: 91-181-U65-M7-0E
Symbol description:
Note: refers to important information that can help you to use motherboard
better.
Attention: indicates that it may damage hardware or cause data loss,
and tells you how to avoid such problems.
Warning: means that a potential risk of property damage or physical
injury exists.
More information:
If you want more information about our products, please visit Foxconn’s
website: www.foxconnchannel.com
Version:
Trademark:
８６５Ｇ＆ＧＶ＆ＰＥ７ＭＣ－Ｅｎｇｌｉｓｈ ｐｒｅｆａｃｅ．ｐ６５ 2004-9-11, 10:501

Item Checklist:
Thank for your purchasing Foxconn’s 865G/GV/PE7MC motherboard. Please check
the package; if there are missing or damaged items, contact your distributor as
soon as possible.
865G/GV/PE7MC motherboard (x1)
FoxconnUtilityCD(x1)
User Manual (x1)
IDERibboncable(x1)
FDDRibboncable(x1)
I/OShield(x1)
S-ATASignal Cable (x2)
S-ATA Power Cable (x1)
８６５Ｇ＆ＧＶ＆ＰＥ７ＭＣ－Ｅｎｇｌｉｓｈ ｐｒｅｆａｃｅ．ｐ６５ 2004-9-11, 10:502

Declaration of conformity
HON HAI PRECISION INDUSTRY COMPANY LTD
66 , CHUNG SHAN RD., TU-CHENG INDUSTRIAL DISTRICT,
TAIPEI HSIEN, TAIWAN, R.O.C.
declares that the product
Motherboard
865G/GV/PE7MC
is in conformity with
(reference to the specification under which conformity is declared in
accordance with 89/336 EEC-EMC Directive)
 EN 55022/A1: 2000 Limits and methods of measurements of radio disturbance
characteristics of information technology equipment
 EN 61000-3-2/A14:2000 Electromagnetic compatibility (EMC)
Part 3: Limits
Section 2: Limits for harmonic current emissions
(equipment input current <= 16A per phase)
 EN 61000-3-3/A1:2001 Electromagnetic compatibility (EMC)
Part 3: Limits
Section 2: Limits of voltage fluctuations and flicker in low-voltage
supply systems for equipment with rated current <= 16A
 EN 55024/A1:2001 Information technology equipment-Immunity characteristics limits
and methods of measurement
Signature : Place / Date : TAIPEI/2004
Printed Name : James Liang Position/ Title : Assistant President
８６５Ｇ＆ＧＶ＆ＰＥ７ＭＣ－Ｅｎｇｌｉｓｈ ｐｒｅｆａｃｅ．ｐ６５ 2004-9-11, 10:503

Declaration of conformity
Trade Name: Foxconn
Model Name: 865G/GV/PE7MC
Responsible Party: PCEIndustryInc.
Address: 458E.LambertRd.
Fullerton,CA92835
Telephone: [phone]
Facsimile: 714-738-8838
Equipment Classification: FCC Class B Subassembly
Type of Product: Motherboard
Manufacturer:HON HAI PRECISION INDUSTRY
COMPANYLTD
Address: 66 , CHUNG SHAN RD., TU-CHENG
INDUSTRIAL DISTRICT, TAIPEI HSIEN,
TAIWAN, R.O.C.
Supplementary Information:
This device complies with Part 15 of the FCC Rules. Operation is subject to the follow-
ing two conditions : (1) this device may not cause harmful interference, and (2) this
device must accept any interference received, including interference that may cause
undesired operation.
Tested to comply with FCC standards.
Signature : Date : 2004
８６５Ｇ＆ＧＶ＆ＰＥ７ＭＣ－Ｅｎｇｌｉｓｈ ｐｒｅｆａｃｅ．ｐ６５ 2004-9-11, 10:504

Product Introduction
865G/GV/PE7MC
Installation Instructions
Supply ............................................................................................
BIOS Description
StandardCMOSFeatures .......................................................................... 27
BIOSFeatures ...........................................................................................
AdvancedBIOSFeatures ..........................................................................
AdvancedChipset Features ......................................................................
IntegratedPeripherals ................................................................................
PowerManagementSetup .........................................................................
PnP/PCIConfigurations...............................................................................
PCHealthStatus ........................................................................................
Frequency/VoltageControl.........................................................................
LoadFail-SafeDefaults .............................................................................
LoadOptimizedDefaults ............................................................................
Set Supervisor/User Password ................................................................. 42
Save & Exit Setup ......................................................................................
ExitWithoutSaving ....................................................................................
Table of Contents
Chapter
Chapter
Chapter
Chapter Driver CD Introduction
UtilityCDcontent........................................................................................ 45
Start to install drivers ................................................................................. 46
８６５Ｇ＆ＧＶ＆ＰＥ７ＭＣ－Ｅｎｇｌｉｓｈ ｐｒｅｆａｃｅ．ｐ６５ 2004-9-11, 10:505

1. Attach the CPU and heatsink using silica gel to ensure full contact.
2. It is suggested to select high-quality, certified fans in order to avoid
damage to the motherboard and CPU due high temperatures.
3. Never turn on the machine if the CPU fan is not properly installed.
4. Ensure that the DC power supply is turned off before inserting or
removing expansion cards or other peripherals, especially when
you insert or remove a memory module. Failure to switch off the DC
power supply may result in serious damage to your system or
memory module.
Warning:
We cannot guarantee that your system will operate normally while
over-clocked. Normal operation depends on the over-clock capacity
of your device.
Warning:
Attention:
Since BIOS programs are upgraded from time to time, the BIOS
description in this manual is just for reference. We do not guarantee
that the content of this manual will remain consistent with the actual
BIOS version at any given time in the future.
Attention:
The pictures of objects used in this manual are just for your reference.
Please refer to the physical motherboard.
８６５Ｇ＆ＧＶ＆ＰＥ７ＭＣ－Ｅｎｇｌｉｓｈ ｐｒｅｆａｃｅ．ｐ６５ 2004-9-11, 10:506

Chapter
Thank you for buying Foxconn’s 865G/GV/PE7MC motherboard.
This series of motherboard is one of our new products, and
offers superior performance, reliability and quality, at a reason-
able price. This motherboard adopts the advanced Intel® 865G/
GV/PE+ ICH5 chipset, providing users a computer platform with
a high integration-compatibility-performance price ratio.
This chapter includes the following information:
Main Features
Motherboard Layout
1
1

Chapter 1 Product Introduction
2865G/GV/PE7MC User Manual
Main Features
Size
mATX form factor of 9.6 inch x 9.1 inch
Microprocessor
Supports Intel® Prescott-T processor in an LGA775 package
Supports FSB at 533MHz/800MHz
Supports Hyper-Threading technology
Chipset
Intel®Springdale chipset: Intel®865G/GV/PE (North Bridge) + ICH5 (South
Bridge)
System Memory
Two 184-pin DIMM slots
Supports PC 3200/2700/2100 memory
Supports 64/128/256/512 Mb technology up to 2GB
Supports Dual-channel DDR
USB 2.0 Ports
Supports hot plug
Eight USB 2.0 ports (four rear panel ports, two onboard USB headers
providing four extra ports)
Supports wake-up from S1 and S3 mode
Supports USB 2.0 Protocol up to 480 Mbps transmission rate
Onboard Serial ATA
150MBps transfer rate
Supports two S-ATA devices
Onboard 1394 (optional)
Support hot plug
With rate of transmission at 400Mbps
Self-configured addressing
Can connect with 2 independent 1394 units synchronously at most

3
865G/GV/PE7MC User Manual
Chapter 1 Product Introduction
Onboard LAN (optional)
Supports 10/100/1000 (-K optional) Mbit/sec Ethernet
LAN interface built-in on board
Onboard Audio
AC’97 2.3 Specification Compliant
Supports SPDIF output
Onboard Line-in jack, Microphone-in jack, Line-out jack
Supports 5.1 channels audio (setting via software)
Onboard Graphics (supported on 865G/GV7MC)
Supports integrated VGA display functions (Intel Extreme Graphics)
AGP 8X support (supported on 865G/PE7MC)
AGP 8X (AGP 3.0) is the VGA interface specification that enabled enhanced
graphics performance with high bandwidth speeds up to 2.12 GB/s.
BIOS
Licensed advanced AWARD (Phoenix) BIOS, supports flash ROM, plug-and-
play
Supports IDE, CD-ROM, SCSI HDD and USB device boot up
Green Function
Supports ACPI (Advanced Configuration and Power Interface)
Supports S0 (normal), S1 (power on suspend), S3 (suspend to RAM), S4
(Suspend to disk - depends on OS), and S5 (soft - off).
Expansion Slots
Three PCI slots
One AGP slot (supported on 865G/PE7MC only)
Advanced Features
PCI 2.3 specification compliant
Supports Windows 98/2000/ME/XP soft-off
Supports PC Health function (capable of monitoring system voltage, CPU,
system temperature, and fan speed)

Chapter 1 Product Introduction
4865G/GV/PE7MC User Manual

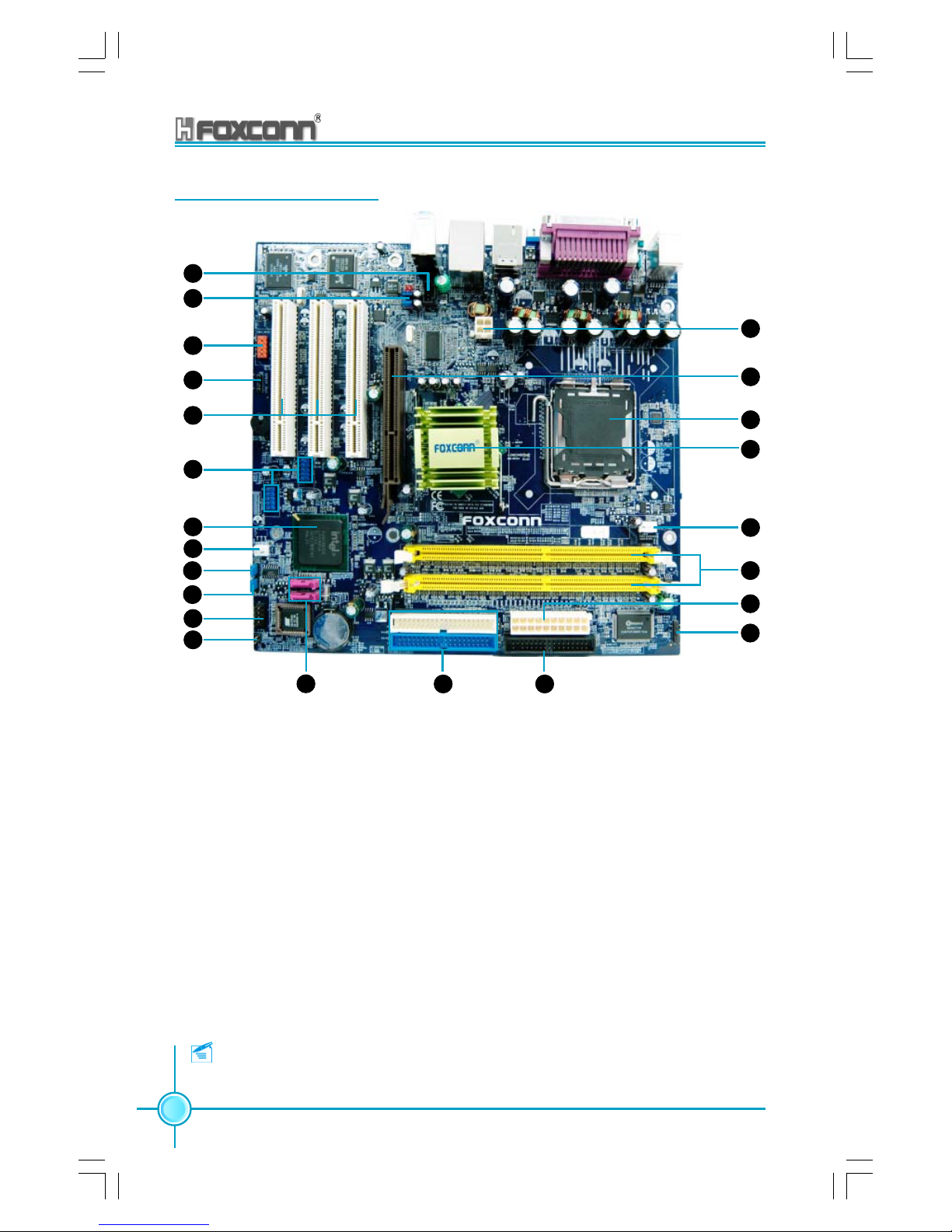

865G/GV/PE7MC Layout
Note: The above motherboard layout is provided for reference only;
please refer to the physical motherboard.
1.CD_IN connector
2.Front Audio connector
3.1394 header
4.SPDIF_OUT connector
5.PCI slots
6.USB headers
7.South Bridge: ICH5 chipset
8.FAN1 connector
9.Clear CMOS jumper
10.BIOS protection jumper
11.Front panel connector
12.Chassis intruder connector
13.Serial ATA connectors
14.IDE connectors
15.FDD connector
16.IrDA header
17.20-pin ATX power connector
18.184-pin DIMM slots
19.CPU FAN connector
20.North Bridge: 865G/GV/PE chipset
21.CPU socket
22.AGP slot (only for 865G/PE7MC)
23.4-pin ATX_12V power connnector
1
2
3
4
5
6
7
8
9
10
11
12
13 14 15
16
17
18
19
20
21
22
23

5
865G/GV/PE7MC User Manual
Chapter 1 Product Introduction
This chapter introduces the hardware installation process, in-
cluding the installation of the CPU, memory, power supply, slots,
rear panel and pin headers, and the mounting of jumpers.
Caution should be exercised during the installation of these
modules. Please refer to the motherboard layout prior to any
installation and read the contents in this chapter carefully.
This chapter includes the following information:
CPU
Memory
Power supply
Rear Panel Connectors
Other Connectors
Expansion Slots
Jumpers
Chapter2
2

Chapter 2 Installation Instructions
6865G/GV/PE7MC User Manual
This motherboard supports single Pentium®4 Processor including Prescott
desktop CPUs in an LGA 775 package. It also supports Hyper-Threading
Technology.

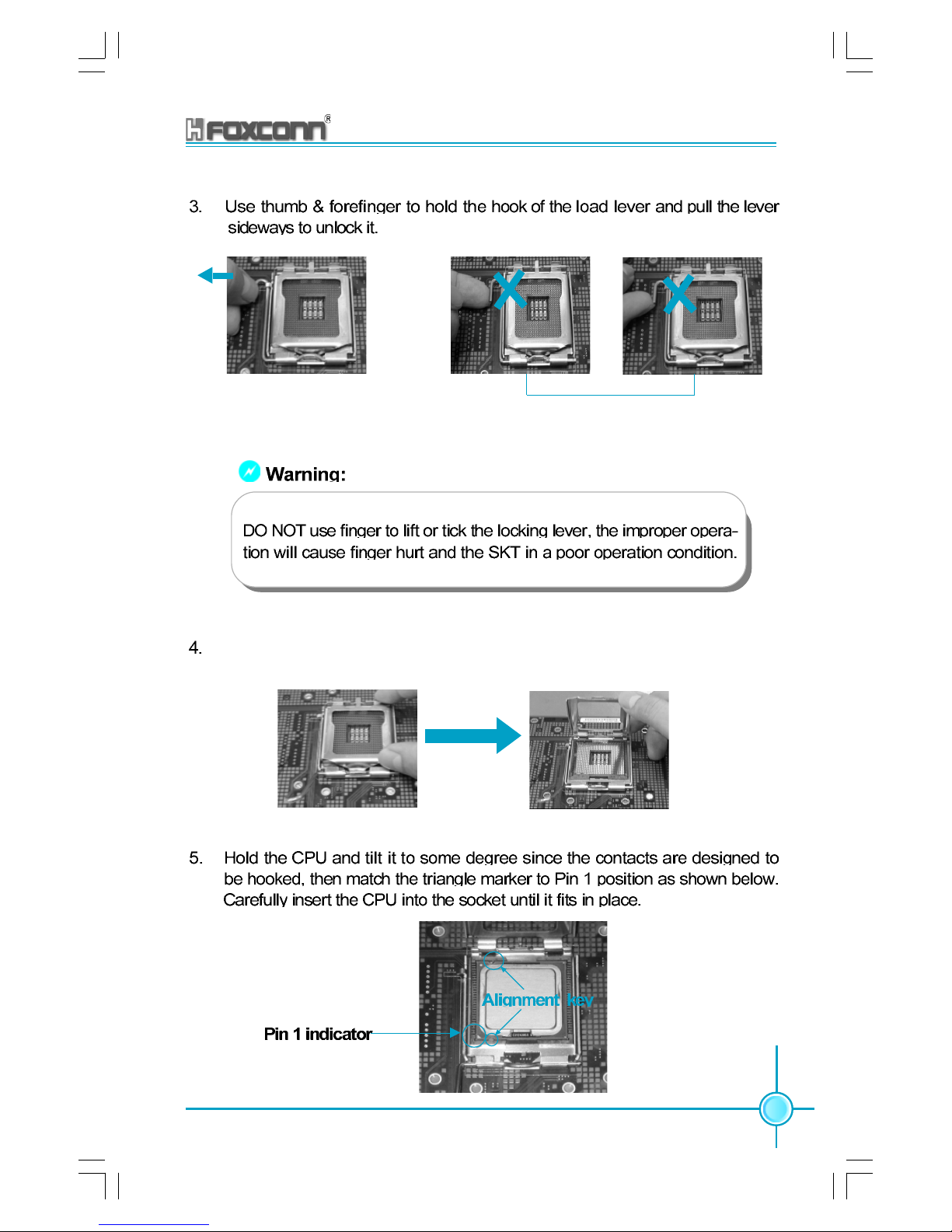

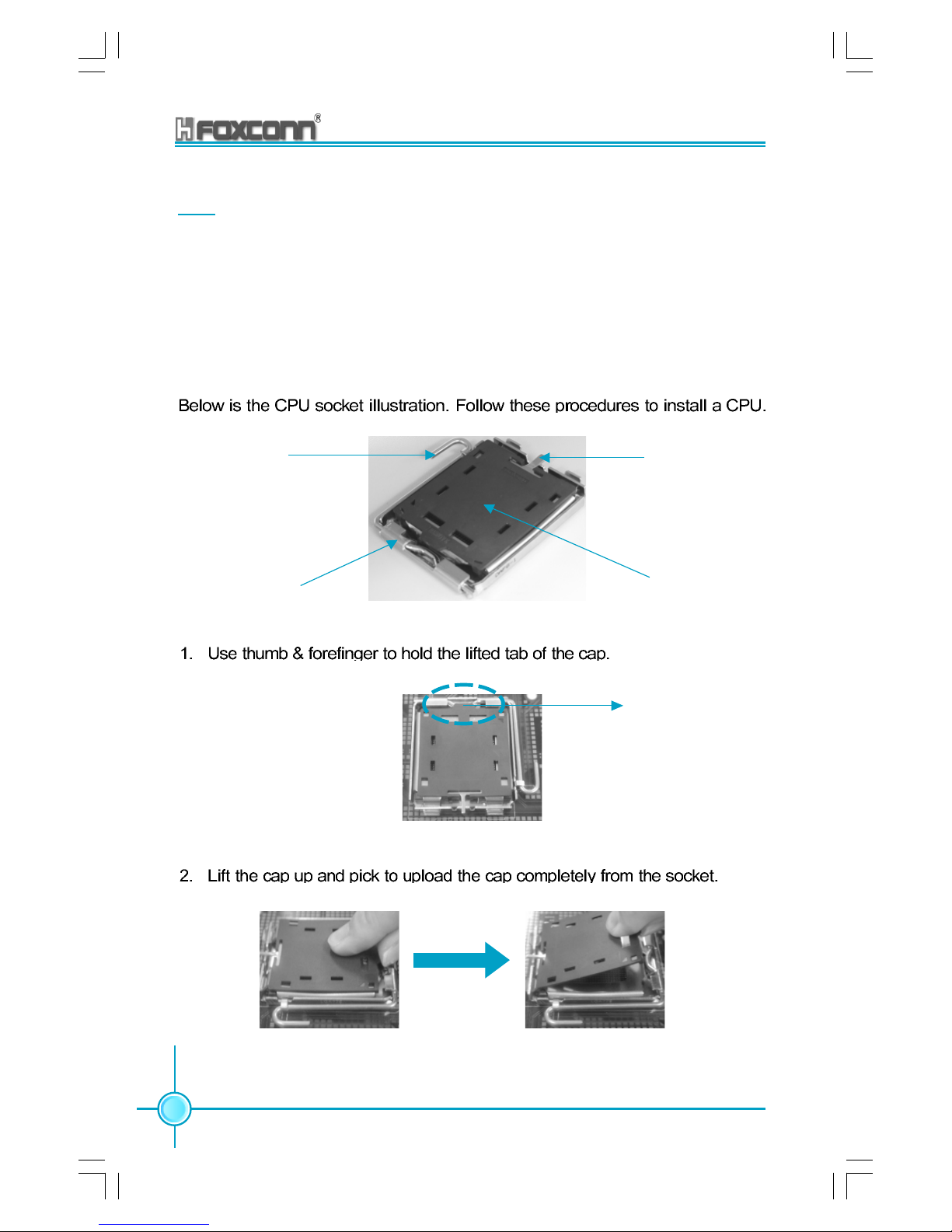

Installation of CPU
Load lever
gLoaLoad stiffener
Load plate
Load cap
Lifted tab
CPU

Chapter 2 Installation Instructions
7
865G/GV/PE7MC User Manual
Correct Wrong
Lift up the lever. Use thumb to open the load plate. Be careful not to touch the
contacts.

Chapter 2 Installation Instructions
8865G/GV/PE7MC User Manual
Note :
Excessive temperatures will severely damage the CPU and
system. Therefore, you should install CPU cooling fan and make
sure that the cooling fan works normally at all times in order to
prevent overheating and damaging to the CPU. Please refer to your
CPU fan user guide to install it properly.

Chapter 2 Installation Instructions
9
865G/GV/PE7MC User Manual
CPU Qualified Vendor List
The following table lists the CPUs that have been tested and qualified for
use with this motherboard.
Vendor Type FSB Frequency
Intel Pentium (Prescott) 533 2.8G
Intel Pentium (Prescott) 800 2.8G
Intel Pentium (Prescott) 800 3.0G
Intel Pentium (Prescott) 800 3.2 G
Intel Pentium (Prescott) 800 3.6 G
Intel P4EE 800 3.4 G

Chapter 2 Installation Instructions
10 865G/GV/PE7MC User Manual
Memory
This motherboard includes two 184-pin slots with 2.5 V Double Data Rate (DDR)
Dual Inline Memory Module (DIMM) sockets, so you can install PC3200/2700/
2100 memory. You must install at least one memory bank to ensure normal
operation.
Memory configurations
You may install 128MB, 256MB, 512MB and 1GB DDR DIMMs into the DIMM
sockets using the memory configurations in this section.
The following is important information on memory configurations:
1. The following table lists the PC3200/2700/2100 memory modules that have
been tested and qualified for use with this motherboard.
Vender Type Size
HY PC2100 (DDR266) 256MB
Nanya PC2100 (DDR266) 512MB
Samsung PC2100 (DDR266) 128MB
Infineon PC2100 (DDR266) 256MB
HY PC2700 (DDR333) 256MB
Apacer PC2700 (DDR333) 512MB
Winbond PC2700 (DDR333) 256MB
Rambo PC2700 (DDR333) 256MB
Apacer PC2700 (DDR333) 512MB
HY PC3200 (DDR400) 256MB
Apacer PC3200 (DDR400) 256MB
V-data PC3200 (DDR400) 256MB
Samsung PC3200 (DDR400) 512MB
Micron PC3200 (DDR400) 256MB
KingMax PC3200 (DDR400) 256MB
KingMax PC3200 (DDR400) 512MB
Nanya PC3200 (DDR400) 256MB
Transcend PC3200 (DDR400) 512MB
KingSton PC3200 (DDR400) 512MB
KingSton PC3200 (DDR400) 256MB
Samsung PC3200 (DDR400) 512MB

Chapter 2 Installation Instructions
11
865G/GV/PE7MC User Manual
2. In dual-channel configurations, install only identical (the same type and size)
DDR DIMMs for each channel.
3. Make sure that the memory frequency matches the CPU FSB (Front Side
Bus). Refer to the following table.
4. Double-sided DDR DIMMs with X16 (databus width=16-bit) memory chips
are not supported due to chipset limitations.
CPU FSB DDR DIMM Type Memory Frequency
800 MHz PC3200/PC2700/PC2100 400/333/266 MHz
533 MHz PC2700/PC2100 333/266 MHz
Note:
1. When using FSB 800MHz CPU, PC2700DDR DIMMs may
run only at 320MHz(not 333MHz) due to chipset limitation.
2. The following FSB/DDR ratios are not supported: 400/333,
400/400.

Chapter 2 Installation Instructions
12 865G/GV/PE7MC User Manual
Installation of DDR Memory
1. There is only one gap in the center of the DIMM slot, and the memory module
can be fixed in one direction only. Unlock a DIMM slot by pressing the module
clips outward.
2. Align the memory module to the DIMM slot, and insert the module vertically
into the DIMM slot.
3. The plastic clips at both sides of the DIMM slot will lock automatically.
104 Pins 80 Pins
Warning :
Be sure to unplug the AC power supply before adding or removing
expansion cards or other system peripherals, especially the memory
devices, otherwise your motherboard or the system memory might
be seriously damaged.

Chapter 2 Installation Instructions
13
865G/GV/PE7MC User Manual
Power Supply
This motherboard uses an ATX power supply. In order to avoid damaging any
devices, make sure that they have been installed properly prior to connecting the
power supply.
20-pin ATX power Connector: PWR1
PWR1 is the ATX power supply connector. Make
sure that the power supply cable and pins are
properly aligned with the connector on the
motherboard. Firmly plug the power supply cable
into the connector and make sure it is secure.
4-pin ATX_12V Power Connector: PWR2
The ATX power supply connects to PWR2 and pro-
vides power to the CPU.
4-pin ATX_12V power connector
12V GND 12V
4
3
2
1
GND
20-pinATX power connector
20
10
12V
5VSB 5V GND 3.3VGND
5V
GND
Pw-OK 3.3V
11
1
5V GND 3.3VGND GND
5V -5V GND PS-ON -12V
Attention:
You have to press the power button for more than four seconds if
you change the default “Instant-Off” setting to “Delay 4 Sec.” from
the “Soft-Off by PWR-BTTN” option in the BIOS Power Manage-
ment Setup.

Chapter 2 Installation Instructions
14 865G/GV/PE7MC User Manual
Rear Panel Connectors
This motherboard provides the ports as below:
PS/2 Mouse Connector
This green 6-pin connector is for a PS/2 mouse.
PS/2 Keyboard Connector
This purple 6-pin connector is for a PS/2 keyboard.
Serial Port (COM1)
This 9-pin COM1 port is for pointing devices or other serial devices.
Parallel Port (Printer Port)
This 25-pin port connects a parallel printer, a scanner, or other devices.
VGA Port (Only for 865G/GV7MC)
The VGA Port is for output to a VGA-compatible device.
1394 Port (Optional)
This digital interface supports electronic devices such as digital cameras,
scanners, and printers.
USB 2.0 Ports
These four Universal Serial Bus (USB) ports are available for connecting USB
2.0/1.1 devices.
1
2
3
5
4
USB 2.0 Ports
PS/2
Mouse
Connector
Parallel Port
(Printer Port) LAN Port
Line-in jack
Line-out
jack
Microphone
jack
1
2
4
37
8
9
1394 Port
(optional)
6
PS/2
Keyboard
Connector
Serial Port
(COM1) VGA Port
(only for 865G/
GV7MC)
35
6
7
