Foxconn J20H058 User manual

1
U S E R ’ S M A N U A L
J20H058
USB2.0 WLAN CARD

2
Contents
SECTION ONE:INTRODUCTION............................................................................................3
1.INTRODUCTION................................................................................................................................3
1.1 SCOPE...........................................................................................................................................3
1.2 FUNCTION......................................................................................................................................3
2.PRODUCT SPECIFICATION...........................................................................................................4
2.1 HARDWARE SPECIFICATION..........................................................................................................4
3. PRODUCT REQUIREMENTS.........................................................................................................5
3.1 HARDWARE REQUIREMENTS.........................................................................................................5
3.2 HARDWARE ARCHITECTURE .........................................................................................................5
SECTION TWO:WINDOWS XP WIRELESS UTILITY AND INSTALL .............................6
The information contained in this manual has been verified at the time of this manual printing. The
manufacturer reserves the right to make any changes and improvements in the product described in this
manual at any time and without notice.
All registered trademarks are the property of their respective owners.

HONHAIPRECISIONIND.CO.,LTD.
3
Section one: Introduction
1.Introduction
Project Name: 802.11b/g/n (1x1) card based on IC Realtek RTL8188(CTV) with QFN package.
802.11b/g/n module provides wireless modem functionality utilizing direct sequence spread spectrum
and OFDM/CCK technology. The typical use model for this embedded device is to allow the host device
to be connected to an 802.11b/g/n 1x1 wireless network with infrastructure mode or to serve as an
ad-hoc (peer-to-peer) data path.
1.1 Scope
The Wireless Realtek RTL8188(CTV) available 11n solution in the 2.4-GHz band, compatible with the IEEE
802.11b standard , 802.11g standard and 11n standard. The 802.11g data rate provides for 54, 48, 36, 24,
18, 12, 9, 6Mbps, and 802.11b data rate provides for 11, 5.5, 2, 1Mbps. In addition, 11n provide 7.2, 14.4,
21.7, 28.9, 43.3, 57.8, 65, 72.2Mbps for HT20. 15, 30, 45, 60, 90, 120, 135, 150Mbps for HT40.
1.2 Function
•RoHS and Green Compliant.
•802.11b/g/n 1x1 based on Realtek RTL8188(CTV) IC
•Modulation type: DBPSK, DQPSK and CCK with 802.11b mode. OFDM, QPSK, BPSK, 16-QAM,
and 64-QAM with 802.11g/n mode.
•USB 2.0 Interface, High and Full Speeds supported.
•Module is powered by the host with a 5.0V +/- 10% supply (300mVpp ripple).
•Module’s clock source is provided by the on board XTAL Oscillator of 40 MHz (+/- 10ppm).
•Module connected to motherboard with approximately 10cm cable.
•Unit dependent RF parameters are programmed into each module EEPROM at production test
time by the manufacturer.

HONHAIPRECISIONIND.CO.,LTD.
4
2.Product Specification
2.1 Hardware Specification
Wireless LAN Standards IEEE802.11b/g/n compatible
ARIB STD-T66 compatible
ETSI 300.328 compatible
FCC 15.247 compatible
FCC 15.407 compatible
Operating Frequency 2.400~2.4835GHz
Channel Numbers 1~11 channels active
12,13 channels passive
14 channels no need
WLAN Data Rate 802.11g: 54Mbps with fall back of 48, 36, 24, 18, 12, 9, 6Mbps.
802.11b: 11Mbps with fall back rates of 5.5, 2, and 1Mbps
11n: 6.5, 13, 19.5, 26, 39, 52, 58.5, 65Mbps for HT20
Transmitter Output Power Typical 16dBm for 11b
Typical14dBmfor11g
Typical13dBmforHT20/40
Receiver Sensitivity(ANT2) Typical –73dBm for MCS7 (HT20) @10%PER
Typical –93dBm for MCS0 (HT20) @10%PER
Typical –76dBm for 54Mbps @ 10% PER
Typical–91dBmfor6Mbps @ 10% PER
Typical–89dBmfor11Mbps @ 8% PER
Typical–96dBmfor1Mbps @ 8% PER
Receiver Sensitivity(ANT1) Typical –69dBm for MCS7 (HT20) @10%PER
Typical –89dBm for MCS0 (HT20) @10%PER
Typical –72dBm for 54Mbps @ 10% PER
Typical–87dBmfor6Mbps @ 10% PER
Typical–85dBmfor11Mbps @ 8% PER
Typical–92dBmfor1Mbps @ 8% PER

HONHAIPRECISIONIND.CO.,LTD.
5
3. Product Requirements
3.1 Hardware Requirements
HostInterface USB2.0
PCB 2-layerFR4
Antennaport: ANT1forTX/RX,ANT2forRXDiversity
3.2 Hardware Architecture
This specification describes an embedded 802.11b/g/n WiFi interface PCA ‘module’ for embedded device
products. The module has two on-board connector. This module is powered from the host (5.0V) and
interfaces to the host with USB 2.0 signals. No switches, indicators or related user interface signals are
provided on this module. An on-board 40 MHz XTAL is included.
PIN DEFINE

HONHAIPRECISIONIND.CO.,LTD.
6
Section Two: Windows XP Wireless Utility and install
1. Open your Install Programs files folder or InstallCD and double
Clicked the file named“setup.exe”.
2. You can choose the language and see next interface, press “next”

HONHAIPRECISIONIND.CO.,LTD.
7
3. Read the license agreement of Realtek and select “accept”(or you will can not use
the program),then click“next”

HONHAIPRECISIONIND.CO.,LTD.
8
4. In the next interface you can select the setup type that best suits your needs
5. You will see next two interfaces and they will direct you to select the the destination
location.
6. you can see this interface and the note will tell you how to select in the second
interface.

HONHAIPRECISIONIND.CO.,LTD.
9

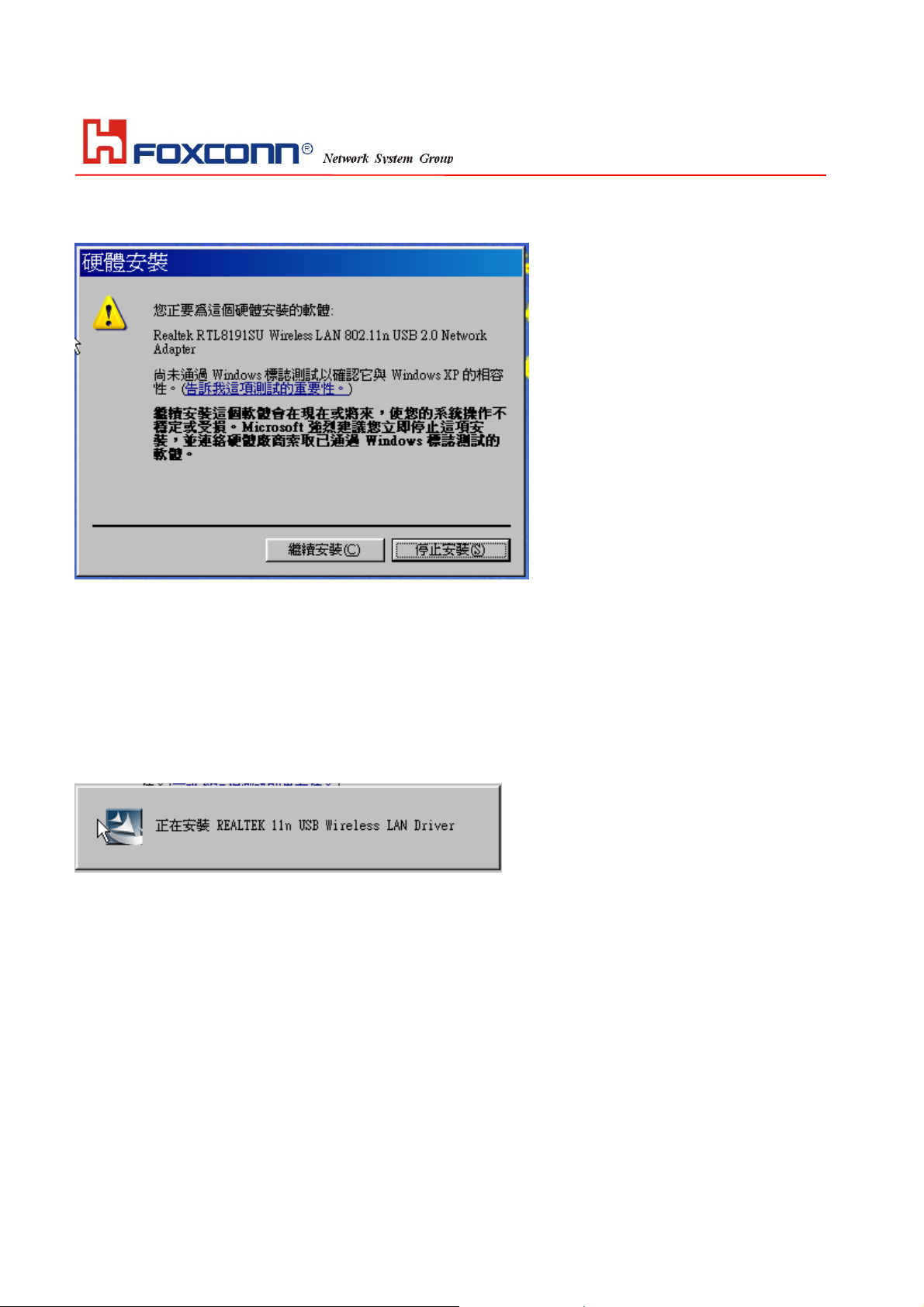

7. The program will reboot the system before working, and click“ yes”
8. Install driver now

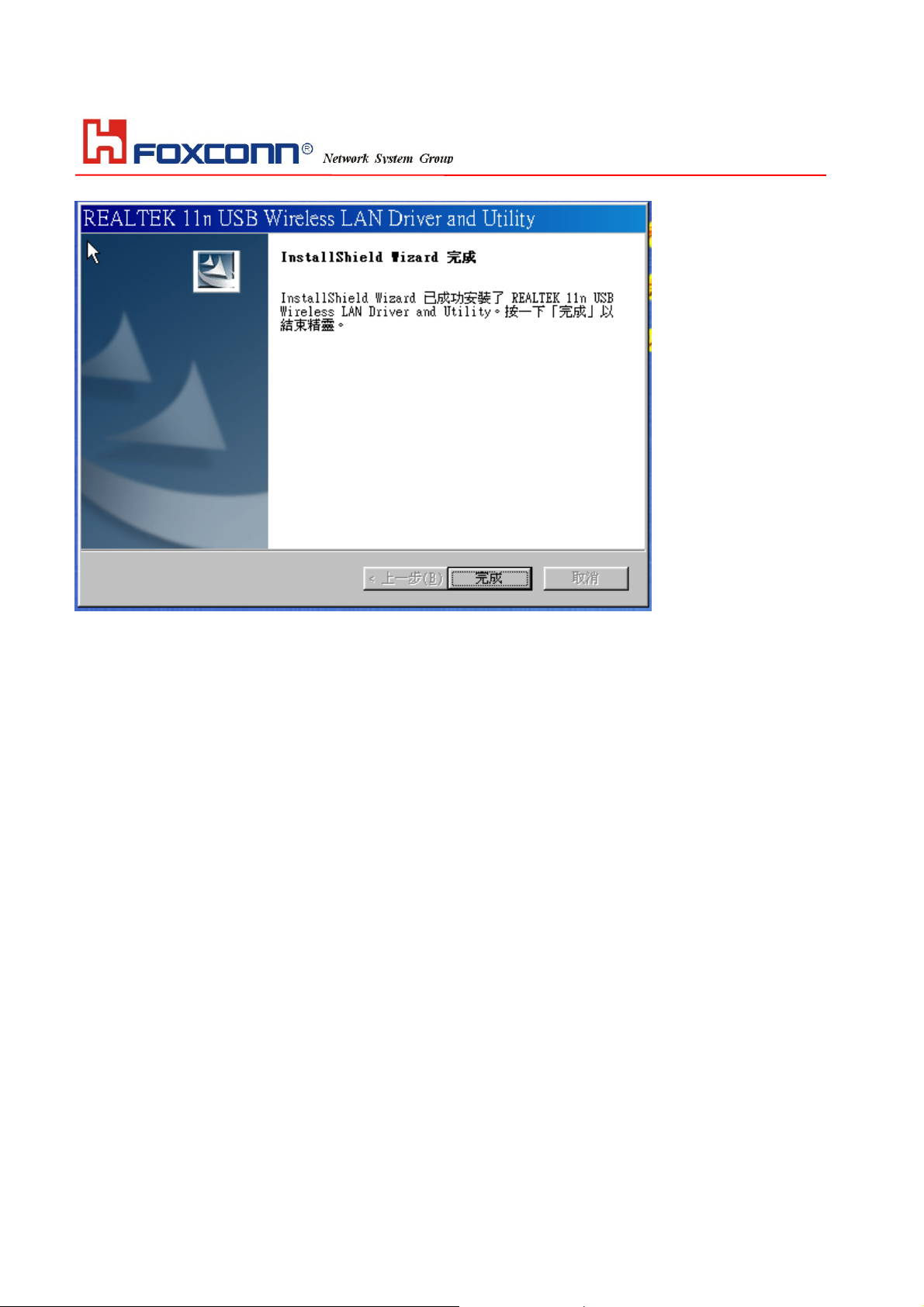

9. Install completely and restart computer

HONHAIPRECISIONIND.CO.,LTD.
10

HONHAIPRECISIONIND.CO.,LTD.
11
4.FCC Notice:
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This
device may not cause harmful interference, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of
the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio communications. However, there
is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could
void the user's authority to operate this equipment.
This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This
equipment should be installed and operated with minimum distance 20cm between the radiator & your body.

HONHAIPRECISIONIND.CO.,LTD.
12
This device is intended only for OEM integrators under the following conditions:
1) The antenna must be installed such that 20 cm is maintained between the antenna and users, and
2) The transmitter module may not be co-located with any other transmitter or antenna.
As long as 2 conditions above are met, further transmitter test will not be required. However, the OEM integrator is
still responsible for testing their end-product for any additional compliance requirements required with this module
installed
IMPORTANT NOTE: In the event that these conditions can not be met (for example certain laptop configurations or
co-location with another transmitter), then the FCC authorization is no longer considered valid and the FCC ID can
not be used on the final product. In these circumstances, the OEM integrator will be responsible for re-evaluating the
end product (including the transmitter) and obtaining a separate FCC authorization.
End Product Labeling
This transmitter module is authorized only for use in device where the antenna may be installed such that 20 cm may
be maintained between the antenna and users. The final end product must be labeled in a visible area with the
following: “Contains FCC ID: MCLJ20H058”. The grantee's FCC ID can be used only when all FCC compliance
requirements are met.
Manual Information To the End User
The OEM integrator has to be aware not to provide information to the end user regarding how to install
or remove this RF module in the user’s manual of the end product which integrates this module.
The end user manual shall include all required regulatory information/warning as show in this manual.

HONHAIPRECISIONIND.CO.,LTD.
13
5.Canada Notice
This device complies with RSS-210 of the Industry Canada Rules. Operation is subject to the following two conditions: (1)
This device may not cause harmful interference, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
Ce dispositif est conforme à la norme CNR-210 d'Industrie Canada applicable aux appareils radio exempts de licence. Son
fonctionnement est sujet aux deux conditions suivantes: (1) le dispositif ne doit pas produire de brouillage préjudiciable, et
(2) ce dispositif doit accepter tout brouillage reçu, y compris un brouillage susceptible de provoquer un fonctionnement
indésirable.
Radiation Exposure Statement:
This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment. This equipment
should be installed and operated with minimum distance 20cm between the radiator & your body.
Déclaration d'exposition aux radiations:
Cet équipement est conforme aux limites d'exposition aux rayonnements IC établies pour un environnement non contrôlé.
Cet équipement doit être installé et utilisé avec un minimum de 20 cm de distance entre la source de rayonnement et votre
corps.

HONHAIPRECISIONIND.CO.,LTD.
14
This device is intended only for OEM integrators under the following conditions: (For module device use)
1) The antenna must be installed such that 20 cm is maintained between the antenna and users, and
2) The transmitter module may not be co-located with any other transmitter or antenna.
As long as 2 conditions above are met, further transmitter test will not be required. However, the OEM integrator is still
responsible for testing their end-product for any additional compliance requirements required with this module installed.
Cet appareil est conçu uniquement pour les intégrateurs OEM dans les conditions suivantes: (Pour
utilisation de dispositif module)
1) L'antenne doit être installée de telle sorte qu'une distance de 20 cm est respectée entre l'antenne et les utilisateurs, et
2) Le module émetteur peut ne pas être coïmplanté avec un autre émetteur ou antenne.
Tant que les 2 conditions ci-dessus sont remplies, des essais supplémentaires sur l'émetteur ne seront pas nécessaires.
Toutefois, l'intégrateur OEM est toujours responsable des essais sur son produit final pour toutes exigences de conformité
supplémentaires requis pour ce module installé.
IMPORTANT NOTE:
In the event that these conditions can not be met (for example certain laptop configurations or co-location with another
transmitter), then the Canada authorization is no longer considered valid and the IC ID can not be used on the final product.
In these circumstances, the OEM integrator will be responsible for re-evaluating the end product (including the transmitter)
and obtaining a separate Canada authorization.
NOTE IMPORTANTE:
Dans le cas où ces conditions ne peuvent être satisfaites (par exemple pour certaines configurations d'ordinateur portable ou
de certaines co-localisation avec un autre émetteur), l'autorisation du Canada n'est plus considéré comme valide et l'ID IC
ne peut pas être utilisé sur le produit final. Dans ces circonstances, l'intégrateur OEM sera chargé de réévaluer le produit
final (y compris l'émetteur) et l'obtention d'une autorisation distincte au Canada.

HONHAIPRECISIONIND.CO.,LTD.
15
End Product Labeling
This transmitter module is authorized only for use in device where the antenna may be installed such that 20 cm may be
maintained between the antenna and users. The final end product must be labeled in a visible area with the following:
“Contains IC: 2878D-J20H058”.
Plaque signalétique du produit final
Ce module émetteur est autorisé uniquement pour une utilisation dans un dispositif où l'antenne peut être installée de telle
sorte qu'une distance de 20cm peut être maintenue entre l'antenne et les utilisateurs. Le produit final doit être étiqueté dans
un endroit visible avec l'inscription suivante: "Contient des IC: 2878D-J20H058".
Manual Information To the End User
The OEM integrator has to be aware not to provide information to the end user regarding how to install or remove this RF
module in the user’s manual of the end product which integrates this module.
The end user manual shall include all required regulatory information/warning as show in this manual.
Manuel d'information à l'utilisateur final
L'intégrateur OEM doit être conscient de ne pas fournir des informations à l'utilisateur final quant à la façon d'installer ou
de supprimer ce module RF dans le manuel de l'utilisateur du produit final qui intègre ce module.
Le manuel de l'utilisateur final doit inclure toutes les informations réglementaires requises et avertissements comme
indiqué dans ce manuel.
