EVOTM 200 AND EVOTM 400
AUTOMATIC TANK GAUGES
INSTALLATION GUIDE

The informaon in this publicaon is provided for reference only. While every eort has been made to ensure the
reliability and accuracy of the informaon contained in this manual at the me of prinng, we recommend that
you refer to “franklinfueling.com” for the most current version of this manual. All product specicaons, as well as
the informaon contained in this publicaon, are subject to change without noce. Franklin Fueling Systems does
not assume responsibility and expressly disclaims liability for loss, damage, or expense arising out of, or in any way
connected with, installaon, operaon, use, or maintenance by using this manual. Franklin Fueling Systems assumes
no responsibility for any infringement of patents or other rights of third pares that may result from use of this
manual or the products. We make no warranty of any kind with regard to this material, including, but not limited to,
the implied warranes of merchantability and tness for a parcular purpose.
Copyright © 2019 Franklin Fueling Systems, LLC, Madison, WI 53718. All world rights reserved. No part of this
publicaon may be stored in a retrieval system, transmied, or reproduced in any way, including, but not limited to,
photocopy, photograph, magnec, or other record, without the prior wrien permission of Franklin Fueling Systems.
For technical assistance, please contact:
Franklin Fueling Systems
3760 Marsh Rd.
Madison, WI 53718
USA
Web: franklinfueling.com
Telephone:
USA and Canada: +1.608.838.8786, +1.800.225.9787
USA and Canada Technical Support: +1.800.984.6266
UK: +44 (0) 1473.243300
Mexico: 001.800.738.7610
China: +86.10.8565.4566
EVO is a trademark of Franklin Electric Company
Belden is a trademark of Belden Technologies, Inc.
228180003 r2

Contents
Introducon ......................................................................................................................................1
Quesons and concerns ................................................................................................................1
Convenons used in this manual ..................................................................................................1
Operang precauons...................................................................................................................2
Programming and operaon documentaon ...............................................................................3
Cered installer or service person ..............................................................................................3
Staon owner or operator.............................................................................................................3
Abbreviaons and acronyms .........................................................................................................3
Product descripon .......................................................................................................................3
Specicaons ..............................................................................................................................4
Console Installaon...........................................................................................................................5
Console locaon ............................................................................................................................5
Mounng the console ...................................................................................................................5
Removing the cover....................................................................................................................5
Standard installaon materials......................................................................................................6
Circuit breaker ............................................................................................................................6
Weatherproof juncon boxes.....................................................................................................6
Conduit .......................................................................................................................................6
Splice connector kit warranty requirement ..............................................................................6
Moisture-resistant splice connectors......................................................................................6
Thread sealant (UL classied).....................................................................................................6
Riser pipes................................................................................................................................7
Cables required for liquid level probes and 4-20 mA sensors ...................................................7
Cable or wire for 2-wire sensors ................................................................................................7
Console dimensions.......................................................................................................................8
Wiring the console ........................................................................................................................9
Intrinsically safe wiring ...............................................................................................................9
Terms .......................................................................................................................................9
UDP probe and sensor wiring..................................................................................................10
Line power wiring ..........................................................................................................................11
Non-intrinsically safe wiring .......................................................................................................11
Console power supply .............................................................................................................11
Check electrical resistance to earth ground ...........................................................................12
110/240 VAC line power wire connecons.............................................................................12
Console Ground Connecon ...................................................................................................12
Communicaon ports....................................................................................................................12
RS-232 communicaon connectors ...........................................................................................13

RS-485 communicaon connectors ...........................................................................................13
Relay wiring.................................................................................................................................14
Dry contacts.............................................................................................................................14

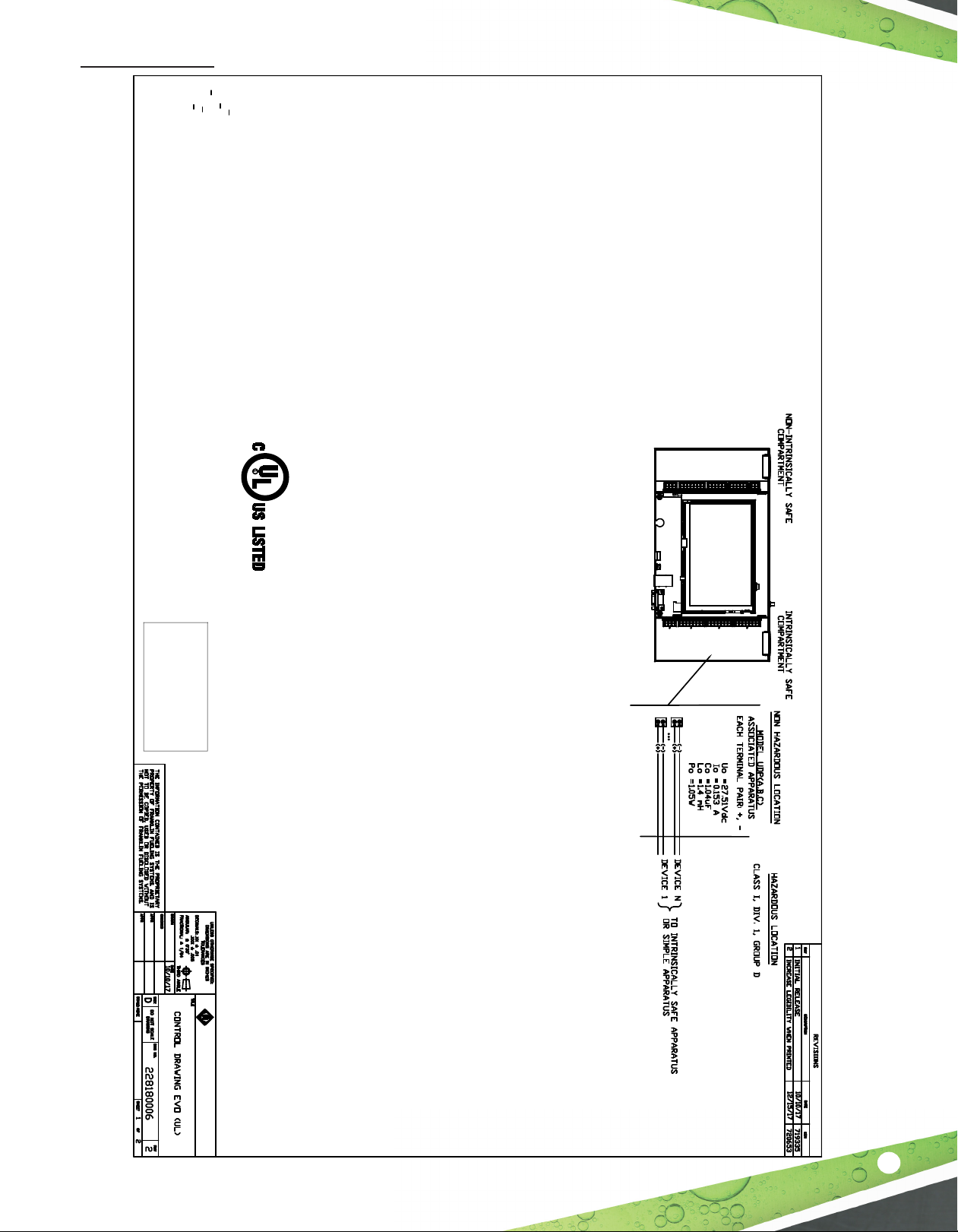

Control drawing 1 .......................................................................................................................15
Control drawing 2 .......................................................................................................................16

1
Introduction
This manual contains installaon instrucons for the Franklin Fueling Systems (FFS)
EVOTM 200 and EVOTM 400 Automac Tank Gauges (ATGs). You must follow all safety informaon,
warnings, instrucons, and other informaon in this manual. Please read this enre manual
carefully. If you do not follow the instrucons in this manual, the result could be faulty operaon,
equipment damage, injury, or death.
Questions and concerns
In case of emergency, follow the procedures established by your facility. If you have quesons or
concerns about safety or need assistance, use the informaon below to contact FFS:
Web: franklinfueling.com
Telephone:
USA and Canada: +1.608.838.8786, +1.800.225.9787
USA Technical Support: 1.800.984.6266
UK: +44 (0) 1473.243300
Mexico: 001.800.738.7610
China: +86.10.8565.4566
Conventions used in this manual
This manual includes safety precauons and other important informaon presented in the
following format:
NOTE: This provides helpful supplementary informaon.
IMPORTANT: This provides instrucons to avoid damaging hardware or a potenal hazard to the
environment, for example: fuel leakage from equipment that could harm the environment.
CAUTION: This indicates a potenally hazardous situaon that could result in minor or
moderate injury if not avoided. This may also be used to alert against unsafe pracces.
WARNING: This indicates a potenally hazardous situaon that could result in severe injury or
death if not avoided.
DANGER: This indicates an imminently hazardous situaon that will result in death if not
avoided.

2
Operating precautions
FFS equipment is designed to be installed in areas where volale liquids such as gasoline and
diesel fuel are present. Working in such a hazardous environment presents a risk of severe injury
or death if you do not follow standard industry pracces and the instrucons in this manual.
Before you work with or install the equipment covered in this manual, or any related equipment,
read this enre manual, parcularly the following precauons:
IMPORTANT: To help prevent spillage from an underground storage tank, make sure the delivery
equipment is well-maintained, that there is a proper connecon, and that the ll adaptor is ght.
Delivery personnel should inspect delivery elbows and hoses for damage and missing parts.
CAUTION: Use only original FFS parts. Substung non-FFS parts could cause the device to
fail, which could create a hazardous condion and/or harm the environment.
WARNING: Follow all codes that govern how you install and service this product and the
enre system. Always lock out and tag electrical circuit breakers while installing or servicing
this equipment and related equipment. A potenally lethal electrical shock hazard and the
possibility of an explosion or re from a spark can result if the electrical circuit breakers are
accidentally turned on while you are installing or servicing this product. Refer to this manual (and
documentaon for related equipment) for complete installaon and safety informaon.
WARNING: Before you enter a containment sump, check for the presence of hydrocarbon
vapors. Inhaling these vapors can make you dizzy or unconscious, and if ignited, they can explode
and cause serious injury or death. Containment sumps are designed to trap hazardous liquid
spills and prevent environmental contaminaon, so they can accumulate dangerous amounts
of hydrocarbon vapors. Check the atmosphere in the sump regularly while you are working in
it. If vapors reach unsafe levels, exit the sump and venlate it with fresh air before you resume
working. Always have another person standing by for assistance.
WARNING: Follow all federal, state, and local laws governing the installaon of this product
and its associated systems. When no other regulaons apply, follow NFPA codes 30, 30A, and 70
from the Naonal Fire Protecon Associaon. Failure to follow these codes could result in severe
injury, death, serious property damage, and/or environmental contaminaon.
WARNING: Always secure the work area from moving vehicles. The equipment in this manual
is usually mounted underground, so reduced visibility puts service personnel working on it in
danger from moving vehicles that enter the work area. To help prevent this safety hazard, secure
the area by using a service truck (or some other vehicle) to block access to the work area.
WARNING: All wiring must enter the console’s enclosure through the designated knockouts.
An explosion hazard may result if other openings are used. All wiring from probes to the console
must be run in conduit separate from all other wiring. Failure to do so will create an explosion
hazard.
DANGER: Make sure you check the installaon locaon for potenal ignion sources such as
ames, sparks, radio waves, ionizing radiaon, and ultrasound sonic waves. If you idenfy any
potenal ignion sources, you must make sure safety measure are implemented.

3
Programming and operation documentation
The EVOTM 200 and EVOTM 400 Automac Tank Gauges Operaon Guide and the EVOTM 200 and
EVOTM 400 Automac Tank Gauges Programming Guide are useful manuals you may need.
To download these manuals, go to: www.franklinfueling.com>Products>Fuel Management
Systems>Automac Tank Gauges>EVOTM 200 & EVOTM400>Downloads>Manuals. Alternavely,
you can click the following link, and go to the "Manuals" heading:
hp://www.franklinfueling.com/americas/fms/featured/27308/en/evo-200-evo-400#Downloads
Certied installer or service person
The equipment described in this manual should be serviced only by an FFS-cered technician,
installer, or service person. Only an FFS-cered technician, installer, or service person is allowed
to access both the user interface keypad and internal areas of an EVOTM 200 or EVOTM 400 ATG.
Station owner or operator
Only the staon owner or operator is allowed access to the user interface keypad. Access to
internal areas of the EVOTM 200 or EVOTM 400 ATG console is strictly prohibited.
Abbreviations and acronyms
AST - Aboveground Storage Tank
ATG - Automac Tank Gauge
FMS - Fuel Management Systems
IS - Intrinsically Safe
PC - Personal Computer
RLY - Relay Module
TPI - Turbine Pump Interface
UST - Underground Storage Tank
Product description
EVOTM 200 and EVOTM 400 ATGs are complete, automac, connuous monitoring systems that:
• Perform inventory monitoring.
• Generate reports automacally in response to preset and programmed condions and
alarms.
• Provide audio-visual indicaons when an alarm or warning condion exists.

4
• Perform tank reconciliaon and autocalibraon.
• Print reports on an external USB printer.
• You can access remotely via Ethernet or RS-232 with a web browser.
• Perform leak detecon and density monitoring.
Specications
The specicaons for an EVOTM 200 or EVOTM 400 ATG are:
• Line voltage: 110-240 V~, 1.0 A.
• Frequency and power: 50/60 Hz, 100 W maximum.
• Storage temperature: -20 to 60° C (-4 to 140° F).
• Operang temperature: 0 to 40° C (32 to 104° F).
• Operang humidity: 0 to 95%, non-condensing.
• Exterior cleaning: Cloth or sponge slightly dampened in mild detergent.
• Splash resistance: Not to be exposed to direct spray, splash or drips.
• Locaon: Indoors in a non-hazardous, polluon degree 2 environment per IEC60664.
• Relay rang: 2A @ 240V~.

5
Console Installation
Console location
Install the console indoors in an area that has a polluon degree 2 rang and is classied as non-
hazardous (per IEC60664). Place the console at eye level, for convenience, on a level, vercal
surface 2–6' (0.6–1.9 m) high. Use appropriate fasteners.
Mounting the console
Removing the cover
WARNING: Mount the console in a locaon where explosive or ammable vapors are
not present. Otherwise, there is an explosion hazard that can result in property damage,
environmental contaminaon, severe injury, and death.
IMPORTANT: Leave at least 2" (50 mm) of open space around the console to allow for
venlaon, communicaon port connecons, conduit, and wiring. Allow at least 7" (175 mm) at
the top if the unit has an antenna.
To remove the cover, press the cover release tabs in and li the cover straight away from the unit
with two hands. To reinstall the cover, place it straight on the unit to help avoid damaging the
LED light pipes.
LED light pipes
Cover release tabs
Two mounng screw holes are located on each side of the console housing. Use fasteners that
have sucient load carrying capacity and are appropriate for wall construcon. Make sure that
there is enough room around the console for conduit, communicaon port connecons, probe
wiring, and access.

6
Standard installation materials
Select and install standard installaon materials according to local, state, and federal codes
that govern the installaon of this product and its associated systems. See the console, module
wiring, or associated devices secon of this manual for details.
Circuit breaker
The console has a 20 Amp circuit breaker that provides power for only the console.
Weatherproof junction boxes
There must be a weatherproof juncon box (16 inch3 (406.4 mm3) minimum), cover, and cover
gasket for liquid level probe manholes. Also use ½" (16 mm) bushings for probe compression
ngs. Use a weatherproof metal pull box for combining mulple circuits that run into the
console through one or more conduits. Use a separate weatherproof metal pull box to combine
intrinsically safe (IS) liquid level probe wiring. Do not run other non-intrinsically safe wiring into
the IS pull box. Run 0.5" (16 mm) IS probe conduit from the manholes to the IS pull box, and then
run one or two 0.5" (16 mm) conduits to the console’s IS conduit knockouts.
Conduit
Entryways into the console are sized for 1" (27 mm) conduit. If you want to use smaller conduit,
make sure you use the appropriate size reducing washers. Use conduit hardware that is
appropriate for the installaon and meets local, state, and federal requirements.
Splice connector kit warranty requirement
IMPORTANT: According to the FFS warranty, you must use splice connector kits.
Use the FFS-approved, moisture-resistant, no-strip splice connectors for liquid level probes. (Part
number TSP-KW30 contains 30 FFS-approved connectors.)
Moisture-resistant splice connectors
Using moisture-resistant splice connectors will:
• Reduce or eliminate corrosion of the wire connecons from repeated exposure to water
condensaon, which causes eventual signal loss and system failure.
• Reduce or eliminate equipment damage from water ooding around the connectors, which
causes short-circuit damage.
Thread sealant (UL classied)
Use a non-hardening, stay-so, gasoline compable, thread sealant to seal and waterproof
all tank riser pipe threads. Also, the thread sealant (or pipe dope, as it is commonly known)
should also be chemically non-reacve to the product in the tank(s). Apply thread sealant to
seal and waterproof all outdoor electrical conduit ng threads, including the hole plugs at the
weatherproof juncon boxes.

7
Riser pipes
ANSI Schedule 40- (or chemically non-reacve) 2 or 4 inch (50.8 or 101.6 mm) (8 NPT) riser pipes
for liquid level probes.
Cables required for liquid level probes and 4-20 mA sensors
Use cables and wires compliant with naonal and local codes. FFS recommends using the types
of cable shown below up to a recommended length of:
• Belden™ No. 87760 (0.15" or 3.81 mm OD) to 260 feet (80 m)
• Belden™ No. 87761* (0.12" or 3.048 mm OD) to 400 feet (120 m)
• Belden™ No. 89182* (0.31" or 7.874 mm OD) to 1500 feet (450 m)
* You can order this cable from FFS.
NOTE: Conductors of dierent IS circuits that are run together in the same conduit should have
at least .01" (.25 mm) of insulaon.
Cable or wire for 2-wire sensors
You can use 2-wire sensor wire (type THHN, TFFN, or THWN, gas and oil resistant, 18 AWG
minimum, 1500 feet maximum wire run length) when it is enclosed in rigid metal conduit from
the sensor to the console.
When cable is not run through rigid metal conduit, you must use leak detecon sensor cable.
(See the Direct Burial Cable Installaon Manual (FFS part number 000-1041) for further
informaon.) The following are cable types and descripons:
• Alpha 58411 (FFS part number 600-0062):
• 2-conductor cable for standard, 2-conductor, leak detecon sensors
(0.114 inch (2.9 mm) OD).
• Wire required for the EVOTM TS-550 or EVOTM 5000 console:
• Power: 3 conductor–12 GA to 14 GA maximum; Black, white, and green.
• Safety ground–1 conductor: 12 AWG green. (Two may be required in some locaons.)
• Accessories: As required–Type THHN, TFFN, or THWN; 18 AWG minimum.

8
Console dimensions
Power LED
Warning LED
Alarm LED
Non-IS wiring compartment
IS wiring
compartment

9
Wiring the console
Intrinsically safe wiring
Intrinsically safe outputs
IMPORTANT: Do not run IS and non-IS wiring in the same conduit.
IMPORTANT: If local codes do not require you to use conduit, you must use cable glands at all
enclosure knock-outs. Gaps larger than 0.06" (1.5 mm) violate safety approvals. Make sure you
provide adequate IS and non-IS wire separaon.
IMPORTANT: To avoid violang safety approvals, make sure you install connectors in unused
intrinsically safe output receptacles.
The IS inputs are cered as associated apparatuses by the Enty Concept. Under this concept,
the IS apparatus (eld device) has assigned parameters that, when matched to those of an
associated apparatus, constute an IS system. If none are available, use the following values:
• 60 pF/foot (200 pF/m) for capacitance for each wire pair.
• 0.2 uH/foot (0.7 uH/m) for inductance for each wire pair.
Refer to the apparatus’s control drawing for cable run length calculaons. Associated apparatus
parameter types and comparisons to IS apparatus parameter values are in the following table:
Parameter Associated Apparatus Comparison IS Device
Maximum Voltage Uo <Ui
Maximum Current Io < li
Maximum Power Po <Pi
Total unprotected capacitance Co > Ci+Cc
Total unprotected inductance Lo > Li+Lc
Terms
Term Denion Term Denion
Uo Maximum output voltage Co Maximum external capacitance
Ui Maximum input voltage Ci Maximum internal capacitance
lo Maximum output current Cc Cable capacitance
li Maximum input current Lo Maximum external inductance
Po Maximum output power Li Maximum internal inductance
Pi Maximum input power Lc Cable inductance

10
UDP probe and sensor wiring
The probe and sensor wiring is IS and is kept separate from all other wiring. Conduit must enter
the console enclosure through only the designated knockouts. The installaon may require the
conduit to enter on top or boom. Do not lose the conduit plugs, and make sure any openings
are covered by the plugs. Aach the probe wiring as shown below:
1- Black
+ Red
2- Black
+ Red
3- Black
+ Red
4- Black
+ Red
5- Black
+ Red
6- Black
+ Red
7- Black
+ Red
8- Black
+ Red
9- Black
+ Red
10- Black
+ Red
- Black
+ Red
- Black
+ Red
- Black
+ Red
- Black
+ Red
11
12
13
14
- Black
+ Red
- Black
+ Red
Probe
White
- Black
2-Wire Sensor
UDP 24 V Input Specicaons (Motherboard A, B, C)
Number of Channels: 14, 6
Safety rang: Class I, Division 1, Group D, [Ex ia] IIA
Enty parameters: Uo = 27.5 V
Io = 0.153 A
Co = 1.04 uF
Lo = 1.4 mH
Po = 1.05 W
IMPORTANT: To avoid violang safety approvals, make sure you
install connectors in unused intrinsically safe output receptacles.

11
Cables required for liquid level probes
Use cables and wires compliant with naonal and local codes to help provide reliable
communicaon between the console and probes. FFS recommends using the types of cable
shown in the table below. Cables must be oil and water resistant, 22 AWG (or greater), and must
be shielded, twisted pairs.
Distance
feet (m)
Capacitance (pF)
per foot
Inductance (µH)
per foot Belden™ Cable
500 (152) <100 <0.2
87760
87761*
88760
1000 (305) <60 <0.2 8760
8770
1500 (457) <20 <0.3 89182*
* You can order this cable from FFS.
Line power wiring
Non-intrinsically safe wiring
WARNING: Always lock out and tag electrical circuit breakers while installing or servicing
this equipment and any related equipment. A potenally lethal electrical shock hazard and the
possibility of an explosion or re from a spark can result if the electrical circuit breakers are
accidentally turned on during installaon or servicing.
Console power supply
Power to the console must be 110-240 VAC, 50/60 Hz. At the electrical power panel, use a 20
amp circuit breaker that supplies power to only the console.
IMPORTANT: Do not connect other equipment to this circuit.
WARNING: The ground bus in the electrical panel must be connected to an earth ground
as required by the Naonal Electrical Code (or Canadian Electrical Code) when applicable. If
the ground bus is not properly connected to an earth ground, or if the IS safety ground is not
properly connected at the console, a dangerous condion will be created that could result in an
explosion.

12
Check electrical resistance to earth ground
Aer wiring the IS safety grounds, check the resistance between the IS safety ground terminals at
the console and the earth ground. This resistance must be less than 1 ohm.
110/240 VAC line power wire connections
Electrical Panel No. Conductors, Color (Gauge) Circuit
20 Amp Circuit Breaker 1 Black wire, 14 AWG (1.6 mm) min. 110/240 VAC Power
Neutral 1 White Wire, 14 AWG (1.6 mm) min. Neutral
Ground Bus 1 Green wire, 14 AWG (1.6 mm) min. Ground
Ground Bus 1 Green wire, 12 AWG (2.1 mm) min. Safety Ground
Console Ground Connection
Aach the ground wire to the grounding stud in the le compartment of the console.
Nut
Lock Washer
Earth Ground Conductor
Enclosure
Cup Washer
Flat Washer
Communication ports
The console has several communicaon ports that can be used to communicate with devices or
connect to a local area network, point-of-sale device, external printer, or modem.
1245
3

13
# Port Connector Type Devices
1RS-485 Pluggable terminal block TPI/FE Petro Smart Controllers
2Micro-USB Female micro-USB Local network or computer
3Ethernet RJ-45 Local network or computer
4USB Type A External printer, modem, or USB ash drive*
5RS-232 Comm 1 DB9 female Modem, POS, or local PC
* A USB ash drive can be used to collect data or load upgraded les.
RS-232 communication connectors
A connector for RS-232 interface is on the boom of the console. The following are the pin
designaons for this connector:
Console RS-232 Comm Port 1
DB9 Connector, Female, DCE
Pin No. Funcon Input/Output
2TD O→
3RD I←
5GND
NOTE: Pins 1, 4, and 6-9 are not connected.
RS-485 communication connectors
One connector for RS-485 interface is provided on the boom of the console. The pin
designaons for the RS-485 connectors are as follows:
1 2 3
Pin No. Funcon
1 A
2 B
3GND

14
Relay wiring
Relay Terminal Descripon
1
1. Normally Closed
2. Common
3. Normally Open
2
4. Normally Closed
5. Common
6. Normally Open
3
1. Normally Closed
2. Common
3. Normally Open
4
4. Normally Closed
5. Common
6. Normally Open
NOTE: There can be 0, 2, or 4 relays.
Dry contact wiring
Dry contacts
2
1
Run Relay (C)
Run Relay (N.O.)
Run Relay (C)
Run Relay (N.O.)
Generator #1
Generator #2
NOTE: Dry contacts are internally weed with 5 VDC, 15 mA DC. External relays should have
contacts suitable for low current.

15
Control drawing 1
M. Kirby
NOTES:
1.
THE MODEL UDP(A-C) SHALL NOT BE CONNECTED TO ANY EQUIPMENT WHICH USES
OR GENERATES GREATER THAN 250V.
2.
EACH GROUND TERMINAL SHALL BE CONNECTED TO A SUITABLE SYSTEM EARTH
GROUND. THE DC RESISTANCE BETWEEN GROUND TERMINALS AND EARTH GROUND SHALL BE LESS THAN 1 OHM.
3.
THE MODEL UDP(A-C) WIRING SHALL BE INSTALLED IN ACCORDANCE WITH THE NEC
AND APPLICABLE NATIONAL OR LOCAL CODES. CONDUCTORS OF DIFFERENT
INTRINSICALLY SAFE CIRCUITS RUN IN THE SAME CABLE/CONDUIT MUST HAVE AT
LEAST 0.25mm OF INSULATION.
4.
CAPACITANCE AND INDUCTANCE OF THE FIELD WIRING FROM THE INTRINSICALLY
SAFE EQUIPMENT TO THE BARRIER SHALL BE CALCULATED AND MUST BE INCLUDED
IN THE SYSTEM CALCULATIONS AS SHOWN IN THE DIAGRAM TO THE RIGHT. CABLE
CAPACITANCE (Ccable) PLUS INTRINSICALLY SAFE EQUIPMENT CAPACITANCE (Ci)
MUST BE LESS THAN THE MARKED CAPACITANCE(Co) SHOWN ON ANY BARRIER
USED. THE SAME APPLIES FOR INDUCTANCE (Li, Lcable AND Lo, RESPECTIVELY).
WHERE THE CABLE CAPACITANCE AND INDUCTANCE PER FOOT ARE NOT KNOWN,
THE FOLLOWING VALUES SHALL BE USED: Ccable=60pF/ft,(200pF/m), Lcable=0.2uH/ft
(0.7uH/m).
5.
WIRING, CABLING AND SEALS MUST BE INSTALLED IN ACCORDANCE WITH THE NEC,
CEC OR OTHER APPLICABLE NATIONAL OR LOCAL CODES.
6.
USE ONLY CABLE THAT IS SPECIFIED IN THE USER INSTALLATION MANUAL OR
LISTED EQUIVALENT FOR THE INSTALLATION OF LIQUID LEVEL PROBES.
7.
USE THE FOLLOWING WIRE TYPES ONLY, 18 AWG MINIMUM, TO CONNECT SENSORS
TO THE UDP(A-C) ASSOCIATED APPARATUS, OIL AND GASOLINE RESISTANT TYPES.
8.
USE ONLY CRIMP OR INSULATION DISPLACEMENT TYPE CONNECTORS FOR ELECTRICAL CONNECTIONS (DO NOT USE WIRE NUTS OR OTHER TYPE
CONNECTORS).
9.
SEAL ALL FIELD WIRING CONNECTIONS FROM MOISTURE.
10.
SEE INSTALLATION MANUAL FOR MORE DETAIL.
11.
THE GENERAL CONTRACTOR MUST SUPPLY THE SPECIFIED WIRE, CONDUITS AND
ELECTRICAL ACCESSORIES.
12.
THE ENTITY CONCEPT ALLOWS THE USER TO IDENTIFY ACCEPTABLE
COMBINATIONS OF INTRINSICALLY SAFE APPARATUS AND ASSOCIATED APPARATUS
THAT HAVE NOT BEEN EXAMINED AS A SYSTEM. EACH APPARATUS IS EXAMINED
SEPARATELY BY A NATIONALLY RECOGNIZED TEST LABORATORY (NRTL) AND
ASSIGNED A SET OF PARAMETERS CALLED ENTITY PARAMETERS. THE ENTITY
PARAMETERS FOR UDP(A-C) (ASSOCIATED APPARATUS) CAN BE FOUND IN THE DIAGRAM TO THE RIGHT. TO DETERMINE THE Vmax (Ui), Imax (Ii), Ci, Li AND Pi
VALUES THE CONTROL DRAWING FOR THE INTRINSICALLY SAFE APPARATUS SHALL
BE USED. THE COMBINATION OF THE INTRINSICALLY SAFE APPARATUS AND
ASSOCIATED APPARATUS MUST COMPLY WITH THE FOLLOWING:
Uo (Voc) <Ui (Vmax)
Io (Isc) <Ii (Imax)
Po <Pi (Pmax)
Co (Ca) >Ci + Ccable (SEE NOTE 4)
Lo (La) >Li + Lcable (SEE NOTE 4)
Franklin Fueling Systems
19.
CONTROL DRAWING 228180006 SHIPPED WITH PRODUCT
WILL HAVE DEDICATED PAGE REPRODUCING ALL ABOVE
INFORMATION AND THE NOTE:
ONLY THIS PAGE REPRESENTS UL CONTROL DRAWING
FOR THE UNITED STATES AND CANADA. ADDITIONAL
PAGES OF THIS DOCUMENT REPRESENT SIMILAR
INFORMATION FOR ALTERNATE COUNTRIES OR
CERTIFICATIONS.
20. WARNING:
ASSOCIATED APPARATUS NON HAZARDOUS LOCATION
PROVIDES INTRINSICALLY SAFE CIRCUITS FOR SENSORS
LOCATED IN CLASS I, DIV. 1, GROUP D HAZARDOUS LOCATIONS WHEN INSTALLED PER CONTROL DRAWING
228180006, SEE INSTALLATION INSTRUCTIONS.
APPAREILLAGE ASSOCI� ZONE NON DANGEREUSE
FOURNIR DES CIRCUITS À S�CURIT� INTRINSÉQUE POUR
LES CAPTEURS SITU�S DANS LA CLASSE I, DIV.1 GROUPE
D, ENDROITS DANGEREUX, LORSQU' INSTALL� SELON LE
SCH�MA N ° 228180006. VOIR LES INSTRUCTIONS
D'INSTALLATION.
[Exia]
6L79
EX CERTIFIED PRODUCT
~RELATED DOCUMENT~
NO MODIFICATIONS PERMITTED
WITHOUT APPROVAL FROM THE
ATHORIZED PERSON
}
21. WARNING:
THIS UNIT HAS MORE THAN ONE POWER SUPPLY
CONNECTION POINT. DISCONNECT ALL POWER SUPPLIES
BEFORE SERVICING.
CETTE UNIT� A PLUS D'UN POINT DE D'ALIMENTATION.
D�BRANCHEZ TOUTES LES ALIMENTATIONS
�LECTRIQUES AVANT L'ENTRETIEN.
22. WARNING:
SUBSTITUTION OF COMPONENTS MAY IMPAIR INTRINSIC SAFETY. TO PREVENT IGNITION OF FLAMMABLE OR
COMBUSTIBLE ATMOSPHERES, DISCONNECT POWER
BEFORE SERVICING.
AVERTISSEMENT: LA SUBSTITUTION DES COMPOSANTS
PEUT NUIRE À LA S�CURIT� INTRINS�QUE". POUR �VITER
L'IGNITION DE MATIÉRES INFLAMMABLES OU
COMBUSTIBLES, D�BRANCHER L'ALIMENTATION AVANT
L'ENTRETIEN.
23.
THE ASSOCIATED APPARATUS MAY ALSO BE CONNECTED TO SIMPLE APPARATUS AS DEFINED IN ARTICLE 504.2
AND INSTALLED AND TEMPERATURE CLASSIFIED IN ACCORDANCE WITH ARTICLE 504.10(B) OF THE NATIONAL
ELECTRICAL CODE (ANSI/NFPA 70), OR OTHER LOCAL
CODES, AS APPLICABLE.
13.
THE OUTPUT CURRENT OF THIS ASSOCIATED APPARATUS IS LIMITED BY A
RESISTOR SUCH THAT THE OUTPUT VOLTAGE-CURRENT PLOT IS A STRAIGHT LINE
DRAWN BETWEEN OPEN-CIRCUIT VOLTAGE AND SHORT-CIRCUIT CURRENT.
14.
ASSOCIATED APPARATUS MUST BE INSTALLED IN AN ENCLOSURE SUITABLE FOR
THE APPLICATION IN ACCORDANCE WITH THE NATIONAL ELECTRICAL CODE
(ANSI/NFPA 70) FOR INSTALLATION IN THE UNITED STATES, THE CANADIAN
ELECTRICAL CODE FOR INSTALLATIONS IN CANADA, OR OTHER LOCAL CODES, AS
APPLICABLE.
15.
INTRINSICALLY SAFE CIRCUITS MUST BE WIRED AND SEPARATED IN ACCORDANCE
WITH ARTICLE 504.20 OF THE NATIONAL ELECTRICAL CODE (ANSI/NFPA 70) OR
OTHER LOCAL CODES, AS APPLICABLE.
16.
THIS ASSOCIATED APPARATUS HAS NOT BEEN EVALUATED FOR USE IN
COMBINATION WITH ANOTHER ASSOCIATED APPARATUS.
17.
EQUIPMENT COMPLIES WITH THE FOLLOWING STANDARDS: UL1238, SIXTH EDITION
AND UL 913, EIGHTH EDITION, CAN/CSA-C22.2 NO. 60079-0:15, 3RD ED.,
CAN/CSA-C22.2 NO. 60079-11:14, 2ND EDITION, AND CAN/CSA C22.2
NO.142-M1987(REAFFIRMED 2014).
18.
UL LOGO DISPLAYED:

16
Control drawing 2
M. Kirby
Franklin Fueling Systems
11.
ATEX/IECEx APPROVAL DISPLAYED:
12.
ALL OF THE ABOVE INFORMATION CAN BE COMBINED INTO A CONTROL DRAWING
WITH OTHER CERTIFICATIONS OR IN THE INSTALLATION INSTRUCTIONS. IN ANY
CASE, ALL INFORMATION ON THIS DRAWING MUST BE SHIPPED WITH EACH
PRODUCT.
13.
THE ASSOCIATED APPARATUS MAY ALSO BE CONNECTED TO SIMPLE APPARATUS
AS DEFINED IN ARTICLE 504.2 AND INSTALLED AND TEMPERATURE CLASSIFIED IN ACCORDANCE WITH ARTICLE 504.10(B) OF THE NATIONAL ELECTRICAL CODE
(ANSI/NFPA 70), OR OTHER LOCAL CODES, AS APPLICABLE.
0539
II (1) G
IECEx UL 17.0059
[Ex ia Ga] IIA
DEMKO 17 ATEX 1902
NOTES:
1.
THE MODEL UDP(A-F), ANA(A,B,C), 485(D,E,F) SHALL NOT BE CONNECTED TO ANY
EQUIPMENT WHICH USES OR GENERATES GREATER THAN 250V.
2.
EACH GROUND TERMINAL SHALL BE CONNECTED TO A SUITABLE SYSTEM EARTH
GROUND. THE DC RESISTANCE BETWEEN GROUND TERMINALS AND EARTH GROUND SHALL BE LESS THAN 1 OHM.
3.
CAPACITANCE AND INDUCTANCE OF THE FIELD WIRING FROM THE INTRINSICALLY
SAFE EQUIPMENT TO THE BARRIER SHALL BE CALCULATED AND MUST BE INCLUDED
IN THE SYSTEM CALCULATIONS AS SHOWN IN THE DIAGRAM TO THE RIGHT. CABLE
CAPACITANCE (Ccable) PLUS INTRINSICALLY SAFE EQUIPMENT CAPACITANCE (Ci)
MUST BE LESS THAN THE MARKED CAPACITANCE(Co) SHOWN ON ANY BARRIER
USED. THE SAME APPLIES FOR INDUCTANCE (Li, Lcable AND Lo, RESPECTIVELY).
WHERE THE CABLE CAPACITANCE AND INDUCTANCE PER FOOT ARE NOT KNOWN,
THE FOLLOWING VALUES SHALL BE USED: Cc=60pF/ft,(200pF/m), Lc=0.2uH/ft (0.7uH/m).
4.
WIRING, CABLING AND SEALS MUST BE INSTALLED IN ACCORDANCE WITH THE
APPLICABLE NATIONAL OR LOCAL CODES.
5.
SEE INSTALLATION MANUAL FOR MORE DETAIL.
6.
THE ENTITY CONCEPT ALLOWS THE USER TO IDENTIFY ACCEPTABLE
COMBINATIONS OF INTRINSICALLY SAFE APPARATUS AND ASSOCIATED APPARATUS
THAT HAVE NOT BEEN EXAMINED AS A SYSTEM. EACH APPARATUS IS EXAMINED
SEPARATELY BY AN ATEX NOTIFIED BODY AND ASSIGNED A SET OF PARAMETERS
CALLED ENTITY PARAMETERS. THE ENTITY PARAMETERS FOR UDP(A-F), ANA(A,B,C),
485(D,E,F) (ASSOCIATED APPARATUS) CAN BE FOUND IN THE DIAGRAM TO THE
RIGHT. TO DETERMINE THE Ui, Ii, Ci, Li, AND Pi VALUES THE CONTROL DRAWING FOR
THE INTRINSICALLY SAFE APPARATUS SHALL BE USED. THE COMBINATION OF THE
INTRINSICALLY SAFE APPARATUS AND ASSOCIATED APPARATUS MUST COMPLY
WITH THE FOLLOWING:
Uo < Ui
Io <Ii
Po <Pi
Co > Ci + Ccable (SEE NOTE 3)
Lo > Li + Lcable (SEE NOTE 3)
7.
THE OUTPUT CURRENT OF THIS ASSOCIATED APPARATUS IS LIMITED BY A
RESISTOR SUCH THAT THE OUTPUT VOLTAGE-CURRENT PLOT IS A STRAIGHT LINE
DRAWN BETWEEN OPEN-CIRCUIT VOLTAGE AND SHORT-CIRCUIT CURRENT.
8.
ASSOCIATED APPARATUS MUST BE INSTALLED IN AN ENCLOSURE SUITABLE FOR
THE APPLICATION IN ACCORDANCE WITH THE NATIONAL AND LOCAL CODES, AS
APPLICABLE.
9.
INTRINSICALLY SAFE CIRCUITS MUST BE WIRED AND SEPARATED IN ACCORDANCE
WITH NATIONAL AND LOCAL CODES, AS APPLICABLE.
10.
THIS ASSOCIATED APPARATUS HAS NOT BEEN EVALUATED FOR USE IN
COMBINATION WITH ANOTHER ASSOCIATED APPARATUS.
}
EX CERTIFIED PRODUCT
~RELATED DOCUMENT~
NO MODIFICATIONS PERMITTED
WITHOUT APPROVAL FROM THE
ATHORIZED PERSON
