FreeLight S User manual

HD Video Camera
User Manual
V2.1
(English)

2
Preface
Thanks for using this HD Video Conferencing Camera.
This manual introduces the functions, installation process and operation of the HD camera. Prior to
installation and usage, please read the manual thoroughly.
Precautions
This product can only be used in the specified conditions in order to avoid any damage to the
camera:
Don’t subject the camera to rain or moisture.
Don’t remove the cover. Otherwise, you may get an electric shock. In case of abnormal
operation of equipment, contact the authorized engineer.
Never operate under unspecified temperature, humidity or power supply.
Please use soft dry cloth to clean the camera. If the camera is very dirty, clean it with diluted
neuter detergent; do not use any type of solvents, which may damage the surface.
Note
This is class A production. Electromagnetic radiation at specific frequencies may affect the image
quality of TV in home environment.
Copyright Notice
All contents of this manual, whose copyright belongs to our Corporation cannot be cloned,
copied or translated without the permission of the company. Product specifications and information
which were referred to in this document are for reference only. We may change, delete, or update any
content at any time and without prior notice.

3
Contents
Note.........................................................................................................................................................4
Supplied Accessories ...............................................................................................................................4
Quick Start...............................................................................................................................................5
Features ...................................................................................................................................................7
Product Specification...............................................................................................................................8
Main Unit ..............................................................................................................................................10
Size........................................................................................................................................................ 11
IR Remote Control Explanation.............................................................................................................12

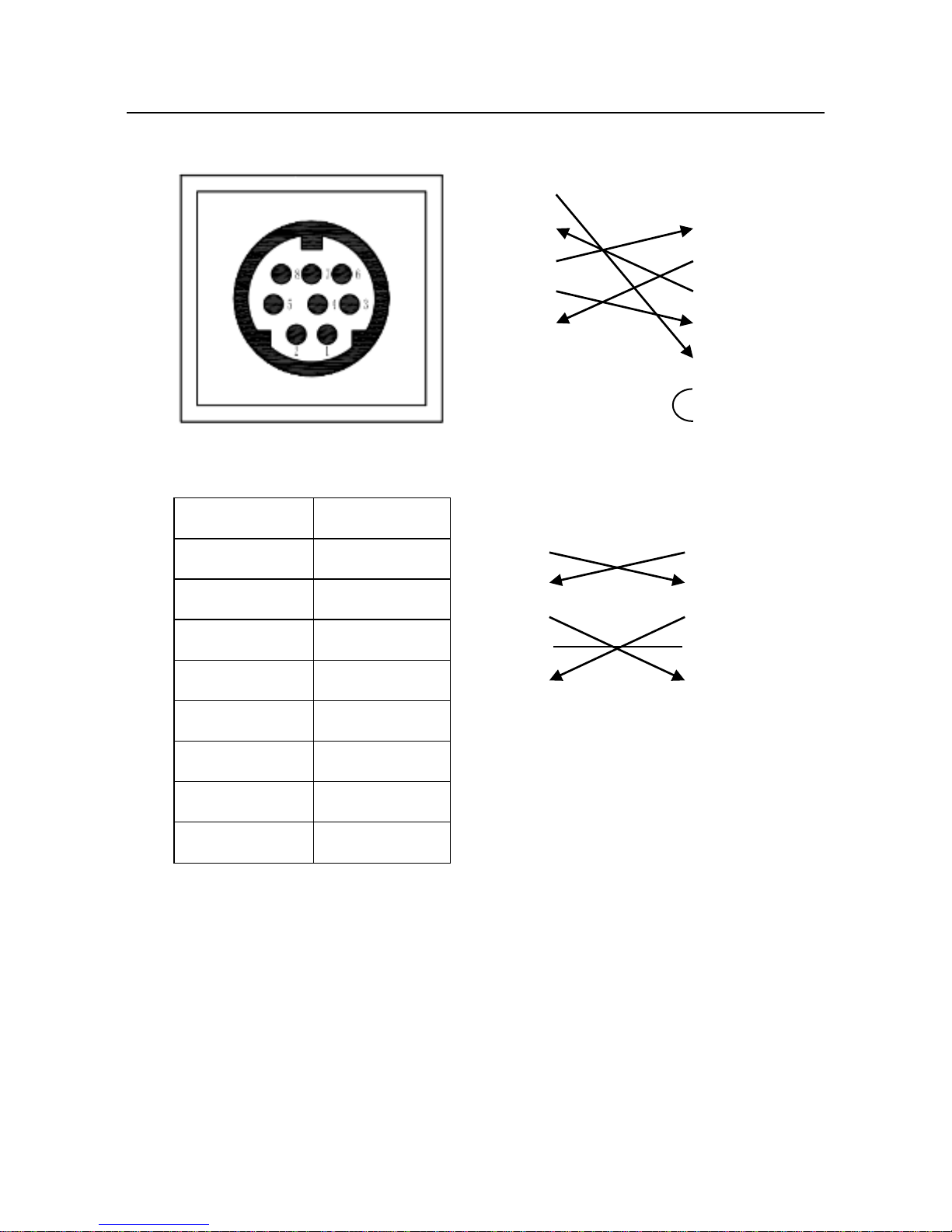

RS-232 Interface....................................................................................................................................14
VISCA Network Configuration .............................................................................................................15
Serial Communication Control ..............................................................................................................16
PTZ over TCP/UDP Realize.................................................................................................................. 16
Command List .......................................................................................................................................17
Menu Setting .........................................................................................................................................18
Maintenance and Troubleshooting.........................................................................................................32

4
Note
Electric Safety
Installation and operation must accord with electric safety standard.
Use caution to transport
Avoid stress, vibration or soakage in transport, storage and installation.
Polarity of power supply
The power supply of this product is +12V, the max electrical current is 2A .Polarity of the power
supply plug drawing shows as below.
Installation Precautions
Do not grasp the camera lens when carrying it. Don’t touch camera lens by hand. Mechanical
damage may be caused by doing so.
Do not use in corrosive liquid, gas or solid environment to avoid any cover (plastic material)
damage.
Make sure there is no obstacle within rotation range.
Never power on before installation is completed.
Do not dismantle the camera
We are not responsible for any unauthorized modification or dismantling.
CAUTION!
Specific frequencies of electromagnetic field may affect the image of the camera!
SuppliedAccessories
When unpacking, check if all supplied accessories are included:
Camera ......................................................... 1PCS
AC power adaptor.......................................... 1PCS
Power cord..................................................... 1PCS
RS232 cable................................................... 1PCS
Remote control............................................... 1PCS
User manual ................................................. 1PCS

5
Quick Start
Step1. Please Check if connections are correct before starting
Step2. Set the system select switch
Options of video format:
VIDEO SYSTEM
0
1080p60
8
720p30
1
1080p50
9
720p25
2
1080i60
A
-
3
1080i50
B
-
4
720p60
C
-
5
720p50
D
576i
6
1080p30
E
480i
7
1080p25
F
-

6
CAUTION:
a.After resetting the switches, camera needs to be restarted for the changes to take effect.
b.720 p30 and 720 p25 are available only under the HDMI output.
Step3. Press the ON/OFF switch on the right rear of the camera, power light on.
Step4. Pan-Tilt function rotates the camera to its maximum position of top right upon startup, then it
returns to the center, and the process of initialization is finished. (Note: if there is an entry for position
preset 0, the corresponding position preset 0 will be called up after initialization.)

7
Features
●H.265 Support
First H.265 encoding supporting conference video camera. It enables full HD 1080p60 video stream
with ultra-low bandwidth.
●1080P Full HD
Support Panasonic's 1/2.7 inch, 2.07 million effective pixels with high quality HD CMOS sensor. The
camera can reach a maximum of 1920 x 1080 high resolution and achieve high-quality image.
●Ultra-high Frame Rate
The output frame rate can be up to 60fps in 1080P, and up to 120fps in 720P (supported by network
only), and up to 240fps in 640x480P (supported by network only, optional).
●Face Detection
Built-in face detection module which enables PTZ tracking (optional).
●AACAudio Encoding
Support AAC audio encoding. Better sound quality and smaller bandwidth can be achieved.
●Local Storage
Support local storage. Video records can be directly stored to local USB flash disk without NVR.
●Low-light
High SNR of CMOS sensor combined with 2D and 3D noise reduction algorithm, effectively reduce
the noise. Even under low illumination conditions, clear images can still be acquired.
●Abundant & Perfect interface
Support HDMI output and 3G-SDI interface. Effective transmission can be performed within a
distance of up to 100 meters. Supports SD CVBS output.
●20x Optical + 32x Digital Zoom
Use TAMRON high-quality super telephoto lens, supporting 20x optical zoom and 32x digital zoom.
●Remote Control
Use RS232/485 interface. All parameters of the camera can be remotely controlled by the high-speed
communication.
●Freeze During Preset
Support "Freeze During Preset" function, can mask the image when calling the preset.

8
Product Specification
Camera
Video System
HD: 1080p/60, 1080p/50, 1080i/60, 1080i/50, 1080p/30, 1080p/25,
720p/60, 720p/50,720p30,720p25, 720p/120 (supported by S Model
only), 640x480p/240 (supported by S Model only, optional)
SD: NTSC, PAL
Sensor
1/2.7", CMOS, Effective Pixel: 2.07M
Scanning Mode
Progressive
Lens
20x, f4.42mm ~ 88.5mm, F1.8 ~ F2.8
Digital Zoom
16x (optional)
Minimal Illumination
0.05 Lux @ (F1.8, AGC ON)
Shutter
1/30s ~ 1/10000s
White Balance
Auto, 3000K/Indoor, 4000K,5000K/Outdoor,6500K-1,6500K-2,6500K-3,
One Push, Manual
Backlight Compensation
Support
Digital Noise Reduction
2D&3D Digital Noise Reduction
Video S/N
≥55dB
Horizontal Angle of View
60.7° ~ 3.36°
Vertical Angle of View
34.1° ~ 1.89°
Horizontal Rotation Range
±170°
Vertical Rotation Range
-30° ~ +90°
Pan Speed Range
1.7° ~ 100°/s
Tilt Speed Range
1.7° ~ 69.9°/s
H & V flip
Support
Image Freeze
Support
PoE
Support(optional)
Face Detection
Support (optional)
Local Storage
Support
Number of Preset
255
Preset Accuracy
0.1°

9
IPC Features
Video coding standard
H.265/H.264/MJEPG
Video Stream
First stream, Second stream
First stream resolution
1920x1080,1280x720,1024x576,960x540,640x480,640x360
Second stream resolution
1280x720,1024x576,720x576,720x408,640x360,480x270,320x240,320x
180
Bit Rate
128Kbps ~ 8192Kbps
Bit Rate Type
Variable rate, fixed rate
Frame Rate
50Hz: 1fps ~ 50fps, 60Hz: 1fps ~ 60fps, 720p120: 120fps (supported by
S Model only), 640x480p240: 240fps (supported by S Model only,
optional)
Audio standard
AAC
Audio rate
96K,128K,256k
Support protocols
TCP/IP, HTTP, RTSP, RTMP, multicast, DHCP, Onvif etc
Input/Output Interface
HD Output
1xHDMI: Version 1.3
1x3G-SDI: BNC type, 800mVp-p, 75Ω, Along to SMPTE 424M standard
SD Output
1xCVBS: RCA jack, 1Vp-p, 75Ω
Network interface
1xRJ45: 10/100/1000M Adaptive Ethernet ports
Audio Input
1-ch 3.5mm audio interface, Line In
USB
1xUSB2.0: type A jack (service only)
Communication interface
1xRS-232 IN: 8pin Min DIN, Max Distance: 30m, Protocol:
VISCA/Pelco-D/Pelco-P
1xRS-232 OUT: 8pin Min DIN, Max Distance: 30m, Protocol: VISCA
network use only
1xRS-485: 2pin Phoenix port, Max Distance: 1200m, Protocol:
VISCA/Pelco-D/Pelco-P
Power jack
JEITA type (DC IN 12V)
Generic Specification
Input Voltage
DC 12V / PoE (802.3af) (optional)
Current Consumption
1.0A (Max)

10
Operating Temperature
-10°C ~ 40°C (14°F ~ 104°F)
Storage Temperature
-40°C ~ 60°C(-40°F ~ 140°F)
Power Consumption
12W (Max)
MTBF
>30000h
Size
169mm x 142mm x 164mm
Net Weight
1.35Kg (3.0lb)
Main Unit
1. Audio LINE IN Interface 7. Network Interface
2. CVBS Interface 8. HDMI Interface
3. System select switch 9. SDI Interface
4. RS485 interface 10. USB2.0
5. RS232 IN interface 11. DC 12V jack
6. RS232 OUT interface 12. Power switch

11
Size

12
IR Remote Control Explanation
1. Standby Button
Press this button to enter standby mode.
Press it again to enter normal mode. (Note:
Power consumption in standby mode is
approximately half of the normal mode)
2. Position Buttons
To set or call preset.
3. *Button
Use with other buttons.
4. Set/ Preset Buttons
Set/ preset: store a preset position.
[SET/ PRESET] + Numeric button (0-9): set
a corresponding numeric key for the preset
position.
5. Pan-Tilt control Buttons
Press the Pan-Tilt buttons to move back to
the middle position
6. Back buttons
Press the OSD menu to return to the previous
page.
7. Zoom Buttons
Slow Zoom: Zoom In [+] or Zoom Out [-]
slowly.
Fast Zoom: Zoom In [+] or Zoom Out [-]
fast.
8. Pan-Tilt L/R set
Press 1 and 2 buttons to set the direction of the Pan-Tilt.
L/R Set +1[STD]: set the Pan-Tilt turn the same direction as the L/R Set.
L/R Set +2[REV]: set the Pan-Tilt turn the opposite direction to the L/R Set.
9. Focus Buttons
Use for focus adjustment.

13
Press [AUTO] to adjust the focus on the center of
the object automatically. To adjust the focus
manually, press [MANUAL]. Adjust focus with
[Far] (focus on far object) or [NEAR] (focus on
near object).
10. Camera Select Buttons
Press the button corresponding to the camera
being operated with the remote control.
11. # Button
Use with other buttons.
12. Camera IR Address Setup Buttons
[*]+[＃]+[F1]: Address1
[*]+[＃]+[F2]: Address2
[*]+[＃]+[F3]: Address3
[*]+[＃]+[F4]: Address4
13. Clear Preset Buttons
Clear preset: erase a preset position.
[CLEAR PRESET] + Numeric button (0-9)
individually.
Or: [*]+[#]+[CLEAR PRESET]: erase all the
preset positions.
14. Pan/Tilt Control Buttons
Press arrow buttons to perform panning and tilting.
Press [HOME] to reposition the camera back to
front.
15. MENU
MENU: enter or exit OSD MENU.
16. BLC (Backlight Compensation) Button
BLC ON/OFF: Press this button to enable the
backlight compensation. Press it again to disable
the backlight compensation. (NOTE: effective
only in auto exposure mode).
Note: if there is light source behind the subject,
the subject will become dark. In this case, press
the backlight ON/OFF button to adjust.
17. Pan/Tilt reset
Preset Pan/Tilt self-test.
18. Image freezing function
Manually freeze: Enable the freezing function
after pressing [F4] on the remote control. Display
"Freeze" on the upper left corner of the screen,
and disappear automatically after 5 seconds. Press
[F4] again to return to normal mode. Display
"Unfreeze" on the upper left corner of the screen,
and disappear automatically after 5 seconds.
Recall the Preset image Freeze：use "Recalling
the Preset image Freeze" function in the OSD
Menu. After the function is activated, the screen
pauses, and can be switched to any preset position
by pressing the corresponding number.
19. Shortcut Setup
[*]+[＃]+[1]: OSD menu default English
[*]+[＃]+[3]: OSD menu default Chinese
[*]+[＃]+[4]: Default IP address
[*]+[＃]+[5]: Save OSD
[*]+[＃]+[6]: Quick default reset
[*]+[＃]+[8]: Look up camera version
[*]+[＃]+[9]: Quick inversion setup

14
RS-232 Interface
Camera Windows DB-9
1.DTR 1.CD
2.DSR 2.RXD
3.TXD 3.TXD
4.GND 4.DTR
5.RXD 5.GND
6.GND 6.DSR
7.IR OUT 7.RTS
8.NC 8.CTS
9.RI
Camera Mini DIN
1.DTR 1.DTR
2.DSR 2.DSR
3.TXD 3.TXD
4.GND 4.GND
5.RXD 5.RXD
6.GND 6.GND
7.IR OUT 7.NC
8.NC 8.NC
No.
Function
1
DTR
2
DSR
3
TXD
4
GND
5
RXD
6
GND
7
IR OUT
8
NC

15
VISCANetwork Configuration

16
Serial Communication Control
In default working mode, the camera is able to connect to a VISCA controller with RS232C
serial interface.
RS232 Communication Control:
The camera can be controlled via RS232,the parameters of RS232C are as follows:
Bit rate: 2400/4800/9600 bit/s.
Start bit: 1 bit.
Data bit: 8 bits.
Stop bit: 1bit.
Parity bit: none.
RS485 Communication Control:
The camera can be controlled via RS485 in half-duplex mode:
Bit rate: 2400/4800/9600 bit/s.
Start bit: 1 bit.
Data bit: 8 bits.
Stop bit: 1bit.
Parity bit: none.
Pan-Tilt function rotates the camera to its maximum position of top right upon startup, then it
returns to the center, and the process of initialization is finished. (Note: if there is an entry for position
preset 0, the corresponding position preset 0 will be called up after initialization.) Then user can control
the camera with commands in the command list.
PTZ over TCP/UDP Realize
A TCP server is embedded in camera, port number 5678. When the user establishes a TCP
connection with the server, and sends a PTZ control command to the server, the server will parse and
execute the PTZ command.
A UDP server is embedded in camera, port number 1259. When the user sends a PTZ control
command, the server will parse and execute the PTZ command.

17
Command List
Ignore
Note:
The camera serial standard VISCA/Pelco-D/Pelco-P needs secondary development. If
VISCA/Pelco - D/Pelco - P protocol command is needed, please list in detail and contact the
manufacturer.

18
Menu Setting
1.MENU
Press [MENU] to display the main menu on
the screen. Use arrow buttons to move the cursor.
Press [HOME] to enter the corresponding
sub-menu.
2. EXPOSURE
Move the cursor to the Exposure in the main
menu and press [HOME], EXPOSURE menu
shows as below.
Mode: Exposure mode. Options: Auto,
Manual, SAE, AAE, Bright.
ExpCompMode: Exposure compensation
mode. Options: On, Off (Effective only in Auto
mode).
ExpComp: Exposure compensation value.
Options: -7 ~ 7(Effective only when
ExpCompMode is On)
Backlight: Set the backlight compensation.
Options: On, Off (Effective only in Auto mode)
Gain Limit: Maximum gain. Options: 0 ~ 15
(Effective only in Auto, AAE, Bright mode)
Anti-Flicker: Options: Off, 50Hz, 60Hz
(Effective only in Auto, Bright mode)
Meter: Options: Average, Center, Bottom,
Top
DRC: DRC strength. Options: 0 ~ 8.
EXPOSURE
Mode Auto
ExpCompMode On
ExpComp -1
Backlight Off
Gain Limit 3
Anti-Flicker 50Hz
Meter Average
DRC 3
Select Item
Change Value
[Menu] Back
MENU
Exposure
Color
P/T/Z
Noise Reduction
Setup
COMMUNICATION Setup
Restore Default
[Home] Enter
[Menu] Exit

19
Bright: Bright intensity control. Options:
00~17. (Effective only in Bright mode)
Iris: Aperture value. Options: F1.8, F2.0,
F2.4, F2.8, F3.4, F4.0, F4.8, F5.6, F6.8, F8.0, F9.6,
F11.0, Close (Effective only in Manual, AAE
mode)
Shut: Shutter value. Options: 1/30, 1/60, 1/90,
1/100, 1/125, 1/180, 1/250, 1/350, 1/500, 1/725,
1/1000, 1/1500, 1/2000, 1/3000, 1/4000, 1/6000,
1/10000 (Effective only in Manual, SAE mode)
3. COLOR
Move the cursor to the Color in the main
menu and press [HOME], COLOR menu shows as
below.
WB Mode: White balance mode. Options:
Auto, 3000K/Indoor, 4000K, 5000K/Outdoor,
6500K-1, 6500K-2, 6500K-3, One Push, Manual.
RG: Red gain. Options: 0~255 (Effective
only in Manual mode)
BG: Blue gain. Options: 0~255 (Effective
only in Manual mode)
RG Tuning: Red gain fine-tuning. Options:
-10 ~ +10 (Effective only when AWBsens is Low)
BG Tuning: Blue gain fine-tuning. Options:
-10 ~ +10 (Effective only when AWBsens is Low)
Saturation: Options: 60% ~ 200%.
Hue: Chroma adjustment. Options: 0 ~ 14.
AWBsens: White balance sensitivity. Options:
Normal, High, Low.
4. IMAGE
Move the cursor to the Image in the main menu
and press [HOME], IMAGE menu shows as
below.
COLOR
WB Mode Auto
RG Tuning +2
BG Tuning -1
Saturation 100%
Hue 7
AWB sens Low
Select Item
Change Value
[Menu] Back

20
Luminance: Brightness adjustment. Options:
0~14
Contrast: Contrast adjustment. Options: 0~14
Sharpness: Sharpness adjustment. Options:
Auto, 0~15
Flip-H: Image flipped horizontally. Options:
On, Off.
Flip-V: Image flips vertically. Options: On,
Off
B&W-Mode: Image color. Options: On, Off
Gamma: Options: Default, 0.45, 0.5, 0.56,
0.63
Style: Options: Norm, Clarity, Bright, Soft,
5S.
LDC: Options: On, Off.
Note:
1080p60 and 1080p50 do not support the lens
distortion.
5.P/T/Z
SpeedByZoom: The depth of field scale
adjustment. Options: On, Off
AF-Zone: Focusing area of interest. Options:
Top, Center, Bottom
AF-Sense: Automatic focusing sensitivity.
Options: Low, Normal, High
L/R Set: Options: STD, REV
Display Info: Options: On, Off
Image Freeze: Options: On, Off
Digital Zoom: Options: On, Off
Fast Zoom: Options: On, Off
P/T/Z
SpeedByZoom On
AF-Zone Center
AF-Sense High
L/R Set STD
Display Info On
Image Freeze Off
Fast Zoom Off
Select Item
Change Value
[Menu] Back
Luminance 7
Contrast 7
Sharpness 2
Flip-H Off
Flip-V Off
B&W-Mode Off
Gamma Default
Style Bright
LDC Off
Select Item
Change Value
[Menu] Back
